P4E-SMARTPIN-1Security/Remote Control Transmitter

Proximity Card Reader SmartID Ref. V1-102005 rev oct 2005 2 This manual is applicable for the following SmartID products: Partnumber • 800-8000 SmartID/EM4102 • 800-8001 SmartID/EM4102/pin • 800-8015 SmartID/Hitag1&2 • 800-8016 SmartID/Hitag1&2/RW • 800-8025 Mifare Serial number Reader/Rs232 • 800-8030 ISO14443-3 Mifare Sector reader • 800-8045 ISO14443-3 Mifare Sector reader+ pinpad • 800-8060 ISO14443-4 DESFire&Mifare rdr (PIV II) • 800-8075 ISO14443-4DESFire&MifarePINrdr (PIV II) Extra options for these readers, which are included in this manual, are: • 500-0300 Reader Tamper switch • 500-9287 SmartID/Mountingplate/Grey (Spacer) • 500-8090 SmartID/SPMD (Switch Box Mounting Device) 3 Approval If used according to the instructions, this radio system meets the basic requirements of article 3 and the remaining applicable conditions of the R&TTE directive (1999/5/E6) of March 1999. 4 Table of content: Features.............................................................5 Indications.........................................................6 Connections.......................................................6 Interface Coding.........Error! Bookmark not defined. Security..............................................................7 Specifications.....................................................8 Typical read range with an ISO Card......................8 Power Supply......................................................8 Current requirements...........................................8 Interface.............................................................8 Dimensions.........................................................8 Material..............................................................8 Operating temperature.........................................8 Certifications.......................................................9 Cable Distance.....................................................9 SIA recommended cable type for Wiegand signals..10 Cable................................................................10 Wiegand Signal Levels........................................10 Wiegand/Clock&Data ABA reads evaluation...........10 Timing..............................................................11 Installation instruction....................................12 Mullion Mounting (Drawing)..............................14 Connector Assignments....................................15 Tamper Switch (Drawing)..................................16 Mounting device (Drawing)................................17 Mounting Plate (Spacer) (Drawing)...................19 5 Features The Smart ID Reader has a slim door style mountable design to match any decor. The buried LED’s and buzzer allow the Smart ID Readers to be mounted indoors and outdoors. The Smart ID Reader accepts 4 to 16 Volts DC. The output formats like clock-and-data magstripe (ABA / ISO7811), Wiegand and a number of other formats are determined by the personalization of the card or configuration of the reader. The 5 Volt DC capability allows the replacement of older reader systems without rewiring or pulling new cables. The Smart ID Reader offers high reliability, consistent read characteristics and low power consumption. Within the Smart ID Proximity Reader Family also models with a RS232/RS422/RS485 interface are available for read-only and read/write operations. The Smart ID Reader Family supports both the 125KHz and 13.56MHz technologies. Different models are available for EM4002, EM4050, HiTAG1 and 2, Mifare, DESFire and I·Code technology. Standard capabilities include Host system controlled red and green LED’s and a buzzer. The Smart ID Reader can be mounted on any surface without relevant performance degradation. For mounting on a metal wall a spacer is advised. Our commitment is to bring non-propriety, open Radio Frequent Identification (RFID) systems to the market demonstrated with the Smart ID Reader Family. 6 Mullion mounting The Smart ID Readers can be mounted on a door mullion. Optional there is a mounting kit available in case the small Smart ID reader will be mounted over a wall box (mounting US back box, vertical 84 milimeter (3.31 inch), mounting European back box, horizontal 60 millimeter (2.36 inch)). Indications When a proximity card is decoded successfully the with the card associated code is send to the Host system and the buzzer sounds a short 3KHz beep. Both LED’s and the buzzer are also controllable by the Host system. Connections The Smart ID Reader Family has a flexible and reliable connector interface. The space for the cable and the connector within the Smart ID housing can be sealed with silicone to withstand harsh environmental conditions. Output protocols The Smart ID Reader Family can operate with any facility, system or card coding scheme. The output format, contents and length are determined by the personalization of the card or configuration of the reader. Output formats like magstripe, Wiegand and several others are available. 7 Security Depending on the model and the RF technology used the Smart ID Reader Family offers high security challenge response schemes to protect the RFID air interface against various attacks schemes like record & playback attacks. 8 Specifications Typical read range with an ISO Card EM4102 up to 7.5 cm (2.95 inch) Hitag1&2 up to 8 cm (3.15 inch) ISO14443 up to 3 cm (1.8 inch) ISO15693 up to 15 cm (5.91 inch) DESFire up to 2 cm (0.79 inch) Power Supply 4 – 16 Volt DC Current requirements Average 248 mA Peak 337 mA Interface Inputs EMC Prot. 10K ohm pull-ups Outputs EMC Prot. open drain 0.5 A/max Dimensions 142 x 46.2 x 25 mm (0.559 x 0.181 x 0.098 inch) Material SB housing with polyurethan potting Operating temperature -20° to 60° C (-4 to 140 Fahrenheit) 9 Certifications EN50022, CE, FCC FCC IDs: • ISO14443: SmartID/ISO14443/SNR/RS232 PX007Z/MFSNR/RS232 > P4E-SMARTPIN-1 • ISO14443-3: SmartID/ISO14443/Sect Classic/ISO14443/Sect > P4E-SMARTPIN-1 • DesFire: SmartID/DesFire Classic/DesFi…

Text truncated - open the document above for the full version.

To whom it may concern, This letter confirms the agreement that: TNO Electronic Products & Services (EPS) B.V. Smidshornerweg 18 9822 TL Niekerk The Netherlands Phone number: +31 594 505005 Fax number: +31 594 504814 is authorized as an agent for Integrated Engineering BV Paasheuvelweg 20 1105 BJ Amsterdam The Netherlands This agent authorization includes: -signing application forms and act on behalf of Integrated Engineering BV -receiving and exchanging data between Integrated Engineering BV and worldwide national authorities regarding the -certification of- and/or -arranging type approvals for the following product: proximity readers for access control and other purposes. This authorization will expire on December 31, 2006 or upon earlier written notice from Integrated Engineering BV. Yours sincerely,

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Request for confidentiality Date October 20, 2005 Our reference 05K0680 Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands TCB Telefication BV Certification Department Edisonstraat 12a 6902 PK Zevenaar The Netherlands Dear Mr. Jansen, Pursuant to section 0.457 of the FCC rules we herewith request the following exhibits, related to this application for FCC ID: P4E-SMARTPIN-1, to be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than Integrated Engineering and TNO Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Block diagram 4. theory of operation The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Best regards, TNO Electronic Products & Services (EPS) B.V. J. Schuurmans, B.Sc.E.E. Senior Engineer Telecom/EMC

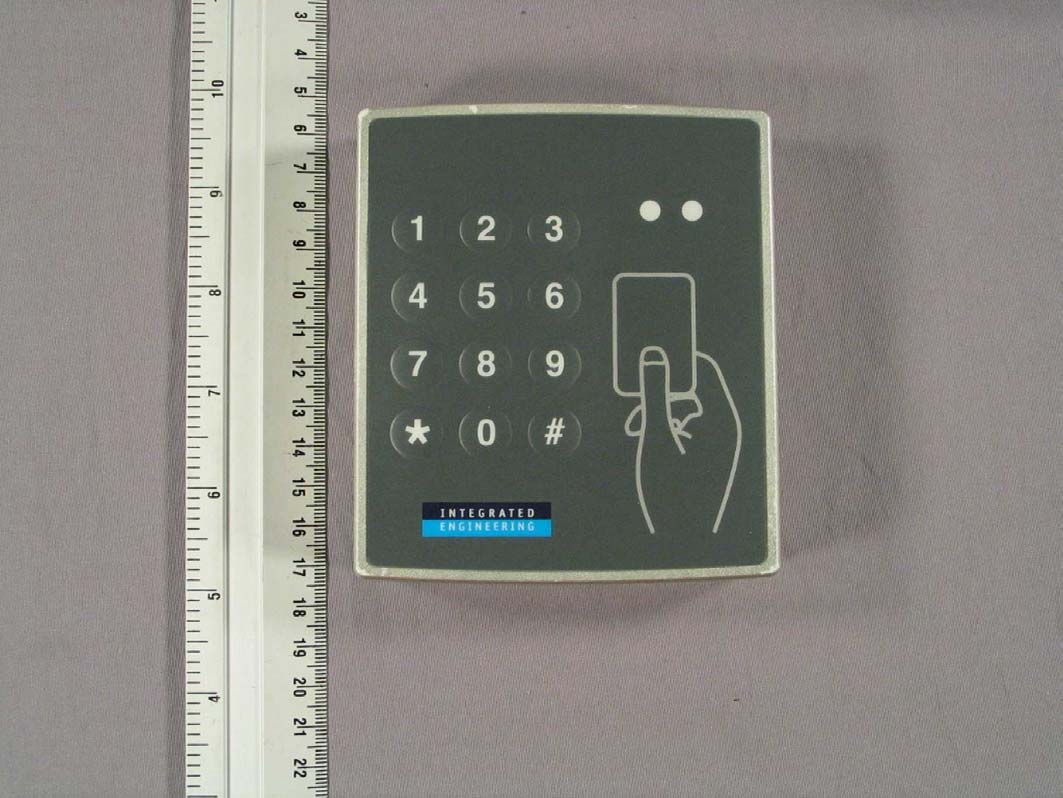

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 05090201.p02 Page 1 of 9 47 CFR PART 15 EXTERNAL PHOTOGRAPHS OF AN INDUCTIVE PROXIMITY CARD READER, BRAND INTEGRATED ENGINEERING, MODEL SMARTREADER/8PIN. FCC ID P4E-SMARTPIN-1 FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTPIN-1 Project number: 05090201.p02 Page 2 of 9 Description of test item Test item : Inductive proximity card reader operating on 13.56 MHz Manufacturer : Integrated Engineering B.V. Brand : Integrated Engineering Model (s) : SmartID, SmartPIN, SmartTOUCH, SmartID/Lighted, SmartIDLOGIN Applicant information Applicantís representative : Mr. R.J. Holslag Company : Integrated Engineering B.V. Address : Paasheuvelsweg 20 Postal code : 1105 BJ City : Amsterdam PO-box : n.a. Postal code : n.a. City : n.a. Country : The Netherlands Telephone number : + 31 (0)20 46 20 755 Telefax number : + 31 (0)20 46 20 756 Website address : www.smart-ID.com This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTPIN-1 Project number: 05090201.p02 Page 3 of 9 Table of contents 1 External Photos. .....................................................................................................................................................................4 1.1 External Photos Classic. .................................................................................................................................................4 1.2 External Photo SmartID .................................................................................................................................................5 1.3 External Photo SmartID/PIN ..........................................................................................................................................6 1.4 External Photo SmartID/LOGIN ....................................................................................................................................7 1.5 External Photo LIGHTED ..............................................................................................................................................8 1.6 External Photo SmartTOUCH. .......................................................................................................................................9 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTPIN-1 Project number: 05090201.p02 Page 4 of 9 1 External Photos. 1.1 External Photos Classic. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTPIN-1 Project number: 05090201.p02 Page 5 of 9 1.2 External Photo SmartID Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTPIN-1 Project number: 05090201.p02 Page 6 of 9 1.3 External Photo SmartID/PIN Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTPIN-1 Project number: 05090201.p02 Page 7 of 9 1.4 External Photo SmartID/LOGIN Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTPIN-1 Project number: 05090201.p02 Page 8 of 9 1.5 External Photo LIGHTED Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTPIN-1 Project number: 05090201.p02 Page 9 of 9 1.6 External Photo SmartTOUCH.

Label information for Brand: Integrated Engineering Model: SmartID or Classic or SmartTOUCH FCC-ID: P4E-SMARTPIN-1 Photo 1 The label will be attached to the bottom of the product. The statement on compatibility with Part 15 as meant in 47 CFR Part 15.19 (a) (3) will be in the information to the user. The size of the label is 20mm x 38mm. In line with 47 CFR 15.19, The label will be of polyester film or comparable material with indelibly imprinted marking, fastened by a permanent adhesive, such that detachment is not readily possible. The label is designed to last the expected lifetime of the equipment. Samples of identification label on the product: Classic/ISO14443/SNR/RS FCC-ID: P4E-SMARTPIN-1 <- FCC id Artno: 800-1083 V3.00 <- VERSION Serieno: 05.. . .... CE <- YEAR WEEK NUMBER, CE Conf: 01MFR-0031 <- CONFIGURATION (frontsticker, etc) SmartID/ISO14443/SNR/RS FCC-ID: P4E-SMARTPIN-1 <- FCC id Artno: 800-8025 V1.00 <- VERSION Serieno: 05.. . .... CE <- YEAR WEEK NUMBER, CE Conf: 01MFR-0031 <- CONFIGURATION (frontsticker, etc) SmartID/ISO14443-3/Sect FCC-ID: P4E-SMARTPIN-1 <- FCC id Artno: 800-8030 V4.14 <- VERSION Serieno: 0543 01234 CE <- YEAR WEEK NUMBER, CE Conf: Conf: 01MFC-1000 <- CONFIGURATION (frontsticker, etc) ISO14443-4/Lighted PIN reader FCC-ID: P4E-SMARTPIN-1 <- FCC id Artno: 800-8046 V0.0 <- VERSION Serieno: 05.. . .... CE <- YEAR WEEK NUMBER, CE Conf: 01LNL-3020 <- CONFIGURATION (frontsticker, etc) SmartTOUCH ISO14443/Mifare+DesFire FCC-ID: P4E-SMARTPIN-1 <- FCC id Artno: 800-8050 V0.0 <- VERSION Serieno: 05.. . .... CE <- YEAR WEEK NUMBER, CE Conf: 01LNL-3020 <- CONFIGURATION (frontsticker, etc) ISO14443-4 DESFire and Mifare reader (PIV II compliant) FCC-ID: P4E-SMARTPIN-1 <- FCC id Artno: 800-8060 V2.1 <- VERSION Serieno: 05.. . .... CE <- YEAR WEEK NUMBER, CE Conf: 01MFC-4110 <- CONFIGURATION (frontsticker, etc) ISO14443-4 DESFire and Mifare PIN reader FCC-ID: P4E-SMARTPIN-1 <- FCC id Artno: 800-8075 V2.1 <- VERSION Serieno: 05.. . .... CE <- YEAR WEEK NUMBER, CE Conf: 01MFC-4110 <- CONFIGURATION (frontsticker, etc)

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 05090201.p01 Page 1 of 9 47 CFR PART 15 INTERNAL PHOTOGRAPHS OF AN INDUCTIVE PROXIMITY CARD READER, BRAND INTEGRATED ENGINEERING, MODEL SMARTREADER/8PIN. FCC ID P4E-SMARTPIN-1 FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTIN-1 Project number: 05090201.p01 Page 2 of 9 Description of test item Test item : Inductive proximity card reader operating on 13.56 MHz Manufacturer : Integrated Engineering B.V. Brand : Integrated Engineering Model (s) : SmartID, SmartPIN, SmartTOUCH, SmartID/Lighted, SmartIDLOGIN Applicant information Applicantís representative : Mr. R.J. Holslag Company : Integrated Engineering B.V. Address : Paasheuvelsweg 20 Postal code : 1105 BJ City : Amsterdam PO-box : n.a. Postal code : n.a. City : n.a. Country : The Netherlands Telephone number : + 31 (0)20 46 20 755 Telefax number : + 31 (0)20 46 20 756 Website address : www.smart-ID.com This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTIN-1 Project number: 05090201.p01 Page 3 of 9 Table of contents 1 Internal Photos........................................................................................................................................................................4 1.1 Internal Photos (front). ...................................................................................................................................................4 1.2 Internal Photo (back). .....................................................................................................................................................5 1.3 Internal Photo LIGHTED (front)....................................................................................................................................6 1.4 Internal Photo LIGHTED (back). ...................................................................................................................................7 1.5 Internal Photo SmartTouch (front) ...............................................................................Error! Bookmark not defined. 1.6 Internal Photo SmartTOUCH (back). .............................................................................................................................9 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTIN-1 Project number: 05090201.p01 Page 4 of 9 1 Internal Photos. 1.1 Internal Photos (front). Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTIN-1 Project number: 05090201.p01 Page 5 of 9 1.2 Internal Photo (back). Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTIN-1 Project number: 05090201.p01 Page 6 of 9 1.3 Internal Photo LIGHTED (front). Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTIN-1 Project number: 05090201.p01 Page 7 of 9 1.4 Internal Photo LIGHTED (back). Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTIN-1 Project number: 05090201.p01 Page 8 of 9 1.5 Internal Photo SmartTouch (front) Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTIN-1 Project number: 05090201.p01 Page 9 of 9 1.6 Internal Photo SmartTOUCH (back). Note: The SmartTOUCH contains the PCBs of the bioscrypt reader (see section 1.6) and the smartreaderPCB see section 1.1 and 1.2. 1.7 Internal Photo SmartID/PIN and SmartID/LOGIN Note: These products are plastic housings containing only the PCB of the Smartreader/8pin see section 1.1 and 1.2.

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 050090201.FCC Page 1 of 22 TEST REPORT CONCERNING THE COMPLIANCE OF AN INDUCTUVE CARD READER OPERATING ON 13.56 MHZ, BRAND INTEGRATED ENGINEERING, MODEL SMARTREADER/8PIN WITH 47 CFR PART 15 (2004-09-21). FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2004-09-21) 13.56 MHz Inductive Card Reader Integrated Engineering Integrated Engineering Smart Touch P4E-SMARTPIN-1 Project number 05090201.FCC Page 2 of 22 MEASUREMENT/TECHNICAL REPORT Integrated Engineering B.V. Model : Smartreader/8pin FCC ID: P4E-SMARTPIN-1 October 14, 2005 This report concerns: Original grant/certification Class 2 change Verification Equipment type: Intelligent Substation Deferred grant requested per 47 CFR 0.457(d)(1)(ii) ? Yes No n.a. Report prepared by: Name : J. Schuurmans, B.Sc.E.E. Company name : TNO Electronic Products & Services (EPS) B.V. Address : Smidshornerweg 18 Postal code/city : 9822 ZG Niekerk Mailing address : P.O. Box 15 Postal code/city : 9822 TL Niekerk Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 and the measurement procedures of ANSI C63.4-1992. TNO Electronic Products & Services (EPS) B.V. at Niekerk, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: November 1, 2005 Signature: P.A.J.M. Robben, B.Sc.E.E. TNO Electronic Products & Services (EPS) B.V. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2004-09-21) 13.56 MHz Inductive Card Reader Integrated Engineering Integrated Engineering Smart Touch P4E-SMARTPIN-1 Project number 05090201.FCC Page 3 of 22 Description of test item Test item : 13.56 MHz Inductive Card Reader Manufacturer : Integrated Engineering B.V. Brand : Integrated Engineering Model : Smartreader/8pin Serial number(s) : 182120007 Revision : Not applicable Receipt date : September 2, 2005 Applicant information Applicant's representative : Ir. R. Holslag Company : Integrated Engineering Address : Paasheuvelweg 20 Postal code : 1105 BJ City : Amsterdam PO-box : - Postal code : - City : - Country : The Netherlands Telephone number : +31 (0) 20 46 20 755 Telefax number : +31 (0) 20 46 20 756 Test(s) performed Location : Niekerk Test(s) started : September 2, 2005 Test(s) completed : October 14, 2005 Purpose of test(s) : Equipment Authorisation (Certification). Test specification(s) : 47 CFR Part 15 (2004-09-21) Test engineers : J. Schuurmans, B.Sc.E.E. Report written by : J. Schuurmans, B.Sc.E.E. Report approved by : P.A.J.M. Robben, B.Sc.E.E. Report date : October 14, 2005 . This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2004-09-21) 13.56 MHz Inductive Card Reader Integrated Engineering Integrated Engineering Smart Touch P4E-SMARTPIN-1 Project number 05090201.FCC Page 4 of 22 Table of contents 1 General information. ..............................................................................................................................................................5 1.1 Product description.........................................................................................................................................................5 1.1.1 Introduction. ...........................................................................................................................................................5 1.2 Related submittal(s) and/or Grant(s). .............................................................................................................................5 1.3 Tested system details......................................................................................................................................................5 1.3.1 Description of input and output ports. ....................................................................................................................7 1.4 Test methodology. ..........................................................................................................................................................7 1.5 Test facility.....................................................................................................................................................................7 1.6 Product labeling..............................................................................................................................................................7 2 System test configuration. ......................................................................................................................................................8 2.1 Justification. ...................................................................................................................................................................8 2.2 EUT mode of operation. .......................................................................................…

Text truncated - open the document above for the full version.

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 05090201.p03 Page 1 of 14 47 CFR PART 15 TEST SETUP PHOTOGRAPHS OF AN INDUCTIVE PROXIMITY CARD READER, BRAND INTEGRATED ENGINEERING, MODEL SMARTREADER/8PIN. FCC ID P4E-SMARTPIN-1 FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTPIN-1 Project number: 05090201.p03 Page 2 of 14 Description of test item Test item : Inductive proximity card reader operating on 13.56 MHz Manufacturer : Integrated Engineering B.V. Brand : Integrated Engineering Model (s) : SmartID, SmartPIN, SmartTOUCH, SmartID/Lighted, SmartIDLOGIN Applicant information Applicantís representative : Mr. R.J. Holslag Company : Integrated Engineering B.V. Address : Paasheuvelsweg 20 Postal code : 1105 BJ City : Amsterdam PO-box : n.a. Postal code : n.a. City : n.a. Country : The Netherlands Telephone number : + 31 (0)20 46 20 755 Telefax number : + 31 (0)20 46 20 756 Website address : www.smart-ID.com This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTPIN-1 Project number: 05090201.p03 Page 3 of 14 Table of contents 1 Test setup photographs of radiated emission measurements. .................................................................................................4 1.1 Smartreader/8pin PCB....................................................................................................................................................4 1.2 SmartTOUCH.................................................................................................................................................................6 1.3 SmartID/Lighted.............................................................................................................................................................8 2 Test setup photographs of conducted emission measurements.............................................................................................10 2.1 Smartreader/8pin PCB..................................................................................................................................................10 2.2 SmartTOUCH...............................................................................................................................................................11 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTPIN-1 Project number: 05090201.p03 Page 4 of 14 1 Test setup photographs of radiated emission measurements. 1.1 Smartreader/8pin PCB. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTPIN-1 Project number: 05090201.p03 Page 5 of 14 Photo 1: close up radiated emission measurements. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering SmartReader/8pin P4E-SMARTPIN-1 Project number: 05090201.p03 Page 6 of 14 1.2 SmartTOUCH. Description of EUT: Manufacturer…

Text truncated - open the document above for the full version.
