P4E-SMARTPROX1113.56 MHz inductive proximity Card Reader

Integrated Engineering Smart ID Reader Family Model Desfire FCC ID P4E- SMARTPROX11 Specifications Typical read range with an ISO Card SmartID/EM4102 5 - 10 cm SmartID/ Hitag1&2 5 - 10 cm SmartID/ISO14443 2 - 5 cm SmartID/ISO15693 5 - 15 cm Power Supply 4.75 ñ 12.25 Volt DC Current requirements Average 50 mA Peak 160 mA Interface Inputs EMC Prot. 10Kohm pull-ups Outputs EMC Prot. open drain 0.5 A/max Dimensions 142 x 46 x 25 mm Material SB housing with polyurethan potting Operating temperature -20∞ to 60∞ C Certifications EN50022, CE, FCC Cable Distance 25 meter. Recommended cable 8 x 0.35 conductor stranded overall shield or equivalent. The Smart ID Reader has a slim door style mountable design to match any decor. The buried LEDís and buzzer allow the Smart ID Readers to be mounted indoors and out. The Smart ID Reader accepts 4.75 to 12.25 Volts DC. The output formats like clock-and- data magstripe (ABA / ISO7811), Wiegand and a number of other formats are determined by the personalization of the card and are emitted without customizing the Reader. The 5 Volt DC capability allows the replacement of older reader systems without rewiring or pulling new cables. The Smart ID Reader offers high reliability, consistent read characteristics and low power consumption. Within the Smart ID Proximity Reader Family also models with a RS232/RS422/RS485 interface are available for read and write operations. The Smart ID Reader Family supports both the 125KHz and 13.56MHz technologies. Different models are available for EM4002, EM4050, HiTAG1 and 2, Mifare and I•Code silicon. Standard capabilities include Host system controlled red and green LEDís and a buzzer. The Smart ID Reader can be mounted on any surface without relevant performance degradation. For mounting to a metal wall a spacer is advised. Our commitment is to bring non-propriety, open Radio Frequent Identification (RFID) systems to the market demonstrated with the Smart ID Reader Family. Features Mullion mounting The Smart ID Readers can be mounted on a door mullion. Optional there is a mounting kit available in case the small Smart ID reader will be mounted over a wall box (mounting US back box, vertical 84 milimeter, mounting European back box, horizontal 60 millimeter). Indications When a proximity card is decoded successfully the with the card associated code is send to the Host system and the buzzer sounds a short 3KHz beep. Both LEDís and the buzzer are also controllable by the Host system. Connections The Smart ID Reader Family has a flexible and reliable connector interface. The space for the cable and the connector within the Smart ID housing can be poured with silicone to withstand harsh environmental conditions. Interface Coding The Smart ID Reader Family can operate with any facility, system or card coding scheme. The output format, contents and length are determined by the personalization of the card. Output formats like magstripe, Wiegand and several others are available. Security Depending on the model and the silicon used the Smart ID Reader Family offers high security challenge response schemes to protect the RFID air interface against simulations of cards. Ref: V4.3 - 24/03/2004 Parts List 1) Reader 4.75-12.25 VDC qty 1 2) Terminal Connector 8 pins qty 1 3) Mounting cover qty 1 4) Mounting cap qty 1 5) Installation sheet qty 1 6) Mounting kit / back plate (optional) qty 1 7) Cable, 8 x 0.35 conductor as required Installation instruction 1) Determine an appropriate position for the Reader and drill two holes for mounting the reader to the surface (see diagram). Do not mount the readers less than 20 cm from each other. Make sure that enough room to connect the cable is allowed. Protect the cable against sharp edges and any damage from chaffing. 2) Remove the Terminal Connector 8 pins from the back of the Reader. Use a small flat head screwdriver to loosen off all of the terminals. The end of the cable should be prepared by cutting it back to expose the wires and each end should be twisted to eliminate any loose or frayed wires. 3) The wires should then be connected to the Reader inline with the Connector Assignments. 4) After wiring the reader and the Host system the Reader is ready to be tested. Apply power and present a Card to the Reader. The green LED should flash and the buzzer should beep indicating a read. If the Host system is connected to the red and green LED inputs these should follow the functionality of the Host system. 5) The Reader should now be secured to the surface using the appropriate screws. Mount the black cover (sticker) and mount the cap over the mounting hole. Mullion Mounting Connector Assignments Wiegand / Clock and Data SmartID/EM4102 SmartID/Hitag1&2 SmartID/DESFire SmartID/ISO14443-3 SmartID/ISO14443-3/pin SmartID/ISO14443/SNR SmartID/ISO15693/SNR 1 ! Green LED input 5 ! Buzzer input 2 ! Red LED input 6 NC 3 " Data / D1 7 ! Ground 4 " Clock / D0 8 ! Power RS232 SmartID/Hitag1&2/RW SmartID/DESFire/RO SmartID/ISO14443-3/Sect/RS SmartID/ISO14443/SNR/RS SmartID/ISO15693/SNR/RS 1 ! Green LED input 5 ! Do not connect 2 ! Red LED input 6 ! RS232 RXD 3 " Do not connect 7 ! Ground 4 " RS232 TXD 8 ! Power RS422 SmartID/ISO14443-3/Sect SmartID/ISO14443/SNR/RS SmartID/ISO15693/SNR/RS 1 ! Green LED input 5 ! RS422 RXA 2 ! Red LED input 6 ! RS422 RXB 3 " RS422 TXA 7 ! Ground 4 " RS422 TXB 8 ! Power Other FCC ID's are: • Hitag1&2: Smart ID/Hitag1&2 PX007Z/HX " P4EHPROX-02 • ISO14443: Smart ID/ ISO14443/SNR PX007Z/XXSNR " P4EI-MSNRPOX-02 • ISO 14443-3: Smart ID/ISO14443-3/Sect PX007Z/MF " P4EMPROX-03 Consult your National Authority if any authorization is needed for this product. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) that this device does not cause harmful interference, and 2) that this device must accept any interference received, including interference that may cause undesired operation. Integrated Engineering Amsterdam The Netherlands Ph…

Text truncated - open the document above for the full version.

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Cover letter Date March 25, 2004 Our reference 04K0268 Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands TCB Telefication BV Attn. Dhr. M. Jansen Edisonstraat 12a 6902 PK Zevenaar The Netherlands Dear Mr. Jansen On behalf of our customer Integrated Engineering, we hereby would like to apply for FCC certification of the following device: FCC ID : P4E-SMARTPROX11 Brand : Integrated Engineering Model number : Desfire Description : 13.56 MHz inductive proximity Card Reader The following PDF files (exhibits) are electronically submitted: 1. Cover letter (this letter). 2. Request for confidentiality 3. Test report(s) in conformity with 47 CFR Part 15 4. Bill of materials 5. Circuit diagram 6. Block diagram 7. Operational description 8. Interior photographs 9. Exterior photographs 10. Test setup photographs 11. Authorization letter 12. User manual 13. Label information 14. Form 731 15. Antenna information FYI: The Desfire is a product with a PCB in polyurethane potting, which can be fitted in three different housings. Photographs of these housings are provided in the exterior photograph exhibit. Included with the exhibits there is a declaration from the applicant stating that these housings are of plastic material only. Best regards, TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Date March 25, 2004 Our reference 04K0268 Your reference - Page 2 of 3 J. Schuurmans, B.Sc.E.E Senior Engineer Telecom/EMC

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Request for confidentiality Date March 24, 2004 Our reference 04K0269 Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands TCB Telefication BV Attn. Dhr. M. Jansen Edisonstraat 12a 6902 PK Zevenaar The Netherlands Dear Mr. Jansen, Pursuant to section 0.457 of the FCC rules we herewith request the following exhibits, related to this application for FCC ID: P4E-SMARTPROX11, to be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than Integrated Engineering and TNO Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Block diagram 4. theory of operation The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Best regards, TNO Electronic Products & Services (EPS) B.V. J. Schuurmans, B.Sc.E.E. Senior Engineer Telecom/EMC

To whom it may concern, This letter confirms the agreement that: TNO Electronic Products & Services (EPS) B.V. Smidshornerweg 18 9822 TL Niekerk The Netherlands Phone number: +31 594 505005 Fax number: +31 594 504814 is authorized as an agent for Integrated Engineering BV Paasheuvelweg 20 1105 BJ Amsterdam The Netherlands This agent authorization includes: -signing application forms and act on behalf of Integrated Engineering BV. -receiving and exchanging data between Integrated Engineering BV and worldwide national authorities regarding the -certification of- and/or -arranging type approvals for the following product range: proximity readers for access contol. This authorization will expire on December 31, 2004 or upon earlier written notice from Integrated Engineering. Yours sincerely, Ir R.J.Holslag

ANTENNA IN PRODUCTS, FCC ID P4E-SMARTPROX11 To whom it may concern, Amsterdam, March 24 th 2004 Integrated Engineering BV Paasheuvelweg 20 1105 BJ Amsterdam The Netherlands We declare that the antenna on the Legacy board mounted in the access control readers Classic/DesFire/XX, SmartID/DesFire/XX, Desktop/DesFire/XX, Login/DesFire/XX, Module/DesFire/XX, SmartID/DesFire/PIN/XX,, and SmartTOUCH/XX (XX stands for RO (read only), RW (read write), or other output options) is a magnetic loop antenna printed on the PCB. Yours sincerely, Ir R.J.Holslag

To whom it may concern, This letter confirms that IE Keyprocessor BV and Integrated Engineering BV are both companies (100% share) of IE Holding BV. Integrated Engineering BV was original a part of IE Keyprocessor BV. The reader knowhow, and the development group is now concentrated in Integrated Engineering BV. IE Keyprocessor will take care that this change of names will also be effected in the FCC identity administration. IE Keyprocessor BV Paasheuvelweg 20 1105 BJ Amsterdam The Netherlands IE Keyprocessor BV Integrated Engineering BV Yours sincerely, Ir R.J.Holslag

Label information for Brand: Intergrated Engineering Model: DESfire FCC-ID: P4E-SMARTPROX11 Photo 1 The label will be attached to the bottom of the product. The statement on compatability with Part 15 as meant in 47 CFR Part 15.19 (a) (3) will be in the information to the user. The size of the label is 20mm x 30mm. In line with 47 CFR 15.19, The label will be of polyester film or comparable material with indelibly inprinted marking, fastened by a permanent adhesive, such that detachment is not readily possible. The label is designed to last the expected lifetime of the equipment. Samples of identification label on the product: SmartID/DesFire/RO FCC-ID: P4E-SMARTPROX11 <- FCC id Artno: 500-8060 V1.1 <- VERSION Serieno: 04.. . .... CE <- YEAR WEEK NUMBER, CE Conf: 01MFR-0001 <- CONFIGURATION (frontsticker, etc) Classic/DesFire/RO FCC-ID: P4E-SMARTPROX11 <- FCC id Artno: 500-8061 V1.1 <- VERSION Serieno: 04.. . .... CE <- YEAR WEEK NUMBER Conf: 01MFR-0001 <- CONFIGURATION (frontsticker, etc) Desktop/DesFire/RO FCC-ID: P4E-SMARTPROX11 <- FCC id Artno: 500-8062 V1.1 <- VERSION Serieno: 04.. . .... CE <- YEAR WEEK NUMBER Conf: 01MFR-0001 <- CONFIGURATION (frontsticker, etc) Module/DesFire/RO FCC-ID: P4E-SMARTPROX11 <- FCC id Artno: 500-8063 V1.1 <- VERSION Serieno: 04.. . .... CE <- YEAR WEEK NUMBER Conf: 01MFR-0001 <- CONFIGURATION (frontsticker, etc)

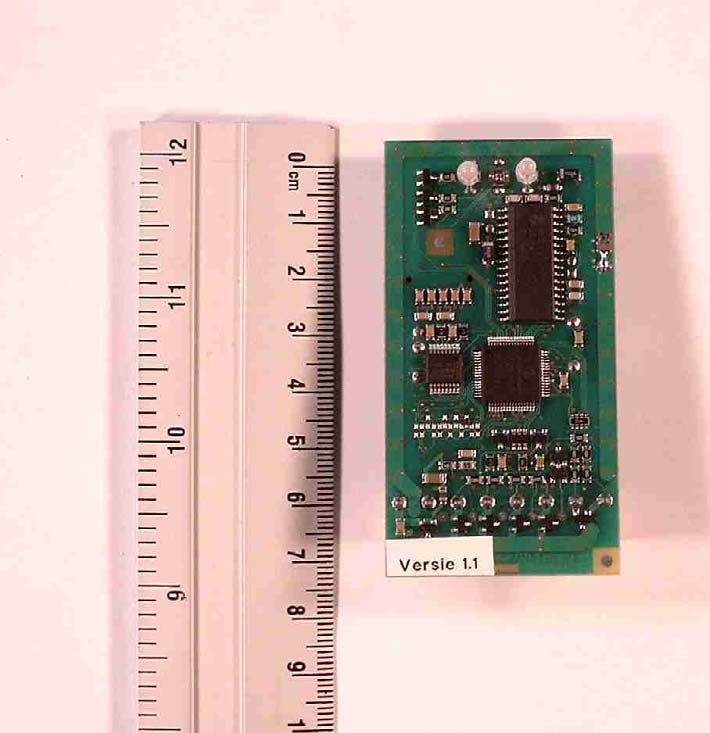

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 04020904.p01 Page 1 of 5 47 CFR PART 15 INTERNAL PHOTOGRAPHS OF AN INDUCTIVE PROXIMITY CARD READER, BRAND INTEGRATED ENGINEERING, MODEL DESFIRE. FCC ID P4E-SMARTPROX11 FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering DESfire P4E-SMARTPROX11 Project number: 04020904.p01 Page 2 of 5 Description of test item Test item : Inductive proximity card reader operating on 13.56 MHz Manufacturer : Integrated Engineering B.V. Brand : Integrated Engineering Model : Desfire Serial number : 0408510 Revision : n.a. Receipt number : 1 Receipt date : February 6, 2004 Applicant information Applicantís representative : Mr. R.J. Holslag Company : Integrated Engineering B.V. Address : Paasheuvelsweg 20 Postal code : 1105 BJ City : Amsterdam PO-box : n.a. Postal code : n.a. City : n.a. Country : The Netherlands Telephone number : + 31 (0)20 46 20 755 Telefax number : + 31 (0)20 46 20 756 Email address : [email protected] Website address : www.ieprox.com This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering DESfire P4E-SMARTPROX11 Project number: 04020904.p01 Page 3 of 5 Table of contents 1 Internal Photos. ........................................................................................................................................................................ 4 1.1 Internal Photos (front). .................................................................................................................................................... 4 1.2 Internal Photo (back) ....................................................................................................................................................... 5 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering DESfire P4E-SMARTPROX11 Project number: 04020904.p01 Page 4 of 5 1 Internal Photos. 1.1 Internal Photos (front). Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering DESfire P4E-SMARTPROX11 Project number: 04020904.p01 Page 5 of 5 1.2 Internal Photo (back)

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 04020904.r01 Page 1 of 16 TEST REPORT CONCERNING THE COMPLIANCE OF AN INDUCTIVE PROXIMITY CARD READER, BRAND INTEGRATED ENGINEERING, MODEL DESFIRE, WITH 47 CFR PART 15 (2003-12-08). FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2003-07-22) Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering DESfire P4E-SMARTPROX11 Project number: 04020904.r01 Page 2 of 16 MEASUREMENT/TECHNICAL REPORT Integrated Engineering B.V. Model : DESfire FCC ID: P4E-SMARTPROX11 March 24, 2004 This report concerns: Original grant/certification Class 2 change Verification Equipment type: Inductive proximity card reader operating on 13.56 MHz Deferred grant requested per 47 CFR 0.457(d)(1)(ii) ? Yes No n.a. Report prepared by: Name : J. Schuurmans Company name : TNO Electronic Products & Services (EPS) B.V. Address : Smidshornerweg 18 Postal code/city : 9822 ZG Niekerk Mailing address : P.O. Box 15 Postal code/city : 9822 TL Niekerk Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 and the measurement procedures of ANSI C63.4-1992. TNO Electronic Products & Services (EPS) B.V. at Niekerk, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: March 24, 2004 Signature: P.A.J.M. Robben, B.Sc.E.E. TNO Electronic Products & Services (EPS) B.V. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2003-07-22) Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering DESfire P4E-SMARTPROX11 Project number: 04020904.r01 Page 3 of 16 Description of test item Test item : Inductive proximity card reader operating on 13.56 MHz Manufacturer : Integrated Engineering B.V. Brand : Integrated Engineering Model : DESfire Serial number : 0408510 Revision : 1.1 Receipt number : 1 Receipt date : February 6, 2004 Applicant information Applicantís representative : Mr. R.J. Holslag Company : Integrated Engineering B.V. Address : Paasheuvelsweg 20 Postal code : 1105 BJ City : Amsterdam PO-box : n.a. Postal code : n.a. City : n.a. Country : The Netherlands Telephone number : + 31 (0)20 46 20 755 Telefax number : + 31 (0)20 46 20 756 Email address : [email protected] Website address : www.ieprox.com Test(s) performed Location : Niekerk Test(s) started : February 11, 2004 Test(s) completed : March 24, 2004 Purpose of test(s) : Type approval / certification Test specification(s) : 47 CFR Part 15 (2003-12-08) Test engineer : H.J. Pieters/J. Schuurmans Report written by : J. Schuurmans Project leader: : H.J. Pieters This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2003-07-22) Inductive proximity card reader Integrated Engineering B.V. Integrated Engineering DESfire P4E-SMARTPROX11 Project number: 04020904.r01 Page 4 of 16 Table of contents 1 General information................................................................................................................................................................. 5 1.1 Product description. ......................................................................................................................................................... 5 1.1.1 Introduction. ............................................................................................................................................................ 5 1.1.2 Choice of operating frequency. ............................................................................................................................... 5 1.1.3 Operating principles. ............................................................................................................................................... 5 1.2 Related submittal(s) and/or Grant(s). .............................................................................................................................. 5 1.3 Tested system details. ...................................................................................................................................................... 5 1.5 Test facility. ..................................................................................................................................................................... 6 1.6 Product labeling. .............................................................................................................................................................. 6 2 System test configuration. ....................................................................................................................................................... 7 2.1 Justification...................................................................................................................................................................... 7 2.2 EUT mode of operation. ............................................…
