MCT247 2.4GHz MODULAR TRANSCEIVER OEM INSTALLATION AND OPERATION MANUAL NOTE: THIS MODULE IS LIMITED TO OEM INSTALLATION ONLY July 27, 2020 HK/TH MCT247 TRANSCEIVER 1 INDEX DESCRIPTION ........................................................................... 2 OPERATION .............................................................................. 3 INSTALLATION ......................................................................... 4 BEFORE APPLYING POWER! ...................................................... 6 TROUBLESHOOTING ................................................................. 6 TRANSCEIVER PICTORIAL ........................................................ 6 SPECIFICATIONS ...................................................................... 8 INSTRUCTION TO THE USER ..................................................... 9 INDUSTRY CANADA STATEMENTS ........................................... 10 MCT247 TRANSCEIVER 2 DESCRIPTION The MCT247 is a frequency hopping spread spectrum transceiver module designed to be compatible with US (FCC CFR 47 Part 15 C (15.247)), Canadian (RSS-210), EU(RSS- 247 Issue 2/RSS-GEN Issue 5/ANSI C63.10:2013, IEC 62368-1:2014 (Second Edition)) and Australian() regulations for license free use in the 2.4 GHz ISM band from 2.407GHz to 2.470GHz. The MCT247 is designed for mobile and portable applications in accordance to Part 2.1091(b). The MCT247 complies with ISED Limit per RSS-102 Issue 5 for the uncontrolled RF Exposure of portable device. The MCT247 transceiver is only integrated into Kar-Tech remote control products by Kar-Tech, at Kar-Tech. There are no user serviceable parts on the MCT247 transceiver. The MCT247 is not for sale by itself. The MCT247 is not designed for multiple antenna applications and should not be used to transmit simultaneously with any other transmitter. The MCT247 is only certified to use the integrated wire antenna. If the OEM or other user requires further compliance beyond those listed above, the OEM or User is responsible for attaining such additional certifications. MCT247 TRANSCEIVER 3 OPERATION The MCT247 is a radio transceiver module for the 2.4 GHz ISM bands. The transceiver microcontroller includes a CPU, GPI/O, a fully integrated frequency synthesizer, a power amplifier, a modulator and a receiver unit. The MCT247 microcontroller serial port is connected to the host via protection circuits. The data is sent through a serial port to RF processor and then to RF circuit to the antenna and the data received from antenna is sent to the serial port and to the host. The microcontroller is responsible for the control of the entire communication. The MCT247 transceiver contains a DC regulator which generates a constant 1.8 VDC for the digital circuitry. The RF section runs on the 3.3V supply. The MCT247 uses Frequency Hopping Spread Spectrum, that uses 16 channels, between 2.407GHZ and 2.470GHZ with a 1MHz resolution. The receivers are matched to the transmitters to use the same channels and sequence as the transmitter’s signals. There are no test modes built in to the MCT247. Host code is to be used to ensure compliance. MCT247 TRANSCEIVER 4 INSTALLATION 1) Solder the MCT247 transceiver directly to the host’s compatible connector. 2) Print and attach the label as shown below: 3) Place a label on the outside of the host enclosure in a visible area. On the label, include the following: “Contains FCC ID: P4U- MCT247” and “Contains IC: 4534A-MCT247” 4) Connect the appropriate antenna. A ¼ wavelength wire antenna. 5) Once integrated into a final product, use a spectrum analyzer to make sure the product still complies. Look for: a. Peak Power < 20dBm b. Other peaks above 1GHz should be < 74dBuv/m. Below 1GHz, they should be < 40dBuV/m. MCT247 TRANSCEIVER 5 Application Requirements: A) Power the MCT247 Transceiver with 3.3VDC nominal voltage, with peak current draw of 150mA. B) Do not remove the shield on the MCT247. C) If you use something other than the wire antenna, the unit needs separate approval. D) The MCT247 can be installed in mobile or portable applications. See Part 2.1091 for definitions of mobile, portable and fixed applications. E)Do not operate the MCT247 without an antenna. F) Documentations: In the host’s User Manual include the following: a. That there are no user serviceable parts in the radio modules. They should not remove or install radio modules. b. The “Instructions To The User” section. c. The “Industry Canada Statement”. d. Include in the manual, “This device is granted for use in Mobile and Portable configurations, with no restrictions on antenna placement for exposure purposes.” MCT247 TRANSCEIVER 6 BEFORE APPLYING POWER! Check power and ground for proper polarity. Read the rest of this manual. TROUBLESHOOTING There are no user serviceable parts in the MCT247 Transceiver. Contact your KAR- TECH representative for further instructions or servicing. PARTS LIST PART NUMBER DESCRIPTION 021535C MCT247 RADIO TRANSCEIVER – WIRE ANTENNA There are no user-serviceable parts inside the transmitter or the receiver. Return the units for service. The information, specifications, and illustrations in this manual are those in effect at the time of printing. We reserve the right to change specifications or design at any time without notice. TRANSCEIVER PICTORIAL MCT247 TRANSCEIVER 7 1.8900 1.2500 1.1687 0.0900 0.1000 1 MCT247 TRANSCEIVER 8 Pinout Pin Function Pin Function Pin Function 1 GND 7 NC 13 NC 2 Not Used 8 Not Used 14 NC 3 GND 9 Not Used 15 NC 4 Not Used 10 NC 16 NC 5 Not Used 11 RXD 17 VIN 3.3V 6 NC 12 TXD 18 GND SPECIFICATIONS Equipment Class .............................. Part 15 Spread Spectrum Transmitter FCC ID .............................................................................. P4U-MCT247 ICC (Industry Canada Certification) ID .............................. 4534A-MCT247 TRANSCEIVER Power supply ........................................................................... 3.3VDC Operat…

Text truncated - open the document above for the full version.

Kar-Tech,Inc. AgentAuthorization Company:Kar-Tech,Inc. Address:111EnterpriseRoad,Delafield,WI53018 ProductName:MCT247 TradeMark:Kar-Tech ModelNumber(s):MCT247 FCCID:P4U-MCT247 WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2020-07-21 Name:HassanKarbassi Title:President Company:Kar-Tech,Inc.

FCCModularApprovalRequestRev3.0 FederalCommunicationsCommission EquipmentAuthorizationDivision 7435OaklandMillsRoad Columbia,MD21046 USA Date: Subject;ModularTransmitterApplication Companyname:Kar-Tech,Inc. FCCID:P4U-MCT247 DearSir/Madam, ThisletterincludestheFCCapplicationrequirementsforModularTransmitterApprovalRequest for;- FCCKDB996369D01‘ModuleCertificationGuidev02;and FCCKDB996369D03OEMManualv01 Inaccordancewith47CFR15.212ModularTransmittersandKDB996369D01‘ModuleEquip AuthGuidev02’.FCCIDP4U-MCT247hasbeenexaminedagainstthefollowingrequirements. Requirementper15.212andKDB996369D01ExplanationfromGrantee (donotwriteyes/no,butexplainwhyproduct complies/howitisachieved) Theradioelementsmusthavetheradiofrequencycircuitry shielded.Physicalcomponentsandtuningcapacitor(s)maybe locatedexternaltotheshield,butmustbeonthemodule assembly. Allpartsareshielded. Themodulemusthavebufferedmodulation/datainputstoensure thatthedevicewillcomplywithPart15requirementswithanytype ofinputsignal. AllincludedintheRFIC Themodulemustcontainpowersupplyregulationonthemodule. Itincludesnecessarycapsandfilters Themodulemustcontainapermanentlyattachedantenna,or containauniqueantennaconnector,andbemarketedand operatedonlywithspecificantenna(s),per§§15.203,15.204(b), 15.204(c),15.212(a),2.929(b). Antennapermanentlyattached. Themodulemustdemonstratecomplianceinastand-alone configuration. Testedforcompliance. ThemodulemustbelabeledwithitspermanentlyaffixedFCCID label,oruseanelectronicdisplay(seeKDBPublication784748). Thelabelisfixedontheshield Themodulemustcomplywithallspecificrulesapplicabletothe transmitter,includingalltheconditionsprovidedintheintegration instructionsbythegrantee. Voltagerating,frequencybands,number ofchannels,andpowerratingsis maintainedbyourhost. ThemodulemustcomplywithRFexposurerequirements Testedforcompliance. FCCModularApprovalRequestRev3.0 IntegrationInstructionsforhostproductmanufacturers ThefollowingitemsaresubmittedinsupportofapplicationforModularTransmitterFCCIDas notedaboveasrequiredbytheFCCKDB996369D03OEMManualv01. Theseitemsareprovidedasintegrationinstructionsforhostproductmanufacturers(e.g.,OEM instructionmanual)tousewhenintegratingamoduleinahostproduct. AnyrequirementsthatarenotapplicabletotheModuleareasindicatedbelow. SummaryofrequirementsandChecklist.RefertotheKDBfordescriptionofthecompleterequirements; KDB RefSect RequirementsofKDB996369D03UserManualPageNumber reference 2.2ListofapplicableFCCrulesPAGE12 2.3SummarizethespecificoperationaluseconditionsPAGE12 2.4LimitedmoduleproceduresPAGE12 2.5TraceantennadesignsPAGE12 2.6RFexposureconsiderationsPAGE12 2.7AntennasPAGE12 2.8LabelandcomplianceinformationPAGE12 2.9Informationontestmodesandadditionaltesting requirements PAGE12 2.10Additionaltesting,Part15SubpartBdisclaimerPAGE12 Name:HassanKarbassiDate:7/28/2020 Title:President Signatureofapplicant

Kar-Tech,Inc. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2020-07-21 Subject;RequestforConfidentiality FCCID:P4U-MCT247 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:HassanKarbassi Title:President

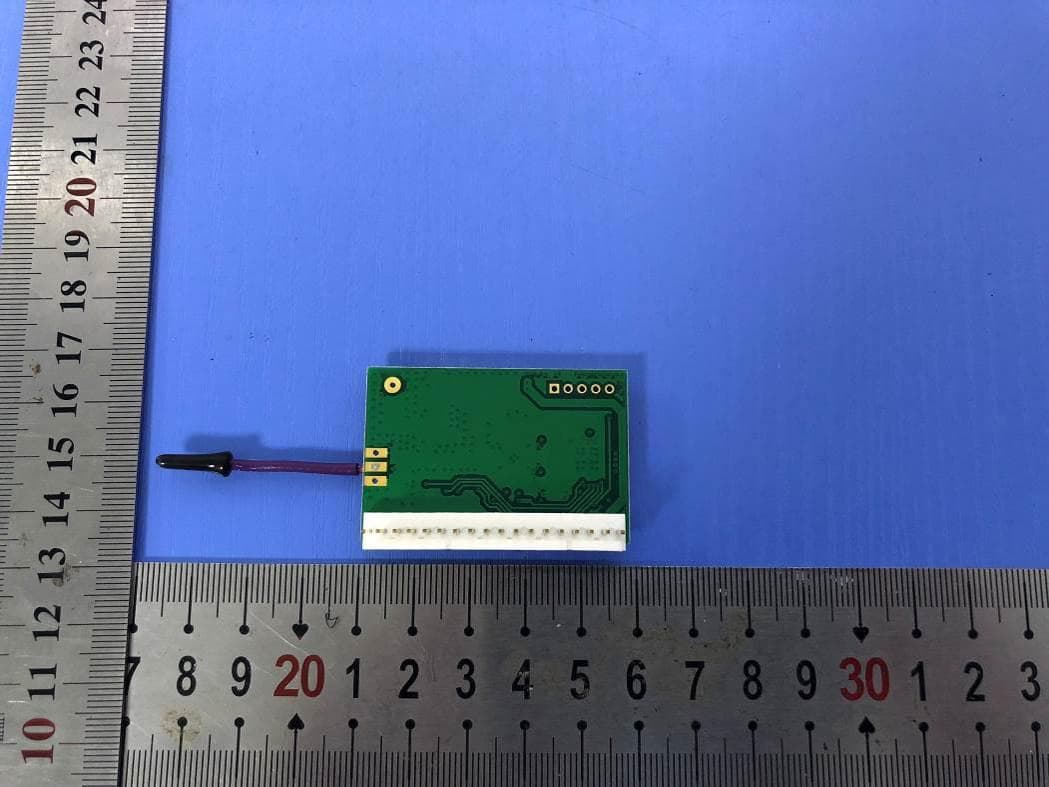

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247IC:4534A-MCT247 8.EXTERIORPHOTOGRAPHS Fig.1 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247IC:4534A-MCT247 Fig.2

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247IC:4534A-MCT247 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of1 LabelandLocation Size:L2.0cm*W1.2cm LabelLocation

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247IC:4534A-MCT247 9.INTERIORPHOTOGRAPHS Fig.1 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247IC:4534A-MCT247 Fig.2

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247 ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 3 FCCRFExposureEvaluation 1.ProductInformation FCCID: P4U-MCT247 EUT: MCT247 TestModel: MCT247 PowerSupply: DC3.3V HardwareVersion: A SoftwareVersion: A SRD: Operationfrequency:2407MHz-2470MHz ChannelNumber: 64Channels 2407~2467MHzforHopone； 2408~2468MHzforHoptwo； 2409~2469MHzforHopthree； 2410~2470MHzforHopfour； ChannelSpacing: 1MHz ModulationType: GFSK AntennaDescription:WIPMonopoleantenna,1.1dBi(Max.) Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:Portable,DeviceorfixedDevice 2.EvaluationmethodandLimit AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSARtest exclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures, standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions, bymeasurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTestExclusion Thresholdcondition,listedbelow,issatisfied.Thesetestexclusionconditionsarebasedonsource-based time-averagedmaximumconductedoutputpoweroftheRFchannelrequiringevaluation,adjustedfor tune-uptolerance,andtheminimumtestseparationdistancerequiredfortheexposureconditions.22The minimumtestseparationdistanceisdeterminedbythesmallestdistancefromtheantennaandradiating structuresoroutersurfaceofthedevice,accordingtothehostformfactor,exposureconditionsand platformrequirements,toanypartofthebodyorextremityofauserorbystander(see5)ofsection4.1). ToqualifyforSARtestexclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustified bytheoperatingconfigurationsandexposureconditionsofthetransmitterandapplicablehostplatform requirements,typicallyintheSARmeasurementorSARanalysisreport,accordingtotherequiredpublished RFexposureKDBprocedures.WhennootherRFexposuretestingorreportingisrequired,astatementof justificationandcompliancemustbeincludedintheequipmentapproval,inlieuoftheSARreport,to qualifyfortheSARtestexclusion.Whenrequired,thedevicespecificconditionsdescribedintheother publishedRFexposureKDBproceduresmustbesatisfiedbeforeapplyingtheseSARtestexclusion SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247 ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 3 provisions;forexample,handheldPTTtwo-wayradios,handsets,laptops&tabletsetc.“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]·[√f(GHz)] ≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: •f(GHz)istheRFchanneltransmitfrequencyinGHz •PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison •3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mmandfor transmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5 mm,adistanceof5mmaccordingtof)insection4.1isappliedtodetermineSARtestexclusion. Whenoneofthefollowingtestexclusionconditionsissatisfiedforallcombinationsofsimultaneous transmissionconfigurations,furtherequipmentapprovalisnotrequiredtoincorporatetransmitter modulesinhostdevicesthatoperateinthemixedmobileandportablehostplatformexposureconditions. ThegranteeisresponsiblefordocumentingthisaccordingtoClassIpermissivechangerequirements. AntennasthatqualifyforstandaloneSARtestexclusionmustapplytheestimatedstandaloneSARto determinesimultaneoustransmissiontestexclusion. a)The[∑of(thehighestmeasuredorestimatedSARforeachstandaloneantennaconfiguration,adjusted formaximumtune-uptolerance)/1.6W/kg]+[∑ofMPEratios]is≤1.0. b)TheSARtopeaklocationseparationratiosofallsimultaneouslytransmittingantennapairsoperatingin portabledeviceexposureconditionsareall≤0.04,andthe[∑ofMPEratios]is≤1.0. 3.ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequency ElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01GeneralRFExposureGuidancev06:MobileandPortableDevicesRFExposure ProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1093:Radiofrequencyradiationexposureevaluation:portabledevices 4. ConductedPowerResults [SRDMaxPeakConductedPower] ModeChannelFrequency(MHz) MaxConductedPower (dBm) GFSK Low24074.891 Middle24385.007 High24704.033 5.ManufacturingTolerance [SRDMaxConductedPower] TestModeChannel MaxConductedPower (dBm) ANTMax.TuneUp Power(dBm) GFSK LCH4.8914.0±1.0 MCH5.0075.0±1.0 HCH4.0334.0±1.0 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247 ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 3 of 3 6.EvaluationResults 6.1StandaloneEvaluation Band/Modef(GHz) Antenna Distance (mm) RFoutputpowerSARTest Exclusion Threshold SARTest Exclusion dBmmW GFSK2.4383663.98110.1727<3.0Yes Remark: 1.Outputpowerincludingtuneuptolerance; 2.Whentheminimumtestseparationdistanceis<5mm,adistanceof5mmaccordingtof)insection4.1is appliedtodetermineSARtestexclusion. 6.2SimultaneousTransmissionforSARExclusion ThesamplesupportonlyoneSRDmodular.Noneedconsidersimultaneoustransmission. 7.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1093fortheuncontrolledRFExposure andSARExclusionThresholdperKDB447498v06. .......................THEENDOFREPORT.........................

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page1of24 AppendixA RFTestDataforSRD(ConductedMeasurement) ProductName:MCT247 TradeMark:Kar-Tech TestModel:MCT247 EnvironmentalConditions Temperature: 24.6  C RelativeHumidity:52.3% ATMPressure:100.0kPa TestEngineer:Diamond.Lu Supervisedby:Tom.Liu A.1MaxmumConductedPeakOutputPower ModeChannel.MaximumPeakOutputPower[dBm]Limit[dBm]Verdict GFSK LCH4.89121PASS MCH5.00721PASS HCH4.03321PASS TestGraphs GFSK/LCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page2of24 GFSK/MCH GFSK/HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page3of24 A.220dBBandwidth ModeChannel.20dBBandwidth[MHz]Limit[MHz]Verdict GFSK LCH1.044NotSpecifiedPASS MCH1.034NotSpecifiedPASS HCH1.018NotSpecifiedPASS TestGraphs GFSK/LCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page4of24 GFSK/MCH GFSK/HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page5of24 A.3CarrierFrequencySeparation ModeChannel.CarrierFrequencySeparation[MHz]Limit[MHz]Verdict GFSK HOP13.9300.696PASS HOP23.6900.696PASS HOP33.6780.696PASS HOP43.7440.696PASS TestGraphs GFSK/HOP1 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page6of24 GFSK/HOP2 GFSK/HOP3 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page7of24 GFSK/HOP4 A.4HoppingChannelNumber ModeChannel.NumberofHoppingChannel[N]Limit[N]Verdict GFSKHop116>=15PASS GFSKHop216>=15PASS GFSKHop316>=15PASS GFSKHop416>=15PASS SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page8of24 TestGraphs GFSK/HOP1 GFSK/HOP2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page9of24 GFSK/HOP3 GFSK/HOP4 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page10of24 A.5DwellTime ModeChannel BurstWidth [ms/hop/ch] Total Hops[hop*ch] DwellTime[s]Limit[s]Verdict GFSK LCH 1.40130.01820.4 PASS MCH 1.40130.01820.4 PASS HCH 1.40130.01820.4 PASS TestGraphs GFSK/LCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page11of24 GFSK/MCH GFSK/HCH SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page12of24 A.6RFConductedSpuriousEmissions ModeChannelPref[dBm]Max.Level[dBm]Limit[dBm]Verdict GFSK LCH5.399 -46.388-14.60 PASS MCH4.159-48.707-15.87PASS HCH3.340-48.927-16.66PASS GFSK_LCH_Graphs Pref SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page13of24 Puw SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page14of24 GFSK_MCH_Graphs Pref Puw SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page15of24 GFSK_HCH_Graphs Pref Puw SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page16of24 A.7Band-edgeforRFConductedEmissions ModeChannel Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH2407 5.586Off-52.023-14.41 PASS 5.242Hop1-46.587-14.79 PASS 5.305Hop2-46.707-14.70 PASS 5.192Hop3-51.774-14.81 PASS 5.346Hop4-51.261-14.65 PASS HCH2470 3.756Off-56.990-16.24 PASS 4.561Hop1-56.978-15.72 PASS 4.349Hop2-56.875-15.65 PASS 4.268Hop3-55.810-15.73 PASS 4.475Hop4-57.480-15.53 PASS SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page17of24 TestGraphs GFSK/LCH/NoHop GFSK/LCH/Hop1 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page18of24 GFSK/LCH/Hop2 GFSK/LCH/Hop3 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page19of24 GFSK/LCH/Hop4 GFSK/HCH/NoHop SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page20of24 GFSK/HCH/Hop1 GFSK/HCH/Hop2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page21of24 GFSK/HCH/Hop3 GFSK/HCH/Hop4 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page22of24 A.8Restrict-bandband-edgemeasurements Test Mode HoppingFreq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/m] Verdict GFSK Off2310.048.942.0050.79PEAK74PASS Off2310.036.092.0037.89AV54PASS Off2390.050.272.0053.94PEAK74PASS Off2390.039.632.0040.26AV54PASS Off2483.549.202.0049.82PEAK74PASS Off2483.539.122.0038.14AV54PASS Off2500.047.972.0050.19PEAK74PASS Off2500.036.522.0038.03AV54PASS Restrict-bandband-edgemeasurements_2407_PEAK Restrict-bandband-edgemeasurements_2407_AV SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page23of24 Restrict-bandband-edgemeasurements_2470_PEAK Restrict-bandband-edgemeasurements_2470_AV SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Page24of24

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of34 FCCTESTREPORT FOR Kar-Tech,Inc. MCT247 TestModel:MCT247 Preparedfor:Kar-Tech,Inc. Address: 111EnterpriseRoad,P.O.Box180606,Delafield,Wisconsin 53018,UnitedStates Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 101,201BldgA&301BldgC,JujiIndustrialParkShajingStreet, BaoanDistrict,Shenzhen,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:June17,2020 Numberoftestedsamples:1 Serialnumber:Prototype DateofTest:June17,2020~June24,2020 DateofReport:June30,2020 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page2of34 FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCS200612004AEA DateofIssue.......................................:June30,2020 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................: 101,201BldgA&301BldgC,JujiIndustrialParkShajingStreet, BaoanDistrict,Shenzhen,China TestingLocation/Procedure............ : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................: Kar-Tech,Inc. Address................................................: 111EnterpriseRoad,P.O.Box180606,Delafield,Wisconsin 53018,UnitedStates TestSpecification Standard..............................................:FCCCFR47PART15C(15.247) TestReportFormNo.........................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. TestItemDescription.....................:MCT247 TradeMark..........................................:Kar-Tech TestModel...........................................:MCT247 Ratings.................................................:DC3.3V Result..................................................:Positive Compiledby:Supervisedby:Approvedby: JackLiu/AdministratorsJinWang/TechniqueprincipalGavinLiang/Manager SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of34 FCC--TESTREPORT TestResult Positive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCS200612004AEA June30,2020 Dateofissue TestModel...........................:MCT247 EUT.........................................:MCT247 Applicant...............................:Kar-Tech,Inc. Address..................................: 111EnterpriseRoad,P.O.Box180606,Delafield,Wisconsin 53018,UnitedStates Telephone...............................:/ Fax..........................................:/ Manufacturer........................:Kar-Tech,Inc. Address...................................: 111EnterpriseRoad,P.O.Box180606,Delafield,Wisconsin 53018,UnitedStates Telephone...............................:/ Fax..........................................:/ Factory...................................:/ Address...................................:/ Telephone...............................:/ Fax..........................................:/ SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of34 RevisionHistory RevisionIssueDateRevisionsRevisedBy 000June30,2020InitialIssueGavinLiang SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:P4U-MCT247ReportNo.:LCS200612004AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page5of34 TABLEOFCONTENTS DescriptionPage 1.GENERALINFORMATION.....................................................................................................6 1.1DescriptionofDevice(EUT)..........................................................................................................6 1.2SupportequipmentList...................................................................................................................7 1.3ExternalI/OCable...........................................................................................................................7 1.4DescriptionofTestFacility.............................................................................................................7 1.5StatementoftheMeasurementUncertainty................................................................................8 1.6MeasurementUncertainty..............................................................................................................8 1.7DescriptionofTestModes.............................................................................................................8 2.TESTMETHODOLOGY..........................................................................................................9 2.1EUTConfiguration...........................................................................................................................9 2.2EUTExercise............................................................…
