Bluetooth Wireless Speaker Model No.: BTS68 Introduction Power USB Power Requires a Mini USB to USB cable (included). Note: PC must not be in sleep mode. Initial charge time 4 hours using USB cable. Please make sure the unit is fully charged before use. Pairing a Bluetooth Device 1. Turn on the unit. The Pairing Indicator will flash blue quickly. When pairing, remain within 3 feet of the unit. 2. Using the native controls on your Bluetooth device, select the “BTS68” in your Bluetooth settings to pair. 3. When successfully paired and connected, the Pairing Indicator will display a solid blue light and a beep will sound from the unit. After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device. Playing Audio Wirelessly 1. Follow the instructions for Pairing a Bluetooth Device. 2. Use the native controls on the connected Bluetooth device to select a track. 3. To play, pause or skip the selected track, use the native controls on the connected Bluetooth device. 4. Audio played through the connected Bluetooth device will now be heard through the speakers. 5. To adjust the volume, use the native controls on the connected Bluetooth device. Using the 3.5mm Audio Input 1. Plug one end of a 3.5mm audio input cable (not included) into the 3.5mm Audio Input on the unit. 2. Plug the other end of the cable into the audio output/headphone output on an MP3 Player or other audio source. 3. Turn the unit on. 4. Audio played through the connected device will now be heard through the speakers. Note: Any audio being played through a connected Bluetooth Device will cease once the 3.5mm Audio source is connected. PAIR ON OFF Power Adjust the switch to turn the unit on or off. Always be sure to switch to the OFF position when not in use. Charging Indicator Mini USB Port 3.5mm Audio Input Requires a 3.5mm audio cable (not included) Pair Indicator Pair Press to wake the Bluetooth signal NOTE: Changes or Modifications not expressly approved by the party responsible could void the user's authority to operate this device. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Bluetooth Wireless Speaker Model No.: BTS68 Introduction Power USB Power Requires a Mini USB to USB cable (included). Note: PC must not be in sleep mode. Initial charge time 4 hours using USB cable. Please make sure the unit is fully charged before use. Pairing a Bluetooth Device 1. Turn on the unit. The Pairing Indicator will flash blue quickly. When pairing, remain within 3 feet of the unit. 2. Using the native controls on your Bluetooth device, select the “BTS68” in your Bluetooth settings to pair. 3. When successfully paired and connected, the Pairing Indicator will display a solid blue light and a beep will sound from the unit. After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device. Playing Audio Wirelessly 1. Follow the instructions for Pairing a Bluetooth Device. 2. Use the native controls on the connected Bluetooth device to select a track. 3. To play, pause or skip the selected track, use the native controls on the connected Bluetooth device. 4. Audio played through the connected Bluetooth device will now be heard through the speakers. 5. To adjust the volume, use the native controls on the connected Bluetooth device. Using the 3.5mm Audio Input 1. Plug one end of a 3.5mm audio input cable (not included) into the 3.5mm Audio Input on the unit. 2. Plug the other end of the cable into the audio output/headphone output on an MP3 Player or other audio source. 3. Turn the unit on. 4. Audio played through the connected device will now be heard through the speakers. Note: Any audio being played through a connected Bluetooth Device will cease once the 3.5mm Audio source is connected. PAIR ON OFF Power Adjust the switch to turn the unit on or off. Always be sure to switch to the OFF position when not in use. Charging Indicator Mini USB Port 3.5mm Audio Input Requires a 3.5mm audio cable (not included) Pair Indicator Pair Press to wake the Bluetooth signal NOTE: Changes or Modifications not expressly approved by the party responsible could void the user's authority to operate this device. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

The 4 models are the same, just different model no.

The 4 models are the same, just different model no.

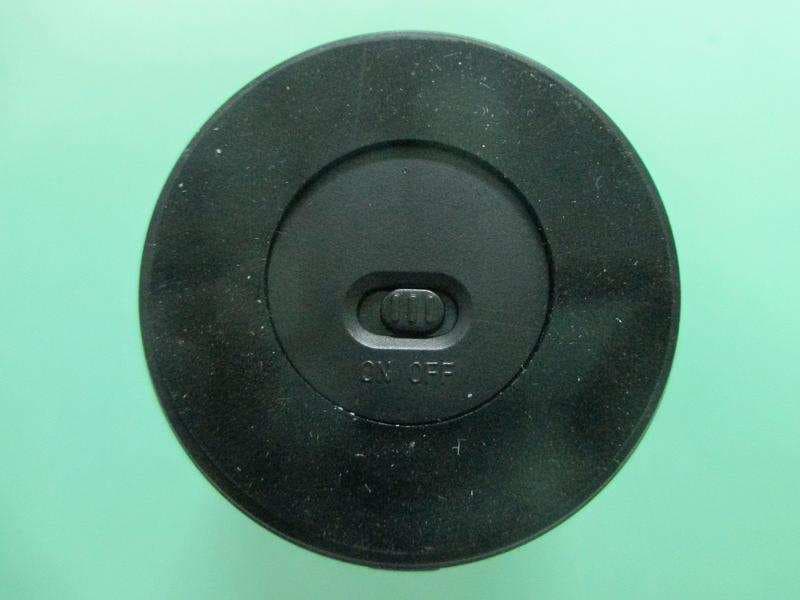

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

FCC Label Unit Label Size: 27 x 13mm Color: Black and white printing This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in China FCC ID: P5FBTS68 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in China FCC ID: P5FBTS68

FCC Label Unit Label Size: 27 x 13mm Color: Black and white printing This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in China FCC ID: P5FBTS68 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in China FCC ID: P5FBTS68

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

STC Test Report Date: 2013-07-30 Page 1 of 92 No.: DM111986 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (NOE002): Digital Gallery Global Limited Flat A, 12/F, World Tech Centre, 95 How Ming Street, Kwun Tong, Kowloon, Hong Kong Manufacturer: Nosanky Electronic Technology Co., Ltd 3/f, No.12, Silianhuamao Industrial Zone, Henggang Street, Longgang District, Shenzhen, China Description of Sample(s): Product: Bluetooth Speaker Brand Name: AT&T Model Number: BTS68 FCC ID: P5FBTS68 Date Sample(s) Received: 2013-07-19 Date Tested: 2013-07-22 to 2013-07-24 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 and ANSI C63.4: 2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): For additional model(s) details, see page 3 LONG Yun Jian, Along Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of STC (Dongguan) Company Limited STC Test Report Date: 2013-07-30 Page 2 of 92 No.: DM111986 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 92 Content Page 2 of 92 1.0 General Details 1.1 Test Laboratory Page 3 of 92 1.2 Equipment Under Test [EUT] Page 3 of 92 Description of EUT operation 1.3 Date of Order Page 3 of 92 1.4 Submitted Sample Page 3 of 92 1.5 Test Duration Page 3 of 92 1.6 Country of Origin Page 3 of 92 1.7 RF Module Details Page 4 of 92 1.8 Antenna Details Page 4 of 92 2.0 Technical Details 2.1 Investigations Requested Page 5 of 92 2.2 Test Standards and Results Summary Page 5 of 92 2.3 Table for Test Modes Page 6 of 92 3.0 Test Results 3.1 Emission Page 7 - 84 of 92 Appendix A List of Measurement Equipment Page 85 of 92 Appendix B Ancillary Equipment Page 86 of 92 Appendix C Photographs Page 87 - 92 of 92 STC Test Report Date: 2013-07-30 Page 3 of 92 No.: DM111986 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory STC (Dongguan) Company Limited EMC Laboratory 68 Fumin Nan Road, Dalang, Dongguan, China Telephone: (86 769) 81119888 Fax: (86 769) 81116222 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: Bluetooth Speaker Manufacturer: Nosanky Electronic Technology Co., Ltd 3/f, No.12, Silianhuamao Industrial Zone, Henggang Street, Longgang District, Shenzhen, China Brand Name: AT&T Model Number: BTS68 Additional Model Number(s): PWS01, BTS88, BTS98 Input Voltage: 5Vd.c. (Powered by PC USB port) / 3.7Vd.c. (rechargeable battery x 1) 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a Bluetooth Speaker of Nosanky Electronic Technology Co., Ltd, it is Audio System, modulation by IC; and type is frequency hopping speed spectrum Modulation. 1.3 Date of Order 2013-07-19 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2013-07-22 to 2013-07-24 1.6 Country of Origin China STC Test Report Date: 2013-07-30 Page 4 of 92 No.: DM111986 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.7 RF Module Details Module Model Number: DSP8865F Module FCC ID: Module Transmission Type: Bluetooth V3.0+EDR Modulation: FHSS (GFSK / π/4-DQPSK / 8DPSK) Data Rates: 1MBps: GFSK 2 MBps: π/4-DQPSK 3 MBps: 8DPSK Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: PCB layout internal antenna Antenna Gain: 0dBi STC Test Report Date: 2013-07-30 Page 5 of 92 No.: DM111986 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 Regulations. FCC Pubic Notice DA 00-705 and ANSI C63.4:2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Maximum…
