Atomic Wall Clock Instructions & Warranty Thank you for your purchase of this quality clock. The utmost care has gone into the design and manufacture of your clock. Please read these instructions and store them in a safe place for future reference. The receiver unit has a clear, easy-to-read display that shows indoor temperature and humidity, outdoor temperature, time, month, date, day. The remote sensor transmits the outdoor temperature. To receive the outdoor temperature, place the sensor anywhere within 30 meters; the 433.92MHz technology means no wire installation is required. The Atomic Clock will always be accurate to within one second as it receives daily WWVB updates. Daylight Saving Time also automatically updates so there is no need to re-set the clock manually! IMPORTANT: If the Atomic Clock does not receive the WWVB signal immediately, wait overnight and it will be set in the morning. The clock has a built in receiver that automatically synchronizes itself with the WWVB radio signal broadcast by the US Government’s National Institute of Standards & Technology (NIST) in Fort Collins, Colorado. FEATURES: Atomic Clock 1 The WWVB radio signal daily broadcast ensures that the atomic clock will always display the most accurate date and time. . CLOCK DISPLAY: - Displays time in hours and minutes; calendar display of month, date & day; indoor temperature; outdoor temperature; signal strength indicator; daylight saving (DST). 2. UP / WAVE / 12/24 BUTTON: - In the TIME / CALENDAR setting mode, press it to increase the setting values. Hold the button for 3 seconds, the display will change rapidly. - In normal mode, press and hold the button for 3 seconds for receive the RCC signal immediately. - During the RCC receiving period, press the button again to stop the RCC reception. - In normal mode, press the button to switch 12/24 time display format. 3. DOWN / °C/°F BUTTON: - In the TIME / CALENDAR setting mode, press the button to decrease the setting values. Hold the button for 3 seconds, the display will change rapidly. - In normal mode, press the button to switch temperature unit °C/°F. 4. ENTER / CHANNEL BUTTON: - In the TIME / CALENDAR setting mode, press the button to confirm the setting. - In normal mode, press the button to switch the between channel 1, 2 and 3 to receive the 433.92MHz signal; press and hold the button for 3 seconds will pairing with the outdoor remote sensor. 5. DST SWITCH: - In normal mode, slide the switch to ON/OFF the DST function. 6. WALL MOUNT 7. SETTING SWITCH: - In normal mode, slide the switch to select different setting mode (LOCK/TIME SET/CALENDAR SET). 1 SPC1038 REMOTE TRANSMITTER Recommended operating range: -50°C to 70°C, -122°F to 158°F Resolution: 0.1°C/°F(above 0°C/32°F), 1°C/°F(below 0°C/32°F) Humidity measuring range: 20% RH to 95%RH Operating range: 20% RH to 95%RH Resolution: 1%RH RF transmission frequency: 433.92MHz Remote transmitter: 1 unit RF transmission range: maximum 30 meters Temperature sensing cycle: around 50 seconds POWER Main unit: 3V, use 2 x AA 1.5V alkaline battery Remote transmitter: 3V, use 2 x AA 1.5V alkaline battery DIMENSION Main unit: 253(W) x 173(H) x 22.5(D)mm 10.0(W) x 6.8(H) x 0.9(D)inch Remote transmitter: 40(W) x 130(H) x 24(D)mm 1.6(W) x 5.1(H) x 0.9(D)inch FCC INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2 3 4 5 6 7 8 9 10 11 8. RESET BUTTON: - In case of malfunction, press the button to reset all values to default values. 9. TIME ZONE SWITCH: - In normal mode, slide to select the desired time zone (Pacific Time, Mountain Time, Central Time, Eastern Time). 10. BATTERY COMPARTMENT AND DOOR: - Use 2 AA size batteries. 11. TABLE STAND Remote Transmitter 1. LED INDICATOR: - LED Flashes when the remote unit transmits a reading 2. CHANNEL SLIDE SWITCH (inside battery compartment): - Assign the transmitter to channel 1, 2 or 3 to receive 433.92MHz signal 3. RESET BUTTON: - Press it to restart the transmitter and return all values to default values. 4. BATTERY COMPARTMENT: - Use 2 AA Size batteries. 5. BATTERY DOOR 6. WALL MOUNT 7. TABLE STAND SETTING UP THE TRANSMITTER: 1. Remove the battery door and insert 2 AA batteries into the battery compartment and follow the polarities marked. 2. Slide the switch to Channel 1. Press the RESET button to set the transmitter. 3. Press the CHANNEL button at the back of the clock to set channel 1. 4. Lock the transmitter battery door with the screw. 5. Place the units away from metal objects and electrical appliances to minimize interfe…

Text truncated - open the document above for the full version.

Digital Gallery Global Limited Flat 20, 11/F, BLK A, Hoi Luen Industrial Centre, 55 Hoi Yuen Road, Kwun Tong, Kowloon, HK Tel: 852-2797208 Fax: 852-27972337 Date : 2014-10-11 PHOENIX TESTLAB GmbH Königswinkel 10 D-32825 Blomberg Dear Sirs, Re. : Letter of Appointment This is the letter of authorization to accept our appointment of The Hong Kong Standards and Testing Centre Ltd. Mr. KC Lee as agent for Digital Gallery Global Limited, Flat 20, 11/F, Hoi Luen Industrial Centre, 55 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong. to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with Certification of the following product of Digital Gallery Global Limited. Product name : Atomic Wall Clock Model : SPC1038 This authorization will expire one year from the date of this letter. Signature with title Will Pang, Manager

Digital Gallery Global Limited Flat 20, 11/F, BLK A, Hoi Luen Industrial Centre, 55 Hoi Yuen Road, Kwun Tong, Kowloon, HK Tel: 852-2797208 Fax: 852-27972337 Company Name: Digital Gallery Global Limited Address: Flat 20, 11/F, BLK A, Hoi Luen Industrial Centre, 55 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong Date : 2014-10-11 FCC ID: P5FSPC1038 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Specifically, “Digital Gallery Global Limited” requests that the following materials be withheld from public inspection under 47CFR 0.459 because they are confidential trade secrets and technical data which would be guarded from competitors. (1) detailed circuit schematic of unit under test (2) parts list (3) block diagram (4) Circuit Description (5) All specifications Therefore, in accordance with 47CFR Sections 0.457 and 0.459 we request that the above listed materials, copies of which are attached here, be withheld from public inspection. Sincerely, Signed & dated by the Company Representative. Will Pang, 11 Oct 2014

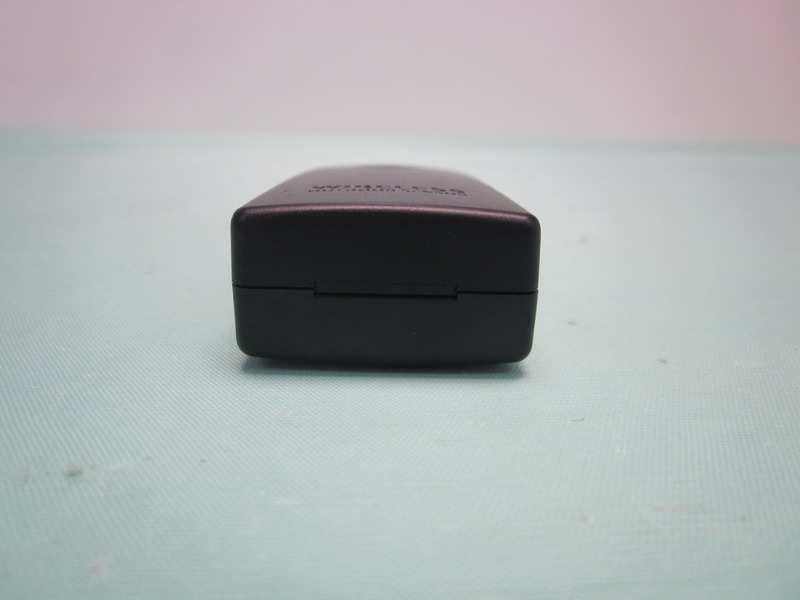

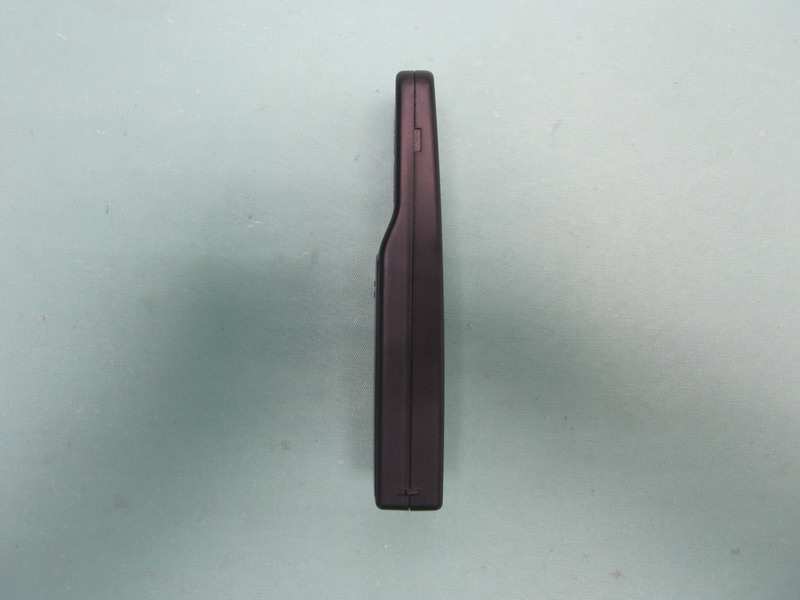

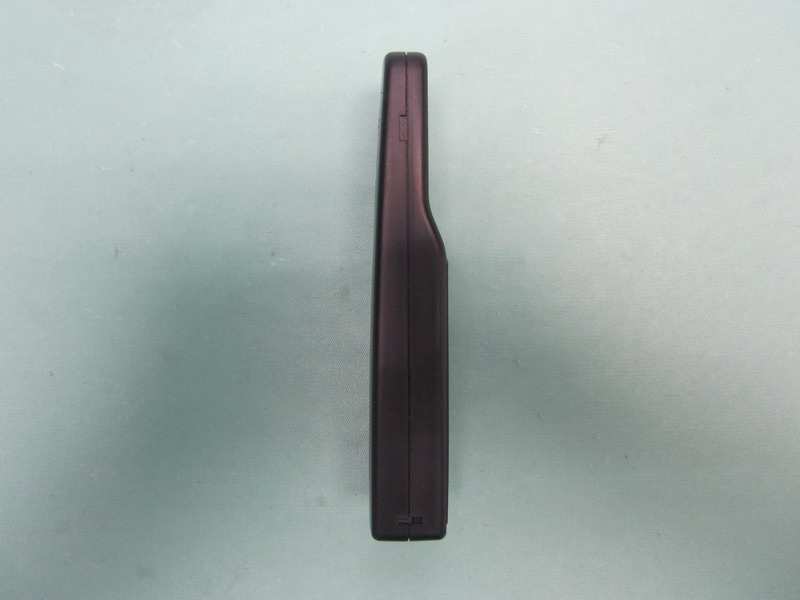

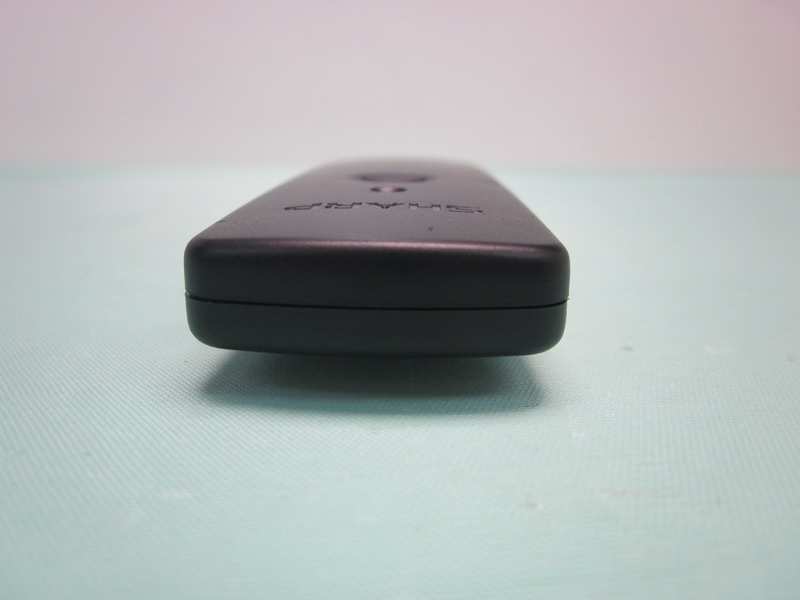

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

FCC ID: P5FSPC1038

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT

STC Test Report Date: 2014-10-16 Page 1 of 20 No. : MH190720 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant: Digital Gallery Global Limited Flat 20, 11/F, BLK A, Hoi Luen Industrial Centre, 55 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong Description of Sample(s): Submitted sample(s) said to be Product: Atomic Wall Clock Brand Name: N/A Model Number: SPC1038 FCC ID: P5FSPC1038 Date Sample(s) Received: 2014-10-10 Date Tested: 2014-10-14 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2013 and ANSI C63.4: 2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): --- Dr. LEE Kam Chuen Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date: 2014-10-16 Page 2 of 20 No. : MH190720 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 20 Content Page 2-3 of 20 1.0 General Details 1.1 Equipment Under Test [EUT] Page 4 of 20 Description of EUT operation 1.2 Date of Order Page 4 of 20 1.3 Submitted Sample(s) Page 4 of 20 1.4 Test Duration Page 4 of 20 1.5 Country of Origin Page 4 of 20 2.0 Technical Details 2.1 Investigations Requested Page 5 of 20 2.2 Test Standards and Results Summary Page 5 of 20 3.0 Test Results 3.1 Emission Page 6-9 of 20 3.2 Bandwidth Measurement Page 10-11 of 20 STC Test Report Date: 2014-10-16 Page 3 of 20 No. : MH190720 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 12 of 20 Appendix B Duty Cycle Correction During 100 msec Page 13-14 of 20 Appendix C A manually Operation Page 15-16 of 20 Appendix D Photographs Page 17-20 of 20 STC Test Report Date: 2014-10-16 Page 4 of 20 No. : MH190720 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Equipment Under Test [EUT] Description of Sample(s) Submitted sample(s) said to be Product: Atomic Wall Clock Manufacturer: Nosanky Electronic Technology Co., Ltd 3/F, No.12 Silianhuamao Industrial Zone, Henggang Street, Longgang District, Shenzhen, China Brand Name: N/A Model Number: SPC1038 Rating: 3Vd.c. (“AAA” size battery x 2) 1.1.1 Description of EUT Operation The Equipment Under Test (EUT) is a Atomic Wall Clock of Digital Gallery Global Limited The transmitter used a master chip which included low-voltage detection, temperature & humidity detection of the current environment, ASK/OOK transmit module. When the main IC connected to power, the temperature & humidity sensor will detect the current temperature / humidity data, then encode this data to OOK format and transfer the signal by 433. 92MHz transmitter module. 1.2 Date of Order 2014-10-10 1.3 Submitted Sample(s): 1 Sample 1.4 Test Duration 2014-10-14 1.5 Country of Origin China STC Test Report Date: 2014-10-16 Page 5 of 20 No. : MH190720 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2013 and ANSI C63.4:2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.231e ANSI C63.4:2009 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2009 N/A Note: N/A - Not Applicable STC Test Report Date: 2014-10-16 Page 6 of 20 No. : MH190720 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this tes…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP PHOTOGRAPH OF THE PRODUCT
