P5FSPC237AQi Wireless Charging Power Station Alarm Clock

Digital Gallery Global Limited

Click to zoom

Application Details

Equipment Class: DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant: Aug 13, 2020
Application Purpose: Original Equipment
Date of Application: Aug 13, 2020
Equipment Note: Qi Wireless Charging Power Station Alarm Clock
Frequency Range: 0.11000000 - 0.20600000
Company: Digital Gallery Global Limited
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

SPC237A Q i Wireless Charging Alarm Clock Instruction Manual & Warranty Thank you for your purchase of this quality clock. The utmost care has gone int o the design and manufacture of your clock. Please read these instructions and store them in a safe place for future reference. CONTROLS 1PM indicator 2. Qi indicator 3. AL. VOL H I/LO s witch 4. ALARM 1 button 5. ALARM 2 button 6. SNOOZE/DIMMER button 7. HOUR button 8. MIN button 9. TIME button 10. Alarm 1 indicator 11. Alarm 2 indicator 12. USB charging ports 13. Qi wireless charging area CONNECTING TO THE POWER SUPPLY Begin by plugging in the power cord int o a standard household outlet. The display will flash indicating the time is ready to be set. INSTALLING THE TIME & ALARM BACK UP B ATTERY The clock time and alarm (if set) can be main tained during a power failure by 2 x AAA batteries (not supplied). Once the power is restored, check the time to make sure it is accurate and re-set if necessary. INSERTING THE BATTERY 1. Open the battery compartment at the back of the unit by pressing on the catch and removing the cover. 2. Insert 2 x AAA battery (preferably alkaline batteries) int o the battery compartment, following the polarity as shown on the diagram inside the compartment. 3. Replace the battery compartment cover. Qi WIRELESS CHARGING - Place your wireless device on top of the clock, charging will begin on contact. - When wireless charging, the Qi indicator is continuously solid. Note: - When the phone is being charged your phone charging indicator will show as normal. - For maximum charging effi ciency, the phone must be aligned with the center of the charging area. USB CHARGING To charge, connect your USB dev ice to the USB port of this clock. Note: - Use only with devices that require 5V USB power. - Each USB port provides 2,000mA recharging current. Devices requiring more than 2,000mA should not be used. - Charging time may vary for different devices. - This device is to be used ONLY for SMARTPHONES. Charging TABLETS & LAPTOPS will void the warranty. SETTING THE CLOCK - Press and hold the TIME button down to acti vate time setting. - While holding down the TIME button, press the HOUR button to advance to the correct hour. The PM indicator will light when the hour is advanced int o the PM time. - While holding down the TIME button, press the MIN button to advance to the correct minute. - Release the TIME button when the correct time is shown on the display. SETTING THE ALARM - Press and hold the ALARM 1/2 button down to acti vate alarm setting. - While holding down the ALARM 1/2 button, press the HOUR button to advance to the correct hour. The PM indicator will light when the hour is advanced int o the PM time. - While holding down the ALARM 1/2 button, press the MIN button to advance to the correct minute. - Release the ALARM 1/2 button when the correct alarm time is shown on the display. USING THE ALARM FUNCTION - Press the ALARM 1/2 button to activate the alarm and the alarm indicator will light up the display. - Slide the AL. VOL HI/LO switch to adjust the alarm volume from high to low. - Press the ALARM 1/2 button again to deactivate the alarm and the alarm indicator will no longer be visible. CARE OF YOUR CLOCK - Replace the back up battery annually, or store the clock without a battery when not in use. - A soft c lot h or a paper towel may be used to clean your clock. - Do not use any corrosive cleanser or chemical solutions on the clock. - Keep your clock dry; if it gets wet, wipe it dry immediately. Keep your clock away from dust and dirt. Handle your clock carefully; do not drop it. - Do not subject the clock to excessive force, shock, dust, temperature, or humidity. Any of these conditions may shorten the lif e of the clock. - Do not tamper with any of the int ernal components of this clock. This will invalidate the warranty and may cause damage. Qi COMPATIBLE WITH: - Samsung Galaxy: S20 Ultra, S20 Plus, S20, Note 10 Plus 5G, Note 10 Plus, Note 10, S10 5G, S10 Plus, S10, S10e, Note 9, S9, S9+, Note 8, S8, S8+, S7, S7 Edge - Apple iPhone: SE 2020, 11 Pro Max, 11 Pro, 11, XS Max XS, XR, 8, 8 Plus and all Qi-enabled smartphones! SNOOZE FUNCTION - Pressing the SNOOZE button after the alarm sounds will cause the alarm to pause and the alarm will sound again in 9 minutes. This will happen each time the SNOOZE button is pressed. DIMMER FUNCTION - Press the DIMME R button to adjust the brightness of the LED display. The dimmer has three levels of brightness; High, Medium & Low SAFETY WARNING: Only place Qi approved charging devices onto the charging pad. Please do not place keys, coins or other metal objects onto the charging pad. The “Qi” symbol is a trademark of the Wireless Power Consortium. The product is designed for Qi Certificate. 1 12 2 3 4 5 6789 10 11 13 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions – The safety and operating instructions should be retained for future reference. 3. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. 4. Follow all instructions – All operating and use instructions should be followed. 5. Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does …

Text truncated - open the document above for the full version.

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (obsolete) 4.0 5.0 Sep-16-2014 Updated company name & logo (current) 5.0 6.0 Jun-27-2018 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 6.0 Digital Gallery Global Limited 2020/08/10 To: BVCPS, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Digital Gallery Global Limited hereby authorize Bureau Veritas Consumer Product Services, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID: P5FSPC237A Product Description: Qi Wireless Charging Power Station Alarm Clock Model: SPC237A (Additional Model: SPC237, SPC237B, SPC237D, SPC237BL, SPC237AMZ, SPC237OP Sincerely, Client’s signature Client’s name / title : Will Pang Contact information / address: Flat 20, 11/F, BLK A, Hoi Luen Industrial Centre, 55 Hoi Yuen Road, Kwun Tong, Kowloon

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 6.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template& Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (obsolete) 4.0 5.0 Nov-19-2015 Updated company logo (current) 5.0 6.0 Jun-26-2019 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 6.0 Digital Gallery Global Limited 2020/08/10 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: P5FSPC237A Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title :Will Pang Contact information / address:Flat 20, 11/F, BLK A, Hoi Luen Industrial Centre, 55 Hoi Yuen Road, Kwun Tong, Kowloon

Cover Letter(s)

Digital Gallery Global Limited Address: Flat 20, 11/F, BLK A, Hoi Luen Industrial Centre, 55 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27972308 Fax: 852-27972337 Date: 08/13/2020 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: P5FSPC237A To Whom It May Concern: This letter is to ascertain that Digital Gallery Global Limited, Product: Qi Wireless Charging Power Station Alarm Clock (P5FSPC237A), has been the units used for conducting FCC compliance testing, and it meets KDB 680106 D01, Clause 5(b) all 6 conditions as stated below hence PAG is not required. 1 Power transfer frequency is less that 1 MHz 2 Output power from each primary coil is less than or equal to 15 watts 3 The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils 4 Client device is placed directly in contact with the transmitter. 5 Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). 6 The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. If you have any question or concerns, pls. contact us. Sincerely, Name: Will Pang Address: Flat 20, 11/F, BLK A, Hoi Luen Industrial Centre, 55 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong

Cover Letter(s)

Digital Gallery Global Limited Address: Flat 20, 11/F, BLK A, Hoi Luen Industrial Centre, 55 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong Tel: 852-27972308 Fax: 852-27972337 Declaration Letter Dear Sir， For our business issue and marketing requirement, we would like to list additional model numbers on the certificates and reports, as following: Model No.: SPC237A We declare that the difference of these is listed as below: Main Model No Serial Model No Difference SPC237A SPC237, SPC237B, SPC237D, SPC237BL, SPC237AMZ, SPC237OP Unit color and sales channels Thank you! Signature: Printed name/title: Will Pang (Manager) Tel: 852-27972308 Fax: 852-27972337 Address: Flat 20, 11/F, BLK A, Hoi Luen Industrial Centre, 55 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong

External Photos

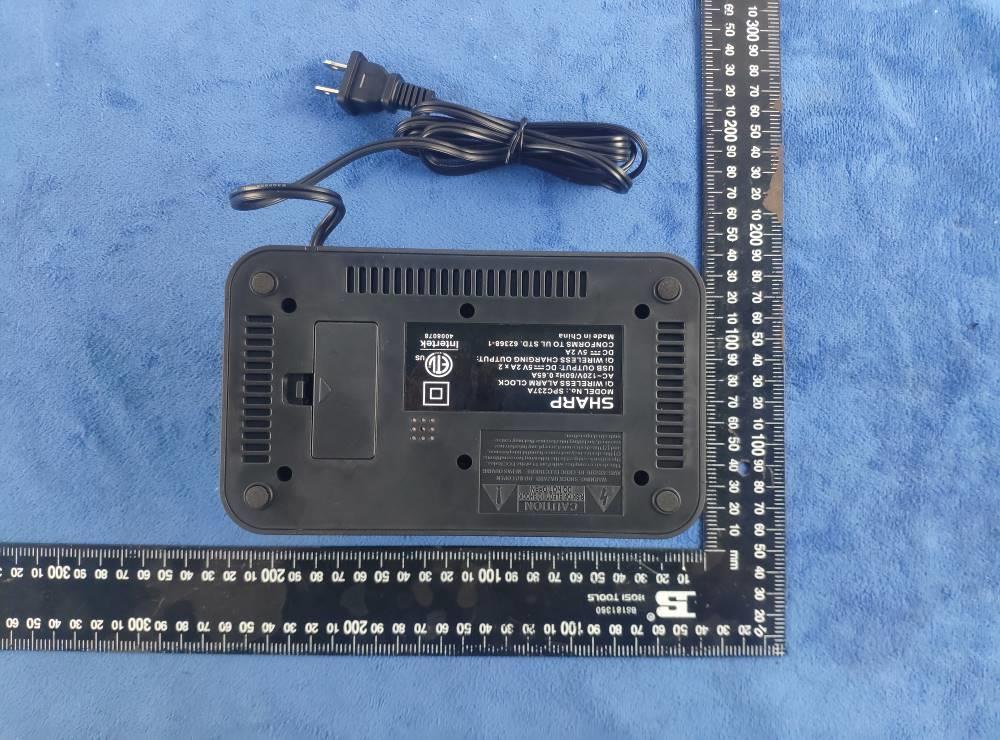

ID Label/Location Info

FCC ID: P5FSPC237A FCC ID: P5FSPC237A Size: 30 x 5mm MODEL No.: SPC237A Qi WIRELESS ALARM CLOCK AC~120V/60Hz 0.65A USB OUTPUT: DC 5V 2A x 2 Qi WIRELESS CHARGING OUTPUT: 10W CONFORMS TO UL STD. 62368-1 Made in China 4008078 WARNING: SHOCK HAZARD - DO NOT OPEN AVIS: RISQUE DE CHOC ÉLECTRIQUE - NEPAS OUVRIR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
