P5FSPC5165RGB Alarm Clock

SPC5165 Time Sync Alarm Clock Thank for your purchase of this quality clock. The utmost care has gone into the design and manufacture of your clock. Please read these instructions and store them in a safe place for future reference. Controls 1. AM/PM Indicator 2. UP Button 3. TIME Button 4. SYNC Button 5. ALARM Indicator 6. DOWN Button Getting Started Connect the power cord into the back of the clock, and the other end into a USB power outlet, or a standard electrical outlet using the included power adapter. The display will turn on. Your clock is now ready to be set. Important: Use ONLY 5V 1A or 5V 2A power adapter or USB power sources. Note: The clock can NOT operate on batteries only. The battery is for backup only. It maintains time and alarm time setting during a power outage. The display will not show during a power outage. TIME SYNC Function Press the SYNC button to activate the time sync function. Using the native controls on your mobile phone with Bluetooth function and select “SHARP SPC5165" in your Bluetooth settings to pair. When successfully paired and connected, the digits of the alarm clock will start rolling and fast forward to the correct date and time automatically. Note: To ensure accuracy, the clock automatically performs a TIME SYNC at 1:00 AM daily. If the phone is out of range or Bluetooth is disabled, the clock will continue operating based on its last known accurate time. 7. ALARM Button 8. HI/LO ALARM Switch 9. SNOOZE/DIMMER Button 10. Battery Compartment 11. DC 5V Jack SNOOZE & DIMMER Function SNOOZE When the alarm sounds, press the SNOOZE button to pause the alarm, the alarm indicator will flash & sound again in 9 minutes. DIMMER To adjust the display brightness, press the DIMMER button to select between 100%, 50%, 20% or OFF. Note: The default is 100% display brightness. Using the ALARM Press the ALARM button to activate the alarm and the alarm indicator will light up and slide the HI/LO ALARM switch to adjust the alarm volume. The BEEP will come on at the set time. To stop the alarm, press the ALARM button. The alarm will sound again the next day. To turn the alarm off completely, press the ALARM button until the alarm indicator is no longer visible. Manual TIME SET Function (Optional) Setting the ALARM Press and hold the ALARM button down for two seconds to activate ALARM setting, hour digit will blink. Press the UP or DOWN button to advance to the correct hour. Press the UP or DOWN button to advance to the correct minute and press the ALARM button to confirm, the alarm time is now set. Press and hold the TIME button down for two seconds to activate time setting, the hour digit will blink. Press the + or - button to advance to the correct hour. Press the + or - button to advance to the correct minute and press the TIME button to confirm, the time is now set. 2 3 1 4 6 7 5 8 9 10 11 Model: SPC5165

Rev 1/26/2023 Digital Gallery Global Limited Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2025-10-11 FCC ID: P5FSPC5165 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing Digital Gallery Global Limited certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Digital Gallery Global Limited certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Device is inherently compliant based on hardware limitations or software controls. or A Software Bill of Materials (SBOM) is provided to the TCB for review, and The end-user or third parties cannot install additional software on this device. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing Digital Gallery Global Limited certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. pplicant: Digital Gallery Global Limited Address: Unit 04, 19/F, Aitken Vanson Centre, 61 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong Contact Person: Will Pang Tel.: 852-27972308 Email: [email protected] Sincerely, Signature:

U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: Sep. 19, 25 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: [P5FSPC5165] [Digital Gallery Global Limited] (“the applicant”) certifies that, as of the date of the filing of the application, [MZ Berger and Co., Inc] (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. [MZ Berger and Co., Inc] ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: MZ Berger and Co., Inc FRN: 0037484672 Address: 353 Lexington Avenue, 14th floor New York, NY 10016 United States Signature: Contact Person: Ms Judi Robinson Tel: (973)896-8218 Email: [email protected] Applicant Company Name: Digital Gallery Global Limited FRN: 0021953245 Address: Unit 04,19/F,Aitken Vanson Centre, 61 HoiYuen Road, Kwun Tong, Kowloon, Hong Kong Signature: Contact Person: Will Pang Tel: 852-27972308 Email: [email protected]

SPC5165 Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4GANT Center Frequency HorizontalVertical 2400MHz 2400MHz 2500MHz 2400MHz 2400MHz 2500MHz -1.73-0.84-0.68-6.15-3.70-2.32 MAX. Gain -0.68 PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length mm Manufacture Antenna Photo & Length (mm) 14.5 Digital Gallery Global Limited Add: Unit 04, 19/F, Aitken Vanson Centre, 61 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong Antenna Type: PCB Antenna Horizontal:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-40Scale:5/div Frequency (MHz) Gain(dB) Max Min Avg 2400-1.73178-30.0815-8.48713 2450-0.845801-38.5605-7.88012 2500-0.685586-24.0318-6.79139 Vertical:2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-30Scale:5/div Frequency (MHz) Gain(dB) Max Min Avg 2400-6.1530-24.1420-13.0295 2450-3.7054-26.5836-10.6700 2500-2.32122-30.4301-9.70536 ANTTestLabs ： AttestationofGlobalComplianceCo.,Ltd.

Digital Gallery Global Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: December 2, 2025 Subject; Request for Confidentiality FCC ID: P5FSPC5165 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Will Pang Title: Marketing Manager

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 Digital Gallery Global Limited Date：2025-10-11 Product Model Number: SPC5165, SPC5165A, SPC5165AAMZ, SPC5165AATG, SPC5165AWM FCC ID：P5FSPC5165 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following: • Testing • Approval applications and procedures We declare that QAI Laboratories Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by QAI Laboratories Ltd. on our behalf shall have the same effect as acts of our own. Signature: By: Will Pang Contact Listed on FCC Wesbite Title: Marketing Manager Email: [email protected] On behalf of: Digital Gallery Global Limited

Digital Gallery Global Limited Declaration Letter of Model Difference Date: 2025-12-02 FCC ID: P5FSPC5165 Tested Model Number: SPC5165 Adding Model Number(s): SPC5165A, SPC5165AAMZ, SPC5165AATG, SPC5165AWM All Adding Model Number(s) is/are same electrically identical as Tested Model Number. Only model name different. Yours Sincerely, Applicant: Digital Gallery Global Limited Address: Unit 04, 19/F, Aitken Vanson Centre, 61 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong Contact Person: Will Pang Tel.: 852-27972308 Email: [email protected] Sincerely, Signature:

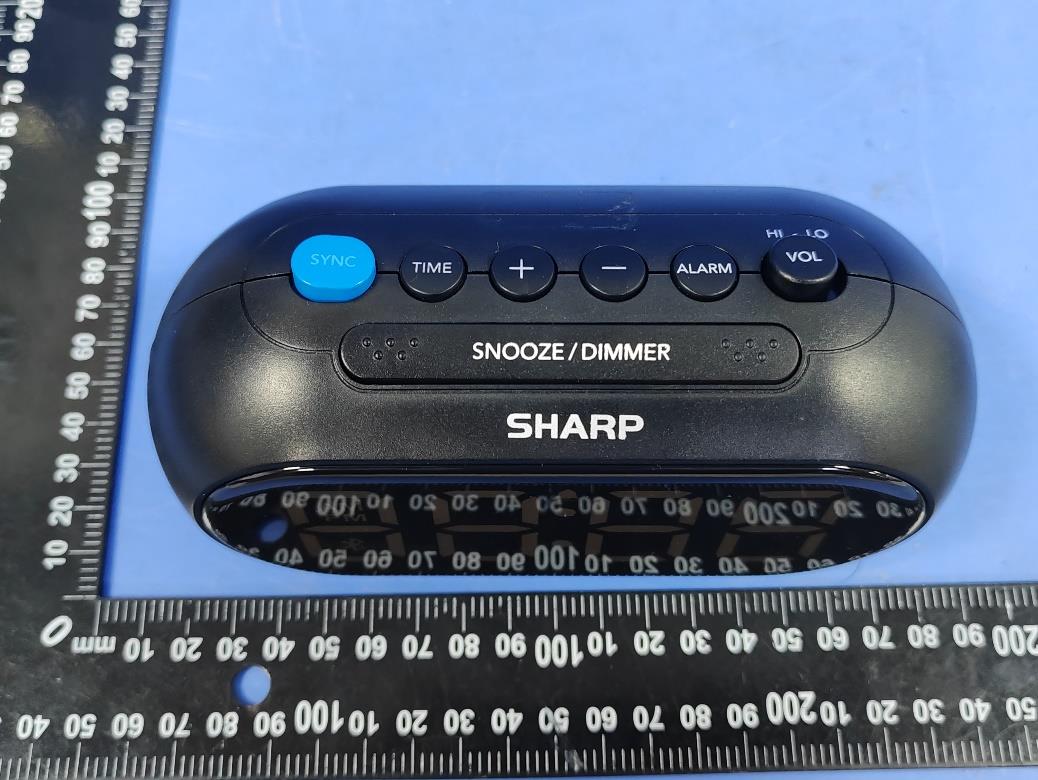

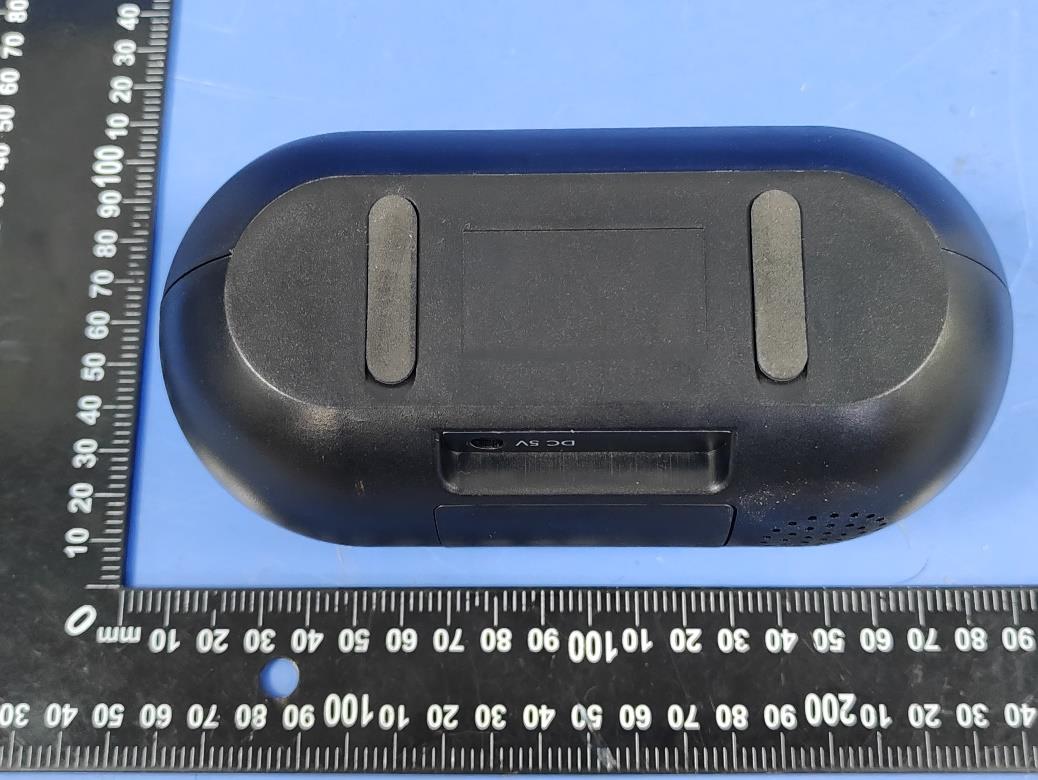

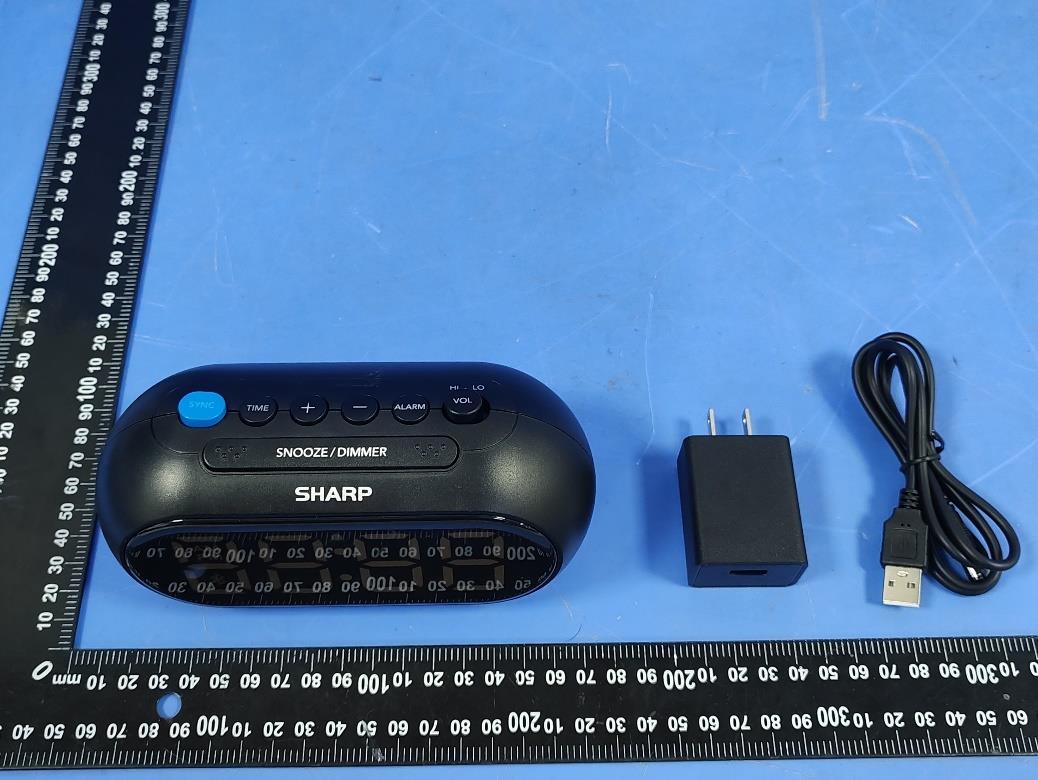

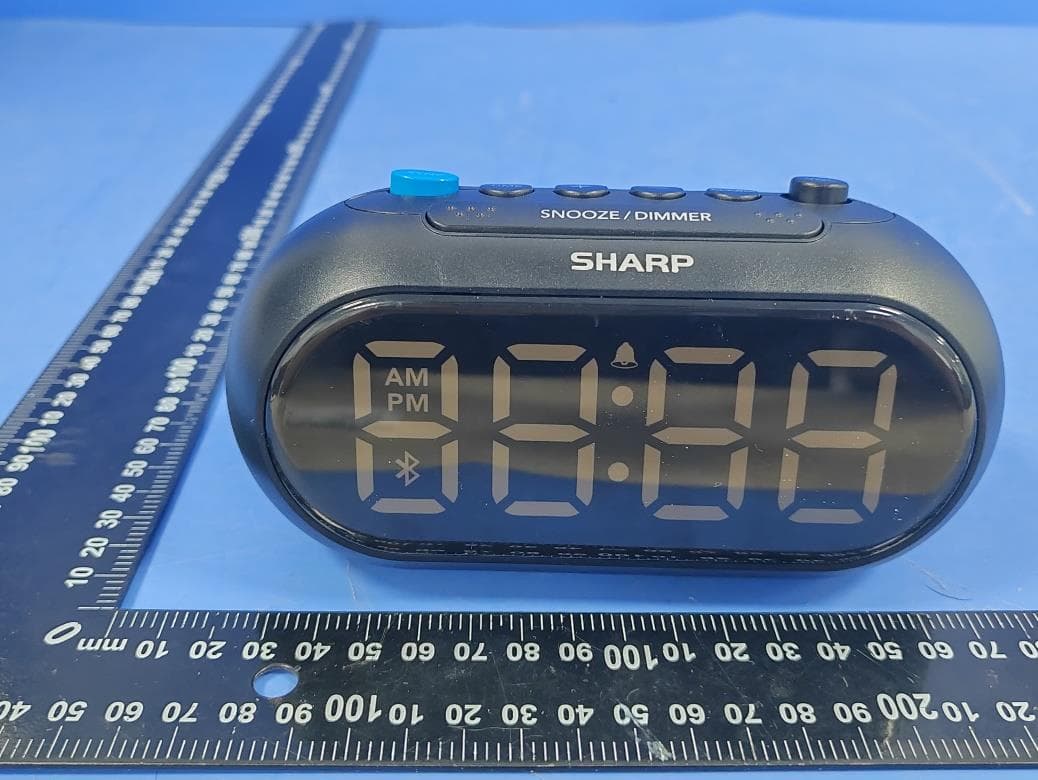

Page 1 of 6 Report No.: LGT25I161 Appendix - External Photographs of EUT Constructional Details Photo 1 Photo 2 Page 2 of 6 Report No.: LGT25I161 Appendix - External Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 6 Report No.: LGT25I161 Appendix - External Photographs of EUT Constructional Details Photo 5 Photo 6 Page 4 of 6 Report No.: LGT25I161 Appendix - External Photographs of EUT Constructional Details Photo 7 Photo 8 Page 5 of 6 Report No.: LGT25I161 Appendix - External Photographs of EUT Constructional Details Photo 9 Photo 10 Page 6 of 6 Report No.: LGT25I161 Appendix - External Photographs of EUT Constructional Details Photo 11 Photo 12

TIME SYNC ALARM CLOCK Model No.: SPC5165 FCC ID: P5FSPC5165 Power Source:DC5V External Supply Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 1 of 4 Report No.: LGT25I161 Appendix - Internal Photographs of EUT Constructional Details Photo 1 Photo 2 ANT Page 2 of 4 Report No.: LGT25I161 Appendix - Internal Photographs of EUT Constructional Details Photo 3 Photo 4 Page 3 of 4 Report No.: LGT25I161 Appendix - Internal Photographs of EUT Constructional Details Photo 5 Photo 6 Page 4 of 4 Report No.: LGT25I161 Appendix - Internal Photographs of EUT Constructional Details Photo 7 Photo 8

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 8 RF TEST REPORT Product Name: RGB Alarm Clock Model Number: SPC5165, SPC5165A, SPC5165AAMZ, SPC5165AATG, SPC5165AWM FCC ID: P5FSPC5165 Issued For : Digital Gallery Global Limited Unit 04, 19/F, Aitken Vanson Centre, 61 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT25I161HA01 Sample Received Date: Sep. 18, 2025 Date of Test: Sep. 18, 2025~ Oct. 11, 2025 Date of Issue: Oct. 11, 2025 Report No.: LGT25I161HA01 Page 2 of 8 TEST REPORT CERTIFICATION Applicant: Digital Gallery Global Limited Address: Unit 04, 19/F, Aitken Vanson Centre, 61 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong Manufacturer: Digital Gallery Global Limited Address: Unit 04, 19/F, Aitken Vanson Centre, 61 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong Product Name: RGB Alarm Clock Trademark: SHARP Model Number: SPC5165, SPC5165A, SPC5165AAMZ, SPC5165AATG, SPC5165AWM Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47 CFR §2.1093 KDB 447498 D01 General RF Exposure Guidance v06 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT25I161HA01 Page 3 of 8 TABLE OF CONTENTS 1 . GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST LABORATORY 5 2 . FCC 47CFR §2.1093 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 8 Report No.: LGT25I161HA01 Page 4 of 8 Revision History Rev. Issue Date Revisions 00 Oct. 11, 2025 Initial Issue Report No.: LGT25I161HA01 Page 5 of 8 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name: RGB Alarm Clock Test Model Name: SPC5165 Series Model: SPC5165A, SPC5165AAMZ, SPC5165AATG, SPC5165AWM Model Difference: Only model name different. Frequency Bands: Bluetooth 2402-2480MHz Rating: DC 5V Battery: “AAA” battery *2 Hardware Version: N/A Software Version: N/A 1.2 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: A2LA Certificate No.: 6727.01 FCC Registration No.: 746540 CAB ID: CN0136 Report No.: LGT25I161HA01 Page 6 of 8 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in KDB 447498 D01 General RF Exposure Guidance v06 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Report No.: LGT25I161HA01 Page 7 of 8 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: LGT25I161HA01 Page 8 of 8 2.3 TEST RESULT The MPE result of worst mode: RF Function Frequency (MHz) Max Turn up Power (dBm) Max Turn up Power (mW) Estimated SAR Limit Ratio Result BT 2441 4.50 2.82 0.891 3 0.297 Pass Note: 1. The Maximum Power Density is less than the limit, complies with the exemption requirements. ※※※※※END OF THE REPORT※※※※※

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Page 1 of 80 RF TEST REPORT Product Name: RGB Alarm Clock Model Number: SPC5165, SPC5165A, SPC5165AAMZ, SPC5165AATG, SPC5165AWM FCC ID: P5FSPC5165 Issued For : Digital Gallery Global Limited Unit 04, 19/F, Aitken Vanson Centre, 61 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT25I161RF01 Sample Received Date: Sep. 18, 2025 Date of Test: Sep. 18, 2025~ Oct. 11, 2025 Date of Issue: Oct. 11, 2025 Report No.: LGT25I161RF01 Page 2 of 80 TEST REPORT CERTIFICATION Applicant: Digital Gallery Global Limited Address: Unit 04, 19/F, Aitken Vanson Centre, 61 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong Manufacturer: Digital Gallery Global Limited Address: Unit 04, 19/F, Aitken Vanson Centre, 61 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong Product Name: RGB Alarm Clock Trademark: SHARP Model Number: SPC5165, SPC5165A, SPC5165AAMZ, SPC5165AATG, SPC5165AWM Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2020 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT25I161RF01 Page 3 of 80 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST LABORATORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 15 3.1 CONDUCTED EMISSION MEASUREMENT 15 3.2 RADIATED EMISSION MEASUREMENT 19 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 30 4.1 LIMIT 30 4.2 TEST PROCEDURE 30 4.3 TEST SETUP 30 4.4 EUT OPERATION CONDITIONS 31 4.5 TEST RESULTS 31 5. NUMBER OF HOPPING CHANNEL 32 5.1 LIMIT 32 5.2 TEST PROCEDURE 32 5.3 TEST SETUP 32 5.4 EUT OPERATION CONDITIONS 32 5.5 TEST RESULTS 32 6. AVERAGE TIME OF OCCUPANCY 33 6.1 LIMIT 33 6.2 TEST PROCEDURE 33 6.3 TEST SETUP 33 6.4 EUT OPERATION CONDITIONS 33 6.5 TEST RESULTS 33 7. HOPPING CHANNEL SEPARATION MEASUREMEN 34 7.1 LIMIT 34 7.2 TEST PROCEDURE 34 Report No.: LGT25I161RF01 Page 4 of 80 7.3 TEST SETUP 34 7.4 EUT OPERATION CONDITIONS 34 7.5 TEST RESULTS 34 8. BANDWIDTH TEST 35 8.1 LIMIT 35 8.2 TEST PROCEDURE 35 8.3 TEST SETUP 35 8.4 EUT OPERATION CONDITIONS 35 8.5 TEST RESULTS 35 9. OUTPUT POWER TEST 36 9.1 LIMIT 36 9.2 TEST PROCEDURE 36 9.3 TEST SETUP 36 9.4 EUT OPERATION CONDITIONS 36 9.5 TEST RESULTS 36 10. ANTENNA REQUIREMENT 37 10.1 STANDARD REQUIREMENT 37 10.2 EUT ANTENNA 37 APPENDIX I - TEST RESULTS 38 DUTY CYCLE 38 MAXIMUM PEAK CONDUCTED OUTPUT POWER 42 -20DB BANDWIDTH 46 OCCUPIED CHANNEL BANDWIDTH 50 CARRIER FREQUENCIES SEPARATION 54 BAND EDGE 58 BAND EDGE(HOPPING) 63 CONDUCTED RF SPURIOUS EMISSION 68 NUMBER OF HOPPING CHANNEL 75 DWELL TIME 77 APPENDIX II - MEASUREMENT PHOTOS 80 Report No.: LGT25I161RF01 Page 5 of 80 Revision History Rev. Issue Date Revisions 00 Oct. 11, 2025 Initial Issue Report No.: LGT25I161RF01 Page 6 of 80 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2020. Report No.: LGT25I161RF01 Page 7 of 80 1.1 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate: FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 Occupied Channel Bandwidth ±0.46% 2 RF Output Power, Conducted ±0.71dB 3 Power Spectral Density, Conducted ±1.57dB 4 Unwanted Emission, Conducted ±0.63dB 5 Conducted emission ±2.80dB 6 All Emissions, Radiated (0.009-30MHz) ±2.16dB 7 All Emissions, Radiated (30MHz-1GHz) ±4.61dB 8 All Emissions, Radiated (1GHz-18GHz) ±5.49dB 9 Temperature ±0.5°C 10 Humidity ±2% 11 Duty Cycle ±2.3% Note: The measurement uncertainty is not included in the test result. Report No.: LGT25I161RF01 Page 8 of 80 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: RGB Alarm Clock Test Model Number: SPC5165 Series Number: SPC5165A, SPC5165AAMZ, SPC5165AATG, SPC5165AWM Model Difference: Only model name different. Channel List: Please refer to the Note 3. Bluetooth: Frequency:2402 – 2480 MHz Modulation: GFSK(1Mbps), π/4-DQPSK(2Mbps), 8DPSK(3Mbps) Antenna Type: PCB Antenna Antenna Gain: -0.68dBi Rating: DC 5V Battery: “AAA” ba…

Text truncated - open the document above for the full version.

Report No.: LGT25I161RF01 Page 55 of 80 Test Graphs CFS NVNT 1-DH5 2402MHz Ant1 CFS NVNT 1-DH5 2441MHz Ant1 CFS NVNT 1-DH5 2480MHz Ant1 Report No.: LGT25I161RF01 Page 56 of 80 CFS NVNT 2-DH5 2402MHz Ant1 CFS NVNT 2-DH5 2441MHz Ant1 CFS NVNT 2-DH5 2480MHz Ant1 Report No.: LGT25I161RF01 Page 57 of 80 CFS NVNT 3-DH5 2402MHz Ant1 CFS NVNT 3-DH5 2441MHz Ant1 CFS NVNT 3-DH5 2480MHz Ant1 Report No.: LGT25I161RF01 Page 58 of 80 Band Edge Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 No-Hopping -54.81 -20 Pass NVNT 1-DH5 2480 Ant1 No-Hopping -55.7 -20 Pass NVNT 2-DH5 2402 Ant1 No-Hopping -54.3 -20 Pass NVNT 2-DH5 2480 Ant1 No-Hopping -56.24 -20 Pass NVNT 3-DH5 2402 Ant1 No-Hopping -54.93 -20 Pass NVNT 3-DH5 2480 Ant1 No-Hopping -54.89 -20 Pass Report No.: LGT25I161RF01 Page 59 of 80 Test Graphs Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Emission Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Ref Report No.: LGT25I161RF01 Page 60 of 80 Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Emission Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Emission Report No.: LGT25I161RF01 Page 61 of 80 Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Emission Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Ref Report No.: LGT25I161RF01 Page 62 of 80 Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Emission Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Emission Report No.: LGT25I161RF01 Page 63 of 80 Band Edge(Hopping) Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 Hopping -54.74 -20 Pass NVNT 1-DH5 2480 Ant1 Hopping -56.01 -20 Pass NVNT 2-DH5 2402 Ant1 Hopping -54.71 -20 Pass NVNT 2-DH5 2480 Ant1 Hopping -54.64 -20 Pass NVNT 3-DH5 2402 Ant1 Hopping -55.43 -20 Pass NVNT 3-DH5 2480 Ant1 Hopping -56.1 -20 Pass Report No.: LGT25I161RF01 Page 64 of 80 Test Graphs Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Emission Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Ref Report No.: LGT25I161RF01 Page 65 of 80 Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Emission Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Emission Report No.: LGT25I161RF01 Page 66 of 80 Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Ref Report No.: LGT25I161RF01 Page 67 of 80 Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Emission Report No.: LGT25I161RF01 Page 68 of 80 Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 -31.35 -20 Pass NVNT 1-DH5 2441 Ant1 -33.94 -20 Pass NVNT 1-DH5 2480 Ant1 -30.45 -20 Pass NVNT 2-DH5 2402 Ant1 -32.65 -20 Pass NVNT 2-DH5 2441 Ant1 -31.67 -20 Pass NVNT 2-DH5 2480 Ant1 -33.71 -20 Pass NVNT 3-DH5 2402 Ant1 -31.15 -20 Pass NVNT 3-DH5 2441 Ant1 -34.47 -20 Pass NVNT 3-DH5 2480 Ant1 -34.19 -20 Pass Report No.: LGT25I161RF01 Page 69 of 80 Test Graphs Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Emission Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Ref Report No.: LGT25I161RF01 Page 70 of 80 Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Emission Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Emission Report No.: LGT25I161RF01 Page 71 of 80 Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Emission Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Ref Report No.: LGT25I161RF01 Page 72 of 80 Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Emission Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Emission Report No.: LGT25I161RF01 Page 73 of 80 Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Emission Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Ref Report No.: LGT25I161RF01 Page 74 of 80 Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Emission Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Emission Report No.: LGT25I161RF01 Page 75 of 80 Number of Hopping Channel Condition Mode Antenna Hopping Number Limit Verdict NVNT 1-DH5 Ant1 79 15 Pass NVNT 2-DH5 Ant1 79 15 Pass NVNT 3-DH5 Ant1 79 15 Pass Report No.: LGT25I161RF01 Page 76 of 80 Test Graphs Hopping No. NVNT 1-DH5 2441MHz Ant1 Hopping No. NVNT 2-DH5 2441MHz Ant1 Hopping No. NVNT 3-DH5 2441MHz Ant1 Report No.: LGT25I161RF01 Page 77 of 80 Dwell Time Condition Mode Frequency (MHz) Pulse Time (ms) Total Dwell Time (ms) Burst Count Period Time (ms) Limit (ms) Verdict NVNT 1-DH5 2441 2.899 333.385 115 31600 400 Pass NVNT 2-DH5 2441 2.903 336.748 116 31600 400 Pass NVNT 3-DH5 2441 2.905 371.84 128 31600 400 Pass Report No.: LGT25I161RF01 Page 78 of 80 Test Graphs Dwell NVNT 1-DH5 2441MHz One Burst Dwell NVNT 1-DH5 2441MHz Accumulated Dwell NVNT 2-DH5 2441MHz One Burst Report No.: LGT25I161RF01 Page 79 of 80 Dwell NVNT 2-DH5 2441MHz Accumulated Dwell NVNT 3-DH5 2441MHz One Burst Dwell NVNT 3-DH5 2441MHz Accumulated Report No.: LGT25I161RF01 Page 80 of 80 APPENDIX II - MEASUREMENT PHOTOS Note: Please see the attached RF_Test Setup photos for FCC ID. ※※※※※END OF THE REPORT※※※※※

Page 1 of 2 Report No.: LGT25I161 Appendix - Test Setup photos Set-up for Radiated Spurious Emission, Below 1GHz Set-up for Radiated Spurious Emission, Above 1GHz Page 2 of 2 Report No.: LGT25I161 Set-up for Conducted Emission
