  1. Home/
  2. Polyvision Corporation, Interactive Products Group/
  3. P6I-BTTX01

P6I-BTTX01BTTX01

Polyvision Corporation, Interactive Products Group
BTTX01 - FCC ID P6I-BTTX01 - Polyvision Corporation, Interactive Products Group
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 15, 2003
Application Purpose
Original Equipment
Date of Application
Jun 15, 2003
Equipment Note
BTTX01
Frequency Range
2402.00000000 - 2480.00000000
Company
Polyvision Corporation, Interactive Products Group
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Exhibit K: User Manual FCC ID: P6I-BTTX01 Part number 370-0148-02 ©2003 PolyVision Corporation All rights reserved Impulse ™ LTX Multimedia Whiteboard System User Guide LTX_UG_5.fm Page -1 Friday, June 13, 2003 11:02 AM Information in this document is subject to change without notice. Reproduction in any manner without written permission of PolyVision Corporation is forbidden. PolyVision Corporation reserves the right to make changes in product design, or detail, and to discontinue any product or material without notice. The Bluetooth trademarks are owned by Bluetooth SIG, Inc., USA. LTX_UG_5.fm Page 0 Friday, June 13, 2003 11:02 AM 1 TABLE OF CONTENTS Welcome to Impulse™ LTX Multimedia Whiteboard . . . . . . . . . . . . . . . 3 Impulse Whiteboard Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 What to Expect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Three Ways to Capture: Three Levels of Operation . . . . . . . . . . . . 4 What is Included With Your Impulse WhiteBoard . . . . . . . . . . . . . 5 Impulse Whiteboard System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 6 How it Works. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Laser Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Built-In Archive and Web Server . . . . . . . . . . . . . . . . . . . . . . . . . 6 Built-In Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 About the Markers and Erasers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Getting Help With the Control Panel . . . . . . . . . . . . . . . . . . . . . . . . 9 Impulse Whiteboard Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Three Ways to Operate the Board . . . . . . . . . . . . . . . . . . . . . . . . . 10 Capturing Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Capturing Images on the Printer . . . . . . . . . . . . . . . . . . . . . . . . 10 Capturing Images on a Floppy Diskette . . . . . . . . . . . . . . . . . . . 11 Capturing Images on the Website/Archive. . . . . . . . . . . . . . . . 14 Capturing Images in any Combination . . . . . . . . . . . . . . . . . . . 15 Clearing the Board’s Temporary Memory . . . . . . . . . . . . . . . . . . . 15 Projecting Archived Images on the Impulse Board . . . . . . . . . . . 16 Setting up the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Reviewing Archived Images. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Using the Impulse System With Your Laptop . . . . . . . . . . . . . . . . 22 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Setting up the Laptop Computer and Projector . . . . . . . . . . . . 22 Operating Your Laptop from the Impulse Board . . . . . . . . . . . 24 Choosing a Projection Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Separate Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Merged Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Merged and Separate Mode Function Summary . . . . . . . . . . . 29 LTX_UG_5.fm Page 1 Friday, June 13, 2003 11:02 AM IMPULSE ™ LT X Multimedia Whiteboard 2 Password Protecting Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 The Impulse System Audio and Volume Control . . . . . . . . . . . . . 31 The Impulse Web Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Accessing Your Impulse Web Server . . . . . . . . . . . . . . . . . . . . . . . 32 Using the Images Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Working With Images on the Website . . . . . . . . . . . . . . . . . . . . 34 Viewing Password Protected Images on the Website . . . . . . . 35 Deleting Images from the Web Server. . . . . . . . . . . . . . . . . . . . 37 Using the Admin Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 The Admin Network Subsection . . . . . . . . . . . . . . . . . . . . . . . . 39 The Admin Date/Time Subsection . . . . . . . . . . . . . . . . . . . . . . 42 The Admin Password Subsection . . . . . . . . . . . . . . . . . . . . . . . 43 The Admin Images Subsection . . . . . . . . . . . . . . . . . . . . . . . . . 44 The Admin Update Subsection . . . . . . . . . . . . . . . . . . . . . . . . . 45 The Admin Install Subsection . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Using the Info Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 The Impulse System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Cleaning the Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Daily Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Removing Crayon and Tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Removing Permanent Marker . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Website Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Printer Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 How to Obtain Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . 51 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52 Laser Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 LED and Status Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 LED Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Technical Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 FCC Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56 Warranty . . . . . . . .…

Text truncated - open the document above for the full version.

Cover Letter(s)

Exhibit B: Request for Confidentiality FCC ID: P6I-BTTX01

Cover Letter(s)

Exhibit A: Agent Authorization FCC ID: P6I-BTTX01

Cover Letter(s)

Northwest EMC TCB Compliance Opinion Revision 1/3/03 POLV0037 Information about the Applicant Company Name Polyvision Corp. Address 14523 SW Millikan Way Ste. 130 City, State, Zip Beaverton, OR, 97005 Requested By Jeff Traw Job Number POLV0037 Model BTTX01 FCC ID P6I-BTTX01 Agent Northwest EMC, Inc. Approval Type Certification Equipment Type DTS Rule Part 15.247 Overview Polyvision’s Bluetooth TM Transmitter, Model BTTX01, FCC ID: P6I-BTTX01. It operates from 2402 – 2480 MHz (center frequency to center frequency), with a peak output power of 1.392 mW. It is a spread spectrum transmitter that utilizes frequency hopping modulation techniques. This radio is compliant with Bluetooth TM specifications, and will be used only with the applicant’s digital whiteboards as a mobile transmitter. The EUT can be configured with only one antennas. Although a standard SMA connector is used on the antenna, Loctite TM adhesive will be used by the applicant during manufacturing to permanently attach the antenna; and thus satisfy the requirements of 47 CFR 15.203. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. _______________________________ June 6, 2003 Dean Ghizzone, President Date Northwest EMC TCB Compliance Opinion Revision 1/3/03 POLV0037 Findings and Resolution Item The manual is missing the statement required in 15.21 cautioning the user against modifications. Resolution New exhibit has been submitted. Item Add Additional verbiage to the FCC Compliance statement in the manual concerning RF Exposure. Resolution New exhibit has been submitted. Item The application form lists the power output as 2.5 mW, the data and cover letter specify it as 1.392 mW. The application should match the rest of the package. Resolution The application has been corrected. Item Provide an External photograph showing the typical location of a radio on a whiteboard Resolution New exhibit has been submitted. Item Resolution Item Resolution Item Resolution Northwest EMC TCB Compliance Opinion Revision 1/3/03 POLV0037 Opinion Specification Requirements Description 2.1091, 15.247(b)(4) RF Exposure Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Exhibit M Specification Requirements Description 15.247 (a)(1)(ii) Bandwidth Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Exhibit J Specification Requirements Description 15.247 (b)(1) Power Output Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Exhibit J Specification Requirements Description 15.247 (c) Spurious Emissions, Antenna Conducted Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Exhibit J Specification Requirements Description 15.205, 15.209 Spurious Emissions, Radiated Emissions Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Exhibit J Northwest EMC TCB Compliance Opinion Revision 1/3/03 POLV0037 Specification Requirements Description 15.247(d) Power Spectral Density Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Exhibit J Specification Requirements Description 15.207 Conducted Emissions Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Exhibit J Specification Requirements Description 15.247(c) Band Edge Compliance Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Exhibit J Specification Requirements Description 2-15-02 FCC Procedure Bluetooth Common Items List Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Exhibit J

Cover Letter(s)

FCC ID: P6I-BTTX01 Exhibit A Agent Authorization Exhibit B Request for Confidentiality Exhibit C FCC ID Label and Location Exhibit D External Photos Exhibit E Internal Photos Exhibit F Frequency Block Diagram Exhibit G Operational Description Exhibit H Antenna Information Exhibit I Schematics Exhibit J Technical Report Exhibit K User Manual Exhibit L Test Setup Photos Exhibit M RF Exposure

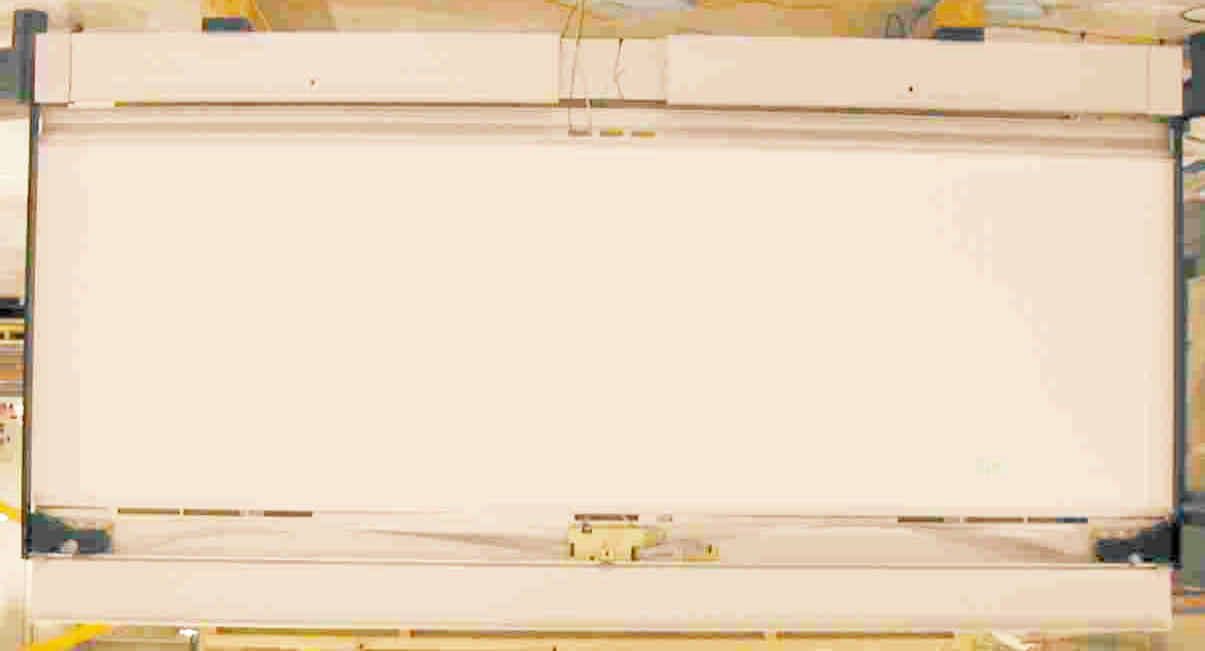

External Photos

Exhibit D: External Photos FCC ID: P6I-BTTX01

ID Label/Location Info

Exhibit C: FCC ID Label and Location FCC ID: P6I-BTTX01

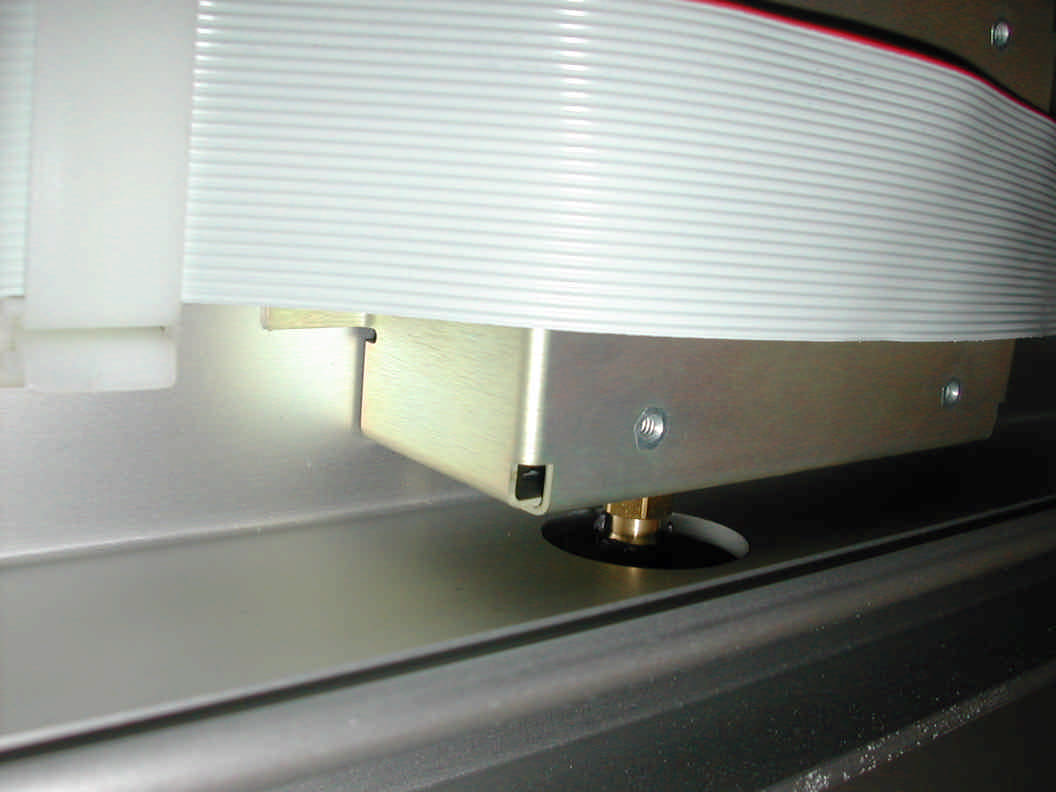

Internal Photos

Exhibit E: Internal Photos FCC ID: P6I-BTTX01

RF Exposure Info

Exhibit M: RF Exposure FCC ID: P6I-BTTX01 MPE Estimates FCC ID: P6I-BTTX01 Bluetooth Radio Antenna TypeAntenna Part No. Transmit Frequency Max Peak Conducted Output Power Antenna Gain Minimum Antenna Cable Loss Power Density @ 20 cm General Population Exposure Limit from 1.1310 (MHz)(mW)(dBi)(dB) (mW/cm 2 )(mW/cm 2 ) Half-wave, Bluetooth SMA Swivel Antenna gigaAnt , 606901924001.3921.600.000401 Compliance with 47 CFR 15.247(b)(5) “Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter.” The EUT will only be used with a separation distance of 20 centimeters or greater between the antenna and the body of the user or nearby persons and can therefore be considered a mobile transmitter per 47 CFR 2.1091 (b). The EUT will only be used with one antenna. The MPE estimate for this single exposure condition is shown below. The maximum peak power was measured to be 0.849 mW (ERP), and the transmit frequency is greater than 1.5 GHz, therefore the EUT is categorically excluded from routine environmental evaluation per 47 CFR 2.1091(c). The MPE estimates are as follows: Table 1 in 47 CFR 1.1310 defines the maximum permissible exposure (MPE) for the general population as 1mW/cm 2 . The exposure level at a 20 cm distance from the EUT’s transmitting antenna is calculated using the general equation: S = (PG)/4πR 2 Where: S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = numeric power gain relative to an isotropic radiator R = distance to the center of the radiation of the antenna (20 cm = limit for MPE estimates) PG = EIRP Solving for S, the maximum power densities 20 cm from the transmitting antennas are summarized in the following tables: The power density at 20 cm does not exceed the 1mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules.

Test Report

Exhibit H: Antenna Information FCC ID: P6I-BTTX01 Data sheet Bluetooth ™ Swivel Antenna PCB Bluetooth ™ Swivel Antenna SMA Omnidirectional for optimal radiation performance Length: 50 mm Art No: 6076019 Art No: 6069019 PCBSMA λ This is our standard Swivel Antenna intended for use with all 2.4 GHz applica- tions where very high performance is of utmost importance and a small foot- print is of lesser consideration. Since this is a half-wave antenna, it is indepen- dent of ground plane and the design minimizes special considerations for its placement. Typical application areas are: • Desktop PCs • Printers • Instruments • Network access points • Development prototypes Description The Bluetooth Swivel Antenna is a half-wave ( 2 ) antenna for external or internal mounting. Two designs are available: • provided with a standard SMA connector. • soldered directly on the PCB allowing the radiator to be placed outside the casing. No external matching network is required. The adjustable radiator is made of a flexible material and can be rotated 360 degrees in order to optimize radiation performance. gigaAnt, E-mail: [email protected], www.gigaAnt.com Specification subject to change without notice , FE 010012 Your strategic partner for antenna technology in the 2.4 GHz frequency band. Antenna specification Frequency:2.4-2.5 GHz Efficiency:75% Gain:1.6 dBi Nominal impedance:50Ω VSWR:<1.5:1 Connector:SMA Male/Soldered directly on PCB Mounting:Case or PCB Operating temperature:-25 °C – +70 °C Relative humidity:95% at 30 °C Weight:SMA 7.4 g, PCB 5.0 g Dimensions PCB version Mounting interface for PCB version (mm) Dimensions SMA version (mm) 49 52.9 19.420 18.420 61.5 48.5 Article No. SMA Swivel 6069019, PCB Swivel 6076019 3D Radiation pattern -25 dBi -15 dBi -5 dBi 5 dBi 30 210 60 240 90 270 120 300 150 330 1800 -25 dBi -15 dBi -5 dBi 5 dBi 30 210 60 240 90270 120 300 150 330 180 0 Horizontal cut, xy-plane Vertical cut, xz-plane

Test Report

Polyvision Corp. BTTX01 May 23, 2003 Report No. POLV0037 Report Prepared By: 1-888-EMI-CERT © 2003 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Issue Date: May 23, 2003 Polyvision Corp. Model : BTTX01 Emissions Description Pass Fail FCC 15.247, Spurious Radiated Emissions FCC 15.247, Output Power FCC 15.247, Band Edge Compliance FCC 15.247, Spurious Conducted Emissions FCC 15.247, Power Spectral Density FCC 15.247, Occupied Bandwidth FCC 15.207, AC Power Line Conducted Emissions The equipment was tested in the configuration and mode(s) of operation provided by the client. The specific tests and test levels were specified by the client. Any additional tests, or product configurations that should be tested are the responsibility of the client. Product compliance is the responsibility of the client. Modifications made to the product • See the modifications page of the report Deviations to the test standard • No deviations were made to standard test methods. Test Facility • The measurement facility used to collect the data is located at: Northwest EMC, Inc.; 22975 NW Evergreen Parkway, Suite 400; Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with the FCC (Federal Communications Commission), and accepted by the FCC in a letter maintained in our files. Approved By: Don Facteau, IS Manager This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested, the specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 05/05/03 Revision Number Description Date Page Number 00 None Northwest EMC Accreditations and Authorizations Revision 03/05/03 FCC: The Open Area Test Sites, and conducted measurement facilities, have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. TCB: Northwest EMC has been accredited by ANSI to ISO/IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. A2LA: Accreditation has been granted to Northwest EMC, Inc. to perform the Electromagnetic Compatibility (EMC) tests described in the Scope of Accreditation. Assessment performed to ISO/IEC 17025. Certificate Number: 1936-01, Certificate Number: 1936-02, Certificate Number 1936-03 Australia/New Zealand: The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body. (A2LA) TÜV Product Service: Included in TUV Product Service Group's Listing of Recognized Laboratories. It qualifies in connection with the TUV Certification after Recognition of Agent's Testing Program for the product categories and/or standards shown in TUV's current Listing of CARAT Laboratories available from TUV. A certificate was issued to represent that this laboratory continues to meet TUV's CARAT Program requirements. Certificate No. USA0302C TÜV Rheinland: Authorized to carryout EMC tests by order and under supervision of TÜV Rheinland. This authorization is based on "Conditions for EMC-Subcontractors" of November 1992. Northwest EMC Accreditations and Authorizations Revision 03/05/03 NEMKO: Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Technology International: Assessed in accordance with ISO Guide 25 defining the general international requirements for the competence of calibration and testing laboratories and with ITI assessment criteria LACO196. Based upon that assessment Interference Technology International, Ltd., has granted approval for specifications implementing the EU Directive on EMC (89/336/EEC and amendments). The scope of the approval was provided on a Schedule of Assessment supplied with the certificate and is available upon request. Industry Canada: Accredited by Industry Canada for performance of radiated measurements. Our open area test sites comply with RSP 100, Issue 7, section 3.3. VCCI: Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Nos. - Evergreen: C-1071 and R-1025, Trails End: C-694 and R-677, Sultan: C-905, R-871 and R-1172, North Sioux City C-1246, R-1185 and R-1217) BSMI: Northwest EMC has been designated by NIST and validated by C- Taipei (BSMI) as a CAB to conduct tests as described in the APEC Mutual Recognition Agreement. License No.SL2-IN-E-1017. CAB: Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement GOST: Northwest EMC, Inc. has been assessed and accredited by the Russian Certification bodies Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC, to perform EMC and Hygienic testing for Information Technology Products. As a result of their laboratory assessment, they will accept test res…

Text truncated - open the document above for the full version.

Test Setup Photos

Exhibit L: Test Setup Photos FCC ID: P6I-BTTX01

Contact Information

Applicant

Nathan Thielman(Senior Codes Consultant)
[email protected]360-608-9508Fax: 000-000-0000

Technical Contact

Northwest EMC, Inc.Greg Kiemel
[email protected]503-844-4066

22975 NW Evergreen Parkway · Hillsboro, Oregon · United States

Non-Technical Contact

Northwest EMC, Inc.Vicki Albertson
[email protected]503-844-4066

Test Firm

Northwest EMC, Inc.Greg Kiemel
[email protected]503-844-4066Fax: 503-844-3826

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz1.39 mW
Confidentiality
Long Term
Grant Notes
The antenna used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This radio is approved for use only with the applicants digital whiteboards as a mobile transmitter.
