P7KDDR4200DAB RECEIVER & VOICE RECORDER

Diasonic Technology Co Ltd

Click to zoom

Application Details

Equipment Class: JBP - Part 15 Class B Computing Device Peripheral
Date of Grant: Nov 17, 2005
Application Purpose: Original Equipment
Date of Application: Nov 17, 2005
Equipment Note: DAB RECEIVER & VOICE RECORDER
Company: Diasonic Technology Co Ltd
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 User’s Guide manual DAB & FM Receiver & Digital Voice Recorder & Audio Player Product name: DAB Receiver & Voice Recorder Model name: DDR-4200 Thank you for purchasing PORTABLE DIGITAL AUDIO PLAYER from DIASONIC. Please carefully Read the Instruction manual for safe use of the product. We recommend you to keep this instruction manual for future reference. 2 Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio Frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ▪ Reorient or relocate the receiving antenna. ▪ Increase the separation between the equipment and receiver ▪ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. INFORMATION TO THE USER ※ WARNING Changes or modifications not expressly approved by the manufacturer could void the user’s authority operate the equipment. This device complies with Part 15 of the FCC Results. Operation is subject to the following two conditions: (1) This Device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operation. 3 ● Do not drop DAB Receiver, it may cause a malfunction. ● Do not leave DAB Receiver in the following areas: - Place of high temperature (above 60°C) - Exposed to direct sunlight or near heating appliances. - Inside a car; especially in the summer - High humidity area like a bathroom ● Avoid any impact to the LCD Display ● Do not place credit cards, phone cards, bank books or subway tickets near DAB Receiver. The magnetism of the player may damage the data stored in the magnetic strip. ● We are not responsible for any damage or claims from a third party resulting from the use of DAB Receiver. ● We are not responsible for any loss of files caused by any reason. ● Do not repair, disassemble or make modifications to DAB Receiver. ● Do not use DAB Receiver in any area designated No Electronic Devices like airports or medical facilities. ● Do not operate while driving. ● If DAB Receiver is misused by the user, subjected to static electricity or electrical shock even if just changing the battery, the files stored in the memory may be lost or corrupted. Backup all important data! ● Only insert a memory card when the unit is off or a malfunction may occur DAB Receiver is manufactured under strict quality control procedures to ensure the best performance and customer experience. ● Elegant Design and Exterior Finishing DAB Receiver is designed with the customer in mind. Using a wide LCD Screen and half miller window to eliminate the closeness of a small display and show off a high class image to enhance the user’s experience. ● DAB/FM/Voice Recording and MP3 PLAYER DAB Receiver can record DAB/FM/Voice and play MP3 files. ● External memory DAB Receiver has the ability to expand the memory capacity using SD or MMC memory Safety Precautions Functions and Features 4 cards. ● Record DAB/FM RECEIVER With DAB Receiver you can record live or future DAB/FM broadcasts. ● RYW-EXPLORER With DAB Receiver you can transmit data between the device and your PC and even send those files to a friend using E-mail. ● Recording Timer DAB Receiver can be programmed to record voice or Receiver at a later time with its built in timer. ● USB Interface ● Displays file/frequency/current time on the wide LCD Screen ● Built-in calendar up to the year 2099 ● Elegant Design and Exterior Finishing ● Built-in microphone ● Separate and record files up to a high tone quality of 99 ● Lock (HOLD) function to prevent unnecessary battery consumption caused by an accidental key press. ● TIMER recording function to allow voice or Receiver recording at a later time/date. ● REPEAT PLAY allows a message to be played repeatedly ● Resume Playback Function ● Section Repeat Play (A↔B REPEAT PLAY) ● Automatic power OFF after manual setting of no use.(SLEEP MODE) ● MONITOR Function allows the user to listen to what is being recorded using an earphone (MONITOR) ● Volume adjustable 30 levels ● EQ equalizer modes (NORMAL,ROCK,JAZZ,CLASSIC,POP) ● Repeat (NORMAL/SECTION REPEAT/1 TRACK/ALL TRACK) ● Download and playback of MP3 Files ● Real time or reserved FM RECEIVER RECORDING function ● Real time or reserved DAB RECEIVER RECORDING function ● DAB/FM PRESET CH function ● DAB Region setting EUROPE (9) or USA (10) ● Setting up to 10 reserved recordings is possible ● S-FORWARD and S-REWIND Searching function (10 times/100 times searching) ● External memory slot (SD-CARD/MMC) ● Built-in high-power speaker ● Easy recording from external audio devices ● Recover time and settings after replacing the battery (BACK-UP Function) 5 1) MAIN SET Internal Microphone LED Lamp External Display Microphone Jack Vol +/- Ear phone Mode File Up REC Hold On/Off External Timer Memory Slot Menu Erase Rewind Forward Reset Speed A↔B/Repeat File Down Play/Stop USB Jack 2) LCD Memory Type DAB Received Indicator Mode Selection Battery Strength Date & Weekdays Ensemble File Info/Frequency Parts and Components 6 /Station Name Current Time Memory Space 3) Battery Use and Description of Components ① Open the Battery Cover. Open ② Close the cover after inserting Rechargeable Li-Polymer Battery(3.7V/1500mAH)to the correct (+) (-) polarities…

Text truncated - open the document above for the full version.

Cover Letter(s)

November 14, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Diasonic Technology Co., Ltd. FCC ID : P7KDDR4200 Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics, Parts list, Block diagram and Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Kim Mu-Ho Junior Engineer #321-43, Suksu-dong, Manan-ku, Anyang- city, Kyungki-do Korea TEL No : +82-31-474-0852 FAX No : 82-31-474-0861

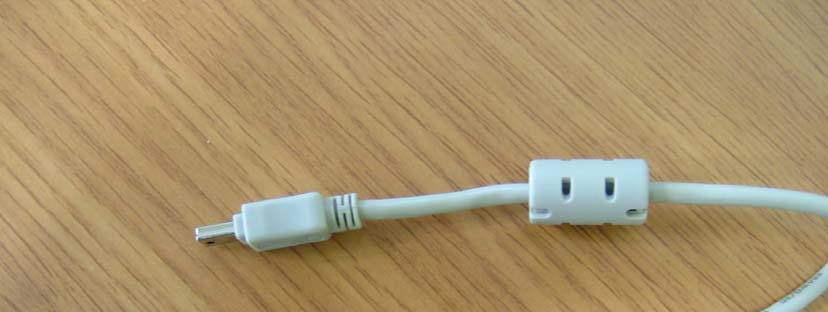

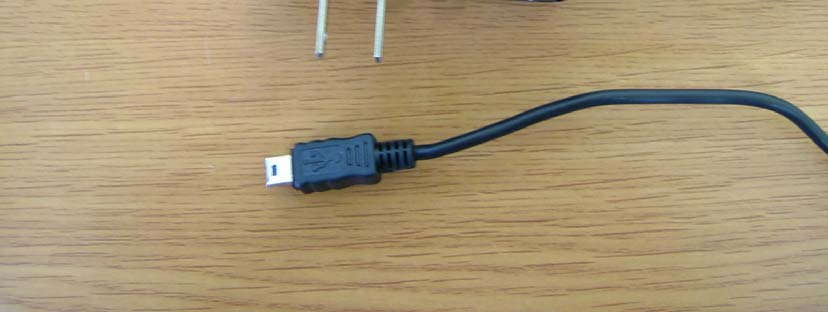

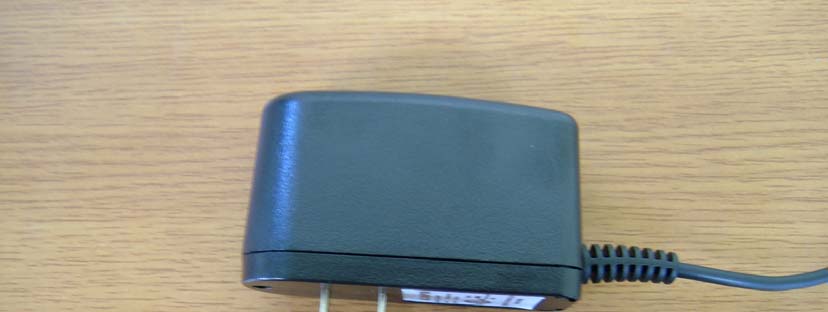

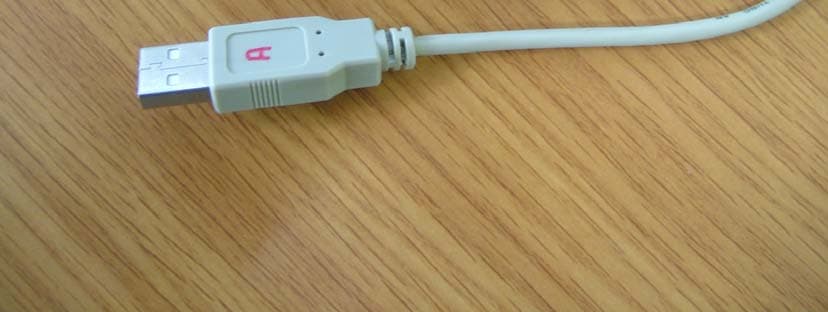

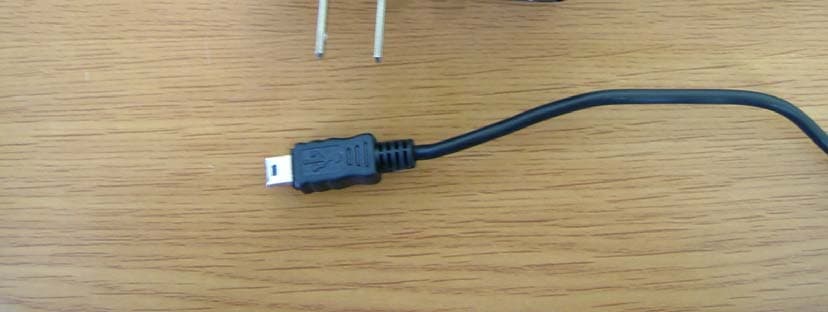

External Photos

FCC ID: P7KDDR4200 Copyright Ⓒ 2005, LTA Co., Ltd. View 1 FCC ID: P7KDDR4200 Copyright Ⓒ 2005, LTA Co., Ltd. View 2 FCC ID: P7KDDR4200 Copyright Ⓒ 2005, LTA Co., Ltd. View 3 FCC ID: P7KDDR4200 Copyright Ⓒ 2005, LTA Co., Ltd. View 4 FCC ID: P7KDDR4200 Copyright Ⓒ 2005, LTA Co., Ltd. View 5

ID Label/Location Info

Internal Photos

Test Report

LTA#LR500110511C Copyright ○ c 2005, LTA Co., Ltd. Page 1 of 22 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: November 1 ~ 2, 2005 Test Report S/N: LR500110511C Test Site : LTA CO., LTD. FCC ID APPLICANT TEST REPORT FCC Part 15B Certification Manufacturing Description : DAB Receiver & Voice Recorder Manufacturer : DIASONIC TECHNOLOGY CO.,LTD. Model name : DDR-4200 Test Device Serial No.: : Identification FCC Rule Part(s) : ANSI C-63.4-2003 FCC Part 15 Subpart B Data of issue : November 11, 2005 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by NVLAP or any agency of the U.S. Government. P7KDDR4200 DIASONIC TECHNOLOGY CO.,LTD. LTA#LR500110511C Copyright ○ c 2005, LTA Co., Ltd. Page 2 of 22 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 EMISSION REQUIREMENTS 3.2.1 CONDUCTED EMISSION --------------------------------------------------------------------- 3.2.2 RADIATED EMISSION ------------------------------------------------------------------------ APPENDIX APPENDIX 1 TEST EQUIPMENT USED FOR TESTS ------------------------------------------ APPENDIX 2 MEASUREMENT UNCERTAINTY ------------------------------------------------- APPENDIX 3 LABEL AND USER'S MANUAL INFORMATION ----------------------------- 3 4 5 6 11 16 18 20 LTA#LR500110511C Copyright ○ c 2005, LTA Co., Ltd. Page 3 of 22 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 After AssessmentECT accredited Lab. RRL KOREA KR0049 2007-07-13 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing LTA#LR500110511C Copyright ○ c 2005, LTA Co., Ltd. Page 4 of 22 2. Information’s about test item 2-1 Client Company name : Diasonic Technology Co., Ltd. Address : #321-43, Suksu-dong, Manan-ku, Anyang-city, Kyungki-do Country : Korea. Telephone : +82-31-474-0852 Facsimile : +82-31-474-0861 2-2 Equipment Under Test (EUT) Class : B (residential environment) Trade name : DAB Receiver & Voice Recorder Model name : DDR-4200 Serial number : Identification Date of receipt : November 03, 2005 EUT condition : Pre-production, not damaged Interface Ports : USB, LINE IN, Earphone High Frequency : 32.768KHz, 12MHz DAB Tuner : M/N: AEBP000S-700 Receiving Frequency: Band 3(174 ~ 245MHz) Power Source : AC ADAPTOR (SEORIM ELECTRONICS M/N: SR-0512SP) Input : 230VAC, 50/60Hz, 0.15A Output: 5V, 1.2A 2-3 Test conditions Temp. / Humi. / Pressure : +15~35 °C / 30~75 %RH / 860~1030 mbar Operating mode Description : 1. USB File up/down mode 2. MP3 Play mode 3. DAB REC mode 4. Voice REC mode Power supply : 120Vac , 60Hz 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer PC KG 502KIHS108841 LG Monitor 1704FPT 568 DELL Keyboard SK-8110 716 DELL Mouse M-S48 LZA84001808 LG Speaker MS-760 N/A SHENEHEN SHI Printer Deskjet 600K SG7631B1XX HP LTA#LR500110511C Copyright ○ c 2005, LTA Co., Ltd. Page 5 of 22 3. Test Report 3.1 Summary of tests Parameter Applied Standard Status EMISSION Requirements Radiated Emission FCC Part 15.109 C Conducted Emission FCC Part 15.107 C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2 : The data in this test report are traceable to the national or international standards. LTA#LR500110511C Copyright ○ c 2005, LTA Co., Ltd. Page 6 of 22 3.2 EMISSION Requirements 3.2.1 Conducted Emission Definition: The test assesses the ability of the EUT to limit its internal noise from being present on the AC mains Power In/Output ports. Equipment under test : DDR-4200 Test method : ANSI C-63.4-2003 Measurement Frequency range : 150 kHz ~ 30MHz Measurement RBW : 10 kHz Test mode : 1. USB File up/down and USB Charging mode without Cradle 2. Charging mode with Cradle Result : Complies Measurement Data: - No other emissions were detected at a level greater than 10dB below limit. - Refer to the next page A sample calculation: COR. F (correction factor)= LISN Insertion loss + Cable loss Emission Level= meter reading + COR.F LIMIT: FCC Part 15.107 Frequency Range Near-peak Average 0.15 ~ 0.5 MHz 66 ~ 56 dBuV 56 ~ 46 dBuV 0.5 ~ 5 MHz 56 dBuV 46 dBuV 5 ~ 30 MHz 60 dBuV 50 dBuV Note: The limits will decrease with the frequency logarithmically within 0.15MHz to 0.5MHz TEST EQUIPMENT USED: 03,06,07,11,17 LTA#LR500110511C Copyright ○ c 2005, LTA Co., Ltd. Page 7 of 22 Conducted emissions (L1) LTA#LR500110511C Copyright ○ c 2005, LTA Co., Ltd. Page 8 of 22 Conducted emissions (N) LTA#LR500110511C Copyright ○ c 2005, LTA Co., Ltd. Page 9 of 22 Conducted emissions (L1) LTA#LR500110511C Copyright ○ c 2005, LTA Co., Ltd. Page 10 of 22 Conducted emissions (N) LTA#LR500110511C Copyright ○ c 2005, LTA Co., Ltd. Page 11 of 22 3.3.2 Radiated Emission Definition: The test assesses the ability of ancillary equipment to li…
