P7KRVM-804TOUCH SCREEN VEHICLE MONITOR

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0078 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 6. User manual Rearview Monitor Model : RVM-804 Table of Contents USER MANUAL( Ver 1.0) Table of Contents 1. Caution2. Components of the product 3. How to use the product4. How to install the product5. Product Specification6. Warranty statements • Thank you for purchasing our touchscreen vehicle monitor.• Please read this manual before you use the product.• The product may be different t han described in the manual; depending on renewal and/or upgrade of S/W version and p erformance it can be altered without notice. p Home page:Product inquiry: 1. Caution ● For your safe operation please read this manual before you start ● For your safe operation , please read this manual before you start to use the product. We inform yo u that our company shall not be responsible for failures and troubles that are occurred due tomisuse or neglect of the cautions written on this manual. ● Operating this equipment when d riving a vehicle might cause an . accident. Use the equipment after parking or stopping the vehic le in a safe area. ● When wiping off the dust, use a soft fabric instead of liquid solvents (thinner, benzene etc.) solution or a wet rag. ● Do not press the liquid crystal screen hard. It might be damag ed by hard pressure. ● Do not drop or give shock. It mi ght cause breakdown or damage. ● Do not dismantle the product arbitrarily We do not supply free ● Do not dismantle the product arbitrarily . We do not supply free after service for an arbitrarily dismantled product. ● Touching the power with a wet hand causes electric shock. Caution required. ● For accessories or cables to co nnect with the product, it is recommended to use proper goods from our company. We arenot responsible for any problems caused by wrong articles. ● Do not disconnect the power c able during using the product. It might cause damage to the productIt might cause damage to the product . ● Please conform the failure of the User’s Guide and precautions , If a fault occurs in the operations. # Amplified explanat ion is as follows. ● Cti Thi tif httk i id d td ● C au ti on: Thi s par t i n f orm w h a t t o k eep i n m i n d or un d ers t an d and what caution is required to use the product. ● Ref(reference): Reference is about functional explanation. 2.Components of the product ①① ② ③ ①Touch Screen ② ③ ● By touching one of the small picture during multi screen mode, the concerning small picture will be enlarged into full screen mode . ● By touching the screen it is po ssible to control the equipment or to change the settings. ②Power On/Off ● Press the power button for 0.5 seconds to turn on the screen.● Press the p ower button for 0.5 seconds to turn on the screen p when it is turned on. ③illuminance sensor● Behind this window a sensor detects the actual light condition s in the area around the screen. When activated via the menu setting s, this sensor automatically control s the brightness of the screen . (Day/Night control) ④⑤⑥⑦ ④ Bluetooth phone menu On/Off ● Bluetooth phone menu screen appe ars when you touch the button. ⑤ LCD Display On/Off ● Lcd screen appears when you touch the button. ⑥ Split Screen ● A split screen appears ● A split screen appears . ⑦ Menu Button ● The main menu appears. Rear Panel ③ ① ④ ① Power Input ② ④ ① Power Input ● Connect the power cable. ( VCC/GND/TRG1~TRG5/Speed SW ) ② Camera Input ② Camera Input ● Connect the camera cable. ( Cam1 ~ Cam4 )③ AUX In ③ AUX In ● AUX in 2 port ④ Ext. MIC / S p eaker p ● Connect an external mic and speake.. Components ● Please check that you have the correct contents before using t his Product. ● If any items are missing, please contact your dealer. Top Case Bottom Case Power + Camera Cable Manual 3. How to use the product ● When the booting is ready, the multi screen as below will be displayed Start screen When the small window is When the small window is touched, it is enlarged.touched, it is enlarged. ● When the small window on the multi screen are touched, the channel is enlarged into full screen mode. One more touchreturns it back to the multi screen mode. ● : Adjust the volume of the speaker. ● : Setting menu. . Volume Control ● Press the button to display volume Pop-up. ② ③ ② ③ ①① ① Press the button to mute.② Press the button to increase the volume.③ Press the button to decrease the volume ③ Press the button to decrease the volume . Multi screen ● P th lti b tt t di id th ● P ress th e mu lti screen b u tt on t o di v id e th e screen. ①② ③ ④ Press multi screenButton once: Press multi screenButton 3 times: Cam1234 ③ ④ Button once: Cam1,Cam2 Cam1 , 2 , 3 , 4 ①② ③④ Press multi screen button twice: C3C4C am 3 , C am 4 Setting Mode ● P th tti b tt t th tti ● P ress th e se tti ng menu b u tt on t o open th e se tti ng screen. ● CAM : Adjust brightness of Camera input screen● AUX : Adjust brightness of AUX screen ● AUX Adjust brightness of AUX screen Display Input the name into each channel. ● Mirror : Mirror image or normal image● Reverse : Mirror image or reverse image● Shutter : Enable to operate Shutter/Heater Camera Display Setup screen position of each channel ※ Caution: Cam1and AUX1 cannot be setup at the same time. Setup the screen on each trigger. Display Di l th f ll di t h Di sp l ay th e f u ll screen accor di ng t o eac h Channel setup when setting up OnDisplay the dividing lines of the screenDisplay the dividing lines of the screen Display Adjust Parking line of each Trigger. Trig 1 Front & Rear Calibration Trig . 1 Front & Rear Calibration Function Th i t d O t ti ll Th e screen i s t urne d O n au t oma ti ca ll y When starting the vehicle 전원 Off 전의 화면Mode로 On됩니다. Automatic brightness adjustment by sensorin the front housing Sensitivity of a…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0078 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 4. Block Diagram TW2851 VIN0A VIN0B VIN1A VIN1B VIN2A VIN2B VIN3A VIN3B AUDIO IN0 AUDIO IN1 AUDIO IN2 AUDIO IN3 ARM S3C2450 RS232 FRONT BOARD BLUE TOOTH MODULE MIC MDIN270 WLED drive ACT6358NH-T AT080TN64 8" 800 X 480 TOUCH drive AK4183 DDR 256MB SDRAM 1GB NOR 256MB External SPK AMP JS2005 Internal SPK AMP JS2005 PMIC ACT8894 POWER 12V 3.3V Vout 2.5V Vout 1.8V Vout 1.2V Regulator 2.5V Regulator RVM-804 BLOCK_DIAGRAM CPU ATMEGAx48P

Construction Equality Declaration We, the undersigned hereby declare, that the following radio equipment: RearView Monitor Diasonic Technology Co., Ltd. RVM-804 (Name of product,company, type or model, brandname whichever is applicable) is electrically equivalent to: RearView Monitor Diasonic Technology Co., Ltd. MXN-HD8QT, MRV-HT8Q, X1-M4W, X1-M4S, X1-M2W, X1-M2S (Name of product, company, type or model, brandname whichever is applicable) Neither the electrical nor any mechanical differences between the original and new models of the device affect the essential requirements of Directive 99/05/EC.  Point of contact: Diasonic Technology Co., Ltd. (Company name) #321-43, Suksu-dong, Manan-ku, Anyang-city, Kyungki-do, Korea. (Company address) Min-Hwan, Kim/ +82-31-474-0852 (Name, telephone and fax number) 16th of November, 2012 (Place, date of issue) (Signature / stamp) Min-Hwan, Kim (Name and title in block letters)

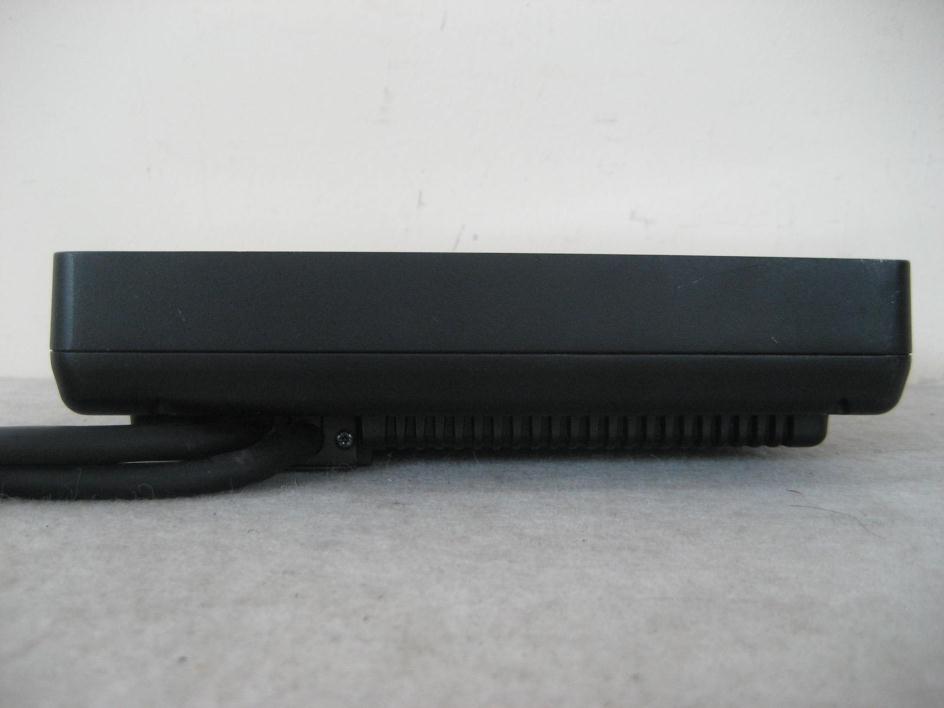

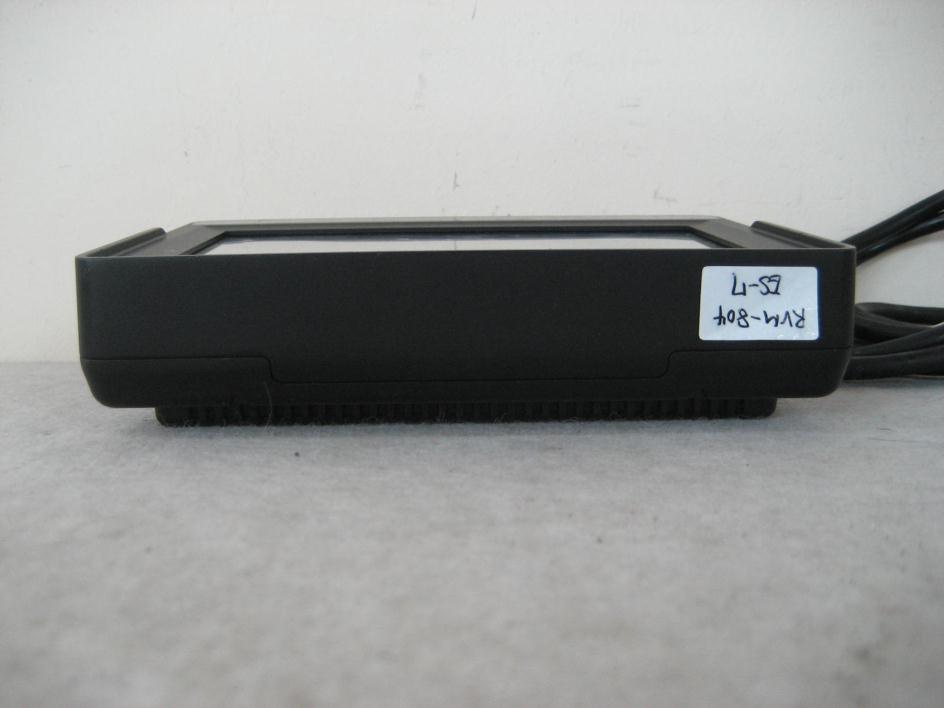

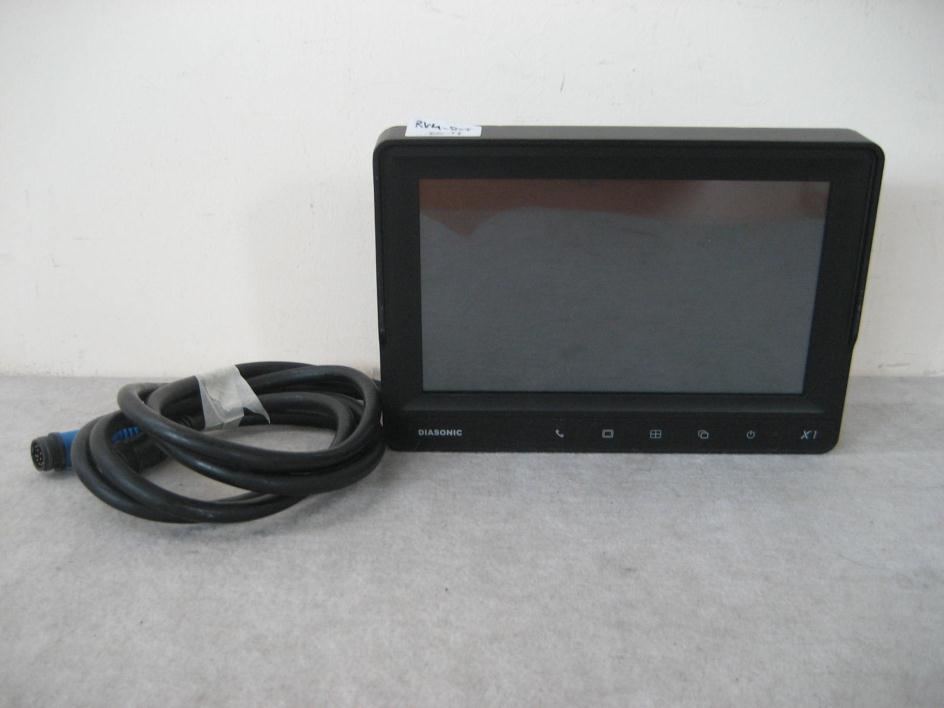

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0078 EMC compliance Ltd. Page: 1 of 3 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 2 External photos of EUT - Front - Rear http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0078 EMC compliance Ltd. Page: 2 of 3 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. - Top - Bottom http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0078 EMC compliance Ltd. Page: 3 of 3 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. - Left - Right

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R078 EMC compliance Ltd. 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Label Location

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0078 EMCcomplianceLtd.Page: 1 of 2 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 3 Internal photos of EUT - Main board top - Main board bottom http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0078 EMCcomplianceLtd.Page: 2 of 2 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. - Front board top - Front board bottom

APPROVAL NO. ISSUE 1.1 ITEM : BLUETOOTH MODULE PART NO.: SBM2XA-05 1000AAA APPROVAL NO. : APPROVAL MODEL : CONDITION : 1. 2. 3. 4. 상 SECTION DESIGNER CHECKED APPROVED Dept/Name customer SIGN SECTION DESIGNER CHECKED APPROVED Dept/NameH.T.SHIN Joseph,Lee SUPPLIER SIGN SUPPLIER : SungJin Techwin Co.,Ltd. ADDRESS : 256-8, In-Dong, Dong-Gu, Daejeon, Korea,300-828 042-271-1177(☎), 02-864-1091(R&D Center) Signature : APPROVAL SHEET SBM2XA-05 Data Sheet Copyright 2009 SungJin Techwin Co., Ltd.. 2 APPROVAL SHEET CHANGE LIST DATE ITEM CONTENTS EVIDENCE ISSUE 1.0 2009.07.10 1st Draft Bluetooth SIG Qualification Design (QDL) Certificate From ISSUE 1.0 To 1.1 2009.08.21 Add certification RoHS From ISSUE To From ISSUE To From ISSUE To From ISSUE To From ISSUE To From ISSUE To From ISSUE To From ISSUE To From ISSUE To From ISSUE To SBM2XA-05 Data Sheet Copyright 2009 SungJin Techwin Co., Ltd.. 3 Contents 1. GENERAL PART..........................................................................................4 1.1 OVERVIEW.............................................................................................4 1.2 MAJOR FEATURES................................................................................4 1.3 MODULE BLOCK & INTERFACE............................................................4 1.4 MARKING AND EXTERNAL APPEARANCE...........................................5 1.5 PIN DESCRIPTION..................................................................................7 2. SPECIFICATION ...........................................................................................9 2.1 GENERAL SPECIFICATION.....................................................................9 2.2 TEMPERATURE SPECIFICATION...........................................................9 2.3 TX/RX SPECIFICATIONS........................................................................10 2.4 RELIABILITY TEST STANDARD.............................................................12 2.5 DAC Audio Interface...............................................................................13 3. APPLICATION NOTE....................................................................................14 4. RECOMMANDED REFLOW TEMPERATURE PROFILE.............................15 4.1 MS Level 3.................................................................................16 5. TEST REPORT.............................................................................................18 6. Test Procedure..............................................................................................19 7. PACKING INFORMATION.................................................................20 7.1 CARRIER SPECIFICATION....................................................................20 7.2 REEL SPECIFIATION.............................................................................20 7.3 GIFT BOX SPECIFICATION....................................................................21 7.4 CARTON SPECIFIATION.......................................................................21 8.Bluetooth SIG Qualification..............................................................................22 9. RoHS DATA....................................................................................................23 9.1 RoHS.........................................................................................................23 9.2 Crystal Resonator DSX321G Certificate of Conformity RoHS...................26 SBM2XA-05 Data Sheet Copyright 2009 SungJin Techwin Co., Ltd.. 4 1. General Part 1.1 Overview SBM2XA-05, This bluetooth handsfree module, provides a high quality, high integration, and cost effective solution for hands-free mobile communication such as Hands Free Car Kits or Telematics devices or luxury bluetooth Headset(mono,stereo) with noise&echo cancellation or portable bluetooth MP3 with RF tunning Further more,SungJin Techwin Co., Ltd. is doing customer full support as software porting or echo &noise tunning or bluetooth approval even production tooling. This module deployed CSR's BC57E687B. 1.2 Major Features - Fully Qualified Bluetooth v2.1 + EDR - Specification System - Best in Class Bluetooth Radio with 8dBm - Class 2 Level Output Power Available (Max. +4dBm) - Transmit Power and -87.5dBm Receive Sensitivity - Internal DSP is involved - 64MIPS Kalimba DSP Co-processor - 16-bit Internal Stereo CODEC 95dB SNR for DAC - Operation, 3.3V I/O - Supply Voltage : 2.8~3.5V - USB, I2C and UART with Dual-port Bypass Mode to 4Mbits/s - Supports : 16Mbit of Flash Memory - Multi-configurable I2S, PCM or SPDIF Interface - Enhanced Audibility and Noise Cancellation - Support for 802.11 Co-existence - RoHS Compliant - Competitive Size : 16.5mm x 16.5mm x 3mm ± 0.2mm - Wide operating temperature range : -40°C to 85°C - Support of all Bluetooth packet types(Voice and Data) - Support profile : HSP,HFP,A2DP,AVRCP,OPP,PBAP,AT command for phonebook download - TTS (Text to Speech) support SBM2XA-05 Data Sheet Copyright 2009 SungJin Techwin Co., Ltd.. 5 1.3 Module Block & Interface 1.4 Marking and External Appearance 1.4.1 Marking ① S B M 2 X A - 05 ② ③ ④ ⑤ ⑥ ⑦ 10 00 A A A ⓐ ⓑ ⓒ ⓓ ⓔ No Index No Index ① Manufacturer ⓐ IO Vout 10 : VDD, 26MHz ② Module’s Abbreviation (SB : SUNGJIN Bluetooth) ⓑ Manufactured Month ③ Application/Interface M : MM/ E : External Memory ⓒ Manufactured Line ④ Class : (1 : Class 1) (2 : Class 2) ⓓ Manufactured Factory ⑤ Customer ⓔ History ⑥ PCB revision ⑦ CSR version (BC05) SBM2XA-05 Data Sheet Copyright 2009 SungJin Techwin Co., Ltd.. 6 1.4.2 External Appearance 1.4.3 Physical Dimension Mark Dimension Mark Dimension Mark Dimension L 16.5±0.2 W 16.5±0.2 T 3±0.2 A 17.8±0.1 B 17.8±0.1 C 16.0±0.1 D 16.0±0.1 E 3.2±0.1 F 1.2±0.1 G 3.2±0.1 H 2.0±0.1 I 0.8±0.1 J 0.8±0.1 K 0.9±0.1 L1 0.8±0.1 M 2.0±0.1 - - L1 SBM2XA-05 1000AAA SBM2XA-05 Data Sheet Copyright 2009 SungJin Techwin Co., Ltd.. 7 1.5 PIN Description Terminal No. Terminal Name Type Description (1) SPK_R- Anal…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0078 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 9. Antenna specification Application Bluetooth Zigbee WLAN (IEEE 802.11 b/g) ISM 2.4GHz Wireless Devices Features Helical Structure Size (9.0*3.0*1.2mm 3 ) Easy Optimizing with external lumped matching components SMT Available under Pb-free Condition RoHSCompliant DATASHEET DocumentDatasheet TypeMultilayer Chip Antenna Application2.4GHz Part No.ALA931C5 Revision6.0 Notes The contents of this datasheet are subject to change without notice. Please confirm the specifications and delivery conditions when placing your order. AMOTECH AMOTECH Co., Ltd. Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 2 Rev. NoDateTitleContentsPage 6’10.01.19FormatChangeddocument format Table of Content Revision History 1.Specifications 3 1.1 Electrical Specifications 3 1.2 Mechanical Specifications 3 1.3 Appearance and Material 3 2. PCB Design for Test 4 2.1 Evaluation BoardDimension 4 2.2 PCB Design Guide 4 3. Measurement Result 5 3.1 Typical Measurement Result (VSWR/RL,Smithchart) 5 3.2 Typical Measurement Result(Gain, Radiation Pattern) 6 4. Reliability 7 5. Soldering Reflow Profile 7 6. Packaging 8 6.1 Carrier Tape Dimension 8 6.2 PackagingQuantity 8 6.3 Packaging Label 8 Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 3 NoItemSpec.Remark 1Frequency Range [GHz]2.4 ~2.485 2VSWRMax 2.5:1 3Peak Gain [dBi]typ. 3.5 4TotalAvg. Gain [dBi]typ. -0.22 5Efficiency [%]typ. 95 6PolarizationLinear 7Impedance [Ω]Nominal 50 The results are measured on the 10x43mm 2 evaluation board(EVB). See Page 6. for more detail gain parameter NoItemSpec.Remark 1Dimensions (LxWxH)9.0x3.0x1.2 mm 3 2Unit Weighttyp. 97 mg 3Operating Temperature-35 ~ +85 °C 1.1 Electrical Specifications 1.2 Mechanical Specifications NoItemFunctionMaterial ①External ElectrodeSoldering, Input PortAg/Ni/Sn ② Direction indexIndication of Ceramic ③Ceramic Body -Ceramic ④Model No. index-Ceramic ⑤External ElectrodeSolderingAg/Ni/Sn 1.3 Appearance & Material 1. Specifications ③ ④ ⑤ ② ① 0.7±0.2 9.0±0.3 3.0±0.2 Side 1.2±0.2 A50600 (unit : mm) Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 4 2.1 Evaluation Board Dimension 2.2 PCB Design Guide 2. PCB Design for Test NoPin Assignment ① Feeding ②N.C Matching Component [unit : mm] Evaluation board size ~ 10x43 Fill Cut Area (GND Clearance) ~ 10x13 [PCB Solder Land] 50 Ohm Feeding Line ① ② Chip Antenna Matching Stage SMA Connector GND [Unit : mm] Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 5 3.1 Typical Measurement Result (VSWR/RL, Smithchart) 3. Measurement Result The results are measured on the 10x43mm 2 evaluation board(EVB). NoMatching Value ①N.C ②2.7 nH ③ 1.2 nH ③① ② Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 6 [Azimuth plane @2.45GHz ] [Elevation1 plane @2.45GHz ] [Elevation2 plane @2.45GHz ] [3D Radiation Pattern] 3.2 Typical Measurement Result (Gain, Radiation Pattern) x y z -y Azimuth E1 E2 Peak Gain (dBi) Avg. Gain (dBi) Total Avg. Gain (dBi) Efficiency (%) Azimuth 2.81.0 -0.2295 Elevation 1 3.5-0.7 Elevation 2 1.7-1.6 Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 7 NoItemTest ConditionTest Requirements 1 Adhesive Strength of Termination 1.Applied force on SMT chip till detached point from PCB. 1. No mechanical damage by applied force 2. Strength (F) > 7 kgf 2 Thermal Shock (Cycle) 1. Step 1 : -40 ±3°C, 30 min Step 2 : +125 ±3°C, 30 min 2. Number of cycle : 30 1. No visual damage 2. Within electric spec (VSWR) 3 High Temperature Resistance 1. Temperature : +125 ±5°C 2. Time : 1000 ±24 hrs 1. No visual damage 2. Within electric spec (VSWR) 4 Low Temperature Resistance 1. Temperature : -40 ±5°C 2. Time : 1000 ±24 hrs 1. No visual damage 2. Within electric spec (VSWR) 5Humidity 1. Humidity : 85 % RH Temperature : +85 ±3°C 2. Time : 1000 ±24 hrs 1. No visual damage 2. Within electric spec (VSWR) F SMD PAD PCB 4. Reliability 5. Soldering Reflow Profile Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 8 ItemSpec.ItemSpec.ItemSpec. A03.30±0.10P04.00±0.10E1.75±0.10 B09.30±0.10P18.00±0.10F7.50±0.10 K01.30±0.10P22.00±0.10W16.00±0.30 D01.55±0.05--t0.30±0.05 Item QuantityDimension Reel1,000eaΦ7” * 12mm Inner Box3,000ea (3 reel)185 * 185 * 68 (mm 3 ) Outer Box115,000ea (5 Inner Box)375 * 200 * 205 (mm 3 ) Outer Box230,000ea (10 Inner Box)390 * 375 * 205 (mm 3 ) 6.1 Carrier Tape Dimension 6.2 Packaging Quantity 6.3 Packaging Label 6. Packaging AMOTECH Co., Ltd. 5BL-1Lot, 617, Namchon-Dong, Namdong-Gu, Incheon, Korea Multilayer Chip Antenna P/N : ALA931C5 Lot No : Quantity : 1,000 pcs Date : 2010/01/19

Operation Description 2.Components of the product ①① ② ③ ①Touch Screen ② ③ ● By touching one of the small picture during multi screen mode, the concerning small picture will be enlarged into full screen mode . ● By touching the screen it is po ssible to control the equipment or to change the settings. ②Power On/Off ● Press the power button for 0.5 seconds to turn on the screen.● Press the p ower button for 0.5 seconds to turn on the screen p when it is turned on. ③illuminance sensor● Behind this window a sensor detects the actual light condition s in the area around the screen. When activated via the menu setting s, this sensor automatically control s the brightness of the screen . (Day/Night control) ④⑤⑥⑦ ④ Bluetooth phone menu On/Off ● Bluetooth phone menu screen appe ars when you touch the button. ⑤ LCD Display On/Off ● Lcd screen appears when you touch the button. ⑥ Split Screen ● A split screen appears ● A split screen appears . ⑦ Menu Button ● The main menu appears. Rear Panel ③ ① ④ ① Power Input ② ④ ① Power Input ● Connect the power cable. ( VCC/GND/TRG1~TRG5/Speed SW ) ② Camera Input ② Camera Input ● Connect the camera cable. ( Cam1 ~ Cam4 )③ AUX In ③ AUX In ● AUX in 2 port ④ Ext. MIC / S p eaker p ● Connect an external mic and speake.. Components ● Please check that you have the correct contents before using t his Product. ● If any items are missing, please contact your dealer. Top Case Bottom Case Power + Camera Cable Manual 3. How to use the product ● When the booting is ready, the multi screen as below will be displayed Start screen When the small window is When the small window is touched, it is enlarged.touched, it is enlarged. ● When the small window on the multi screen are touched, the channel is enlarged into full screen mode. One more touchreturns it back to the multi screen mode. ● : Adjust the volume of the speaker. ● : Setting menu. . Volume Control ● Press the button to display volume Pop-up. ② ③ ② ③ ①① ① Press the button to mute.② Press the button to increase the volume.③ Press the button to decrease the volume ③ Press the button to decrease the volume . Multi screen ● P th lti b tt t di id th ● P ress th e mu lti screen b u tt on t o di v id e th e screen. ①② ③ ④ Press multi screenButton once: Press multi screenButton 3 times: Cam1234 ③ ④ Button once: Cam1,Cam2 Cam1 , 2 , 3 , 4 ①② ③④ Press multi screen button twice: C3C4C am 3 , C am 4 Setting Mode ● P th tti b tt t th tti ● P ress th e se tti ng menu b u tt on t o open th e se tti ng screen. ● CAM : Adjust brightness of Camera input screen● AUX : Adjust brightness of AUX screen ● AUX Adjust brightness of AUX screen Display Input the name into each channel. ● Mirror : Mirror image or normal image● Reverse : Mirror image or reverse image● Shutter : Enable to operate Shutter/Heater Camera Display Setup screen position of each channel ※ Caution: Cam1and AUX1 cannot be setup at the same time. Setup the screen on each trigger. Display Di l th f ll di t h Di sp l ay th e f u ll screen accor di ng t o eac h Channel setup when setting up OnDisplay the dividing lines of the screenDisplay the dividing lines of the screen Display Adjust Parking line of each Trigger. Trig 1 Front & Rear Calibration Trig . 1 Front & Rear Calibration Function Th i t d O t ti ll Th e screen i s t urne d O n au t oma ti ca ll y When starting the vehicle 전원 Off 전의 화면Mode로 On됩니다. Automatic brightness adjustment by sensorin the front housing Sensitivity of automatic brigh tness adjustment, level 0 to 10 controlled by actual light conditions (Day/Night) Function Keep Trigger activated during setup time afterKeep Trigger activated during setup time after Trigger off in order to bridge temporary powerloss,e.g. from vehicle’s turnlight signal Re-adjust center Point of Touch panel STEP 1 of 3 Click on center of '+' icon for Touch screen calibration. Function Detect speed of a vehicle from 10 to 200HzTo switch automatically into the screen ON To switch automatically into the screen ONmode, by detecting a speed signal (tacho signal) System Set time displaying the Menu screen. Set time displayed on the screenSet time displayed on the screen . 설정시간 동안 Touch등 Key 입력이 없으면 화면이 꺼집니다. System Set a password to lock the Menu button. Support languages for each country. ( Option ) System Initializing set points of MenuDisplay Firmware Version and Model name Bluetooth Phone ● Press the button to start Bluetooth. Screen of Bluetooth start Start-up screen displays the Ph one Book list of phone paired. : Displays call lists during absence. :Di l h lllit i d : Di sp l ays p h one ca ll li s t s rece i ve d . : Displays phone call lists sent.: Use for making a call dialing numbers. : Displays a Phonebook list.: Setup of Bluetooth.: Finishes Bluetooth. Bluetooth Phone ● Enter the Pairing Mode for Paring with Bluetooth by pressing the button 1. Pairing mode is set by pressing the button . 2. Connect Bluetooth to a cell ph one you want searching Bluetoot h device.(Enter the Pin code depending on type of cell phones)device.(Enter the Pin code depending on type of cell phones) 3. Message is displayed when it is connected as below. 4Returntothestart up screen of Bluetooth by pressing 4 . Return to the start - up screen of Bluetooth by pressing the button. Bluetooth Phone ●:Displays devices Paired. * Display devices paired up to 8 devices• Displays devices paired • Deletes devices connected by the button • Connects devices by pressing the button • Deletes all devices by pressing the button < Devices paired are connect ed automatically in order > Bluetooth Phone ● :Connection automatically when receiving a call ● :Incoming call automatically after a set time when receiving a call from the set on the state. • Name : Phone on display during Pairing is the name of that instrument. • Address : Bluetooth Address. • Bluetooth Soft ware Version is displayed. Bluetooth Phone ● Down load phonebook list after pairing succeed. • Call after press the number in the list. 4. Installation 6.Spec…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0078 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 7. Part list REARVIEW MONITOR PART LIST ( V04 ) '12.08.10 SpecPackageQtyMakerReference관세운임내자가격외자가격 \$￥\$￥단가 8%단가 3%1,100.0910 ICAV ControllerTW2851BGA1TechwellU1$11.00$11.0012,100.0$11.00IC-LAND최승혁대리[email protected] ICTFT Display ControllerMDIN270BGA1Macro mediaU15$3.40$3.4003,740.0$3.40미크로영상송성언과장[email protected] ICCPUS3C2450BGA1SAMSUNGU17$6.10$6.106,710.0$6.10신성반도체이경재대리010-2702-5220 [email protected] ICMPUATMEGA48PQFP321ATMELU450$0.70$0.70770.0$0.70세창반도체정상용대리010-3883-6287 [email protected] ICNOR_FLASHS29GL256S10TFI01TSOP1SPANSIONU7$2.30$2.302,530.0$2.30멀티웨이브조병형과장010-2350-7973 [email protected] ICMOBILE DDR SDRAMK4X1G163PE-FGC6FBGA601SAMSUNGU12₩2,838.02,838.02,838.0신성반도체이경재대리010-2702-5220 [email protected] ICDDR SDRAMMT46V16M16P-5B IT:MTSOP1MICRONU25$2.00$2.002,200.0$2.00유니퀘스트최두환과장010-8424-6486 [email protected] ICSPK AMP JS2005_DFN-8 DFN2JULYU23,U102$0.32$0.16352.0$0.32 줄라이 세미박선주팀장[email protected] ICRESET-IC MAX6412UK22 SOT23-51MAXIMU18$0.45$0.45495.0$0.45 길라닉스박경수이사017-201-1824 [email protected] ICTouch DriverAK4183TMSOP1AKMU502¥48.00¥48.00648.0STC최보훈사원010-9931-2544 [email protected] ICWLED DriverACT6358NH-TTDFN1ACTIVESEMIU501$0.38$0.38418.0$0.38TEI박범진과장[email protected] ICPMICACT8894TQFN44-321ACTIVESEMIU3$1.20$1.20$1.20TEI박범진과장[email protected] ICAnalog SwitchMAX4584μMAX101MAXIMU31$0.50$0.50$0.50 길라닉스박경수이사017-201-1824 [email protected] ICBooster ConverterMP1541SOT-23-51MPSU509$0.40$0.40440.0$0.40 이진테크이영과장010-9944-2115 [email protected] ICBooster ConverterMAX668TSSOP1MAXIMU2$1.20$1.201,320.0$1.20 길라닉스박경수이사017-201-1824 [email protected] IC LDOAX6603 330BA SOT-23-52U14,U16₩136.068.0136.0 ICTermination RegulatorTJ2996DPSOP81HTCU26$0.62$0.62682.0$0.62승전상사김덕규이사017-205-9684 [email protected] ICLDOLM1117S-1.2VSOT2232HTCU10,U11₩136.068.0136.0승전상사김덕규이사017-205-9684 [email protected] ICLDOLM1118S-2.5VSOT2231HTCU108₩68.068.0승전상사김덕규이사017-205-9684 [email protected] ICBuck ConverterTPS5450DDARSOIC81TIU603$1.25$1.250위코시스템김옥환팀장02-6679-7117 [email protected] ICBuck ConverterTPS5430DDARSOIC81TIU207$0.69$0.690위코시스템김옥환팀장02-6679-7117 [email protected] ICOP-AMPTL082SO-81TIU110$0.06$0.060위코시스템김옥환팀장02-6679-7117 [email protected] ICBuck ConverterTJ6713DPSO-81HTCU30승전상사김덕규이사017-205-9684 [email protected] X-TALX-TAL27MHz3.2X2.52ITTIX1,X401$0.31$0.16341.0$0.31 ITTI이문숙팀장[email protected] X-TALX-TAL12MHz3.2X2.51ITTIX2$0.16$0.16176.0$0.16 ITTI이문숙팀장[email protected] X-TALX-TAL48MHz3.2X2.51ITTIX4$0.16$0.16 ITTI이문숙팀장[email protected] X-TALX-TAL8MHz1ITTIX406$0.16$0.16 ITTI이문숙팀장[email protected] FUSEFuseCC12H3A32161BUSSMANNF100₩130.0130.0 J&B Light신승백이사010-7344-2649 [email protected] FUSEPoly swNANOSMDC050F/13.232164TYCOF21,F45,F52,F58₩640.0160.0 FUSEPoly swLP-MSM150/1645321WAY ONF25₩160.0160.0 J&B Light신승백이사010-7344-2649 [email protected] ANTBT-ANT1A1₩200.0200.0 DIODESCHOTTKY DIODERB160L-60SOD-1062D502,D507₩154.077154.0신영반도체김명학대표011-687-7470 [email protected] DIODEDIODEKDS226SOT-234D8,,D508,D509,D519₩392.098392.0신영반도체김명학대표011-687-7470 ep…

Text truncated - open the document above for the full version.
