P7KRVM-704IREARVIEW MONITOR

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0077 EMCcomplianceLtd. 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 6. User manual OWNER'S MANUAL R 2 - DIN, 7 " Touch screen vehicle monitor for allround vision Model : MXN - 7DDT Design and Specifications are subject to change without notice. 2 - DIN, 7 " Touch screen Monitor Model : MXN - 7DDT Instruction Manual (Ver 1.0) Index 1. Caution 2. Components of the product 3. How to use the product 4. How to install the product 5. Specification Thank you for purchasing our touchscreen vehicle monitor. Please read this manual before you use the product. The product may be different than described in the manual; depending on renewal and/or upgrade of S/W version and performance it can be altered without notice. Caution 3 For your safe operation, please read this manual before you start to use the product. We inform you that our company shall not be responsible for failures and troubles that are occurred due to misuse or neglection of the cautions written on this manual. Operating this equipment when driving a vehicle might cause an accident. Use the equipment after parking or stopping the vehicle in a safe area. When wiping off the dust, use a soft fabric instead of liquid solvents (thinner, benzene etc.) solution or a wet rag. Do not press the liquid crystal screen hard. It might be damaged by hard pressure. Do not drop or give shock. It might cause breakdown or damage. Do not dismantle the product arbitrarily. We do not supply free after service for an arbitrarily dismantled product. Touching the power with a wet hand causes electric shock. Caution required. For accessories or cables to connect with the product, it is recommended to use proper goods from our company. We are not responsible for any problems caused by wrong articles. Do not disconnect the power cable during using the product. It might cause damage to the product. Amplified explanation is as follows. -Caution: This part informs what to keep in mind or understand and what caution is required to use the product. -Ref (reference): Reference is about functional explanation. Components of the product 4 2 3 6 5 7 4 1 1 2 3 Touch Screen By touching one of the small pictures during multi screen mode, the concerning small picture will be enlarged into Full Screen mode. By touching the screen it is possible to control the equipment or to change the settings. Power On/Off Press the Power button for 0.5 seconds to turn on the screen. Press the Power button for 0.5 seconds to turn off the screen when it is tuned on. illuminance Sensor Behind this window a sensor detects the actual light conditions in the area around the screen. When activated via the menu settings, this sensor automatically controls the brightness of the screen.(Day/Night control) Components of the product 5 4 5 6 7 Power Input Connect the Power Cable ( VCC/GND/TRIGGER1~TRIGGER5/Speed Switch ) Camera Input Connect the Camera Cable ( Cam1 ~ Cam4 ) AV In/Out AV IN: AUX1 & AUX2 (RCA), AV Out (RCA) Ext.Speaker output / Mic. input Connect the external speaker (left side terminal) Connect the optional microphone (right side terminal) Please check that you have the correct contents before using this product. If any items are missing, please contact your dealer. Package Contents MonitorTrim BracketDeco Plate A (Dimensions:187.6 x 121.4mm) SunvisorDeco Plate B (Dimensions:187.6 x 115.4mm) Deco Plate C(Optional) (Dimensions:190.4x 124mm) Cable Bracket(2EA)Power CableSpeaker Cable Ejection Key(2EA) Instruction Manual Tapping Screw T2 3X6L (4EA) Tapping Screw T2 2.3X8L (8EA) How to use the product 6 Start Screen When the booting is ready, the multi screen as below will be displayed When the small windows on the multi screen are touched, the channel is enlarged into full screen mode. One more touch returns it back to the multi screen mode. : Controls volume of the speaker : Settings menu : Run the Bluetooth Phone (Optional function) : Change Input signal : Multi screen mode When the small window is touched, it is enlarged. How to use the product 7 Volume Control Press the button to display Volume Pop-up. 1 1 2 3 23 Press the button to mute Press the button to increase the volume Press the button to decrease the volume How to use the product 8 Input selection Press the Input button to change Input Press input button once: AUX1 Press input button twice: AUX2 Press input button 3 times: Cam How to use the product 9 Multi screen Press multi screen button once: Cam1,Cam2 Press multi screen button twice: Cam3,Cam4 Press multi screen button 3 times: Cam1,2,3,4 1122 3344 11223344 Press the multi screen button to divide the screen. How to use the product 10 Setting Mode Press the setting menu button to open the Setting screen. CAM : Adjust brightness of Camera input screen AUX : Adjust brightness of AUX screen How to use the product 11 Display Input the name into each channel. Mirror : Mirror image or normal image Up : Change up and down of the screen Shutter : Enable to operate Shutter/Heater Camera How to use the product 12 Display Setup screen position of each channel Setup the screen on each Trigger Mirror : Mirror image or normal image Up : Change up and down of the screen Shutter : Enable to operate Shutter/Heater Camera Caution: Cam1and AUX1 cannot be setup at the same time. Cam2 and AUX2 cannot be setup at the same time. The screen will be showed screen by each Trigger set if input Trigger. How to use the product 13 Display Display the full screen according to each channel setup when setting up On Display the dividing lines of the screen How to use the product 14 Display Adjust Parking line of each Trigger Trig.1 CalibrationFront & Rear How to use the product 15 Function The screen is turned ON automatically when starting the vehicle Sensitivity of automatic bright…

Text truncated - open the document above for the full version.

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. {DIASONIC TECHNOLOGY CO., LTD.} would like the following documents regarding this submission for FCC ID: { P7KRVM-704I} to be kept confidential. 1 Appendix4. Block Diagram. 2 Appendix5. Schematics. 3 Operation Description 4 Appendix7. Part List The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Min-Hwan Kim / R&D Director

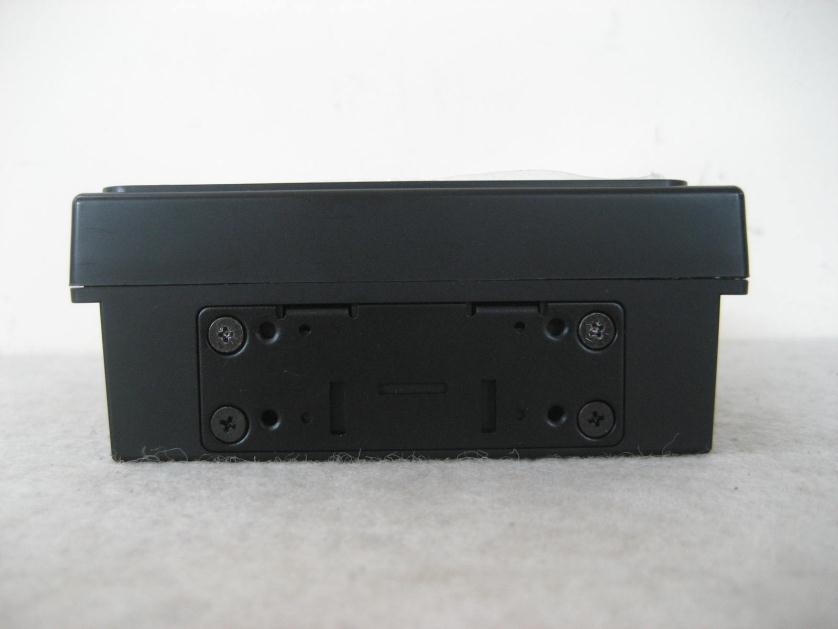

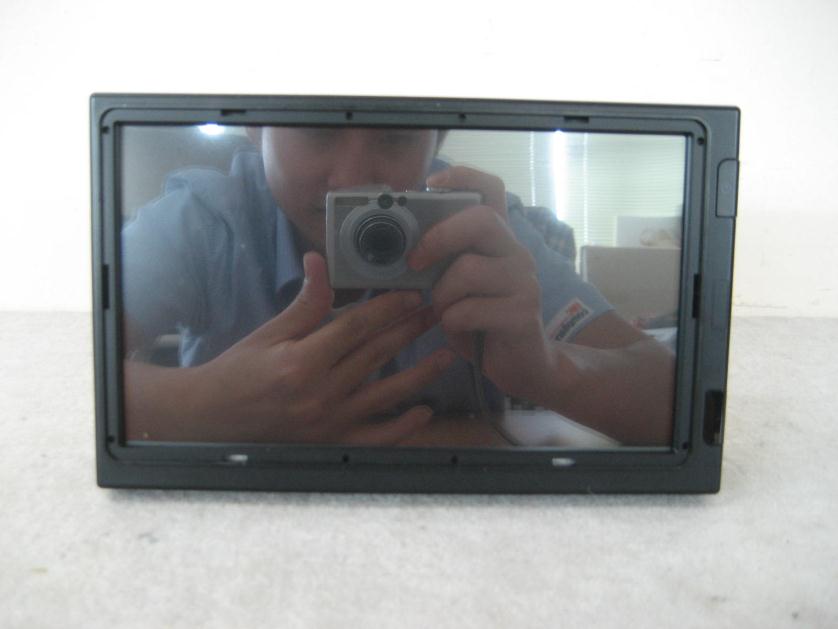

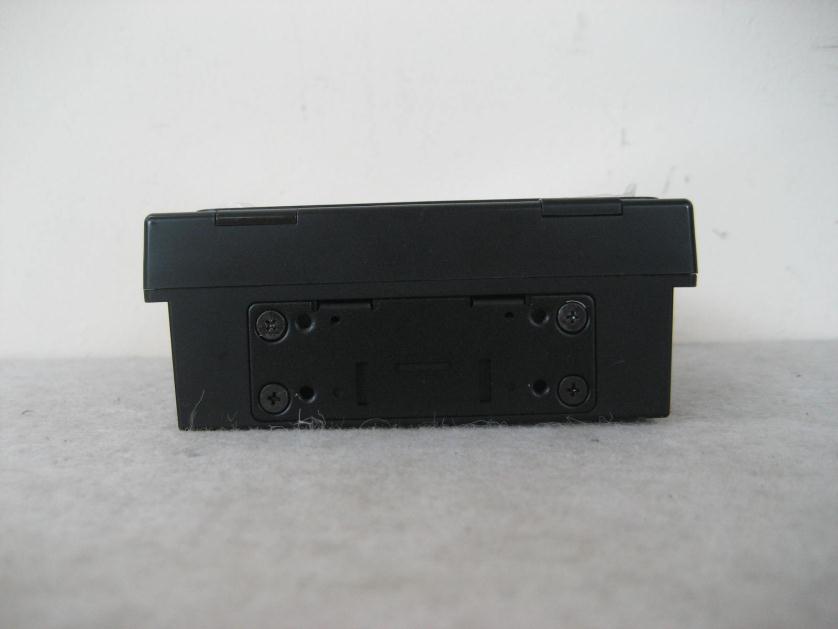

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0077 EMC compliance Ltd. Page: 1 of 3 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 2. External photo of EUT http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0077 EMC compliance Ltd. Page: 2 of 3 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0077 EMC compliance Ltd. Page: 3 of 3 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R077 EMCcomplianceLtd. 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Label Location

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0077 EMC compliance Ltd. 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 3. Internal photo of EUT http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0077 EMC compliance Ltd. 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0077 EMC compliance Ltd. 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0077 EMCcomplianceLtd. 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 9. Antenna specification Application Bluetooth Zigbee WLAN (IEEE 802.11 b/g) ISM 2.4GHz Wireless Devices Features Helical Structure Size (9.0*3.0*1.2mm 3 ) Easy Optimizing with external lumped matching components SMT Available under Pb-free Condition RoHSCompliant DATASHEET DocumentDatasheet TypeMultilayer Chip Antenna Application2.4GHz Part No.ALA931C5 Revision6.0 Notes The contents of this datasheet are subject to change without notice. Please confirm the specifications and delivery conditions when placing your order. AMOTECH AMOTECH Co., Ltd. Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 2 Rev. NoDateTitleContentsPage 6’10.01.19FormatChangeddocument format Table of Content Revision History 1.Specifications 3 1.1 Electrical Specifications 3 1.2 Mechanical Specifications 3 1.3 Appearance and Material 3 2. PCB Design for Test 4 2.1 Evaluation BoardDimension 4 2.2 PCB Design Guide 4 3. Measurement Result 5 3.1 Typical Measurement Result (VSWR/RL,Smithchart) 5 3.2 Typical Measurement Result(Gain, Radiation Pattern) 6 4. Reliability 7 5. Soldering Reflow Profile 7 6. Packaging 8 6.1 Carrier Tape Dimension 8 6.2 PackagingQuantity 8 6.3 Packaging Label 8 Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 3 NoItemSpec.Remark 1Frequency Range [GHz]2.4 ~2.485 2VSWRMax 2.5:1 3Peak Gain [dBi]typ. 3.5 4TotalAvg. Gain [dBi]typ. -0.22 5Efficiency [%]typ. 95 6PolarizationLinear 7Impedance [Ω]Nominal 50 The results are measured on the 10x43mm 2 evaluation board(EVB). See Page 6. for more detail gain parameter NoItemSpec.Remark 1Dimensions (LxWxH)9.0x3.0x1.2 mm 3 2Unit Weighttyp. 97 mg 3Operating Temperature-35 ~ +85 °C 1.1 Electrical Specifications 1.2 Mechanical Specifications NoItemFunctionMaterial ①External ElectrodeSoldering, Input PortAg/Ni/Sn ② Direction indexIndication of Ceramic ③Ceramic Body -Ceramic ④Model No. index-Ceramic ⑤External ElectrodeSolderingAg/Ni/Sn 1.3 Appearance & Material 1. Specifications ③ ④ ⑤ ② ① 0.7±0.2 9.0±0.3 3.0±0.2 Side 1.2±0.2 A50600 (unit : mm) Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 4 2.1 Evaluation Board Dimension 2.2 PCB Design Guide 2. PCB Design for Test NoPin Assignment ① Feeding ②N.C Matching Component [unit : mm] Evaluation board size ~ 10x43 Fill Cut Area (GND Clearance) ~ 10x13 [PCB Solder Land] 50 Ohm Feeding Line ① ② Chip Antenna Matching Stage SMA Connector GND [Unit : mm] Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 5 3.1 Typical Measurement Result (VSWR/RL, Smithchart) 3. Measurement Result The results are measured on the 10x43mm 2 evaluation board(EVB). NoMatching Value ①N.C ②2.7 nH ③ 1.2 nH ③① ② Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 6 [Azimuth plane @2.45GHz ] [Elevation1 plane @2.45GHz ] [Elevation2 plane @2.45GHz ] [3D Radiation Pattern] 3.2 Typical Measurement Result (Gain, Radiation Pattern) x y z -y Azimuth E1 E2 Peak Gain (dBi) Avg. Gain (dBi) Total Avg. Gain (dBi) Efficiency (%) Azimuth 2.81.0 -0.2295 Elevation 1 3.5-0.7 Elevation 2 1.7-1.6 Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 7 NoItemTest ConditionTest Requirements 1 Adhesive Strength of Termination 1.Applied force on SMT chip till detached point from PCB. 1. No mechanical damage by applied force 2. Strength (F) > 7 kgf 2 Thermal Shock (Cycle) 1. Step 1 : -40 ±3°C, 30 min Step 2 : +125 ±3°C, 30 min 2. Number of cycle : 30 1. No visual damage 2. Within electric spec (VSWR) 3 High Temperature Resistance 1. Temperature : +125 ±5°C 2. Time : 1000 ±24 hrs 1. No visual damage 2. Within electric spec (VSWR) 4 Low Temperature Resistance 1. Temperature : -40 ±5°C 2. Time : 1000 ±24 hrs 1. No visual damage 2. Within electric spec (VSWR) 5Humidity 1. Humidity : 85 % RH Temperature : +85 ±3°C 2. Time : 1000 ±24 hrs 1. No visual damage 2. Within electric spec (VSWR) F SMD PAD PCB 4. Reliability 5. Soldering Reflow Profile Datasheet / Multilayer Chip Antenna / 2.4GHz ALA931C5 (Rev 6.0) 8 ItemSpec.ItemSpec.ItemSpec. A03.30±0.10P04.00±0.10E1.75±0.10 B09.30±0.10P18.00±0.10F7.50±0.10 K01.30±0.10P22.00±0.10W16.00±0.30 D01.55±0.05--t0.30±0.05 Item QuantityDimension Reel1,000eaΦ7” * 12mm Inner Box3,000ea (3 reel)185 * 185 * 68 (mm 3 ) Outer Box115,000ea (5 Inner Box)375 * 200 * 205 (mm 3 ) Outer Box230,000ea (10 Inner Box)390 * 375 * 205 (mm 3 ) 6.1 Carrier Tape Dimension 6.2 Packaging Quantity 6.3 Packaging Label 6. Packaging AMOTECH Co., Ltd. 5BL-1Lot, 617, Namchon-Dong, Namdong-Gu, Incheon, Korea Multilayer Chip Antenna P/N : ALA931C5 Lot No : Quantity : 1,000 pcs Date : 2010/01/19

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0077 EMCcomplianceLtd. 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 8. Layout Diagram

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0077 EMC compliance Ltd. Page: 1 of 49 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. FCC TEST REPORT Test report No.: EMC- FCC- R0077 FCC ID: P7KRVM-704I Type of equipment: RearView Monitor Model Name: RVM-704I Brand Name: - Applicant: Diasonic Technology Co., Ltd. FCC Rule Part(s): FCC Part 15 Subpart C Section 15.203, Section 15.209 Section 15.207, Section 15.247 ANSI C63.10 2009 Frequency Range: 2 402 MHz ~ 2 480 MHz Test result: Complied The above equipment was tested by EMC compliance Testing Laboratory for compliance with the requirements of FCC Rules and Regulations. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of test: September 10, 2012 ~ September 14, 2012 Issued date: September 24, 2012 Tested by: Approved by: . LEE, CHANG WON KIM, CHANG MIN http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0077 EMC compliance Ltd. Page: 2 of 49 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. [ Contents ] 1. Client information ...................................................................................................................................... 3 2. Laboratory information ............................................................................................................................. 4 3. Description of E.U.T. .................................................................................................................................. 5 3.1 Basic description .................................................................................................................................. 5 3.2 General description .............................................................................................................................. 5 3.3 Test frequency ...................................................................................................................................... 6 3.4 Test Voltage .......................................................................................................................................... 6 4. Summary of test results .............................................................................................................................. 7 4.1 Standards & results ............................................................................................................................. 7 4.2 Uncertainty .......................................................................................................................................... 7 5. Test results .................................................................................................................................................. 8 5.1 Antenna Requirement .......................................................................................................................... 8 5.2 Maximum Peak Output Power ............................................................................................................ 9 5.3 Carrier Frequency Separation ............................................................................................................13 5.4 20 dB Channel Bandwidth ..................................................................................................................17 5.5 Number of Hopping Channels ............................................................................................................21 5.6 Time of Occupancy(Dwell Time) ........................................................................................................23 5.7 SPURIOUS EMISSION, BAND EDGE, AND RESTRICTED BANDS ............................................27 5.8 Peak Power Spectral Density ..............................................................................................................42 5.9 Conducted Emission ...........................................................................................................................46 5.10 RF Exposure ......................................................................................................................................48 6. Test equipment used for test ......................................................................................................................49 Appendix 1 Test setup photos Appendix 2 External photos of EUT Appendix 3 Internal photos of EUT Appendix 4 Block diagram Appendix 5 Schematics Appendix 6 User manual Appendix 7 Part list Appendix 8 Layout diagram Appendix 9 Antenna Specification http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0077 EMC compliance Ltd. Page: 3 of 49 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. 1. Client information Applicant: Diasonic Technology Co., Ltd. Address: #321-43, Suksu-dong, Manan-ku, Anyang-city, Kyungki-do, Korea. Telephone number: +82-31-474-0852 Facsimile number : +82-31-474-0856 Contact person: Min-Hwan Kim / [email protected] Manufacturer: Diasonic Technology Co., Ltd. Address : #321-43, Suksu-dong, Manan-ku, Anyang-city, Kyungki-do, Korea. http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0077 EMC compliance Ltd. Page: 4 of 49 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. 2. Laboratory informati…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0077 EMC compliance Ltd. 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 1. Test Setup photos - Below 30 MHz - Below 1 GHz http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0077 EMC compliance Ltd. 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. - Abobe 1GHz
