P7KDDR5100DIGITAL VOICE RECORDER

Diasonic Technology Co Ltd

Click to zoom

Application Details

Equipment Class: JBP - Part 15 Class B Computing Device Peripheral
Date of Grant: Jan 09, 2005
Application Purpose: Original Equipment
Date of Application: Jan 09, 2005
Equipment Note: DIGITAL VOICE RECORDER
Company: Diasonic Technology Co Ltd
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 Thank you for purchasing PORTABLE DIGITAL AUDIO PLAYER from DIASONIC TECHNOLOGY Co. Please carefully read the Instruction manual for safe use of the product. We recommend that you to keep this instruction manual for future reference. User Guide manual DIGITAL VOICE RECORDER MODEL : DDR-5100 2 Thank you for purchasing Diasonic MP3 Player. Please read this instruction manual carefully before use. If you find any defect during the use of this unit, please contact A/S Center [Tel 031-474-0852; Head Office]. Precautions: ● Do not repair, disassemble or modify the unit at your own discretion. ● The memory content may be changed or lost due to misuse, static electricity or electric shock during the repair or battery change. Be sure to make a note of important content. ● Diasonic assumes no responsibility for any damage caused by change or loss of memory content. ● Do not drop the unit in the water or keep it in any damp environment. ● This instruction manual is subject to change without notice for the purpose of product improvement. Copyright ● The MP3 files created for MP3 conversion shall not be used for any commercial or public purposes. Any violation of the prohibition may be a breach of copyright laws. ● Any unauthorized reproduction of recorded files for any other purposes than personal use is strictly prohibited by the relevant laws and regulations. Note This instruction manual is required for the effective use of Diasonic MP3 Player. Pay special attention not to lose the manual as it is not provided separately from the unit. Preface INFORMATION TO THE USER WARNING Changes or modifications not expressly approved by the manufacturer could void the user’s authority operate the equipment. This device complies with Part 15 of the FCC Results. Operation is subject to the following two conditions: (1) This Device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operation. 3 Warning ● Keep the batteries out of reach of the children. If a child swallowed a battery, please consult a doctor immediately. ● Do not have the battery shorted, disassembled, heated or put in fire. This may cause leakage, heat, explosion or fire. ● If the battery leakage gets in your eyes, wash it off with clean water, and seek immediate medical treatment. If not, you may lose your sight. ● If the LCD is damaged, do not touch the liquid. If the liquid contacts your eyes or skin, wash it off with clean water, and seek immediate medical treatment. ● If you use the rechargeable batteries, read the user’s manuals for batteries and chargers carefully before use. ● Read this instruction manual carefully before use. Using earphones Road safety ● Do not use earphones while driving, cycling or operating any motorized vehicle. It may cause a traffic hazard and is illegal in some areas. It can also be dangerous to play your earphones at high volume while walking, especially at pedestrian crossings. Preventing hearing damage ● Avoid using earphones at high volume. Hearing experts advise against continuous, loud and extended play. ● If you experience a ringing in your ears, reduce the volume or discontinue use. Safety Precautions 4 Precautions 1. Functions and Features 2. Parts and Components 3. Basic Operation Guide 4. Button 5. Receiving FM Radio 6. Mode Menu 7. Main Menu 8. Recording in Recording Mode 9. Connecting to external audio device 10. Installation of Win98SE driver 11. Uninstallation of Win98SE Driver 12. Management of folder and file 13. Downloading the file 14. DELETING file 15. Format file 16. Upgrading Firmware 17. Specification Warranty Contents 5 ▣ DIGITAL VOICE RECORDER - UP TO 16,960 MIN RECORDING TIME(SP MODE AND 1GB) - 8FOLDERS TO ORGANIZE FILES - STORE UP TO 128 FILES FOR EACH FOLDER - CONTINUE FOLDER FUNCTION: AUTOMATICALLY MOVE TO NEXT FOLDER IF INFEX IS FULL. - VARIABLE RECORDING MODE (SHQ/HQ/SP IN MP3 FORMAT AND USER MODE IN MPEG1 LAYER3) - MIC SESITIVITY ADJUSTABLE IN RECORDING. - PLAY BACK OPTION IN SLOW/STANDARD/FAST WITHOUT SOUND DISTORTION.(SPEED CONTROL IS NOT AVAILABLE FOR WMA, VBR FORMAT FILE.) - RECORDING INDICATOR WITH RED LED - TIMER RECORDER UP TO 3 DAILY, WEEKLY AND SPECIFIC DATE - 2 MODES OF ARS(AUTOMATIC RECORDING SYSTEM) MODE A: ALL MESSAGES ARE RECORDED INTO 1 INDEX FILE. MODE B: EACH MESSAGE HAS ITS OWN INDEX FILE IN SEQUENCE AFTER 3 SECONDS WITH NO SOUND BETWEEN PREVIOUS AND NEXT FILE. - PAUSE AND RESUME - MONITERING: MONITERING THE RECORDING BY EARPHONE ON RECORDING. ▣ MASS STORAGE - SIMPLY CONNECT IT TO PC. NO REQUIRED OPERATING PROGRAM & DRIVER CD(EXCEPTING WIN98SE) - PC AND MAC COMPATIBLE - EASY DRAG AND DROP FILE TRANSFERENCE ▣ FM RADIO - ENCODING FM BROADCASTING - 10 FREQUENCY PRESET ▣ MP3/WMA PLAYER & ENCODER - ID3 TAG SUPPORT(ARTIST/TITLE) - SCROLL SPEED CONTROLLING - MULTI LANGUAGE SUPPORT - 5EQ (NORMAL/CLASSIC/LIVE/POP/ROCK) - SYNC FUNCTION: AUTOMATICALLY RECOGNIZE THE END AND BEGANNING OF THE MUSIC FROM EXTERNAL AUDIO DEVICE IN RECODING THRU CONNECTING AUDIO CABLE AND RECORD. USER EASILY UPGRADES NEW FIRMWARE PROVIDED BY MAKER EASY-TO-USE BUTTON FOR QUICK NAVIGATION THROUGH FOLDERS AND OPTIONS Functions and Features 6 SET UP THE ALARM TO PLAY AUTOMATICALLY AS A REMINDER TO MEETING, BIRTHDAY AND MORE. EASY-TO-READ ALL STATUS ON THE LARGE BACKLIGHT LCD DISPLAY WITH DOT MATRIX VARIABLE FLASH MEMORY UP TO 1G(64MB/128MB/256MB/512MB/1GB) 23HOURS PLAY BACK WITH 2 AAA BATTERIES 7 ( 1 ) M a i n s e t P a r t s a n d C o m p o n e n t s EXTERNAL C-MIC / LINE-IN JACK EARPHONE JACK USB JACK HAND STRAP HOLE INTERNAL MIC DC JACK STOP LCD MENU REC/PAUSE VOLUME+/- HOLD PLAY/ PAUSE ERASE 8 (2) LCD TIMER ON/OFF ALARM ON/OFF ARS ON/OFF 3D SOUND ON/OFF REPEAT INTRUDUCTION PLAY BACK L/R SPECTRUM BATTERY STATUS (3) BATTERY 1) PUT BATTERIES (LR03 TYPE) OPEN CLOSE MODE INDEX INFORMATION FILE INFORMATION SYNC/BIT RATE/EQ/SPEED KEY/REPEAT TIME ALRAM ON/OFF ARS I N T RO PL AY RE PE AT 3D SOU N D E FFE C T VOLUME L…

Text truncated - open the document above for the full version.

Cover Letter(s)

#321-43, Suksu-dong, Manam-ku, Anyang-city, Kyunggi do, KOREA 430-040 Dec 20, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : DIASONIC TECHNOLGY CO.,LTD. FCC ID : P7KDDR5100 Request for Confidentiality Gentlemen: In accord ance with 0.459 of CFR 47, Diasonic Technology Co., Ltd. hereby requests confidentiality of the Block diagram, Schematics, Parts list and Operational Description of the attached test report. These documents contain detailed system and equipment description and related information about the product which Diasonic Technology Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Diasonic Technology Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Jin Geun Moon R&D Manager

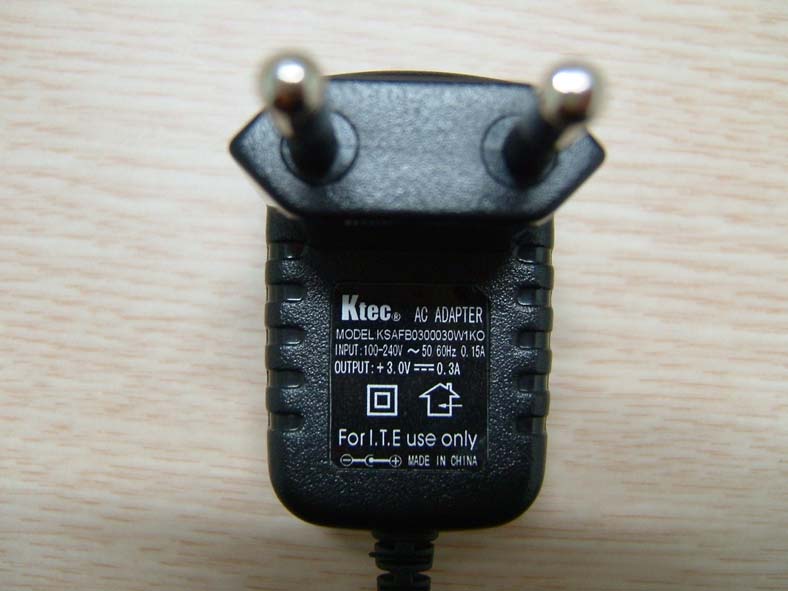

External Photos

ID Label/Location Info

FCC ID: P7KDDR5100 FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE) FCC ID: P7KDDR5100 APPENDIX - 1 FCC ID: P7KDDR5100 Model No.: DDR-5100 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

Test Report

DEMC#DR50110412Q FCC ID: P7KDDR5100 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 1 of 18 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 15B Certification Dates of Tests: November 29~30, 2004 Test Report S/N:DR50110412Q Test Site : DIGITAL EMC CO., LTD. FCC ID. APPLICANT FCC Classification :Part 15 Class B Computing Device Peripheral Device name :Digital Voice Recorder Manufacturer : Diasonic Technology Co., Ltd. #321-43, Suksu-dong, Manan-ku, Anyang-city, Kyungki-do, Korea Model name(Brand Name) : DDR-5100(Voice Bank) Test Device Serial number : Identical prototype FCC Rule Part(s) : FCC Part 15 Subpart B; ANSI C-63.4-2001 Data of issue : December 27, 2004 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. P7KDDR5100 Diasonic Technology Co., Ltd. DEMC#DR50110412Q FCC ID: P7KDDR5100 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 2 of 18 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TRANSMITTER REQUIREMENTS --------------------------------------------------------------- 3.2.1 RADIATED EMISSION ------------------------------------------------------------------------ 3.2.2 CONDUCTED EMISSION --------------------------------------------------------------------- ANNEX TEST EQUIPMENT USED FOR TESTS --------------------------------------------------- 3 4 5 5 6 6 9 16 DEMC#DR50110412Q FCC ID: P7KDDR5100 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 3 of 18 1. General information’s This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer December 29, 2004 Seung-Bum, Cho Data Name Signature Report Reviewed By: manager December 29, 2004 Sang-Uk,Han Data Name Signature Ordering party: Company name : Diasonic Technology Co., Ltd. Address : #321-43, Suksu-dong, Manan-ku, City/town : Anyang-city, Kyungki-do Country : Korea. Zip code : 430-040 Date of order : November 20, 2004 Att. : Mr. Jin-Geun, Moon DEMC#DR50110412Q FCC ID: P7KDDR5100 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 4 of 18 2. Information’s about test item P7KDDR5100 2.1 Equipment information Kind of Equipment Digital Voice Recorder Model Number(Brand Name DDR-5100(Voice Bank) Serial No. None Memory Size 64MB/128MB/256MB/512MB/1GB Type of Sample Tested Pre-Production Rating Power Supply -Adaptor(KSAFB0300030W1KO) Manufacture : SEORIM ELECTORONICS CO.,LTD. Input : 100-240VAC, 50/60Hz 0.15A Output : 3V,0.3A - Battery : AAA 3V High Frequency 32.768KHz Tested Power Supply 1 Phase 120Vac, 60Hz 2.2 Ancillary Equipment Equipment Model No. Serial No. Manufacturer PC Y8Y 311KI19443 LG Monitor CT-150 R20110001B COMTEC Printer 2225C 3245S12493 H.P Keyboard SEM-DT35 2209CPXAA SAMSUNG Mouse SMOP5000WX 0401059135 SAMSUNG Joystick J-ZA10 YED21700090 LOGITECH 2.3 EMI Suppression Device(s)/Modifications None DEMC#DR50110412Q FCC ID: P7KDDR5100 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 5 of 18 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Status (note 1) Transmitter requirements 15.109 Radiated Emission C 15.107 Conducted Emissions C Note 1: C= Complies NC=Not Complies NT=Not Tested NA=Not Applicable The sample was tested according to the following specification: FCC Parts 15B; ANSI C-63.4-2001 DEMC#DR50110412Q FCC ID: P7KDDR5100 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 6 of 18 3.2 Transmitter requirements 3.2.1 Radiated Emission Procedure: The EUT was placed on a 0.8m high wooden table inside a shielded enclosure. An antenna was placed near the EUT and measurements of frequencies and amplitudes of field strengths were recorded for reference during final measurements. For final radiated testing, measurements were performed in a OATS. Measurements were performed with the EUT oriented in 3 orthogonal axis and rotated 360 degrees to determine worst-case orientation for maximum emissions. The spectrum analyzer is set to: Frequency Range = 27 MHz ~ 10 th harmonic. RBW = 120 kHz ( 30MHz ~ 1 GHz) = 1 MHz (1 GHz ~ 10 th harmonic ) VBW ≥ RBW Trace = max hold Detector function = peak / Quasi-peak / average Sweep = auto Measurement Result: Complies - Refer to the Next page Minimum Standard: FCC Part 15.109 Frequency (MHz) Limit (uV/m) @ 3m 30 ~ 88 100 ** 88 ~ 216 150 ** 216 ~ 960 200 ** Above 960 500 TEST EQUIPMENT USED: 02, 22, 30, 31, 33, 34, 39, 40, 41, 47, 49 DEMC#DR50110412Q FCC ID: P7KDDR5100 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 7 of 18 Radiated Emissions Measurement Data : Remark: the other emission is less than 30dB. Test mode : Play Mode DEMC#DR50110412Q FCC ID: P7KDDR5100 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 8 of 18 Radiated Emissions Measurement Data : Remark: the other emission is less than 30dB. Test mode : Download Mode DEMC#DR50110412Q FCC ID: P7KDDR5100 Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 9 of 18 3.2.2 Conducted Emission. Procedure: The conducted emissions are measured in the shielded room with a spectrum…
