P7KDL-60ISHLED DESK LAMP

DIASONIC TECHNOLOGY CO., LTD #321-43, Suksu-dong, Manan-ku, An Yang-City, Kyung Ki-Do, Korea. TEL : +82-(0)31-474-0852 FAX : +82-(0)31-474-0856 Audio Play & Charging 5V/500mA USB mini B - Female (iPhone/iPod charging & USB 2.0) Approx 1,100 Lux · 100 Lux Longer than 40,000Hour AC/DC adaptor : AC 100~240V to DC 12V/1.5A 9W for Lighting, 4W for Charging 180(W:Base) x 172(D:Base) x 455(H) x 328(L) -10~40 ୅ MODEL iPod & iPhone Application Charging Current USB Port Audio Color temp CRI Brightness Life Time Power Power consumption Dimension Weight Operating Temperature DL-60iSH DL-60iS L 1.2W + R 1.2W, Rotary Volume Control, Line in / Earphone Jack 1,160g 1,130g Over 90 Over 75 SPECIFICATION ඖ G For Repair or Service If the product stops working correctly, discontinue its use and contact the listed service center in the manual or DIASONIC Technology at 82-31-474-0852.ඖ G Repair Policy 1. This product has passed strict quality control and testing process. 2. Failure of the product under normal operating conditions, during the warranty period may be repaired by Diasonic or our authorized service organization free of charge. Some shipping or handling charges may be involved. 3. For the following cases, some service fees will be charged. 1) When the product is damaged due to user's mishandling, abuse, or improper operation. 2) When the product is damaged due to user's modification, attempted repair, or otherwise access to sealed/non-user s erviceable items. 3) When the product is damaged due to fires, pollution, earthquakes and any other natural or unnatural conditions, ac cidents, etc. 4. It will be at the sole discretion of Diasonic or the authorized service center to determine the qualification of the wa rranty service. Original purchase invoice and other documentation may be required to verify qualification of service. Product : LED Desk LampModel : DL-60iSH/60iS Warranty Period : 1year Purchase Date: Purchaser NameAddressTelephoneNameAddressTelephone Seller WARRANTY CARD Study 6,000~7,000KReading 4,500~5,500KRelaxation/Sleep 2,300~3,300K 5,800~6,800K DESK LAMP DL- 60iSH / DL- 60iS USER MANUAL Thank you for purchasing DL-60iSH/60iS . Please read instructions with care and operate DL-60iSH/60iS safely before use. We'd like to recommend you to keep instructions to use DL-60iSH/60iS well. ̻G Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. ̻G Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferen ce in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if no t installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio / TV technician for help. FCC (Federal Communications Commission) Press the power button. (60iSH Srzhu#Exwwrq ) Press the power button. (60iS Srzhu#Exwwrq ) A. Light Stand including light D. AC Adaptor B. iPod cradle E. Light Base C. Control Button INSTRUCTIONSMULTI-PIVOT-FLEXIBLE POSITIONINGPRODUCT BOX CONTAINS ADVANTAGE OF LED DESK LAMPDL-60iSH (Operational Mode & Docking System) Do not place at slanting place. Adjust height appropriately. 90 ¶ 90 ¶ 90 ¶ 50 ¶ ඖG 5 Step Brightness Control Function. ඖG Appropriate color temperature for each subjects. - Reading Mode (4,500K~5,500K) - Study Mode (6,000K~7,000K) - Relaxation Mode (2,300K~3,300K) - Bedtime Mode (2,300K~3,300K) ඖG Timer & Power Control Function. ඖG Built in docking interface for Charging&Audio Play. ඖG Compatible with all iphone and ipods. ඖG 1.2w X 2 output. ECO-friendly light It provides a safe, comfortable, consistent light that stimulates concentration without eye strain. It contains no mercury or environmentally harmful substances. Low power consumption It consumes 75% LESS power than a typical fluorescent light. Extraordinary Long lifetime Lasting 40 TIMES LONGER than a typical incandescent bulb.(Used 5 hours per day it will last up to 22 years) Flicker Free LightReduced eye strain without the flickering present in both incandescent and florescent lights. ඖ USB ␜㣄㜄㉐ 5V(1A) 㢌 㤸㠄㡸 ḩἽ䚌㜠 , 䚬☐䔤㢨⇌ MP3 ☥ 㜠⤠㦹⪌㢌 ὤὤ☘㡸 㻝㤸䀴㢨曰⦐ 㻝㤸䚔 ㍌ 㢼10日⏼␘ . ඖ iPhone, iPod 㥐䖼㡸 ㏘䈔☐㜄 ⓸䇭䚐 ㇵ䈐㜄㉐ PC 㝴 (i)㢨䇴 㤸㋕ ⵃ 㻝㤸㡸 䚔 ㍌ 㢼10日⏼␘ . DL-60iS (Docking System) ඖG Timer & Power Control Function. ඖG Built in docking interface for Charging&Audio Play. ඖG Compatible with all iphone and ipods. ඖG 1.2w X 2 output. ඖ USB ␜㣄㜄㉐ 5V(1A) 㢌 㤸㠄㡸 ḩἽ䚌㜠 , 䚬☐䔤㢨⇌ MP3 ☥ 㜠⤠㦹⪌㢌 ὤὤ☘㡸 㻝㤸䀴㢨曰⦐ 㻝㤸䚔 ㍌ 㢼10日⏼␘ . ඖ iPhone, iPod 㥐䖼㡸 ㏘䈔☐㜄 ⓸䇭䚐 ㇵ䈐㜄㉐ PC 㝴 (i)㢨䇴 㤸㋕ ⵃ 㻝㤸㡸 䚔 ㍌ 㢼10日⏼␘ .

#321-43, Suksu-dong, Manan-gu, Anyang-City, Kyungki-do, Korea Diasonic Technology Co., Ltd. May 11, 2011 Federal communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DSTech CO. to act on our behalf in all manners relating to application for equipment authorization for FCC IC : P7KDL-60ISH including signing of all documents relating to these matters Any and all acts carried out by DSTech CO. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from DIASONIC TECHNOLOGY CO., LTD Sincerely, Min-Hwan Kim / R&D Director

#321-43, Suksu-dong, Manan-gu, Anyang-City, Kyungki-do, Korea May 11, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : DIASONIC TECHNOLOGY CO.,LTD. FCC ID : P7KDL-60iSH Request for Confidentiality Gentlemen In accordance with 0.459 of CFR 47 DIASONIC TECHNOLOGY CO.,LTD. Hereby requests confidentiality of the Block Diagram(DL-60iSH Block Diagram.p df) . These documents contain detailed system and equipment description and information about the product which DIASONIC TECHNOLOGY CO.,LTD. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological product will evolve , DIASONIC TECHNOLOGY CO.,LTD. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Min-Hwan Kim / R&D Director

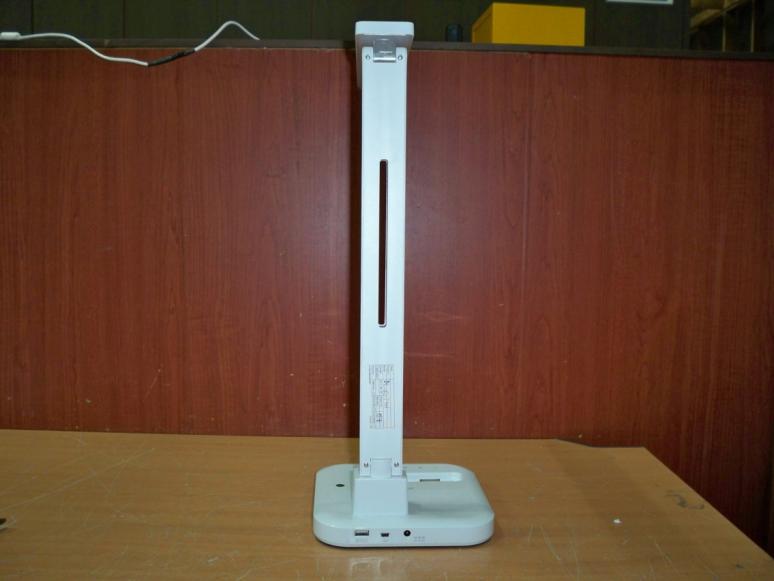

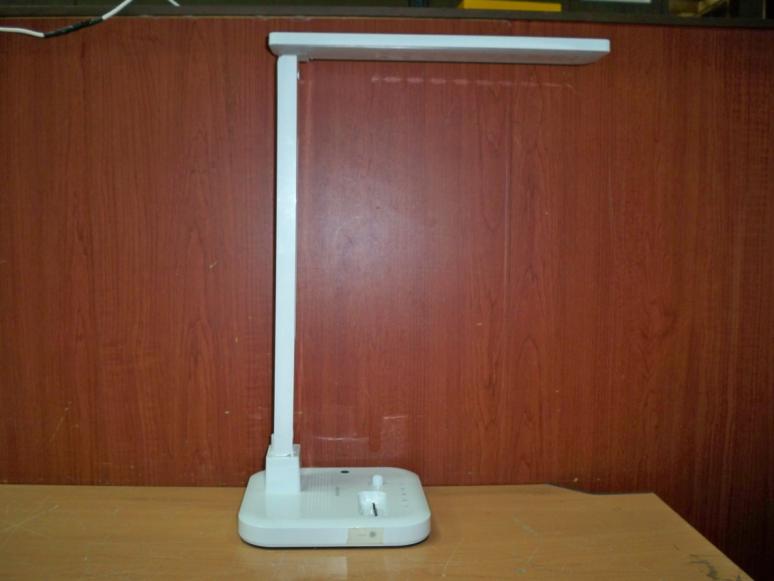

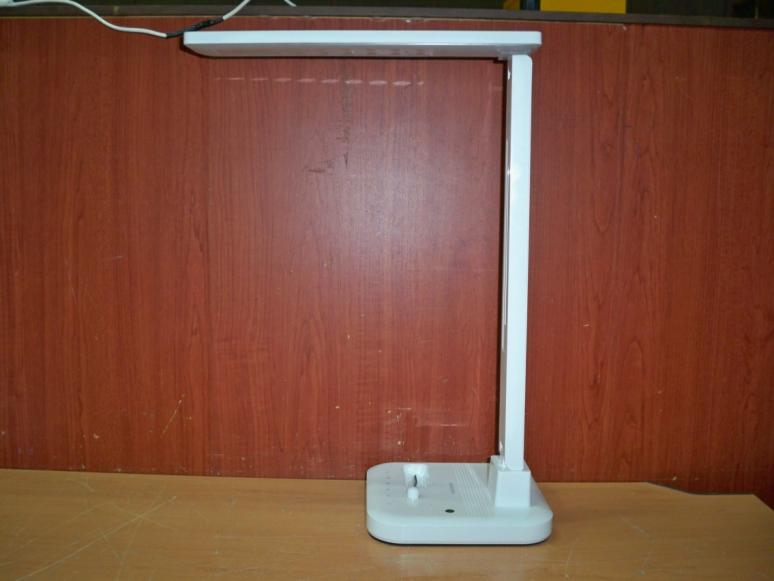

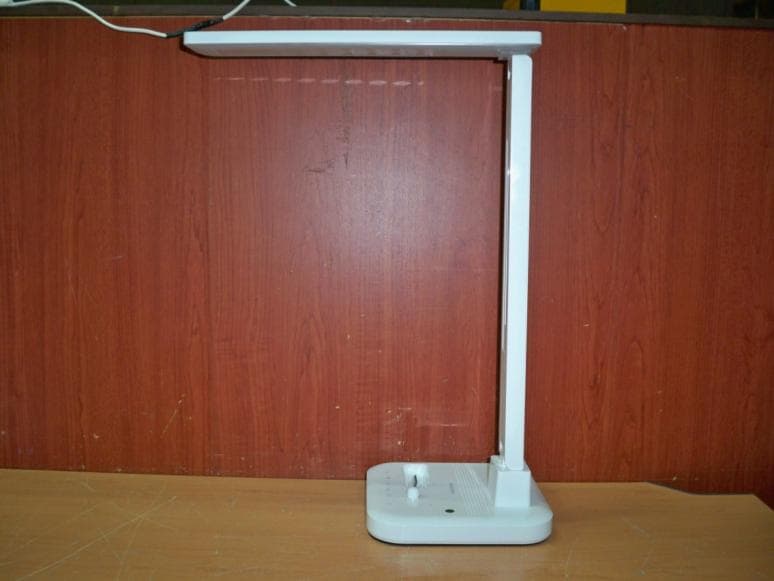

FCC ID : P7KDL-60ISH 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451 External Photos FCC ID : P7KDL-60ISH 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451 FCC ID : P7KDL-60iSH 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451

FCC ID : P7KDL-60ISH 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451 FCC ID LABEL LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase FCC ID : P7KDL-60ISH THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

FCC ID : P7KDL-60ISH 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451 Internal Photos FCC ID : P7KDL-60ISH 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451 FCC ID : P7KDL-60ISH 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451 FCC ID : P7KDL-60ISH 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451 FCC ID : P7KDL-60ISH 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451

Macroblock, Inc. 2004 Floor 6-4, No.18, Pu-Ting Rd., Hsinchu, Taiwan 30077, ROC. TEL: +886-3-579-0068, FAX: +886-3-579-7534 E-mail: [email protected] - 1 - Macroblock Preliminary Datasheet MBI1804 All-Ways-On TM High-Power LED Driver November 2004, V1.00 OE Features l 4 constant-current output channels l Constant output current invariant to load voltage change l Maximum output constant current: 360 mA l Excellent output current accuracy: between channels: <±3% (max.), and between ICs: <±6% (max.) l Output current adjusted through an external resistor l Fast response of output current, (min.): 10μs l Schmitt trigger input l 5V supply voltage l Package type: SOP8 with thermal pad Product Description MBI1804 is an instant On/Off LED driver for high power LED applications and exploits PrecisionDrive™ and All-Ways-On™ technology to enhance its output characteristics. At MBI1804 output stage, four regulated current ports are designed to provide uniform and constant current sinks for driving LEDs within a large range of V F variations. With All-Ways-On™, MBI1804 provides users easily a consistent current source in their system design. Users may adjust the output current from 20 mA up to 360 mA through an external resistor, R ext , which gives users flexibility in controlling the light intensity of LEDs. In addition, users can precisely adjust LED brightness from 0% to 100% via output control with Pulse Width Modulation. MBI1804 also guarantees LED can be cascaded to maximum 17V at the output ports. Additionally, to ensure the system reliability, MBI1804 is provided in the SOP8 with thermal pad for dramatically increased power dissipation capability. As a result, a large amount of current can be handled safely in one package. Current Accuracy Between Channels Between ICs Conditions < ±3% < ±6% I OUT = 40 ~ 240 mA CD: SOP8-150-1.27 MBI1804 All-Ways-On TM High-Power LED Driver November 2004, V1.00. - 2 - Applications l High-Flux LED Lighting l Automotive Interior Lighting l LCD Backlight l Photocopier l Scanner Typical Application Circuit GND R-EXT OUT0 OUT1 VDD OE OUT3 OUT2 R-EXT VDD OE VLED 8 7 6 5 4 3 2 1 Block Diagram Terminal Description Maximum Ratings Pin No. Pin Name Function 1 GND Ground terminal for control logic and current sink 3, 4, 5, 6 OUT0~OUT3 Constant current output terminals 7 OE Output enable terminal When OE(active) low, the output drivers are enabled; when OEhigh, all output drivers are turned OFF (blanked). 2 R-EXT Terminal used to connect an external resistor(R ext ) for setting up output current for all output channels 8 VDD 5V supply voltage terminal 4 switches I O Regulator VDD OUT0 1OUT OUT2 OUT3 OE Pin Configuration MBI1804 R-EXT Figure 1 MBI1804 All-Ways-On TM High-Power LED Driver November 2004, V1.00. - 3 - Characteristic Symbol Rating Unit Supply Voltage V DD 0~7.0 V Input Voltage V IN -0.4~V DD + 0.4 V Output Current I OUT 360* mA Output Voltage V DS -0.5~+17.0 V GND Terminal Current I GND 1440 mA Power Dissipation* (On PCB, Ta=25°C) P D 0.8 W Thermal Resistance* (Under good thermal system) 33.39** Thermal Resistance* (On PCB, Ta=25°C) SOP8 R th(j-a) 125 °C/W Operating Temperature T opr -40~+85 °C Storage Temperature T stg -55~+150 °C *Users must notice that the power dissipation (almost equaling to I OUT x V DS ) should be within the Safe Operation Area shown in Figure 6. ** Good thermal system design can ensure that the heat management of the total system (storage temperature and operating temperature) maintains MBI1804 within the defined temperature limits (R th(j-a) = 33.39°C/W). MBI1804 All-Ways-On TM High-Power LED Driver November 2004, V1.00. - 4 - Electrical Characteristics Characteristic Symbol Condition Min. Typ. Max. Unit Supply Voltage V DD - 4.5 5.0 5.5 V Output Voltage V DS OUT0~ OUT3 - - 17.0 V Output Current I OUT DC Test Circuit 20 - 360 mA “H” level V IH Ta= -40~85ºC 0.7*V DD - V DD V Input Voltage “L” level V IL Ta= -40~85ºC GND - 0.3*V DD V Output Leakage Current I OH V OH = 17.0V - - 0.5 μA Output Current 1 I OUT1 V DS = 0.6V R ext = 720 Ω - 105 - mA Current Skew dI OUT1 I OL = 105mA V DS = 0.6V R ext = 720 Ω - ±1 ±3 % Output Current 2 I OUT2 V DS = 0.8V R ext = 360 Ω - 210 - mA Current Skew dI OUT2 I OL = 210mA V DS = 0.8V R ext = 360 Ω - ±1 ±3 % Output Current vs. Output Voltage Regulation %/dV DS V DS within 1.0V and 3.0V - ±0.1 - % / V Output Current vs. Supply Voltage Regulation %/dV DD V DD within 4.5V and 5.5V - ±1 - % / V Pull-up Resistor R IN (up) OE 250 500 800 KΩ I DD (off) 1 R ext =Open, OUT0~OUT3= Off - 6 8 I DD (off) 2 R ext =720 Ω, OUT0~OUT3= Off - 6 8 “OFF” I DD (off) 3 R ext =360 Ω, OUT0~OUT3= Off - 6 8 I DD (on) 1 R ext =720 Ω, OUT0~OUT3= On - 9 11 Supply Current “ON” I DD (on) 2 R ext =360 Ω, OUT0~OUT3= On - 10 12 mA Test Circuit for Electrical Characteristics Figure 2 MBI1804 All-Ways-On TM High-Power LED Driver November 2004, V1.00. - 5 - Switching Characteristics Characteristic Symbol Condition Min. Typ. Max. Unit Propagation Delay Time (“L” to “H”) OE - OUTn t pLH 1 2 3 μs Propagation Delay Time (“H” to “L”) OE - OUTn t pHL 1 2 3 μs Pulse Width OE t w(OE) 10 - - μs Output Rise Time of Vout (turn off) t or 1 1.7 3 μs Output Fall Time of Vout (turn on) t of V DD = 5.0 V V DS = 1-1.5V V IH = V DD V IL = GND R ext = 300 Ω V L = 4.0 V R L = 10 Ω C L = 10 pF 1 1.7 3 μs Test Circuit for Switching Characteristics Figure 3 MBI1804 All-Ways-On TM High-Power LED Driver November 2004, V1.00. - 6 - Application Information Constant Current In LED lighting applications, MBI1804 provides nearly no variations in current from channel to channel and from IC to IC. This can be achieved by: 1) The maximum current variation between channels is less than ±3%, and that between ICs is less than ±6%. 2) In addition, the current characteristic of output stage is flat and users can refer to the figure as shown below. The output current can be kept constant regardless of the variations of LED forward voltages (V F ). This performs as a perfection …

Text truncated - open the document above for the full version.

Report No.: DST-10-C001 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451 Page : 2 / 11 Report No.: DST-11-F008 TABLE OF CONTENTS 1. GENERAL DESCRIPTION OF EUT 3 2. GENERAL INFORMATION OF TEST 4 3.1 CONDUCTED EMISSION TEST 7 3.2 RADIATED EMISSION TEST 10 Report No.: DST-10-C001 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451 Page : 3 / 11 Report No.: DST-11-F008 1. General Description of EUT 1.1 Applicant Company Name : Diasonic Technology Co., Ltd. Address : #321-43, Suksu-dong, Manan-ku, Anyang-city, Kyungki-do, Korea. Contact Person : Byung Hoon Lee E-mail : [email protected] Phone/Fax : Phone : +82-31-474-0852 Fax : +82-31-474-0861 1.2 Manufacture Company Name : Diasonic Technology Co., Ltd. Address : #321-43, Suksu-dong, Manan-ku, Anyang-city, Kyungki-do, Korea. 1.3 Basic Description of EUT Product Name : LED DESK LAMP Model Name : DL-60iSH Brand Name : - Serial Number : - Input Rating (Used adapter) : Manufacturer : Ktec Co.,Ltd Model No.: KSAS0241200200HU Input : AC 100V~240V, 50/60Hz, 0.6A Output : DC 12V, 2A Internal Clock Freq 32 MHz Report No.: DST-10-C001 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451 Page : 4 / 11 Report No.: DST-11-F008 2. General Information of Test 2.1 Test Facility This test was carried out by DSTech Co. Test Site Location : 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea TEL : 82-31-336-1798, FAX : 82-31-336-3451 2.2 Standard for Methods of Measurement Basic Standard Description Test Result FCC Part 15 Subpart B 15.107(a) Conducted Emission Pass Fail 15.109(a) Radiated Emission Pass Fail * The sample was tested according to the following specification: ANSI C 63.4:2009 Report No.: DST-10-C001 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451 Page : 5 / 11 Report No.: DST-11-F008 2.3 Description of EUT modification N/A 2.4 Variations covered by this report N/A 2.5 Additional information related to Testing Test results apply only to the particular sample tested and functionality described in this test report. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the DSTech. 2.6 Test Conditions EUT Operating Mode EUT was tested according to the following operation modes provided by the specifications given by the manufacturer and reported the worst emissions. Operation Modes Worst Case Mode The EUT set up max value and PC download and Charging mode Test System layout on EUT and peripherals Power cable Signal cable AC 120 V 7ΩResistor EUT iPOD Note PC Printer Report No.: DST-10-C001 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451 Page : 6 / 11 Report No.: DST-11-F008 2.7 Description of Test System Type of Peripheral Equipment Used: Description Model Name Serial No. Manufacturer Note pc NT-R780 ZNWE93GZ200193MSAMSUNG iPOD A1367 C41DNXW0DCP7 Apple Inc. Printer VCVRA-0702 TH7CI541WW HP 7ΩResistor N/A N/A N/A Type of Cables Used: Device from Device to Type of Cable Length (m) Type of shield Note PC AC power Power 1.0 Unshield Printer AC power Power 1.2 Unshield EUT DC power Power 1.8 Unshield EUT 7ΩResistor Power 1.0 Unshield EUT Note PC USB 1.2 Shield Note PC Printer USB 1.5 Shield Report No.: DST-10-C001 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451 Page : 7 / 11 Report No.: DST-11-F008 3.1 Conducted Emission Test Conducted emissions were measured from 150 kHz to 30 MHz with a bandwidth of 9 kHz on the 120 V AC power input terminal. The EUT was placed on a un-metallic stand in a shielded room 0.8 meters above the ground plane as shown in photograph of test setup. The interface cables and equipment positioning were varied within limits of reasonable applications to determine the position producing maximum conducted emissions. 3.1.1 Test Condition Frequency Range of Test : 150 kHz to 30 MHz Test Method FCC Part 15 Subpart B (Section : 15.107a) Test Date : April 25, 2011 Temperature/Humidity : (20 ± 1) °C / (46 ± 1) % R.H. Input Voltage : AC 120 V / 60 Hz 3.1.2 Test Standard. Frequency Range (MHz) Limit at Mains Terminal Quasi-Peak [dB(uV)] Average [dB(uV)] 0.15 ~ 0.5 66.0 ~ 56.0 56.0 ~ 46.0 0.5 ~ 5 56.0 46.0 5 ~ 30 60.0 50.0 3.1.3 Test Equipment List. Equipment Type Model Manufacture Serial No Cal Due DateUse 2-LINE V-NETWORK ESH3-Z5 R&S 100193 2011.06.18 ARTIFICIAL MAIN NETWORK MN425B ANRITSU M05519 2011.06.28 EMI TEST RECEIVER ESCI R&S 100049 2011.06.21 Report No.: DST-10-C001 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451 Page : 8 / 11 Report No.: DST-11-F008 3.1.4 Test Result of Main Conducted Emission Test Results: PASS Test data sheets follow. Frequency C.F. Phase Quasi-Peak Mode Average Mode Limit Result MarginLimit Result Margin [MHz] [dB] [N/L1] [dB(uV)] [dB(uV)] [dB(uV)] [dB(uV)] [dB(uV)] [dB(uV)] 0.199 0.1 N 63.6 38.2 25.4 53.6 29.2 24.4 4.589 0.3 N 56.0 44.3 11.7 46.0 29.8 16.2 4.639 0.3 N 56.0 44.1 11.9 46.0 28.0 18.0 4.721 0.3 N 56.0 44.7 11.3 46.0 31.9 14.1 5.455 0.3 N 60.0 44.2 15.8 50.0 30.4 19.6 0.199 0.1 L1 63.6 35.4 28.2 53.6 27.7 25.9 4.648 0.3 L1 56.0 40.2 15.8 46.0 32.8 13.2 4.715 0.3 L1 56.0 39.7 16.3 46.0 31.9 14.1 4.848 0.3 L1 56.0 40.0 16.0 46.0 32.4 13.6 5.511 0.3 L1 60.0 40.4 19.6 50.0 33.1 16.9 Notes: 1. C.F = LISN Factor + Cable Loss + Pulse Limiter Loss / Result = Reading Level + C.F 2. All modes of operation were investigated and the worst-case emissions are reported. 3. Measurement uncertainty estimated at ± 3.9 dB. The measurement uncertainty is given with a confidence of 95.45 % with the coverage factor, k=2. 4. See next page for measurement graph. Tested by Chang-youl Kim Report No.: DST-10-C001 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si…

Text truncated - open the document above for the full version.

FCC ID : P7KDL-60ISH 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451 Test Setup Photos < Conducted Emission > FCC ID : P7KDL-60ISH 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. tel +82-31-336-1798 fax +82-31-336-3451 < Radiated Emission >
