P7KDMP200ENMP3 Player

DIASONIC Thank you for your purchasing the DIASONIC MP3 player! If you use DIASONIC MP3 player for the first time, please read this manual carefully before use. MODEL DMP-200EN User’s Manual WARRANTY CARD INCLUDED Thank you for purchasing the DIASONIC MP3 player. Please read this manual carefully before use. When the device is broken or has a problem, please contact us or a dealer. Caution: ● Never attempt to repair, disassemble or modify the device by yourself. ● If a user or others misuse the device, or if the device is exposed to an electrical shock, you may find any change or loss of the saved data when it is repaired or battery is changed You better do memo for the important items on memo pad, note book or PC. ● Please be precautious that we do not take any responsibility for any changes or losses of data. ● Do not drop the device into water or put it in a humid place. ● This manual may be changed for the improvement of performance without notice. Precaution on copyright ● You are cautioned that MP3 files created by MP3 conversion function can not be used for commercial use or service other than personal use. If you do not follow this, you may break the copyright. ● Copy for commercial use other than personal use is prohibited by law Notice Introduction Please be cautious not to lose this manual which is essentially needed for using the device. You are cautioned that this manual can not be delivered again. Caution for safety Alarm ● Please keep the battery out of reach of small children as it is dangerous for them. If a child accidentally swallows the battery, seek medical advice immediately. ● Do not short, disassemble, apply heat or pressure and put the battery into a fire. It may cause leakage, heat emission, breakage, a fire, etc. ● If the battery leaks and fluid gets into your eyes, wipe out it with water and seek medical treatment immediately. If you do not this, it can cause injury or loss of eyesight. ● When LCD is broken, do not touch the leaked fluid. If the fluid gets into your eyes or comes into contact with your skin, wipe out it with clean water and seek medical treatment immediately. ● When you drive a bicycle, automobile or motorcycle, do not use earphone. It is very dangerous and you may break the law according to the area. ● Do not turn up the sound volume too high. If your ears are exposed to high sound level for a long time, it may cause ear problems. ● When ringing in your ear happens, lower the volume or stop using. ● You must use Alkaline battery (1.5V, LR03, AAA Size or UM-4). If you use rechargeable one, it may cause malfunction or severe noise which make your hearing damaged. ● Please read this manual through before use. Caution ..................................................................... MP3 Player 1. Function and feature 2. Part name and LCD display 3. Battery use and its package contents 4. How to use 5. How to use button 6. How to control menu dial 7. Table of the menu in stop mode of audio and record mode 8. Description of items of each mode 9. How to connect the device to external devices 10. FM radio receiving function DIASONIC MP3 ExplorerII 1. What is DIASONIC MP3 Explorer II? 2. How to install DIASONIC MP3 Explorer II 3. How to install USB DRIVER 4. Configuration of DIASONIC MP3 Explorer II 5. MP3 file sending 6. Sending DMP file through PC 7. Erasing MP3 file and DMP file 9. How to upgrade Firmware Dimension Warranty card Index ● Do not drop or apply a strong impact. It may cause a malfunction. ● Be cautious not to put the device near magnetic card like cash card, transportation pass, etc, as it may cause the malfunction of the cards. ● Do not put it into the back pocket. LCD may be damaged. ● Escape from sunlight. Avoid from a heater or a hot place. ● Please use smooth cloth other than liquid solvent (thinner, benzene, etc.) or wet cloth for removing dust. ● Do not apply strong pressure on LCD as it made of glass, The LCD may be damaged. ● Do not control the key with a solid material or strong power. The key may be damaged. Caution ● As DIASONIC MP3 player is the high performance mobile digital audio player, it plays MP3 and WMA(64Kbps or more), which are compressed digital music files, into various modes, and it is the multi-functional mobile digital audio player of the next generation, allowing high quality voice recording and recording through an external device. ● Sophisticated and luxurious ultra compact design and secured exterior Escaped from the current design, sophisticated ultra compact design and adopting front aluminum case make it more luxurious and mobile. ● High sound quality MP3 PLAYER It is equipped with all the merits of MP3 by adopting various function of MP3 player and has superior sound quality that gives you rich and delicate feeling. ● Direct encoded recording function As it adopt various function of voice recorder into those of MP3 player, voice recording and direct MP3 encoded recording through an external device are available, and it can be used as a mobile data saving device, a mobile hard disk. ● Bit rate setting You can use memory efficiently, as recording sound quality can be controlled by setting bit rate of voice recording or line in recording according to the time and the place. ● Speed control function As you can control the playing speed, you may use it even for linguistic study. ● LCD monitor of multi-language support graphic and back-light function As it adopt graphic LCD supporting Korean, English, Chinese, Japanese, European languages, special characters, etc, you can easily see the name of the song and playing time, and as dark blue back-light of back side of the LCD makes you check LCD display and set menu with buttons even at night. ● Adopting USB interface function which easily connects it to PC. ● Hold function that prohibits misoperation. ● Repeat play function(normal, 1 track, all, random, block repeat) ● Play/pause/intro play, stop/power off, record ● Next track/former track/fast forward/fa…

Text truncated - open the document above for the full version.

z BLOCK DIAGRAM EARPHONE LINE IN INTERNAL MIC LMC7101 AMP EPROM 4Mbit TN : 21.6 * 1.7 * 1.7 EL/DRIVER CPU : TCC730 CLOCK : 32.768KHz USB DRIVER LCD DRIVER CODEC : WM8731L DC/DC : TPS61014 F/MEMORY 128M / 256M / 512Mbyte FF(+INDEX) MENU REW(-INDEX) MODE PLAY/PAUSE STOP VOLUME(+) VOLUME(-) HOLD(SLIDE) REC SPEED/A-B USB/4PIN HUB FM RADIO TEA5767HL CLOCK:32.768KHz

FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab.

FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. IDENTIFICATION LABEL: PROPOSED FCC ID LABEL Due to the product size, only the FCC ID shall be permanently affixed to the rear side of the equipment and other information shall be placed in the instruction manual. FCC ID: P7KDMP200EN

FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab.

Page 1 of 13 FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. EMC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. ELECTROMAGNETIC EMISSION C OMPLIANCE REPORT FOR FCC CLASS B CERTIFICATION Test report file number : E037R-045 Applicant : DIASONIC TECHNOLOGY CO., LTD. Address : #321-43, Suksu-Dong, Manan-Ku, Anyang-City, Kyungki-Do, Korea. Manufacturer : DIASONIC TECHNOLOGY CO., LTD. Address : #321-43, Suksu-Dong, Manan-Ku, Anyang-City, Kyungki-Do, Korea. Type of Equipment : MP3 PLAYER FCC ID : P7KDMP200EN Model Name : DMP-200EN Multiple Model Name : N/A Serial number : N/A Total page of Report : 13 pages (including this page) Date of Incoming : May 01, 2003 Date of Issuing : July 22, 2003 SUMMARY The equipment complies with the requirements of FCC CFR 47 PART 15 SUBPART B, Class B. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass-production. Prepared by: Reviewed by: G. W. Lee/ Chief Engineer Y. K. Kwon/ Director EMC Div. EMC Div. ONETECH Corp. ONETECH Corp. Page 2 of 13 FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. EMC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. CONTENTS Page 1. VERIFICATION OF COMPLIANCE................................................................................................................3 2. GENERAL INFORMATION.................................................................................................................................4 2.1 PRODUCT DESCRIPTION...........................................................................................................................................4 2.2 MODEL DIFFERENCES:.............................................................................................................................................4 2.3 RELATED SUBMITTAL(S) / GRANT(S).....................................................................................................................4 2.4 TEST SYSTEM DETAILS.............................................................................................................................................4 2.5 TEST METHODOLOGY...............................................................................................................................................5 2.6 TEST FACILITY...........................................................................................................................................................5 3. SYSTEM TEST CONFIGURATION..................................................................................................................6 3.1 JUSTIFICATION...........................................................................................................................................................6 3.2 EUT EXERCISE SOFTWARE......................................................................................................................................6 3.3 CABLE DESCRIPTION.................................................................................................................................................6 3.4 NOISE SUPPRESSION PARTS ON CABLE.................................................................................................................7 3.5 EQUIPMENT MODIFICATIONS..................................................................................................................................7 3.6 CONFIGURATION OF TEST SYSTEM........................................................................................................................7 4. PRELIMINARY TEST.............................................................................................................................................8 4.1 AC POWER LINE CONDUCTED EMISSION TEST...................................................................................................8 4.2 RADIATED EMISSION TEST......................................................................................................................................8 5. FINAL RESULT OF MEASURMENT..............................................................................................................9 5.1 CONDUCTED EMISSION TEST..................................................................................................................................9 5.2 RADIATED EMISSION TEST....................................................................................................................................11 6. FIELD STRENGTH CALCULATION............................................................................................................12 7. LIST OF TEST EQUIPMENT.............................................................................................................................13 Page 3 of 13 FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. EMC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyung…

Text truncated - open the document above for the full version.

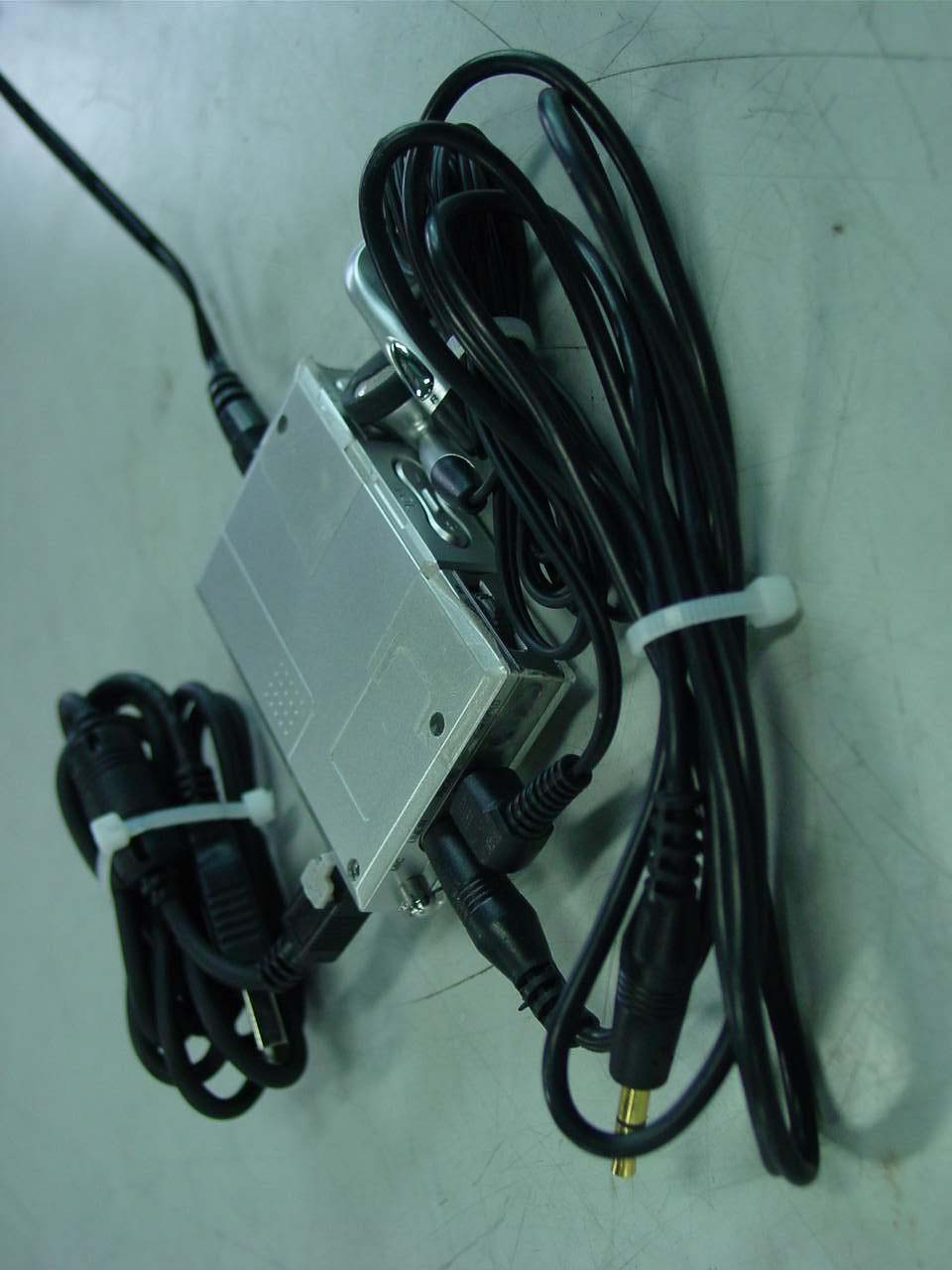

FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. Conducted Emission Test FCC ID. : P7KDMP200EN File No. : E037R-045 This report shall not be reproduced except in full without our written approval. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Myun, Kwangju-City, Kyunggi-Do 464-860 Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ONETECH Testing & Evaluation Lab. Radiated Emission Test
