P7KDNA100NAVIGATION & MULTIMEDIA PLAYER

GGGGGGGGGGGGGGGGGGGGGGGGGGGGG UESR MANUAL V1.1 DNA-100 Wide 4.3 inch Portable Navigation & Multimedia Player ͑ ͑ ͑ ͑ ͑ ͑ ͑ ͑ ͑ ͑ Table of Contents * Precautions and Notices 1. PACKAGE COMPONENTS 1-1, PACKAGE COMPONENTS(Basic) 1-2, PACKAGE COMPONENTS(Optional) 1-3, INSTALATION 2. FEATURE & FUNCTION 2-1, FRONT 2-2, TOP 2-3, REAR 2-4, SIDE 3. Charging the Battery 3-1, AC ADAPTOR 3-2, CIGARETTE JACK 4. BASIC FUNCTION # 5. NAVIGATION 6. MEDIA 7. AV-IN 8. OPTION 9. S E T I N G 10. ACTIVE SYNC. # 11. TROUBLE SHOOTING AND MAINTENANCE * Precautions and Notices Warnings ƕ Use only the supplied adaptor (5V 2A) and Cigarette Jack (12V 5A). ƕ Park the vehicle first and then operate the navigation. ƕ For your own safety, do not operate your navigation while driving. ƕ The user of this product is sole responsible for observing safe driving practices. ƕ The calculated route is for reference only. ƕ It is the user’s responsibility to follow the traffic signs and local regulations along the roads. ƕ When you get off the car, do not leave your device on the dashboard that is subject to direct sunlight. The overheating of the battery can cause malfunction. ƕ Touch panel is applied to this device on the monitor and please keep this device from water and any other materials. ƕ Leave them as it is for several minutes until cold start would perfectly work for better GPS Reception. Notice of copyright ƕThe information contained here belongs to and is copyrighted by Diasonic Technology. The whole or part of the manual must not be copied or translated for distribution, and must not be used for commercial purposes without written approval of the company as this constitutes an infringement of copyright. The information contained here has been carefully put together and may be changed for product function and performance improvements without prior notice. Therefore, the company shall not be liable for any difference resulting from an unnoticed change between the DNA-100 and the manual. 1. Do not repair, disassemble or modify this device at your own discretion. 2. In case of breakdown, stop using the product and contact the sales agency or service center. 3. Do not use this device near water. 4. Excessive shock and dropping would cause the breakdown. 5. Too much pressure on LCD would make a stain or its breakdown 6. Do not place this device near the sources of heating. 7. Do not heat the battery or dismantle it near flames. XUGzhml{€Gƕpuz{y|j{pvuz 1. PACKAGE COMPONENTS 1-1. PACKAGE COMPONENTS(Basic) MAIN UNIT GGGGGGGGGGGGGGGGGGGGGGGGGGGG MEMORY CARD GGGGGGGGGGGGGGGGGGGGGGGG INSTALL CD or DVD USER MANUAL CIGARETTE Jack USB Cable (A-TYPE) (B-TYPE) NAVIGATION HOLDER I NAVIGATION HOLDER II *Note: Choose between I & II 1-2, PACKAGE COMPONENTS (Optional) AC-ADAPTOR CARRYING CASE EARPHONE LCD CLEANER (FABRIC) GPS COVER 1-3, INSTALATION 1. Insert the SD MEMORY supplied with your device. G 2. Use the navigation holder to fix the device near windshield or dash board. (A-TYPE) (B-TYPE) G Divide the navigation holder Insert the navigation holder 3. Connect one end of the car charger to the power connector of your device. Connect the other end to the cigarette lighter in the car 4. Press the power button. 2. FEATURE & FUNCTION 2-1, FRONT 1. Power ON/OFF Turns on and off the device 2. Menu key Go to main menu or previous menu 3. Touch Screen Display the output of your device. Tap the screen with the stylus to select menu commands or enter information 2-2, TOP 4. Battery ON/OFF Controls the battery switch. When out of usage, please keep it off. 5. Hold ON/OFF Controls the device (all key lock or unlock). When you want to have the unit locked, please keep it on. 6. Volume control Adjusts the volume level of your device. 2-3, SIDES 7. Headphone Connects to a pair of stereo headphone. 8. AV IN 1 Connects to the external device. 9. AV IN 2 Connects to the additional external device. 10. Power connector Connects to the AC adapter or the Cigarette jack. 11. SD/MMC SLOT Accepts a SD or MMC card for accessing data such as Maps, MP3 music and MOVIE files. 12. Mini-USB Connects to your computer for data download/transfer. 13. USB Host DNA-100 can be connected to external HDD or USB Storage as a mobile storage device. 2-4, REAR 14. Reset Initialize the set. 15. Stylus Tap on the touch screen to make selections and enter information. Pull the stylus out of its slot to use and store it in the slot when not in use. 16. GPS antenna Receive signals from the GPS satellites overhead. Make sure that it has a clear view of the sky for better GPS Reception Rate. 17. Speaker Sends out music, sounds and voice 3. Charging the Battery 3-1, AC ADAPTOR Fully charge the battery before starting to use your device for the first time. 1. Plug the converter to the AC adapter. 2. Connect the DC end of the AC adapter to the bottom of your device. 3. Plug the other end of the AC adapter into a wall outlet. RED LED The device is charging in the progress. GREEN LED The device is charged fully. BLINKED LED The device is not charged battery in the battery off switch. <LED STATE> The charge indicator glows red when charging is in progress. Do not disconnect your device from AC power until the battery is fully charged, as indicated by the red indicator turning into green. This will take a couple of hours Note 1. When you connect the AC adapter to charge the battery after the battery power has been fully drained, wait for at least one minute before turning on the device. Depending on your region of purchase, the converter may not look exactly the same as the picture shown. 2. Check the specification of AC Adaptor as to whether it is described as AC 100-230V/DC 5V 2A when you purchase it. 3-2, CIGARETTE JACK A car holder and a car charger are supplied with your device. Using the Car Holder CAUTION Select an appropriate location for the car holder. Never place the holder where the driver’s field of vision is blocked. The car charger supplies power to your device when you are …

Text truncated - open the document above for the full version.

#321-43, Suksu-dong, Manan-gu, Anyang-City, Kyungki-do, Korea July 19, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: DIASONIC TECHNOLOGY CO., LTD. FCC ID: P7KDNA100 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, DIASONIC TECHNOLOGY CO., LTD. requests short-term confidentiality for the test setup photos, external photos, internal photos, and user’s manual of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which DIASONIC TECHNOLOGY CO., LTD. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, DIASONIC TECHNOLOGY CO., LTD. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Jin-Geun, Moon / General Manager

#321-43, Suksu-dong, Manan-gu, Anyang-City, Kyungki-do, Korea July 19, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : DIASONIC TECHNOLOGY CO., LTD. FCC ID : P7KDNA100 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, DIASONIC TECHNOLOGY CO., LTD. hereby requests confidentiality of the Block diagram, Schematics, Parts list and Operational description. These documents contain detailed system and equipment description and related information about the product which DIASONIC TECHNOLOGY CO., LTD. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, DIASONIC TECHNOLOGY CO., LTD. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Jin-Geun, Moon / General Manager

FCCID: P7KDNA100 View 1 FCCID: P7KDNA100 View 2 FCCID: P7KDNA100 View 3 FCCID: P7KDNA100 View 4(Antenna)

FCC ID: P7KDNA100 FCC ID SAMPLE LABEL & LOCATION MODEL NAME: DNA-100 LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase FCCID: P7KDNA100 Model Name: DNA-100

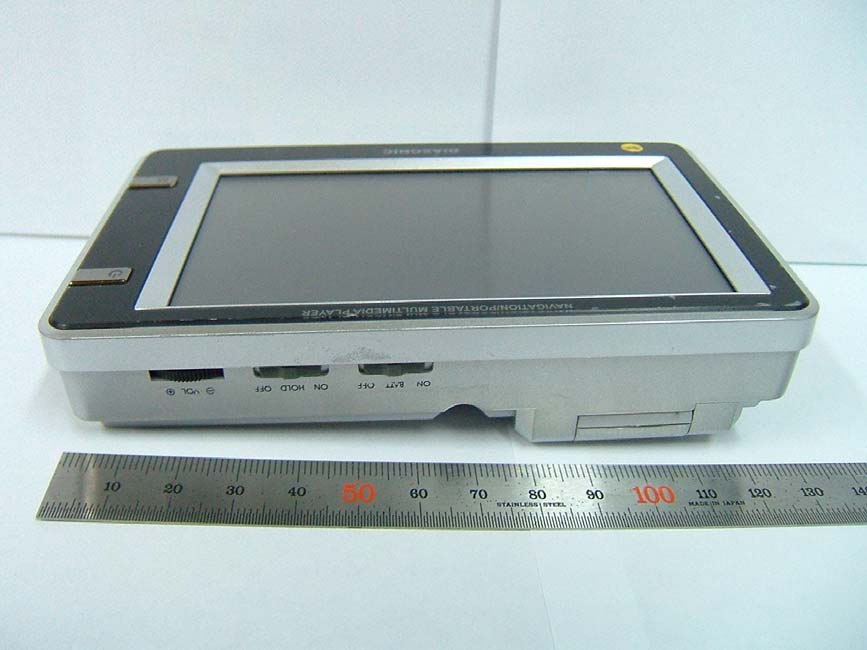

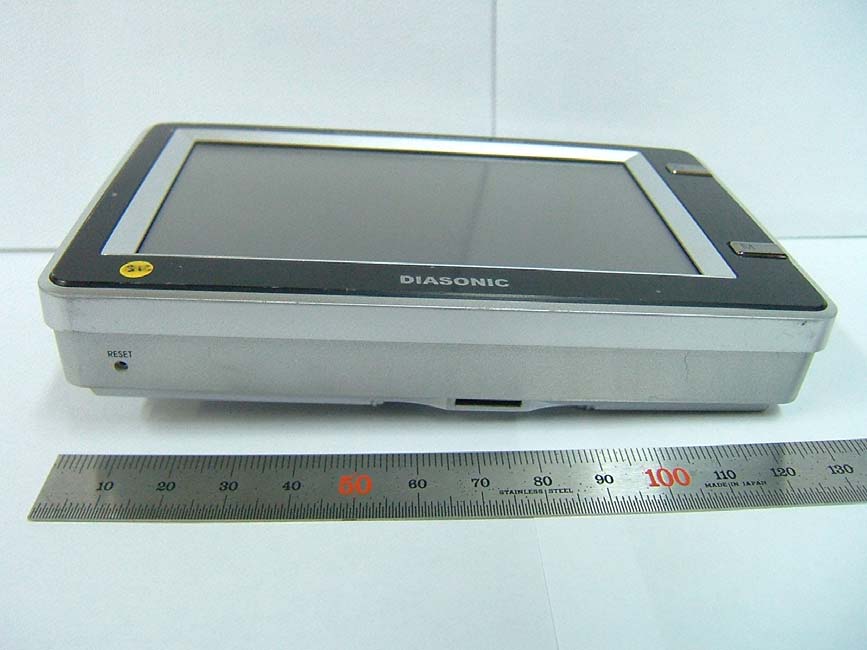

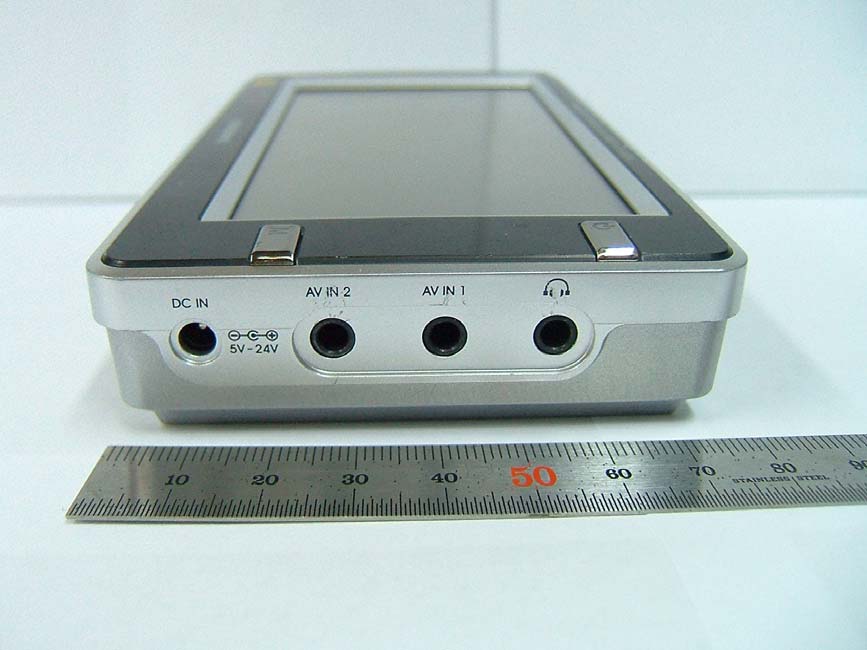

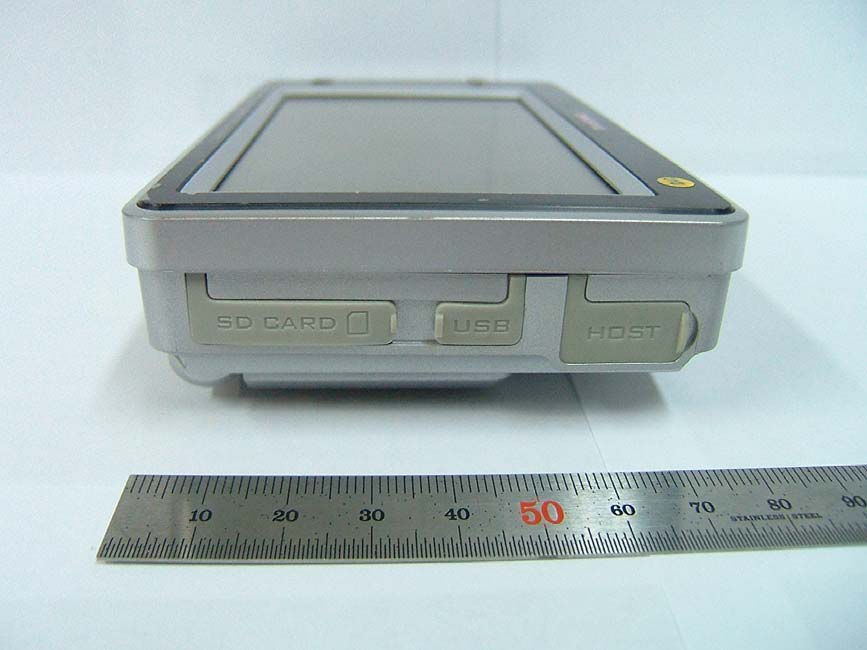

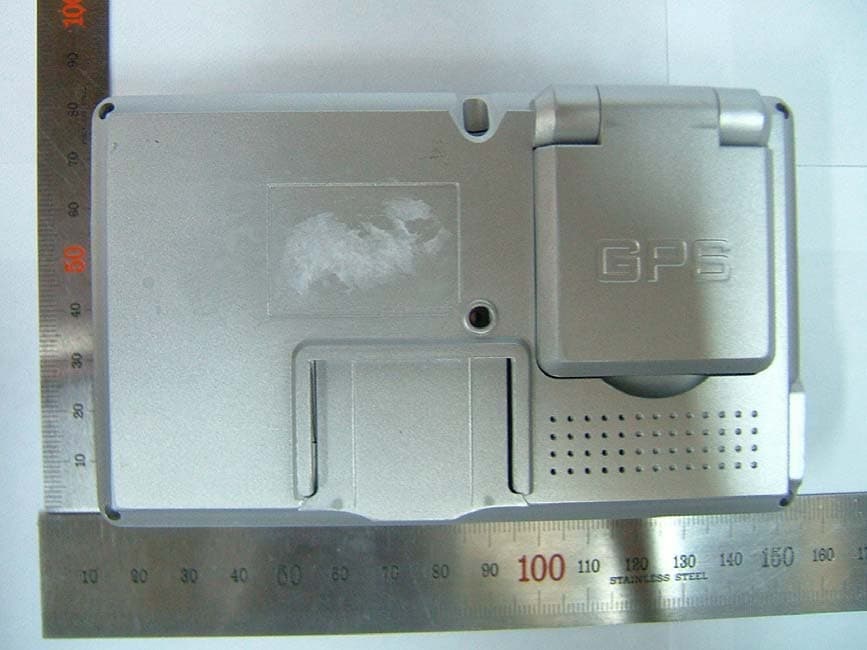

FCCID: P7KDNA100 View 1 FCCID: P7KDNA100 View 2 FCCID: P7KDNA100 View 3 FCCID: P7KDNA100 View 4 FCCID: P7KDNA100 View 5 FCCID: P7KDNA100 View 6

DEMC#DR50110607D FCC ID: P7KDNA100 Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 1 of 17 DIGITAL EMC CO., LTD. 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATION OF COMPLIANCE Diasonic Technology Co., Ltd. #321-43, Suksu-dong, Manan-ku, Anyang-city, Kyungki-do, Korea. Dates of Tests: June 13~16, 2005 Test Report S/N: DR50110607D Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification : Low Power Communication Device Transmitter Device name : Navigation & Multimedia Player Manufacturer : Diasonic Technology Co., Ltd. Model / Brand name : DNA-100 Test Device Serial number : Identical prototype FCC Rule Part(s) : FCC Part 15 Subpart C ANSI C 63.4-2003 Frequency Range : 88.1 ~ 99.9 MHz Data of issue : July 20, 2005 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. P7KDNA100 Diasonic Technology Co., Ltd. DEMC#DR50110607D FCC ID: P7KDNA100 Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 2 of 17 TABLE OF CONTENTS 1. GENERAL INFORMATION ---------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM ---------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TEST REQUIREMENTS ----------------------------------------------------------------------------- 3.2.1 FIELD STRENGTH OF FUNDAMENTAL AND EMISSIONS WITHIN PERMITTED BAND. -- 3.2.2 RADIATED EMISSIONS ----------------------------------------------------------------------------------- 3.2.3 AC CONDUCTED EMISSION ---------------------------------------------------------------------------- 3.2.4 OCCUPIED CHANNEL BANDWIDTH ----------------------------------------------------------------- 3.2.5 ANTENNA REQUIREMENT ------------------------------------------------------------------------------ APPENDIX I TEST EQUIPMENT USED FOR TESTS ---------------------------------------------- 3 4 6 6 7 7 8 10 11 14 15 DEMC#DR50110607D FCC ID: P7KDNA100 Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 3 of 17 1. General Information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competent of calibration and testing laboratory”. This laboratory is accredited by NVLAP and NVLAP Lab. Code is 200559-0. Test By : Engineer July 20, 2006 Won -Jung LEE Data Name Signature Report Reviewed By: Manager July 20, 2006 Harvey Sung Data Name Signature Ordering party: Company name : Diasonic Technology Co., Ltd. Address : #321-43, Suksu-dong, Manan-ku Zip code : 430-040 City/town : Anyang-city, Kyungki-do Country : Korea Date of order : April 14, 2006 Attention : Jin-Geun, Moon DEMC#DR50110607D FCC ID: P7KDNA100 Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 4 of 17 2. Information about test item P7KDNA100 2.1 Equipment information Equipment model name DNA-100 Type of equipment Navigation & Multimedia Player Frequency band 88.1 ~ 99.9 MHz Type of antenna Line Antenna Power DC 12 V 2.2 Cabling Configuration EUT Shield Length (m) Connection AV I N 1 None 1.2 Termination AV I N 2 None 1.2 Termination Earphone None 1.2 Termination USB None 1.2 Termination UCS(HOST) None 1.0 Termination DC POWER None 0.8 DC power supply 2.3 Tested environment Temperature : 15 ~ 35 ( o C) Relative humidity content : 20 ~ 75 % Air pressure : 86 ~ 103 kPa Details of power supply : DC 12.0 V (powered by power supply) DEMC#DR50110607D FCC ID: P7KDNA100 Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 5 of 17 P7KDNA100 2.4 Tested frequency Frequency TX RX Low frequency 88.1 MHz - Middle Frequency 94.0 MHz - High frequency 99.9 MHz - Note: Measurements were performed top and bottom location in the frequency range of operation according to the section 15.31(m) 2.5 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing Î None. DEMC#DR50110607D FCC ID: P7KDNA100 Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 6 of 17 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.239 Field Strength of Fundamental and Emissions within permitted band. < 250 uV/m @ 3m Radiated C 15.209 Radiated Emission < FCC 15.209 limits Radiated C 15.207 AC Conducted Emissions < FCC 15.207 limits Line Conducted NA 15.239 Occupied channel bandwidth < 200kHz Radiated C 15.203 Antenna Requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: Conducted emission test is not applied, because the power of the EUT is supplied from a Car battery. Note 3: The sample was tested according to the following specification: FCC Parts 15.239; ANSI C 63.4-2003 DEMC#DR50110607D FCC ID: P7KDNA100 Copyright ○ c 2006, DIGITAL EMC Co., Ltd. Page 7 of 17 3.2 TEST requirements 3.2.1 Field Strength of Fundamental and Emissions within permitted band. Procedure: The field strength of emissions from intentional radiators operated within the bands 88 ~108MHz was measured in accordance with FCC Part §15.239. The test set-up was made according to ANSI C 63.4:2003. The EUT was placed on a 0.8m high wooden table inside a shielded semi-anechoic chamber. An antenna was placed at 3m distance from EUT and measurements of frequencies and amplitudes of field strengths were recorded for reference during final measurements…
