P7QRM-582VGSM 850/1900/900/1800 Cellular Telephone with WLAN and BT

3 Constellation Quest 3 Vertu package contents 3 Reference Manual 3 Networks 3 Using your Vertu phone 4 Set up your device 7 Ve r t u Sta r t u p W i za rd 1 0 User interface 11 Home Key 16 My Key 17 Dedicated keys 17 Menu 19 Making a call 21 Log 22 Calendar 22 Email 23 Contacts 26 Messaging 26 Web browser 27 Maps 28 Camera 29 Ver t u S er v i c e s 3 0 Network destinations 31 User Assistance 32 SD card 32 Connecting to a PC 32 Ver t u W i re d H e a d set 3 3 Maintenance and Safety 33 Health and safety information 34 About your phone 36 Battery 37 Manufacturer’s limited warranty 37 SAR Notice – RM-582V 39 FCC/Industry Canada notice 40 Declaration of conformity 41 Export controls 41 Notices 41 Licenses 41 EU recycling notice 42 Contents 4 Constellation Quest Constellation Quest is an extension to the Vertu Constellation product family, bringing you an elegant Vertu phone with classical styling and a timeless feel. Constellation Quest is an easy to use smartphone offering extensive email capabilities for both business and personal use. It contains a first class web browser with easy navigation, high resolution display and with immediate access to information services. Your calendar, contacts and tasks can be synchronised across multiple devices, ensuring all your data is kept up to date. Constellation Quest contains a powerful mapping application that provides you with navigating and positioning capabilities. In essence, Constellation Quest is a powerful up to date smartphone, which comes with the benefits of Vertu’s services such as Concierge, Technical Support, City Brief, Vertu Select and your own @Vertu.Me email together with personal information storage. Vertu package contents • 1 Constellation Quest phone • 2 x Battery: BP-4LV (Li-lon) • 1 32 GB micro SD Memory Card • Micro USB wall charger (Multi-region) - AC31 • 2 x Micro USB - USB data cables (one each for data connection and charger) - CA101V • AV cable - CA-163V • 1 V Collection wired stereo headset • User documentation pack • Polishing cloth The package contents may vary slightly in accordance with regional regulations. Reference Manual Throughout this guide we mention the Reference Manual which contains detailed information about your Vertu phone’s functionality. There is an electronic copy on the SD card supplied with your Vertu phone. There is also a copy of the guide on the website which you can look at. Networks To use your Vertu phone you must subscribe to a service from a wireless service provider. Your service provider will be able to tell you about the services that are available and the charges that apply. This wireless phone is approved for use on WCDMA Bands I, II, V, VI, EGSM 900, GSM 850/1800/1900 networks. Conventions used in this guide WARNING: Indicates important information relating to safety. IMPORTANT: Indicates important information not relating to safety. NOTE: Indicates a point to be aware of when using your Vertu phone. TIP: Indicates a point to be aware of when using your Vertu phone. Menu Represents text that appears on your Vertu phone’s display, for example, “From the Home screen, select Menu”. 5 Using your Vertu phone To start using your Vertu phone as quickly as possible, please read through the following. Charger The charger supplied with your phone should be appropriate for your region. However, you should always check that the electrical rating of the AC outlet is appropriate for the charger before you attempt to plug it in. Charging the battery The battery for your Vertu phone is rechargeable and requires charging at regular intervals. If your phone is not charging, try the following: • Disconnect the charger from the AC outlet. • Check that the electrical rating of the AC outlet is compatible with your charger. • Verify that the AC outlet has power and that it is switched on. For example, in many hotel rooms, AC outlets are used for lighting and may be switched on and off from remote locations in the room. • Wait for at least 10 seconds and then reconnect the charger to the AC outlet. • Use another nearby AC outlet that you know is providing power. • If charging still fails, contact Vertu Technical Support for further assistance. Battery The full performance of a new battery is achieved only after two or three complete charge and discharge cycles. The battery can be charged and discharged hundreds of times but it will eventually wear out. If you notice that the talk and stand-by times are much shorter than normal, you may need a new battery. Contact Technical Support to obtain a Vertu approved battery. Charging and discharging When not charging, do not leave your Vertu phone connected to a charger. The battery does not have to be completely discharged before you can recharge it. Overcharging the battery may shorten its lifetime. If left unused, a fully charged battery will lose its charge over time. Temperature extremes can affect the ability of your battery to charge. WARNING: Never attempt to use a charger if it has been damaged. Contact Vertu Technical Support to obtain a replacement. WARNING: Only use the approved charger and battery designed specifically for your phone. WARNING: Never dispose of batteries in a fire. Always dispose of batteries according to local regulations. Please recycle when possible. Do not dispose of batteries as a household waste. 6 Vertu phone layout - frontVertu phone layout - back 7 Vertu phone - left and right view Top view Keys Label No.Keys 1Microphone 2Call key 3Menu 4Calendar 5Left Select key 6Home key 7Earpiece 8My Key 9Right Select key 10Contacts 11Email 12End key 13Middle Select key 14Scroll keys (four way) 15QWERTY keyboard 16Camera 17D-ring release for back cover 18Secondary microphone 19Flash / Torch 20Loudspeaker 21Vertu Concierge key 22USB port 23Volume increase 24Volume decrease 25Strap attachment point 26Keypad lock 273.5 mm audio socket 28Power key 8 Set up your device Inserting the SIM card and battery Removing the back cover With the back of th…

Text truncated - open the document above for the full version.

Date: 9/22/2010 Subject: Confidentiality Request FCC ID: P7QRM-582V IC ID: 4299A-RM582V Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List/Placement/BOM/Active Devices Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term User’s Manual Vertu has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify Compliance Testing in the event information regarding the product or the product is made available to the public. Compliance Testing will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, Mark Pope Certification and Compliance Manager Vertu

Date: July 23, 2010 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Re: Agent Authorization To Whom It May Concern: This letter will authorize Compliance Testing LLC to act as our Agent in all FCC matters. This appointment is effective until otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Mark Pope Certification and Compliance Manager Vertu

October 15, 2010 FCC ID: P7QRM-582V CONSTELLATION QUEST Type: RM-582V Re: Declaration of Conformity To Whom It May Concern: Compliance Testing, acting on behalf of Vertu as their FCC Agent, submits the following statement: “Vertu attests that it will adequately address the requirements for DoC for the computer peripheral portion of this device.” Sincerely, John Erhard Engineering Manager Compliance Testing LL C

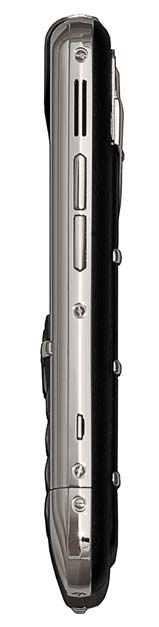

06 October 2010 Product Pictures (External) DTX33156-EN FCC ID: P7QRM-582V Exhibit 3 Company Confidential IC ID: 4299A-RM582V Copyright © Vertu (NOKIA Corp). PRODUCT PICTURES (External) Model: CONSTELLATION QUEST Type: RM-582V 06 October 2010 Product Pictures (External) DTX33156-EN FCC ID: P7QRM-582V Exhibit 3 Company Confidential IC ID: 4299A-RM582V Copyright © Vertu (NOKIA Corp).

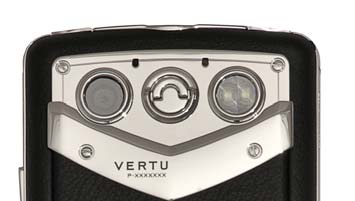

07 th October 2010 Product Label FCC ID: P7QRM-582V Company Confidential IC ID: 4299A-RM582V Copyright © Vertu (NOKIA Corp). PRODUCT LABEL Model: CONSTELLATION QUEST Type: RM-582V Label

23 August 2010 PRODUCT PICTURES (INTERNAL) Product Pictures (Internal) DTX33152-EN FCC ID: P7QRM-582V Exhibit 9 Company Confidential IC ID: 4299A-RM582V Copyright © Vertu (NOKIA Corp). 23 August 2010 Product Pictures (Internal) DTX33152-EN FCC ID: P7QRM-582V Exhibit 9 Company Confidential IC ID: 4299A-RM582V Copyright © Vertu (NOKIA Corp). 23 August 2010 Product Pictures (Internal) DTX33152-EN FCC ID: P7QRM-582V Exhibit 9 Company Confidential IC ID: 4299A-RM582V Copyright © Vertu (NOKIA Corp). 23 August 2010 Product Pictures (Internal) DTX33152-EN FCC ID: P7QRM-582V Exhibit 9 Company Confidential IC ID: 4299A-RM582V Copyright © Vertu (NOKIA Corp). 23 August 2010 Product Pictures (Internal) DTX33152-EN FCC ID: P7QRM-582V Exhibit 9 Company Confidential IC ID: 4299A-RM582V Copyright © Vertu (NOKIA Corp).

FCC Part 15C Compliance Test Report FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-582V_03.doc Copyright © TCC Nokia 1 (38) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 Test Report no.: 16-Jun-2010 FCC15C_RM-582V_03.doc Date of Report: Number of pages: 38 Swapna Murala Customer’s Contact person: Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC listing no.: IC recognition no.: 94436 661AK-1 Nokia Corporation Customer: P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 Tested devices/ accessories: Phone RM-582V / Battery BP-4LV / Charger AC-31 / Data cable CA-10V / Headset WH-1V FCC ID: 4299A-RM582V P7QRM-582V IC: Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards RSS-GEN (Issue 2, June 2007) and RSS-210 (Issue 7, June 2007). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". The test report must always be reproduced in full; reproduction of an excerpt only is subject to Documentation: written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. The EUT complies with the requirements in respect of all parameters subject to the test. Test Results: The test results relate only to devices specified in this document. Date and signature for the contents: Hannu Söderholm, Senior Engineer, EMC FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-582V_03.doc Copyright © TCC Nokia 2 (38) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 7-Jun-2010 Testing completed 10-Jun-2010 The customer's contact person Swapna Murala Test Plan referred to T:\\Projects\RM-582V\TestPlan\RS_testplan_RM- 582V_EMC_FCC_SAR.xls Notes Document name FCC15C_RM-582V_03.doc 1.1. EUT and Accessory Information The EUT is a 8-band (GSM850/900/1800/1900 and WCDMA Band I/II(1900)/V(850)/VI) mobile phone with GPRS, EGPRS, Bluetooth and WLAN. Bluetooth and WLAN are tested with maximum rated TX power. Product Type SN HW MV SW DUT Phone RM-582V 004401108596764 B3 - 031.711 42281 Phone RM-582V 004401108596046 B3 - 031.711 42277 Battery BP-4LV 2010/03/26 - - - 42271 Charger AC-31 091314-11 - - - 42274 Data cable CA-101V 0730642935501300228 - - - 42275 Headset WH-1V - 0.8 0.9 - 42278 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (2) Conducted peak output power PASSED 15.247(d) A8.5 Band edge compliance of RF emissions PASSED 15.247(d) A8.5 Spurious RF conducted emissions PASSED 15.247(d), 15.209 A8.5 Spurious radiated emissions PASSED 15.207 7.2.2 AC powerline conducted emissions PASSED 15.247(a)(1) A8.1 (a) 20 dB bandwidth PASSED 15.247(a)(1) A8.1 (b) Carrier frequency separation PASSED 15.247(a)(1)(iii) A8.1 (d) Number of hopping frequencies PASSED 15.247(a)(1)(iii) A8.1 (d) Time of occupancy PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Tampere Laboratory. FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-582V_03.doc Copyright © TCC Nokia 3 (38) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 CONTENTS 1. Summary for FCC Part 15C Compliance Test Report.............................................. 2 1.1. EUT and Accessory Information ............................................................................................2 1.2. Summary of Test Results .......................................................................................................2 2. Test setups.................................................................................................................. 5 2.1. Conducted RF test setup .......................................................................................................5 2.2. AC powerline conducted emissions test setup.......................................................................5 2.3. Radiated test setup ................................................................................................................5 3. Conducted peak output power (FCC §15.247(b)(1), RSS-210 A8.4 (2)) .................. 6 3.1. Test method and limit .............................................................................................................6 3.2. Bluetooth Test results ............................................................................................................7 4. Band edge compliance of RF emissions (FCC §15.247(d), RSS-210 A8.5) .......... 10 4.1. Test method and limit ...........................................................................................................10 4.2. Bluetooth Test results ..........................................................................................................11 5. Spurious RF conducted emissions (FCC §15.247(d), RSS-A8.5).......................... 15 5.1. Test method and limit ...........................................................................................................15 5.2. Bluetooth Test results ..........................................................................................................16 6. Spurious radiated emissions (FCC §15.247(d), §15.209, RSS-210 A8.5).............. 19 6.1. Test method and limit ....…
