P7QRM-589VGSM 850/900/1800/1900/WCDMA w/BT

1 English 3 EnglishHealth and safet y information General• Do not attempt to dismantle the phone or any of its acce ssories. Only qualified service personnel should repair your Vertu phone and its accessories. • Do not touch the phone, battery or wall charger with wet hands.• Keep your Vertu phone, and all parts and accessories, out of the reach of small children and pets. The SIM card and other small parts could present a choking hazard. • Use only batteries and accessories approved by Vertu for use with this particular model. The use of any other types may invalidate any approval or warranty, and may be dangerous. In particular, use of unapproved chargers or batteries may present a risk of fire, explosion, leakage or other hazard. For availability of approved accessories, please check with your dealer. • The bundled battery and wall ch arger are only for use with your Vertu phone. Do not use this battery or charger with any other device. • Before connecting your Vertu phon e to another device, read the supporting docum entation to confirm that the other device is compatible. Operating environment• Observe all local safety regulations regarding the use of mobile phones while driving. • Pull off the road and park before making or answ ering a call. • Do not stop on the hard shoulder of a motorway to answer or make a call, except in an emergency. • If using an integrated handsfree device, make sure the phone is securely placed in its holder. • Do not place the phone on the passenger seat or where it can break loose during a collision or sudden stop. • Only qualified personnel should install the device in a vehicle. Faulty installation or service may be dangerous. For more information, consult your vehicle manufacturer or representative. • Vehicle air bags inflate with great force. Do not place objects, including either installed or portable wireless equipment, in the area over the airbag or in the airbag deployment area. • Switch off your Vertu phone when refuelling.• Do not handle your Vertu phone when operating machinery.• Switch your Vertu phone off if you are entering a hospital or health care facility. Medical equipment may be affected by phone usage. • Switch your Vertu phone off when travelling on an aircraft. The phone signal may interfere with systems in the aircraft. You are legally bound to comply with this recommendation. • Switch your Vertu phone off in any facility where posted notices prohibit phone usage. Always follow building regulations governing phone usage. • Switch your Vertu phone off when blasting is in progress, and observe all provided guidelines and regulations. • Switch your Vertu phone off in areas with potentially explosive atmospheres, such as fuel storage areas and spray paint facilities. • Keep your Vertu phone away from fuel and chemicals. Electronic devices• If you wear a pacemaker, or are in the company of someone who does, you should be aware that there is a small risk of mobile phone usage interfering with the operation of the pacemaker. You should contact your doctor, or the manufacturer of the pacemaker, for more information. If you have any reason to suspect that interference is taking place, switch off your phone immediately. • Persons with pacemakers should keep the phone more than 15 cm (6 inches) from their pacemaker wh en the phone is switched on. • Persons with pacemakers should not carry the phone in a breast pocket. • Persons with pacemakers should us e the ear opposite the pacemaker to minimise the potential for interference. WARNING: Read the following simple guidelines. Not following them may be dangerous or illegal. 4 • Mobile phone usage may interfere with some hearing aids. If this happens, you should contact your service provider or doctor for further information. • Mobile phone usage may interfere with the functionality of inadequately shielded medical devices. Consult a phys ician or the manufacturer of the device to ensure safe procedures are used. • Mobile phone usage may interfere with the functionality of any inadequately shielded electronic system in a motor vehicle. Examples include airbags and fuel injection systems. Yo u should contact the manufacturer of the vehicle or system to ensure that the system is properly shielded. Battery safety• Stop using the battery if you detect any abnormalities, such as odour, discolouration or heat during use, charging or storage. • Do not use your Vertu phone with a damaged battery.• Do not short-circuit the battery. Accident al short-circuitin g can occur when a metallic object causes a direct connection between the + and - terminals of the battery. • Do not touch the battery terminals.• Do not leave the battery in areas of extreme cold or heat.• Do not store your Vertu phone in, or near, direct heat sources such as radiators. This could cause the battery to overheat and explode. • Never soak the battery in water or any other liquid.• Never attempt to open the battery. The battery contains substances that may be harmful if swallowed or allowed to come into contact with unprotected skin. • In the unlikely event of a battery leak, take care to keep the battery discharge away from your eyes and skin. If the leakage does come into contact with eyes or skin, flush thoroughly wi th clean water and consult a doctor. • Do not dispose of the battery in a fire.• Do not dispose of the battery in a regular waste container. The battery contains toxic chemicals and must be disposed of appropriately. Contact your local authorities for more information. Wall charger safety• Do not use a damaged or worn charger. The use of a damaged or worn charger could result in electric shock, burns or fire. • Do not bend or twist the cable of the charger.• Do not pull on the connected data cable in order to remove the charger plug from a socket. Grasp the plug dir ectly when unplugging the charger to avoid causing any damage to the cable. • Do not touch the pins of the plug when connecting or disconnecting it from a p…

Text truncated - open the document above for the full version.

February 19, 2010 FCC ID: P7QRM-589V Ascent X Type: RM-589V Re: Declaration of Conformity To Whom It May Concern: Compliance Testing, acting on behalf of Vertu as their FCC Agent, submits the following statement: “Vertu attests that it will adequately address the requirements for DoC for the computer peripheral portion of this device.” Sincerely, John Erhard Engineering Manager Compliance Testing LL C

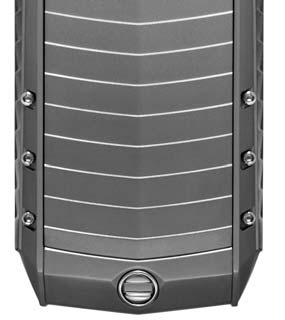

22 January 2010 PRODUCT PICTURES (INTERNAL) Product Pictures (External) DTX32518-EN FCC ID: P7QRM-589V Exhibit 3 Company Confidential IC ID: 4299A-RM589V Copyright © Vertu (NOKIA Corp). 22 January 2010 Product Pictures (External) DTX32518-EN FCC ID: P7QRM-589V Exhibit 3 Company Confidential IC ID: 4299A-RM589V Copyright © Vertu (NOKIA Corp).

EUROPE / USA TYP_EU Model Type IMEI IC FCC ID Code : Ascent X : RM-589V : P7QRM-589V : 4299A-RM589V : XXXXXX/XX/XXXXXX/X : XXXXXXX

14 January 2010 PRODUCT PICTURES (INTERNAL) Product Pictures (Internal) DTX32408-EN FCC ID: P7QRM-589V Exhibit 9 Company Confidential IC ID: 4299A-RM589V Copyright © Vertu (NOKIA Corp). 14 January 2010 Product Pictures (Internal) DTX32408-EN FCC ID: P7QRM-589V Exhibit 9 Company Confidential IC ID: 4299A-RM589V Copyright © Vertu (NOKIA Corp). 14 January 2010 Product Pictures (Internal) DTX32408-EN FCC ID: P7QRM-589V Exhibit 9 Company Confidential IC ID: 4299A-RM589V Copyright © Vertu (NOKIA Corp). 14 January 2010 Product Pictures (Internal) DTX32408-EN FCC ID: P7QRM-589V Exhibit 9 Company Confidential IC ID: 4299A-RM589V Copyright © Vertu (NOKIA Corp).

Nokia ____________________________________________________________________________ SAR Report FCC_RM-589V_01 Applicant: Nokia Corporation Type: RM-589V Copyright © 2009 TCC Nokia 1/54 SAR Compliance Test Report Test report no.: FCC_RM-589V_01 Date of report: 2009-12-09 Template version: 13.0 Number of pages: 54 Testing laboratory: TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 Client: Vertu Ltd. Beacon Hill Road Church Crookham, Hampshire United Kingdom, GU52 8DY Tel. +44 1252 611000 Fax. +44 1252 611300 Responsible test engineer: Jesper Nielsen Product contact person: Swapna Murala Measurements made by: Preben Runchel, Leif Klysner & Jesper Nielsen Tested device: RM-589V FCC ID: P7QRM-589V IC: 4299A-RM589V Supplement reports: SAR_Photo_RM-589V_02 Testing has been carried out in accordance with: 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields RSS-102 Evaluation Procedure for Mobile and Portable Radio Transmitters with Respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields IEEE 1528 - 2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Technique Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test results: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: For the contents: Nokia ____________________________________________________________________________ SAR Report FCC_RM-589V_01 Applicant: Nokia Corporation Type: RM-589V Copyright © 2009 TCC Nokia 2/54 CONTENTS 1. SUMMARY OF SAR TEST REPORT............................................................................................................................................. 3 1.1 TEST DETAILS.............................................................................................................................................................................3 1.2 MAXIMUM RESULTS....................................................................................................................................................................3 1.2.1 Head Configuration........................................................................................................................................................ 3 1.2.2 Body Worn Configuration............................................................................................................................................ 4 1.2.3 Maximum Drift................................................................................................................................................................ 4 1.2.4 Measurement Uncertainty........................................................................................................................................... 4 2. DESCRIPTION OF THE DEVICE UNDER TEST........................................................................................................................... 5 2.1 DESCRIPTION OF THE ANTENNA..................................................................................................................................................5 3. TEST CONDITIONS..................................................................................................................................................................... 6 3.1 TEMPERATURE AND HUMIDITY....................................................................................................................................................6 3.2 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER......................................................................................................................6 3.3 TEST CASES AND TEST MINIMISATION........................................................................................................................................6 4. DESCRIPTION OF THE TEST EQUIPMENT...............................................................................................................................9 4.1 MEASUREMENT SYSTEM AND COMPONENTS................................................................................................................................9 4.1.1 Isotropic E-field Probe Type ES3DV3...................................................................................................................... 10 4.2 PHANTOMS............................................................................................................................................................................. 10 4.3 TISSUE SIMULANTS................................................................................................................................................................. 11 4.3.1 Tissue Simulant Recipes............................................................................................................................................ 11 4.3.2 System Checking.......................................................................................................................................................... 11 4.3.3 Tissue Simulants used in the Measurements....................................................................................................... 13 5. DESCRIPTION OF THE TEST PROCEDURE............................................................................................................................. 14 5.1 DEVICE HOLDER.........................................…

Text truncated - open the document above for the full version.

Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p09c0008, d1010011 Rev 2.0 Date: January 18, 2010 Applicant: Vertu Beacon Hill Road Church Crookham, Hampshire GU52 8DY UK Attention of: Mark Pope, Certification and Compliance Manager +44 1252 611135; FAX: -611302 Mobile: +44 7774 8158594 [email protected] Equipment: Ascent X, Type: RM-589V FCC ID: P7QRM-589V FCC Rules: 22 / 24 Gentlemen: Enclosed please find your copy of the Engineering Test Report for which you are subject to the restrictions as listed on the attached summary. Once a Telecommunication Certification Body (TCB) issues a Grant the Federal Communication Commission (FCC) has 30 days to review the application and request added information. It is your decision whether or not to market the equipment subject to a possible recall before the end of the 30 days. If your equipment is still retained by us, it will be returned to you 30 days after approval is achieved. Our invoice for services has been directed to your Accounts Payable Department. For any additional information please contact us. Thank you. Sincerely yours, John Erhard: Engineering Manager Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p09c0008, d1010011 Rev 2.0 Summary of Restrictions 1. All submissions to the FCC are subject to their Examiner's interpretation. 2. Please allow from 60 to 90 days before hearing from the FCC with regard to any submission. 3. The FCC can set aside any action; modify or set aside any action, within 30 days. (FCC Rule 1.108, 1.113). 4. Under Rule 2.803, if device is not type accepted/certificated then it must not be sold, leased, offered for sale, imported, shipped or distributed or advertised for sale. 5. FCC can revoke its certificates at any time if the equipment does not meet or continue to meet their Rules. (Rule Parts 2.927, 2.939). 6. FCC can request a sample at any time (2.936). Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p09c0008, d1010011 Rev 2.0 Date: January 18, 2010 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: Vertu Equipment: Ascent X, Type: RM-589V FCC ID: P7QRM-589V FCC Rules: 22 / 24 Dear Gentleman: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Best regards, John Erhard: Engineering Manager Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p09c0008, d1010011 Rev 2.0 Test Report for Model: Ascent X Type: RM-589V to Federal Communications Commission Rule Part(s) 22 / 24 Date of report: January 18, 2010 On the Behalf of the Applicant: Vertu At the Request of: Vertu Beacon Hill Road Church Crookham, Hampshire GU52 8DY UK Attention of: Mark Pope, Certification and Compliance Manager +44 1252 611135; FAX: -611302 Mobile: +44 7774 8158594 [email protected] Reviewed by: John Erhard: Engineering Manager Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p09c0008, d1010011 Rev 2.0 Test Report Revision History Revision Date Revised By Reason for revision 1.0 January 18, 2010 J. Erhard Original Document 2.0 February 8, 2010 J. Erhard Add TIA-603C statement to test report Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p09c0008, d1010011 Rev 2.0 List of Exhibits (FCC Certification (Transmitters) - Revised 9/28/98) Applicant: Vertu FCC ID: P7QRM-589V By Applicant: 1. Letter of Authorization 2. Confidentiality Request: 0.457 And 0.459 3. Identification Drawings, 2.1033(c)(11) Label Location of Label Compliance Statement Location of Compliance Statement 4. Photographs, 2.1033(c)(12) 5. Documentation: 2.1033(c) (3) User Manual (9) Tune Up Info (10) Schematic Diagram (10) Circuit Description Block Diagram Parts List Active Devices 6. MPE/SAR Report By Compliance Testing: A. Testimonial & Statement of Certification Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p09c0008, d1010011 Rev 2.0 The Applicant has been cautioned as to the following: 15.21 Information to the User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual …

Text truncated - open the document above for the full version.

FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-589V_01.doc Copyright © TCC Nokia 1 (20) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC Part 22/24 Compliance Test Report Test Report no.: FCC22&24_RM-589V_01.doc Date of Report: 18-Dec-2009 Number of pages: 20 Customer’s Contact person: Swapna Murala Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC listing no.: IC recognition no.: 94436 661AK-1 Customer: Nokia Corporation Beacon Hill Road Church Crookham, Hampshire United Kingdom, GU52 8DY Tel. +44 1252 611000 Fax. +44 1252 611300 Tested devices/ accessories: Phone RM-589V / Battery BL-5CV, AC charger AC-7ev, Headset WH-205, Audio adapter AD-76V, Dummy battery DS-2V FCC ID: P7QRM-589V IC: 4299A-RM89V Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22 and 24, TIA-603-C-2004 and IC standards RSS-GEN (Issue 2, June 2007), RSS-132 (Issue 2, September 2005) and RSS-133 (Issue 5, February 2009). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Jari Jantunen, System Manager, EMC FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-589V_01.doc Copyright © TCC Nokia 2 (20) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 22/24 Compliance Test Report Date of receipt 20-Nov-2009 Testing completed 01-Dec-2009 The customer's contact person Swapna Murala Test Plan referred to T:\Projects\RM-589V\TestPlan_RS\RS_testplan_RM-589V.xls Notes - Document name FCC22&24_RM-589V_01.doc 1.1. EUT and Accessory Information The EUT is a 8-band (GSM850/900/1800/1900 and WCDMA Band I/II(1900)/V(850)/VI) mobile phone with GPRS, EGPRS and Bluetooth. The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SN HW MV SW DUT Phone RM-589V 004401-10-752257-1 B3.0 - vty09w44pb2 42106 Phone RM-589V 004401-10-752162-3 B3.0 - vty09w44pb2 42105 Battery BL-5CV - - - - 42108 Battery BL-5CV - - - - 42115 AC charger AC-7ev 0675599409049929596010036 - - - 42109 Headset WH-205 06944219266D1R48921 - - - 42111 Audio adapter AD-76V 4 0.1 0.1 0.1 42110 Dummy battery DS-2V KQ4510295 V0.3 - - 42113 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.4 Conducted RF output power NP §22.913(a) 4.4 Radiated RF output power NP §2.1049(h) 4.6.1 99 % occupied bandwidth PASSED §22.917(a) 4.5 Band edge compliance PASSED §22.917(a), §2.1051 4.5 Spurious emissions at antenna terminals NP §22.917(a), §2.1053 4.5 Spurious radiated emissions NP §2.1055(a) 4.3 Frequency stability, temperature variation PASSED §2.1055(d) 4.3 Frequency stability, voltage variation PASSED GSM 1900: Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the test Result §2.1046(a) 6.4 Conducted RF output power NP §24.232(b) 6.4 Radiated RF output power NP §2.1049(h) 4.6.1 99 % occupied bandwidth PASSED §24.238(a) 6.5 Band edge compliance PASSED §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals NP §24.238(a), §2.1053 6.5 Spurious radiated emissions NP §2.1055(a) 6.3 Frequency stability, temperature variation PASSED §2.1055(d) 6.3 Frequency stability, voltage variation PASSED FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-589V_01.doc Copyright © TCC Nokia 3 (20) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 WCDMA 850 (Band V): Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.4 Conducted RF output power NP §22.913(a) 4.4 Radiated RF output power NP §2.1049(h) 4.6.1 99 % occupied bandwidth PASSED §22.917(a) 4.5 Band edge compliance PASSED §22.917(a), §2.1051 4.5 Spurious emissions at antenna terminals NP §22.917(a), §2.1053 4.5 Spurious radiated emissions NP §2.1055(a) 4.3 Frequency stability, temperature variation NP §2.1055(d) 4.3 Frequency stability, voltage variation NP WCDMA 1900 (Band II): Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the test Result §2.1046(a) 6.4 Conducted RF output power NP §24.232(b) 6.4 Radiated RF output power NP §2.1049(h) 4.6.1 99 % occupied bandwidth PASSED §24.238(a) 6.5 Band edge compliance PASSED §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals NP §24.238(a), §2.1053 6.5 Spurious radiated emissions NP §2.1055(a) 6.3 Frequency stability, temperature variation NP §2.1055(d) 6.3 Frequency stability, voltage variation NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Tampere Laboratory. FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-589V_01.doc Copyright © TCC Nokia 4 (20) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 CONTENTS 1. Summary for FCC Part 22/24 Compliance Test Report ........................................... 2 1.1. EUT and Accessory Information ...........................................................…

Text truncated - open the document above for the full version.

FCC Part 22/24 Compliance Test Report Test Report no.: FCC22&24_RM-589V_10.doc Date of Report: 11-Dec-2009 Number of pages: 16 Customer’s Contact person: Swapna Murala Testing laboratory: TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 FCC listing no.: IC recognition no.: 99059 661AD-1 Customer: Nokia Corporation Nokia House Summit Avenue, Southwood FARNBOROUGH HAMPSHIRE GU14 0NG UK Tel. +44 1252 866000 Fax. +44 1252 866001 Tested devices/ accessories: Phone RM-589V / Battery BL-5CV FCC ID: QFXRM-589V IC: 661Z-RM89V Supplement reports: Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22 and 24, TIA-603-C-2004 and IC standards RSS-GEN (Issue 2, June 2007), RSS-132 (Issue 2, September 2005) and RSS-133 (Issue 5, February 2009). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Christian Andersen, System Specialist, EMC FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-589V_10.doc Copyright © TCC Nokia 1 (16) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-589V_10.doc Copyright © TCC Nokia 2 (16) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 1. Summary for FCC Part 22/24 Compliance Test Report Date of receipt 19-Nov-2009 Testing completed 10-Dec-2009 The customer's contact person Swapna Murala Test Plan referred to T:\Projects\RM-589V\TestPlan_RS\RS_testplan_RM-589V.xls Notes None Document name FCC22&24_RM-589V_10.doc 1.1. EUT and Accessory Information The EUT is a 8-band (GSM850/900/1800/1900 and WCDMA Band I/II(1900)/V(850)/VI) mobile phone with GPRS, EGPRS and Bluetooth. The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SN HW MV SW DUT Phone RM-589V 004401107521698 3000 - vty09w44pb2 24642 Battery BL-5CV - - - - 24629 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.4 Conducted RF output power NP §22.913(a) 4.4 Radiated RF output power Passed §2.1049(h) 4.6.1 99 % occupied bandwidth NP §22.917(a) 4.5 Band edge compliance Passed §22.917(a), §2.1051 4.5 Spurious emissions at antenna terminals NP §22.917(a), §2.1053 4.5 Spurious radiated emissions NP §2.1055(a) 4.3 Frequency stability, temperature variation NP §2.1055(d) 4.3 Frequency stability, voltage variation NP GSM 1900: Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the test Result §2.1046(a) 6.4 Conducted RF output power NP §24.232(b) 6.4 Radiated RF output power Passed §2.1049(h) 4.6.1 99 % occupied bandwidth NP §24.238(a) 6.5 Band edge compliance Passed §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals NP §24.238(a), §2.1053 6.5 Spurious radiated emissions NP §2.1055(a) 6.3 Frequency stability, temperature variation NP §2.1055(d) 6.3 Frequency stability, voltage variation NP FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-589V_10.doc Copyright © TCC Nokia 3 (16) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 WCDMA 850 (Band V): Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.4 Conducted RF output power NP §22.913(a) 4.4 Radiated RF output power Passed §2.1049(h) 4.6.1 99 % occupied bandwidth NP §22.917(a) 4.5 Band edge compliance Passed §22.917(a), §2.1051 4.5 Spurious emissions at antenna terminals NP §22.917(a), §2.1053 4.5 Spurious radiated emissions NP §2.1055(a) 4.3 Frequency stability, temperature variation NP §2.1055(d) 4.3 Frequency stability, voltage variation NP WCDMA 1900 (Band II): Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the test Result §2.1…

Text truncated - open the document above for the full version.
