P7QRM-828VGSM/WCDMA CELLULAR TELEPHONE WITH BT AND WLAN

VERTU Ti User Guide Version 1.0 Contents Introduction5 Your VERTU Ti phone5 Help and support5 Safety6 Safety6 Your phone7 Package contents7 Features and keys8 Back, home and menu keys9 Antenna locations9 Headset9 Change the volume10 Getting started11 Insert the SIM card11 Charge the phone12 Switch the phone on or off13 Touch screen actions14 Start-up process15 Use your phone when it is locked16 Explore17 About the home screen17 Status and notification bar17 Status and notification icons18 Clock widget19 Add widgets to the home screen19 Favourites tray19 Flight mode20 Voice actions20 Apps21 About Apps21 Recommended apps21 Google Play™ Store21 Apps precautionary advice21 Update apps22 Manage and restore apps22 Close apps22 Uninstall apps22 Vertu Services23 Vertu Services23 Text entry25 Keyboard entry25 Predictive text26 Dictionaries26 Change the keyboard language26 Calls27 About calls27 Make and answer calls28 Call the last number dialled29 Quickly call your favourites29 Listen to your voicemail29 Divert calls to another number29 Make a conference call30 Silence an incoming call30 Voice dialling30 Contacts31 About contacts31 Call, text or email contacts32 Add contacts33 Join contacts33 Edit or delete a contact33 Save a number from a call or message33 Personalise contacts34 Add a contact group34 Transfer contacts34 Messaging and email36 About messaging36 Send and read messages36 Send a message to a group36 Instant messages37 Manage messages37 Email setup37 Corporate email setup37 Google mail setup37 Personal email setup38 Music39 About music39 Get music39 Contents ©2012VertuCorporationLimited.Allrightsreserved.2 Set up music40 Play music40 Maps and navigation42 Google Maps™42 Google Maps™ Navigation42 Personalising your phone43 Widgets43 Shortcuts43 Ringtones43 Wallpapers44 Assign sounds to actions44 Display settings44 Auto-rotate44 Screen lock44 Date and time45 Language and region settings45 Social networks46 Add an account46 Delete an account46 Synchronise contacts46 Managing accounts47 Configure sync options47 Add and delete accounts47 Backup and restore accounts47 Browser48 About the web browser48 Browse the web49 Connect to the internet49 Add a bookmark49 Widget feeds49 Privacy and security49 Downloads50 Camera51 About camera51 Take and share photos52 Panoramic view53 Camera settings53 Record and share a video53 Video settings54 Gallery55 About gallery55 View and edit photos and videos55 Share photos and videos55 View an album55 Create a folder56 Assign contact images and wallpaper56 Take a screen shot56 Office tools57 Clock57 Calculator57 Calendar57 Connectivity58 Wi-Fi58 Bluetooth58 Set your phone to sync with your computer59 Copy between the phone and a PC60 NFC60 Phone management61 Free up phone memory61 Optimise data usage61 Data roaming settings61 Back up and restore phone62 Set your phone to lock automatically62 Change your PIN code62 Access codes62 Master reset63 Find your lost phone63 Tips and tricks64 General tips64 Extend battery life64 FAQ's65 FAQs65 Accessories67 Battery charger67 Data cable67 Vehicle charger68 Vertu Portable Power69 Contents ©2012VertuCorporationLimited.Allrightsreserved.3 Wired stereo headset71 Specifications72 Specifications72 Care of your phone75 General care75 Embroidery75 Exotic leathers75 Leather76 Non-precious metals76 Precious metals76 Precious stones77 Sapphire and ceramics77 Safety and warranty78 Safety text78 Additional care and maintenance82 Manufacturer's Limited Warranty83 Software application notices for the phone86 Certificates and Licences88 Environmental88 Export and controls89 Copyright and trademark notices89 SAR (Specific Absorption Rate) notice - RM828V90 Contents ©2012VertuCorporationLimited.Allrightsreserved.4 Introduction Your VERTU Ti phone This user guide is intended to provide you with details on how to use the prominent features on your VERTU Ti. To access the exclusive privileges and benefits such as Vertu Life, Vertu Concierge and Vertu Certainty, you must register your phone. The pictures used in this user guide are provided for illustration purposes only. They may differ from those on your actual version of the VERTU Ti. Help and support To find out more about using your VERTU Ti phone: l Contact Vertu Customer Service by either pressing the Vertu key or through the Vertu Certainty app. l Refer to the user guide on your phone from the Vertu Certainty app, or the full reference manual on the Vertu website at http://www.vertu.com/help-and-support/user-guides-and-downloads.aspx. l Use the setup wizards available on your VERTU Ti phone to help you with registration to create an email account. Introduction ©2012VertuCorporationLimited.Allrightsreserved.5 Safety Safety Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. Switch off in restricted areas Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or blasting areas. Obey all instructions in restricted areas. Road safety comes first Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. Interference All wireless devices may be susceptible to interference, which could affect performance. Qualified service Only qualified personnel may install or repair this product. Keep your device dry Your device is not water-resistant. Keep it dry. Protect your hearing To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. Safety ©2012VertuCorporationLimited.Allrightsreserved.6 Your phone Package contents l VERTU Ti phone l Leather phone slip case l Wired stereo headset (WH-3V) l Wall charger (AC-31) with regional plug heads l Vertu Portable Power pack (DC-15V) l Car…

Text truncated - open the document above for the full version.

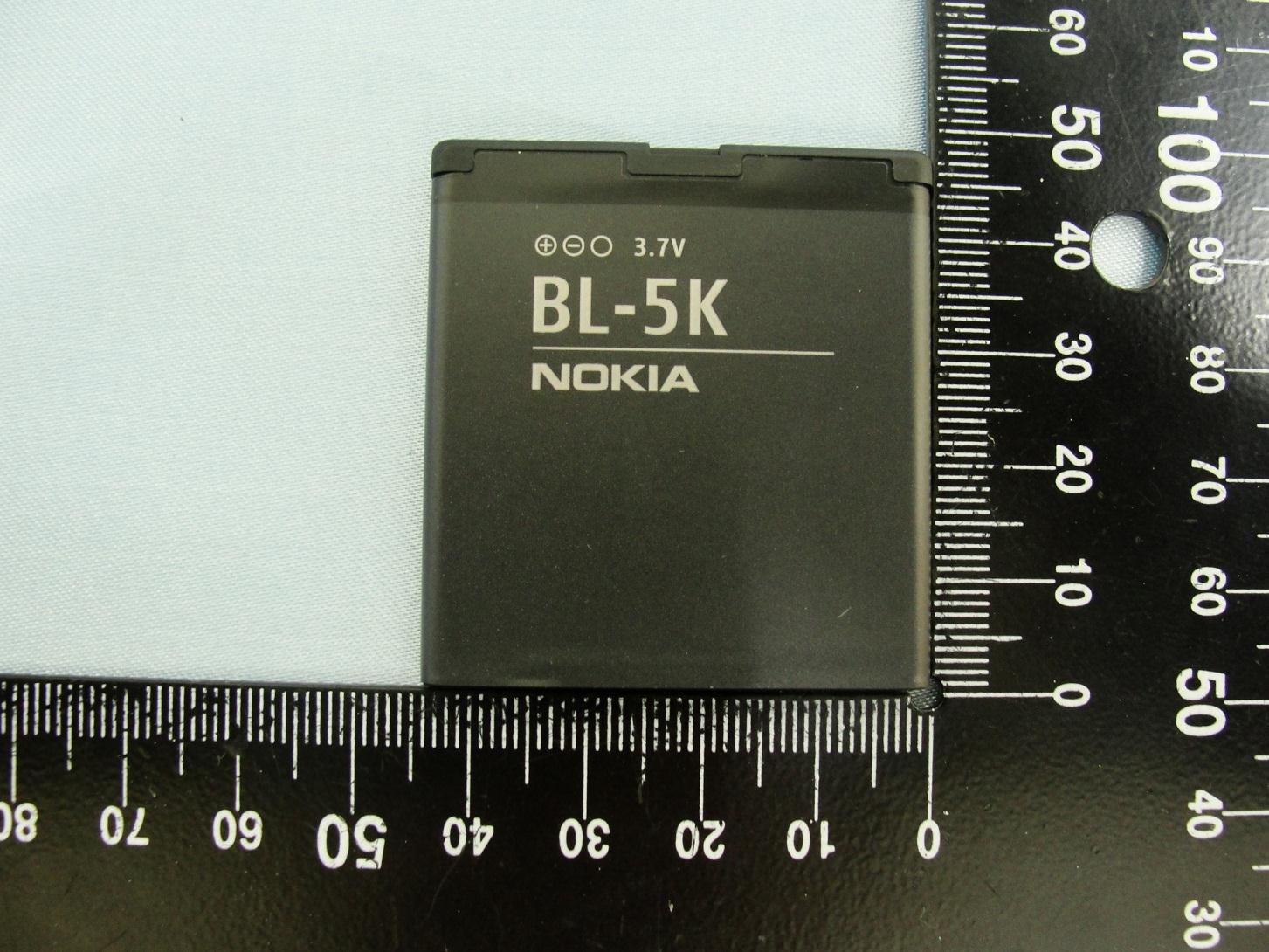

Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 1 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 2 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V 2. Photograph of Accessory AC Adaptor 720510 Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 3 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V 720510 Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 4 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V 720510 Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 5 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V Car Charger 720510 Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 6 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V 720510 Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 7 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V 720510 Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 8 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V Portable Power Charger 720510 Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 9 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V 720510 Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 10 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V 720510 Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 11 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V 720510 Battery Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 12 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V 720510 Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 13 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V 720510 Earphone Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 14 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V 720510 USB Cable 1 Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 15 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V 720510 USB Cable 2

FCC ID: P7QRM-828V IC: 4299A-RM828V Mobile Phone (Back) Battery Compartment Label Location

Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 16 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V 3. Internal Photograph of EUT Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 17 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 18 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 19 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 20 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V WWAN Antenna <Tx/ Rx> Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 21 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 22 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V Bluetooth and WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 23 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V GPS Antenna <Rx> Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 24 of 24 TEL : 886-3-327-3456 Report Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V 720510 NFC Antenna <Tx / Rx>

Photographs of EUT Report No.: EP291928 Brand Name: VERTU / Model Name: RM-828V / Marketing Name: VERTU Ti SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Nov. 12, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : P7QRM-828V DUT Length: 12.9 cm DUT Width: 6.0 cm Antenna Length Width WWAN Antenna <Tx / Rx> 5.2 cm 2.6 cm Bluetooth & WLAN Antenna <Tx / Rx> 2.3 cm 0.8 cm NFC Antenna <Tx / Rx> 4.8 cm 4.0 cm GPS Antenna < Rx> 2.3 cm 1.0 cm The shortest distance between the Tx Antennas WWAN Antenna <Tx / Rx> to Bluetooth & WLAN Antenna <Tx / Rx> 8.9 cm WWAN Antenna <Tx / Rx> to NFC Antenna <Tx / Rx> 0.2 cm Bluetooth & WLAN Antenna <Tx / Rx> to NFC Antenna <Tx / Rx> 3.9 cm Bluetooth & WLAN Antenna <Tx / Rx> 11.5 cm 5.3 cm WWAN Antenna <Tx / Rx> GPS Antenna <Rx> 10.3 cm 1.0 cm NFC Antenna <Tx / Rx> 2.8 cm 1.0 cm 3.2 cm

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D835V2, serial no. 499 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 499 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 3.22.2010 -28.352 52.17 -3.2461 -24.664 50.066 -5.8652 3.22.2011 -28.323 0.102 51.095 1.075 -3.5773 0.331 -24.665 -0.004 50.685 -0.619 -1.477 -4.388 Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D835 V2, serial no. 499 (Date of Measurement : 3.22.2011) 835 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 835 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D835V2, serial no. 499 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 499 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 3.22.2010 -28.352 52.17 -3.2461 -24.664 50.066 -5.8652 3.22.2011 -28.323 0.102 51.095 1.075 -3.5773 0.331 -24.665 -0.004 50.685 -0.619 -1.477 -4.388 3.22.2012 -28.265 0.307 50.685 1.485 -3.2627 0.0166 -23.821 3.42 50.977 -0.911 -3.2487 -2.6165 Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D835 V2, serial no. 499 (Date of Measurement : 3.22.2012) 835 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 835 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D1900V2, serial no. 5D041 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D1900V2 – serial no. 5D041 1900 Head 1900 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedanc e (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginar y Impedan ce (ohm) Delta (ohm) 3.23.2010 -24.549 50.896 5.9141 -23.108 46.342 5.669 3.23.2011 -24.489 0.244 50.921 -0.025 5.9588 -0.045 -23.022 0.372 48.808 -2.466 6.991 -1.322 Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D1900 V2, serial no. 5D041 (Date of Measurement : 3.23.2011) 1900 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 1900 MHz – Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D1900V2, serial no. 5D041 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D1900V2 – serial no. 5D041 1900 Head 1900 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedanc e (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginar y Impedan ce (ohm) Delta (ohm) 3.23.2010 -24.549 50.896 5.9141 -23.108 46.342 5.669 3.23.2011 -24.489 0.244 50.921 -0.025 5.9588 -0.045 -23.022 0.372 48.808 -2.466 6.991 -1.322 3.23.2012 -26.159 6.56 50.159 0.737 5.7824 0.1317 -24.341 5.33 47.059 -0.707 4.8668 0.8022 SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D1900 V2, serial no. 5D041 (Date of Measurement : 3.23.2012) 1900 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 1900 MHz - Body SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D2450V2, serial no. 736 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D2450V2 – serial no. 736 2450 Head 2450 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 7.25.2011 -27.042 54.398 1.4805 -30.696 50.812 2.8262 7.25.2012 -27.950 -3.365 52.541 1.857 0.77343 0.707 -31.781 -3.535 50.572 0.24 1.5953 1.2309 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D2450 V2, serial no. 736 (Date of Measurement : 7.25.2012) 2450 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 2450 MHz – Body

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/10/17 System Check_Head_835MHz_121017 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_121017 Medium parameters used: f = 835 MHz; σ = 0.873 mho/m; ε r = 41.054; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.04, 6.04, 6.04); Calibrated: 2011/9/12; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 2.53 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.276 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.588 mW/g SAR(1 g) = 2.35 mW/g; SAR(10 g) = 1.53 mW/g Maximum value of SAR (measured) = 2.54 W/kg 0 dB = 2.54 W/kg = 8.10 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/10/25 System Check_Head_835MHz_121025 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_121026 Medium parameters used: f = 835 MHz; σ = 0.898 mho/m; ε r = 41.252; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(8.71, 8.71, 8.71); Calibrated: 2012/6/22; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 2.61 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.171 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 3.701 mW/g SAR(1 g) = 2.43 mW/g; SAR(10 g) = 1.59 mW/g Maximum value of SAR (measured) = 2.63 W/kg 0 dB = 2.63 W/kg = 8.40 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/10/17 System Check_Body_835MHz_121017 DUT:D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_121017 Medium parameters used: f = 835 MHz; σ = 0.964 mho/m; ε r = 54.398; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.16, 6.16, 6.16); Calibrated: 2012/9/28; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.53 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.224 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.383 mW/g SAR(1 g) = 2.34 mW/g; SAR(10 g) = 1.54 mW/g Maximum value of SAR (measured) = 2.54 W/kg 0 dB = 2.54 W/kg = 8.10 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/10/25 System Check_Body_835MHz_121025 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_121025 Medium parameters used: f = 835 MHz; σ = 0.962 mho/m; ε r = 54.42; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3801; ConvF(8.82, 8.82, 8.82); Calibrated: 2012/6/22; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2012/5/3 - Phantom: SAM Right; Type: QD000P40CD; Serial: TP:1644 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 2.73 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.514 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 3.863 mW/g SAR(1 g) = 2.55 mW/g; SAR(10 g) = 1.66 mW/g Maximum value of SAR (measured) = 2.75 W/kg 0 dB = 2.75 W/kg = 8.79 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/10/27 System Check_Body_835MHz_121027 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_121027 Medium parameters used: f = 835 MHz; σ = 0.963 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.16, 6.16, 6.16); Calibrated: 2012/9/28; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn915; Calibrated: 2012/6/21 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15 mm, dy=15 mm Maximum value of SAR (interpolated) = 2.39 W/kg Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 48.697 V/m; Power Drift = 0.149 dB Peak SAR (extrapolated) = 3.288 mW/g SAR(1 g) = 2.28 mW/g; SAR(10 g) = 1.5 mW/g Maximum value of SAR (measured) = 2.47 W/kg 0 dB = 2.47 W/kg = 7.85 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/10/17 System Check_Head_1750MHz_121017 DUT: D1750V2-SN:1023 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_121017 Medium parameters used: f = 1750 MHz; σ = 1.409 mho/m; ε r = 39.382; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(5.2, 5.2, 5.2); Calibrated: 2012/9/28; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: S…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/10/17 #37_GSM 850_DTM Multi-slot class 5_Right Cheek_Ch251 DUT: 291928 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium: HSL_850_121017 Medium parameters used: f = 849 MHz; σ = 0.883 mho/m; ε r = 40.899; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.2, 6.2, 6.2); Calibrated: 2012/9/28; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch251/Area Scan (51x81x1): Measurement grid: dx=20 mm, dy=20 mm Maximum value of SAR (interpolated) = 0.268 W/kg Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.424 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.297 mW/g SAR(1 g) = 0.248 mW/g; SAR(10 g) = 0.193 mW/g Maximum value of SAR (measured) = 0.259 W/kg 0 dB = 0.259 W/kg = -11.73 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/10/17 #38_GSM 850_DTM Multi-slot class 5_Right Tilted_Ch251 DUT: 291928 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium: HSL_850_121017 Medium parameters used: f = 849 MHz; σ = 0.883 mho/m; ε r = 40.899; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.2, 6.2, 6.2); Calibrated: 2012/9/28; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch251/Area Scan (51x81x1): Measurement grid: dx=20 mm, dy=20 mm Maximum value of SAR (interpolated) = 0.207 W/kg Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.165 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.251 mW/g SAR(1 g) = 0.202 mW/g; SAR(10 g) = 0.155 mW/g Maximum value of SAR (measured) = 0.210 W/kg Ch251/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.165 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.228 mW/g SAR(1 g) = 0.172 mW/g; SAR(10 g) = 0.121 mW/g Maximum value of SAR (measured) = 0.197 W/kg 0 dB = 0.197 W/kg = -14.11 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/10/17 #39_GSM 850_DTM Multi-slot class 5_Left Cheek_Ch251 DUT: 291928 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium: HSL_850_121017 Medium parameters used: f = 849 MHz; σ = 0.883 mho/m; ε r = 40.899; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.2, 6.2, 6.2); Calibrated: 2012/9/28; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: SAM Left; Type: QD000P40CD; Serial: TP:1542 - Measurement SW: DASY52, Version 52.8 (2); SEMCAD X Version 14.6.6 (6824) Ch251/Area Scan (51x81x1): Measurement grid: dx=20 mm, dy=20 mm Maximum value of SAR (interpolated) = 0.283 W/kg Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.816 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.394 mW/g SAR(1 g) = 0.277 mW/g; SAR(10 g) = 0.196 mW/g Maximum value of SAR (measured) = 0.288 W/kg 0 dB = 0.288 W/kg = -10.81 dB W/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/10/17 #39_GSM 850_DTM Multi-slot class 5_Left Cheek_Ch251_2D DUT: 291928 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:4 Medium: HSL_850_121017 Medium parameters used: f = 849 MHz; σ = 0.883 mho/m; ε r = 40.899; ρ = 1000 kg/m 3 Ambient Temperature：22.3 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; Con…

Text truncated - open the document above for the full version.
