P9X-900X900X Radio Module

EkaNet ™ Hardware Manual Document Number 10156 Revision 04 Eka Systems, Inc. 20251 Century Boulevard, Suite 120 Germantown, MD 20874 Tel (301) 990-3450 Fax (301) 990-3451 EKA CONFIDENTIAL Confidential and Proprietary Reproduction or Distribution Prohibited This document is for informational purposes only. It contains information that is confidential and proprietary. This document has been prepared by and is the property of Eka Systems, Inc. By accepting and reviewing this document, you agree that you will treat its contents as confidential and proprietary, and that you will not copy, distribute or otherwise disclose the information contained herein to third parties. Table of Contents EkaNet Hardware Manual10156-04 Eka Proprietary and Confidential Table of Contents 1.Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1 1.1Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1 1.1.1Product Highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1 1.2Supporting Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2 1.3Version History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2 2.ECR-2400 Node Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1 2.1Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1 2.1.1ECR-2400 Node Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1 2.1.2ECR-2400 Node Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 2 2.2Installation and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3 2.2.1What the Blinking Lights Mean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3 2.2.1.1 The Green LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3 2.2.1.2 The Red LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3 2.3ECR-2400 Node Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 4 3.Elster A3/Alpha Plus Node Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1 3.1Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1 3.1.1Elster A3/Alpha Plus Node Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 2 3.1.2Elster A3/Alpha Plus Node Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 2 3.2Installation and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 3 3.2.1What the Blinking Lights Mean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 4 3.2.1.1 The Green LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 4 3.2.1.2 The Red LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 4 3.3Elster A3/Alpha Plus Node Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 4 4.RESI-MON Node Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1 4.1Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 2 4.1.1RESI-MON Node Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 2 4.1.2RESI-MON Node Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 3 4.2Installation and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 4 4.2.1What the Blinking Lights Mean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 4 4.2.1.1 The Green LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 4 4.2.1.2 The Red LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 4 4.3RESI-MON Node Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5 5.Gateway Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 1 5.1Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 1 5.1.1EkaNet Gateway Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 1 Table of Contents 10156-04EkaNet Hardware Manual Eka Proprietary and Confidential 5.2Configuring the Gateway Using the Field Tool . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 1 5.2.1IP Config Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 2 5.2.2User Config Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 3 5.2.3NTP Config Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 5 5.3The Compact Flash Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 5 5.4Installing an Indoor Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 6 5.5Installing an Outdoor Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 8 5.6Verifying Gateway Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 11 5.7Gateway Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 12 List of Figures EkaNet Hardware Manual10156-04 Eka Proprietary and Confidential List of Figures Figure 1.1: The Architecture of the EkaNet Wireless Mesh Network System ............ 1 - 1 Figure 2.1: ECR-2400 Node ...............................…

Text truncated - open the document above for the full version.

Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant: FCC ID: To whom it may concern, Request is hereby submitted by Eka Systems, Inc., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, all exhibits and sections of the application and report are requested to be kept confidential: • Schematics • Block diagrams • Operational/Functional Description • Pictures (both internal and external) • Bill of Materials Rationale for request for confidentiality: Eka Systems, Inc. wishes to keep these items confidential to maintain a competitive advantage in the marketplace. These items will always be professionally installed. In addition, the device will always be in a controlled, inaccessible environment and are not available to the general public. The $125 fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, Joseph Adams Director of Operations Eka Systems, Inc. (301) 990-3450 ext. 213 [email protected]

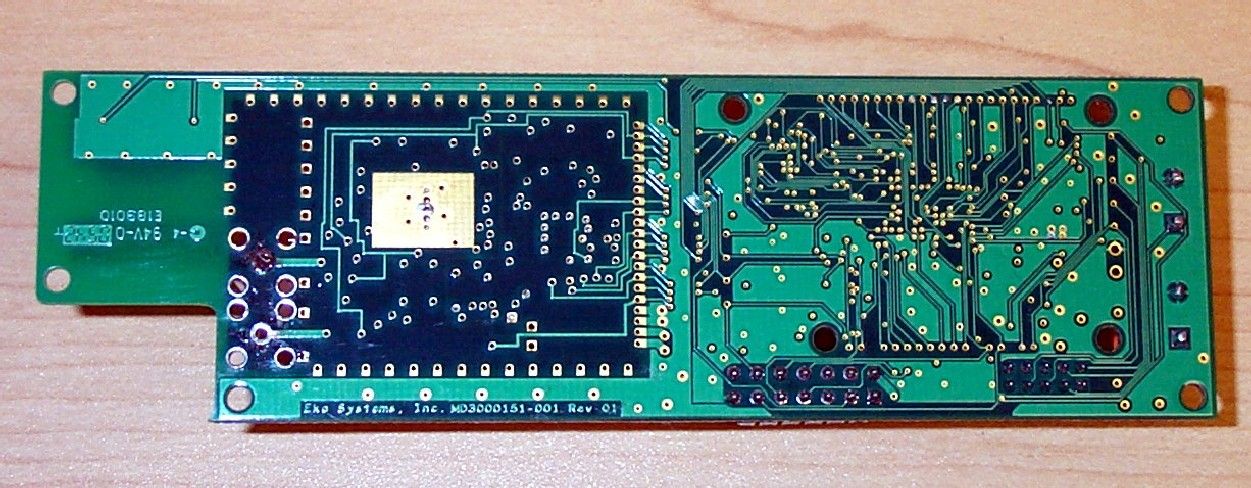

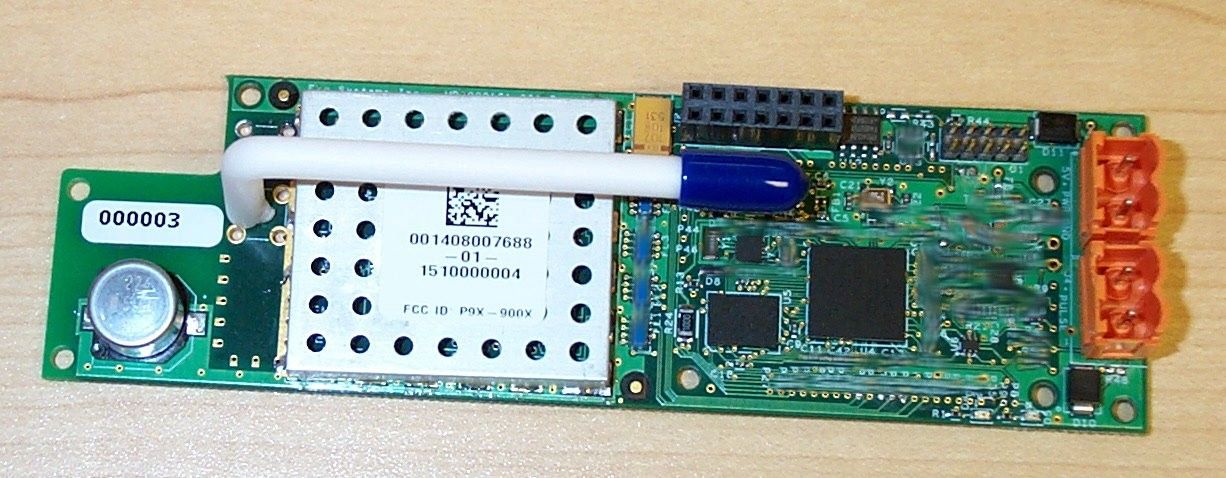

FCC ID: P9X-900X

Report Number 3094995BOX.001a Page 2 of 32 1.0 Job Description 1.1 Client Information This EUT has been tested at the request of: Company: Eka Systems 20251 Century Blvd. Suite 120 Germantown, MD 20874 Contact: Joe Adams Telephone: Fax: Email: 301-990-3450 301-990-3451 [email protected] 1.2 Equipment Under Test Equipment Type: Radio Module Model Number(s): 900X FCC ID: P9X-900X Serial number(s): 000104 Manufacturer: Eka Systems EUT receive date: 03/28/2006 EUT received condition: Prototype in Good condition Test start date: 03/29/2006 Test end date: 06/01/2006 1.3 Test Plan Reference: Tested according to the standards listed, DA 00-1407, and ANSI C63.4:2003. 1.4 Test Configuration 1.4.1 Block Diagram EUT Turntable Power Cable Report Number 3094995BOX.001a Page 3 of 32 1.4.2. Cables: Cable Shielding Connector Length (m) Qty. Power Cable None Plastic 2 1 1.4.3. Support Equipment: Name: Model No.: Serial No.: CUI Stack DC Power Supply DV-530R 0601 1.5 Mode(s) of Operation: The EUT was operated as a module, with 5.0VDC power applied from a power supply running at 120V/60Hz AC power and the EUT was transmitting continuously during testing. Report Number 3094995BOX.001a Page 4 of 32 2.0 Test Summary TEST STANDARD RESULTS FCC Part 15 Subpart C 15.247 SUB-TEST TEST PARAMETER COMMENT Occupied Bandwidth and Hopping Characteristics FCC 15.247(a)(1), (a)(1)(i) The hopping characteristics must conform to the requirements of FCC 15.247(a)(1), (a)(1)(ii). The channel bandwidth is the 20 dB bandwidth. The channel separation must be greater than the 20dB bandwidth. The minimum number of hopping channels is 50. The maximum channel dwell time is 0.4 seconds over the period of 20 seconds. Pass Transmitter Output Power and EIRP, and Human RF Exposure FCC 15.247(b)(2, 4-5) The output power must not exceed 1 Watt (30 dBm) and 36 dBm EIRP. The human RF Exposure limit is 1 mW/cm 2 . Pass Radiated Spurious Emissions FCC 15.205, 15.209, 15.247(d) The spurious emissions must be attenuated below the level of the fundamental by at least 20 dBc. Emissions which fall in the restricted bands must meet the general limits of 15.209. Pass Band Edge Compliance FCC 15.215 The fundamental frequency must stay within the assigned frequency band. Pass AC Line-Conducted Emissions FCC 15.207 The AC line-conducted emissions must not exceed the limits of 15.207. Pass Notes: The EUT was tested as a module. Channels tested were 903 MHz, 915 MHz, and 927 MHz. REVISION SUMMARY – The following changes have been made to this Report: Date Project No. Project Handler Page(s) Item Description of Change 8/14/2006 3094995 Nicholas Abbondante 2, 19-20 RF ouput power RF output power was re-measured with a 300 kHz bandwidth and the results were updated including the RF exposure calculation. The test end date was adjusted on page 2. Report Number 3094995BOX.001a Page 5 of 32 3.0 Sample Calculations The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the Amplifier Gain (if any) from the measured reading. The basic equation with a sample calculation is as follows: FS = RA + AF + CF - AG Where FS = Field Strength in dBμV/m RA = Receiver Amplitude (including preamplifier) in dBμV CF = Cable Attenuation Factor in dB AF = Antenna Factor in dB AG = Amplifier Gain in dB In the following table(s), the reading shown on the data table reflects the preamplifier gain. An example for the calculations in the following table is as follows. Assume a receiver reading of 52.0 dBμV is obtained. The antenna factor of 7.4 dB and cable factor of 1.6 dB is added. The amplifier gain of 29 dB is subtracted, giving a field strength of 32 dBμV/m. This value in dBμV/m was converted to its corresponding level in μV/m. RA = 52.0 dBμV AF = 7.4 dB/m CF = 1.6 dB AG = 29.0 dB FS = 32 dBμV/m Level in μV/m = [10( 32 dBμV/m)/20] = 39.8 μV/m The following is how net line-conducted readings were determined: NF = RF + LF + CF + AF Where NF = Net Reading in dBμV RF = Reading from receiver in dBμV LF = LISN Correction Factor in dB CF = Cable Correction Factor in dB AF = Attenuator Loss Factor in dB To convert from dBμV to μV or mV the following was used: UF = 10 (NF / 20) where UF = Net Reading in μV Example: NF = RF + LF + CF + AF = 28.5 + 0.2 + 0.4 + 20.0 = 49.1 dBμV UF = 10 (48.1 dBμV / 20) = 254 μV/m Report Number 3094995BOX.001a Page 6 of 32 3.1 Measurement Uncertainty Compliance of the product is based on the measured value. However, the measurement uncertainty is included for informational purposes. The expanded uncertainty (k = 2) for radiated emissions from 30 to 1000 MHz has been determined to be: ±3.5 dB at 10m, ±3.8 dB at 3m The expanded uncertainty (k = 2) for mains conducted emissions from 150 kHz to 30 MHz has been determined to be: ±2.6 dB The expanded uncertainty (k = 2) for telecom port conducted emissions from 150 kHz to 30 MHz has been determined to be: ±3.2 for ISN and voltage probe measurements ±3.1 for current probe measurements Report Number 3094995BOX.001a Page 7 of 32 3.2 Site Description Test Site(s): 2 Our OATS are 3m and 10m sheltered emissions measurement ranges located in a light commercial environment in Boxborough, Massachusetts. They meet the technical requirements of ANSI C63.4-2003 and CISPR 22:1993/EN 55022:1994 for radiated and conducted emission measurements. The shelter structure is entirely fiberglass and plastic, with outside dimensions of 33 ft x 57 ft. The structure resembles a quonset hut with a center ceiling height of 16.5 ft. The testing floor is covered by a galvanized sheet metal groundplane that is earth-grounded via copper rods around the perimeter of the site. The joints between individual metal sheets are bridged with a 2 inch wide metal strips to provide low RF impedance contact throughout. The sheets are screwed in place with stainless steel, round-head screws every three inches. Site illumination and HVAC are provided from beneath the ground reference plane through flush entry ports,…

Text truncated - open the document above for the full version.

Report Number 3094995BOX.001 Page 24 of 32 Setup Photos Report Number 3094995BOX.001 Page 25 of 32 Report Number 3094995BOX.001 Page 31 of 32 Setup Photos Report Number 3094995BOX.001 Page 32 of 32
