PAGECO-PLUGSWi-Fi Module

KAB Enterprise Co., Ltd Wi-Fi Smart Switch Disclaimer and Copyright Notice Information in this document, including URL references, is subject to change without notice. THIS DOCUMENT IS PROVIDED AS IS WITH NO WARRANTIES WHATSOEVER, INCLUDING ANY WARRANTY OF MERCHANTABILITY, NON-INFRINGEMENT, FITNESS FOR ANY PARTICULAR PURPOSE, OR ANY WARRANTY OTHERWISE ARISING OUT OF ANY PROPOSAL, SPECIFICATION OR SAMPLE. All liability, including liability for infringement of any proprietary rights, relating to use of information in this document is disclaimed. No licenses express or implied, by estoppel or otherwise, to any intellectual property rights are granted herein. The WiFi Alliance Member Logo is a trademark of the WiFi Alliance. All trade names, trademarks and registered trademarks mentioned in this document are property of their respective owners, and are hereby acknowledged. Copyright © 2015 KAB Enterprise Co., Ltd. All rights reserved. 1.1. Features  802.11 b/g/n  Integrated low power 32-bit MCU  Integrated 10-bit ADC  Integrated TCP/IP protocol stack  Integrated TR switch, balun, LNA, power amplifier and matching network  Integrated PLL, regulators, and power management units  Supports antenna diversity  Wi-Fi 2.4 GHz, support WPA/WPA2  Support STA/AP/STA+AP operation modes  Support Smart Link Function for both Android and iOS devices  SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO  A-MPDU & A-MSDU aggregation and 0.4s guard interval  Deep sleep power <10uA, Power down leakage current < 5uA  Wake up and transmit packets in < 2ms  Standby power consumption of < 1.0mW (DTIM3) •  Operating temperature range -40C ~ 125C  FCC, Wi-Fi Alliance, certified 1.2. Parameters Table 1 below describes the major parameters. Table 1 Parameters Categories Items Values Certificates FCC/CE/TELEC WiFi Parameters WiFi Protocols 802.11 b/g/n Frequency Range 2.4GHz-2.5GHz (2400M-2483.5M) UART/SDIO/SPI/I2C/I2S/Ir Remote Control Peripheral Bus GPIO/PWM Operating Voltage 3.0~3.6V Hardware Operating Current Average value: 80mA Parameters Operating Temperature Range -40°~125° Ambient Temperature Range Normal temperature Package Size 18mm*20mm*3mm External Interface N/A Wi-Fi mode station/softAP/SoftAP+station Security WPA/WPA2 Encryption WEP/TKIP/AES Software Firmware Upgrade UART Download / OTA (via network) / download and write firmware via host Parameters Software Development Supports Cloud Server Development / SDK for custom firmware development Network Protocols IPv4, TCP/UDP/HTTP/FTP User Configuration AT Instruction Set, Cloud Server, Android/iOS App 2. Pin Descriptions There are altogether 18 pin counts, the definitions of which are described in Table 2 below. Table 2 Pin Descriptions NO. Pin Name Function 1 3V3 3.3V power supply (VDD) 2 EN Chip enable pin. Active high. 3 IO14 GPIO14; HSPI_CLK 4 IO12 GPIO12; HSPI_MISO 5 IO13 GPIO13; HSPI_MOSI; UART0_CTS 6 IO15 GPIO15; MTDO; HSPICS; UART0_RTS 7 IO2 GPIO2; UART1_TXD 8 IO0 GPIO0 9 GND GND 10 IO4 GPIO4 11 RXD UART0_RXD; GPIO3 12 TXD UART0_TXD; GPIO1 13 GND GND 14 IO5 GPIO5 15 RST Reset the module 16 TOUT It can be used to test the power-supply voltage of VDD3P3 (Pin3 and Pin4) and the input power voltage of TOUT (Pin 6). However, these two functions cannot be used simultaneously. 17 IO16 GPIO16; can be used to wake up the chipset from deep sleep mode. 18 GND GND Note: Table 3 UART Download Mode Table 4 Flash Boot Mode The following are measured under room temperature conditions with 3.3V and 1.1V power supplies. Table 5 Receiver Sensitivity Parameters Min Typical Max Unit Input frequency 2412 2484 MHz Input impedance 50 Ω Input reflection -10 dB Output power of PA for 72.2Mbps 15.5 16.5 17.5 dBm Output power of PA for 11b mode 19.5 20.5 21.5 dBm Sensitivity DSSS, 1Mbps -98 dBm CCK, 11Mbps -91 dBm 6Mbps (1/2 BPSK) -93 dBm 54Mbps (3/4 64-QAM) -75 dBm HT20, MCS7 (65Mbps, 72.2Mbps) -72 dBm Adjacent Channel Rejection OFDM, 6Mbps 37 dB OFDM, 54Mbps 21 dB HT20, MCS0 37 dB HT20, MCS7 20 dB 3. Functional Descriptions 3.1. MCU ESP8266EX is embedded with Tensilica L106 32-bit micro controller (MCU), which features extra low power consumption and 16-bit RSIC. The CPU clock speed is 80MHz. It can also reach a maximum value of 160MHz. ESP8266EX is often integrated with external sensors and other specific devices through its GPIOs; codes for such applications are provided in examples in the SDK. 3.2. Memory Organization 1. Internal SRAM and ROM ESP8266EX WiFi SoC is embedded with memory controller, including SRAM and ROM. MCU can visit the memory units through iBus, dBus, and AHB interfaces. All memory units can be visited upon request, while a memory arbiter will decide the running sequence according to the time when these requests are received by the processor. According to our current version of SDK provided, SRAM space that is available to users is assigned as below:  RAM size < 36kB, that is to say, when ESP8266EX is working under the station mode and is connected to the router, programmable space accessible to user in heap and data section is around 36kB.)  There is no programmable ROM in the SoC, therefore, user program must be stored in an external SPI flash. 2. External SPI Flash This module is mounted with an 2 MB external SPI fl ash to store user programs. If larger definable storage space is required, a SPI fl ash with larger memory size is preferred. Theoretically speaking, up to 16 MB memory capacity can be supported. Suggested SPI Flash memory capacity:  OTA is disabled: the minimum fl ash memory that can be supported is 512 kB;  OTA is enabled: the minimum fl ash memory that can be supported is 1 MB. Several SPI modes can be supported, including Standard SPI, Dual SPI, and Quad SPI. Therefore, please choose the correct SPI mode when you are downloading into the fl ash, otherwise firmwares/programs that you downloaded may not work in the right way. 3.3. Crystal Currently, the frequency of crystal oscillators supported include 40MHz, 26MHz an…

Text truncated - open the document above for the full version.

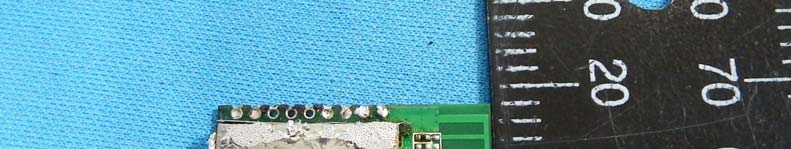

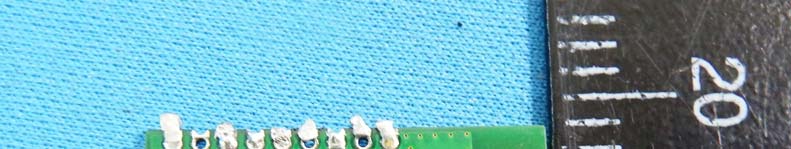

Report No. : EP550856 SPORTON International Inc. PAGE NUMBER : B1 of B7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix B. Photographs of EUT Report No. : EP550856 SPORTON International Inc. PAGE NUMBER : B4 of B7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973

Report No. : EP550856 SPORTON International Inc. PAGE NUMBER : B1 of B7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix B. Photographs of EUT Report No. : EP550856 SPORTON International Inc. PAGE NUMBER : B2 of B7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP550856 SPORTON International Inc. PAGE NUMBER : B3 of B7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Module IC Printed Report No. : EP550856 SPORTON International Inc. PAGE NUMBER : B4 of B7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP550856 SPORTON International Inc. PAGE NUMBER : B5 of B7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Report No. : EP550856 SPORTON International Inc. PAGE NUMBER : B6 of B7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Module IC Report No. : EP550856 SPORTON International Inc. PAGE NUMBER : B7 of B7 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Dipole

FCC EMF Test Report Report No. : FA550856 SPORTON INTERNATIONAL INC. Page No. : 1 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FA550856 SPORTON INTERNATIONAL INC. Page No. : 2 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.2 Result of Maximum Permissible Exposure (2.4G) RF General Information 2400 MHz – 2483.5 MHz Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 4.11 2400-2483.5 g 2412-2462 1-11 [11] 1 12.89 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 1 12.79 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Sum Chain DG (dBi) EIRP Power PD (S) (mW/cm²) g 1 12.89 2.33 15.22 0.00662 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : 1 of 74 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 FCC Test Report Equipment : Wi-Fi Module Brand Name : KAB Model No. : ECO PLUGS FCC ID : PAGECO-PLUGS Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz FCC Classification : DTS Applicant : KAB Enterprise Co., Ltd. 21F, -1, No.33, Sec. 1, Minsheng Rd., Banqiao Dist., New Taipei City 220, Taiwan (R.O.C) Manufacturer : Verdant Electronics(Dong Guan) Co., Ltd. Langxie Administrative District, Qiaotou, Dongguan City, Guang Dong Sheng, China. The product sample received on May 08, 2015 and completely tested on Jun. 01, 2015. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Vic Hsiao / Supervisor FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : 2 of 74 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 11 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 6dB Bandwidth ..................................................................................................................................... 19 3.3 RF Output Power .................................................................................................................................. 21 3.4 Power Spectral Density ........................................................................................................................ 24 3.5 Transmitter Bandedge Emissions ........................................................................................................ 26 3.6 Transmitter Unwanted Emissions......................................................................................................... 30 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 73 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : 3 of 74 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 16.230MHz 29.77 (Margin 30.23dB) - QP 25.74 (Margin 24.26dB) - AV FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 9.82 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 17.76 Power [dBm]:30 Complied 3.4 15.247(e) Power Spectral Density PSD [dBm/100kHz]: -17.07 PSD [dBm/3kHz]:8 Complied 3.5 15.247(d) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2399.6 MHz: 29.09dB Restricted Bands [dBuV/m at 3m]: 2483.5MHz 72.66 (Margin 1.34dB) - PK 49.09 (Margin 4.91dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(d) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 4824 MHz 52.99 (Margin 1.01dB) –AV 55.80 (Margin 18.20dB) – PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : 4 of 74 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR550856 Rev. 02 Initial issue of report Jun. 24, 2015 2500-2690 FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : 5 of 74 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-1…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : A1 of A13 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Appendix A. Test Photos 1. Photographs of Conducted Emissions Test Configuration Mode1 Front view Rear view FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : A2 of A13 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Side view FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : A3 of A13 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Mode2 Front view Rear view FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : A4 of A13 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Side view FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : A5 of A13 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : A6 of A13 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Mode1 Front view Rear view FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : A7 of A13 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Mode2 Front view Rear view FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : A8 of A13 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 For radiated emissions above 1GHz Mode1 Front view Rear view FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : A9 of A13 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Mode2 Front view Rear view FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : A10 of A13 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Mode1 EUT took a close view EUT took a close view FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : A11 of A13 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Mode1 EUT took a close view Test Board (Fixture) not marketed with EUT RF Module + External Antenna (Dipole) FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : A12 of A13 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Mode2 EUT took a close view EUT took a close view RF Module + External Antenna (Printed) Test Board (Fixture) not marketed with EUT FCC Test Report Report No. : FR550856 SPORTON INTERNATIONAL INC. Page No. : A13 of A13 TEL : 886-3-327-3456 Report Version : Rev. 02 FAX : 886-3-327-0973 Mode2 EUT took a close view
