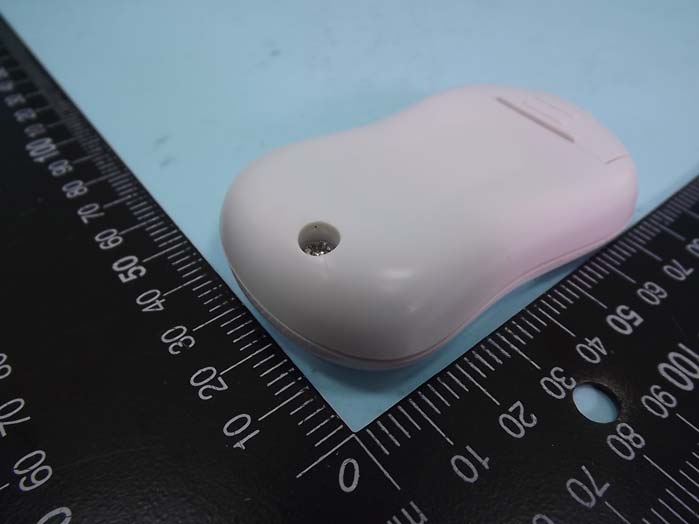

FCC Test Report Report No. : EP350338 SPORTON International Inc. PAGE NUMBER : B1 OF B5 TEL : 886-3-327-3456 ISSUED DATE : Jun. 07, 2013 FAX : 886-3-327-0973 APPENDIX A. Photographs of EUT

FCC Test Report Report No. : EP350338 SPORTON International Inc. PAGE NUMBER : B2 OF B5 TEL : 886-3-327-3456 ISSUED DATE : Jun. 07, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP350338 SPORTON International Inc. PAGE NUMBER : B3 OF B5 TEL : 886-3-327-3456 ISSUED DATE : Jun. 07, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP350338 SPORTON International Inc. PAGE NUMBER : B4 OF B5 TEL : 886-3-327-3456 ISSUED DATE : Jun. 07, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP350338 SPORTON International Inc. PAGE NUMBER : B5 OF B5 TEL : 886-3-327-3456 ISSUED DATE : Jun. 07, 2013 FAX : 886-3-327-0973

FCC Test Report Report No. : FR350338 SPORTON INTERNATIONAL INC. Page No. : 1 of 25 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Remote Controller Model No. : TR-015-1 FCC ID : PAGTR-015-1 Standard : 47 CFR FCC Part 15.231 Operating Band : 315 MHz Operation : Manually operated within 5 sec FCC Classification : DSC Applicant : KAB Enterprise Co., Ltd. 21F, -1, No.33, Sec. 1, Minsheng Rd., Banqiao Dist., New Taipei City 220, Taiwan (R.O.C) Manufacturer : Verdant Electronics(Dong Guan) Co., Ltd. Langxie Administrative District, Qiaotou, Dongguan City, Guang Dong Sheng, China. The product sample received on May 03, 2013 and completely tested on Jun. 07, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR350338 SPORTON INTERNATIONAL INC. Page No. : 2 of 25 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 7 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 Test Channel Frequencies Configuration ............................................................................................... 9 2.3 The Worst Case Measurement Configuration ........................................................................................ 9 2.4 Test Setup Diagram ............................................................................................................................. 10 3 TRANSMITTER TEST RESULT .......................................................................................................... 11 3.1 AC Power-line Conducted Emissions .................................................................................................. 11 3.2 Emission Bandwidth ............................................................................................................................. 13 3.3 Fundamental Emissions ....................................................................................................................... 15 3.4 Transmitter Radiated Unwanted Emissions ......................................................................................... 17 3.5 Operation Restriction ............................................................................................................................ 23 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 25 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR350338 SPORTON INTERNATIONAL INC. Page No. : 3 of 25 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions - FCC 15.207 NA 3.2 15.231(c) Emission Bandwidth 45.50 kHz Fc(70~900MHz): BW ≤ fc x 0.25% Complied 3.3 15.231(b)/(e) Fundamental Emissions [dBuV/m at 3m]: 54.49 (Margin 21.13dB) -AV [dBuV/m at 3m]: average: 75.62 Complied 3.4 15.231(b)/(e) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 1574.000MHz 52.42 (Margin 1.58dB) - AV FCC 15.231 (b)/(e) or FCC 15.209, whichever limit permits higher field strength. Complied 3.5 15.231(a)/(e) Operation RestrictionOperated time and silent time are less than limits. Manually operated within 5 sec Complied NA = Not Applicable FCC Test Report Report No. : FR350338 SPORTON INTERNATIONAL INC. Page No. : 4 of 25 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR350338 Rev. 01 Initial issue of report Jun. 10, 2013 FCC Test Report Report No. : FR350338 SPORTON INTERNATIONAL INC. Page No. : 5 of 25 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) Modulation Ch. Frequency (MHz) Channel Number Fundamental Field Strength (dBuV/m) Co-location 315 ASK 315 1 54.49 N/A Note 1: Field strength performed average level at 3m. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. 1.1.2 Antenna Information Antenna Category Integral antenna (antenna permanently attached) External antenna (dedicated antennas) ; Unique antenna connector 1.1.3 Type of EUT Identify EUT EUT Serial Number N/A Presentation of Equipment Production ; Pre-Production ; Prototype Type of EUT Stand-alone Combined (EUT where the radio part is fully integrated within a…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR350338 SPORTON INTERNATIONAL INC. Page No. : A1 of A3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR350338 SPORTON INTERNATIONAL INC. Page No. : A2 of A3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Radiated Emissions Test Configuration For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR350338 SPORTON INTERNATIONAL INC. Page No. : A3 of A3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
