PAGTR-034-8Remote Controller

ONOFF 2Hr4Hr 6Hr8Hr Timer 1. Press the timer control button (3) to turn on all outlets On-Always On. The power indicator (2) will be lit. 2. Press the timer control button (3) to Sensor ( dusk-to-dawn). The indicator (2) will be lit and all outlets will be ON when sensing dusk and Off at dawn. 3. Press the timer control button (3) to Sensor plus 2hr, 4hr, 6hr or 8hr. The indicators (2) for the Sensor and specific hour you selected will be lit. All outlets will turn on when sensing dusk and then off after hour your selected. 4. Press the timer control button (3) to Timer 8hr, 6hr, 4hr or 2hr. The indicators (2) for the Timer and specific hour you selected will be lit. All outlets turn on immediately then off after the hour you selected. The current setting will repeat daily. 1. Press the ON or OFF button to turn the receiver power ON or OFF. 2. Press Timer button plus 2Hr, 4Hr, 6Hr or 8Hr to turn on the receiver on then off after that specific hour you selected. The power will be repeated ON daily. 3. Press Sensor button ( dusk-to-dawn), the receiver will be ON when sensing dusk and Off at dawn. 4. Press Sensor button plus 2Hr, 4Hr, 6Hr or 8Hr to turn on the receiver after sensing dusk then off after specific hour you selected. Battery Handling and Usage • Install the battery observing the positive (+) side up as indicated inside the battery compartment. • Never throw batteries into a fire. Do not expose batteries to fire or other heat sources. • Battery contains mercury. Do not put in trash. Recycle or manage as hazardous waste. • Remove the battery compartment cover away from the remote (see diagram below) • Remove the old battery and place a new Type 3V (CR2032) lithium battery into the battery compartment. • Ensure the battery is installed correctly with the positive (+) side up. + CR2032 3V • Replace the battery compartment cover. • Dispose or recycle spent/discharged batteries in compliance with all applicable laws. For detailed information, contact your local solid waste authority. Caution: Failure to properly align the battery polarity can cause personal injury and/or property damage. 1 Frequency: 433MHz Transmitter Power Input: 3V Lithium Battery (CR2032) Receiver Power input: AC 125V Electrical Outlet Receiver Power Output: 13 Amps / 125 Volts / 1625W Cord: 6ft SJTW 16/3C RECEIVER MODEL: SP-058A TRANSMITTER MODEL: TR-034-8 FCC ID: PAGTR-034-8 WARNING: Do not ingest the battery, Chemical Burn Hazard (The remote control supplied with) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. CAUTION: • Risk of Fire. Not for permanent installation. Use only with outdoor equipment, Christmas-tree, or other seasonal decorative-lighting products having a total of 13 Ampere maximum. Do not install or use this product for more than a 90-day period. • If using Christmas tree or decorative-lighting products that are not marked with an ampere rating, connect no more than 140 screw- base lamps (C7 or C9) or 12 strings with midget (push-in) lamps to this cord set. • Cord sets must be plugged into a GFCI-protected receptacle. • If using an outdoor-use cord set for an extended period of time (greater than 90 days) please consider hard wiring a permanent outdoor-use receptacle rated for year-round use in the area that power is needed. Please contact a licensed electrician for proper installation of permanent wiring. • After completion of installation, the connector shall be maintained a minimum of 6 in. above ground. • SUITABLE FOR INDOOR/UTDOOR USE – STORE INDOORS WHILE NOT IN USE. WARNING: Disregarding Cautions may cause damage, fire, or fatal shock. When using outdoor electrical products, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. + CR2032 3V ONOFF 2Hr4Hr 6Hr8Hr Timer Caution: Note : Cet appareil est conforme à la Partie 15 des règlements de la FCC et aux normes RSS de l’Industrie du Canada. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer des interférences nuisibles, et (2) cet appareil doit accepter toute interférence re çue, y compris les interférences qui peuvent provoquer un fonctionnement indésirable. Le fabric…

Text truncated - open the document above for the full version.

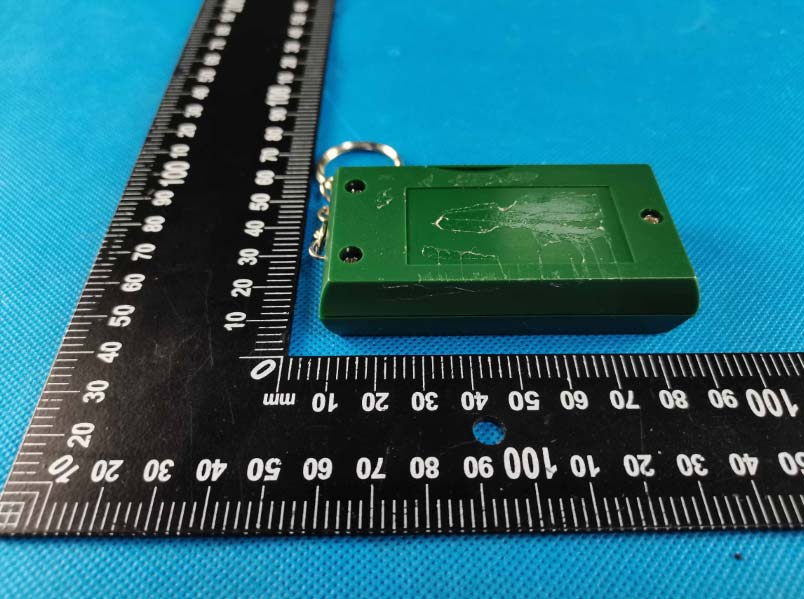

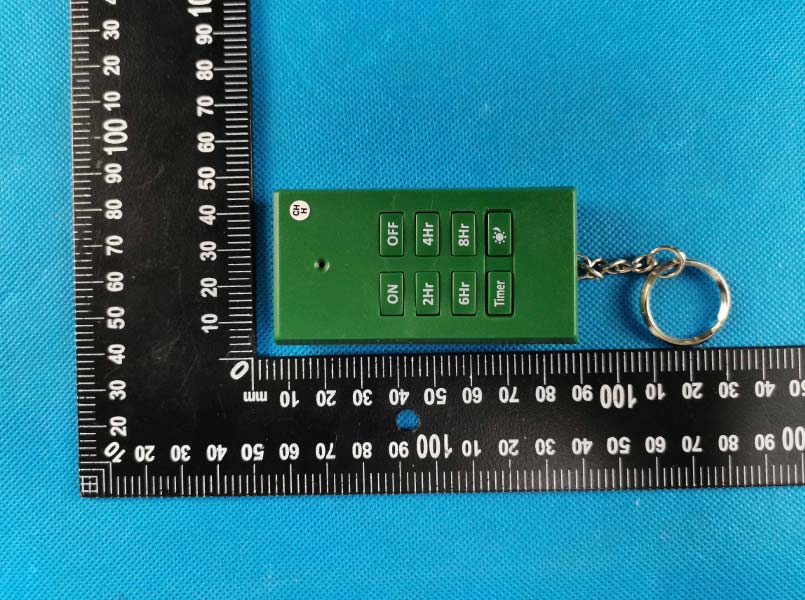

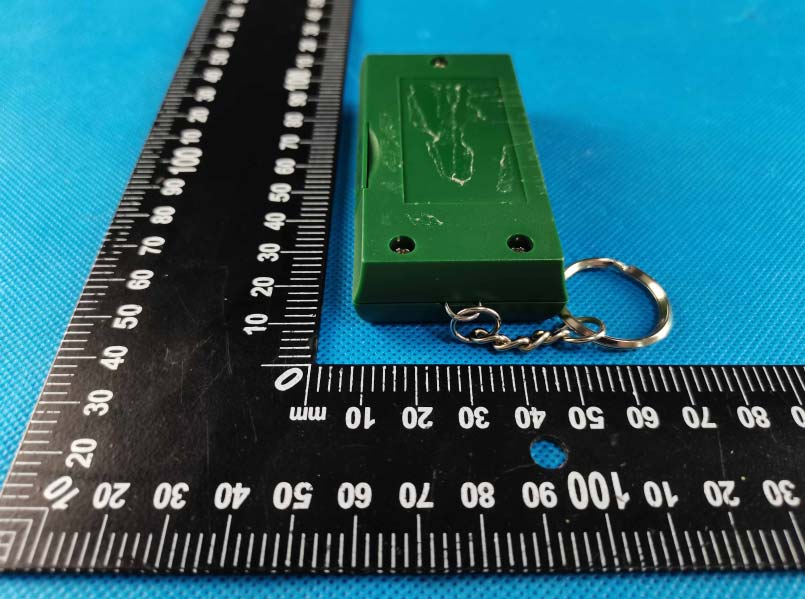

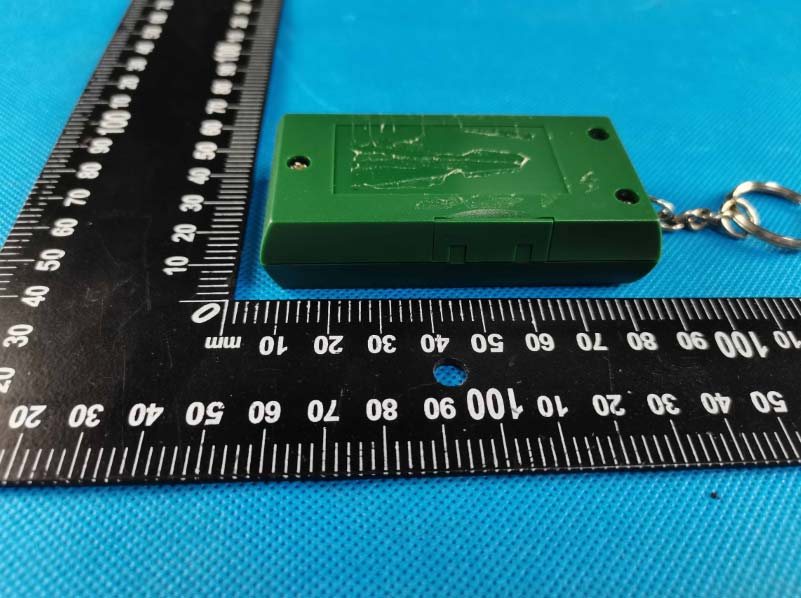

Appendix-TR-034-8-Photos Page 1 of 3 Photographs –Constructional Details EUT – External View Model TR-034-8 FCC ID: PAGTR-034-8 Appendix-TR-034-8-Photos Page 2 of 3 Appendix-TR-034-8-Photos Page 3 of 3

Appendix-TR-034-8-Photos Page 1 of 1 EUT – Internal View Model TR-034-8 FCC ID: PAGTR-034-8 Ant

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 18 TEST REPORT Reference No..................... : WTD21D04036971W V2 FCC ID.............................. : PAGTR-034-8 Applicant.......................... : KAB Enterprise Co., Ltd. Address............................ : 21F, -1, No.33, Sec. 1, Minsheng Rd., Banqiao Dist., New Taipei City 220, Taiwan (R.O.C) Manufacturer.................... : Verdant Electronics(Dong Guan) Co., Ltd. Address............................ : Langxie Administrative District, Qiaotou, Dongguan City, Guang Dong Sheng, China. Product.............................. : Remote Controller Model(s)........................ : TR-034-8 Standards......................... : FCC CFR47 Part 15 Section 15.231:2019 Date of Receipt sample.... : 2021-04-22 Date of Test...................... : 2021-04-24 to 2021-04-30 Date of Issue.................... : 2021-05-20 Test Result....................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: levi Xiao / Project Engineer Daniel Liu /Designated Reviewer Reference No.: WTD21D04036971W V2 Page 2 of 18 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 2 CONTENTS ............................................................................................................................................................ 2 3 REVISION HISTORY ............................................................................................................................................ 3 4 GENERAL INFORMATION .................................................................................................................................. 4 4.1 GENERAL DESCRIPTION OF E.U.T.................................................................................................... 4 4.2 DETAILS OF E.U.T. ......................................................................................................................... 4 4.3 TEST MODE .................................................................................................................................... 4 5 EQUIPMENT USED DURING TEST .................................................................................................................. 5 5.1 EQUIPMENTS LIST ........................................................................................................................... 5 5.2 MEASUREMENT UNCERTAINTY ......................................................................................................... 5 5.3 TEST FACILITY ................................................................................................................................ 6 5.4 SUBCONTRACTED ........................................................................................................................... 6 6 TEST SUMMARY .................................................................................................................................................. 7 7 RADIATED SPURIOUS EMISSIONS ................................................................................................................. 8 7.1 EUT OPERATION ............................................................................................................................ 8 7.2 TEST SETUP ................................................................................................................................... 9 7.3 SPECTRUM ANALYZER SETUP ........................................................................................................ 10 7.4 TEST PROCEDURE ........................................................................................................................ 11 7.5 SUMMARY OF TEST RESULTS ........................................................................................................ 12 8 PERIODIC OPERATION .................................................................................................................................... 13 9 EMISSION BANDWIDTH ................................................................................................................................... 16 9.1 TEST PROCEDURE ........................................................................................................................ 16 9.2 TEST RESULT ............................................................................................................................... 16 10 ANTENNA REQUIREMENT .............................................................................................................................. 17 11 PHOTOGRAPHS - CONSTRUCTIONAL DETAILS ...................................................................................... 18 Reference No.: WTD21D04036971W V2 Page 3 of 18 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 3 Revision History Test report No. Date of Receipt sample Date of Test Date of Issue Purpose CommentApproved WTD21D04036971W2021-04-22 2021-04-24 to 2021-04-30 2021-05-10Original - Replaced WTD21D04036971W V1 2021-04-22 2021-04-24 to 2021-04-30 2021-05-19Version 1 Updated Replaced WTD21D04036971W V2 2021-04-22 2021-04-24 to 2021-04-30 2021-05-20Version 2 Updated Valid Reference No.: WTD21D04036971W V2 Page 4 of 18 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4 General Information 4.1 General Description of E.U.T. Product: Remote Controller Model(s): TR-034-8 SRD(433.92Mhz) Support Antenna installation: internal permanent antenna Type of Modulation: FSK Hardware Version: V1.0.0 Software Version: V1.0.0 An…

Text truncated - open the document above for the full version.

Appendix-TR-034-8-Photos Page 1 of 1 Test Setup photos Model TR-034-8 FCC ID: PAGTR-034-8 Photograph –Test Setup For 30MHz-1000MHz Test Site 1# For Above 1GHz Test Site 2#
