PAGTR-034-7Remote Controller

Battery Handling and Usage • Install the battery observing the positive (+) side up as indicated inside the battery compartment. • Never throw batteries into a fire. Do not expose batteries to fire or other heat sources. • Battery contains mercury. Do not put in trash. Recycle or manage as hazardous waste. • Remove the battery compartment cover away from the remote (see diagram below) • Remove the old battery and place a new Type 3V (CR2032) lithium battery into the battery compartment. • Ensure the battery is installed correctly with the positive (+) side up. • Replace the battery compartment cover. • Dispose or recycle spent/discharged batteries in compliance with all applicable laws. For detailed information, contact your local solid waste authority. Caution: Failure to properly align the battery polarity can cause personal injury and/or property damage. + CR2032 3V RECEIVER MODEL: TM-110 TRANSMITTTER MODEL: TR-034-7 FCC ID: PAGTR-034-7 WARNING: Do not ingest the battery, Chemical Burn Hazard (The remote control supplied with) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. Outdoor Remote Control Countdown Timer HODT12B CAUTION • Suitable for use with outdoor appliances. • For use ONLY with a three conductor GFCI protected outlet. • Raintight when mounted vertically with receptacles facing downward. • Do not immerse in water. • DO NOT EXCEED RATED CAPACITY. • The device must be mounted in a vertical position with the receptacle facing downward and with the receptacle at least 2 FT above the ground level. • Cord-connected Operating Control. • Temperature limits of the SWITCH HEAD: -40-40ºC. Receiver Transmitter powersensor 2 Hrs4 Hrs 6 Hrs8 Hrs 2 1 3 4 5 1. Sensor ( ): Sensor will turn receiver on at dusk and off at dawn. 2. Operating Mode: Timer will turn ON, 2, 4, 6, or 8 hours after dusk. 3. Select button: To select the function and repeatedly. Power ON Sensor ( ) 2H 4H 6H 8H OFF ON 4. Outlets: Plug the lights or devices to be controlled by the timer into one of the outlets. 5. Transmitter 1. Mount or hang the RECEIVER on the wall near a GFCI protected outlet (125V 60Hz) which the power supply cord of the RECEIVER will plug into. 2. Plug the cord of the device you wish to control remotely at the bottom of the RECEIVER. Receiver & Transmitter operation modes: ON: Power is ON to attached devices Sensor ( Dusk - Dawn): power will turn on at dusk and remain on until dawn 2 Hrs: Power will turn on at dusk and remain on for 2 hours 4 Hrs: Power will turn on at dusk and remain on for 4 hours 6 Hrs: Power will turn on at dusk and remain on for 6 hours 8 Hrs: Power will turn on at dusk and remain on for 8 hours OFF: Power is OFF to attached devices * Note for Transmitter: Control electrical outlet up to a distance of 100 feet. * Note The timer has daily repeat after setting, in case of power failure, it will stop operating when the power goes out. Once power is restored, reset the desired operating mode as the operating instructions. • In the sensor ( dusk-to-dawn) mode, temporary light sources like headlights, porch lights and other external light sources will not interfere with the photocell function unless the external light source is on for more than 15 minutes. In that case, the timer will shut off until darkness is restored. The improvement avoids the flickering. • Once programming activates at dusk in the 2hr, 4hr, 6hr, or 8hr mode, the program cycle will complete before the timer resets. Headlights, porch lights, street lamps and other external lighting sources will not interfere with the active timer program. Helpful Tips • When set to “ON”, the timer will provide continual power to attached devices until the timer is switched to “OFF”, or to any of the other operating modes. OFF ON 2H 6H 8H 4H 1 OFF ON 2H 6H 8H 4H + CR2032 3V DO NOT ATTACH A DEVICE THAT EXCEEDS THE UNIT RATINGS: 125 V ac 60 Hz, 15 A Resistive, 15 A General Use, 1000 W Tungsten, 500 VA Electronic Ballast, 1/2HP. 120 V ac, 60 Hz, 8.3 A Ballast Caution: Note : Cet appareil est conforme à la Partie 15 des règlements de la FCC et aux normes RSS de l’Industrie du Canada. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit…

Text truncated - open the document above for the full version.

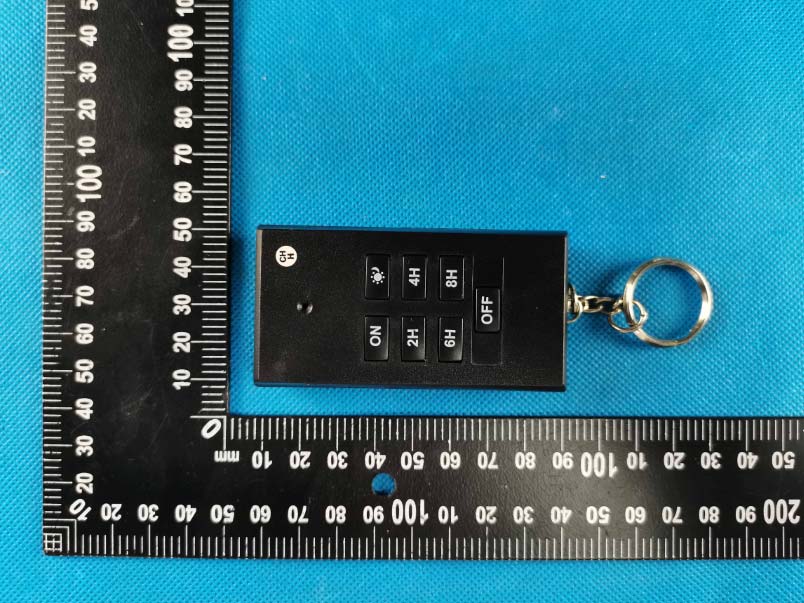

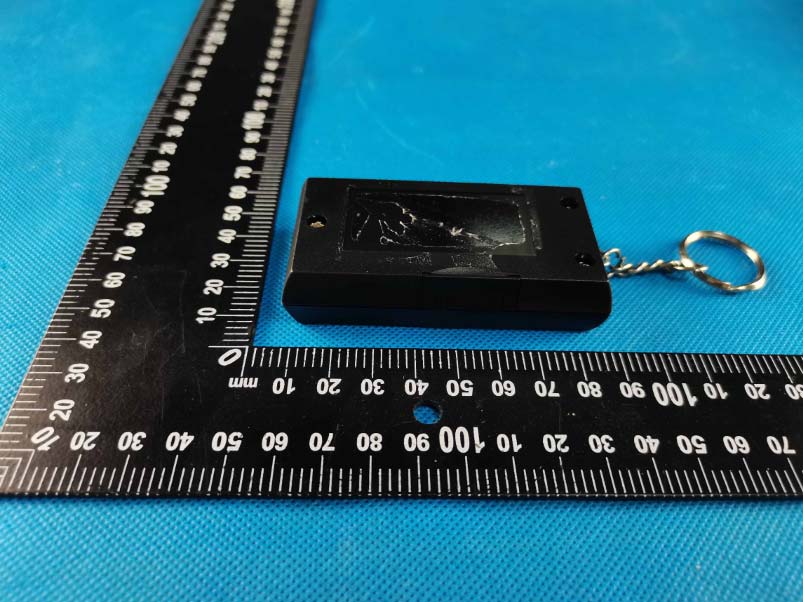

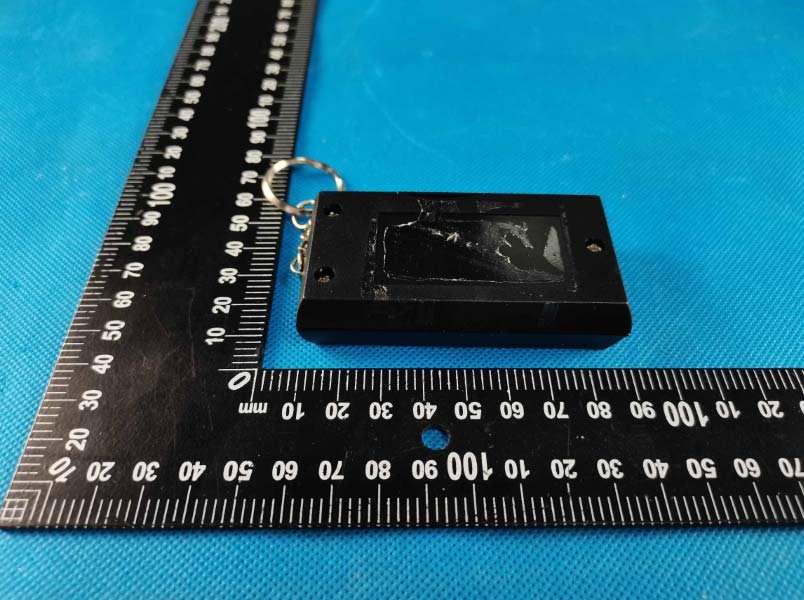

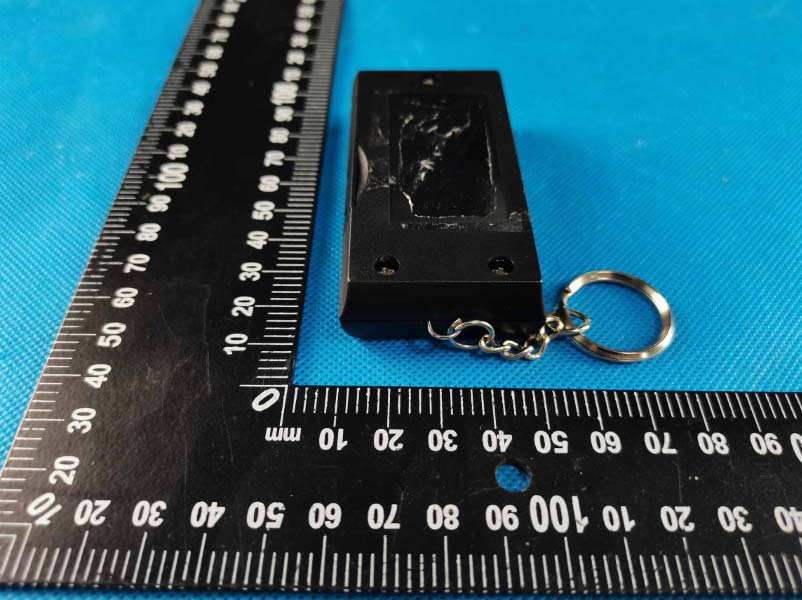

Appendix-TR-034-7-Photos Page 1 of 3 Photographs –Constructional Details E UT – External View Model TR-034-7 FCC ID: PAGTR-034-7 Appendix-TR-034-7-Photos Page 2 of 3 Appendix-TR-034-7-Photos Page 3 of 3

Appendix-TR-034-7-Photos Page 1 of 2 E UT – Internal View Model TR-034-7 FCC ID: PAGTR-034-7 Appendix-TR-034-7-Photos Page 2 of 2 ANT

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 18 TEST REPORT Reference No..................... : WTD21D04036970W V2 FCC ID.............................. : PAGTR-034-7 Applicant.......................... : KAB Enterprise Co.,Ltd. Address............................ : 21F, -1, No.33, Sec. 1, Minsheng Rd., Banqiao Dist., New Taipei City 220, Taiwan (R.O.C) Manufacturer.................... : Verdant Electronics(Dong Guan) Co., Ltd. Address............................ : Langxie Administrative District, Qiaotou, Dongguan City, Guang Dong Sheng, China. Product.............................. : Remote Controller Model(s)........................ : TR-034-7 Standards......................... : FCC CFR47 Part 15 Section 15.231 Date of Receipt sample.... : 2021-04-22 Date of Test...................... : 2021-04-24 to 2021-04-30 Date of Issue.................... : 2021-05-20 Test Result....................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: levi Xiao / Project Engineer Daniel Liu /Designated Reviewer Reference No.: WTD21D04036970W V2 Page 2 of 18 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 2 CONTENTS ............................................................................................................................................................ 2 3 REVISION HISTORY ............................................................................................................................................ 3 4 GENERAL INFORMATION .................................................................................................................................. 4 4.1 GENERAL DESCRIPTION OF E.U.T.................................................................................................... 4 4.2 DETAILS OF E.U.T. ......................................................................................................................... 4 4.3 TEST MODE .................................................................................................................................... 4 5 EQUIPMENT USED DURING TEST .................................................................................................................. 5 5.1 EQUIPMENTS LIST ........................................................................................................................... 5 5.2 MEASUREMENT UNCERTAINTY ......................................................................................................... 5 5.3 TEST FACILITY ................................................................................................................................ 6 5.4 SUBCONTRACTED ........................................................................................................................... 6 6 TEST SUMMARY .................................................................................................................................................. 7 7 RADIATED SPURIOUS EMISSIONS ................................................................................................................. 8 7.1 EUT OPERATION ............................................................................................................................ 8 7.2 TEST SETUP ................................................................................................................................... 9 7.3 SPECTRUM ANALYZER SETUP ........................................................................................................ 10 7.4 TEST PROCEDURE ........................................................................................................................ 11 7.5 SUMMARY OF TEST RESULTS ........................................................................................................ 12 8 PERIODIC OPERATION .................................................................................................................................... 13 9 EMISSION BANDWIDTH ................................................................................................................................... 16 9.1 TEST PROCEDURE ........................................................................................................................ 16 9.2 TEST RESULT ............................................................................................................................... 16 10 ANTENNA REQUIREMENT .............................................................................................................................. 17 11 PHOTOGRAPHS - CONSTRUCTIONAL DETAILS ...................................................................................... 18 Reference No.: WTD21D04036970W V2 Page 3 of 18 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 3 Revision History Test report No. Date of Receipt sample Date of Test Date of Issue Purpose CommentApproved WTD21D04036970W2021-04-22 2021-04-24 to 2021-04-30 2021-05-10Original - Replaced WTD21D04036970W V1 2021-04-22 2021-04-24 to 2021-04-30 2021-05-19Version1 Update Replaced WTD21D04036970W V2 2021-04-22 2021-04-24 to 2021-04-30 2021-05-20Version2 Update Valid Reference No.: WTD21D04036970W V2 Page 4 of 18 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4 General Information 4.1 General Description of E.U.T. Product: Remote Controller Model(s): TR-034-7 SRD(433.92MHz) Support Antenna installation: internal permanent antenna Type of Modulation: FSK Hardware Version: V1.0.0 Software Version: V1.0.0 Antenna Gain…

Text truncated - open the document above for the full version.

Appendix-TR-034-7-Photos Page 1 of 1 Test Setup photos Model TR-034-7 FCC ID: PAGTR-034-7, IC: 4494A-TR0347 Photograph –Test Setup For 30MHz-1000MHz Test Site 1# For Above 1GHz Test Site 2#
