PANBA300MBT5 Aptx Audio Mixer

晶訊科技股份有限公司 CC&C Technologies, Inc. 1 of 6 BA-300M BT5 Aptx Audio Mixer HIGHGAZE Quick Start 1. Power on and Enable Bluetooth of BT5 Audio Mixer 2. Connect 3.5mm Audio Cable with Game Set 3. Connect 3.5mm Headphone Cable with Headphone 4. Paring with Mobile Phone 晶訊科技股份有限公司 CC&C Technologies, Inc. 2 of 6 Contents „ Bluetooth 5 Audio Mixer „ USB 2.0 (Type A Type C) Cable „ 3.5mm Headphone Cable Overview Button Description Action - Click Action - Hold and Release A Paring Peer Device Start Pairing Mode N/A B Game Set Mic. / Mixer Vol. Multi Function Button Enable/Disable Game Set Mic.Mixer Vol. Down C System Ready / System Off / Multi Function Button z Enable Bluetooth and System Ready z Disable Bluetooth and N/A 晶訊科技股份有限公司 CC&C Technologies, Inc. 3 of 6 System Off D Bluetooth Mic. / Mixer Vol. Multi Function Button Enable/Disable Bluetooth Mic.Mixer Vol. Up C Restore Defaults 1. Disable Game Set and Bluetooth Mic 2. Restore Defaults (Hold 8 sec and Release) ※ Button Behavior - Click: Single Press then Release Hold and Release: Press a couple of seconds then Release LED Description E Game Set Mic. (On/Off) Status F Enable/Disable Bluetooth and System On/Off Status G Bluetooth Status „ Discoverable: Flashing Steady „ Connected Phone: Flashing 3 times at a time „ Disconnected Phone: Flashing 2 times at a time H Bluetooth Mic. (On/Off) Status Intfs Description I 3.5mm Headphone Jack J 3.5mm Game Set Audio Jack K Set Phone (BT) / Phone(BT) + Game /Game Volume Mode Switch L USB ( Type C ) DC-IN Power Supply Mixer Default Power On/Off State, System (Bluetooth) Ready/Off State Power On – Only Type AÙType C Cable + Power Adapter Audio/Mic (I) Audio/Mic (J) LED (E) LED (F) LED (G) LED (H) On/On On/On Off Off Off Off Turn On Bluetooth and System Ready State - Type AÙType C Cable + Power Adapter + Button (C) Audio/Mic (I) Audio/Mic (J) LED (E) LED (F) LED (G) LED (H) On/On On/On On On Flashing Steady On Turn Off Bluetooth and System Off State - Type AÙType C Cable + Power Adapter + Button (C) Audio/Mic (I) Audio/Mic (J) LED (E) LED (F) LED (G) LED (H) On/On On/On Off Off Off Off Power Off State – No Type AÙType C Cable + Power Adapter Audio/Mic (I) Audio/Mic (J) LED (E) LED (F) LED (G) LED (H) Off Off Off Off Off Off 晶訊科技股份有限公司 CC&C Technologies, Inc. 4 of 6 Setup and Default Status Table Scenarios Button / Switch Button Action LED Description Power On N/A N/A (E),(F),(G),(H) Off Power On via Type C cable Turn On Bluetooth and System Ready (C) Click (G) Flashing Steady Enable Bluetooth and Enter Paring Mode (Pairing List is empty) Connected Phone N/A N/A (G) Flashing 3 times at a time Establish Bluetooth Connection Successfully Disconnected Phone N/A N/A (G) Flashing 2 times at a time Failed to Establish Bluetooth Connection Incoming Call or Music On N/A N/A (G) On Incoming call or Music On Bluetooth Re-Enter Paring Mode (A) Press 3 seconds and release (G) Flashing steady Enter Connectable and Paring Mode Turn Off Bluetooth and system (C) Click (E),(F),(G),(H) Off Mixer’s Bluetooth system is off Restore Defaults And System Off (C) Click and Press over 8 seconds and release (G) 1. On 2. Off Mixer is restored to factory defaults. (Pairing List will be erased) Phone Mic On/Off (D) Click (H) On (H) Off Mute Off Mute On Game Set Mic On/Off (B) Click (E) On (E) Off Mute Off Mute On Volume Mode (K) Slide Switch (L) (C) (R) Phone Volume Mixer Volume Game Set Volume 晶訊科技股份有限公司 CC&C Technologies, Inc. 5 of 6 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. 晶訊科技股份有限公司 CC&C Technologies, Inc. 6 of 6 NCC警語 「取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、 加大功率或變更原設計之特性及功能。 低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停 用，並改善至無干擾時方得繼續使用。 前述合法通信，指依電信管理法規定作業之無線電通信。低功率射頻器材須忍受合法通信或 工業、科學及醫療用電波輻射性電機設備之干擾。」

CC&C 8F, No.150, Jian Yi Road,Zhonghe District, New Taipei City 235 Taiwan BT5 Aptx Audio Mixer Worldwide Testing Services (Taiwan) Co., Ltd. 6F., No. 58, Lane 188, Ruey Kuang Road, Neihu district , Taipei 114, Taiwan BA-300M CC&C Technologies, Inc.

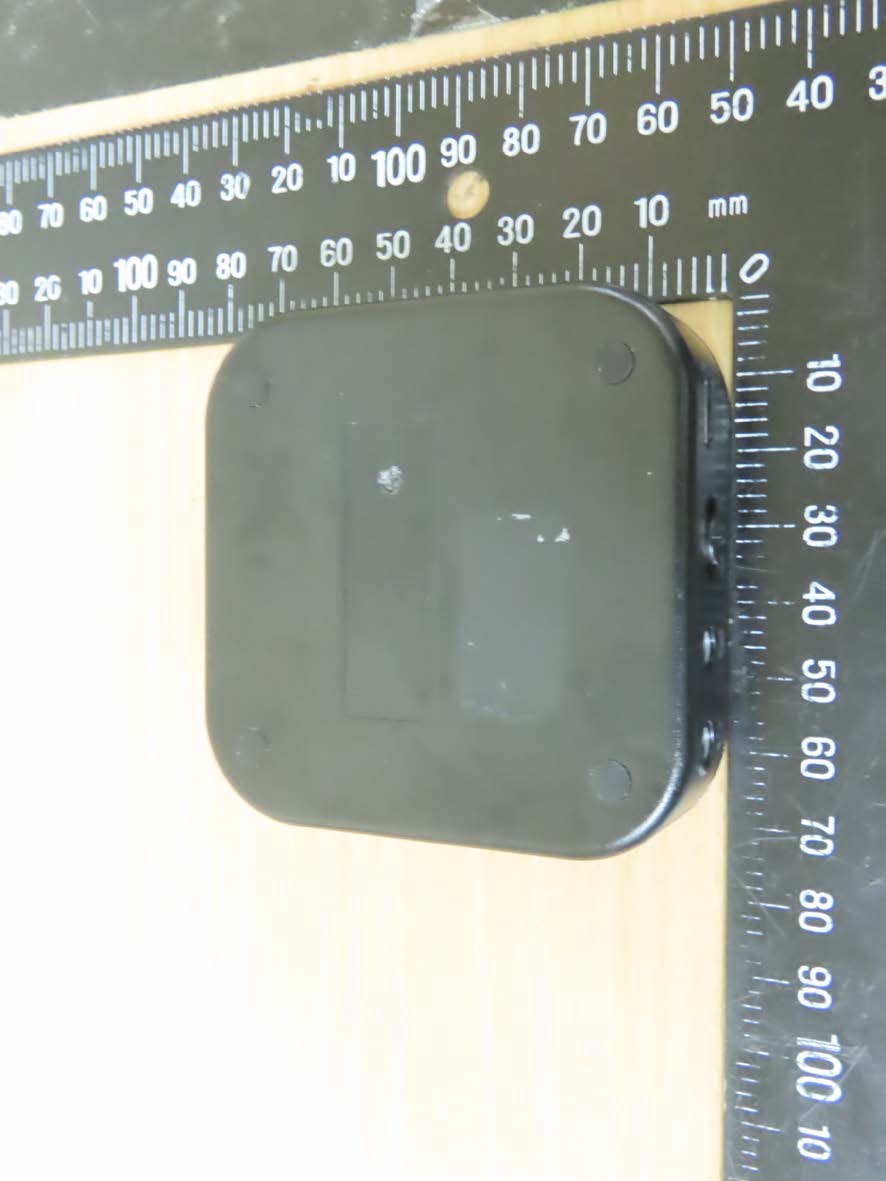

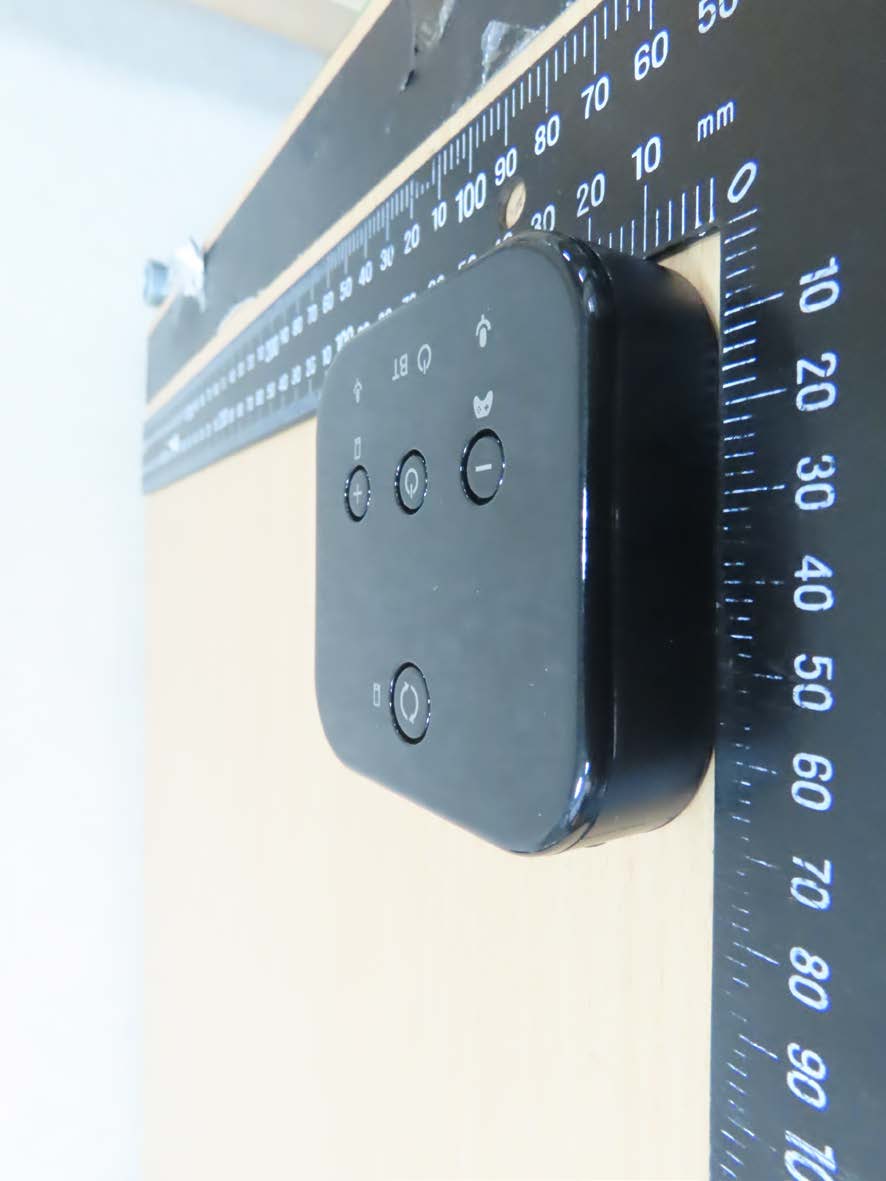

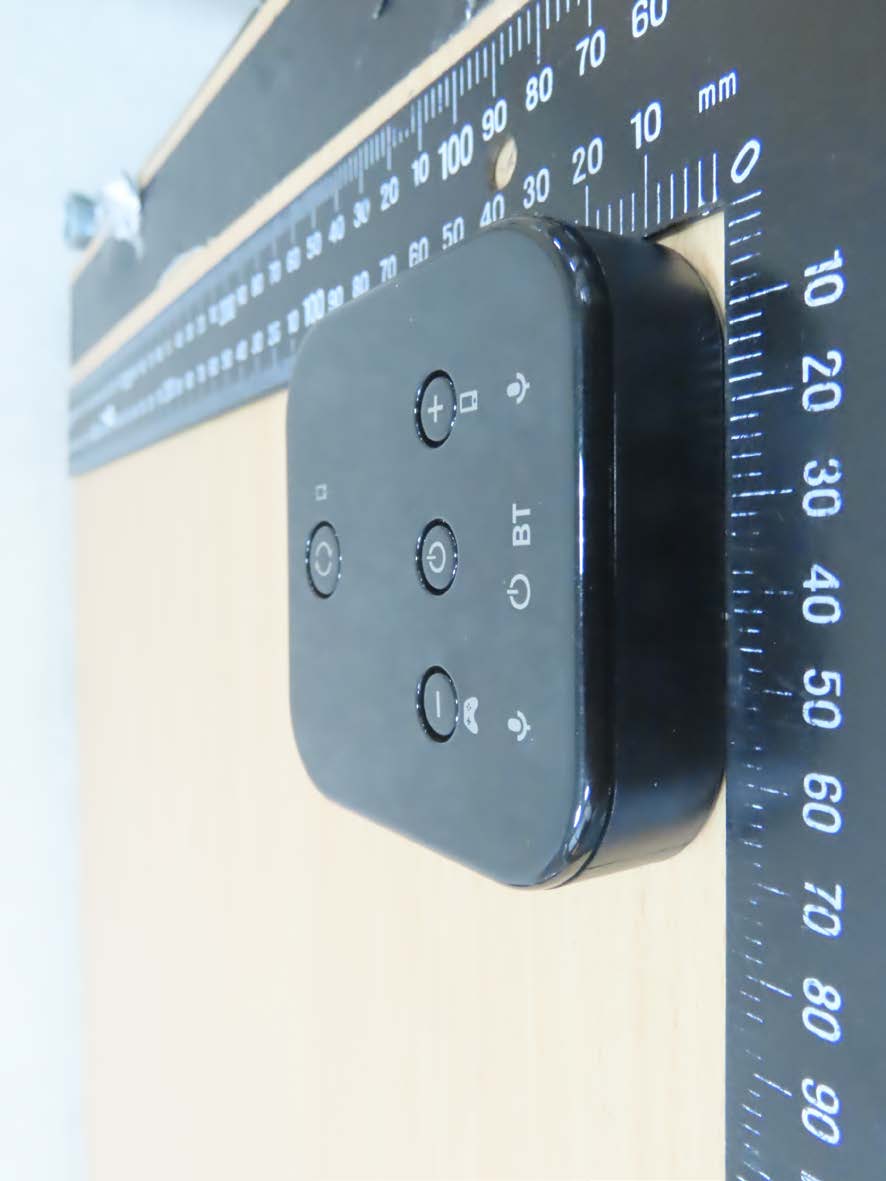

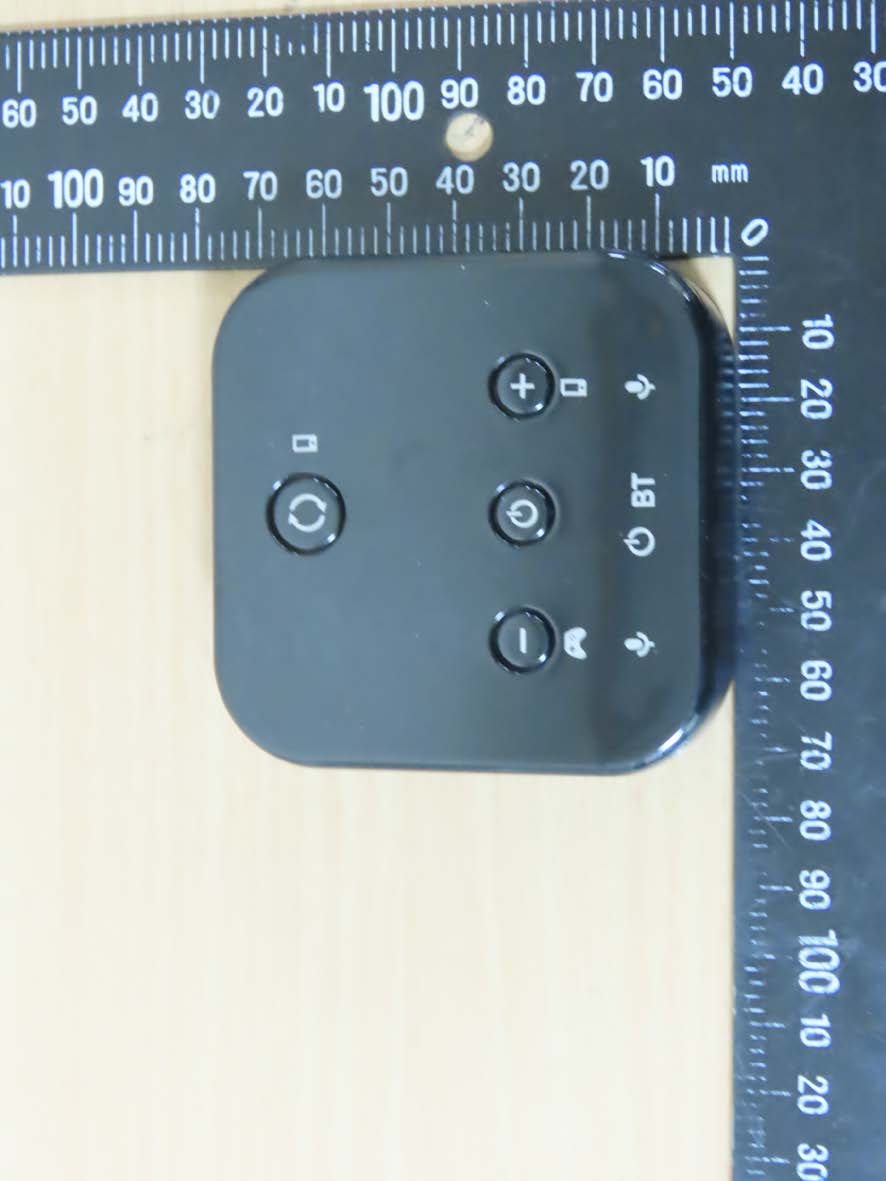

Registration number: W6M22210-22187-FCC FCC ID: PANBA300M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 1 of 19 Appendix Photos 1. External Photos 2. Internal Photos 3. Set Up Photo of Radiated Emission 4. Set Up Photo of Conducted Emission Registration number: W6M22210-22187-FCC FCC ID: PANBA300M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 2 of 19 External Photos Registration number: W6M22210-22187-FCC FCC ID: PANBA300M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 3 of 19 Registration number: W6M22210-22187-FCC FCC ID: PANBA300M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 4 of 19 Registration number: W6M22210-22187-FCC FCC ID: PANBA300M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 5 of 19 Registration number: W6M22210-22187-FCC FCC ID: PANBA300M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 6 of 19 Registration number: W6M22210-22187-FCC FCC ID: PANBA300M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 7 of 19 Registration number: W6M22210-22187-FCC FCC ID: PANBA300M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 8 of 19

Registration number: W6M22210-22187-FCC FCC ID: PANBA300M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 9 of 19 Internal Photos Registration number: W6M22210-22187-FCC FCC ID: PANBA300M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 10 of 19 Registration number: W6M22210-22187-FCC FCC ID: PANBA300M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 11 of 19 Registration number: W6M22210-22187-FCC FCC ID: PANBA300M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 12 of 19

Registration number: W6M22210-22187-C-1 FCC ID: PANBA300M Worldwide Testing Services(Taiwan) Co., Ltd. Page 20 of 59 3.2 Equivalent Isotropic Radiated Power (EIRP) FCC Rule: 15.247(b)(3) Bluetooth EIRP = max. conducted output power + antenna gain EIRP=8.64 dBm+0.36(tune up)+1.96dBi [antenna gain claimed by manufacturer]=10.96 dBm =12.4738 mW Low energy EIRP = max. conducted output power + antenna gain EIRP =7.41 dBm+0.59(tune up)+1.96dBi[antenna gain claimed by manufacturer]=9.96 dBm =9.9083 mW 3.3 Exemption Limits for Routine Evaluation according to 47 CFR FCC Part 2 Subpart J, section 2.1091 FCC OET Bulletin 65 Edition 97.01 determines the equations for predicting RF fields and applicable limits. The prediction for power density in the far-field but will over-predict power density in the near field, where it could be used for walking a “worst case” or conservative prediction. Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20 cm normally can be maintained between the user and the device. MPE Calculation Method E ＝ Electric field (V/m) P ＝ output power (W) G ＝ EUT Antenna numeric gain (numeric) Registration number: W6M22210-22187-C-1 FCC ID: PANBA300M Worldwide Testing Services(Taiwan) Co., Ltd. Page 21 of 59 d ＝ Separation distance between radiator and human body (m) The formula can be changed to mW/cm 2 . Established separation distance is 20 cm. Operating frequency band: 2402-2480 MHz EDR mode The product meets RF exposure requirement. Because the power density of 0.0025 mW/cm 2 at 2441 MHz is below the power density limit of 1 mW/cm 2 . Low energy 2M The product meets RF exposure requirement. Because the power density of 0.002 mW/cm 2 at 2440 MHz is below the power density limit of 1 mW/cm 2 .
