PANBM3095Bluetooth v5.4 APTX LE Audio RX Module

晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, ZhongheDistrict, CC&C Technologies, Inc. New Taipei City, Taiwan235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 1 BM-3095 Bluetooth v5.4 APTX LE Audio RX Module Manual Version: 1.0 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, ZhongheDistrict, CC&C Technologies, Inc. New Taipei City, Taiwan235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 2 Overview BM-3095 is a highly integrated single-chip Bluetooth v5.4, audio and programmable application module. It includes high-performance, analog, and digital audio codes, advanced power management, Li-ion battery charger, light-emitting diode (LED) drivers, and flexible interfaces incuding inter-integrated circuit sound (I2S), inter-integrated circuit interface (I2C), universal asynchronous receiver transmitter (UART), and programmable input/output (PIO). The system-on-chip architecture design of the module makes a much smaller space and minimal cost and simplifies the whole system design. Features
Qualified to Bluetooth v5.4 specification
Qualcomm® aptX™ and aptX HD Audio
240 MHz Qualcomm® Kalimba™ audio DSP
32/80 MHz Developer Processor for applications
Firmware Processor for system
Flexible QSPI flash programmable platform
High-performance 24-bit stereo
Digital and analog microphone interfaces
Flexible LED controller and LED pins with PWM support
Serial interfaces: UART, Bit Serializer (I²C/SPI), USB 2.0
Advanced audio algorithms
aptX Adaptive, enabled using license key
Integrated PMU: Dual SMPS for system/digital circuits, Integrated Li-ion battery charger Application subsystem
Dual-core application subsystem 32/80 MHz operation
32-bit Firmware Processor (reserved for system use) executes: □ Bluetooth upper stack □ Profiles □ House-keeping code
32-bit Developer Processor executes: □ Developer applications
Both cores execute code from external flash memory using QSPI clocked at 32 MHz or 80 MHz 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, ZhongheDistrict, CC&C Technologies, Inc. New Taipei City, Taiwan235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 3
On-chip caches per core enable optimized performance and power consumption Bluetooth subsystem
Qualified to Bluetooth v5.4 specification including 2 Mbps Bluetooth Low Energy and Bluetooth Low Energy Isochronous Channels
Qualcomm® Bluetooth High Speed Link
Single ended antenna connection with on-chip balun and Tx/Rx switch
Bluetooth, Bluetooth Low Energy, and mixed topologies supported
Class 1 support Application Bluetooth Receiver with multiple audio interfaces (e.g.,Line in/ Dual Analog Mic,DigMic,I2S/PCM........) General Specification Model Name BM-3095 Product Name Bluetooth V5.4 APTX LE Audio RX Module Standard Bluetooth V5.4 Bluetooth Chip QCC3095 WLCSP Frequency Band 2402MHz ~ 2480MHz RF Output Power EDR(8DPSK)Mode:9.66dBm Receiver Sensitivity < -70dBm Antenna External Antenna Power supply VDD_PADS_6: 1.8~3.3V; VDD_PADS_134: 1.8~3.3V; VBAT:2.8~4.3V Operating Temperature -30 ~ +70°C ambient temperature Storage Temperature -40 ~ +85°C ambient temperature Humidity 5 to 90 % maximum (non-condensing) Size 16mm x 11mm x2.5mm (LxWxT) 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, ZhongheDistrict, CC&C Technologies, Inc. New Taipei City, Taiwan235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 4 Factory options Pin outs define: ◄ PIN 1 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, ZhongheDistrict, CC&C Technologies, Inc. New Taipei City, Taiwan235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 5 Pin Pin Name Pad Type Description 1 MIC_4_P Analog Microphone differential 4 input, positive. Alternative function: ■Differential audio line input 4 , positive 2 MIC_4_N Analog Microphone differential 4 input, negative. Alternative function: ■Differential audio line input 4, negative 3 PIO20 Digital: Bidirectional with programmable strength internal pull-up/pull-down Programmable I/O line 20. Alternative function: ■PCM_DOUT[1] 4 PIO19 Digital: Bidirectional with programmable strength internal pull-up/pull-down Programmable I/O line 19. Alternative function: ■PCM_DIN[0] 5 PIO18 Digital: Bidirectional with programmable strength internal pull-up/pull-down Programmable I/O line 18. Alternative function: ■PCM_DOUT[0] 6 PIO17 Digital: Bidirectional with programmable strength internal pull-up/pull-down Programmable I/O line 17. Alternative function: ■PCM_SYNC 7 PIO16 Digital: Bidirectional with programmable strength internal pull-up/pull-down Programmable I/O line 16. Alternative function: ■PCM_CLK 8 PIO15 Digital: Bidirectional with programmable strength internal pull-up/pull-down Programmable I/O line 15. Alternative function: ■MCLK_OUT 9 VBAT_SENSE Analog Battery voltage sense input. 10 USB_DN Digital I/O USB Full Speed device D- I/O. 11 USB_DP Digital I/O USB Full Speed device D+ I/O. 12 VCHG Supply Charger input to Bypass regulator.(USB VBUS) 13 VCHG_SENSE Analog Charger input sense pin. High impedance. Connect VCHG_SENSE direct to VCHG. 14 CHG_EXT Analog External charger transistor current control. Connect to base of external charger transistor as per application schematic. 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, ZhongheDistrict, CC&C Technologies, Inc. New Taipei City, Taiwan235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 6 15 SYS_CTRL Digital input Typically connected to an ON/OFF push button. If power is present from the battery and/or charger, and software has placed the device in the OFF or DORMANT state, a button press boots the device. Also usable as a digital input in normal operation. No pull. Additional function: ■ PIO[0] input only 16 VBAT Supply Battery voltage input. 17 GND Ground 18 AIO0/LED0 Analog or digital input /open drain output. General-purpose analog/digital input or open drain LED output. 19 AIO1/LED1 Analog or digital input /open drain output. General-purpose analog/digital input or open drain LED output. 20 AIO2/LED2 Analog or digital input/open drain output. General-purpose analog/digital input or open drain…

Text truncated - open the document above for the full version.

CFR 47 §2.911(d)(7) U.S Agent CFR 47 §2.911(d)(7) Agent Designation Attestation 04/20/2026 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: PANBM3095 CC&C Technologies, Inc. (“the applicant”) as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges the applicant’s acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission- related proceeding involving the equipment. U.S. Agent Information: Contact Name: Ivy Hsu Address: 8 Ravendale, Irvine CA, 92602 TEL: (949)923-1870 FRN: 0033415266 Email: [email protected] Sincerely yours, Applicant Agent Signature Contact Person: Cooper Hou Title: Product Manager Signature Contact Person: Ivy Hsu

QA-FR-171-A FCC Confidential Authorization 2026/05/06 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: PANBM3095 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules,(CC&C Technologies, Inc.) hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Client’s signature Client’s name/ title: Cooper Hou / Product Manager Contact information/address: 8F, No.150, Jian Yi Rd, Zhonghe District, New Taipei City, 235, Taiwan

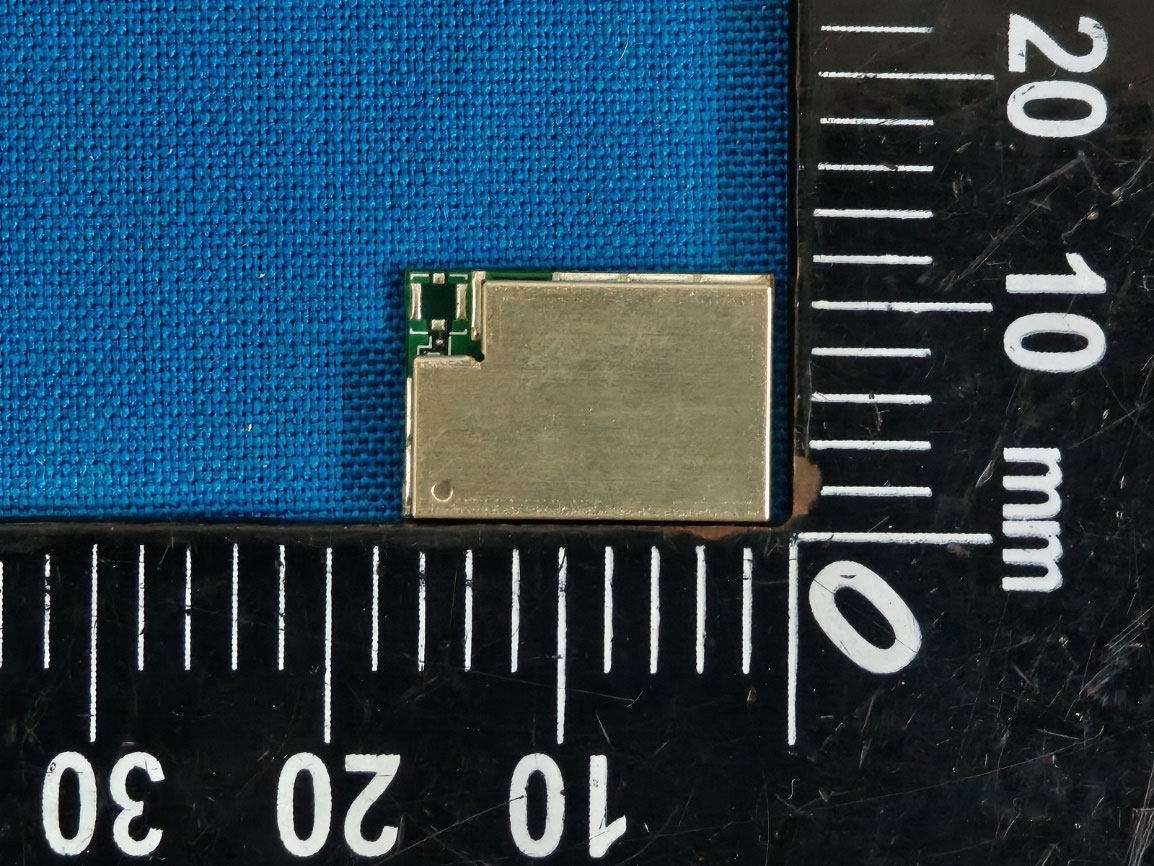

Bay Area Compliance Laboratories Corp. (New Taipei Laboratory) Project No.: RXZ260302006 Page 1 of 1 External Photographs ***** END *****
