PANBA550TTriple source to BT5.3 LE Audio Transmitter

Tri ple source to BT5.3 LE Audio Transmitter BA- 550T USER’S GUIDE Features 1. Triple audio source to BT5.3 LE Audio Transmitter. 2. Supports Auracast: Enables multiple individuals to listen to audio simultaneously. 3. Supports L E Audio / LC3. 4 . Supports aptX Classic / LL / HD / Adaptive. Button Functions Function Action Button LED Indicator Bluetooth pairing Double-Press Quickly ● Blue LED rapidly flashing Trun On/Off Auracast Triple-Press Quickly ● Orange LED On/Off Trun On/Off Device Press/ Press and Hold for 3 seconds On - ● activated Off - All Led turn Off Increase + / Decrease - Volumn Press and Hold for few seconds N/A Reset to default Press and Hold for 6 seconds ● Blue LED constantly on for 1second LED Indicators Color Description ● Green - LEA LED rapidly flashing - Connected in LE, LC3 mode ○ White - aptX LED rapidly flashing - Connected in aptX Mode ● Blue - BT Rapid Flashing (50ms) - Attempting to reconnect to a - device in the pairing list Rapid Flashing (100ms) - Bluetooth pairing Slow Flashing (2 secs) - Waiting to reconnect to a - deviceinthe pairing list Constantly On for 1 sec - Factory Reset Completed Off -Pairing failed, enter idlemode ● Orange - Auracast LED rapidly flashing - Auracast mode activated ● Green ● Orange ● Red Charging status: Green - Solid on while battery Full charge. Orange - rapidly flashing while battery in charging. Red - rapidly flashing while low battery. Triple audio source Switch position Source Left USB IN Middle 3.5mm TRS Right 1/4” TRS Notices 1. Before pairing, you should check the transport mode(LE or BR/EDR) of the device to be paired, and triple click button to switch the BA-550T to the corresponding mode.- - If the device is BR/EDR, Turn Off Auracast mode on the BA-550T during pairing, Orange LED will turn off. (default) - - If the device is LE mode, Turn On Auracast mode on the BA-550T during pairing, Orange LED will light up. - The correct procedure is to switch BA-550T modes duri ng pairing, then power on the device to be paired and enter pairing mode. 2. Please make sure there is only one pairing device around BA-550T. if there are two or more devices nearby, pairing may not be successful.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1 ) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. * Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. FCC RF Radiation Exposure Statement: For portable operation, this device has been tested and meets FCC RF exposure guidelines. When used with an accessory that contains metal may not ensure compliance with FCC RF exposure guidelines.

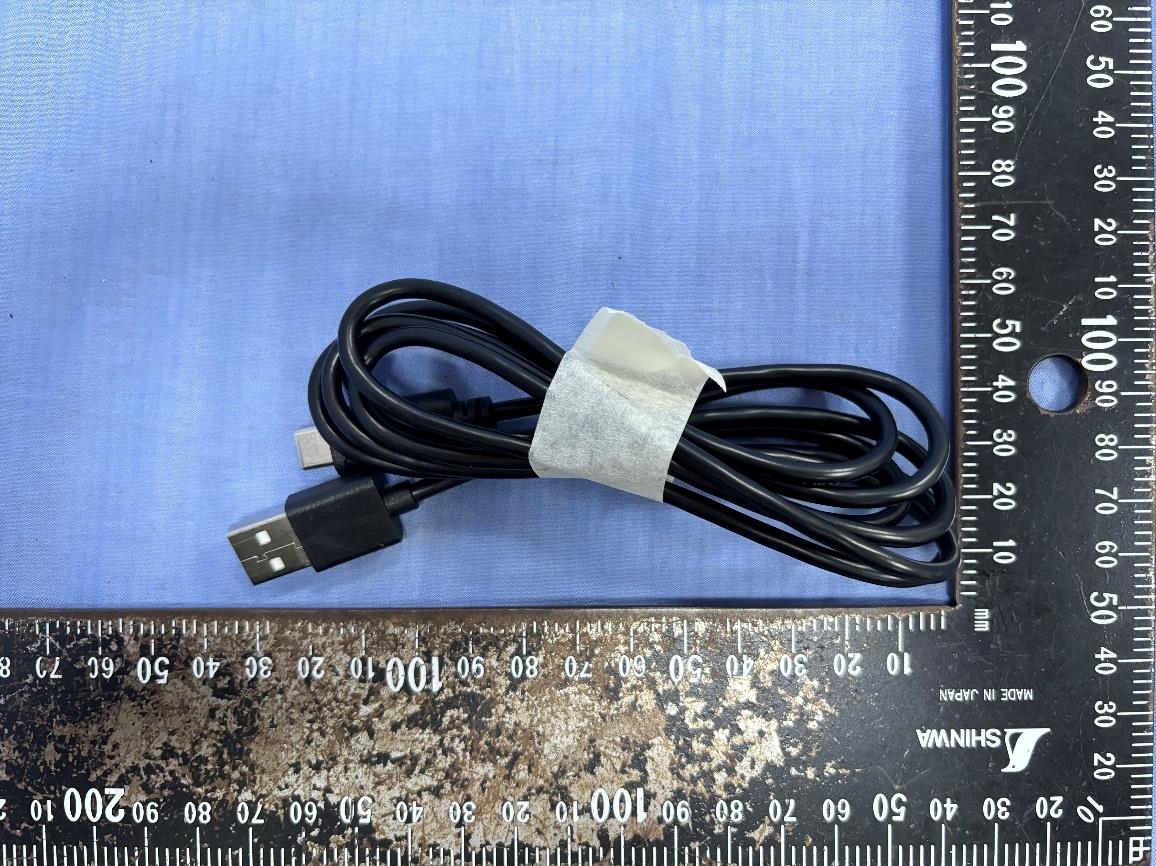

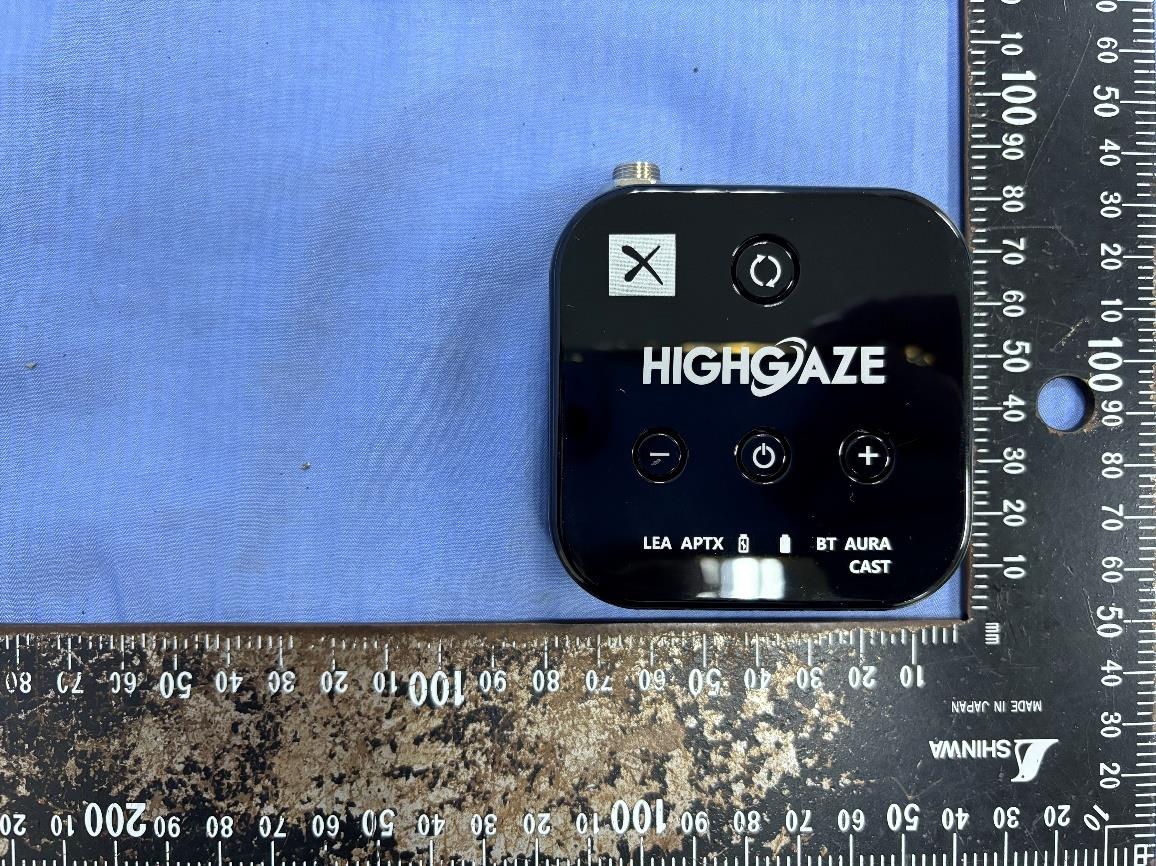

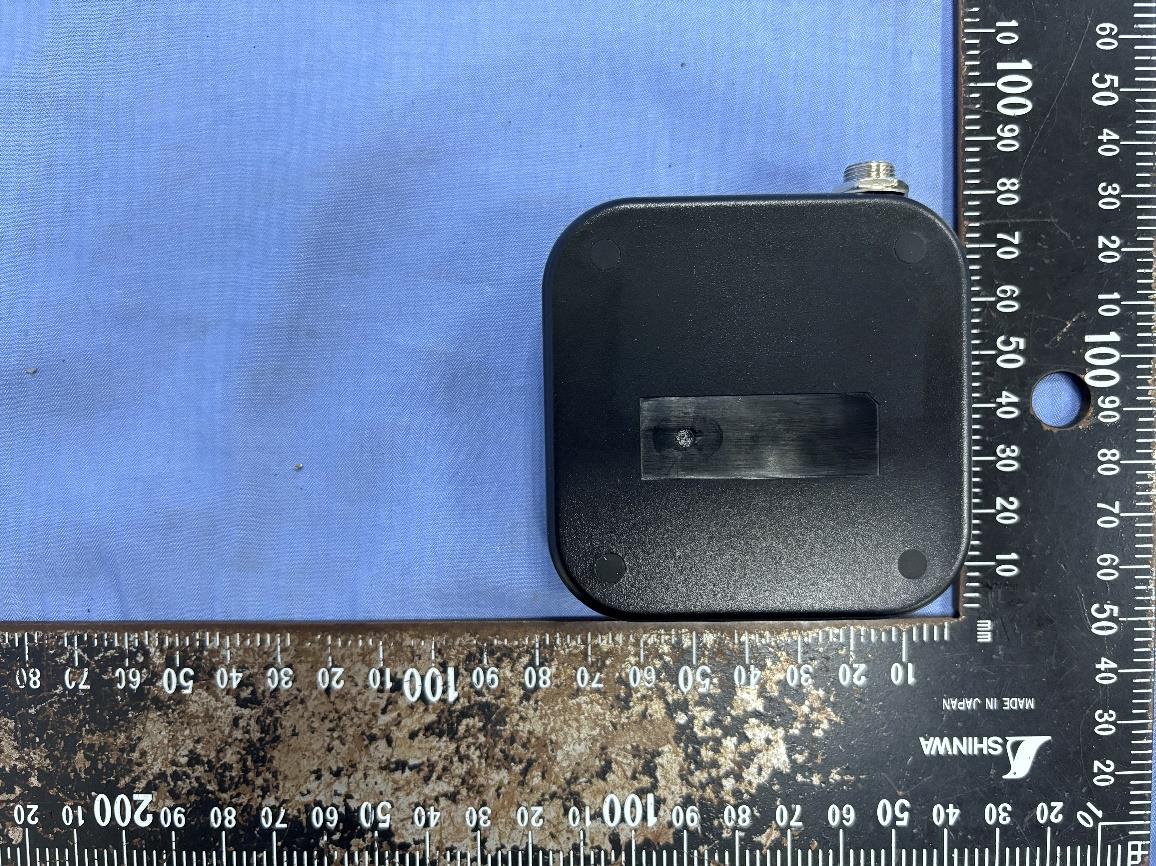

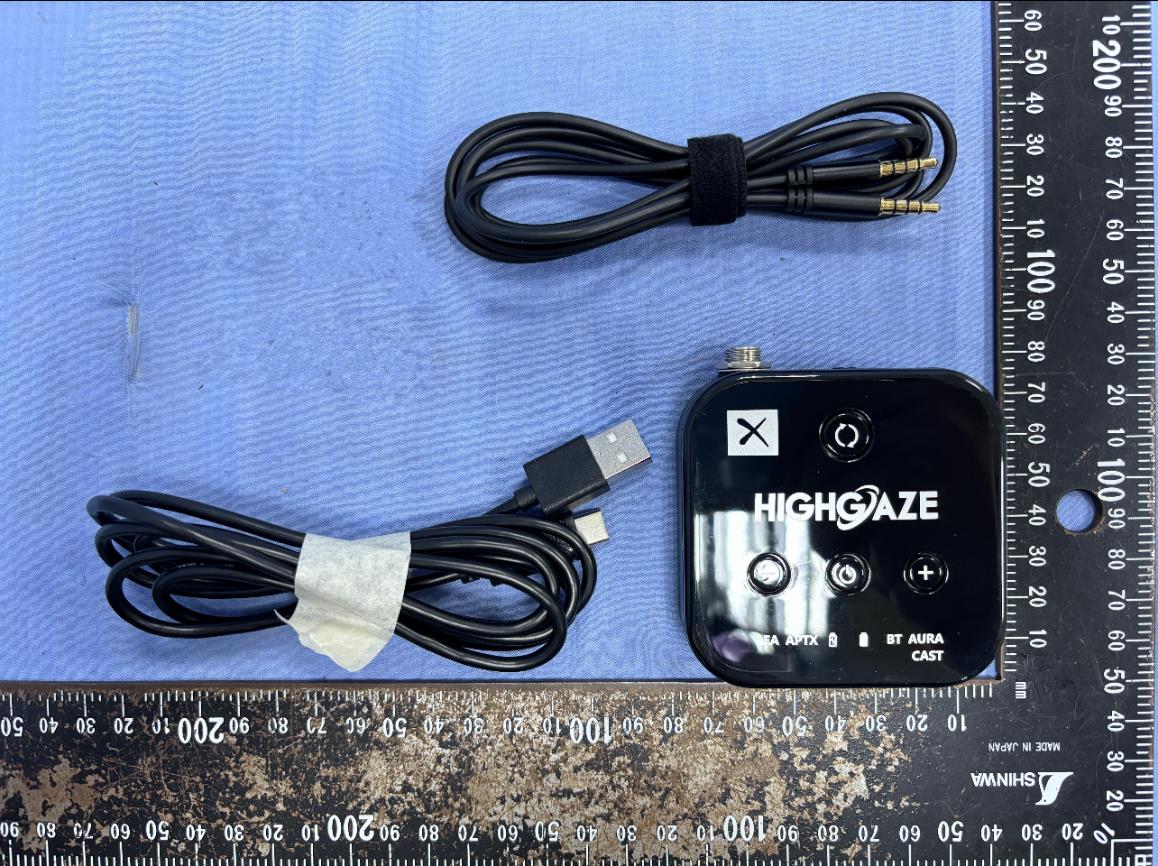

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 1 / 13 Project No.: TM-2406000277P Rev. 01 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 2 / 13 Project No.: TM-2406000277P Rev. 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 3 / 13 Project No.: TM-2406000277P Rev. 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 4 / 13 Project No.: TM-2406000277P Rev. 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 5 / 13 Project No.: TM-2406000277P Rev. 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 6 / 13 Project No.: TM-2406000277P Rev. 01 Type-C Cable Audio cable

Triple source to BT5.3 LE Audio Transmitter FCC ID: PANBA550T BA-550T Triple source to BT5.3 LE Audio Transmitter FCC ID: PANBA550T BA-550T 73.0 73.00 13 39 There is no space to bear Part 15.19 statement due to the device is too small , the statement is specified in user manual.

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 7 / 13 Project No.: TM-2406000277P Rev. 01 INTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 8 / 13 Project No.: TM-2406000277P Rev. 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 9 / 13 Project No.: TM-2406000277P Rev. 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 10 / 13 Project No.: TM-2406000277P Rev. 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 11 / 13 Project No.: TM-2406000277P Rev. 01 RF IC & Crystal Antenna This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 12 / 13 Project No.: TM-2406000277P Rev. 01 Battery This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 13 / 13 Project No.: TM-2406000277P Rev. 01

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2406000277P FCC ID: PANBA550T Page: 1 / 2 Report No.: TMWK2407002347KS Rev.: 02 According to 447498 D01 General RF Exposure Guidance v06 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[√f(GHz)] ≤ 3.0 The Max. tune-up power is 7 dBm , therefore the highest tune-up power is 7.0 dBm(5.01 mW)@ 2480 MHz When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. So, (5.01mW / 5mm)* (2.480GHz^0.5 )= 1.6 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] = 1.6 < 3.0 Therefore, standalone SAR measurements are not required for both head and body. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No: TM-2406000277P FCC ID: PANBA550T Page: 2 / 2 Report No.: TMWK2407002347KS Rev.: 02 Estimated SAR for Simultaneous Transmission SAR Analysis Considerations for SAR estimation 1. When standalone SAR test exclusion applies, standalone SAR must also be estimated to determine simultaneous transmission SAR test exclusion. 2. Dedicated Host Approach criteria for SAR test exclusion is likewise applied to SAR estimation, with certain distinctions between test exclusion and SAR estimation: o When the separation distance from the antenna to an adjacent edge is ≤ 5 mm, a distance of 5 mm is applied for SAR estimation; this is the same between test exclusion and SAR estimation calculations. o When the separation distance from the antenna to an adjacent edge is > 5 mm but ≤ 50 mm, the actual antenna-to-edge separation distance is applied for SAR estimation. o When the minimum test separation distance is > 50 mm, the estimated SAR value is 0.4 W/kg 3. Please refer to Estimated SAR Tables to see which test positions are inherently compliant as they consist of only estimated SAR values for all applicable transmitters and consequently will always have sum of SAR values < 1.2 W/kg. Simultaneous transmission SAR analysis was therefore not performed for these test positions. Estimated SAR for Bluetooth dBmmW BT2480 7.00 5 5 0.210 BLE2480 7.00 5 5 0.210 Tx Interface Frequency (MHz) Output Pow er Separation Distances (m m )Estim ated 1-g SAR Value (W/kg) Sum of the SAR for BT & BLE 0.21+ 0.21 = 0.42 Conclusion: Simultaneous transmission SAR measurement (Volume Scan) is not required because either the sum of the 1-g SAR is < 1.6 W/kg or the SPLSR is < 0.04 for all circumstances that require SPLSR calculation. Note: 1. The tune up power referred the AVG power of the test report TMWK2406002059KR and TMWK2407002364KR for SAR test exclusion purpose.

產 品 承 認 書 Specification for Approval 客戶(Customer): 晶訊科技股份有限公司 Customer Part No.: Product Description: 30G000104-00 embedded antenna Lynwave Part No.: Product Weight: ALA120-051026-00 客戶簽核(CustomerApproval) 客戶承認 Customer Approval 核准(Authorized)檢驗(Approved) 日期： 年 月 日 內部簽核(Signature)日期：2018年 1月30日 Approved byChecked byTested by Dallas Wu Jerry Hsieh Monkey Chang 綠億科技股份有限公司 Lynwave Technology Ltd. Taiwan: 新北市三峽區學成路327號3樓之6 3 F.-6, No. 327, Xuecheng Rd., Sanxia Dist., New Taipei City 237624, Taiwan (R.O.C.) Tel: 02-35018700Fax: 02-86722772 E-mail: [email protected] Wireless Connected World ALA120-051026-00 embedded antenna http://www.lynwave.com Tel: +886 2 35018700 Mail: [email protected] 1 Features •Single band IEEE 802.11 b/g/n standard •Case mounting •High efficiency •Quick integration Mechanical Dimensions 2.45 GHz Specification Frequency (MHz)2400 ~2500 Peak Gain (dBi)3.2 VSWR2.0 : 1 Power (Watts)1 Impedance (Ohms)50 Dimension (mm)35.1 x 8.1 x 0.6 Weight (g)0.77 ConnectorIPEX Cable length (mm)57 Operating Temp (⁰C)-40⁰C ~ +85⁰C

Project No: TM-2406000277P FCC ID: PANBA550T Page: 1 / 76 Report No.: TMWK2407002364KR Rev.: 03 Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART C Test Standard FCC Part 15.247 Product name Triple source to BT5.3 LE Audio Transmitter Brand Name CC&C Model No. BA-550T Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc.( Wugu Laboratory) Approved by: Sehni Hu Supervisor This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 76 Report No.: TMWK2407002364KR Rev.: 03 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 8, 2024 Initial Issue ALL Peggy Tsai 01 August 23, 2024 See the following Note Rev. (01) P.4, 6, 10, 11 Peggy Tsai 02 September 10, 2024 See the following Note Rev. (02) P.4 Peggy Tsai 03 September 25, 2024 See the following Note Rev. (03) P.6 Peggy Tsai Note: Rev. (01) 1. Modify power operation in section 1.1. 2. Modify antenna information in section 1.4. 3. Modify support and EUT accessories equipment in section 1.8. 4. Modify test set up diagram in section 1.9. Rev. (02) 1. Added EUT Serial # in section 1.1. Rev. (03) 1. Modify Antenna Type in section 1.4. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 76 Report No.: TMWK2407002364KR Rev.: 03 Table of contents 1. GENERAL INFORMATION .................................................................................................. 4 1.1 EUT INFORMATION ............................................................................................................ 4 1.2 INFORMATION ABOUT THE FHSS CHARACTERISTICS.................................................. 5 1.3 EUT CHANNEL INFORMATION .......................................................................................... 6 1.4 ANTENNA INFORMATION .................................................................................................. 6 1.5 MEASUREMENT UNCERTAINTY ....................................................................................... 7 1.6 FACILITIES AND TEST LOCATION .................................................................................... 7 1.7 INSTRUMENT CALIBRATION ............................................................................................. 8 1.8 SUPPORT AND EUT ACCESSORIES EQUIPMENT ......................................................... 10 1.9 TEST SET UP DIAGRAM .................................................................................................. 11 1.10 TEST PROGRAM ..................................................................................................... 11 1.11 TEST METHODOLOGY AND APPLIED STANDARDS ........................................... 11 2. TEST SUMMERY ............................................................................................................... 12 3. DESCRIPTION OF TEST MODES ..................................................................................... 13 3.1 THE WORST MODE OF OPERATING CONDITION .......................................................... 13 3.2 THE WORST MODE OF MEASUREMENT ........................................................................ 14 3.3 EUT DUTY CYCLE ............................................................................................................ 15 4. TEST RESULT ................................................................................................................... 18 4.1 AC POWER LINE CONDUCTED EMISSION ..................................................................... 18 4.2 20DB BANDWIDTH AND OCCUPIED BANDWIDTH (99%) .............................................. 21 4.3 OUTPUT POWER MEASUREMENT .................................................................................. 28 4.4 FREQUENCY SEPARATION .................................................................…

Text truncated - open the document above for the full version.

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 45 / 76 Report No.: TMWK2407002364KR Rev.: 03 Test Data Dwell Time_GFSK_1M_DH1_2441MHz Dwell Time_GFSK_1M_DH3_2441MHz Dwell Time_GFSK_1M_DH5_2441MHz Dwell Time_π/4DQPSK_2M_DH1_2441MHz Dwell Time_π/4DQPSK_2M_DH3_2441MHz Dwell Time_π/4DQPSK_2M_DH5_2441MHz This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 46 / 76 Report No.: TMWK2407002364KR Rev.: 03 Dwell Time_8DPSK_3M_DH1_2441MHz Dwell Time_8DPSK_3M_DH3_2441MHz Dwell Time_8DPSK_3M_DH5_2441MHz This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 47 / 76 Report No.: TMWK2407002364KR Rev.: 03 4.8 RADIATION BANDEDGE AND SPURIOUS EMISSION 4.8.1 Test Limit FCC according to §15.247(d), §15.209 and §15.205, In any 100 kHz bandwidth outside the authorized frequency band, all harmonic and spurious must be least 20 dB below the highest emission level with the authorized frequency band. Radiation emission which fall in the restricted bands must also follow the FCC section 15.209 as below limit in table. Below 30 MHz Frequency Field Strength (microvolts/m) Magnetic H-Field (microamperes/m) Measurement Distance (metres) 9-490 kHz 2,400/F (F in kHz) 2,400/F (F in kHz) 300 490-1,705 kHz 24,000/F (F in kHz) 24,000/F (F in kHz) 30 1.705-30 MHz 30 N/A 30 Above 30 MHz Frequency (MHz) Field Strength microvolts/m at 3 metres (watts, e.i.r.p.) Transmitters Receivers 30-88 100 (3 nW) 100 (3 nW) 88-216 150 (6.8 nW) 150 (6.8 nW) 216-960 200 (12 nW) 200 (12 nW) Above 960 500 (75 nW) 500 (75 nW) Remark: Although these tests were performed other than open area test site, adequate comparison measurements were confirmed against 30 m open are test site. Therefore sufficient tests were made to demonstrate that the alternative site produces results that correlate with the ones of tests made in an open field based on KDB 414788. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 48 / 76 Report No.: TMWK2407002364KR Rev.: 03 4.8.2 Test Procedure 1. The EUT is placed on a turntable, Above 1 GHz is 1.5m and below 1 GHz is 0.8m above ground plane. The EUT Configured un accordance with ANSI C63.10: 2013, and the EUT set in a continuous mode. 2. The turntable shall be rotated for 360 degrees to determine the position of maximum emission level. And EUT is set 3m away from the receiving antenna, which is scanned from 1m to 4m above the ground plane to find out the highest emissions. Measurement are made polarized in both the vertical and the horizontal positions with antenna. 3. Span shall wide enough to full capture the emission measured. The SA from 9kHz to 26.5GHz set to the low, Mid and High channels with the EUT transmit. 4. No emission found between lowest internal used/generated frequency to 30MHz (9KHz~30MHz). Radiated emission below 30MHz is measured in a 9m*6m*6m semi-ane choic chamber, the measurements correspond to those obtained at an open-field test site. There is a comparison data of both open-field test site and semi-Anechoic chamber, and the result came out very similar. 5. The SA setting following： (1) Below 30MHz： (1.1) 9KHz-490KHz : RBW=200Hz / VBW=1kHz / Sweep=AUTO (1.2) 490KHz-30MHz : RBW=10kHz / VBW=30kHz / Sweep=AUTO (2) 30MHz to 1GHz：RBW = 100kHz, VBW ≥ 3*RBW, Sweep = Auto, Detector = Peak, Trace = Max hold. (3) Above 1GHz： (3.1) For Peak measurement：RBW = 1MHz, VBW ≥ 3 RBW, Sweep = Auto, Detector = Peak, Trace = Max hold. (3.2) For Average measurement：RBW = 1MHz, VBW ̇If Duty Cycle ≥ 98%, VBW=10Hz. ̇If Duty Cycle < 98%, VBW=1/T. 6. Data result Actual FS=Spectrum Reading Level + Factor Margin=Actual FS- Limit This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 49 / 76 Report No.: TMWK2407002364KR Rev.: 03 4.8.3 Test Setup 9kHz ~ 30MHz Spectrum / Receiver 3m 1m Turntable EUT 0.8m Loop antenna Reference ground plane 30MHz ~ 1GHz Spectrum analyzer 3m 4m 1m Turntable EUT 0.8m Antenna tower Reference ground plane Bi-log antenna This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 50 / 76 Report No.: TMWK2407002364KR Rev.: 03 Above 1 GHz Spectrum analyzer Horn antenna 3m 4m 1m Turntable EUT 1.5m Antenna tower Pre-amp ▲▲▲ ▲▲▲ This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 51 / 76 Report No.: TMWK2407002364KR Rev.: 03 4.8.4 Test Result Band Edge Test Data Project No :TM-2406000277P Test Date :2024-07-26 Operation Band :BT BR Temp./Humi. :24.6/59 Frequency :2402 MHz Antenna Pol. :VERTICAL Operation Mode :Bandedge Engineer :Tony Chao EUT Pol :H Test Chamber : 966A Setting :6 Freq. Detector Mode Spectrum Read Level Factor Actual FS Limit Margin MHz PK/QP/AV dBμV dB dBμV/m dBμV/m dB 2389.78 Peak 45.20 6.28 51.48 74.00 -22.52 2390.00 Average 35.69 6.28 41.97 54.00 -12.03 2402.00 Peak 98.23 6.29 104.52 -- -- 2402.00 Average 98.20 6.29 104.49 -- -- 2484.57 Peak 42.89 6.73 49.62 74.00 -24.38 2492.33 Average 32.63 6.81 39.44 54.00 -14.56 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 52 / 76 Report No.: TMWK2407002364KR Rev.: 03 Project No :TM-2406000277P Test Date :2024-07-26 Operation Band :BT BR Temp./Humi. :24.6/59 Frequency :2402 MHz Antenna Pol. :HORIZONTAL Operation Mode :Bandedge Engineer :Tony Chao EUT Pol :H Test Chamber : 966A Setting :6 Freq. Detector Mode Spectrum Read Level Factor Actual FS Limit Margin MHz PK/QP/AV dBμV dB dBμV/m dBμV/m dB 2389.28 Peak 42.99 6.26 49.26 74.00 -24.74 2390.00 Average 33.32 6.28 39.60 54.00 -14.40 2402.00 Peak 93.21 6.29 99.50 -- -- 2402.00 Average 93.17 6.29 99.47 -- -- 2488.33 Average 32.65 6…

Text truncated - open the document above for the full version.

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-1 / A-5 Report No.: TMWK2407002364KR Rev.: 03 APPENDIX-A Test Photo Radiation (9kHz ~ 30MHz) Radiation (30MHz ~ 1GHz) This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-2 / A-5 Report No.: TMWK2407002364KR Rev.: 03 Radiation (Above 1GHz) This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-3 / A-5 Report No.: TMWK2407002364KR Rev.: 03 Conducted Emission Set Up Photo This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-4 / A-5 Report No.: TMWK2407002364KR Rev.: 03 Conduction This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-5 / A-5 Report No.: TMWK2407002364KR Rev.: 03
