PANBT0002M-5Bluetooth USB Dongle

Bluetooth USB Adapter User’s Manual April 3, 2003 WIDCOMMinc i . Bluetooth USB Adapter User’s Manual Version 1.4(C) Bluetooth USB Adapter User’s Manual April 3, 2003 WIDCOMMinc ii REGULATION INFORMATION The Bluetooth USB Adapter must be installed and used in strict accordance with the manufacturer’s instructions. This device complies with the following radio frequency and safety standards. FCC (Federal Communications Commission) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference that may cause undesired operation. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Notice: The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification not expressly approved by the party responsible could void the user’s authority to operate the device. R&TTE Directive This device complies with the specifications listed below: • ETS 301 489 -1 & -17 General EMC requirements for Radio equipment. • ETS 300 328 Technical requirements for Radio equipment. • EN60950 Safety Requirements for Radio equipment Bluetooth USB Adapter User’s Manual April 3, 2003 WIDCOMMinc iii LICENSED SOFTWARE © Copyright 2000 – 2003, WIDCOMM, Inc. (“WIDCOMM”). All rights reserved. Warning: This software and accompanying documentation are protected by copyright law and international treaties. Unauthorized reproduction or distribution of this software, or any portion of it, may result in severe civil and criminal penalties, and will be prosecuted to the maximum extent possible under the law. Use of this software is governed by the terms of the end user license agreement that accompanies or is included with such software. Unless otherwise noted in the end user license agreement, or herein, no part of the documentation accompanying this software, whether provided in printed or electronic form may be reproduced in any form, or stored in a database or retrieval system, or transmitted in any form or by any means, or used to make any derivative work (such as translation, transformation, or adaptation) without the express, prior written consent of WIDCOMM. Trademark(s) ™ and Registered Trademark(s) ® WIDCOMM and the WIDCOMM logo are trademarks of WIDCOMM, Inc. Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to WIDCOMM, Inc. Microsoft, Windows, Outlook are registered trademarks of Microsoft Corporation. Other brand and product names may be registered trademarks or trademarks of their respective holders. Bluetooth USB Adapter User’s Manual Table of Contents 1 INTRODUCTION.................................................................................................................. 1 1.1 Bluetooth Technology............................................................................................1 1.2 Bluetooth USB Adapter........................................................................................1 2 SOFTWARE INSTALLATION...........................................................................................2 2.1 System Requirements............................................................................................2 2.2 Before Installation.................................................................................................2 2.3 Install Widcomm Bluetooth Software......................................................................2 2.4 Hardware Installation.............................................................................................8 3 INTRODUCTION.................................................................................................................. 9 3.1 Bluetooth Tray......................................................................................................9 3.2 Access My Bluetooth Places...................................................................................9 3.3 Icons Used for Bluetooth Devices and Services......................................................10 4 BASIC OPERATIONS........................................................................................................13 4.1 Start or Stop Bluetooth.........................................................................................13 4.2 Create a Connection From the Bluetooth Icon in the System Tray............................13 4.3 Create a Connection Using the Bluetooth Setup Wizard..........................................13 4.4 Create a Connection From Entire Bluetooth Neighborhood......…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 16, 2004 RE: FCC ID: PANBT0002M-5_ATCB001496 Attention: Ellis Wu I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. FYI - Please note that as this is a portable device MPE is not an appropriate rf exposure evaluation. Please also note that the MPE report is not correct in that USB dongles are used within 2.5cm of the body. As this is a portable Bluetooth that is less than 5mW no rf exposure consideration need be provided. 2. Please note that the application indicates temporary confidentiality. Please also note that no temporary confidentiality letter has been provided. While a confidentiality letter for permanent or long term confidentiality has been provided, this is not the same as temporary confidentiality. If temporary confidentiality is requested for the allowable exhibits. Please note that the following exhibits cannot be held confidential - Attestation Statements, Cover letters, FCCID labels, test reports, and RF Exposure Info. Please be careful when requesting temporary confidentiality as some documents should be held confidential past the 45 days. These include block diagrams, and schematics. As these are already addressed on the confidentiality letter, they do not need to be included in the temporary confidentiality letter. 3. Please note that the manual states that a separation distance of 20cm is required for this device. Please note that this is not possible nor is it needed. As the device is less than 5mW no separation distance need be referenced in the manual. Please remove the incorrect minimum separation distance reference from the manual. 4. FYI - Please note that as this device is less than 5mw it does not require a no collocation statement in the manual. This statement should be removed from the manual. 5. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

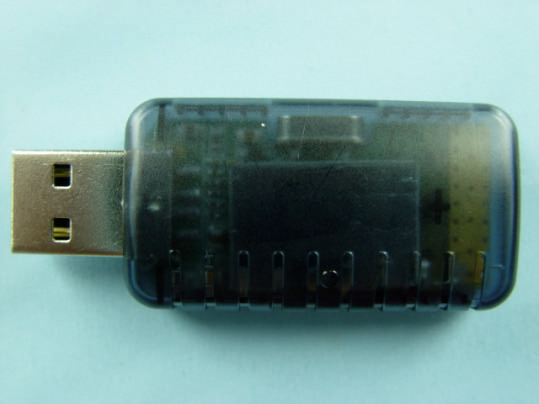

Page 1 CONSTRUCTION PHOTOS OF EUT

Bluetooth USB Dongle FCC ID: PANBT0002M-5 MAC : S/N: RATING:5VMADE IN CHINA 0560 MODEL : BT-0002M-5 20mm 14mm

Bluetooth USB Dongle FCC ID: PANBT0002M-5MAC :S/N: RATING:5V MADE IN CHINA 0560 MODEL : BT-0002M-5

FCC ID: PANBT0002M-5 Report No.RF930628L20 Operational Description The transmitter of the EUT (Bluetooth USB Dongle) is powered by host equipment. The antenna is Printed antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual. This device is a Frequency Hopping device with 79 hopping frequencies.

FCC ID: PANBT0002M-5 Report No.: RF930628L201Issued: July 06, 2004 FCC TEST REPORT REPORT NO.: RF930628L20 MODEL NO.: BT-0002M-5 RECEIVED: June 26, 2004 TESTED: July 01, 2004 APPLICANT: CC&C Technologies Inc. ADDRESS: 8F, 150, Jian Yi Road, Chung Ho City, Taipei County, Taiwan 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 68 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: PANBT0002M-5 Report No.: RF930628L202Issued: July 06, 2004 TABLE OF CONTENTS 1CERTIFICATION ......................................................................................................................4 2SUMMARY OF TEST RESULTS .............................................................................................5 3GENERAL INFORMATION ......................................................................................................6 3.1GENERAL DESCRIPTION OF EUT ........................................................................................6 3.2DESCRIPTION OF TEST MODES ..........................................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .........................................................7 3.4DESCRIPTION OF SUPPORT UNITS ....................................................................................8 3.5CONFIGURATION OF SYSTEM UNDER TEST .....................................................................8 4TEST PROCEDURES AND RESULTS ....................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT ..........................................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................................... 9 4.1.2TEST INSTRUMENTS ............................................................................................................ 9 4.1.3TEST PROCEDURES...........................................................................................................10 4.1.4DEVIATION FROM TEST STANDARD................................................................................. 10 4.1.5TEST SETUP .........................................................................................................................11 4.1.6EUT OPERATING CONDITIONS ..........................................................................................11 4.1.7TEST RESULTS .................................................................................................................... 12 4.2NUMBER OF HOPPING FREQUENCY USED .....................................................................18 4.2.1LIMIT OF HOPPING FREQUENCY USED........................................................................... 18 4.2.2TEST INSTRUMENTS ..........................................................................................................18 4.2.3TEST PROCEDURES...........................................................................................................19 4.2.4DEVIATION FROM TEST STANDARD................................................................................. 19 4.2.5TEST SETUP ........................................................................................................................ 20 4.2.6TEST RESULTS .................................................................................................................... 20 4.3DWELL TIME ON EACH CHANNEL......................................................................................23 4.3.1LIMIT OF DWELL TIME USED ............................................................................................. 23 4.3.2TEST INSTRUMENTS ..........................................................................................................23 4.3.3TEST PROCEDURES...........................................................................................................24 4.3.4DEVIATION FROM TEST STANDARD................................................................................. 24 4.3.5TEST SETUP ........................................................................................................................ 24 4.3.6TEST RESULTS .................................................................................................................... 25 4.4CHANNEL BANDWIDTH .......................................................................................................32 4.4.1LIMITS OF CHANNEL BANDWIDTH.................................................................................... 32 4.4.2TEST INSTRUMENTS ..........................................................................................................32 4.4.3TEST PROCEDURE .............................................................................................................33 4.4.4DEVIATION FROM TEST STANDARD................................................................................. 33 4.4.5TEST SETUP ........................................................................................................................ 33 4.4.6EUT OPERATING CONDITION ............................................................................................ 33 4.4.7TEST RESULTS .................................................................................................................... 34 4.5HOPPING CHANNEL SEPARATION.....................................................................................38 4.5.1LIMIT OF HOPPING CHANNEL SEPARATION.................................................................... 38 4.5.2TEST…

Text truncated - open the document above for the full version.

FCC ID: PANBT0002M-5 Report No.: RF930628L2066Issued: July 06, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PANBT0002M-5 Report No.: RF930628L2067Issued: July 06, 2004 RADIATED EMISSION TEST
