PANBT0230Bluetooth USB Adapter Class 1

Bluetooth USB Adapter BTW Configuration & User’s Guide i Bluetooth USB Adapter User’s Guide Version 1.1 Bluetooth USB Adapter BTW Configuration & User’s Guide ii LICENSED SOFTWARE © Copyright 2000 – 2002, WIDCOMM, Inc. (“WIDCOMM”). All rights reserved. Warning: This software and accompanying documentation are protected by copyright law and international treaties. Unauthorized reproduction or distribution of this software, or any portion of it, may result in severe civil and criminal penalties, and will be prosecuted to the maximum extent possible under the law. Use of this software is governed by the terms of the end user license agreement that accompanies or is included with such software. Unless otherwise noted in the end user license agreement, or herein, no part of the documentation accompanying this software, whether provided in printed or electronic form may be reproduced in any form, or stored in a database or retrieval system, or transmitted in any form or by any means, or used to make any derivative work (such as translation, transformation, or adaptation) without the express, prior written consent of WIDCOMM. Trademark(s) ™ and Registered Trademark(s) ® WIDCOMM and the WIDCOMM logo are trademarks of WIDCOMM, Inc. Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to WIDCOMM, Inc. Microsoft, Windows, Outlook are registered trademarks of Microsoft Corporation. Other brand and product names may be registered trademarks or trademarks of their respective holders. Winroute Lite is Copyright Tiny Software, Inc. Bluetooth USB Adapter BTW Configuration & User’s Guide iii REGULATORY INFORMATION The Bluetooth USB Dongle must be installed and used in strict accordance with the manufacturer’s instructions. This device complies with the following radio frequency and safety standards. FCC (Federal Communications Commission) FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. EUROPEAN COMMUNITY CE NOTICE Marking by the symbol CE indicates compliance of this equipment to the R&TTE Directive 1999/5/CE. Such marking is indicative that this equipment meets or exceeds the following technical standards: • EN 300 328 • EN 301 489 -1, EN 301 489 –17 • EN 60950 Bluetooth USB Adapter BTW Configuration & User’s Guide iv Table of Contents See Errata for information about Windows XP 1Introduction ............................................................................................................1 1.1 I NTRODUCTION TO B LUETOOTH ........................................................................................... 1 1.2 I NTRODUCTION TO BTW..................................................................................................... 2 1.3 B LUETOOTH D EVICE I DENTITY ............................................................................................ 3 1.4 I CONS U SED FOR B LUETOOTH D EVICES AND S ERVICES ....................................................... 4 1.5 W HAT ' S N EW ..................................................................................................................... 5 2Basic Operations ....................................................................................................6 2.1 F IND B LUETOOTH D EVICES ................................................................................................ 6 2.2 F IND A S ERVICE ................................................................................................................ 7 2.3 D ETERMINE A C ONNECTION ’ S S TATUS ................................................................................ 8 2.4 U SING THE C ONNECTION W IZARD ....................................................................................... 9 2.4.1 Setup a new connection......................................................................................... 9 2.5 B LUETOOTH T RAY ........................................................................................................... 10 3Client Applications ...............................................................................................11 3.1 N ETWORK A CCESS .......................................................................................................... 11 3.1.1 Network A…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 26, 2003 RE: C&C Technologies, Inc. FCC ID: PANBT0230 I have a few comments on this Application. 1.) Please review the RF Exposure report. A gain of 3dBi is not 1.26 numeric. 2.) In general, spectrum analyzers do not make very accurate power meter. Could you kindly repeat the RF Pout test using a peak power meter. 3.) Rule 15.35(b) specifies how both peak and average readings are compared to the limits. The peak value of 105.5dBuV is more than 20dB above the average value of 75.9dBuV at 2480MHz. Therefore, comparison with respect to the 75.9dBuV measured average value is in error. Please review your band edge measurements for comparison to the limit. 4.) Please provide a local representative for the Declaration of Conformity. See 2.909(c)(2) and 2.909(c)(3) for further guidance. William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

From: [email protected] Sent: Tuesday, April 15, 2003 6:34 PM To: [email protected] Cc: [email protected]; [email protected]; [email protected]; [email protected] Subject: ??: PANBT0230 - comments - Again! Follow Up Flag: Follow up Flag Status: Flagged Bill, I believe Ellis has replied you the first question. Regarding to the 2nd question, even for the customer, they are difficult to supply you the hopping sequence. The protocal of this product is a standard BlueTooth one. It has been qualified by BQB. So, the pseudo-random sequence is for sure used in this product. Unfortunately, the hopping sequence will be changed according to the address of the MAC. So, it is very difficult to list the hopping sequence. If you think it is needed to show that, we can do it to show you one of them. But I do think that is meanless. Let me know your comment. By the way, it has been pending for a while. Can you please have it granted as soon as possible ? I do think this product fulfill the FCC's regulation. Thank you. Regards, Alan ----- ??? Alan Lane/ADT ? 2003/04/04 06:03 AM ----- "William Graff" <whgraff@americ ???? "Alan Lane" <[email protected]>, <[email protected]> anTCB.com> ????? ??? PANBT0230 - comments - Again! 2003/04/04 03:57 AM I have not heard any response on this from either of you. Please advise. Bill >>>>>>>>>>>>>>>>>>>>>>>>> Gentlemen, 1.) Please review the text for making the peak power measurement on page 65 of Annex A. This procedure makes no sense and is not relevant to a peak power meter. Please revise test report. 2.) Please provide a list for the pseudo-random hopping sequence. This is necessary for all frequency hoppers. I suggest adding this to the Operational Description. Thanks, Bill ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~ William H. Graff, NARTE Certified ~ President and Director of Engineering ~ AmericanTCB, Inc. ~ 6731 Whittier Ave. ~ McLean, VA 22101 ~ mailto:[email protected] ~ mobile mailto:[email protected] ~ Direct Phone: (480)317-0683 ~ Direct Mobile: (602)790-6788 ~ Corporate Phone: (703)847-4700 ~ Corporate FAX: (703)847-6888 ~ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

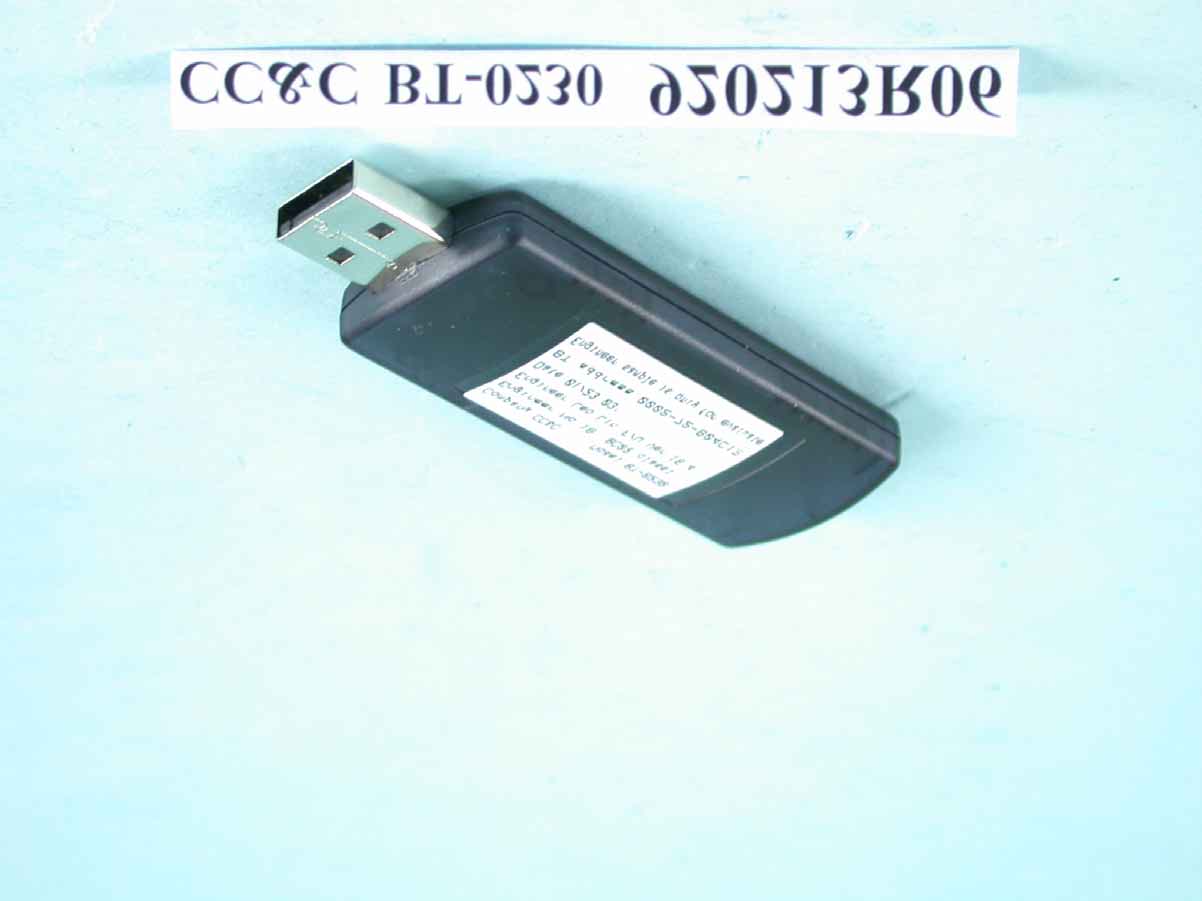

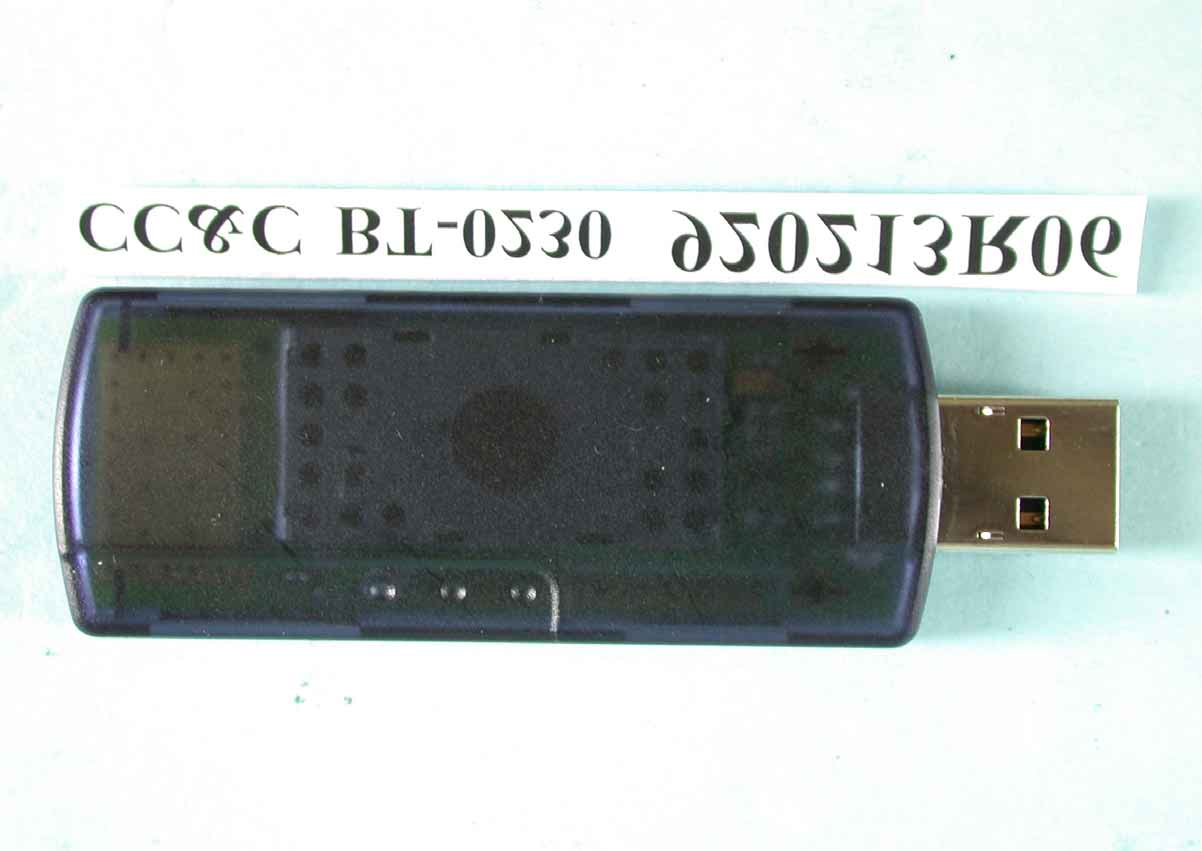

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

DWG REV. Q'TY SCALE PCS/SET DATEITEMDESCRIPTION 30~80 0.05 TOL 0.080.12 0~6 DIM. 6~30 0.20 0.25 0.30 MM 80~180 180~315 1/1 315~800 UNIT DESCRIPTION MATERIALFINISH PARTS NO. MODEL NO: DWG NO: APPROVAL DRAWING DESIGNED CC&C TECHNOLOGIES,INC. 26.98

Page 3 Page 4 Page 5

FCC ID: PANBT0230 ADT No.920213R06 Operational Description The transmitter of the EUT is powered by host equipment from USB port. The antenna is Printed Patch Antenna, and there is no antenna connector. This device is a Frequency Hopping device with 79 hopping frequencies. The other instruction, please have a look at the users manual.

FCC ID: PANBT0230 ADT No.: 920213R06 RF EXPOSURE TEST REPORT REPORT NO.: RF920213R06 MODEL NO.:BT-0230, BT-0230A, BT-0230B ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:CC&C TECHNOLOGIES INC. ADDRESS:8F, 150, Jian Yi Road, Chung Ho City, Taipei, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PANBT0230 ADT No.: 920213R06 RF Exposure Measurement (Portable Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: PANBT0230 ADT No.: 920213R06 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: PANBT0230 ADT No.: 920213R06 5. Test Results 5.1 Antenna Gain The maximum Gain measured in Full y Anechoic Chamber is 3dBi or 2.0 (numeric). 5.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 024029.9081.254 3924419.8171.248 7824809.7491.244 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation.

FCC ID: PANBT0230 Report No.: RF920213R06 1 Issued: March. 4, 2003 FCC TEST REPORT REPORT NO.: RF920213R06 MODEL NO.: BT-0230, BT-0230A, BT-0230B RECEIVED: Feb. 13, 2003 TESTED: Feb. 19 ~ Feb. 26, 2003 APPLICANT:CC&C TECHNOLOGIES INC. ADDRESS:8F, 150, JIAN YI Rd., CHUNG HO CITY, TAIPEI, TAIWAN, 235, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 68 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PANBT0230 Report No.: RF920213R06 2 Issued: March. 4, 2003 TABLE OF CONTENTS 1CERTIFICATION .........................................................................................................................4 2SUMMARY OF TEST RESULTS.................................................................................................5 3GENERAL INFORMATION .........................................................................................................6 3.1GENERAL DESCRIPTION OF EUT ...........................................................................................6 3.2DESCRIPTION OF TEST MODES .............................................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................7 3.4DESCRIPTION OF SUPPORT UNITS........................................................................................8 4TEST PROCEDURES AND RESULTS .......................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT..............................................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ...........................................................9 4.1.2TEST INSTRUMENTS ................................................................................................................9 4.1.3TEST PROCEDURES ...............................................................................................................10 4.1.4DEVIATION FROM TEST STANDARD .....................................................................................10 4.1.5TEST SETUP ............................................................................................................................ 11 4.1.6EUT OPERATING CONDITIONS.............................................................................................. 11 4.1.7TEST RESULTS ........................................................................................................................12 4.2NUMBER OF HOPPING FREQUENCY USED.........................................................................18 4.2.1LIMIT OF HOPPING FREQUENCY USED ...............................................................................18 4.2.2TEST INSTRUMENTS ..............................................................................................................18 4.2.3TEST PROCEDURES ...............................................................................................................19 4.2.4DEVIATION FROM TEST STANDARD .....................................................................................19 4.2.5TEST SETUP ............................................................................................................................20 4.2.6TEST RESULTS ........................................................................................................................20 4.3DWELL TIME ON EACH CHANNEL.........................................................................................23 4.3.1LIMIT OF DWELL TIME USED .................................................................................................23 4.3.2TEST INSTRUMENTS ..............................................................................................................23 4.3.3TEST PROCEDURES ...............................................................................................................24 4.3.4DEVIATION FROM TEST STANDARD .....................................................................................24 4.3.5TEST SETUP ............................................................................................................................24 4.3.6TEST RESULTS ........................................................................................................................25 4.4CHANNEL BANDWIDTH ..........................................................................................................29 4.4.1LIMITS OF CHANNEL BANDWIDTH........................................................................................29 4.4.2TEST INSTRUMENTS ..............................................................................................................29 4.4.3TEST PROCEDURE .................................................................................................................30 4.4.4DEVIATION FROM TEST STANDARD .....................................................................................30 4.4.5TEST SETUP ............................................................................................................................30 4.4.6EUT OPERATING CONDITION ................................................................................................30 4.4.7TEST RESULTS ........................................................................................................................31 4.5HOPPING CHANNEL SEPARATION ........................................................................................35 4.5.1LIMIT OF HOPPING CHANNEL SEPARATION.............…

Text truncated - open the document above for the full version.

FCC ID: PANBT0230 Report No.: RF920213R06 61 Issued: March. 4, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PANBT0230 Report No.: RF920213R06 62 Issued: March. 4, 2003 RADIATED EMISSION TEST
