PANBT240-V2RS-232 Serial Adapter

RS-232 Serial Adapter BT-240-V2 USER’S MANUAL version 1.0 WELCOME --------------------------------------------------------------------------------- 1 Features ----------------------------------------------------------------------------- 1 System Requirements ------------------------------------------------------------- 1 Before You Start-------------------------------------------------------------------- 1 RS-232 Serial Adapter ------------------------------------------------------------- 2 Getting to Know Your RS-232 Serial Adapter ---------------------------------- 2 Function of LEDs ------------------------------------------------------------------- 3 WIDCOMM BLUETOOTH SOFTWARE DRIVER ------------------------------------------ 3 SELECT BLUETOOTH SERVICE ---------------------------------------------------------- 5 RS-232 SERIAL ADAPTER INSTALLATION----------------------------------------------- 6 CONFIGURING RS-232 SERIAL ADAPTER ---------------------------------------------- 7 1.LOCAL SETTING UP-------------------------------------------------------------------- 7 2.START HYPER TERMINAL FILE TRANSFER ------------------------------------------ 9 TROUBLESHOOTING-------------------------------------------------------------------- 12 APPENDIX A ------------------------------------------------------------------------------ 14 APPENDIX B ------------------------------------------------------------------------------ 15 APPENDIX C------------------------------------------------------------------------------ 16 FCC STATEMENT-------------------------------------------------------------------------------17 TABLE OF CONTENTS 1 Thank you for your purchase of the RS-232 Serial Adapter. Featuring Bluetooth wireless technology, RS-232 Serial Adapter creates virtual RS232 connections between your PCs and other RS232 peripherals. RS-232 Serial Adapter is compatible with all Bluetooth v2.1-certified devices and is backward compatible with v1.1/1.2 devices. You can connect your computers and RS232 devices 100 meters away without cables in your working environments. FEATURES „ Compliant with Bluetooth v2.1+EDR „ Support Bluetooth Serial Port Profile (SPP) „ Operate in 2.4GHz~2.483GHz ISM band „ Operating distance up to 100 meters „ Wide coverage with Class I RF „ Three LEDs Indicating z Power On/Off z Configuration/ Data Mode z Bluetooth Link „ Easy operation and setup „ Support COM port interface: DTE or DCE „ Reset function SYSTEM REQUIREMENTS PCs can optionally have a Bluetooth device installed, such as a Bluetooth USB dongle. It allows you to communicate with RS-232 Serial Adapter. Windows Systems: Win 98/Me/2000/XP/XP x64. BEFORE YOU START 1.Confirm Box Contents RS-232 Serial Adapter Power Adapter RS232 Extension Cable CD QSG EXTENSION CABLE A RS232 Extension Cable provides you to connect your RS-232 Serial Adapter (DTE/DCE) to your RS232 device easier. Please refer to Appendix A for its pinout assignments. WELCOME 2 RS-232 SERIAL ADAPTER GETTING TO KNOW YOUR RS-232 SERIAL ADAPTER 1). RS232 Connector: DTE - Connect to any DCE device (Master/such as a modem). DCE - Connect to any DTE device (Slave/such as a PC). 2). Mode Button: Push it to change operation between Configure/Data Mode and Reset function. 3). Apply power to RS-232 Serial Adapter by using the power adapter accompanied. 4). Set the slide switch position to right (toward 9-pin connector). ( Option : Set it to left position (away from 9-pin connector) features NO DC Power Adapter is needed. A DC power must be applied to RS-232 Serial Adapter through pin-9 of RS232 connector). 5). A one-to-one RS232 Extension Cable allows you to extend the connection if needed. FUNCTION OF LEDS POWER LED Power LED turns on when POWER is applied to RS-232 Serial Adapter. BLUETOOTH LED Bluetooth LED is flashing quickly when Bluetooth is paired and linked. Bluetooth LED is blinking when there is data transmitted / received between two paired and linked devices. <Light flashing 1 second and continues with 1 second blackout repeatedly> MODE LED MODE LED is ON when RS-232 Serial Adapter is staying at Configuration mode. MODE LED is OFF when RS-232 Serial Adapter is staying at normal DATA mode. Slide Switch DC Power Jack Mode Button Bluetooth LED Mode LED Power LED 3 NOTE : This driver is needed only if you are using a USB Bluetooth Dongle, and you want to use it to communicate with RS-232 Serial Adapter. Skip this section if you are not using it. This software is not included in our RS-232 Serial Adapter package. We assume you already purchased a Bluetooth USB dongle and it is already bundled with this software. We also assume you already installed this driver in your PC. If NOT, please read the following messages to learn how to do it. This Widcomm Driver is accompanied with the Bluetooth USB dongle product you purchased. Try to download the latest version. There are other Bluetooth services which Widcomm driver provides. We will only emphasize on the cable replacement service, and you may try to know other services by you own. The following steps tell you how to install the Widcomm driver. Note: If you bought the extra software, BLINK, it will be automatically installed while you install software. Step 1: Put Widcomm Driver CD into CD drive of your PC, an Auto-install program will start to guide you to complete the installation step by step. You also can find Setup.exe from the given Widcomm Driver CD, double click on it, the installshield wizard dialog box will open, click Next. Step 2: Accept the software license agreement. Click Next. WIDCOMM BLUETOOTH SOFTWARE DRIVER 4 Step 3: Select destination folder, you can choose the default or change to your favorite. Step 4: Click Install to start the installation and files copying in processing ... Step 5: Click OK to ignore un-signed driver warning. Step 6: If Bluetooth dongle is plugged in your PC now, his screen will not be displayed, otherwise it will show up and one reminding window will show up to ask you to pl…

Text truncated - open the document above for the full version.

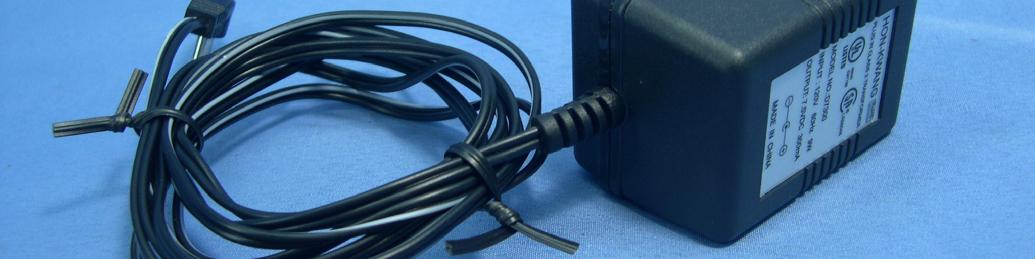

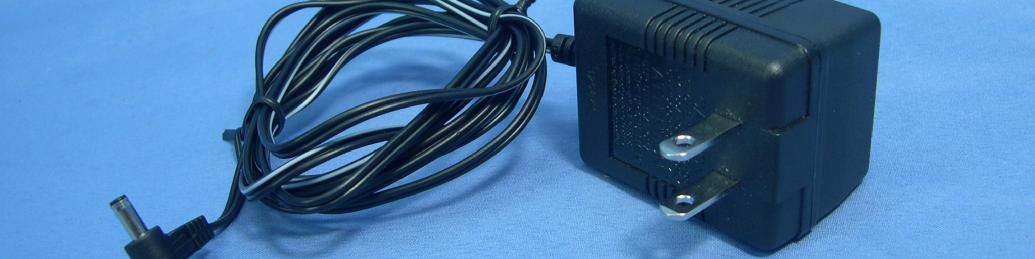

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 EUT with DCE connector Page 3 EUT with DTE connector Page 4 Page 5

FCC ID：PANBT240-V2 LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 1 CONSTRUCTION PHOTOS OF EUT EUT with DCE connector Page 2 Page 3 Page 4 Page 5 Page 6 EUT with DTE connector Page 7 Page 8 Page 9 Page 10

Operational Description Featuring Bluetooth wireless technology, RS-232 Serial Adapter creates virtual RS232 connections between your PCs and other RS -232 peripherals. The transmitter of the EUT ( RS-232 Serial Adapter) is powered by 7.5Vdc from the AC/DC power adapter. The antenna is printed antenna without antenna connector. This device is a frequency hopping device with 79 hopping frequencies. For more detailed instruction, please take a look at the user’s manual.

FCC ID: PANBT240-V2 Report No.: SA990203H05 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990203H05 MODEL NO.: BT-240-V2 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : CC&C Technologies, Inc. ADDRESS : 8F, 150, Jian Yi Road, Chung Ho City, Taipei County, Taiwan 235, R.O.C. ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch TEST LOCATION : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan FCC ID: PANBT240-V2 Report No.: SA990203H05 Report Format Version 3.0.1 2 No SAR Evaluation Required if power is below the following threshold: Tunable Range F(GHz) Low F(GHz) High Center of Tunable Band (GHz) 60/f SAR Limitation (mW) 2.402 2.480 2.441 24.19 Maximum measured transmitter power: Pout Conducted (dBm) Pout Conducted (mW) Maximum Antenna Gain (dBi) Pout EIRP (mW) 9.8 9.5 1.2 12.5 Threshold for no SAR evaluation is 24.19 mW Maximum TX Power is 9.5 mW Conducted and 12.5 mW EIRP Conclusion: No SAR evaluation required since maximum Transmitter Pout (both conducted and EIRP) is below FCC threshold
