PANBT330SV5Bluetooth Micro USB Adapter V3.0

1 Bluetooth USB Adapter Quick Start Guide Version 1.0 © All rights reserved. All trade names are registered trademarks of respective manufacturers listed. The Bluetooth name and the Bluetooth trademarks are owned by Bluetooth SIG,Inc. This manual may not be copied in any media or form without the written consent of original maker. WELCOME ................................................................................................ 1 Features ...................................................................................................... 2 System Requirements ................................................................................... 2 Before You Start ........................................................................................... 2 Install Driver in Windows 7 ...................................................................... ..... 3 2 Thank you for your purchase of the Bluetooth USB Adapter. Featuring Bluetooth wireless technology, Bluetooth USB Adapter creates cable-free connections between your PCs and other Bluetooth devices. Bluetooth USB Adapter supports Bluetooth 3.0 standard and is compatible with all Bluetooth certified devices. Features „ Compliant with Bluetooth standard version 3.0. „ Support for Microsoft Windows XP, Vista and 7. „ Easy operation and setting up. System requirements „ Processor : Intel Celeron / Pentium III, IV; AMD Duron / Athlon „ Operating System : Microsoft Windows XP, Vista or 7. „ System memory : 64MB at least „ Hard Drive Free Space : 250MB Before you start Please remove any previous version of Bluetooth software existing in your system. The remove procedures are as follows: Step 1 : Click Start/Settings, then select Control Panel. Step 2 : In the Control Panel window, double click Add/Remove programs icon. Step 3 : Find out the WIDCOMM or other Bluetooth Software then remove it. 3 Install Driver in Windows 7 The following steps tell you how to install the WIDCOMM Bluetooth driver in Windows 7. Other Windows OS is similar procedures as Windows 7 installation below. Step 1: Put WIDCOMM Driver CD into CD drive of your PC, an auto-installation program will start to guide you to complete the installation step by step. Step 2: Installation program will remind you to plug in the Bluetooth USB Adapter if you don’t put it into your PC. This dialog box will not pop up if you already have Bluetooth USB Adapter in your PC. 4 Step 3: Click Next to continue. Step 4: Select “I accept the terms in the license agreement” Click Next to continue. 5 Step 5: Press “Change...” button to select a new folder or leave it unchanged to use default path. Click Next to continue. Step 6: Click Install to start the installation. 6 Step 7: Wait files copy in processing. Step 8: Click Finish to complete the installation. 7 Note: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on , the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating to conjunction with any other antenna or transmitter.

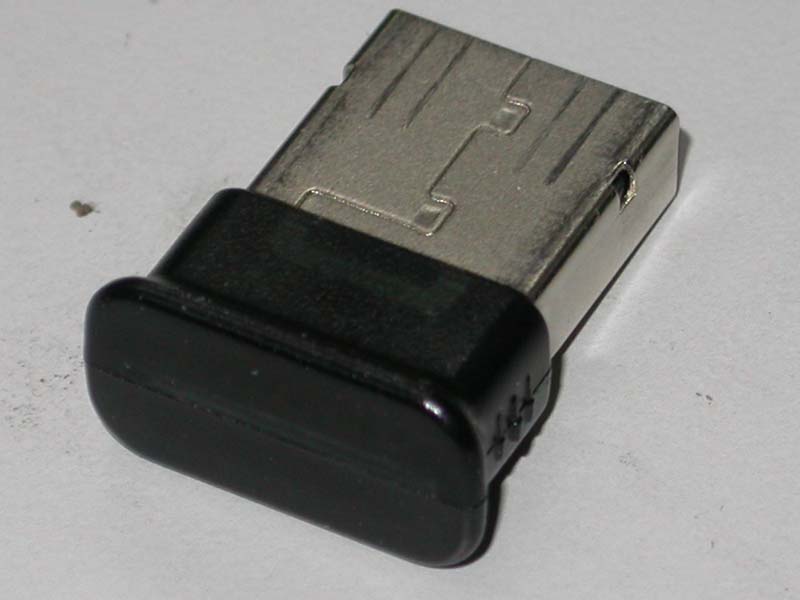

FCC ID: PANBT330SV5 Sheet A1 of A1 Sheets ETC Report No. : 10-02-MAS-123-02 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

V 1.9 2 Label Position

FCC ID: PANBT330SV5 Sheet B1 of B2 Sheets ETC Report No. : 10-02-MAS-123-02 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID: PANBT330SV5 Sheet B2 of B2 Sheets ETC Report No. : 10-02-MAS-123-02 3. Front view of PCB 4. Rear view of PCB

FCC ID: PANBT330SV5 Sheet 1 of 86 Sheets ETC Report No. : 10-02-MAS-123-02 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 10-02-MAS-123-02 Client: CC&C Technologies, Inc. Product: Bluetooth Micro USB Adapter V3.0 Model: BT-330S-V5 FCC ID: PANBT330SV5 Manufacturer/supplier: CC&C Technologies, Inc. Date test item received: 2010/02/24 Date test campaign completed: 2010/03/03 Date of issue: 2010/04/07 The test result onl y corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 86 pages Total number of pages of photos: External photos 1 pages Internal photos 2 pages Setup photos 2 pages Test Engineer Checked By Approved By John Li James Cheng Joe Hsieh ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C.TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 FCC ID: PANBT330SV5 Sheet 2 of 86 Sheets ETC Report No. : 10-02-MAS-123-02 Rev. No 1.0 Client : CC&C Technologies, Inc. Address : 8F, No. 150, Jian Yi Road, Chung Ho City, Taipei County, Taiwan 235, R.O.C. Manufacturer : CC&C Technologies, Inc. Address : 8F, No. 150, Jian Yi Road, Chung Ho City, Taipei County, Taiwan 235, R.O.C. EUT : Bluetooth Micro USB Adapter V3.0 Trade name : CC&C Model No. : BT-330S-V5 Power Source : EUT: 5Vdc (from USB port of Notebook) Notebook : Adaptor I/P: 100-240VAC，50/60Hz，1.5A O/P: 19.5V dc，3.34A Regulations applied : FCC 47 CFR, Part 15 Subpart C (2008) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: 1 ISO9001: TüV Product Service 2 ISO/IEC 17025: BSMI, CNLA, NCC, NVLAP, CCIBLAC, UL, Compliance 3 Filing: FCC, Industry Canada, VCCI 4 MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through TAF 5 FCC Registration Number: 90588, 91094, 91095 h Industry Canada Site Regisitation number: IC 2949A-1 NVLAP Lab Code 200133-0 FCC ID: PANBT330SV5 Sheet 3 of 86 Sheets ETC Report No. : 10-02-MAS-123-02 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 5 1.1 Product Description...................................................................................................................... 5 1.2 Characteristics of Device ............................................................................................................. 5 1.3 Test Methodology ........................................................................................................................ 5 1.4 Modifiction List of EUT .............................................................................................................. 5 1.5 Test Facility.................................................................................................................................. 5 1.6 Test Summary .............................................................................................................................. 5 2 PROVISIONS APPLICABLE...................................................................................................... 6 2.1 Definition ..................................................................................................................................... 6 2.2 Requirement for Compliance ....................................................................................................... 7 2.3 Restricted Bands of Operation ..................................................................................................... 9 2.4 Labeling Requirement .................................................................................................................. 9 2.5 User Information ........................................................................................................................ 10 3. SYSTEM TEST CONFIGURATION ........................................................................................ 11 3.1 Justification ................................................................................................................................ 11 3.2 Devices for Tested System......................................................................................................... 11 4 RADIATED EMISSION MEASUREMENT ............................................................................ 12 4.1 Applicable Standard ................................................................................................................... 12 4.2 Measurement Procedure............................................................................................................. 12 4.3 Measuring Instrument ................................................................................................................ 14 4.4 Radiated Emission Data ............................................................................................................. 15 4.5 Field Strength Calculation ..........................................…

Text truncated - open the document above for the full version.

FCC ID: PANBT330SV5 Sheet 1 of 2 Sheets ETC Report No. : 10-02-MAS-123-02 Photos of Radiation Measuring Setup FCC ID: PANBT330SV5 Sheet 2 of 2 Sheets ETC Report No. : 10-02-MAS-123-02 Photos of Conduction Measuring Setup
