PANWA2204802.11b WLAN Broadband Router

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 2.6 i User’s Manual Version: 2.6 WLAN Broadband Router WA - 2204 Note：This router can also be used as an Access Point Technologies, Inc. USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 2.6 ii Trademarks Copyright @2004 Contents are subject to change without notice. All trademarks belong to their respective proprietors. Copyright Statement THIS DOCUMENT CONTAINS OF PROPRIETARY TECHNICAL INFORMATION THAT IS THE PROPERTY OF THIS COMPANY. AND NO PART OF THIS DOCUMENTATION MAY BE REPRODUCED, STORED IN A RETRIEVAL SYSTEM OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRICAL OR MECHANICAL, BY PHOTOCOPYING, RECORDING, OR OTHERWISE, WITHOUT THE PRIOR WRITTEN CONSENT OF THIS COMPANY. USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 2.6 iii INFORMATION TO USER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal. USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 2.6 iv In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. “CC&C Technologies, Inc. declare that WA-2204 (WLAN Broadband Router) is limited in CH1~CH 11 by specified firmware controller in USA. ” The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 2.6 v REGULATORY INFORMATION WLAN Broadband Router must be installed and used in strict accordance with the instructions. This device complies with the following radio frequency and safety standards. USA - Federal Communications Commission (FCC) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference that may cause undesired operation. Europe - R&TTE Directive This device complies with the specifications listed below • EN 301-489-1 & -17 General EMC requirements for Radio equipment. • EN 300-328-1 & -2 Technical requirements for Radio equipment. • EN 60950-1 Safety Requirements for Radio equipment The channel identifiers, channel center frequencies, and regulatory domains of each 22-MHz-wide channel are shown in following Table. Regulatory Domains Channel Identifier Center Frequency (MHZ) Japan ETSI North America Israel France Mexico 1 2412 ˇ ˇ ˇ 2 2417 ˇ ˇ ˇ 3 2422 ˇ ˇ ˇ ˇ 4 2427 ˇ ˇ ˇ ˇ 5 2432 ˇ ˇ ˇ ˇ 6 2437 ˇ ˇ ˇ ˇ 7 2442 ˇ ˇ ˇ ˇ 8 2447 ˇ ˇ ˇ ˇ 9 2452 ˇ ˇ ˇ ˇ 10 2457 ˇ ˇ ˇ ˇ ˇ 11 2462 ˇ ˇ ˇ ˇ ˇ 12 2467 ˇ ˇ ˇ 13 2472 ˇ ˇ ˇ 14 2484 ˇ USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 2.6 vi Terminology AES Advanced Encryption Standard ANSI American National Standards Institute AP Access Point CCK Complementary Code Keying CSMA/CA Carrier Sense Multiple Access/ Collision Avoidance CSMA/CD Carrier Sense Multiple Access/ Collision Detection DHCP Dynamic Host Configuration Protocol DSSS Direct Sequence Spread Spectrum EAP Extensible Authentication Protocol FCC Federal Communications Commission FTP File Transfer Protocol IEEE Institute of Electrical and Electronic Engineers IP Internet Protocol ISM Industrial, Scientific and Medical LAN Local Area Network MAC Media Access Control NAT Network Address Translation NT Network Termination PPTP Point to Point Tunneling Protocol PSD Power Spectral Density RF Ra…

Text truncated - open the document above for the full version.

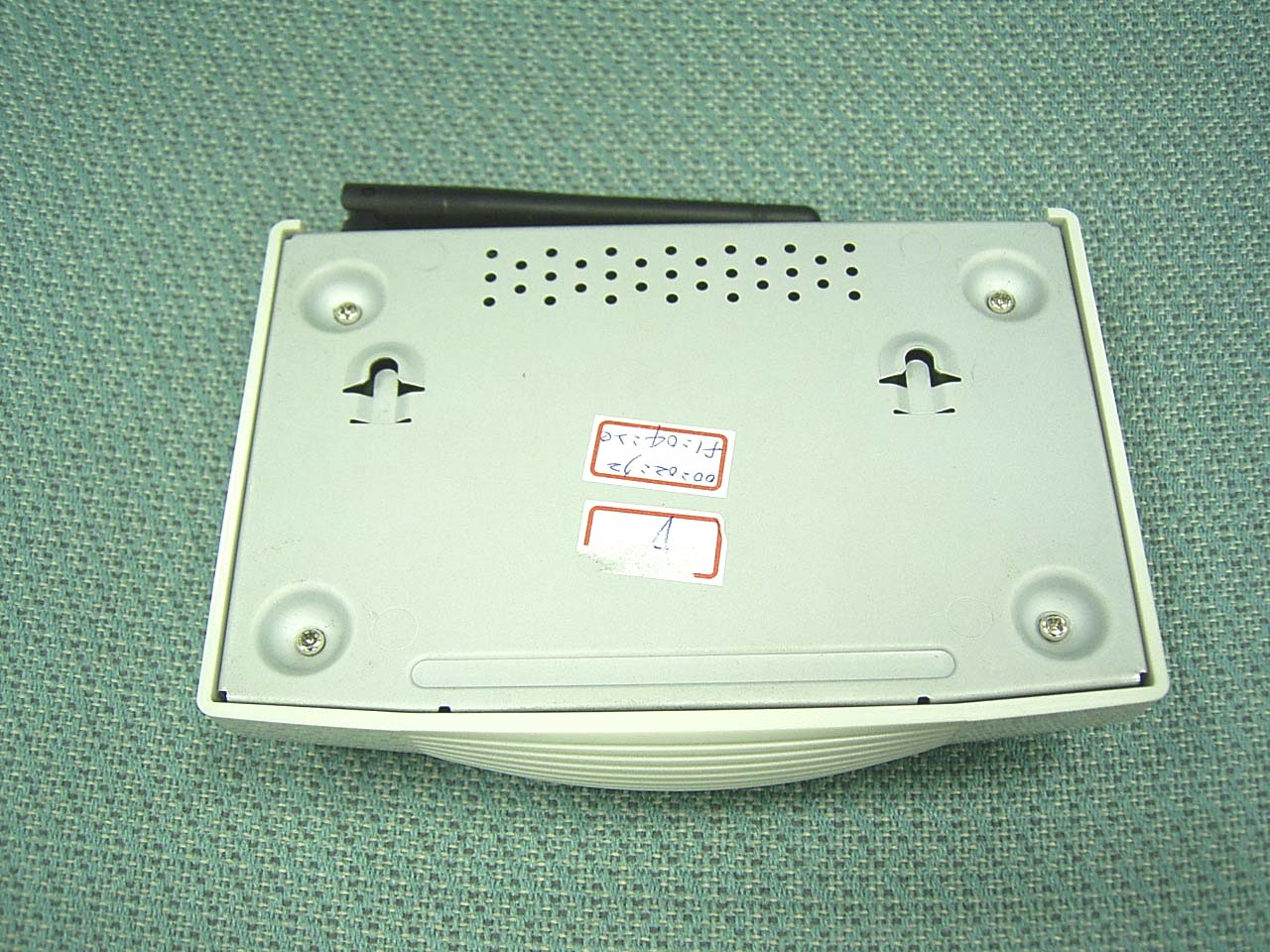

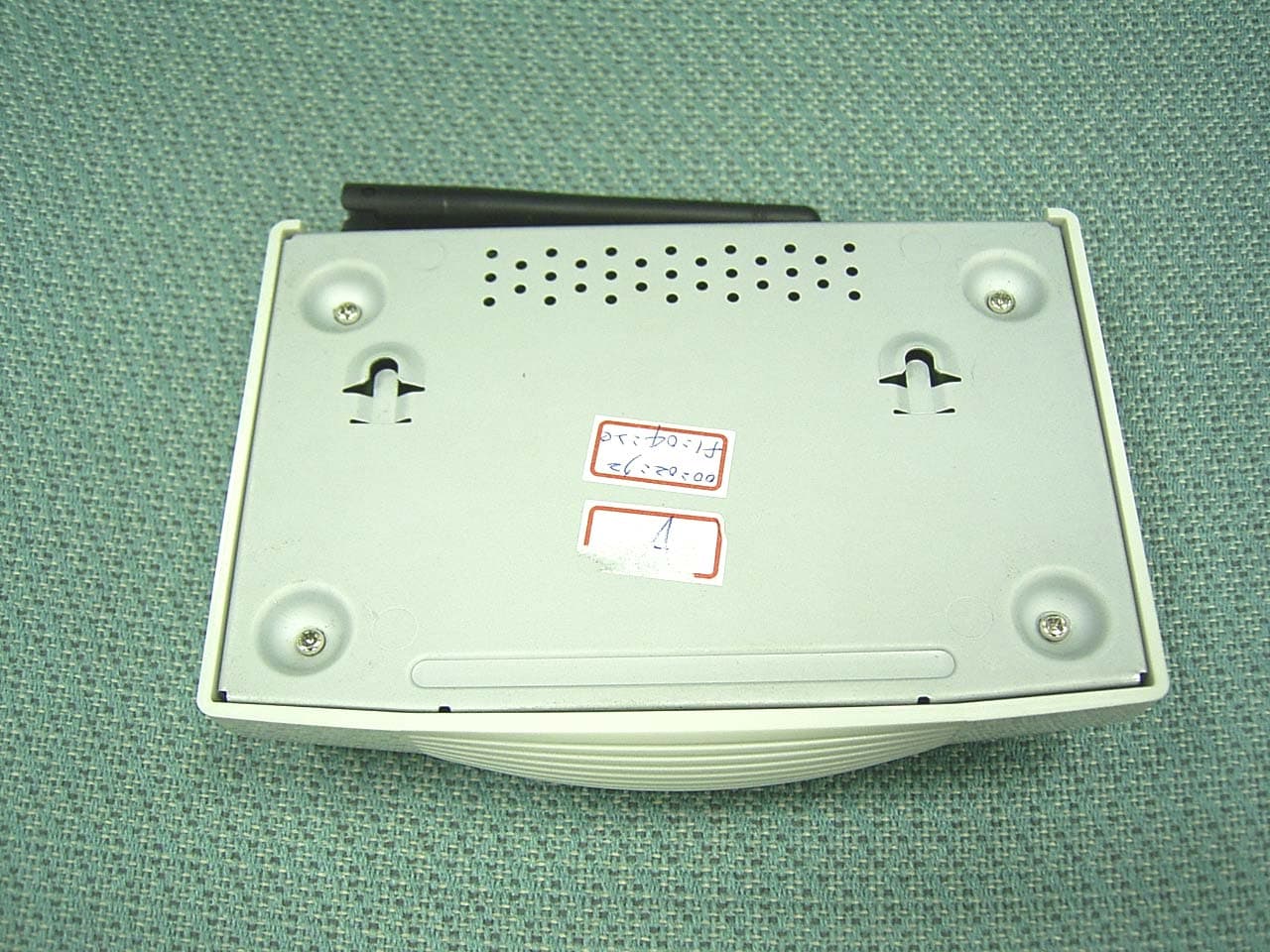

Compliance Certification Services Inc. Report No: 40510008 Date of Issue: May 19, 2004 Page 1 of 5 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: 40510008 Date of Issue: May 19, 2004 Page 2

Rating: 7.5V This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:1.This device may not cause harmful interference, and 2.This device must accept any interference that may cause undesired operation. FCC ID: PANWA2204 Tested To Comply With FCC Standards FORHOMEOROFFICEUSE LAN MAC:000272000001 WAN MAC:000272000002 S/N: 15604000000-01 Made in Taiwan 39.50 mm 59.50 mm 2.75 mm 2.75 mm WLAN Broadband Router XB.3315 R a t ing: 7 .5V This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:1.This device may not cause harmful interference, and 2.This device must accept any interference that may cause undesired operation. FCC ID: PANWA2204 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE LA N MAC:000272000001 WAN MAC:000272000002 S /N: 15604000000-01 Made in Taiwan WLAN Broadband Router XB.3315 Lable Location

Compliance Certification Services Inc. Report No: 40510008 Date of Issue: May 19, 2004 Page 3 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: 40510008 Date of Issue: May 19, 2004 Page 4 Compliance Certification Services Inc. Report No: 40510008 Date of Issue: May 19, 2004 Page 5 G

Electrical Specification Frequency range 2400 MHz - 2500 MHz Antenna gain 2.5 dBi VSWR 2.0 : 1 Max. Polarization Linear, vertical Impedance 50 Ω Environmental & Mechanical Characteristics Temperature - 10 o C to +55 o C Humidity 95% @ 25 o C Radome color Black 1 1. Exclusive of cable loss -25 -20 -15 -10 -5 0 5 10 0 30 60 90 120 150 180 210 240 270 300 330 -25 -20 -15 -10 -5 0 5 10 V-plane co-polarization Pattern 2.40 GHz 2.45 GHz 2.50 GHz -25 -20 -15 -10 -5 0 5 10 0 30 60 90 120 150 180 210 240 270 300 330 -25 -20 -15 -10 -5 0 5 10 H-plane co-polarization Pattern 2.40 GHz 2.45 GHz 2.50 GHz RFA-02-C2H XXX+3 (mm) XXX+3 (mm) 1.13 RG178 IPEX MMCX 3 1 1 XXX+3 (mm) XXX+3 (mm) RG178 1.13 105+2 Connector H0=1.13 / Cable end Strippped RG178/Cable end Stripped H1=1.13 / I-PEX H2=RG178 / MMCX R/A PLUG MINGTEK TECHNOLOGY CORP TEL:886-2-8671-7511 FAX:886-2-8671-7611 E-mail:[email protected] WLAN Antenna for 2.4GHz RFA-02-C2H

Compliance Certification Services Inc. Report No: 40510008-RP FCC ID: PANWA2204 Date of Issue: May 17, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 50 FCC 47 CFR PART 15 SUBPART C TEST REPORT For CC&C Technologies, Inc. WLAN Broadband Router Model: WA-2204 Trade Name: CC & C Prepared for CC&C Technologies, Inc. 8FL. 150, Jian Yi Road, Chung Ho City, Taipei County, Taiwan, 235, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: 40510008-RP FCC ID: PANWA2204 Date of Issue: May 17, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION...................................................................................................................5 3.2 EUT EXERCISE...............................................................................................................................5 3.3 GENERAL TEST PROCEDURES........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS...................................................6 3.5 DESCRIPTION OF TEST MODES......................................................................................................6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES ....................................................................................................................................8 5.2 EQUIPMENT...................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING.............................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SETUP CONFIGURATION OF EUT..................................................................................................10 6.2 SUPPORT EQUIPMENT ..........................................................................................................10 7. FCC PART 15.247 REQUIREMENTS...................................................................................... 11 7.1 6DB BANDWIDTH........................................................................................................................11 7.2 PEAK POWER...............................................................................................................................15 7.3 BAND EDGES MEASUREMENT ...........................................................................................19 7.4 PEAK POWER SPECTRAL DENSITY...............................................................................................25 7.5 RADIO FREQUENCY EXPOSURE...................................................................................................29 7.6 SPURIOUS EMISSIONS ...........................................................................................................32 7.7 POWERLINE CONDUCTED EMISSIONS..........................................................................................45 Compliance Certification Services Inc. Report No: 40510008-RP FCC ID: PANWA2204 Date of Issue: May 17, 2004 Page 4 2. EUT DESCRIPTION Product WLAN Broadband Router Trade Name CC & C Model Number WA-2204 Model Discrepancy N/A Power Supply Powered by an AC/DC power adapter Model Number: L4D-075090R I/P: 120V, 60Hz, 12.5W O/P: 7.5Vdc, 900mA Frequency Range 2412 ~ 2462 MHz Transmit Power 21.70dBm Modulation Technique DSSS (CCK; DQPSK; DBPSK) Transmit Data Rate 11Mbps(CCK) with fall back rates of 5.5, 2, and 1Mbps Number of Channels 11 Channels Antenna Specification WLAN antenna Gain: 2.5dBi (Max) Temperature Range 0 ~ + 55°C Note: This submittal(s) (test report) is intended for FCC ID: PANWA2204 filing to comply with Section 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No: 40510008-RP FCC ID: PANWA2204 Date of Issue: May 17, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT (WLAN Broadband Router) was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.247 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 40510008-RP FCC ID: PANWA2204 Date of Issue: May 17, 2004 Page 49 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: 40510008-RP FCC ID: PANWA2204 Date of Issue: May 17, 2004 Page 50 Conducted Emission Set Up Photos
