PANWA2204BWLAN 11g Mini Router

User’s Manual Version: 2.0 WLAN 11g Mini Router WA-2204B Trademarks Copyright @2006 Contents are subject to change without notice. All trademarks belong to their respective proprietors. Copyright Statement THIS DOCUMENT CONTAINS OF PROPRIETARY TECHNICAL INFORMATION THAT IS THE PROPERTY OF THIS COMPANY. AND NO PART OF THIS DOCUMENTATION MAY BE REPRODUCED, STORED IN A RETRIEVAL SYSTEM OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRICAL OR MECHANICAL, BY PHOTOCOPYING, RECORDING, OR OTHERWISE, WITHOUT THE PRIOR WRITTEN CONSENT OF THIS COMPANY. INFORMATION TO USER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Installation and use of this WLAN 11g Mini Router device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal. In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. CC&C declares that US model of WA-2204B, ( FCC ID: PANWL2204B) is limited in CH 1 ~ CH 11 for 2.4 G band by specific firmware controlled by the manufacturer and is not user changeable. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 特別警示： 根據交通部低功率電波輻射性電機管理辦法第十二條及第十四條規定： 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、 加大功率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停 用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 REGULATORY INFORMATION WLAN 11g Mini Router must be installed and used in strict accordance with the instructions. This device complies with the following radio frequency and safety standards. USA - Federal Communications Commission (FCC) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference that may cause undesired operation. Europe- R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) CE Declaration of Conformity For the following equipment: WLAN 11g Mini Router (Product Name) WA-2204B (Model Designation) is herewith confirmed to comply with the requirements set out in the Council (European parliament) Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility of Radio and Telecom device (1999/5/EC). For the evaluation regarding this Directive, the following standards were applied: EN 300 328 V1.6.1 (2004-11) EN 301 489-1 V1.5.1 (2004-11), EN 301 489-17 V1.2.1 (2002-08) EN 60950-1: 2001 EN 50371: 2002 EU Countries Intended for Use None. EU Countries Not intended for use None. Potential restrictive use France: Only channels 10,11,12, and 13 The channel identifiers, channel center frequencies, and regulatory domains of each 22-MHz-wide channel are shown in following Table. Regulatory Domains Channel Identifier Center Frequency (MHZ) Japan ETSI North America Israel France Mexico 1 2412 ˇ ˇ ˇ 2 2417 ˇ ˇ ˇ 3 2422 ˇ ˇ ˇ ˇ 4 2427 ˇ ˇ ˇ ˇ 5 2432 ˇ ˇ ˇ ˇ 6 2437 ˇ ˇ ˇ ˇ 7 2442 ˇ ˇ ˇ ˇ 8 2447 ˇ ˇ ˇ ˇ 9 2452 ˇ ˇ ˇ ˇ 10 2457 ˇ ˇ ˇ ˇ ˇ 11 2462 ˇ ˇ ˇ ˇ ˇ 12 2467 ˇ ˇ ˇ 13 2472 ˇ ˇ ˇ 14 2484 ˇ USER’S MANUAL OF WLAN 11g Mini Router Version: 2.0 i Table of Contents REVISION HISTORY ..................................…

Text truncated - open the document above for the full version.

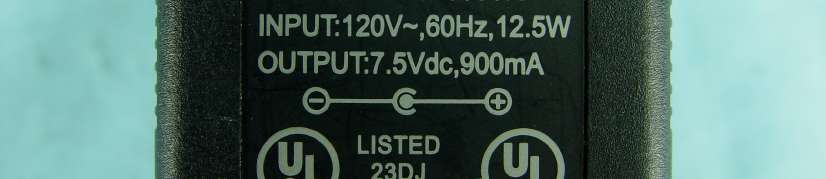

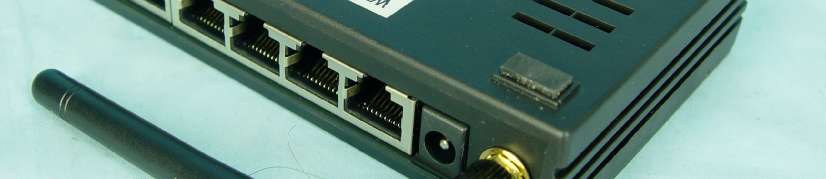

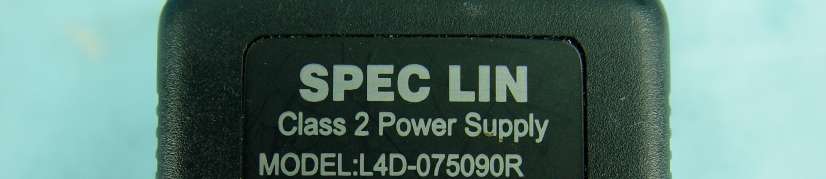

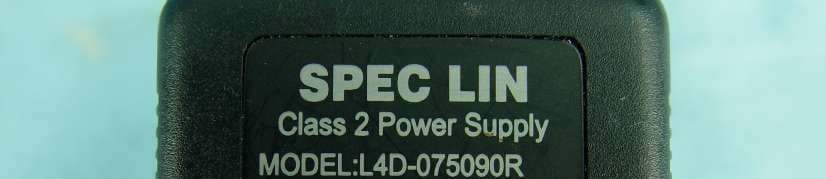

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

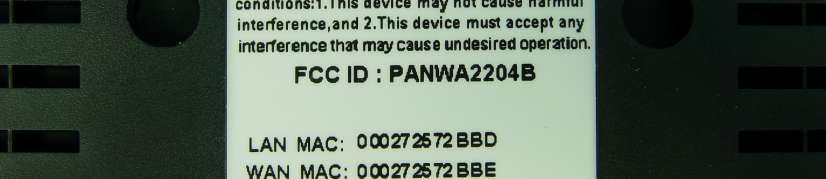

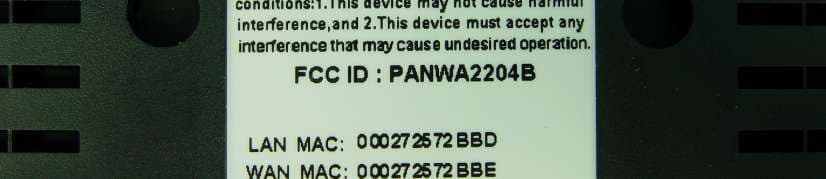

Label Position Label

Page 4 Page 5 Page 6

FCC ID: PANWA2204B Report No.RF950731L08 Operational Description This device is a WLAN 11g Mini Router which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC Adapter. The antenna is Dipole antenna with R-SMA antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: PANWA2204B Report No: SA950731L08 1 RF EXPOSURE REPORT REPORT NO.: SA950731L08 MODEL NO.: WA-2204B ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CC&C Technologies, Inc. ADDRESS: 8F, 150, Jian Yi Road, Chung Ho City, Taipei County, Taiwan 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: PANWA2204B Report No: SA950731L08 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: PANWA2204B Report No: SA950731L08 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: PANWA2204B Report No: SA950731L08 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Antenna gain: 2dBi: For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.2410.0201.0 6243764.1210.0201.0 11246263.9730.0201.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.9890.0101.0 6243731.9890.0101.0 11246232.2850.0101.0

Report No.: RF950731L081Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950731L08 MODEL NO.: WA-2204B RECEIVED: Jul. 31, 2006 TESTED: Aug. 10 ~ Aug. 23, 2006 ISSUED: Aug. 25, 2006 APPLICANT: CC&C Technologies, Inc. ADDRESS: 8F, 150, Jian Yi Road, Chung Ho City, Taipei County, Taiwan 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950731L082Report Format Version 2.0.4 Table of Contents 1CERTIFICATION..................................................................................................................4 2SUMMARY OF TEST RESULTS...........................................................................................5 2.1MEASUREMENT UNCERTAINTY........................................................................................5 3GENERAL INFORMATION...................................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST....................................................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.........................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS......................................................10 3.4DESCRIPTION OF SUPPORT UNITS................................................................................10 4TEST TYPES AND RESULTS..............................................................................................11 4.1CONDUCTED EMISSION MEASUREMENT.......................................................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................................11 4.1.2TEST INSTRUMENTS.........................................................................................................11 4.1.3TEST PROCEDURES........................................................................................................12 4.1.4DEVIATION FROM TEST STANDARD...............................................................................12 4.1.5TEST SETUP.....................................................................................................................13 4.1.6EUT OPERATING CONDITIONS........................................................................................13 4.1.7TEST RESULTS.................................................................................................................14 4.2RADIATED EMISSION MEASUREMENT...........................................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.........................................................20 4.2.2TEST INSTRUMENTS........................................................................................................21 4.2.3TEST PROCEDURES........................................................................................................22 4.2.4DEVIATION FROM TEST STANDARD...............................................................................22 4.2.5TEST SETUP.....................................................................................................................23 4.2.6EUT OPERATING CONDITIONS........................................................................................23 4.2.7TEST RESULTS.................................................................................................................24 4.36dB BANDWIDTH MEASUREMENT..................................................................................31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT.................................................................31 4.3.2TEST INSTRUMENTS........................................................................................................31 4.3.3TEST PROCEDURE...........................................................................................................32 4.3.4DEVIATION FROM TEST STANDARD...............................................................................32 4.3.5TEST SETUP.....................................................................................................................32 4.3.6EUT OPERATING CONDITIONS........................................................................................32 4.3.7TEST RESULTS.................................................................................................................33 4.4MAXIMUM PEAK OUTPUT POWER..................................................................................39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT....................................39 4.4.2TEST INSTRUMENTS........................................................................................................39 4.4.3TEST PROCEDURES........................................................................................................40 Report No.: RF950731L083Report Format Version 2.0.4 4.4.4DEVIATION FROM TEST STANDARD...............................................................................40 4.4.5TEST SETUP.....................................................................................................................40 4.4.6EUT OPERATING CONDITIONS................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
