PANWL1200Wireless LAN USB Dongle

User’s Guide Wireless LAN USB Dongle 11 Mbps Version 2.0 2 Table of Contents Information to User........................................ 3 1 Introduction.................................................. 5 2 Wireless LAN basics...................................... 6 3 Windows Installation...................................... 7 3.1 Installation and Configuration Procedures... 8 3.2 Configuration Utility................................. 15 4 Technical Specifications................................. 22 Glossary..................................................... 23 Product names mentioned herein may be trademarks and/or registered trademarks of their respective companies. 3 INFORMATION TO USER FCC INFORMATION FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20centimeters between the radiator and your body. The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio or television technician for help. Notice: The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification not expressly approved by the party responsible could void the user’s authority to operate the device. 4 REGULATORY INFORMATION The Wireless LAN USB Dongle must be installed and used in strict accordance with the manufacturer’s instructions. This device complies with the following radio frequency and safety standards. USA - Federal Communications Commission (FCC) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference that may cause undesired operation. Europe - R&TTE Directive This device complies ./with the specifications listed below • ETS 300 328 Technical requirements for Radio equipment. • ETS 301 489 -1 & -17 General EMC requirements for Radio equipment. • EN 60950 Safety Requirements for Radio equipment 5 1. Introduction Thank you for purchasing your Wireless Local Area Net (WLAN) USB Dnogle. You are about to install a networking system that is not only fast and powerful, but also easy to set up and simple to maintain. In a short time you and those in your network will be able to share a local printer and files, access the Internet, and roam about the office wire-free. Using radio frequency (RF) technology, WLANs transmit and receive data over the air, minimizing the need for wired connections. Thus, WLANs combine data connectivity with user mobility, and, through simplified configuration, enable movable LANs. This wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users and new network features as your business grows. This manual will assist you in the installing WLAN USB Dongle. 6 2. Wireless LAN basics Wireless LAN network defined by IEEE 802.11b standard committee could be configured as: • Ad Hoc wireless LAN or • Infrastructure wireless LAN Ad Hoc network is a group of notebooks with WLAN PC cards or USB dongles called a BSS (Basic Service Set). These notebooks use their WLAN PC cards or USB dongles to communicate with each other, and notebooks can not connect to the Internet. Figure 2-1 Ad Hoc wireless network The most obvious differentiation between Infrastructure wireless network and Ad Hoc wireless network is that the notebooks in Infrastructure wireless network can make use of the resource in the Internet through Access Point. Access Point Internet Figure 2-2 Infrastructure wireless network To set up your notebook’s network as the type of “Ad Hoc” or “Infrastructure” wireless network depends completely on your requirement. Generally, if your network environment has an Access Point, we recommend that you set it as “Infrastructure” to connect to the Internet. 7 3. Windows Installation The following section will assist you to install Wireless LAN USB successfully. You will first install software (driver) and then connect the Wireless LAN USB, and finally set the network properties to accommodate resource sharing and select the type of wireless network that you wish to install. The Wireless LAN can easily be installed and used, without bothering to connect cables for keeping your computer to use network resources, as in case of wired LAN. Before You Start Here are some steps you will perform in establishing your wireless network connection: • Install the Access Point at first. AP is needed in case of infrastructure network mode. • Install the software using the Installation CD ROM • Install the Wireless LAN USB Dongle • Install the network protocol(s) required to communicate on your network. Most likely you will need the TCP/IP protocol. 8 3.1 Installation and Configuration Procedures Under Windows 98 SE Please follow the following steps one by one in order to install the WLAN USB Dongle succes…

Text truncated - open the document above for the full version.

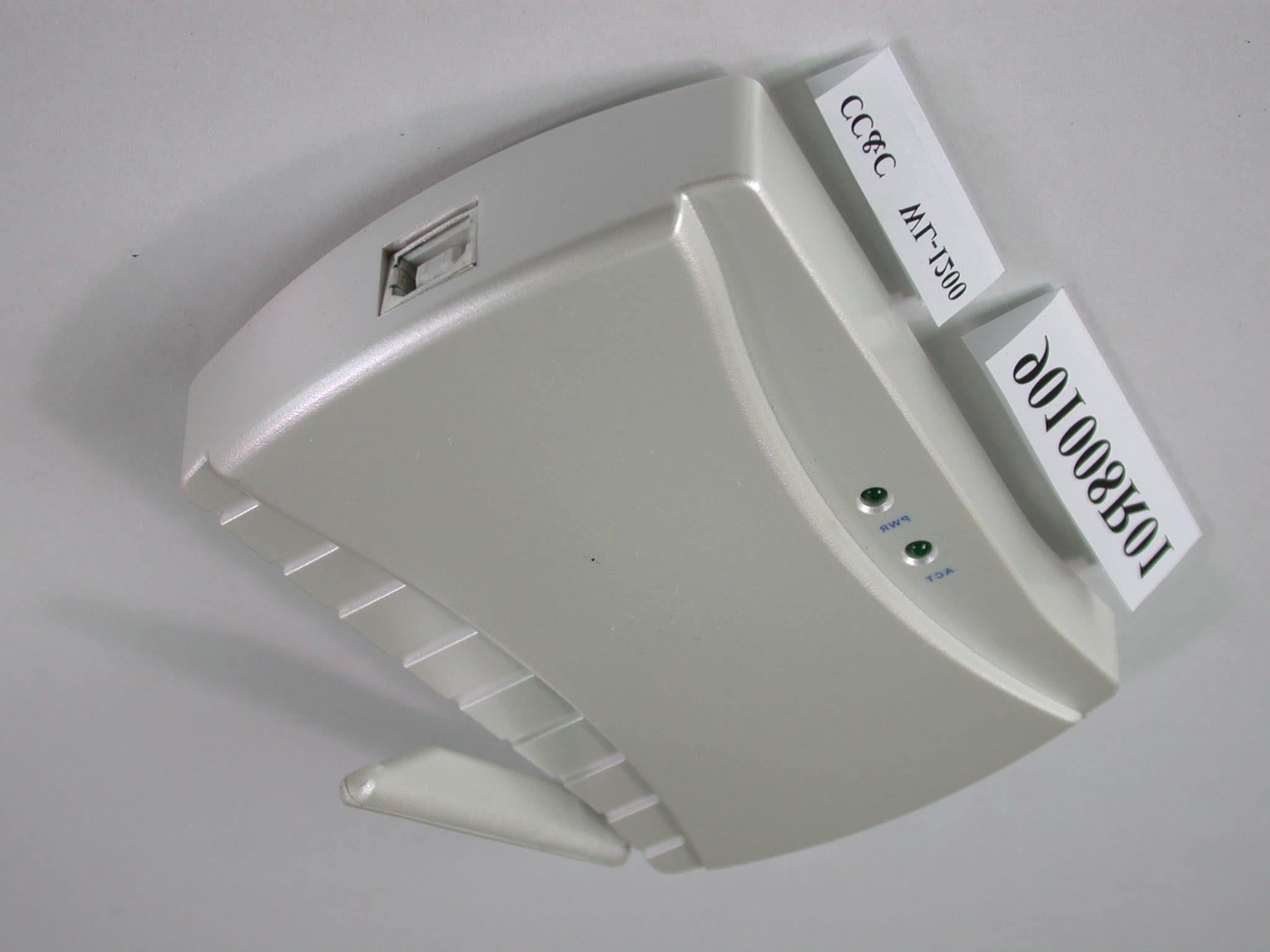

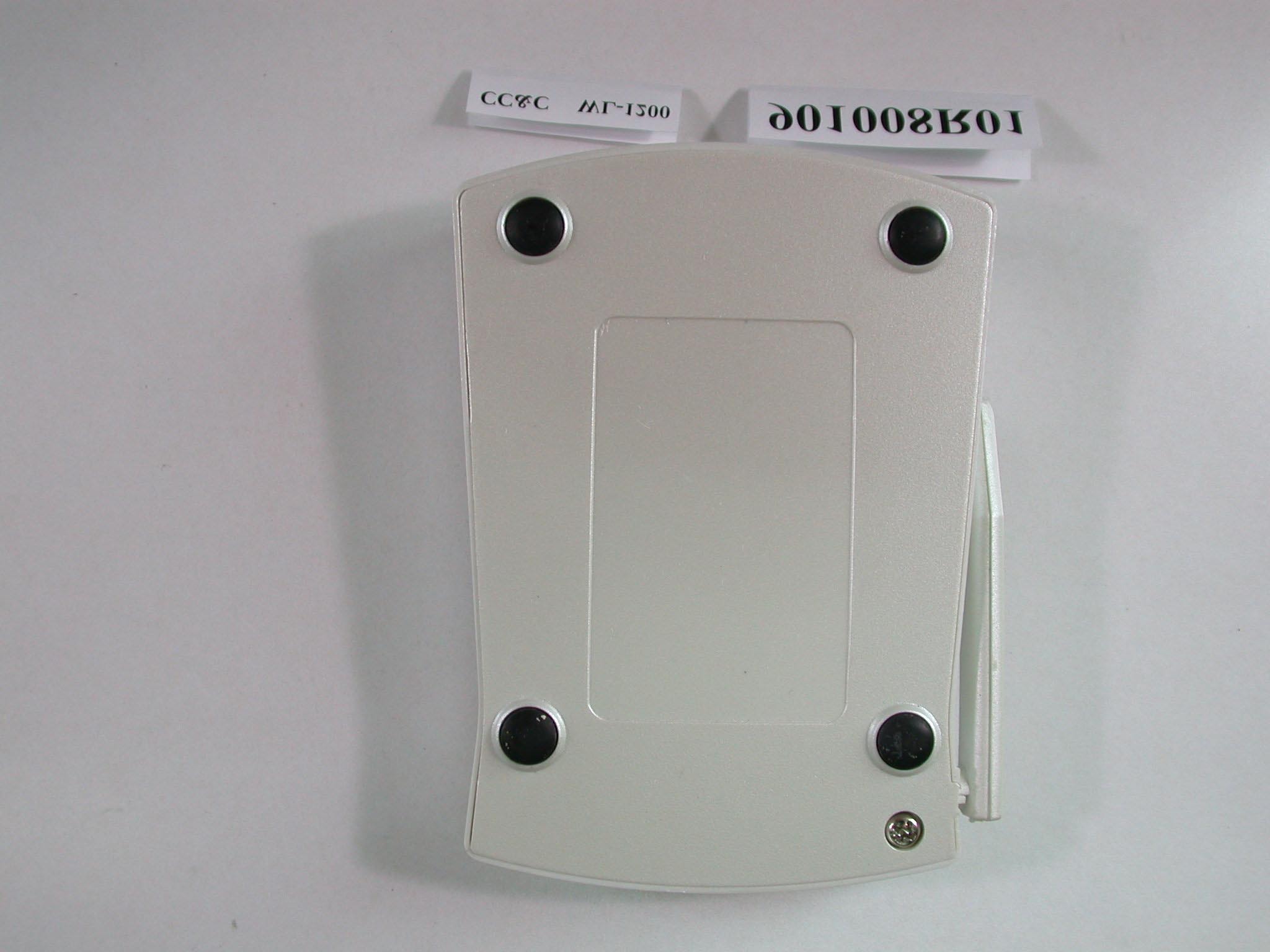

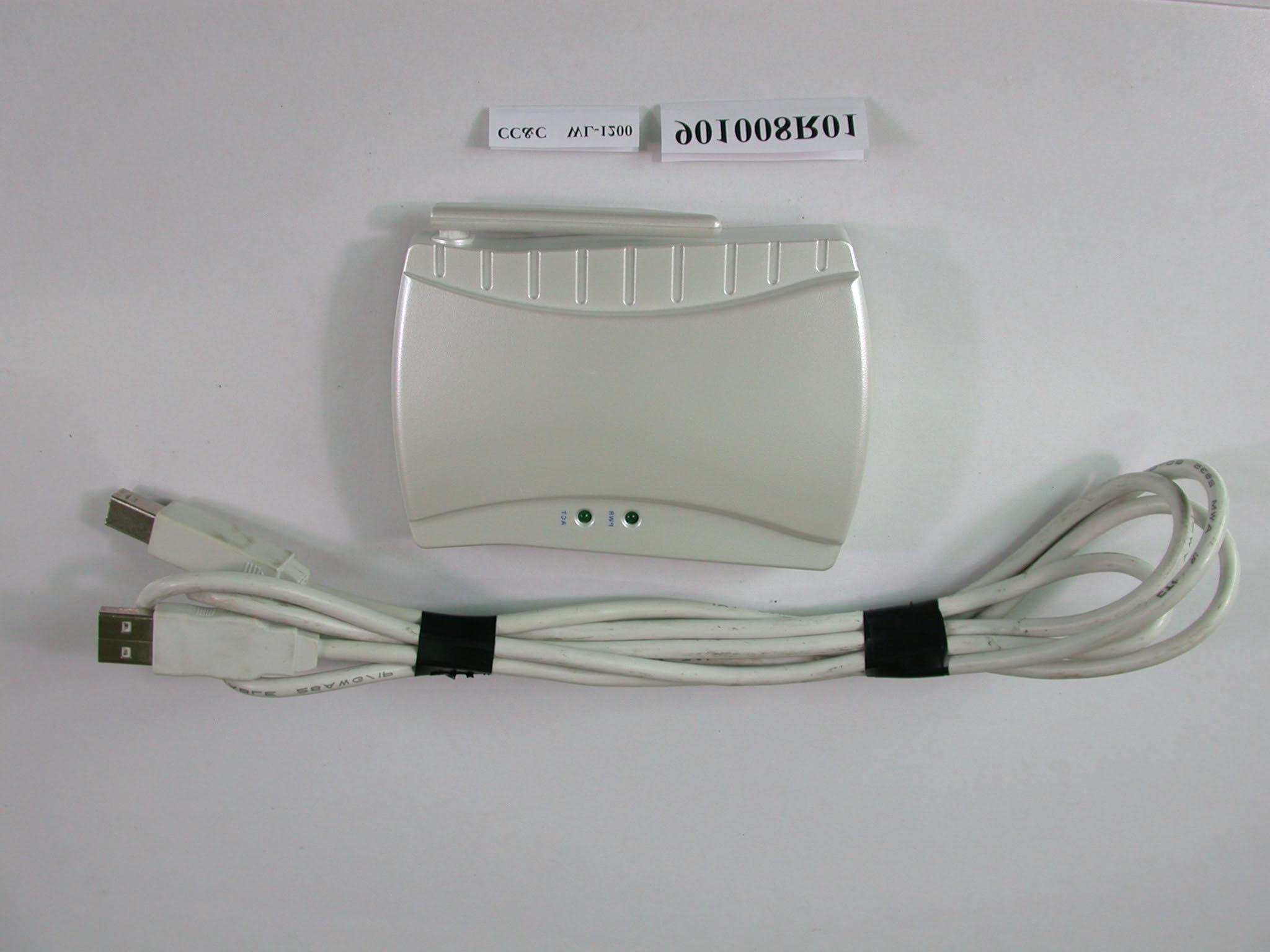

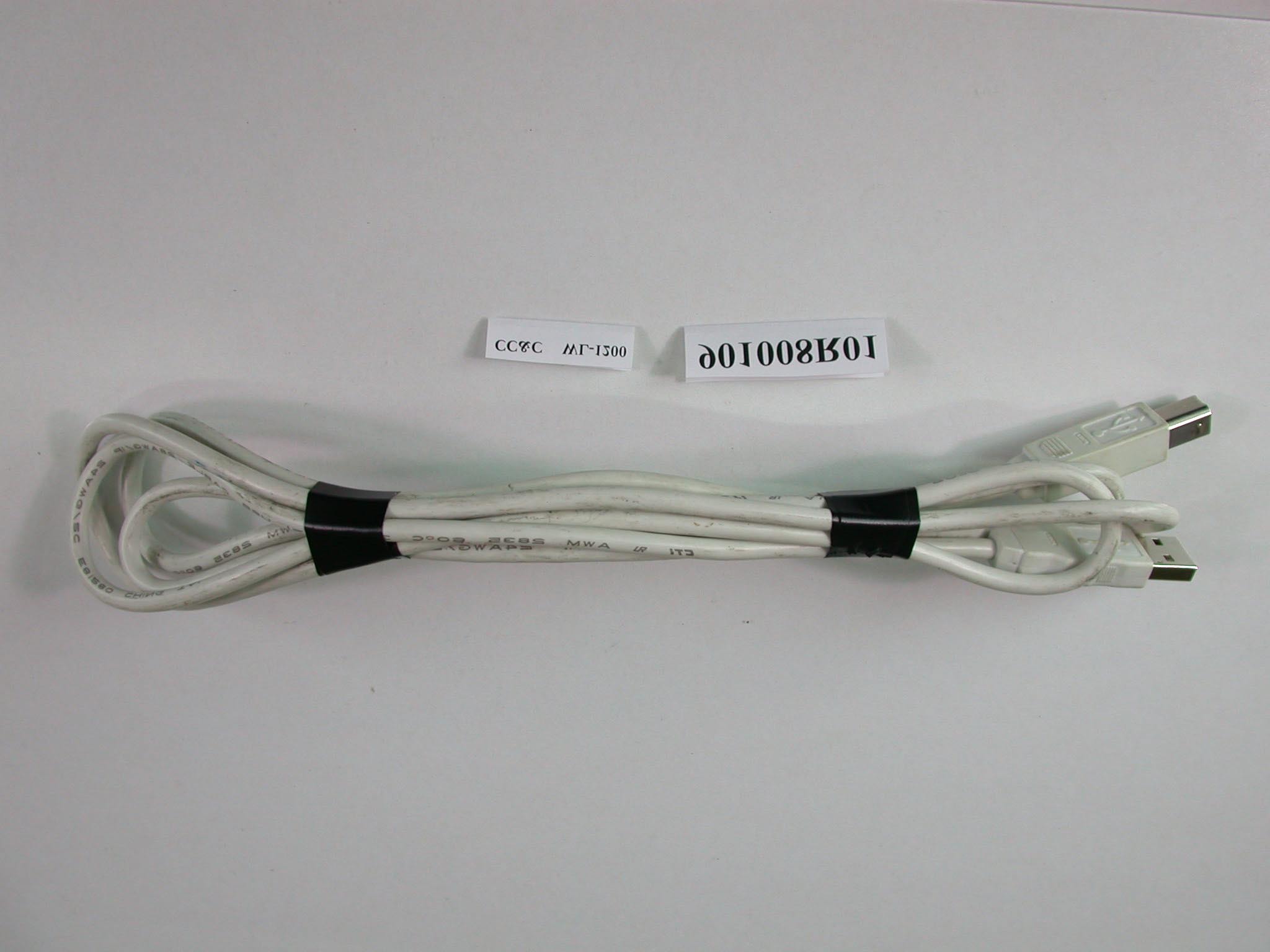

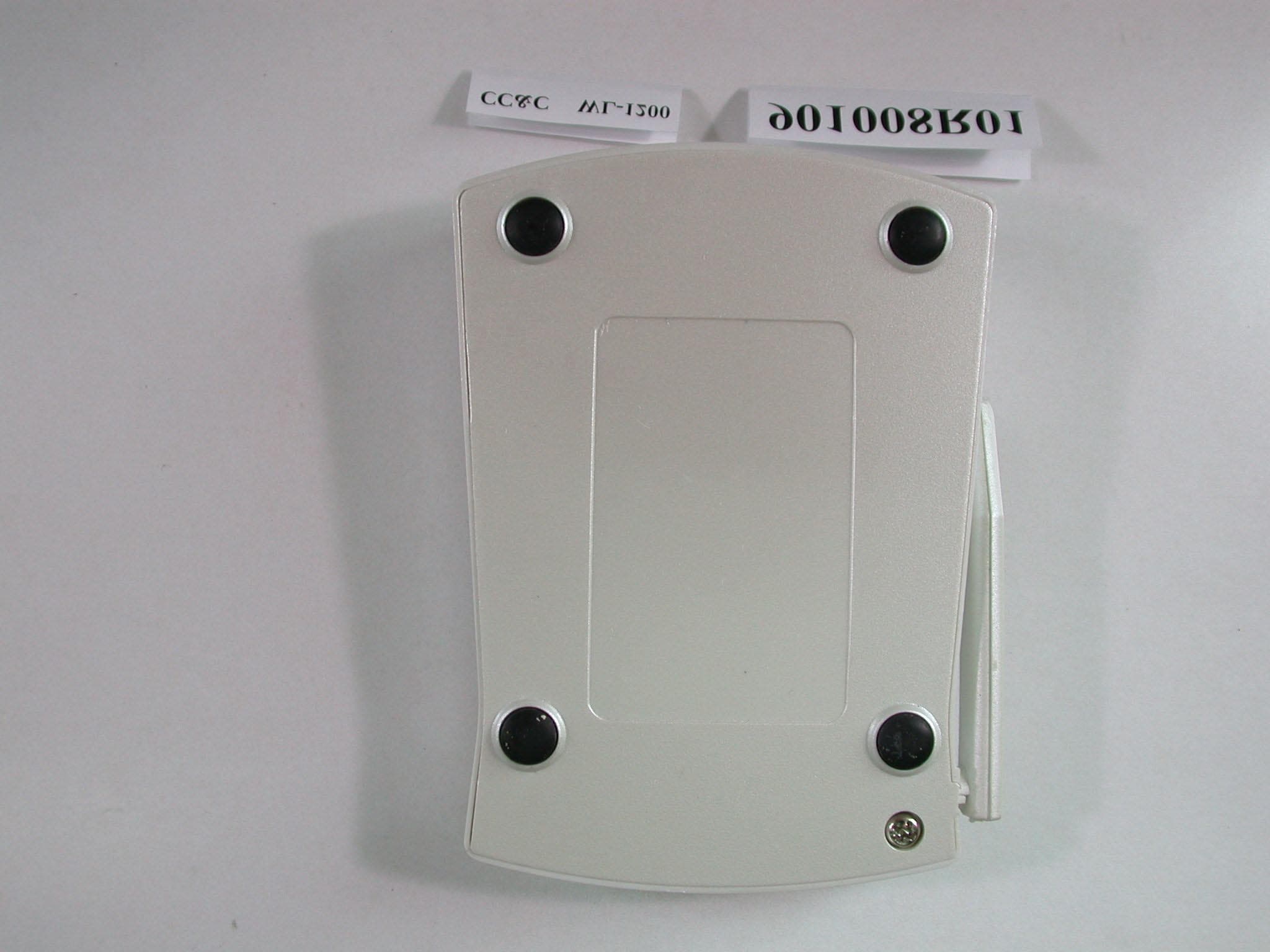

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE FCC ID : PANWL1200 35.5 mm 20mm 36mm WLAN USB Dongle MODEL: WL-1200 Power Rating : 5V IEEE 802.11b 11 Mbps 2.4GHz DSSS Made In Taiwan MAC Address: 000272F00001 S/N: WU0102000001-NA FrontBack PRODUCT LABEL The label is stuck on the back of WLAN USB Dongle

Page 4

Page 5 Page 6

FCC ID: PANWL1200 ADT No.901008R01 Operational Description The transmitter of the EUT (Wireless LAN USB Dongle) is powered by host equipment from USB port. The antenna is Dipole antenna, and there is no antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: PANWL1200 ADT No.: 901008R01 FCC TEST REPORT REPORT NO.: RF901008R01 MODEL NO.: WL-1200 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:CC&C TECHNOLOGIES INC. ADDRESS: 8F, No.150, Chien-I Road, Chung Ho City, Taipei, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 Lab Code: 200102-0 FCC ID: PANWL1200 ADT No.: 901008R01 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20 cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: PANWL1200 ADT No.: 901008R01 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: PANWL1200 ADT No.: 901008R01 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.0 dBi or 1.26 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241262.522.50 6243760.532.46 11246252.362.29 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: PANWL1200 Report No.: RF901008R01 1 Issued: October 15, 2001 FCC TEST REPORT REPORT NO.: RF901008R01 MODEL NO.: WL-1200 RECEIVED: October 2, 2001 TESTED: Oct. 4~ Oct. 11, 2001 APPLICANT: CC&C TECHNOLOGIES INC. ADDRESS: 8F, No.150, Chien-I Road, Chung Ho City, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 48 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 Lab Code: 200102-0 FCC ID: PANWL1200 Report No.: RF901008R01 2 Issued: October 15, 2001 Table of Contents 1CERTIFICATION ...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 3GENERAL INFORMATION ...........................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...............................7 3.4DESCRIPTION OF SUPPORT UNITS..........................................................8 4TEST TYPES AND RESULTS.......................................................................9 4.1CONDUCTED EMISSION MEASUREMENT ................................................9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..............................9 4.1.2 TEST INSTRUMENTS ..................................................................................9 4.1.3 TEST PROCEDURES .................................................................................10 4.1.4 TEST SETUP ..............................................................................................10 4.1.5 EUT OPERATING CONDITIONS................................................................11 4.1.6 TEST RESULTS..........................................................................................12 4.2RADIATED EMISSION MEASUREMENT ...................................................18 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................18 4.2.2 TEST INSTRUMENTS ................................................................................19 4.2.3 TEST PROCEDURES .................................................................................20 4.2.4 TEST SETUP ..............................................................................................21 4.2.5 EUT OPERATING CONDITIONS................................................................21 4.2.6 TEST RESULTS..........................................................................................22 4.36DB BANDWIDTH MEASUREMENT ..........................................................26 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................26 4.3.2 TEST INSTRUMENTS ................................................................................26 4.3.3 TEST PROCEDURE ...................................................................................27 4.3.4 TEST SETUP ..............................................................................................27 4.3.5 EUT OPERATING CONDITIONS................................................................27 4.3.6 TEST RESULTS..........................................................................................28 4.4MAXIMUM PEAK OUTPUT POWER ..........................................................32 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ...........32 4.4.2 INSTRUMENTS ..........................................................................................32 4.4.3 TEST PROCEDURES .................................................................................33 4.4.4 TEST SETUP ..............................................................................................33 4.4.5 EUT OPERATING CONDITIONS................................................................33 4.4.6 TEST RESULTS..........................................................................................34 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................35 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ...................35 4.5.2 TEST INSTRUMENTS ................................................................................35 4.5.3 TEST PROCEDURE ...................................................................................36 4.5.4 TEST SETUP ..............................................................................................36 FCC ID: PANWL1200 Report No.: RF901008R01 3 Issued: October 15, 2001 4.5.5 EUT OPERATING CONDITION ..................................................................36 4.5.6 TEST RESULTS..........................................................................................37 4.6BAND EDGES MEASUREMENT ................................................................41 4.6.1 LIMITS OF BAND EDGES MEASUREMENT..............................................41 4.6.2 TEST INSTRUMENTS ................................................................................41 4.6.3 TEST PROCEDURE ...................................................................................41 4.6.4 EUT OPERATING CONDITION ..................................................................42 4.6.5 TEST RESULTS..........................................................................................42 4.7ANTENNA REQUIREMENT........................................................................45 4.7.1 STANDARD APPLICABLE ......................................................…

Text truncated - open the document above for the full version.

FCC ID: PANWL1200 Report No.: RF901008R01 46 Issued: October 15, 2001 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PANWL1200 Report No.: RF901008R01 47 Issued: October 15, 2001 RADIATED EMISSION TEST
