PANWL1201MWLAN USB Module

WL-1201M IEEE 802.11b Wireless LAN USB Module Hardware Installation Guide Version 1.0 WLAN USB Module Installation Guide 2 REGULATION INFORMATION The WLAN USB Module must be installed and used in strict accordance with the manufacturer’s instructions. This module device complies with the following radio frequency and safety standards. FCC (Federal Communications Commission) This module device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This module device may not cause harmful interference. 2. This module device must accept any interference that may cause undesired operation. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Notice: The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification not expressly approved by the party responsible could void the user’s authority to operate the device. Warning: When installing the WLAN USB Dongle, the ferrite shall be placed on the USB cable for compliance. WLAN USB Module Installation Guide 3 Table of Contents 1Introduction .................................................................................................................... 4 2Technical Specification of WLAN USB Module ........................................................... 4 3Installation ...................................................................................................................... 5 4PCB Drawing and Module Mounting ............................................................................ 6 WLAN USB Module Installation Guide 4 1 Introduction Thanks for you purchasing Wireless Local Area Network (WLAN) USB module. You are about to install a networking system that is not only fast and powerful, but also easy to set up and simple to maintain. In a short time you and those in your network will be able to share a local printer and files, access the Internet, and roam about the office wire-freely. Using radio frequency (RF) technology, WLAN devices transmit and receive data over the air, minimizing the need for wired connections. Thus, WLAN combine data connectivity with user mobility, and, through simplified configuration, enable movable LANs. This wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users and new network features as your business grows. This installation guide will assist you in installing the WLAN USB module. 2 Technical Specification for WLAN USB Module. Product NameWLAN USB Module StandardIEEE802.11b Frequency Band2.400GHz ~ 2.4835GHz unlicensed ISM band Spread SpectrumDSSS (Direct Sequence Spread Spectrum) Modulation methodDQPSK/DBPSK/CCK Data Rate1Mbps, 2Mbps, 5.5Mbps, 11Mbps Operation modePeer-to-Peer Access Point (need Access Points) AntennaExternal antenna. RF Output PowerMax 8dBm. Receive SensitivityOperating at 11Mbps: Better than 10^-5 BER @ –80dBm Operating RangeUp to 200 m, depending on surrounding environment. Security64-bit or 128-bit WEP (Wired Equivalent Privacy) Operating system supported Windows 98, Windows ME, Windows 2000, Windows XP, Linux ManagementWindows-based utility for configuration and status monitoring RegulationFCC part 15 for North America I/O InterfaceUSB port LED(option)ACTIVE(ACT) , POWER(PWR) Dimension90(L) x 75(W) x 15(H) mm Weight43 g (approximate) Input Power5V DC Operating Temperature 0 ~ 50°C (operation) Storage Temperature -20 ~ 70°C Humidity5 ~ 90% (non-condensing) WLAN USB Module Installation Guide 5 3 Installation This section describes the procedures for installing the Wireless LAN USB module on your product/system. Before You Start Before installation, please check your system in advance and ensure it meets the minimum requirements as described below. - Processor: Intel Celeron / Pentium II /Pentium III / Pentium IV; AMD Duron / Athlon - Operating System: Microsoft Windows 98 / ME / 2000 / XP/ Linux - System memory: 32MB at least. - Hard Drive Free Space: 5MB. WLAN USB Module Installation Guide 6 4 PCB Drawing and module Mounting. Connector PIN assignment:

IEEE 802.11b Wireless LAN USB Dongle User’s Guide Version 5.0 WLAN USB Dongle User’s Guide 2 REGULATION INFORMATION The WLAN USB Dongle must be installed and used in strict accordance with the manufacturer’s instructions. This device complies with the following radio frequency and safety standards. FCC (Federal Communications Commission) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference that may cause undesired operation. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: When installing the WLAN USB Dongle, the ferrite shall be placed on the USB cable for compliance. WLAN USB Dongle User’s Guide 3 R&TTE Directive This device complies with the specifications listed below: • ETS 301-489 -1&-17 General EMC requirements for Radio equipment. • ETS 300-328 Technical requirements for Radio equipment. • EN60950 Safety Requirements for Radio equipment WLAN USB Dongle User’s Guide 4 Table of Contents 1Introduction........................................................................................................................ 5 2Wireless LAN basics.......................................................................................................... 6 3Installation.......................................................................................................................... 7 3.1Install Wireless LAN USB Dongle under Windows 98..................................... 9 3.2Install Wireless LAN USB Dongle under Windows ME................................. 18 3.3Install Wireless LAN USB Dongle under Windows 2000............................... 23 3.4Install Wireless LAN USB Dongle under Windows XP.................................. 30 4Configuration Utility........................................................................................................ 42 Configuration Utility under Windows 98/ME/2K/XP..................................... 42 5Technical Specifications of WLAN USB Dongle............................................................ 49 6Troubleshooting................................................................................................................ 50 7Glossary............................................................................................................................ 52 WLAN USB Dongle User’s Guide 5 1 Introduction Thank you for purchasing Wireless Local Area Network (WLAN) USB Dongle. You are about to install a networking system that is not only fast and powerful, but also easy to set up and simple to maintain. In a short time you and those in your network will be able to share a local printer and files, access the Internet, and roam about the office wire-freely. Using radio frequency (RF) technology, WLAN devices transmit and receive data over the air, minimizing the need for wired connections. Thus, WLANs combine data connectivity with user mobility, and, through simplified configuration, enable movable LANs. This wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users and new network features as your business grows. This user’s guide will assist you in installing the WLAN USB Dongle. WLAN USB Dongle User’s Guide 6 2 Wireless LAN basics Wireless LAN network defined by IEEE 802.11b standard committee could be configured as: • •• • Peer-to-Peer wireless LAN, or • •• • Access Point wireless LAN. Peer-to-Peer network is a group of notebooks with wireless LAN USB Dongles, called a BSS (Basic Service Set). These notebooks use their wireless LAN USB Dongles to communicate with each other directly. Figure 2-1 Peer-to- Peer wireless network The most obvious differentiation between Access Point wireless network and Peer-to-Peer wireless network is that the notebooks in Access Point wireless network can make use of the resource in the Internet through Access Point. STA 3 STA 1 STA 2 Access Point Internet Figure 2-2 Access Point wireless network To set up your notebook’s network as the type of “Peer-to-Peer” or “Access Point” wireless network depends completely on your requirement. Generally, if your network environment has an Access Point, it’s …

Text truncated - open the document above for the full version.

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: WLAN USB Module (Receiver Part) MODEL NO.: WL1201M TRADE NAME: CC&C IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D911007R01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION (COMPANY NAME) (COMPANY ADDRESS) TEL FAX (NAME)(TITLE) (SIGNATURE)(DATE)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 February 18, 2003 RE: FCC ID: PANWL12001M Attention: Ellis wu I have a few comments on this Application. 1. Please note that you have asked for a Limited Modular Approval (LMA) on this device. An LMA is a limited approval for use in a specific device. Your letter mentions several devices. This would not be an LMA but rather a Modular approval. Also, since the device is only 4mw it could be used in mobile or portable devices with no mention of a 20cm separation. However, the other documentation states the device is only a cable connected USB Dongle. Please correct LMA and other exhibits to correctly specify what the device is. 2. On the first page of the internal photos you show a copper shielded area. Is this copper shield a modification to achieve compliance done at the lab, or is this installed at the factory? If it is a modification please so indicate and please show how the manufacturer will implement this fix. If it was part of the device as received for testing, please so indicate. 3. Please note that this device appears to have a standard USB port connector, and is listed as a USB Dongle Module. Also please note that even tested as a stand alone, it was tested connected to a laptop USB port. This then appears to be one of the potential markets for the device. The cable used indicates that this is not a ‘directly connected’ USB Dongle, but requires a USB cable. Please clarify or show a photo of the USB connector on the device. 4. The manual states that this is an OEM installed device only. Please explain how it is possible to be connected to a typical laptop USB port via USB cable and still be OEM installed only. Please also note that when this module is made into a USB Dongle (i.e. a case is added), it would most likely have to be recertified as such. 5. Please note that you state this device could be used in a “Notebook with antenna mounted around LCD panel”. What does this mean? Are the antenna(s) installed inside the laptop so as to be not assessable by the user under normal use? Or does this mean that external antenna(s) are somehow fastened to the outside of the laptop? If the antenna(s) are installed inside the laptop, this would indicate an OEM installation inside the Laptop as mentioned. If however, the antenna(s) are installed outside the laptop (i.e. fastened to the outside of the LCD in some manner), this may not be under the control of the OEM because the user could reattach the antenna(s) at other locations on the laptop. The manual and technical documents say nothing of how this is done (i.e. OEM installation instructions). Please clarify the use of the device in this situation. 6. The device has a standard USB connector which is not typical of an OEM installation inside a laptop. Please explain what type of connector would be used in this case and please show photos of this connector type. If the standard USB connector is simply not provided in this situation, please so indicate. Please clarify. 7. Please note that the manual clearly refers to this as a USB Dongle only and states that “To use the WLAN USB Dongle with a computing device, the device must be equipped z Page 2 February 18, 2003 with an available USB port.” The manual also states in the technical section that the use of this device is for the USB port. This statement in the manual precludes the use of this device as internal to a “Notebook with antenna mounted around LCD panel.” Also, the report calls the device a USB Module. What is this device? Please clarify the use of this device and make all documentation consistent. 8. Please note that the testing of the device using a USB cable shows that this cable has a ferrite on the cable. Ferrite loaded USB cables are not typical. As such, please note that a ferrite of similar characteristics as was tested must be provided with this device. Also, please note that instructions on how to install this ferrite on the USB cable must be provided in the manual. Alternately, please show compliance of the device using a non- ferrite loaded USB cable. 9. Please note that in reference to items 3 through 8 it appears that you are trying to get a modular approval on what is a simple external USB cable connected peripheral device with a WLAN transmitter without a case. Would it not be simpler to put the device in a plastic case and certify the device as such? If the device is a module, please clearly and unambiguously define and clarify where it is to be used and how it is to be used/connected/installed. Please correct all documentation to be consistent as to the purpose of this device. 10. Please note that the manual is very inconsistent as to what this device is. For example, in the installation instructions for most operating systems you say to plug the cable into the USB port. However, in the Windows XP section you state that the device is a PC Card in one paragraph and you state it is a WLAN USB Dongle in another (see section 4.4 “Install Wireless LAN USB Dongle under Windows XP”). Please make all documentation consistent and please clearly an unambiguously explain what this device is. 11. Please note that the external photos show a ferrite on the dipole antenna. It is my assumption that testing was done with this ferrite. Please note that this means the ferrite is necessary for compliance and a ferrite of the type must be provided with this device for use with the dipole antenna. Also please note that instructions on how to install this ferrite on the dipole antenna cable must be included in the manual. Alternately, please test the radiated spurious emissions using the dipole without the ferrite. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the perm…

Text truncated - open the document above for the full version.

1 dward From: [email protected] Sent: Friday, March 21, 2003 2:08 AM To: [email protected] Cc: Alan Lane; Bill Graff; [email protected] Subject: 回信： PANWL1201M 2-18-03 WL12001M ATCB Com Dennis, Our reply for your comments as below. 1. Revised modular approval letter and MPE report had been uploaded to ATCB. 2. Yes, the copper foil is the countermeasurement for the EMI. When installs the copper shielded area they will add sigle side isolation plastic to fix on it. 3. This device probably has four kind of connector, standard USB, Mini USB, board to board and board to wired connector. First one is for USB dongle, the others are for Laptop PC/notebook. 4. When installed in the Laptop PC, modular can be connected via a short wire when use Mini USB or board to wire connector. 5. For OEM, Antenna always mounted inside for laptop/notebook. 6. Same as item 3. 7. Because the module will be used on USB dongle and build-in a system for module, So, the munual will have two kinds description. User manual is under revised, we will send you if it is OK. 8. They will add Ferrite on the external cable and add instructions on how to install ferrite on the USB cable. 9. Same as item 7 and revise uesr manual for the consistence. When it be use on USB dongle, it will be put in plastic case. 10. Reviseed user manual. 11. They will install the ferrites on the antenna cable with shrink wrap, and add OEM instruction guide to the user manual. Best Regards 吳佳鑫 / Ellis Wu E-mail : [email protected] 誠信科技 / ADT Corp. TEL : +886 3 3270910 #24 FAX : +886 3 3270892 "dward" <[email protected] 收件人： <[email protected]>, "Alan Lane" m> <[email protected]> 副本抄送： "Bill Graff" <[email protected]> 2003/03/21 主旨： PANWL1201M 02:29 PM 請回信 給 dward 2 Hi Ellis / Alan This has been sitting around for quite awhile now. Any word on getting the information to ATCB? Thanks Dennis (See attached file: 2-18-03 PANWL12001M ATCB Comments.pdf)

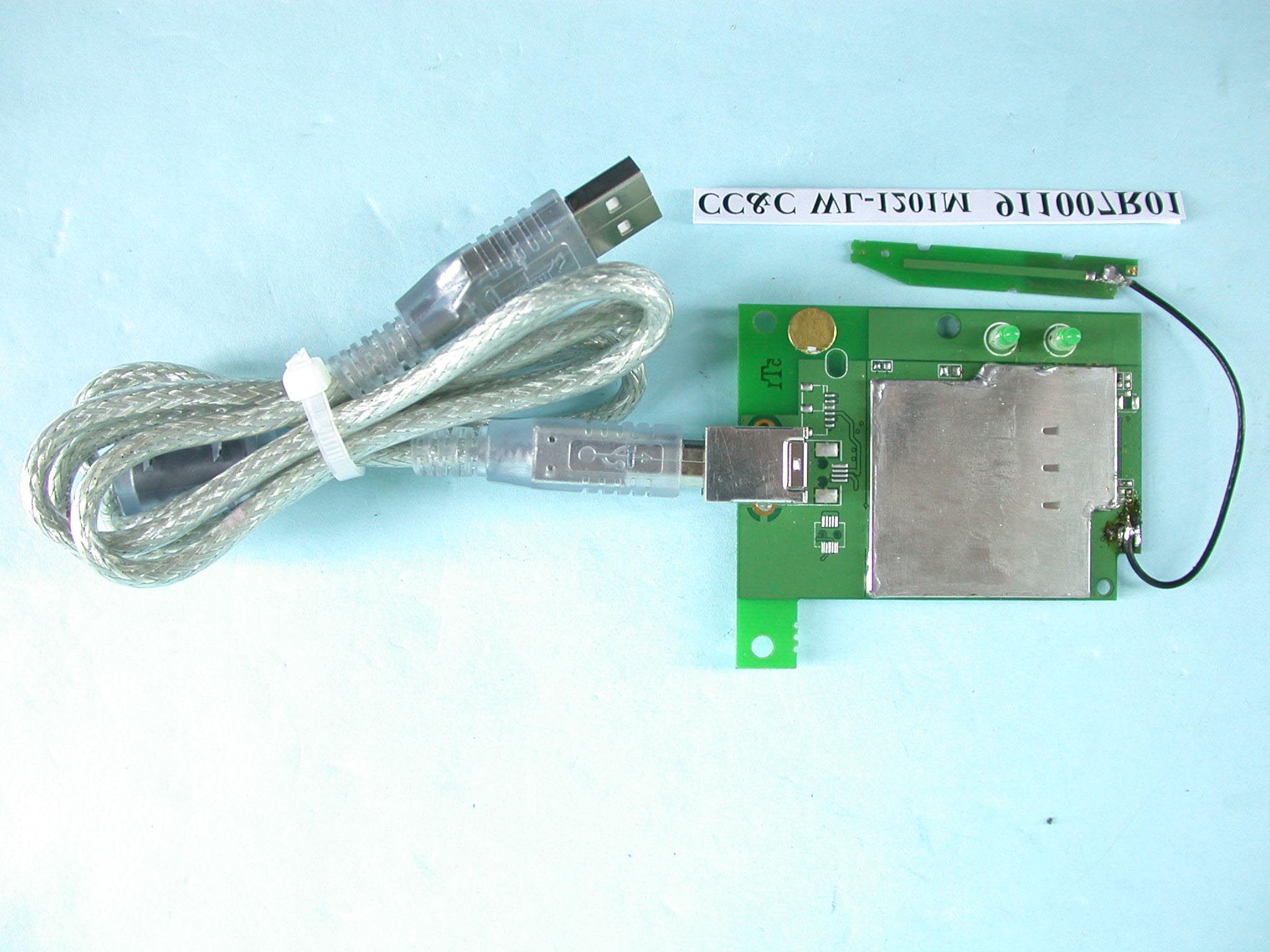

FCC ID: PANWL1201M ADT No.911007R01 Modular Approval Request Letter Advance Data Technology Jan. 29, 2003 Dear Application Examiner, CC&C’s WLAN USB Module, FCC ID: PANWL1201M, would like to have your authorization for Module Approval request. The requirements of Public Notice DA00- 1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip ISL3873. 3. “The modular transmitter must have its own power supply regulation.” There is a regulator in the DC input port, the part number is AME1117. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB card. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: PANWL1201M ADT No.911007R01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Dr. Alan Lane Manager of R&TTE Division Advance Data Technology

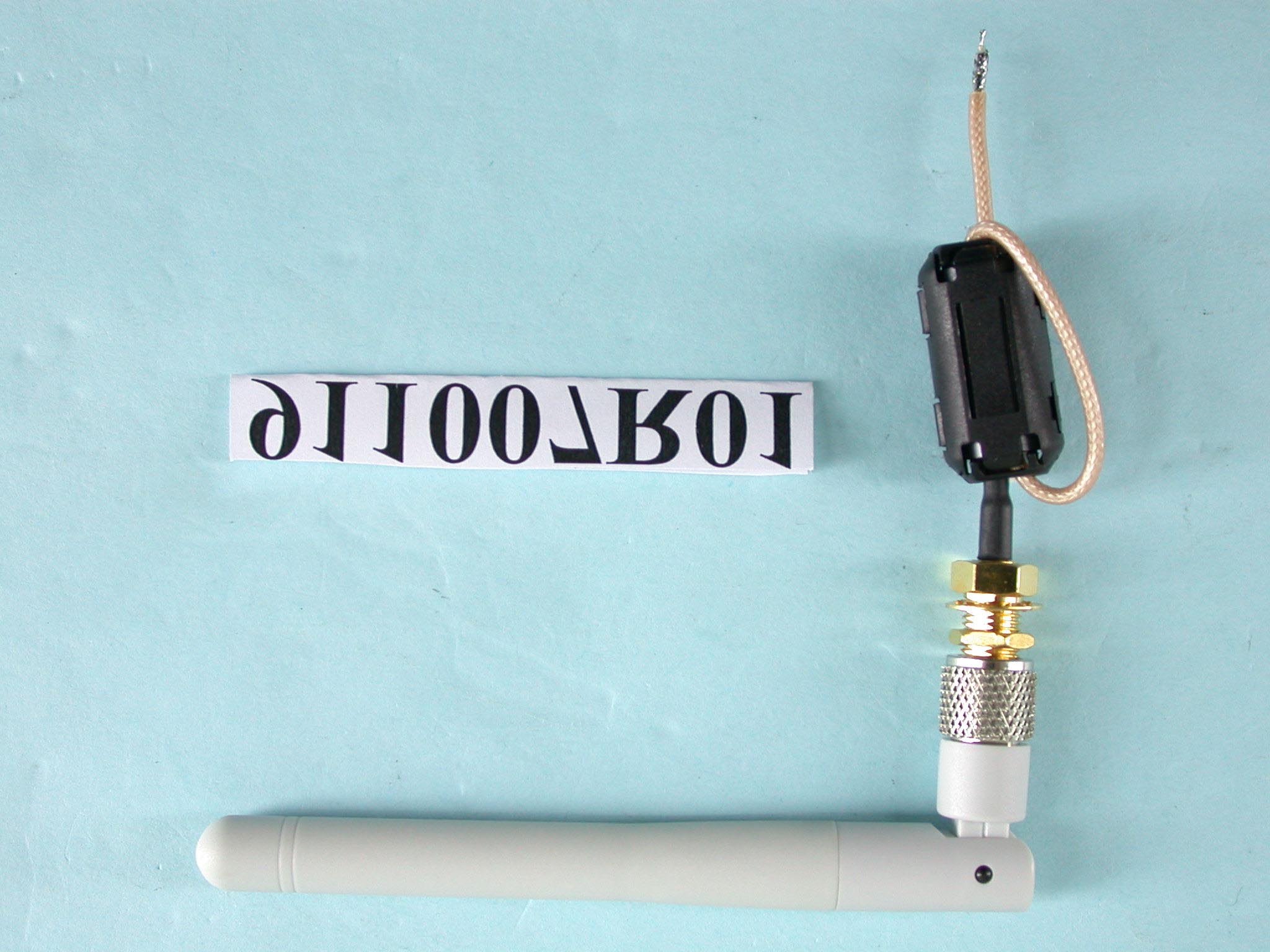

Page 1 ANNEX PHOTOGRAPHS OF EUT Dipole Antenna Inverted F Antenna Page 2 Page 3 Patch Antenna Page 4 Page 5 Page 6

30mm 7mm FCC ID: P ANWL1201M FCC ID: P ANWL1201M The Label Position of WL-1201M WL-1201M WLAN Mini-USB Module

Page 7 Page 8

FCC ID: PANWL1201M ADT No.911007R01 Operational Description The transmitter of the EUT (WLAN USB Module) is powered by host equipment. Three antennas are Patch, Dipole and Inverted F with the MMCX antenna connector. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: PANWL1201M ADT No.: 911007R01 RF EXPOSURE TEST REPORT REPORT NO.: RF911007R01 MODEL NO.: WL-1201M ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:CC&C TECHNOLOGIES INC. ADDRESS: 8F, No.150, Jian Yi Road, Chung Ho City, Taipei, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PANWL1201M ADT No.: 911007R01 RF Exposure Measurement (Portable Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 2.5 cm far away from the body of the user. Warning statement to the user for keeping at least 2.5cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Portable Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: PANWL1201M ADT No.: 911007R01 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: PANWL1201M ADT No.: 911007R01 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.5dBi. 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 124124.3250.697 624373.8540.658 1124623.0130.582 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 2.5cm separation distance with the antenna.

FCC ID: PANWL1201M Report No.: RF911007R011Issued: Jan. 28, 2003 FCC TEST REPORT REPORT NO.: RF911007R01 MODEL NO.: WL-1201M RECEIVED: Oct. 07, 2002 TESTED: Dec. 24, 2002 ~ Jan. 27, 2003 APPLICANT: CC&C TECHNOLOGIES INC. ADDRESS: 8F, 150, JIAN YI ROAD. CHUNG HO CITY, TAIPEI COUNTRY, TAIWAN 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 58 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PANWL1201M Report No.: RF911007R012Issued: Jan. 28, 2003 Table of Contents 1CERTIFICATION.....................................................................................4 2SUMMARY OF TEST RESULTS...............................................................5 3GENERAL INFORMATION.......................................................................6 3.1GENERAL DESCRIPTION OF EUT..........................................................6 3.2DESCRIPTION OF TEST MODES............................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.............................7 3.4DESCRIPTION OF SUPPORT UNITS......................................................8 4TEST TYPES AND RESULTS..................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.............................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................9 4.1.2TEST INSTRUMENTS.............................................................................9 4.1.3TEST PROCEDURES............................................................................10 4.1.4DEVIATION FROM TEST STANDARD....................................................10 4.1.5TEST SETUP.........................................................................................11 4.1.6EUT OPERATING CONDITIONS............................................................12 4.1.7TEST RESULTS....................................................................................13 4.2RADIATED EMISSION MEASUREMENT................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...............................19 4.2.2TEST INSTRUMENTS...........................................................................20 4.2.3TEST PROCEDURES............................................................................21 4.2.4DEVIATION FROM TEST STANDA…

Text truncated - open the document above for the full version.
