1 IEEE802.11b Wireless LAN m ini-PCI Module Software Installation Manual Version 1.0 2003/6 /26 2 REGULATION INFORMATION The Wireless mini-PCI module must be installed and used in strict accordance with the manufacturer’s instructions. This device complies with the following radio frequency and safety standards. FCC (Federal Communications Commission) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference that may cause undesired operation. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Notice: The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification not expressly approved by the party responsible could void the user’s authority to operate the device. R&TTE Directive This device complies with the specifications listed below: • ETS 301-489 -1&-17 General EMC requirements for Radio equipment. • ETS 300-328 Technical requirements for Radio equipment. • EN60950 Safety Requirements for Radio equipment 3 The channel identifiers, channel center frequencies, and regulatory domains of each 22-MHz-wide channel are shown in following Table. Regulatory Domains Channel Identifier Center Frequency (MHZ) Japan ETSI North America 1 2412 2 2417 3 2422 4 2427 5 2432 6 2437 7 2442 8 2447 9 2452 10 2457 11 2462 12 2467 13 2472 14 2484 4 Table of Contents 1 Introduction............................................................................5 2 Wireless LAN Basics.............................................................6 3 Drivers and Utility Installation..............................................7 4. Wireless Network Configuration........................................13 5.Specifications of Wireless LAN mini-PCI Module.............18 6.Glossary...............................................................................19 5 1 Introduction You are about to install a networking system that is not only fast and powerful, but also easy to set up and simple to maintain. In a short time you and those in your network will be able to share a local printer and files, access the Internet, and roam about the office wire-freely. Using radio frequency (RF) technology, WLAN devices transmit and receive data over the air, minimizing the need for wired connections. Thus, WLANs combine data connectivity with user mobility, and, through simplified configuration, enable movable LANs. This wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users and new network features as your business grows. This software installation guide will assist you in installing Wireless mini-PCI module application. 6 2 Wireless LAN Basics Wireless LAN network defined by IEEE 802.11b standard committee could be Configure as: Ad Hoc wireless LAN or Infrastructure wireless LAN. Ad Hoc network is a group of notebooks with wireless LAN adapter, called a BSS (Basic Service Set). These notebooks use their wireless LAN adapter to communicate with each other directly. The most obvious differentiation between Infrastructure wireless network and Ad Hoc wireless network is that the notebooks in Infrastructure wireless network can make use of the resource in the Internet through Access Point. To set up your notebook’s network as the type of “Ad Hoc” or “Infrastructure” wireless network depends completely on your requirement. Generally, if your network environment has an Access Point, it’s recommend that you set it as “Infrastructure” mode to connect to the Internet. 7 3 Drivers and Utility Installation This section describes the procedures for installing Wireless mini-PCI module. Before You Start Before installation, please check your system in advance and make sure that the Mini PCI is installed with your Notebook. Consult to your dealer for the existence, compatibility or installation of Mini PCI module with your Notebook. Note: To prevent potential problems during installation, please use the auto-run installation tool on the CD to finish the driver installation before you plug The WLAN Module into the computer. All drivers and supporting software for Wireless mini-PCI module must be installed and configured. Ask your system administrator for the following information, which you may need during driver installation: • Your Wireless LAN SSID. • Your computer’s unique client name and workgroup name • For your network account, your user name and password. • Your IP address, gateway address, and subnet mas…

Text truncated - open the document above for the full version.

FCC ID: PANWL1401 ADT No.920218R04 Modular Approval Request Letter Advance Data Technology July 25, 2003 Dear Application Examiner, CC&C TECHNOLOGIES INC’S 802.11b Mini PCI WLAN, FCC ID: PANWL1401, would like to have your authorization as a modular approval specific to the mobile device such as notebook with antenna mounted around LCD panel, access point and router. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AM1771. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 2.8V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is LP3985IM5. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: PANWL1401 ADT No.920218R04 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Dr. Alan Lane J. VP Advance Data Technology

8F, 150, Jian Yi Road, Chung Ho City, Taipei County, Taiwan 235, R.O.C. TEL: 886-2-8226-5088 FAX: 886-2-8226-5077 E-mail: [email protected] Power of Attorney To whom it may concern: We, the undersigned CC&C Technologies, Inc. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- Kenny Chou / VICE President R&D Division E-mail: [email protected] Technologies, Inc.

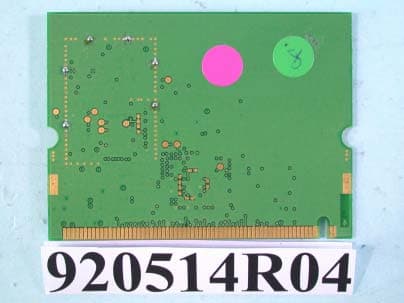

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Label location

Page 3 Page 4 Page 5

FCC ID: PANWL1401 ADT No.920514R04 Operational Description The transmitter of the EUT (802.11b Mini PCI WLAN) is powered by host equipment via a PCMCIA interface. The antenna is Printed antenna without antenna connector. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: PANWL1401 Report No.: 920514R04 FCC TEST REPORT REPORT NO.: RF920514R04 MODEL NO.: WL-1401 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Askey Computer Corp. ADDRESS: 10F, No.119, ChienKang Rd., Chung-Ho, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PANWL1401 Report No.: 920514R04 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: PANWL1401 Report No.: 920514R04 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: PANWL1401 Report No.: 920514R04 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 0.5dBi or 1.122 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241214.1250.0031.0 6243714.7570.0031.0 11246214.2560.0031.0

FCC ID: PANWL1401 Report No.: RF920514R04 1 Issued: June 30, 2003 FCC TEST REPORT REPORT NO.: RF920514R04 MODEL NO.: WL-1401 RECEIVED: May 14, 2003 TESTED: May 17, 2003 ~ Jun.12, 2003 APPLICANT: CC&C TECHNOLOGIES INC. ADDRESS: 8F, 150, JIAN YI ROAD, CHUNG-HO CITY, TAIPEI ,TAIWAN 235, R.O.C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 50 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PANWL1401 Report No.: RF920514R04 2 Issued: June 30, 2003 Table of Contents 1 CERTIFICATION ........................................................................................... 4 2 SUMMARY OF TEST RESULTS................................................................... 5 3 GENERAL INFORMATION ........................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2 DESCRIPTION OF TEST MODES................................................................ 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4 DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4 TEST TYPES AND RESULTS....................................................................... 9 4.1 CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2 TEST INSTRUMENTS .................................................................................. 9 4.1.3 TEST PROCEDURES................................................................................. 10 4.1.4 DEVIATION FROM TEST STANDARD ....................................................... 10 4.1.5 TEST SETUP ...............................................................................................11 4.1.6 EUT OPERATING CONDITIONS.................................................................11 4.1.7 TEST RESULT ............................................................................................ 12 4.2 RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................. 18 4.2.2 TEST INSTRUMENTS ................................................................................ 19 4.2.3 TEST PROCEDURES................................................................................. 20 4.2.4 DEVIATION FROM TEST STANDARD ....................................................... 20 4.2.5 TEST SETUP .............................................................................................. 21 4.2.6 EUT OPERATING CONDITIONS................................................................ 21 4.2.7 TEST RESULT ............................................................................................ 22 4.3 6dB BANDWIDTH MEASUREMENT .......................................................... 26 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 26 4.3.2 TEST INSTRUMENTS ................................................................................ 26 4.3.3 TEST PROCEDURE ................................................................................... 27 4.3.4 DEVIATION FROM TEST STANDARD ....................................................... 27 4.3.5 TEST SETUP .............................................................................................. 27 4.3.6 EUT OPERATING CONDITIONS................................................................ 27 4.3.7 TEST RESULT ............................................................................................ 28 4.4 MAXIMUM PEAK OUTPUT POWER .......................................................... 32 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT................ 32 4..4.2TEST INSTRUMENTS..................................................................................... 32 FCC ID: PANWL1401 Report No.: RF920514R04 3 Issued: June 30, 2003 4.4.4 TEST SETUP ................................................................................................ 33 4.4.5 EUT OPERATING CONDITIONS.................................................................. 33 4.4.6 TEST RESULT .............................................................................................. 34 4.5 POWER SPECTRAL DENSITY MEASUREMENT...................................... 35 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT................... 35 4.5.2 TEST INSTRUMENTS ................................................................................ 35 4.5.3 TEST PROCEDURE ................................................................................... 36 4.5.4 DEVIATION FROM TEST STANDARD ....................................................... 36 4.5.5 TEST SETUP .............................................................................................. 36 4.5.6 EUT OPERATING CONDITIONS................................................................ 36 4.5.7 TEST RESULT ............................................................................................ 37 4.6 BAND EDGES MEASUREMENT................................................................ 41 4.6.1 LIMITS OF BAND EDGES MEASUREMENT ............................................. 41 4.6.2 TEST INSTRUMENTS ................................................................................ 41 4.6.3 TEST PROCEDURE ................................................................................... 41 4.6.4 DEVIATION FROM TEST STANDARD .......…

Text truncated - open the document above for the full version.

FCC ID: PANWL1401 Report No.: RF920514R04 46 Issued: June 30, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PANWL1401 Report No.: RF920514R04 47 Issued: June 30, 2003 FCC ID: PANWL1401 Report No.: RF920514R04 48 Issued: June 30, 2003 RADIATED EMISSION TEST FCC ID: PANWL1401 Report No.: RF920514R04 49 Issued: June 30, 2003
