PANWL1402802.11b Mini PCI Card

User’s Manual IEEE 802.11b WLAN MiniPCI Card Version2.0 2004/02/16 2 Table of Contents Information to User...................................... 3 1 Introduction................................................ 6 2 Wireless LAN basics.................................... 7 3 Windows Installation.................................... 8 3.1 Install Driver/Utility...................................... 9 3.2 Configuration Utility................................................. 11 3.2.1 Configured at “Windows XP configuration”........ 11 3.2.2 Configured at “Realtek advanced configuration” 12 4 Technical Specifications of WLAN MiniPCI Card... 21 Troubleshooting.......................................... 22 Glossary................................................... 23 Product names mentioned herein may be trademarks and/or registered trademarks of their respective companies. 3 INFORMATION TO USER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: 4 This device is intended only for OEM integrators under the following conditions: 1 ) The transmitter module may not be co-located with any other transmitter or antenna. As long as conduction above is met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: PANWL1402”. Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. The users manual for OEM integrators must include the following information in a prominent location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements. The antenna must not be co-located or operating in conjunction with any other antenna or transmitter. 5 REGULATORY INFORMATION WLAN MiniPCI Card must be installed and used in strict accordance with the instructions. This device complies with the following radio frequency and safety standards. USA - Federal Communications Commission (FCC) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference that may cause undesired operation. Europe - R&TTE Directive This device complies with the specifications listed below • ETS 300-826 General EMC requirements for Radio equipment. • ETS 300-328 Technical requirements for Radio equipment. • EN60950 Safety Requirements for Radio equipment The channel identifiers, channel center frequencies, and regulatory domains of each 22-MHz-wide channel are shown in following Table. Regulatory Domains Channel Identifier Center Frequency (MHZ) Japan ETSI North America Israel France Mexico 1 2412 ˇ ˇ ˇ 2 2417 ˇ ˇ ˇ 3 2422 ˇ ˇ ˇ ˇ 4 2427 ˇ ˇ ˇ ˇ 5 2432 ˇ ˇ ˇ ˇ 6 2437 ˇ ˇ ˇ ˇ 7 2442 ˇ ˇ ˇ ˇ 8 2447 ˇ ˇ ˇ ˇ 9 2452 ˇ ˇ ˇ ˇ 10 2457 ˇ ˇ ˇ ˇ ˇ 11 2462 ˇ ˇ ˇ ˇ ˇ 12 2467 ˇ ˇ ˇ 13 2472 ˇ ˇ ˇ 14 2484 ˇ 6 1. Introduction Thank you for purchasing Wireless Local Area Net (WLAN) MiniPCI Card. You are about to install a networking system that is not only fast and powerful, but also easy to set up and simple to maintain. In a short time you and those in your network will be able to share a local printer and files, access the Internet, and roam about the office wire-free. Using radio frequency (RF) technology, WLANs transmit and receive data over the air, minimizing the need for wired connections. Thus, WLANs combine data connectivity with user mobility, and, through simplified configuration, enable movable LANs. This wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users…

Text truncated - open the document above for the full version.

FCC ID: PANWL1402 Report No. RF921027R04 Modular Approval Request Letter Advance Data Technology March 8, 2004 Dear Application Examiner, CC&C TECHNOLOGIES INC.. It’s 802.11b Mini PCI Card, FCC ID: PANWL1402, would like to have your authorization as a limited modular approval specific to the mobile device such as notebook PC which brand is Uniwill and brand is 258SAO. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip RTL8180. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 2.7Vdc powered. The mini-pci interface provides 3.3Vdc, so there are regulators in front of these chips, the part number of this regulator is MIC5205. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: PANWL1402 Report No. RF921027R04 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Ellis Wu Manager Advance Data Technology

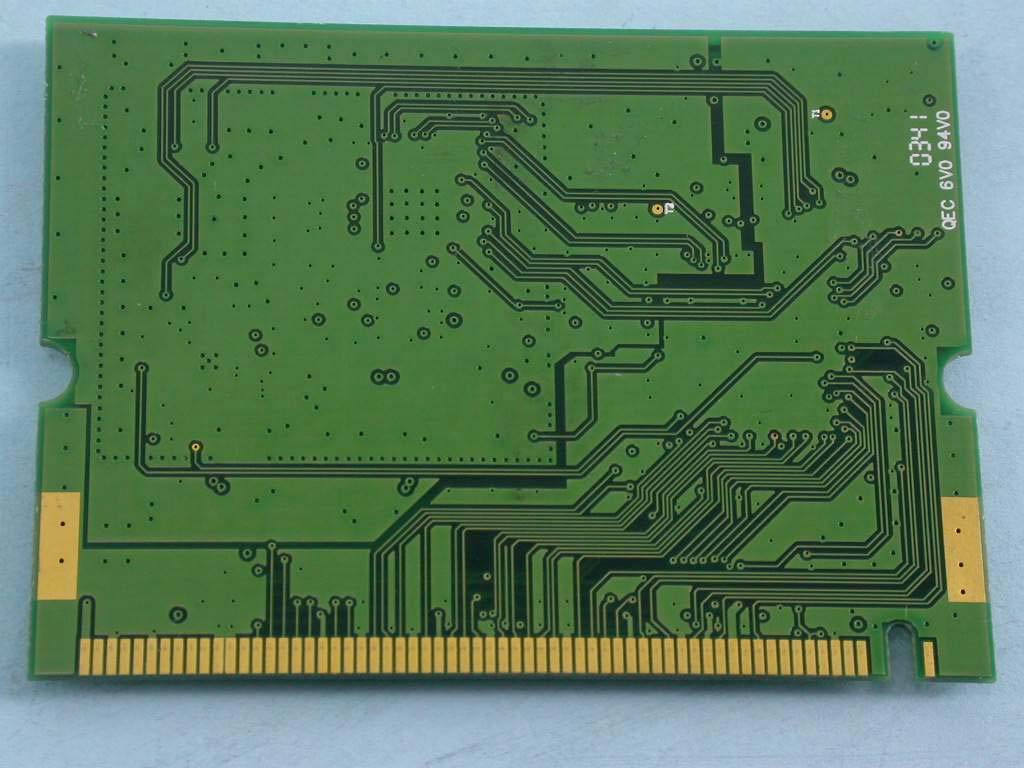

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

Page 7 Page 8

FCC ID: PANWL1402 Report No. RF921027R04 Operational Description The transmitter of the EUT is powered by host equipment. The antenna used in this product is PIFA antenna with UFL antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: PANWL1402 Report No: RF921027R04 1 RF EXPOSURE REPORT REPORT NO.: RF921027R04 MODEL NO.: WL-1402 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CC&C TECHNOLOGIES INC. ADDRESS: 8F, 150, Jian Yi Road, Chung Ho City, Taipei County, Taiwan 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: PANWL1402 Report No: RF921027R04 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: PANWL1402 Report No: RF921027R04 3 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This modular is specified to be installed in notebook PC which is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: PANWL1402 Report No: RF921027R04 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is –1.97dBi or 0.635 (numeric). 6.2 Output Power Into Antenna & MPE value at distance 20cm: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241252.7230.0071.0 6243751.2860.0061.0 11246251.7610.0071.0

FCC ID: PANWL1402 Report No.: RF921027R041Issued: Mar. 8, 2004 FCC TEST REPORT REPORT NO.: RF921027R04 MODEL NO.: WL-1402 RECEIVED: Oct. 27, 2003 TESTED: Mar. 1 ~ Mar. 5, 2004 APPLICANT: CC&C TECHNOLOGIES INC. ADDRESS: 8F, 150, Jian Yi Road, Chung Ho City, Taipei County, Taiwan 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 66 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: PANWL1402 Report No.: RF921027R042Issued: Mar. 8, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST........................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD ....................................................... 10 4.1.5TEST SETUP .............................................................................................. 10 4.1.6EUT OPERATING CONDITIONS.................................................................11 4.1.7TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 24 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 24 4.2.2TEST INSTRUMENTS ................................................................................ 25 4.2.3TEST PROCEDURES................................................................................. 26 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 27 4.2.5TEST SETUP .............................................................................................. 27 4.2.6EUT OPERATING CONDITIONS................................................................ 27 4.2.7TEST RESULTS.......................................................................................... 28 4.36dB BANDWIDTH MEASUREMENT .......................................................... 38 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 38 4.3.2TEST INSTRUMENTS ................................................................................ 38 4.3.3TEST PROCEDURE ................................................................................... 39 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 39 4.3.5TEST SETUP .............................................................................................. 39 FCC ID: PANWL1402 Report No.: RF921027R043Issued: Mar. 8, 2004 4.3.6EUT OPERATING CONDITIONS................................................................ 39 4.3.7TEST RESULTS.......................................................................................... 40 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 44 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 44 4.4.2TEST INSTRUMENTS ................................................................................ 44 4.4.3TEST PROCEDURES................................................................................. 45 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 45 4.4.5TEST SETUP .............................................................................................. 45 4.4.6EUT OPERATING CONDITIONS................................................................ 45 4.4.7TEST RESULTS.......................................................................................... 46 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 47 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 47 4.5.2TEST INSTRUMENTS ................................................................................ 47 4.5.3TEST PROCEDURE ................................................................................... 48 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 48 4.5.5TEST SETUP .............................................................................................. 48 4.5.6EUT OPERATING CONDITIONS................................................................ 48 4.5.7TEST RESULTS.......................................................................................... 49 4.6BAND EDGES MEASUREMENT ................................................................ 53 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 53 4.6.2TEST INSTRUMENTS ......................................................…

Text truncated - open the document above for the full version.

CONDUCTED EMISSION TEST Test Mode: Antenna 1 Test Mode: Antenna 2 RADIATED EMISSION TEST Test Mode: Antenna 1 Test Mode: Antenna 2
