WL-2100 User’s Guide IEEE 802.11b/g WLAN CardBus adapter Version1.1 2 Table of Contents Information to User...................................... 3 1 Introduction................................................ 5 2 Wireless LAN basics.................................... 6 3 Windows Installation.................................... 7 3.1 Install Driver/Utility under Windows-XP/2000 8 3.2 Install Driver/Utility Under Windows-9x/Me 10 3.3 Configuration Utility 17 4 Technical Specifications of WLAN CardBus adapter... 25 Troubleshooting.......................................... 26 Glossary................................................... 27 Product names mentioned herein may be trademarks and/or registered trademarks of their respective companies. 3 INFORMATION TO USER FCC INFORMATION FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Notice: The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification not expressly approved by the party responsible could void the user’s authority to operate the device. 4 REGULATORY INFORMATION WL-2100 WLAN CardBus adapter must be installed and used in strict accordance with the instructions. This device complies with the following radio frequency and safety standards. USA - Federal Communications Commission (FCC) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference that may cause undesired operation. Europe - R&TTE Directive This device complies with the specifications listed below • ETS 300-826 General EMC requirements for Radio equipment. • ETS 300-328 Technical requirements for Radio equipment. • EN60950 Safety Requirements for Radio equipment The channel identifiers, channel center frequencies, and regulatory domains of each 22-MHz-wide channel are shown in following Table. Regulatory Domains Channel Identifier Center Frequency (MHZ) Japan ETSI North America Israel France Mexico 1 2412 ˇ ˇ ˇ 2 2417 ˇ ˇ ˇ 3 2422 ˇ ˇ ˇ ˇ 4 2427 ˇ ˇ ˇ ˇ 5 2432 ˇ ˇ ˇ ˇ 6 2437 ˇ ˇ ˇ ˇ 7 2442 ˇ ˇ ˇ ˇ 8 2447 ˇ ˇ ˇ ˇ 9 2452 ˇ ˇ ˇ ˇ 10 2457 ˇ ˇ ˇ ˇ ˇ 11 2462 ˇ ˇ ˇ ˇ ˇ 12 2467 ˇ ˇ ˇ 13 2472 ˇ ˇ ˇ 14 2484 ˇ 5 1. Introduction Thank you for purchasing Wireless Local Area Net (WLAN) CardBus adapter. You are about to install a networking system that is not only fast and powerful, but also easy to set up and simple to maintain. In a short time you and those in your network will be able to share a local printer and files, access the Internet, and roam about the office wire-free. Using radio frequency (RF) technology, WLANs transmit and receive data over the air, minimizing the need for wired connections. Thus, WLANs combine data connectivity with user mobility, and, through simplified configuration, enable movable LANs. This wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users and new network features as your business grows. This manual will assist you in the installing WLAN CardBus adapter. 6 2. Wireless LAN basics Wireless LAN network defined by IEEE 802.11b standard committee could be configured as: • Ad Hoc wireless LAN, or • Infrastructure wireless LAN. Ad Hoc network is a group of notebooks with wireless LAN PC card called a BSS (Basic Service Set). These notebooks use their wireless LAN PC cards to communicate with each other, and notebooks cannot connect to the Internet. Figure 2-1 Ad Hoc wireless network The most obvious differentiation between Infrastructure wireless network and Ad Hoc wireless network is that the notebooks in Infrastructure wireless network can make use of the resource in the Internet through Access Point. STA 3 STA 1 STA 2 Access Point Internet Figure 2-2 Infrastructure wireless network To set up your notebook’s network as the type of “Ad Hoc” or “Infrastructure” wireless network depends completely on your requirement. Generally, if your network environment has an Access Point, we recommend that you set it as “Infrastructure” to connect to the Internet. STA 1 STA 2 STA 3 7 3. Windows Installation Before You Start To use the WLAN CardBus adapter with a computing device, the device must be equipped with an internal or external PCMCIA Card Type II or Type III slot. All drivers and supporting software for the WLAN CardBus adapter d must be loaded and configured. Ask your system administrator for the following information, which you may need to provide during driver installation: • Your Wireless Client Name • Your Wirel…

Text truncated - open the document above for the full version.

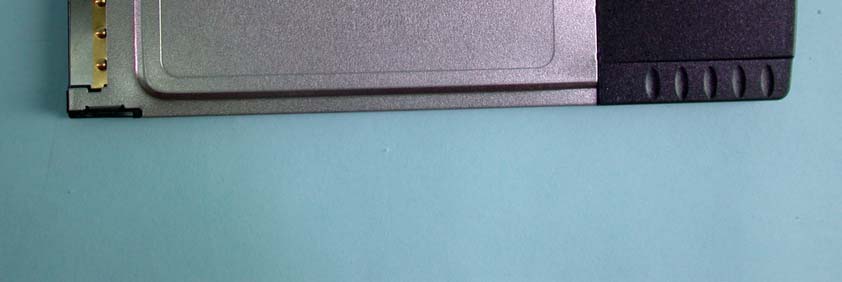

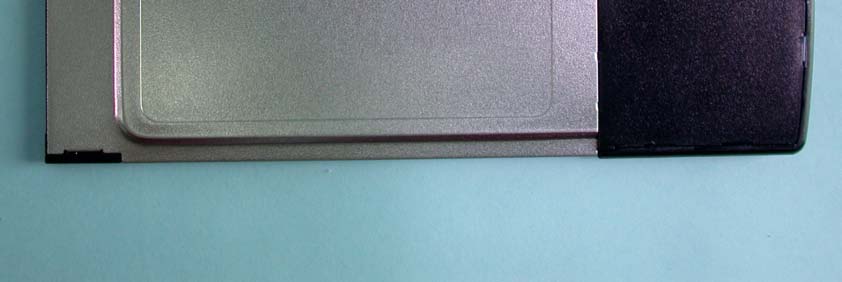

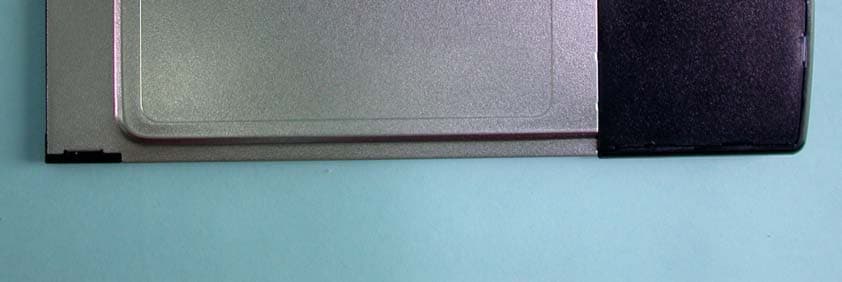

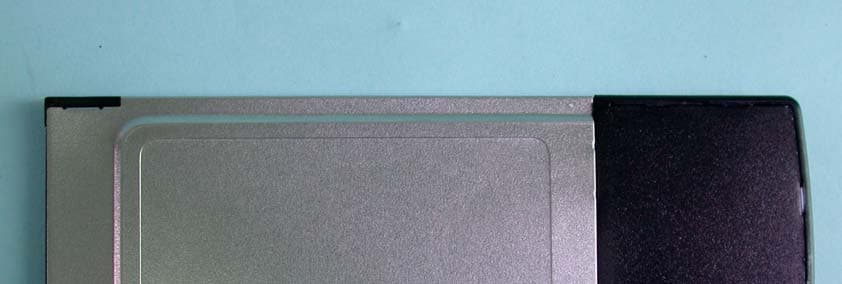

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 3 Page 4 Page 5 Page 6

FCC ID: PANWL2100 ADT No.920814R05 Operational Description This device is a 802.11g WLAN Cardbus Card which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Printed antenna without a connector. The other instruction, please have a look at the users manual.

FCC ID: PANWL2100 Report No.: RF920814R05 RF EXPOSURE REPORT REPORT NO.: RF920814R05 MODEL NO.: WL-2100 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CC&C TECHNOLOGIES INC. ADDRESS: 8F, 150, JIAN YI Rd., CHUNG HO CITY, TAIPEI, TAIWAN, 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PANWL2100 Report No.: RF920814R05 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: PANWL2100 Report No.: RF920814R05 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: PANWL2100 Report No.: RF920814R05 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 0.5dBi or 1.122 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b (CCK technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241217.7830.0041.0 6243717.9890.0041.0 11246217.5790.0041.0 For Part 802.11g (OFDM technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241217.9060.0041.0 6243718.1970.0041.0 11246217.7830.0041.0

FCC ID: PANWL2100 Report No.: RF920814R051Issued: September 08, 2003 FCC TEST REPORT REPORT NO.: RF920814R05 MODEL NO.: WL-2100 RECEIVED: August 14, 2003 TESTED: August 21 ~ August 29, 2003 APPLICANT: CC&C TECHNOLOGIES INC. ADDRESS: 8F, 150, Jian Yi Road, Chung Ho City, Taipei County, Taiwan 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PANWL2100 Report No.: RF920814R052Issued: September 08, 2003 Table of Contents 1CERTIFICATION ........................................................................................4 2SUMMARY OF TEST RESULTS ................................................................5 3GENERAL INFORMATION.........................................................................6 3.1GENERAL DESCRIPTION OF EUT ...........................................................6 3.2DESCRIPTION OF TEST MODES .............................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................8 4TEST TYPES AND RESULTS ....................................................................9 4.1CONDUCTED EMISSION MEASUREMENT .............................................9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...........................9 4.1.2 TEST INSTRUMENTS ...............................................................................9 4.1.3 TEST PROCEDURES ..............................................................................10 4.1.4 DEVIATION FROM TEST STANDARD ....................................................10 4.1.5 TEST SETUP ........................................................................................... 11 4.1.6 EUT OPERATING CONDITIONS ............................................................. 11 4.1.7 TEST RESULTS .......................................................................................12 4.2RADIATED EMISSION MEASUREMENT ................................................18 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ..............................18 4.2.2 TEST INSTRUMENTS .............................................................................19 4.2.3 TEST PROCEDURES ..............................................................................20 4.2.4 DEVIATION FROM TEST STANDARD ....................................................20 4.2.5 TEST SETUP ...........................................................................................21 4.2.6 EUT OPERATING CONDITIONS .............................................................21 4.2.7 TEST RESULTS .......................................................................................22 4.36dB BANDWIDTH MEASUREMENT........................................................30 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT .....................................30 4.3.2TEST INSTRUMENTS .............................................................................30 4.3.3TEST PROCEDURE ................................................................................30 4.3.4DEVIATION FROM TEST STANDARD ....................................................30 4.3.5TEST SETUP ...........................................................................................30 4.3.6EUT OPERATING CONDITIONS .............................................................30 4.3.7TEST RESULTS .......................................................................................31 FCC ID: PANWL2100 Report No.: RF920814R053Issued: September 08, 2003 4.4MAXIMUM PEAK OUTPUT POWER .......................................................39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........39 4.4.2TEST INSTRUMENTS .............................................................................39 4.4.3TEST PROCEDURES ..............................................................................40 4.4.4DEVIATION FROM TEST STANDARD ....................................................40 4.4.5TEST SETUP ...........................................................................................40 4.4.6EUT OPERATING CONDITIONS .............................................................40 4.4.7TEST RESULTS .......................................................................................41 4.5POWER SPECTRAL DENSITY MEASUREMENT ...................................43 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................43 4.5.2TEST INSTRUMENTS .............................................................................43 4.5.3TEST PROCEDURE ................................................................................44 4.5.4DEVIATION FROM TEST STANDARD ....................................................44 4.5.5TEST SETUP ...........................................................................................44 4.5.6EUT OPERATING CONDITIONS .............................................................44 4.5.7TEST RESULTS .......................................................................................45 4.6BAND EDGES MEASUREMENT .............................................................53 4.6.1LIMITS OF BAND EDGES MEASUREMENT...........................................53 4.6.2TEST INSTRUMENTS .............................................................................53 4.6.3TEST PROCEDURE ................................................................................53 4.6.4DEVIATION FROM TEST STANDARD ................................…

Text truncated - open the document above for the full version.

FCC ID: PANWL2100 Report No.: RF920814R0560Issued: September 08, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PANWL2100 Report No.: RF920814R0561Issued: September 08, 2003 RADIATED EMISSION TEST
