PANWL2203WLAN 11g USB Adapter

USER’S GUIDE VERSION 1.0 2004/07/12 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE IEEE 802.11b/g Wireless LAN USB Adapter © All rights reserved. All trade names are registered trademarks of respective manufacturers listed. This manual may not be copied in any media or form without the written consent of original maker. TABLE OF CONTENTS Information To User.................................................... i 1. Introduction........................................................... 1 2. Wireless LAN Basics.................................................. 3 3. IP ADDRESS............................................................ 4 4. Install Driver/Utility................................................. 5 5. Wireless Network Configuration.................................. 7 5.1 General Connection Setting.................................. 8 5.2 WEP Encryption Key Setting................................. 9 5.3 WPA Encryption Setting....................................... 10 5.4 Profile............................................................ 11 5.5 Advanced Setting.............................................. 12 5.6 System Information........................................... 13 6. Technical Specifications ............................................. 14 7. Troubleshooting...................................................... 15 8. Glossary................................................................ 16 INFORMATION TO USER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ƒReorient or relocate the receiving antenna. ƒIncrease the separation between the equipment and receiver. ƒConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. ƒConsult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: i REGULATORY INFORMATION The channel identifiers, channel center frequencies, and regulatory domains of each 22-MHz-wide channel are shown in following Table. ii ChannelCenter Identifier Frequency (MHZ)North America 12412 22417 32422 42427 52432 62437 72442 82447 92452 102457 112462 122467 132472 142484 Regulatory Domains JapanETSIIsraelFranceMexico INTRODUCTION Thank you for your purchase of the WLAN Mini USB Adapter. Featuring wireless technology, this wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users and new network features depending on your business scale. FEATURES ƒSupport Microsoft Windows 98SE, Me, 2000 and XP. ƒOperating distance of up to 300 meters in free space. ƒ1Mbps, 2Mbps, 5.5Mbps, 11Mbps selectable Data Rate. ƒSupport USB 1.1 interface. ƒ64-bit or 128-bit WEP (Wired Equivalent Privacy). ƒ2.400GHz ~ 2.4835GHz unlicensed ISM Frequency Band. ƒDSSS (Direct Sequence Spread Spectrum). ƒModulation Method : DQPSK / DBPSK / CCK. ƒEasy operation and setting up. SYSTEM REQUIREMENTS ƒWindows System : Windows 98SE, Me, 2000 or XP. ƒPCs must have a device driver installed. It allows you to commu- nicate with WLAN Mini USB Adapter. 1 2 BEFORE YOU START 1. Confirm Box Contents CONNECTING YOUR WLAN USB ADAPTER TO PC Quick Start Guide ƒConnect your WLAN USB dongle to your PC. ƒInstall driver. GETTING TO KNOW WIRELESS LAN USB ADAPTER LED ƒLED turns on when POWER is applied to the WLAN Mini USB Adapter. LED is blinking when PC is sending data through WLAN Mini USB Adapter. Driver CD Wireless LAN Adapter WIRELESS LAN BASICS Wireless LAN network defined by IEEE 802.11b/g standard committee could be configured as : ƒAd Hoc wireless LAN, or ƒInfrastructure wireless LAN. Ad Hoc network is a group of PCs installed with wireless LAN cards, this group of PCs is called a BSS (Basic Service Set). PCs in this group can use their wireless LAN cards to communicate with each other, but can not connect to the Internet. The most obvious difference between Infrastructure wireless network and Ad Hoc wireless network is that the PCs in Infrastructure wireless network can access the resource in the Internet through Access Point. Depending on your requirement, you can easily set up your PC’s network to be a “Ad Hoc” or “Infrastructure” wireless network. Gener- ally speaking, if in your network, there is an Access Point in it, we recom- mend you to set your network as an “Infrastructure”, so it can connect to the Internet. 3 Ad Hoc Wireless Network Infrastructure Wireless Network IP ADDRESS To use the WLAN Mini USB Adapter with a computing device, the WLAN Mini USB Adapter must be equipped with an USB 1.1 or 2.0 Interface. All drivers and supporting software for the WLAN Mini USB Adapter must be installed and configured first. Ask your system administrator for the following information, which you may need to …

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 27, 2004 RE: CC&C Technologies, Inc. FCC ID: PANWL2203 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The RF exposure mentions 2.5 cm but also calculates MPE to 20 cm. This is not correct. Note that for this type of device, it is assumed that a touch position could occur. Additionally, the power output does not require SAR (10.48 dBm + 1.98 dBi = approximately 18 mW which is < 24 mW). Please see attached example and please modify your RF exposure exhibit in a similar fashion for this application. 2) The users manual mentions a 20 cm spacing (page 4) which is not applicable to this device. Please remove this reference. Note that the non-colocation statement should be left in the user manual. 3) Users manual mentions 13.5 dBm transmit power (page 19), while the maximum power measured was only 10.48. Please explain. Note that the FCC expects all testing to be performed at maximum TX power. 4) The operational description mentions this is a frequency hopping device, while the test report supports an 802.11 b/g device. Please explain/correct as necessary. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dear Tim I have been uploaded the revised manual, operation description letter and RF exposure report to website now. Please check. Thanks for your assistance! Best Regards Wendy Liao

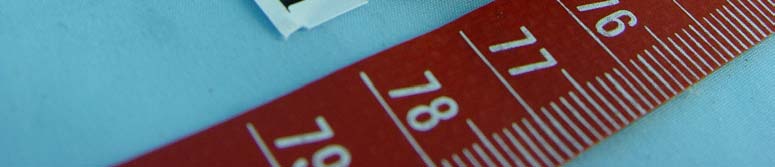

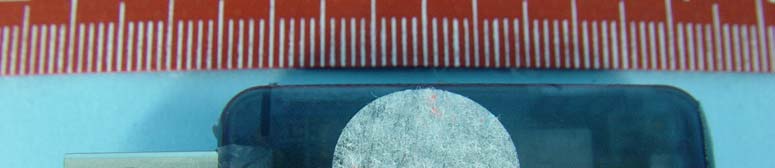

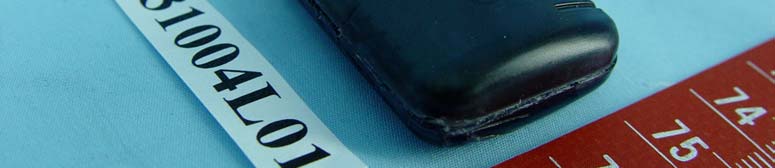

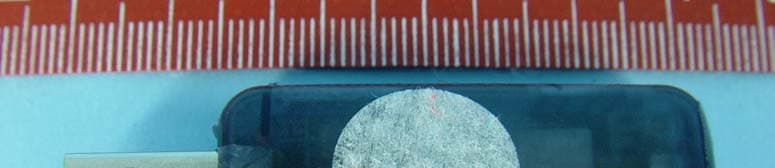

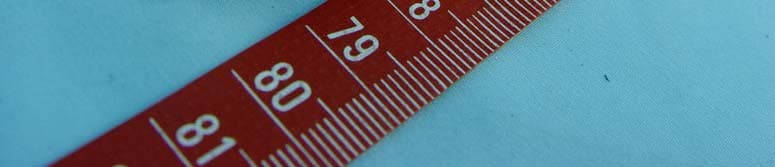

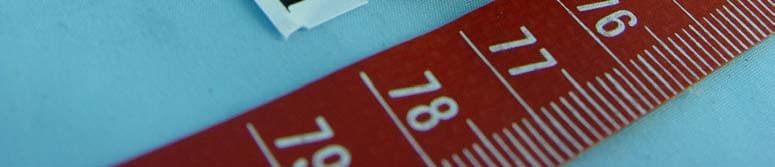

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Label Location Label

Page 3 Page 4 Page 5 Page 6

FCC ID: PANWL2203 Report No. RF931004L01 Operational Description This device is a WLAN 11g USB Adapter which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is chip antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: PANWL2203 Report No: SA931004L01 1 RF EXPOSURE REPORT REPORT NO.: SA931004L01 MODEL NO.: WL-2203 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CC&C Technologies Inc. ADDRESS: 8F, 150, Jian Yi Road, Chung Ho City, Taipei County, Taiwan 235, R.O.C. ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. FCC ID: PANWL2203 Report No: SA931004L01 2 RF Exposure Measurement (Portable Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: PANWL2203 Report No: SA931004L01 3 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment that is classified as Portable Device. FCC ID: PANWL2203 Report No: SA931004L01 4 6 Conclusion No Evaluation Required if power is below this threshold: F(GHz)mW Low2.412 High2.462 24.620 Maximum measured transmitter power: Pout (dBm)Pout (mW) Conducted Power10.4811.169 EIRP Power12.4617.62 *Note: The antenna is Chip antenna with 1.98dBi gain Threshold for no SAR evaluation is 24.620mW Transmitter power is 11.169mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold

FCC ID: PANWL2203 Report No.: RF931004L011Issued: Oct. 21, 2004 FCC TEST REPORT REPORT NO.: RF931004L01 MODEL NO.: WL-2203 RECEIVED: Oct. 4, 2004 TESTED: Oct. 18 ~ Oct. 19, 2004 APPLICANT: CC&C Technologies, Inc. ADDRESS: 8F, 150, Jian Yi Road, Chung Ho City, Taipei County, Taiwan 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS:No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 66 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: PANWL2203 Report No.: RF931004L012Issued: Oct. 21, 2004 Table of Contents 1 CERTIFICATION............................................................................................................4 2 SUMMARY OF TEST RESULTS...................................................................................5 2.1MEASUREMENT UNCERTAINTY................................................................................5 3 GENERAL INFORMATION............................................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................................6 3.2DESCRIPTION OF TEST MODES................................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..............................................7 3.4DESCRIPTION OF SUPPORT UNITS..........................................................................8 3.5 CONFIGURATION OF SYSTEM UNDER TEST..........................................................8 4 TEST TYPES AND RESULTS.......................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT................................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................................9 4.1.2TEST INSTRUMENTS...................................................................................................9 4.1.3TEST PROCEDURES.................................................................................................10 4.1.4DEVIATION FROM TEST STANDARD.......................................................................10 4.1.5TEST SETUP................................................................................................................11 4.1.6EUT OPERATING CONDITIONS.................................................................................11 4.1.7TEST RESULTS...........................................................................................................12 4.2RADIATED EMISSION MEASUREMENT...................................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................................18 4.2.2TEST INSTRUMENTS.................................................................................................19 4.2.3TEST PROCEDURES.................................................................................................20 4.2.4DEVIATION FROM TEST STANDARD.......................................................................20 4.2.5TEST SETUP...............................................................................................................21 4.2.6EUT OPERATING CONDITIONS................................................................................21 4.2.7TEST RESULTS...........................................................................................................22 4.2.8TEST RESULTS (A).....................................................................................................24 4.2.9 TEST RESULTS (B).....................................................................................................27 4.36dB BANDWIDTH MEASUREMENT...........................................................................30 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................................30 4.3.2TEST INSTRUMENTS.................................................................................................30 4.3.3TEST PROCEDURE....................................................................................................31 4.3.4DEVIATION FROM TEST STANDARD.......................................................................31 4.3.5TEST SETUP...............................................................................................................31 4.3.6EUT OPERATING CONDITIONS................................................................................31 4.3.7TEST RESULTS (A).....................................................................................................32 4.3.8TEST RESULTS (B).....................................................................................................32 4.4MAXIMUM PEAK OUTPUT POWER..........................................................................40 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................40 4.4.2TEST INSTRUMENTS.................................................................................................40 4.4.3TEST PROCEDURES.................................................................................................41 4.4.4DEVIATION FROM TEST STANDARD.......................................................................41 4.4.5TEST SETUP...............................................................................................................41 FCC ID: PANWL2203 Report No.: RF931004L013Issued: Oct. 21, 2004 4.4.6EUT OPERATING CONDITIONS…

Text truncated - open the document above for the full version.

FCC ID: PANWL2203 Report No.: RF931004L0141Issued: Oct. 21, 2004 4.4.3 TEST PROCEDURES 1. A detector was used on the output port of the EUT. An oscilloscope was used to peak the response of the detector. 2. Replaced the EUT by the signal generator. The center frequency of the S.G was adjusted to the center frequency of the measured channel. 3. Adjusted the power to have the same peak reading on oscilloscope. Record the power level. 4.4.4 DEVIATION FROM TEST STANDARD No deviation 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITIONS Same as Item 4.3.6 EUT or S.G OSCILLOSCOPE DETECTOR FCC ID: PANWL2203 Report No.: RF931004L0142Issued: Oct. 21, 2004 4.4.7 TEST RESULTS (A) EUT WLAN 11g USB Adapter MODEL WL-2203 INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 23 deg. C, 67% RH, 991 hPa TESTED BYLeo Hung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241211.06610.4430PASS 6243711.09210.4530PASS 11246211.14310.4730PASS 4.4.8 TEST RESULTS (B) EUTWLAN 11g USB AdapterMODEL WL-2203 INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 23 deg. C, 67% RH, 991 hPa TESTED BY Leo Hung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241211.14310.4730PASS 6243711.16910.4830PASS 11246211.16910.4830PASS FCC ID: PANWL2203 Report No.: RF931004L0143Issued: Oct. 21, 2004 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2005 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: PANWL2203 Report No.: RF931004L0144Issued: Oct. 21, 2004 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3kHz RBW and 30kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3kHz for a full response of the mixer in the spectrum analyzer. 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITIONS Same as 4.3.6 EUTSPECTRUM ANALYZER FCC ID: PANWL2203 Report No.: RF931004L0145Issued: Oct. 21, 2004 4.5.7 TEST RESULTS (A) EUTWLAN 11g USB AdapterMODEL WL-2203 INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 23 deg. C, 67% RH, 991 hPa TESTED BY Leo Hung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-11.988PASS 62437-11.088PASS 112462-10.348PASS FCC ID: PANWL2203 Report No.: RF931004L0146Issued: Oct. 21, 2004 CH1 FCC ID: PANWL2203 Report No.: RF931004L0147Issued: Oct. 21, 2004 CH6 FCC ID: PANWL2203 Report No.: RF931004L0148Issued: Oct. 21, 2004 CH11 FCC ID: PANWL2203 Report No.: RF931004L0149Issued: Oct. 21, 2004 4.5.8 TEST RESULTS (B) EUTWLAN 11g USB AdapterMODEL WL-2203 INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 23 deg. C, 67% RH, 991 hPa TESTED BY Leo Hung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-21.658PASS 62437-21.418PASS 112462-21.978PASS FCC ID: PANWL2203 Report No.: RF931004L0150Issued: Oct. 21, 2004 CH1 FCC ID: PANWL2203 Report No.: RF931004L0151Issued: Oct. 21, 2004 CH6 FCC ID: PANWL2203 Report No.: RF931004L0152Issued: Oct. 21, 2004 CH11 FCC ID: PANWL2203 Report No.: RF931004L0153Issued: Oct. 21, 2004 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2005 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100MHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 FCC ID: PANWL2203 Report No.: RF931004L0154Issued: Oct. 21, 2004 4.6.6 TEST RESULTS The spectrum plots are attached on the following 8 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). 4.6.7 TEST RESULTS(A) NOTE: The band edge emission plot of CCK technique on the following 1~2 pages show 53.28dB delta between carrier maximum power and local maximum emission in restrict band (2.3869GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.8 is 98.88dBuV/m, so the maximum field strength in restrict band is 98.88-53.28=45.60dBuV/m which is under 54dBuV/m limit. The band edge emission plot of CCK technique on the following 3~4 pages show 56.83dB delta between carrier maximum power and local maximum emission in restrict band (2.4885GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.8 is 97.24dBuV/m, so the maximum field strength in restrict band is 97.24-56.83=40.41dBuV/m which is under 54dBuV/m limit. 4.6.8 TEST RESULTS(B) NOTE: The band edge emission plot of OFDM technique on the following 5~6 pages show 42.49dB delta between carrier maximum power and local maximum emission in restrict band (2.3895GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.9 is 96.02dBuV/m, so the maximum field strength in restrict band is 96.02-42.49=53.53dBuV/m which is under 54dBuV/m limit. The band edge emission …

Text truncated - open the document above for the full version.

FCC ID: PANWL2203 Report No.: RF931004L0164Issued: Oct. 21, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PANWL2203 Report No.: RF931004L0165Issued: Oct. 21, 2004 RADIATED EMISSION TEST
