PANWL2203SWLAN 11g USB Adapter

WLAN 11g USB Adapter USER’S GUIDE VERSION 1.4 2005/12/23 © All rights reserved. All trade names are registered trademarks of respective manufacturers listed. This manual may not be copied in any media or form without the written consent of original maker. Information To User .......................................................... I 1. Introduction .............................................................. 1 2. Wireless LAN Basics ........................................................3 3. IP ADDRESS ..................................................................4 4. Install Driver/Utility .......................................................5 5. Wireless Network Configuration ......................................... 7 5.1 General Connection Setting ..................................... 8 5.2 WEP Encryption Key Setting ...................................... 9 5.3 WPA Encryption Setting ...........................................10 5.4 Profile ...............................................................11 5.5 Advanced Setting ...................................................12 5.6 System Information ................................................13 6. Technical Specifications ................................................14 7. Troubleshooting ...........................................................15 8. Glossary ...................................................................16 INFORMATION TO USER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. FCC Radiation Exposure Statement: * This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. * This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. i CC&C declares that WL-2203S, (FCC ID:PANWL2203S) is limited in Ch1~Ch11 for 2.4GHz by specified firmware controlled in U.S.A. REGULATORY INFORMATION WLAN 11g USB Adapter must be installed and used in strict accordance with the instructions. This device complies with the following radio frequency and safety standards. USA - Federal Communications Commission (FCC) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference that may cause undesired operation. Europe- R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). For the evaluation regarding this Directive, the following standards were applied: EN 300 328 V1.6.1 EN 301 489-1 V1.5.1, EN 301 489-17 V1.2.1 EN 60950-1 EN 50371 ii The channel identifiers, channel center frequencies, and regulatory domains of each 22-MHz-wide channel are shown in following Table. Regulatory Domains Channel Identifier Center Frequency (MHZ) Japan ETSI North America Israel France Mexico 1 2412 ˇ ˇ ˇ 2 2417 ˇ ˇ ˇ 3 2422 ˇ ˇ ˇ ˇ 4 2427 ˇ ˇ ˇ ˇ 5 2432 ˇ ˇ ˇ ˇ 6 2437 ˇ ˇ ˇ ˇ 7 2442 ˇ ˇ ˇ ˇ 8 2447 ˇ ˇ ˇ ˇ 9 2452 ˇ ˇ ˇ ˇ 10 2457 ˇ ˇ ˇ ˇ ˇ 11 2462 ˇ ˇ ˇ ˇ ˇ 12 2467 ˇ ˇ ˇ 13 2472 ˇ ˇ ˇ 14 2484 ˇ iii Thank you for your purchase of the WLAN 11g USB Adapter. Featuring wireless technology, this wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users and new network features depending on your business scale. FEATURES Support Microsoft Windows 98SE, Me, 2000 and XP. Support WMM TM (Wi-Fi MultiMedia) function Operating distance of up to 300 meters in free space. 54/48/36/24/18/12/11/9/6/5.5/2/1 Mbps selectable Data Rate. Support USB 2.0 interface. 64-bit, 128-bit or 256-bit WEP (Wired Equivalent Privacy); WPA (Wi-Fi Protected Access),WPA2 2.400GHz ~ 2.4835GHz unlicensed ISM Frequency Band. Modulation Method : IEEE 802.11b : DSSS (Direct Sequence Spread Spectrum). IEEE 802.11g : OFDM (Orthogonal Frequency Division Multiplexing). Easy operation and setting up. SYSTEM REQUIREMENTS Windows System : Windows 98SE, Me, 2000 or XP. PCs must have a device driver installed. It allows you to communicate with WLAN 11g …

Text truncated - open the document above for the full version.

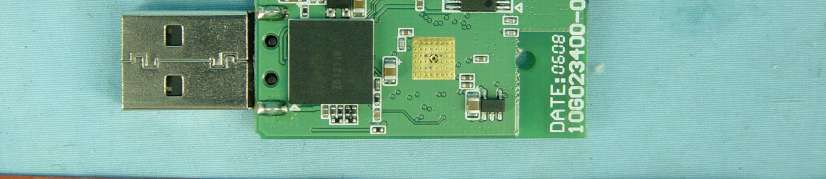

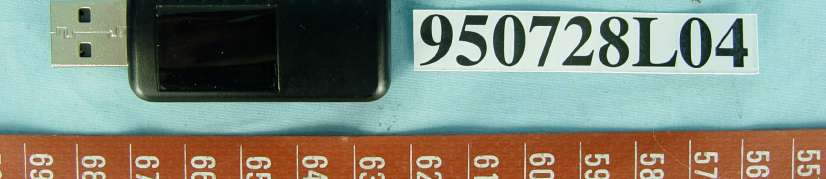

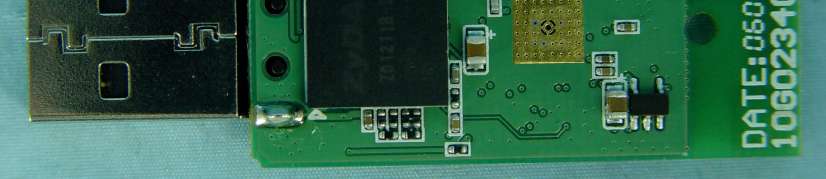

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID .: PANWL2203S Label Location

Label Location Label

Page 3 Page 4 Page 5

FCC ID: PANWL2203S Report No.: RF950728L04 Operational Description This device is a WLAN 11g USB Adapter which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is PCB antenna without antenna connector. The other instruction, please have a look at the users manual.

FCC ID: PANWL2203S Report No: SA950728L04 1 RF EXPOSURE REPORT REPORT NO.: SA950728L04 MODEL NO.: WL-2203S ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CC&C Technologies, Inc. ADDRESS: 8F, 150, Jian Yi Road, Chung Ho City, Taipei County, Taiwan 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: PANWL2203S Report No: SA950728L04 2 RF Exposure Measurement (Portable Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: PANWL2203S Report No: SA950728L04 3 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment that is classified as Portable Device. FCC ID: PANWL2203S Report No: SA950728L04 4 6 Conclusion No evaluation required if power is below this threshold: F (GHz)mW Low2.412 High2.462 24.62 Maximum measured transmitter power: Pout (dBm)Pout (mW) Conducted Power9.569.036 EIRP Power12.6118.240 *NOTE: The antenna is PCB antenna with 3.05dBi gain Threshold for no SAR evaluation is 24.62mW. Transmitter power is 18.24mW. Conclusion: No SAR evaluation required since Transmitter Power is below FCC threshold.
