PANWL2203SV3WLAN 11g USB Adapter

WLAN 11g USB Adapter WL-2203S-V3 USER’S MANUAL VERSION 2.0 2007/05/08 © All rights reserved. All trade names are registered trademarks of respective manufacturers listed. This manual may not be copied in any media or form without the written consent of original maker. Information To User .......................................................... I 1. Introduction .............................................................. 1 2. Wireless LAN Basics ........................................................3 3. IP ADDRESS ..................................................................4 4. Install Driver/Utility .......................................................5 5. Wireless Network Configuration in Station Mode .................. 7 5.1 General Connection Setting ..................................... 8 5.2 WEP Encryption Key Setting ...................................... 9 5.3 WPA Encryption Setting ...........................................10 5.4 Profile ...............................................................11 5.5 Advanced Setting ...................................................12 5.6 System Information ................................................13 6. Wireless Network Configuration in AP Mode....................................14 6.1 General Connection Setting .....................................15 6.2 WEP Encryption Key Setting ......................................16 6.3 Other Setting.......................................................16 7. Install VISTA Driver.......................................................17 8. Technical Specifications ................................................21 9. Troubleshooting ...........................................................22 10. Glossary ..................................................................23 INFORMATION TO USER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. i This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. REGULATORY INFORMATION WLAN 11g USB Adapter must be installed and used in strict accordance with the manufacturer’s instructions. This device complies with the following radio frequency and safety standards. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Europe- R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) CE Declaration of Conformity For the following equipment: WLAN 11g USB Adapter (Product Name) WL-2203S-V3 (Model Designation) is herewith confirmed to comply with the requirements set out in the Council (European parliament) Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility of Radio and Telecom device (1999/5/EC). For the evaluation regarding this Directive, the following standards were applied: EN 300 328 V1.7.1 (2006-10) EN 301 489-1 V1.6.1 (2005-09), EN 301 489-17 V1.2.1 (2002-08) EN 60950-1: 2001 +A11:2004 EN 50371:2002 ii The channel identifiers, channel center frequencies, and regulatory domains of each 22-MHz-wide channel are shown in following Table. Regulatory Domains Channel Identifier Center Frequency (MHZ) Japan ETSI North America Israel France Mexico 1 2412 v v v v 2 2417 v V v v 3 2422 v v v v v 4 2427 v v v v v 5 2432 v v v v v 6 2437 v v v v v 7 2442 v v v v v 8 2447 v v v v 9 2452 v v v v 10 2457 v v v v 11 2462 v v v v 12 2467 v v 13 2472 v v 14 2484 v iii 1 Thank you for your purchase of the WLAN 11g USB Adapter. Featuring wireless technology, this wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users and new network features depending on your business scale. FEATURES …

Text truncated - open the document above for the full version.

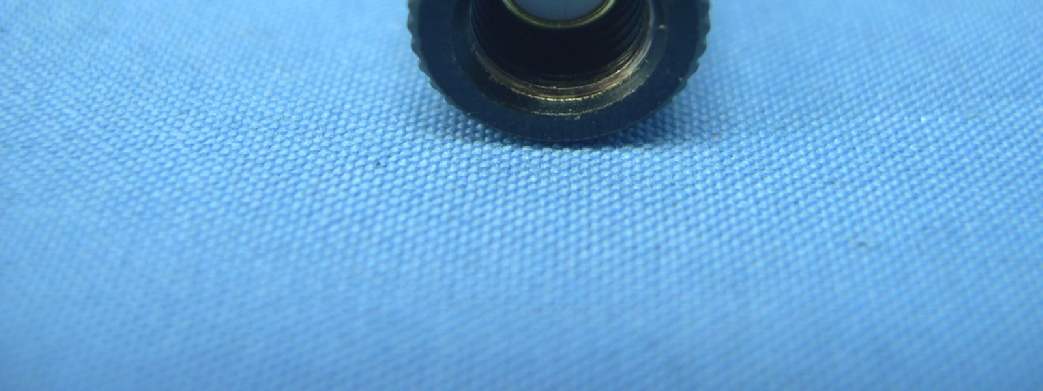

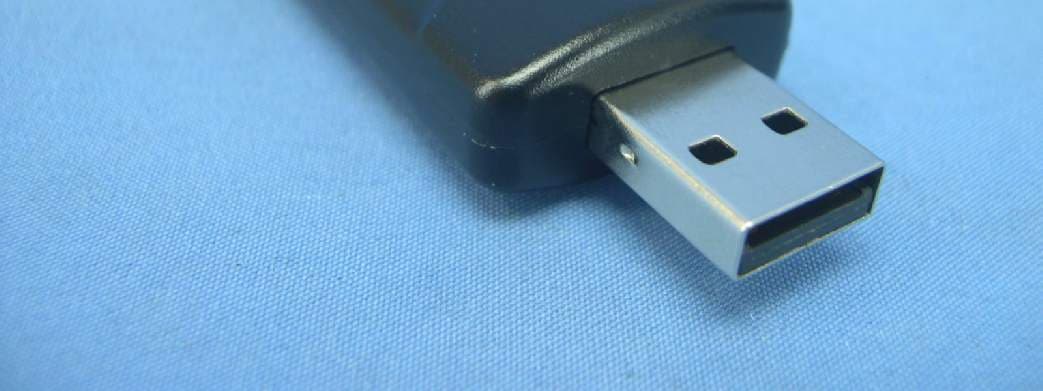

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

Label Location Label

FCC ID：PANWL2203SV3 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 5 Page 6

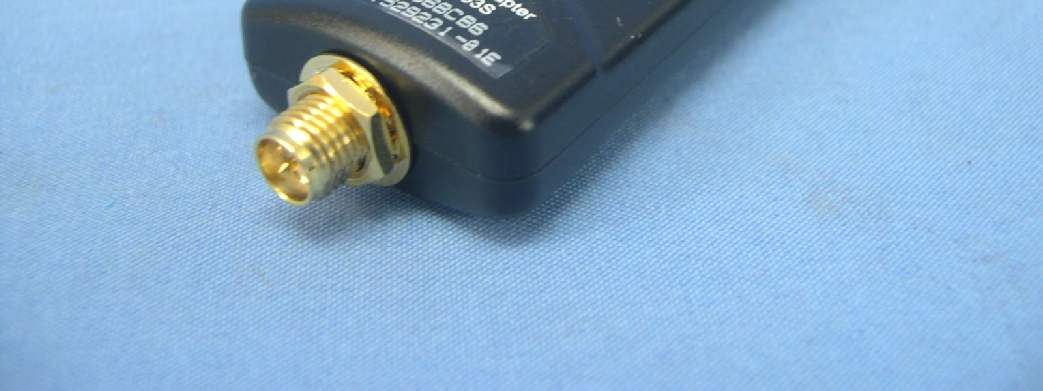

FCC ID: PANWL2203SV3 Report No. RF931004L03A Operational Description This device is a WLAN 11g USB Adapter, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of EUT (WLAN 11g USB Adapter) is powered from host equipment. The antenna used in this product is Dipole Antenna with R SMA plug Connector. The other instruction, please have a look at the users manual.

FCC ID: PANWL2203SV3 Report No: SA931004L03A Reference No: 961001H01 1 RF EXPOSURE REPORT REPORT NO.: SA931004L03A MODEL NO.: WL-2203S-V3 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: CC&C Technologies, Inc. ADDRESS: 8F, 150, Jian Yi Road, Chung Ho City, Taipei County, Taiwan 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: PANWL2203SV3 Report No: SA931004L03A Reference No: 961001H01 2 No SAR Evaluation Required if power is below the following threshold: Tunable Range F(GHz) Low F(GHz) High Center of Tunable Band (GHz) 60/f SAR Limitation (mW) 2.412 2.462 2.437 24.37 Maximum measured transmitter power: Pout Conducted (dBm) Pout Conducted (mW) Maximum Antenna Gain (dBi) Pout EIRP (mW) 13.50 22.387 0.32 24.099 Threshold for no SAR evaluation is 24.37 mW Maximum TX Power is 22.387 mW Conducted and 24.099 mW EIRP Conclusion: No SAR evaluation required since maximum Transmitter Pout (both conducted and EIRP) is below FCC threshold

Report No.: RF931004L03A 1 Report Format Version 2.0.6 Reference No.: 961001H01 FCC TEST REPORT REPORT NO.: RF931004L03A MODEL NO.: WL-2203S-V3 RECEIVED: Oct. 01, 2007 TESTED: Oct. 03 to 05, 2007 ISSUED: Oct. 09, 2007 APPLICANT: CC&C Technologies, Inc. ADDRESS: 8F, 150, Jian Yi Road, Chung Ho City, Taipei County, Taiwan 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 64 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF931004L03A 2 Report Format Version 2.0.6 Reference No.: 961001H01 Table of Contents 1 CERTIFICATION...........................................................................................4 2 SUMMARY OF TEST RESULTS...................................................................5 2.1 MEASUREMENT UNCERTAINTY.................................................................5 3 GENERAL INFORMATION............................................................................6 3.1 GENERAL DESCRIPTION OF EUT..............................................................6 3.2 DESCRIPTION OF TEST MODES................................................................7 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:................8 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................10 3.5 DESCRIPTION OF SUPPORT UNITS........................................................11 3.6 CONFIGURATION OF SYSTEM UNDER TEST.........................................11 4 TEST TYPES AND RESULTS.....................................................................12 4.1 CONDUCTED EMISSION MEASUREMENT..............................................12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................12 4.1.2 TEST INSTRUMENTS.................................................................................12 4.1.3 TEST PROCEDURES.................................................................................13 4.1.4 TEST SETUP..............................................................................................13 4.1.5 EUT OPERATING CONDITIONS................................................................14 4.1.6 TEST RESULTS..........................................................................................15 4.2 RADIATED EMISSION MEASUREMENT...................................................17 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................17 4.2.2 TEST INSTRUMENTS.................................................................................18 4.2.3 TEST PROCEDURES.................................................................................19 4.2.4 TEST SETUP..............................................................................................20 4.2.5 EUT OPERATING CONDITIONS................................................................20 4.2.6 TEST RESULTS..........................................................................................21 4.2.7 TEST RESULTS - DSSS.............................................................................22 4.2.8 TEST RESULTS - OFDM............................................................................29 4.3 6dB BANDWIDTH MEASUREMENT...........................................................36 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................36 4.3.2 TEST INSTRUMENTS.................................................................................36 4.3.3 TEST PROCEDURE....................................................................................37 4.3.4 TEST SETUP..............................................................................................37 4.3.5 EUT OPERATING CONDITIONS................................................................37 4.3.6 TEST RESULTS –DSSS.............................................................................38 4.3.7 TEST RESULTS-OFDM..............................................................................41 4.4 MAXIMUM PEAK OUTPUT POWER...........................................................44 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........44 4.4.2 TEST INSTRUMENTS.................................................................................44 Report No.: RF931004L03A 3 Report Format Version 2.0.6 Reference No.: 961001H01 4.4.3 TEST PROCEDURES.................................................................................45 4.4.4 TEST SETUP..............................................................................................45 4.4.5 EUT OPERATING CONDITIONS................................................................45 4.4.6 TEST RESULTS – DSSS............................................................................46 4.4.7 TEST RESULTS –OFDM.............................................................................47 4.5 POWER SPECTRAL DENSITY MEASUREMENT......................................48 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................48 4.5.2 TEST INSTRUMENTS.................................................................................48 4.5.3 TEST PROCEDURE....................................................................................49 4.5.4 TEST SETUP..............................................................................................49 4.5.5 EUT OPERATING CONDITIONS................................................................49 4.5.6 TEST RESULTS –DSSS.............................................................................50 4.5.7 TEST RESULTS –OFDM....................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
