Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
IEEE 802.11b/g/n 11n Wi-Fi USB Dongle USERβS GUIDE VERSION 1.1 Β© All rights reserved. All trade names are registered trademarks of respective manufacturers listed. This manual may not be copied in any media or form without the written consent of original maker. Information To User .......................................................... I 1. Introduction ............................................................... 1 2. Wireless LAN Basics ....................................................... 3 3. IP ADDRESS ................................................................. 4 4. Install Driver/Utility ...................................................... 5 4.1 Windows XP/Vista/Win7.......................................... 5 5. Wireless Network Configuration ....................................... 7 5.1 Utility Icon ........................................................ 7 5.2 Client Mode (Default Setting)................................... 7 6. Technical Specifications ............................................... 15 7. Troubleshooting ......................................................... 16 8. Glossary ................................................................... 17 INFORMATION TO USER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help. REGULATION INFORMATION The WLAN 11n USB Client Adapter must be installed and used in strict accordance with the manufacturerβs instructions. This device complies with the following radio frequency and safety standards. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the userβs authority to operate the equipment. The use of the USB dongle with laptops/notebooks is prohibited. Europe- R&TTE Compliance Statement Hereby, the company who declares that this equipment complies with the essential requirements and other relevant provisions of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). CE Declaration of Conformity For the following equipment: WLAN 11n USB Client Adapter (Product Name) WLAN 11n USB Client Adapter (Model Designation) is herewith confirmed to comply with the requirements set out in the Council (European parliament) Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility of Radio and Telecom device (1999/5/EC). For the evaluation regarding this Directive, the following standards were applied: EN 300 328 V1.7.1 EN 301 489-1 V1.8.1 ; EN 301 489-17 V2.1.1 EN 60950-1:2006+A11:2009 This equipment is marked with the symbol and can be used throughout the European community. Caution: Exposure to Radio Frequency Radiation. To comply with RF exposure compliance requirements, for mobile configurations, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device is intended for use as check in the following European Community countries: Austria Belgium Czech Republic Cyprus Denmark Estonia France Finland Germany Greece Hungary Ireland Italy Iceland Luxemburg Latvia Lithuania Malta Norway Netherlands Portugal Poland Spain Sweden Slovakia Slovenia United Kingdom The channel identifiers, channel center frequencies, and regulatory domains of each 22-MHz-wide channel are shown in following Table. Channel Identifier Frequency (MHZ) Regulatory Domains Japan ETSI North America Israel Mexico 1 2412 β β β 2 2417 β β β 3 2422 β β β β 4 2427 β β β β 5 2432 β β β β 6 2437 β β β β 7 2442 β β β β 8 2447 β β β β 9 2452 β β β β 10 2457 β β β β 11 2462 β β β β 12 2467 β β 13 2472 β β 14 2484 β 1 Thank you for your purchase of the WLAN Adapter. Featuring wireless technology, this wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users and new network features depending on your business scale. FEATURES Support β¦
Text truncated - open the document above for the full version.

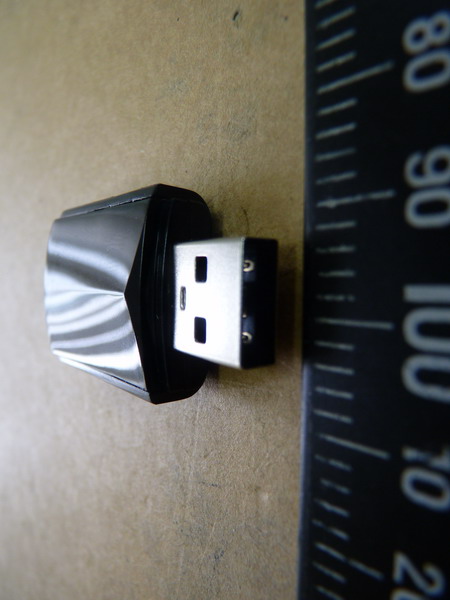

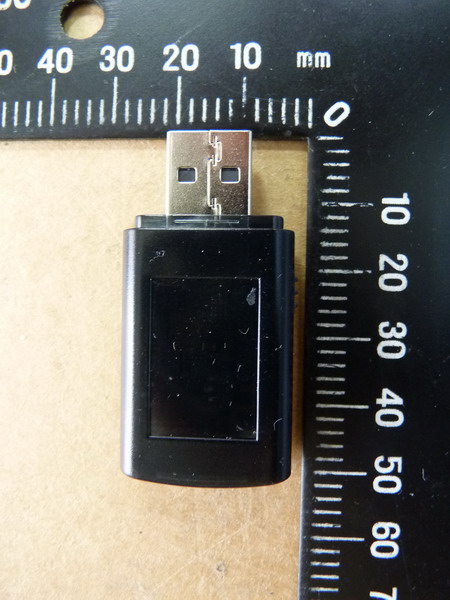

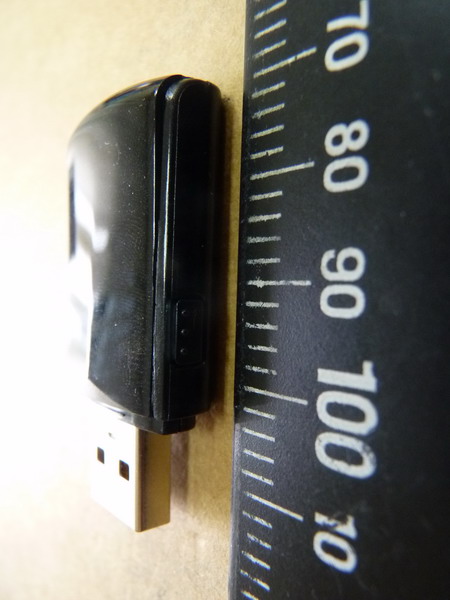

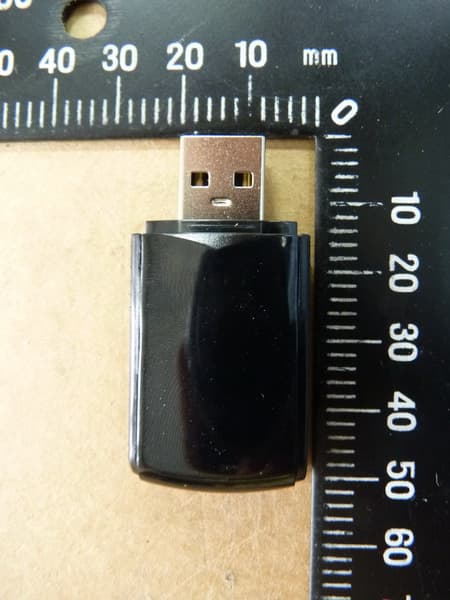

Registration number: W6M21206-12502-FCC FCC ID: PANWL6203 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 13 External Photos Registration number: W6M21206-12502-FCC FCC ID: PANWL6203 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 13 Registration number: W6M21206-12502-FCC FCC ID: PANWL6203 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 13 Registration number: W6M21206-12502-FCC FCC ID: PANWL6203 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 13 Registration number: W6M21206-12502-FCC FCC ID: PANWL6203 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 13
Registration number: W6M21206-12502-FCC FCC ID: PANWL6203 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 13 Internal Photos Registration number: W6M21206-12502-FCC FCC ID: PANWL6203 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 13 Registration number: W6M21206-12502-FCC FCC ID: PANWL6203 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 13
MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commissionβs guidelines. See Β§1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4ΟRΒ² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 802.11b,g,n 20MHz: 25.19 (dBm) Maximum peak output power at antenna input terminal: 802.11n 40 MHz: 21.28 (dBm) 802.11b,g,n 20MHz: 330.369 (mW) Maximum peak output power at antenna input terminal: 802.11n 40 MHz: 134.276 (mW) Antenna gain(maximal): 5.02 (dBi) Prediction distance: 20 (cm) 802.11b,g,n 20MHz: 2462 (MHz) Prediction frequency: 802.11n 40 MHz: 2452 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cmΒ²) 802.11b,g,n 20MHz: 0.208 (mW/cmΒ²) Power density at prediction frequency: 802.11n 40 MHz: 0.084 (mW/cmΒ²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the userβs body.
of Applicant: CC&C Technologies, Inc. Address: 8F, No.150, Jian Yi Road,Zhonghe District, New Taipei City, Taiwan 235, R. O. C Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21206-12502-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for 11n Wi-Fi USB Dongle Model No.: WL-6203-V6 FCC ID: PANWL6203 Registration number: W6M21206-12502-C-1 FCC ID: PANWL6203 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 76 TABLE OF CONTENTS 1 GENERAL INFORMATION ..........................................................................................................2 1.1 N OTES..........................................................................................................................................2 1.2 T ESTING LABORATORY................................................................................................................3 1.2.1 Location ..............................................................................................................................3 1.2.2 Details of accreditation status ............................................................................................3 1.3 DETAILS OF APPROVAL HOLDER...................................................................................................3 1.4 A PPLICATION DETAILS.................................................................................................................4 1.5 G ENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 TEST STANDARDS.........................................................................................................................6 2 TECHNICAL TEST .........................................................................................................................7 2.1 SUMMARY OF TEST RESULTS........................................................................................................7 2.2 T EST ENVIRONMENT....................................................................................................................7 2.3 TEST EQUIPMENT LIST.................................................................................................................8 2.4 GENERAL TEST PROCEDURE......................................................................................................12 3 TEST RESULTS (ENCLOSURE) ................................................................................................14 3.1 P EAK OUTPUT POWER (TRANSMITTER) ......................................................................................15 3.2 E QUIVALENT ISOTROPIC RADIATED POWER................................................................................29 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................29 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS....................................................30 3.5 S PURIOUS EMISSIONS (TX) .........................................................................................................31 3.6 R ADIATED EMISSION ON THE BAND EDGE..................................................................................41 3.7 MINIMUM 6 DB BANDWIDTH.....................................................................................................46 3.8 PEAK POWER SPECTRAL DENSITY.............................................................................................59 3.9 RADIATED EMISSION FROM DIGITAL PART................................................................................73 3.10 P OWER LINE CONDUCTED EMISSION.........................................................................................74 A PPENDIX..............................................................................................................................................76 Registration number: W6M21206-12502-C-1 FCC ID: PANWL6203 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 76 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: August 06, 2012 Danny Sung Date WTS-Lab. Name Signature Technical responsibility for area of testing: August 06, 2012 Pierce Peng Date WTS Name Signature Rβ¦
