PANWL8210WLAN 11ac USB Adapter,2T2R

IEEE 802.11ac/a/b/g/n WLAN 11ac USB Adapter,2T2R USER’S GUIDE VERSION 1.1 © All rights reserved. All trade names are registered trademarks of respective manufacturers listed. This manual may not be copied in any media or form without the written consent of original maker. 1. Introduction ..................................................................... 1 2. Wireless LAN Basics ............................................................ 3 3. IP ADDRESS ........................................................................ 4 4. Install Driver/Utility ............................................................. 5 4.1 Windows XP/7/8/8.1................................................... 5 5. Wireless Network Configuration ............................................ 7 5.1 Utility Icon .............................................................. 7 5.2 Client Mode (Default Setting)........................................ 7 5.3 Virtual WiFi ............................................................ 13 6. Technical Specifications ................................................ . . . 14 7. Troubleshooting .............................................................. 16 8. Glossary ....................................................................... 17 1 Thank you for your purchase of the WLAN 11ac USB Adapter,2T2R. Featuring wireless technology, this wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users and new network features depending on your business scale. FEATURES „ Support Microsoft XP(32bit/64bit) / 7(32bit/64bit) / 8 / 8.1(32bit/64bit) „ Operating distance of up to 300 meters in free space. „ 866.7/433.3/300/270/240/180/120/90/60/54/48/36/30/24/22/18/12/11/6 /5.5/2/1 Mbps selectable Data Rate according to client adapter default antennas. „ 64/128-bit WEP , WPA, WPA2, WPS „ 2.400GHz ~ 2.4835GHz unlicensed ISM Frequency Band. Modulation Method. 5GHz UNII, Midband, ISM bands. „ IEEE 802.11b : DSSS (Direct Sequence Spread Spectrum). „ IEEE 802.11 ac/a/g/n : OFDM (Orthogonal Frequency Division Multiplexing). „ Easy operation and setting up. SYSTEM REQUIREMENTS Windows System : XP(32bit/64bit) / 7(32bit/64bit) / 8 / 8.1(32bit/64bit).PCs must have a device driver installed. It allows you to communicate with WLAN 11ac USB Client Adapter. 2 BEFORE YOU START 1. Confirm Box Contents ‹ WLAN 11ac USB Client Adapter ‹ Quick Start Guide ‹ Driver CD CONNECTING YOUR WLAN 11ac USB CLIENT ADAPTER TO PC Quick Start Guide Connect your WLAN 11ac USB Client Adapter to your PC. Install driver. GETTING TO KNOW WIRELESS LAN ADAPTER LED Status „ Quick Blinking – Adapter connects to Access Point. „ Steady Blinking – WLAN 11ac USB Adapter,2T2R is active. „ Off – WLAN 11ac USB Adapter,2T2R is disabled. Best Performance Requirement „ 2T2R ac Adapter „ USB 3.0 „ Windows 7 or above „ Wireless utility installed „ Wireless 802.11ac AC1750 AP/Router with gigabit Ethernet port 3 Wireless LAN network defined by IEEE 802.11ac/a/b/g standard committee Could be configured as: Ad Hoc wireless LAN. Infrastructure wireless LAN. Ad Hoc network is a group of PCs installed with wireless LAN cards; this group of PCs is called a BSS (Basic Service Set). PCs in this group can use their wireless LAN cards to communicate with each other, but can not connect to the Internet. Ad Hoc Wireless Network Infrastructure Wireless Network The most obvious difference between Infrastructure wireless network and Ad Hoc wireless network is that the PCs in Infrastructure wireless network can access the resource in the Internet through Access Point. Depending on your requirement, you can easily set up your PC’s network to be a “Ad Hoc” or “Infrastructure” wireless network. Generally speaking, if in your network, there is an Access Point in it, we recommend you to set your network as an “Infrastructure”, so it can connect to the Internet. 4 To use the WLAN 11ac USB Client Adapter with a computing device, the WLAN 11ac USB Adapter,2T2R must be equipped with a proper Interface. All drivers and supporting software for the WLAN 11ac USB Adapter,2T2R must be installed and configured first. Ask your system administrator for the following information, which you may need to provide during driver installation : ‹ Your Wireless Client Name. ‹ Your Wireless SSID. ‹ Your computer’s unique client name and workgroup name. For your network account, your user name and password. ‹ Your IP address, gateway address, and subnet mask if you’re not using a DHCP client. Any computer on a network is identified by a unique network address. There are two methods to assign a network address to a computer on a TCP/IP network : ‹ Static IP addressing. ‹ Dynamic IP addressing (DHCP Client). In network with static IP addressing, the network administrator manually assigns an IP address to each computer. Once a static IP address is assigned, a computer uses the same IP address every time it reboots and logs on to the network. You may manually change the IP address in the Network Properties dialog box. Network using static IP address is easy to set up and do not require additional network management software . In network with dynamic IP addressing, a DHCP server in the network dynamically assigns IP addresses to all clients every time they log on to the network. Network using dynamic IP address requires setting up and running a DHCP Server. 5 The installation & driver CD will automatically activate the autorun installation program after you insert the disk into your CD drive. Step 1 : (Win7/8 only) Insert the installation CD into your CD- ROM. Win7/8 UAC Dialog is shown. Click Yes to continue. Step 2 : Preparing Setup dialog is shown Step 3 : Wizard is ready to install driver and utility. Click Next to begin the installation Installing & configuring WLAN driver and utility 6 Installing Cisco 802.1x module Step 4 : Click Finish to complete installation. The installation will affect after…

Text truncated - open the document above for the full version.

RF_160, I ssue 02 CC&C Technologies, Inc. Declaration of Authorization We Name: CC&C Technologies, Inc. Address: 8F, No. 150, Jian Yi Road, Zhonghe District, New Taipei City Taiwan 235 City: New Taipei City Country: Taiwan Declare that: Name Representative of agent: Angel Cheng Agent Company name: Compliance Certification Services Inc. Address: No.11,Wugong 6ht Rd., Wugu Dist. New Taipei City 24891,Taiwan City: New Taipei City Country :Taiwan ,R.O.C is authorized to apply for Certification of the following product(s): Product description: WLAN 11ac USB Adapter,2T2R Type designation: WL-8210-V1 Trademark: CC&C on our behalf. Date: 2014.08.07 Company Officer: CC&C Technologies, Inc. Contact Person: Craig Chen / VICE President R&D Division Telephone Number: +886-2-8226-5088 Email: [email protected] Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: CC&C Technologies, Inc. Address : 8F, No. 150, Jian Yi Road, Zhonghe District, New Taipei City Taiwan 235 City: New Taipei City Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: PANWL8210 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2014.7.21 Name and signature of applicant: Craig Chen Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Ͳ 1 Ͳ Copyright  © 2010 Realtek  Semiconductor  Corp. www.realtek.com UD812A08_1v0  USB  dongle  antenna  test  report Jeany Ling Nov.  06,  2012 R e a l t e k c o n f i d e n t i a l f i l e s R e a l t e k c o n f i d e n t i a l f i l e s U D 8 1 2 A 0 8 _ 1 v 0 R e a l t e k c o n f i d e n t i a l f i l e s R e a l t e k c o n f i d e n t i a l f i l e s a n t e n n a R e a l t e k c o n f i d e n t i a l f i l e s T h e d o c u m e n t a u t h o r i z e d t o T h e d o c u m e n t a u t h o r i z e d t o U D 8 1 2 A 0 8 _ 1 v 0 T h e d o c u m e n t a u t h o r i z e d t o T h e d o c u m e n t a u t h o r i z e d t o U S B T h e d o c u m e n t a u t h o r i z e d t o T h e d o c u m e n t a u t h o r i z e d t o t e s t T h e d o c u m e n t a u t h o r i z e d t o C C A N D C _ T E C H O N O L G Y _ I N C C C A N D C _ T E C H O N O L G Y _ I N C d o n g l e C C A N D C _ T E C H O N O L G Y _ I N C C C A N D C _ T E C H O N O L G Y _ I N C C C A N D C _ T E C H O N O L G Y _ I N C r e p o r t C C A N D C _ T E C H O N O L G Y _ I N C C C A N D C _ T E C H O N O L G Y _ I N C J e a n y L i n g C C A N D C _ T E C H O N O L G Y _ I N C C C A N D C _ T E C H O N O L G Y _ I N C 0 6 , C C A N D C _ T E C H O N O L G Y _ I N C C C A N D C _ T E C H O N O L G Y _ I N C 2 0 1 2 C C A N D C _ T E C H O N O L G Y _ I N C 2 0 1 3 - 1 0 - 0 7 0 9 : 5 4 : 4 0 P/N: 10G032500-0D Ͳ 2 Ͳ Copyright  © 2010 Realtek  Semiconductor  Corp. www.realtek.com • Antenna  structure • Operating  freq.  =  2.45  GHz 5.50  GHz UD812A08_1v0  USB  dongle antenna  test  report 8812 ANT1 ANT2 22.6 16.0 Unit: mm ANT2 ANT1 • Photo 57.5 les R e a l t e k c o n f i d e n t i a l f i l e s R e a l t e k c o n f i d e n t i a l f i l e s R e a l t e k c o n f i d e n t i a l f i l e s d o n g l e a n t e n n a R e a l t e k c o n f i d e n t i a l f i l e s R e a l t e k c o n f i d e n t i a l f i l e s confid R e a l t e k c o n f i d e n t i a l f i l e s P h o t o R e a l t e k c o n f i d e n t i a l f i l e s Realte T h e d o c u m e n t a u t h o r i z e d t o T h e d o c u m e n t a u t h o r i z e d t o T h e d o c u m e n t a u t h o r i z e d t o O p e r a t i n g T h e d o c u m e n t a u t h o r i z e d t o T h e d o c u m e n t a u t h o r i z e d t o f r e q . T h e d o c u m e n t a u t h o r i z e d t o T h e d o c u m e n t a u t h o r i z e d t o A N T 2 T h e d o c u m e n t a u t h o r i z e d t o C C A N D C _ T E C H O N O L G Y _ I N C C C A N D C _ T E C H O N O L G Y _ I N C 2 . 4 5 C C A N D C _ T E C H O N O L G Y _ I N C C C A N D C _ T E C H O N O L G Y _ I N C G H z C C A N D C _ T E C H O N O L G Y _ I N C C C A N D C _ T E C H O N O L G Y _ I N C 5 . 5 0 C C A N D C _ T E C H O N O L G Y _ I N C C C A N D C _ T E C H O N O L G Y _ I N C G H z C C A N D C _ T E C H O N O L G Y _ I N C C C A N D C _ T E C H O N O L G Y _ I N C C C A N D C _ T E C H O N O L G Y _ I N C C C A N D C _ T E C H O N O L G Y _ I N C U n i t : m m C C A N D C _ T E C H O N O L G Y _ I N C 2 0 1 3 - 1 0 - 0 7 0 9 : 5 4 : 4 0 2 0 1 3 - 1 0 - 0 7 0 9 : 5 4 : 4 0 9:54:4 Ͳ 3 Ͳ Copyright  © 2010 Realtek  Semiconductor  Corp. www.realtek.com • S  parameters -14.5 dB @5.5 GHz -5.3 dB @2.45 GHz • S 21 5.19 ~ 6.25 GHz 2.36~ 2.55 GHz • 10-dB BW 2 5.12 ~ 6.28 GHz 2.33 ~ 2.50 GHz • 10-dB BW 1 1 2 Frequency (GHz) 234567 -40-30-20-10 0 S parameters (dB) S 11 S 22 S 21 UD812A08_1v0  USB  dongle  antenna  test  report les R e a l t e k c o n f i d e n t i a l f i l e s R e a l t e k c o n f i d e n t i a l f i l e s - 5 . 3 d B @ 2 . 4 5 G H z R e a l t e k c o n f i d e n t i a l f i l e s R e a l t e k c o n f i d e n t i a l f i l e s 5 . 1 2 ~ 6 . 2 8 G H z R e a l t e k c o n f i d e n t i a l f i l e s confidential fidential conf ltek altek confaltek co conf ltek conltek conf R e a l t e k c o n f i d e n t i a l f i l e s R e a l t e k c o n f i d e n t i a l f i l e s - 2 0 R e a l t e k c o n f i d e n t i a l f i l e s R e a l t e k c o n f i d e n t i a l f i l e s S parameters (dB) R e a l t e k c o n f i d e n t i a l f i l e s R e a l t e k c o n f i d e n t i a l f i l e s a n t e n n a R e a l t e k c o n f i d e n t i a l f i l e s T h e d o c u m e n t a u t h o r i z e d t o T h e d o c u m e n t a u t h o r i z e d t o - 1 4 . 5 d B @ 5 . 5 G H z T h e d o c u m e n t a u t h o r i z e d t o T h e d o c u m e n t a u t h o r i z e d t o 5 . 1 9 ~ 6 . 2 5 G H z T h e d o c u m e n t a u t h o r i z e d t o authorized tauthorized t document a The documentThe document aut he docum ent auent auent au C C A N D C _ T E C H O N O L G Y _ I N C LGY_I GY_IN CCANDC_TECHONOLGY_ CANDC_TECHONO CCANDC_TECHONOLGY_ NDC_TEC TECHONOTECHONO C C A N D C _ T E C H O N O L G Y _ I N C C C A N D C _ T E C H O N O L G Y _ I N C 2 0 1 3 - 1 0 - 0 7 0 9 : 5 4 : 4 0 -07 09 -10-07 09:54: 9:54:4 07 09:5 :54:4:54:4 2 0 1 3 - 1 0 - 0 7 0 9 : 5 4 : 4 0 13-10- 2013-12 0 1 3 - 1 0 - 0 7 0 9 : 5 4 : 4 0 2 0 1 3 - 1 0 - 0 7 0 9 : 5 4 : 4 0 F r e q u e n c y ( G H z ) 2 0 1 3 - 1 0 - 0 7 0 9 : 5 4 : 4 0 2 0 1 3 - 1 0 - 0 7 0 9 : 5 4 : 4 0 2 0 1 3 - 1 0 - 0 7 0 9 : 5 4 : 4 0 13-10-013-10-0 3-10- 2 0 1 3 - 1 0 - 0 7 0 9 : 5 4 : 4 0 S Ͳ 4 Ͳ Copyright  © 2010 Realtek  Semiconductor  Corp. www.realtek.com UD812A08_1v0  USB  dongle antenna  test  report • Radiation  Patterns – Freq.  :  2437MHz,  5500  MHz – Test  plane  :  xy Ͳ plane – Input  power  :  SG  0dBm – Place:  RTK  4F  chamber – Horn  h:  horizontal  polarization – Horn  v:  vertical  polarization SG AUT Horn z x y 1 2 les R e a l t e k c o n f i d e n t i a l f i l e s R e a l t e k c o n f i d e n t i a l f i l e s d o n g l e a n t e n n a R e a l t e k c o n f i d e n t i a l f i l e s R e a l t e k c o n f i d e n t i a l f i l e s c h a m b e r R e a l t e k c o n f i d e n t i a l f i l e s R e a l t e k c o n f i d e n t i a l f i l e s h o r i z o n t a l R e a l t e k c o n f i d e n t i a l f i l e s R e a l t e k c o …

Text truncated - open the document above for the full version.

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Equipment: WLAN 11ac USB Adapter,2T2R Trademark(s) and Model(s): CC&C / WL-8210-V1 Manufacturer: CC&C Technologies, Inc. FCC ID in case other parts of this equipment are subject to certification: PANWL8210 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number: T140521W07 Issue date: Jul. 25,2014 The following manufacturer/importer/entity (located in the USA) is responsible for this declaration: Company name: CC&C Technologies, Inc. Name/Title (legal representative): Address: 8F, No. 150, J ian Yi Road, Zhonghe District, New Taipei City Taiwan 235 Phone: +886-2-8226-5088 Fax: +886-2-8226-5077 E-mail: [email protected] Date: Aug. 14,2014 Signature: FCC

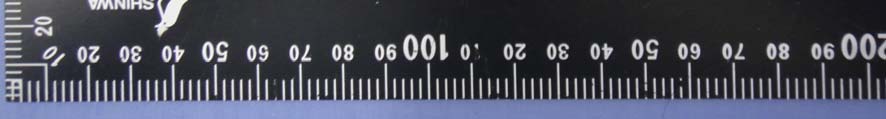

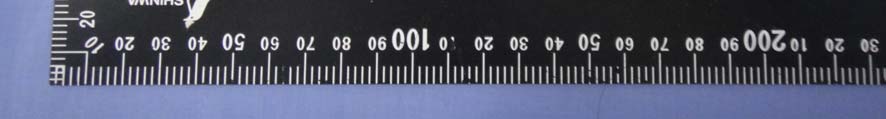

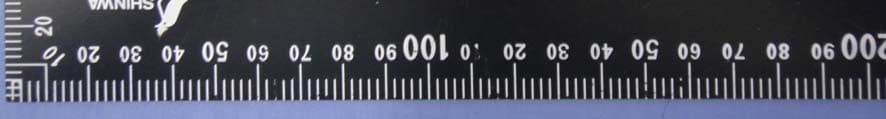

Compliance Certification Services Inc. Report No.: T140521W07 Date of Issue: June 18, 2014 A1 - 1 / 6 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140521W07 Date of Issue: June 18, 2014 A1 - 2 Rev. 00

Label Location

FCC ID : PANWL8210 WLAN 11ac USB Adapter,2T2R WL-8210-V1(325)

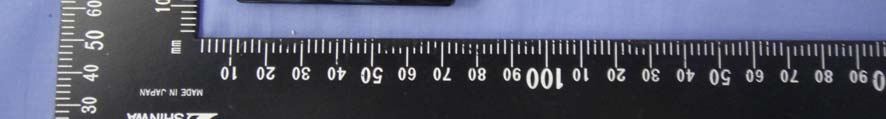

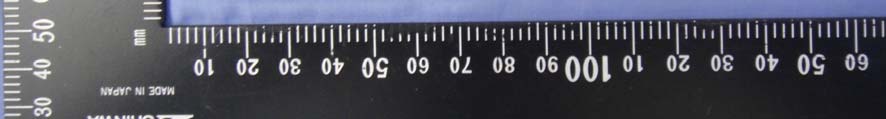

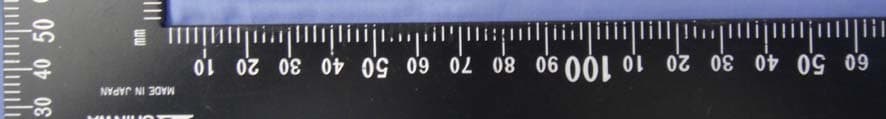

Compliance Certification Services Inc. Report No.: T140521W07 Date of Issue: June 18, 2014 A1 - 3 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T140521W07 Date of Issue: June 18, 2014 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T140521W07 Date of Issue: June 18, 2014 A1 - 5 Rev. 00 Module Compliance Certification Services Inc. Report No.: T140521W07 Date of Issue: June 18, 2014 A1 - 6 Rev. 00 Antenna

2.4G BavgMax. Tune-up Power(dBm)Tolerance (dBm)Power Taget (dbm) 24127.539+/- 27 24377.359+/- 27 24627.479+/- 27 GavgMax. Tune-up Power(dBm)Tolerance (dBm)Power Taget (dbm) 24127.459+/- 27 24377.629+/- 27 24627.439+/- 27 G20avgMax. Tune-up Power(dBm)Tolerance (dBm)Power Taget (dbm) 24127.389+/- 27 24377.699+/- 27 24627.429+/- 27 G40avgMax. Tune-up Power(dBm)Tolerance (dBm)Power Taget (dbm) 24227.489+/- 27 24377.649+/- 27 24527.389+/- 27 5G AavgMax. Tune-up Power(dBm)Tolerance (dBm)Power Taget (dbm) 51807.589+/- 27 52207.49+/- 27 52407.589+/- 27 A20avgMax. Tune-up Power(dBm)Tolerance (dBm)Power Taget (dbm) 51807.449+/- 27 52207.549+/- 27 5240 7.599+/- 27 A40Max. Tune-up Power(dBm)Tolerance (dBm)Power Taget (dbm) 51907.869+/- 27 52307.659+/- 27 57557.699+/- 27 57957.609+/- 27 A80Max. Tune-up Power(dBm)Tolerance (dBm)Power Taget (dbm) 52107.849+/- 27 57757.469+/- 27

Compliance Certification Services Inc. Report No.: T140521W07-MF Date of Issue: July 8, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT WLAN 11ac USB Adapter,2T2R Model WL-8210-V1 Frequency band (Operating) Bluetooth 2.1 + EDR / 4.0: 2402 ~ 2480 MHz 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz 802.11a: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11 HT20: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11 HT40: 5150 ~ 5250MHz / 5725 ~ 5850MHz 802.11AC HT80: 5170 ~ 5330 MHZ / 5490 ~ 5815 MHZ Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 5GHz: Antenna Gain :5.90 dBi (Numeric gain:3.89) 2.4GHz: Antenna Gain :3.50 dBi (Numeric gain:2.24) Maximum Average output power IEEE 802.11b Mode: 7.53 dBm(5.662 mW) IEEE 802.11g Mode: 7.62 dBm(5.781 mW) IEEE 802.11n HT 20 Mode: 7.69 dBm(5.875 mW) IEEE 802.11n HT 40 Mode: 7.64 dBm(5.808 mW) IEEE 802.11a Mode: 7.58 dBm(5.728 mW) IEEE 802.11n HT20 Mode: 7.59 dBm(5.741 mW) IEEE 802.11n HT40 Mode: 7.86 dBm(6.109 mW) IEEE 802.11ac HT80 Mode: 7.84 dBm(6.081 mW) Maximum Tune up Power IEEE 802.11b Mode: 9.00 dBm(7.943 mW) IEEE 802.11g Mode: 9.00 dBm(7.943 mW) IEEE 802.11n HT 20 Mode: 9.00 dBm(7.943 mW) IEEE 802.11n HT 40 Mode: 9.00 dBm(7.943 mW) IEEE 802.11a Mode: 9.00 dBm(7.943 mW) IEEE 802.11n HT20 Mode: 9.00 dBm(7.943 mW) IEEE 802.11n HT40 Mode: 9.00 dBm(7.943 mW) IEEE 802.11ac HT80 Mode: 9.00 dBm(7.943 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T140521W07-MF Date of Issue: July 8, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/07/08 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. Report No.: T140521W07-MF Date of Issue: July 8, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T140521W07-MF Date of Issue: July 8, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1241279.4332.24200.03541 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243750.1192.24200.02231 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243731.6232.24200.01411 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243731.6232.24200.01411 IEEE 802.11a mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 48524031.6233.89200.02451 IEEE 802.11a HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 38519031.6233.89200.02451 IEEE 802.11a HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 38519031.6233.89200.02451 IEEE 802.11ac HT80 Mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 42521031.6233.89200.02451

Compliance Certification Services Inc. FCC ID: PANWL8210 Report No.: T140521W07-RP2 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 105 Rev.00 FCC 47 CFR PART 15 SUBPART E TEST REPORT For WLAN 11ac USB Adapter,2T2R Model: WL-8210-V1 Trade Name: CC&C Issued to CC&C Technologies, Inc. 8F, No.150, Jian Yi Rd, Zhonghe District, New Taipei City, 235, Taiwan Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: July 25, 2014 Compliance Certification Services Inc. FCC ID: PANWL8210 Report No.: T140521W07-RP2 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 July 25, 2014 Initial Issue ALL Kelly Cheng Compliance Certification Services Inc. FCC ID: PANWL8210 Report No.: T140521W07-RP2 Page 3 Rev.00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ............................................................................................. 4 2. EUT DESCRIPTION .................................................................................................................... 5 3. TEST METHODOLOGY ............................................................................................................. 7 3.1 EUT CONFIGURATION ................................................................................................... 7 3.2 EUT EXERCISE .............................................................................................................. 7 3.3 GENERAL TEST PROCEDURES ........................................................................................ 7 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ................................... 8 3.5 DESCRIPTION OF TEST MODES ....................................................................................... 9 4. INSTRUMENT CALIBRATION ............................................................................................... 10 4.1 MEASURING INSTRUMENT CALIBRATION ............................................................... 10 4.2 MEASUREMENT EQUIPMENT USED ................................................................. 10 4.3 MEASUREMENT UNCERTAINTY ....................................................................... 11 5. FACILITIES AND ACCREDITATIONS ................................................................................. 12 5.1 FACILITIES ................................................................................................................. 12 5.2 EQUIPMENT ................................................................................................................ 12 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 13 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 14 6.1 SETUP CONFIGURATION OF EUT .................................................................................. 14 6.2 SUPPORT EQUIPMENT ................................................................................................. 14 7. FCC PART 15 REQUIREMENTS............................................................................................. 15 7.1 26 DB EMISSION BANDWIDTH ..................................................................................... 15 7.2 PEAK POWER .............................................................................................................. 33 7.3 AVERAGE POWER ....................................................................................................... 37 7.4 BAND EDGES MEASUREMENT .......................................................................... 40 7.5 PEAK POWER SPECTRAL DENSITY ............................................................................... 49 7.6 RADIATED UNDESIRABLE EMISSION............................................................................ 67 7.7 POWERLINE CONDUCTED EMISSIONS .......................................................................... 90 7.8 FREQUENCY STABILITY .............................................................................................. 93 APPENDIX I PHOTOGRAPHS OF TEST SETUP ..................................................................... 103 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: PANWL8210 Report No.: T140521W07-RP2 Page 4 Rev.00 1. TEST RESULT CERTIFICATION Applicant: CC&C Technologies, Inc. 8F, No.150, Jian Yi Rd, Zhonghe District, New Taipei City, 235, Taiwan Equipment Under Test: WLAN 11ac USB Adapter,2T2R Trade Name: CC&C Model: WL-8210-V1 Date of Test: May 26 ~ June 4, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart E No non-compliance noted We hereby certify that: Compliance Certification Services Inc. tested the above equipment. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.407. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID: PANWL8210 Report No.: T140521W07-RP2 Page 5 Rev.00 2. EUT DESCRIPTION Product WLAN 11ac USB Adapter,2T2R Trade Name CC&C Model Number WL-8210-V1 Model Discrepancy N/A Received Date May 21, 2014 Power Supply Powered from host device Operating Frequenc…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: PANWL8210 Report No.: T140521W07-RP2 Page 103 Rev.00 APPENDIX I PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SET UP PHOTO Compliance Certification Services Inc. FCC ID: PANWL8210 Report No.: T140521W07-RP2 Page 104 Rev.00 RADIATED EMISSION SET UP PHOTOS Compliance Certification Services Inc. FCC ID: PANWL8210 Report No.: T140521W07-RP2 Page 105 Rev.00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
