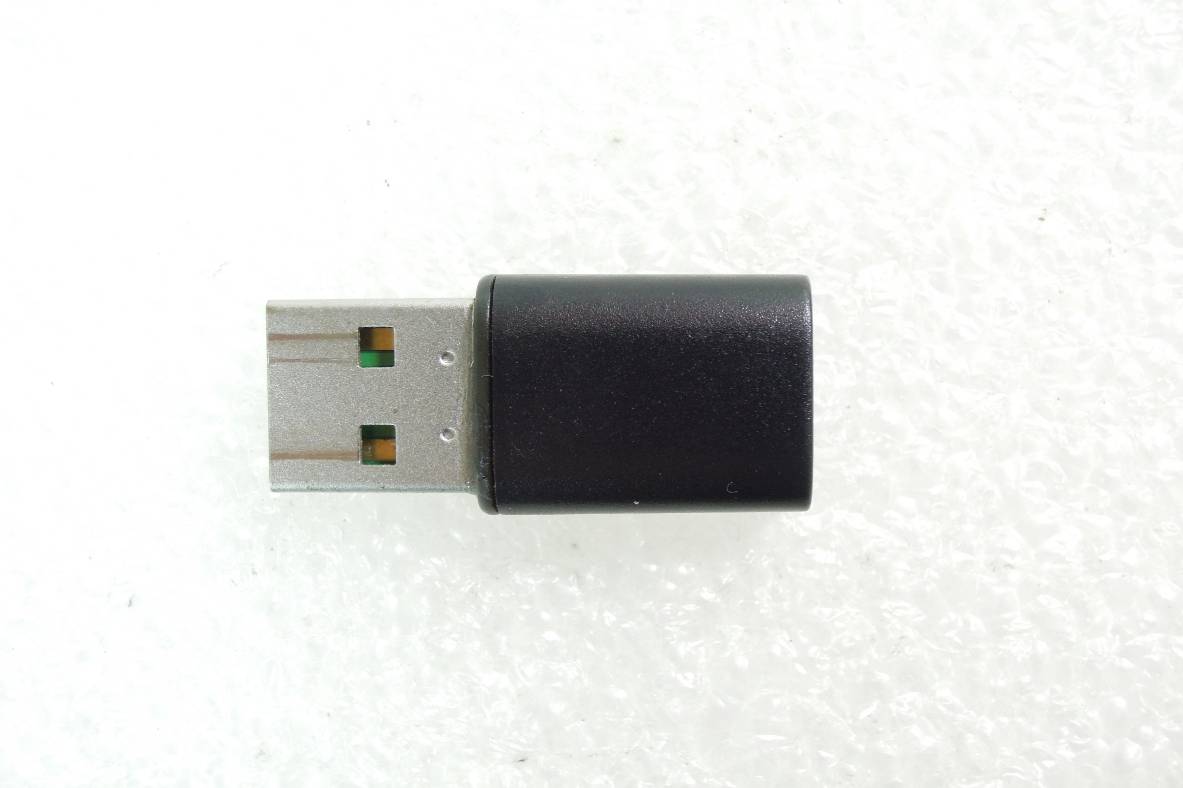

PANWL8211WLAN 11ac USB Adapter,1T1R

IEEE 802.11ac/a/b/g/n WLAN 11ac USB Adapter,1T1R USER’S GUIDE VERSION 1.0 © All rights reserved. All trade names are registered trademarks of respective manufacturers listed. This manual may not be copied in any media or form without the written consent of original maker. 1. Introduction ..................................................................... 1 2. Wireless LAN Basics ............................................................ 3 3. IP ADDRESS ........................................................................ 4 4. Install Driver/Utility ............................................................. 5 4.1 Windows XP/7/8................................................... 5 5. Wireless Network Configuration ............................................ 7 5.1 Utility Icon .............................................................. 7 5.2 Client Mode (Default Setting)........................................ 7 5.3 Virtual WiFi ............................................................ 13 6. Technical Specifications ................................................ . . . 14 7. Troubleshooting .............................................................. 16 8. Glossary ....................................................................... 17 1 Thank you for your purchase of the WLAN Adapter. Featuring wireless technology, this wireless networking solution has been designed for both large and small businesses, and it is scalable so that you can easily add more users and new network features depending on your business scale. FEATURES „ Support Microsoft XP(32bit/64bit) / 7(32bit/64bit) / 8(32bit/64bit) „ Operating distance of up to 300 meters in free space. „ 433.3/300/270/240/180/120/90/60/54/48/36/30/24/22/18/12/11/6/5.5/2/ 1 Mbps selectable Data Rate according to client adapter default antennas. „ 64/128-bit WEP , WPA, WPA2, WPS „ 2.400GHz ~ 2.4835GHz unlicensed ISM Frequency Band. Modulation Method. 5GHz UNII, Midband, ISM bands. „ IEEE 802.11b : DSSS (Direct Sequence Spread Spectrum). „ IEEE 802.11 ac/a/g/n : OFDM (Orthogonal Frequency Division Multiplexing). „ Easy operation and setting up. SYSTEM REQUIREMENTS Windows System : XP(32bit/64bit) / 7(32bit/64bit) / 8(32bit/64bit).PCs must have a device driver installed. It allows you to communicate with WLAN 11ac USB Adapter,1T1R. 2 BEFORE YOU START 1. Confirm Box Contents ‹ WLAN 11ac USB Adapter,1T1R ‹ Quick Start Guide ‹ Driver CD CONNECTING YOUR WLAN 11ac USB Adapter,1T1R TO PC Quick Start Guide Connect your WLAN 11ac USB Adapter,1T1R to your PC. Install driver. GETTING TO KNOW WIRELESS LAN ADAPTER LED Status „ Quick Blinking – Adapter connects to Access Point. „ Steady Blinking – WLAN Adapter is active. „ Off – WLAN Adapter is disabled. 3 Wireless LAN network defined by IEEE 802.11ac/a/b/g standard committee Could be configured as: Ad Hoc wireless LAN. Infrastructure wireless LAN. Ad Hoc network is a group of PCs installed with wireless LAN cards; this group of PCs is called a BSS (Basic Service Set). PCs in this group can use their wireless LAN cards to communicate with each other, but can not connect to the Internet. Ad Hoc Wireless Network Infrastructure Wireless Network The most obvious difference between Infrastructure wireless network and Ad Hoc wireless network is that the PCs in Infrastructure wireless network can access the resource in the Internet through Access Point. Depending on your requirement, you can easily set up your PC’s network to be a “Ad Hoc” or “Infrastructure” wireless network. Generally speaking, if in your network, there is an Access Point in it, we recommend you to set your network as an “Infrastructure”, so it can connect to the Internet. 4 To use the WLAN 11ac USB Adapter,1T1R with a computing device, the WLAN Adapter must be equipped with a proper Interface. All drivers and supporting software for the WLAN Adapter must be installed and configured first. Ask your system administrator for the following information, which you may need to provide during driver installation : ‹ Your Wireless Client Name. ‹ Your Wireless SSID. ‹ Your computer’s unique client name and workgroup name. For your network account, your user name and password. ‹ Your IP address, gateway address, and subnet mask if you’re not using a DHCP client. Any computer on a network is identified by a unique network address. There are two methods to assign a network address to a computer on a TCP/IP network : ‹ Static IP addressing. ‹ Dynamic IP addressing (DHCP Client). In network with static IP addressing, the network administrator manually assigns an IP address to each computer. Once a static IP address is assigned, a computer uses the same IP address every time it reboots and logs on to the network. You may manually change the IP address in the Network Properties dialog box. Network using static IP address is easy to set up and do not require additional network management software . In network with dynamic IP addressing, a DHCP server in the network dynamically assigns IP addresses to all clients every time they log on to the network. Network using dynamic IP address requires setting up and running a DHCP Server. 5 The installation & driver CD will automatically activate the autorun installation program after you insert the disk into your CD drive. Step 1 : (Win7/8 only) Insert the installation CD into your CD- ROM. Win7/8 UAC Dialog is shown. Click Yes to continue. Step 2 : Preparing Setup dialog is shown Step 3 : Wizard is ready to install driver and utility. Click Next to begin the installation Installing & configuring WLAN driver and utility 6 Installing Cisco 802.1x module Step 4 : Click Finish to complete installation. The installation will affect after windows rebooting 7 WLAN 11ac USB Adapter,1T1R uses its own management software. All functions controlled by users are provided by this application. When you insert the WLAN Adapter into your laptop or desktop, a icon should appear in the Windows System Tray automatically…

Text truncated - open the document above for the full version.

‐ 1 ‐ Copyright © 2010 Realtek Semiconductor Corp. www.realtek.com 8811 tiny USB dongle antenna test report Jeany Ling Aug. 08, 2012 Confidential for CC&C only ‐ 2 ‐ Copyright © 2010 Realtek Semiconductor Corp. www.realtek.com „ Antenna structure „ Operating freq.= 2.45GHz 5.5GHz 8811 tiny USB dongle antenna test report 27 11.3 4 Unit: mm „ Antenna assemble 8811 feed 4 9.9 photo 2G 5G Confidential for CC&C only ‐ 3 ‐ Copyright © 2010 Realtek Semiconductor Corp. www.realtek.com 8811 tiny USB dongle antenna test report • Return Loss – 10 ‐ dB BW: 380 MHz (2.34 ‐ 2.72 GHz) 1770 MHz (4.83 ‐ 6.60GHz) 234567 Frequency (GHz) 40302010 0 Return Loss (dB) Confidential for CC&C only ‐ 4 ‐ Copyright © 2010 Realtek Semiconductor Corp. www.realtek.com 8811 tiny USB dongle antenna test report • Test environment – Freq. : 2450 MHz & 5500 MHz – Test plane : xy ‐ plane – Input power : SG Pin = 0 dBm – Place: RTK 4F chamber SG AUT Horn z Confidential for CC&C only ‐ 5 ‐ Copyright © 2010 Realtek Semiconductor Corp. www.realtek.com 8811 tiny USB dongle antenna test report • Radiation patterns horizontal vertical -4.6 +0.1 h avg. peak Pol. -14.1 -7.9 v avg. peak Pol. 2450 MHz -14.1 -7.7 v avg. peak Pol. 5500 MHz -2.3 +4.7 h avg. peak Pol. y x Confidential for CC&C only
