PANWM8192EU11bgn USB Module

晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District, CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 1 Product Specifications WM-8192EU(Realtek RTL8192EU-CG) 11n 2T2R USB Module Version: 1.1 Manufacturer CC&C Technologies, Inc. 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District, CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 2 Revision History Version Date Change Description 1.0 05/28, 2014 Initial release 1.1 07/24, 2014 Update power-down control function 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District, CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 3 CONTENT Overview...................................................................................................................... 4 Features....................................................................................................................... 4 Factory Options............................................................................................................ 4 General Specification .................................................................................................... 5 Dimension ..................................................................................................................... 7 Placement Notice............................................................................................................ 9 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District, CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 4 Overview WM-8192EU is a WLAN 11n USB Module, which fully supports the features and functional compliance of IEEE 802.11e and i standards. It supports up to 300Mbps high -speed wireless network connections. It is designed to provide excellent performance with minimum power consumption and enhance the advantages of robust system and cost-effective. It is targeted at competitive superior performance, better power management applications. Features  2x2 MIMO technology improves effective throughput and range over existing 802.11 b/g/n products  Operates in 2.4 frequency bands Freq. Bands Frequency 2.4 GHz 2.412-2.472 GHz, 2.484 GHz  Data rates of up to 150 Mbps for 20 MHz channels and 300 Mbps for 40 MHz channels  802.11e-compatible bursting  Support for the IEEE 802.11e, and i standards  BPSK, QPSK, 16 QAM, 64 QAM, DBPSK, DQPSK, and CCK modulation schemes  WEP, TKIP, and AES hardware encryption Schemes  Support soft AP for Windows XP, Vista, 7 and Windows 8. Factory options  Support LED function  With or without shielding cover TOP BOTTOM 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District, CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 5 General Specification Model Name WM-8192EU Product Name 11n 2T2R USB Module Standard 802.11b/g/n Data Transfer Rate 1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120,180,240,270 and maximum of 300Mbps Modulation Method BPSK/ QPSK/ 16-QAM/ 64-QAM/ DBPSK/ DQPSK/ CCK Frequency Band 2.4GHz ISM Band Spread Spectrum IEEE 802.11b: CCK (Complementary Code Keying) IEEE 802.11g/n:OFDM (Orthogonal Frequency Division Multiplexing) RF Output Power (tolerance ± 2dBm) 17dBm – 802.11b@CCK 11Mbps 15dBm – 802.11g@OFDM 54Mbps 13dBm – 802.11n@MCS7_HT20 13dBm – 802.11n@MCS7_HT40 Operation Mode Ad hoc, Infrastructure, Soft AP Receiver Sensitivity -76dBm – 802.11b@11Mbps -63dBm – 802.11g@54MBps -64dBm – 802.11n@MCS7_BW20 -61dBm – 802.11n@MCS7_BW40 OS Support Windows XP /Vista /7 /8, Linux Security 64 bit/128 bit WEP, TKIP, AES, WPA, WPA2 Interface USB 2.0 RF output IPEX connectors Operating Temperature 0 – 50° C ambient temperature Storage Temperature -10 ~ 70°C ambient temperature Humidity 5 to 90 % maximum (non-condensing) Size 25 x 12 x 2mm (L x W x H) DC power input: Module Minimum Typical Maximum Unit DC 3.3V module 3.135 3.3 3.465 V 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District, CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 6 Pin outs: The function of pin LED out is optional to LED (LED1_pin 20), a factory option. The external circuit for WiFi activity LED display (LED function is a factory option) The function of pin PDN is optional to power-down (CHIP_EN_pin 41), a factory option. The external circuit for power-down function input (factory option), uses a push or toggle switch. 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District, CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 7 Dimension Without Shielding Cover 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District, CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 8 With Shielding Cover 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District, CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 9 Placement Notice RF connector RF connector dimensions (unit: mm) 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District, CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 10 PCB Layout footprint 1. The recommended layout pads for WM-8192EU module are shown below. (module top view) All dimensions are in millimeters. Tolerance: +- 0.05mm 晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District, CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C. Tel: 886-2-8226-5088 Fax: 886-2-8226-5077 11 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio freque…

Text truncated - open the document above for the full version.

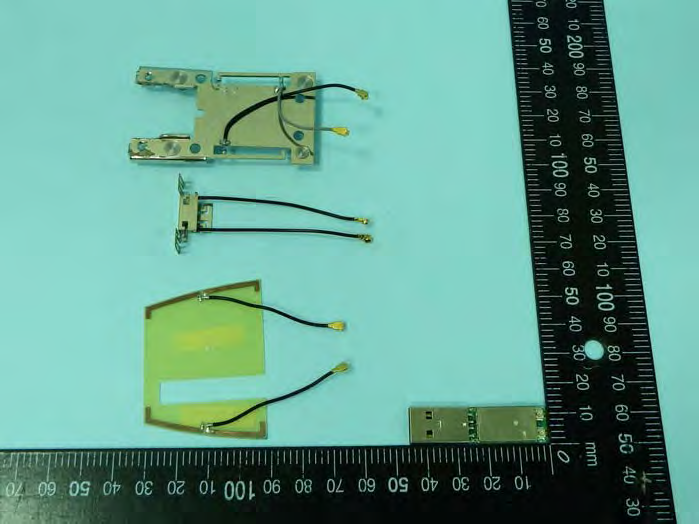

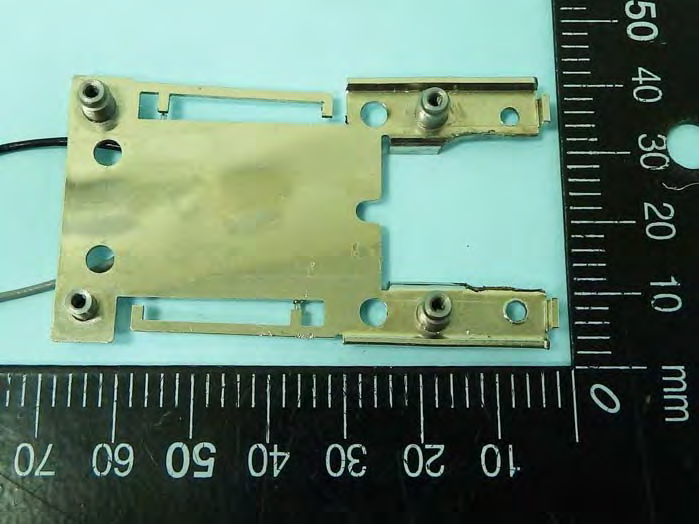

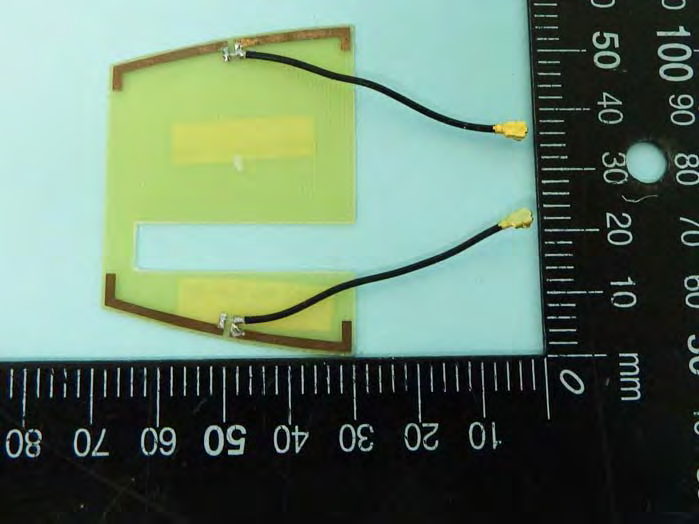

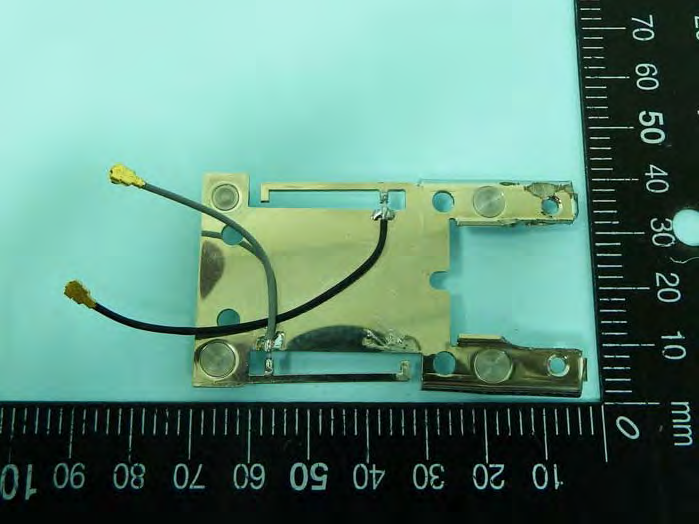

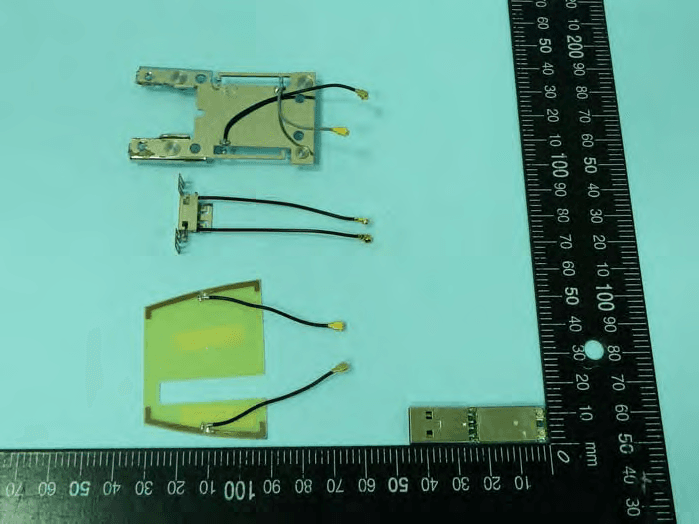

Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B1 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B5 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 Ant. A Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B6 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B7 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 Ant. B Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B8 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B9 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 Ant. C Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B10 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B11 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973

Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B1 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B2 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B3 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B4 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B5 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 Ant. A Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B6 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B7 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 Ant. B Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B8 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B9 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 Ant. C Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B10 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973 Report No. : EP472267 SPORTON International Inc. PAGE NUMBER : B11 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2014 FAX : 886-3-327-0973

RF Exposure Report Report No. :FA472267 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1,842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1,500 F/300 6 1,500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1,500 F/1500 30 1,500-100,000 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. :FA472267 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure RF General Information 2400 MHz – 2483.5 MHz Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 17.45 2400-2483.5 g 2412-2462 1-11 [11] 1 15.26 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 13.49 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 12.92 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. RF Exposure Report Report No. :FA472267 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX RF Output Power (dBm) DG (dBi) EIRP Power PD (S) (mW/cm²) 11b 1 17.45 3 20.45 0.022 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

FCC Test Report Report No. : FR472267 SPORTON INTERNATIONAL INC. Page No. : 2 of 112 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Support Equipment ................................................................................................................................. 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 6dB Bandwidth ..................................................................................................................................... 17 3.3 RF Output Power .................................................................................................................................. 19 3.4 Power Spectral Density ........................................................................................................................ 23 3.5 Transmitter Bandedge Emissions ........................................................................................................ 25 3.6 Transmitter Unwanted Emissions......................................................................................................... 30 4 TEST EQUIPMENT AND CALIBRATION DATA .............................................................................. 111 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR472267 SPORTON INTERNATIONAL INC. Page No. : 3 of 112 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 0 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.194465MHz 44.73 (Margin 9.11dB) - AV 52.72 (Margin 11.12dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 9.10 / 40M: 36.36 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 20.14 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]: -8.58 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2522.48MHz: 20.02dB Restricted Bands [dBuV/m at 3m]: 2390.00MHz 70.04 (Margin 3.96dB) - PK 52.98 (Margin 1.02dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 4924MHz 52.42 (Margin 21.58dB) – PK 48.13 (Margin 5.87dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR472267 SPORTON INTERNATIONAL INC. Page No. : 4 of 112 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR472267 Rev. 01 Initial issue of report Sep. 24, 2014 2500-2690 FCC Test Report Report No. : FR472267 SPORTON INTERNATIONAL INC. Page No. : 5 of 112 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 19.87 2400-2483.5 g 2412-2462 1-11 [11] 1 20.14 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 2 18.65 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 17.29 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Information Antenna Category Integral antenna (antenna permanently attached) Temporary RF connector provided No temporary RF connector provided Transmit chains bypass antenna and soldered temporary RF connector provided for connected measurement. In case of conducted measurements the transmitter shall be connected to the measuring equipment via a suitable attenuator and correct for all losses in the RF path. Antenna General Information Ant. Port. Ant. Cat. Ant. Type Model Name Gain (dBi) A 1 Integral PIFA ALO140-052030 3 2 3 B 1 Integral Print ALC140-051021-A 3 2 3 C 1 Integral PIFA ALC140-052030-A 3 2 3 Note: This EUT supports 1TX and Port 2 for transmitting in Modulation Mode 11b and 11g. In Modulation M…
