Transmitter • • • FUNCTION (1) LED Power ON/.OFF. While press the button • OR • , The light ON (2) DATA CODING SWITCH( • and • ) • When press the button • or • ; programmed Data automatically connected to the RECEIVER • If supplied DATA Coincide with receiver, The RECEIVER start operation. • When press the button one more time, The RECEIVER stop operation. Receiver • • • ( Top view ) • Green_wire : No.1 Switching • Green_wire : No.1 Switching • Blue_wire : No.2 Switching • Blue_wire : No.2 Switching • Red_wire : 6 ~ 8[V] DC Voltage • Black_wire : Ground • N.C : No Connection • Tact_switch : While LED on, If press the switch No.1, then the LED light off also be added memory quantity. • (Be able to add maximum 20pcs, If repeat No.8 action.) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. BESTEC.CO ADDRESS : 1594S. ANAHEIM BLVD.SUITE.C ANAHEIM. CA 92805 TEL : 714)520-3030 FAX : 714)520)5653 NAME : LEE. JAY.Y Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void user's authority to operate the equipment.

TRANSMITTER VDD 12[ V] PCBPATTERN ANT Q1 RF OSCAMPLIFIER AM MOD SIGNAL IC1 TONEDATA CONTROLCONTROL SWI TCHSW1, SW2D1,D2,D3,D4 L1 LOCAL OSC L1 LOCAL OSC

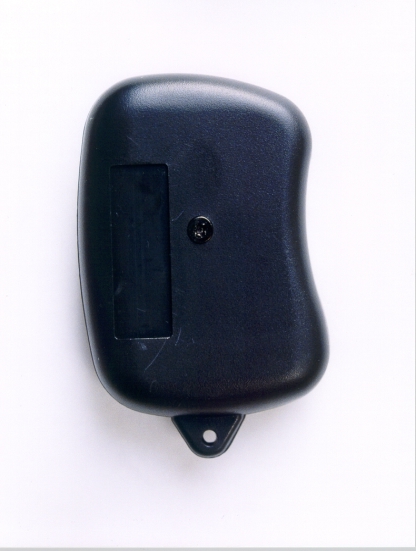

External Photos

Internal Photos

DESCRIPTION OF TRANSMITTER CIRCUIT 1. AM MODULATION Audio frequency which is devided and oscillated by resistor(R3), make operate the base of transistor(Q1). 2. When press the SW1 or SW2, ENCODER IC(IC1) oscillate the supplied data. • Make resonate with coil and capacitor(Q1,L1,C3 and C2) first. • Resonated frequency generate wanted frequency by adjust trimmer capaciter (CT1). • And send it to PCB patten ANT.

SCHEMETIC DIAGRAM C5 0.001 L11.5uH R31K R1 470K D4 1N4148 C1 5pF Q1 C1674YC D2 1N4148 SW2 1 2 U2 24C02B 1 3 2 4 6 5 7 8 1 3 2 4 6 5 7 8 R4 2.2M C3 4pF D1 1N4148 SW1 1 2 D3 1N4148 BATTERY+ R2 470 C4 3pFC2 4pF LED1RED BATTERY-

KTL Korea Testing Laboratory Page 1 of 14 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim , Senior Engineer Seok-Jin Kim , EMC Team Leader KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 00-341-047-01 Name and address of the applicant U-TEK Engineering 2-237, Ichon Ind. Goods Center 129, Songhyun-Dong, Dong-Gu, Inchon, 401-040, Korea Standard / Test regulation FCC Part 15, Subpart C Test result Pass Incoming date : October 05, 2000 Test item( s) ; Security/Re mote Control Transmitter (RF Remote Switch) Model/type ref. ; FMT-202 Manufacturer ; U-TEK Engineering Additional information ; -Re quire d Aut ho riz atio n : Ce rtificatio n -FCC ID. : PATTX1UTEK Test date : October 10, 2000Issue date : October 14, 2000 Ref. Report No. 00-341-047-01 2 Page of 14 TABLE O F CONTENTS I. GENERAL INFORMATION ............................................................................................................ 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Date of Measurement α. GENERAL REQUIREMENTS OF THE EUT .................................................................4 1. Labelling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) 4. Compliant Conditions (Section 15.231) β. RADIATED EMISSION MEASUREMENT (Section 15.231) .......................................................6-12 1. Test Procedure 2. Photograph of the test configuration 3. Sample Calculation 4. Measurement Data 5. Reference Data χ. OCCUPIED BANDWIDTH MEASUREMENT (Section 15.231).................................................13 δ. TEST EQUIPMENTS USED FOR MEASUREMENT..................................................................14 Ref. Report No. 00-341-047-01 3 Page of 14 . GENERAL INFORMATION 1. Grantee’s Name and : U-TEK Engineering Mailing Address 2-237, Ichon Ind. Goods Center 129, Songhyun-Dong, Dong-Gu, Inchon, Korea 401-040 2. Manufacturer's Name and: U-TEK Engineering Mailing Address 2-237, Ichon Ind. Goods Center 129, Songhyun-Dong, Dong-Gu, Inchon, Korea 401-040 3. Equipment Descriptions 3.1 Operating Frequency : 311 MHz 3.2 Type of Emission : Pulse Code Signal 3.3 Oscillator Used: 311 MHz (Resonator) 3.4 Power Supply: DC 12V(Battery) 4. Rules and Regulations: FCC Part 15, Subpart C 5. Measuring Procedure: ANSI C63.4-1992 6. Date of Measurement 6.1 Line Conducted: Not Applicable 6.2 Radiated Emission : October 09, 2000 Ref. Report No. 00-341-047-01 4 Page of 14 . GENERAL REQUIREMENTS O F THE EUT 1. Labelling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printing 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 3 of the attached manual for details. CA UT ION : A ny c ha nges or modifications i n cons truc tion o f this device w hich are not e xpressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 00-341-047-01 5 Page of 14 4. Compliant Conditions (Section 15.231) 4.1 Was the EUT used for continuous transmissions, such as voice or video, and data transmission ? [ ] yes, [ x ] no 4.2 Was the EUT manually operated ? [ x ] yes, [ ] no If yes, did the EUT employ a switch that would automatically deactivate the transmitter within not more than 5 seconds of being released ? [ x ] yes, [ ] no 4.3 Was the EUT automatically activated ? [ ] yes, [ x ] no If yes, did the EUT cease transmission within 5 seconds after deactivation ? [ ] yes, [ ] no 4.4 Was the EUT used for periodic transmissions at regular predetermined intervals ? [ ] yes, [ x ] no Ref. Report No. 00-341-047-01 6 Page of 14 . RADIATED EMISSION MEASUREMENT (Section 15.231) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconical antenna : 30 to 300MHz, Log-periodic antenna : 200 to 1000MHz or Horn Antenna : 1 to 18GHz) was placed at the distance of 1 meter from the EUT. An attempt was made to maximize the emission level with the various configurations of the EUT. The position of the EUT was horizontally or vertically changed to find the worst case configuration. Emissions level from the EUT with various configurations were examined on a spectrum analyzer connected with a RF amplifier and graphed by a plotter. 1.2 Final Radiated Emission Test at an Absorber-Lined Room The final measurement of radiated field strength was carried out in a KTL absorber-lined Room that was listed up at FCC according to the "Radiated Emissions Testing" procedure specifie…
