PATTX3UTEKOne way car alarm system

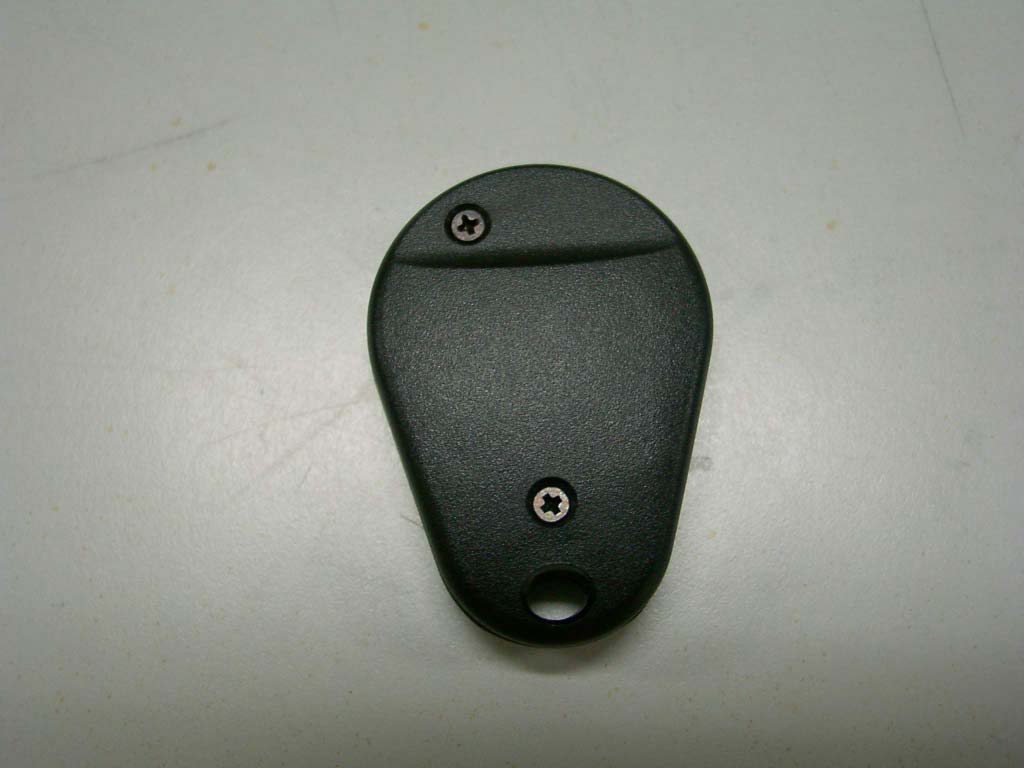

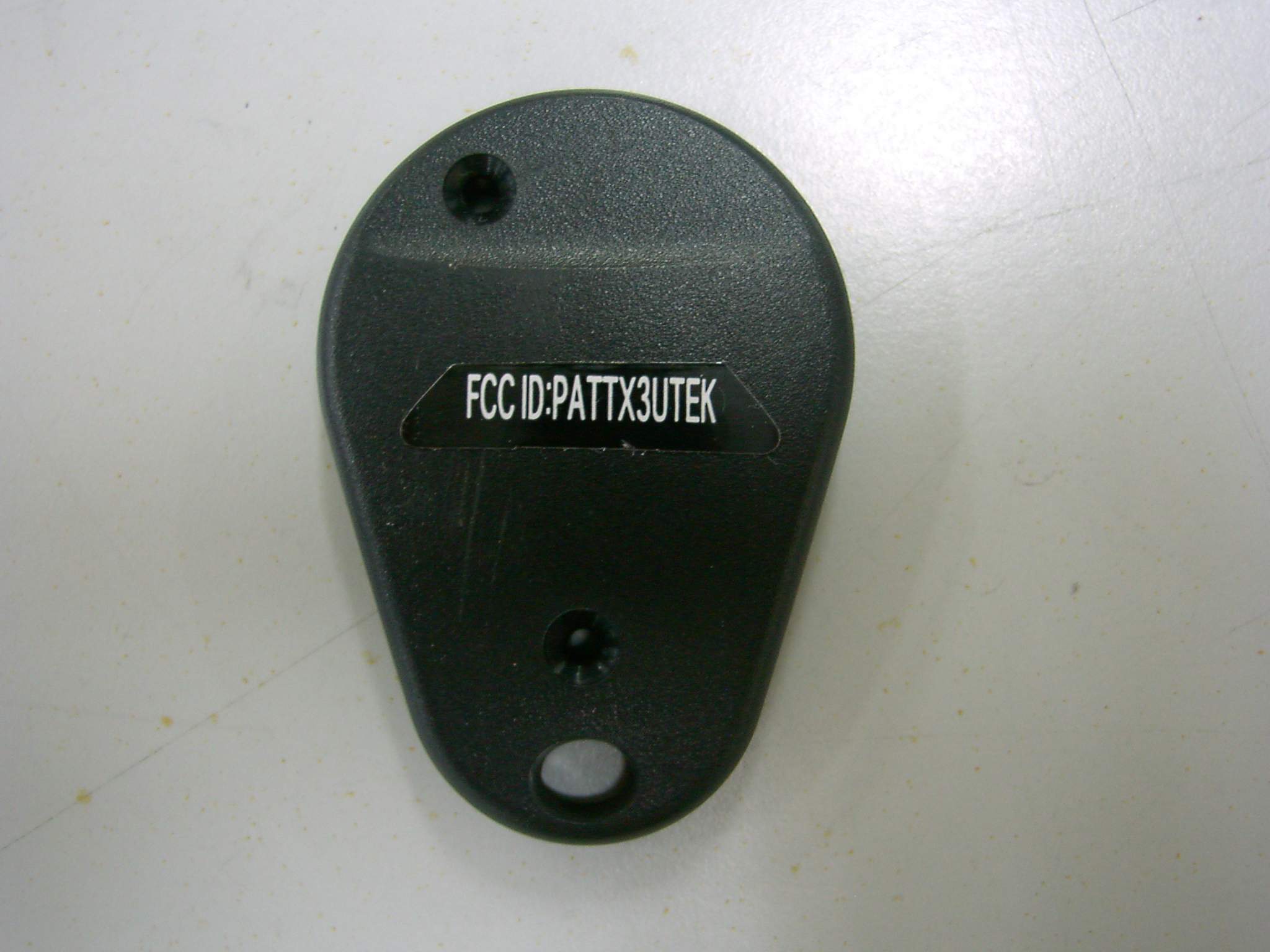

External Photos

Internal Photos

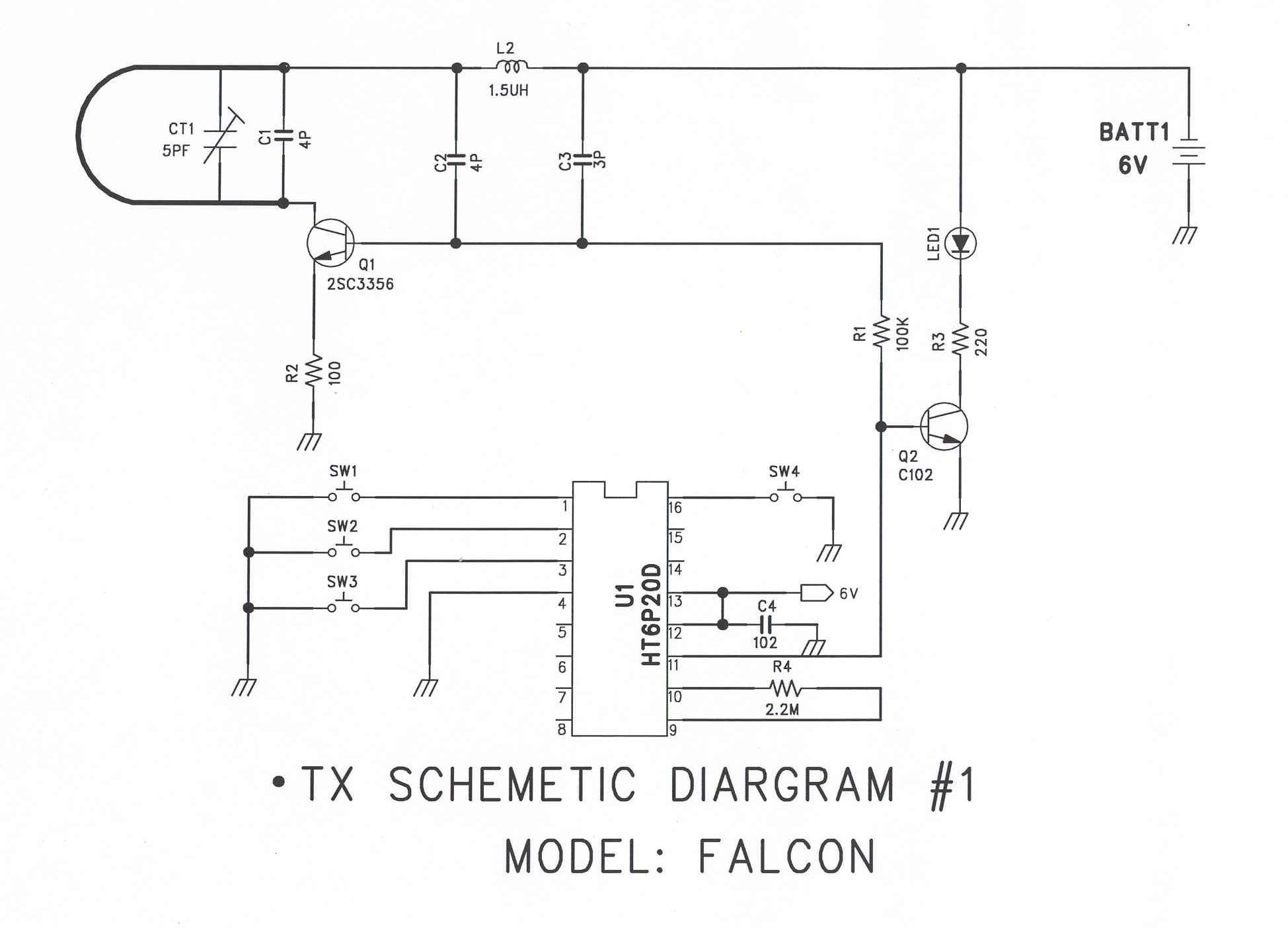

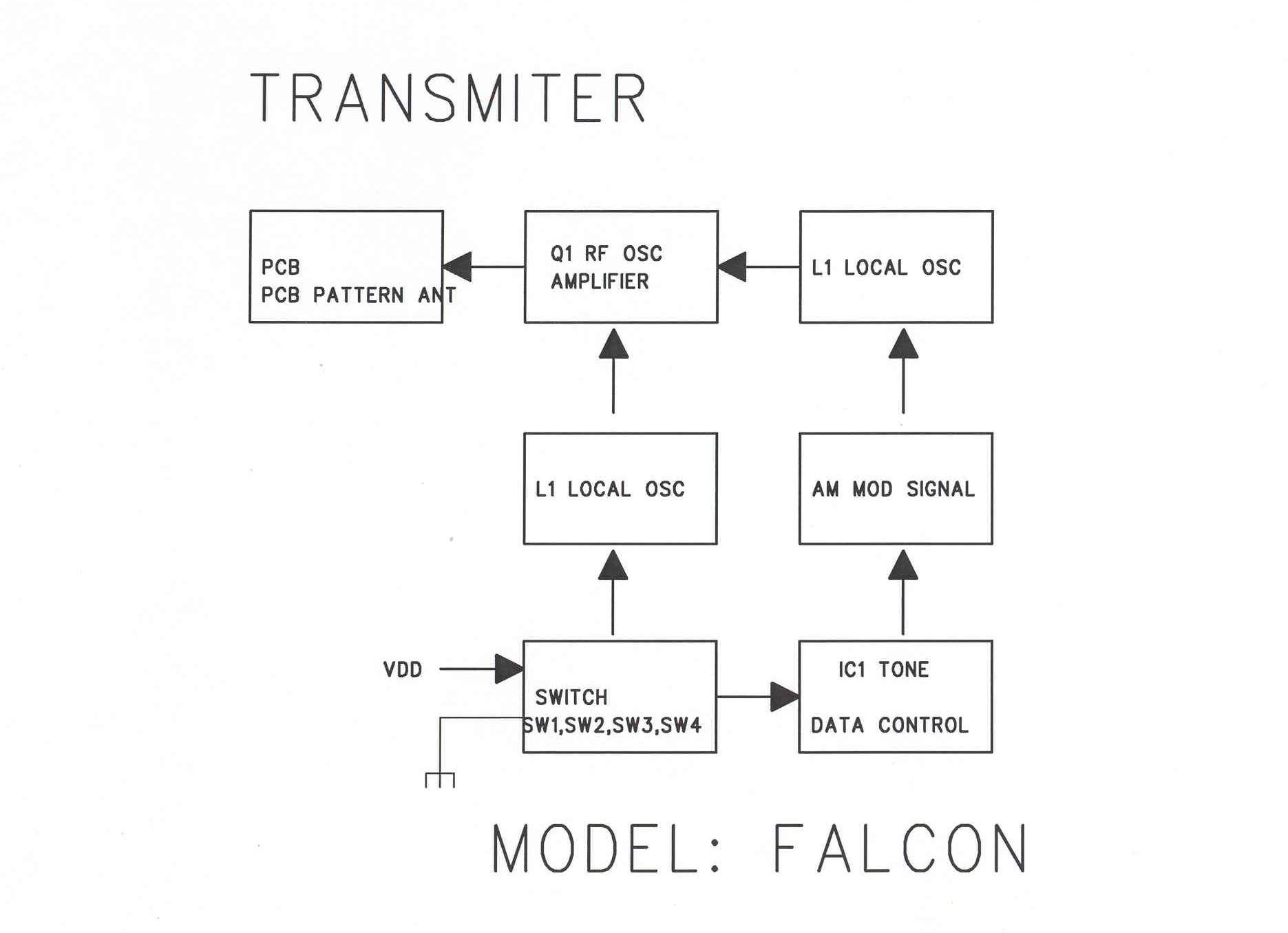

DESCRIPTION OF TRANSMITTER CIRCUIT 1. AM MODULATION Audio frequency which is devided and oscillated by resistor(R3), Make operate the base of transistor(Q1) 2.When press the SW1 or SW2 or SW3 or SW4, ENCCODER IC(IC1) oscillate the supplied data ○ 1 Make resonate with coil and capacitor(Q1, L1, C3 and C2)first. ○ 2 resonated frequency generate wanted frequency by adjust trimmer capacitor (CT1) ○ 3 And send it to PCB patten ANT. Receiver Operating Description The received signal of 311MHZ from C1 is amplified by Q2 which is 1st. RF amplifier and C3 is output of this amplifier. This signal is supplied to Q3 circuits The Q3circuits is Local Oscillator, Mixer and Detector. The detected signal is came out from L2 This detected signal is amplified 300 times by OP AMP U1Aat first and amplifed by U1B at 2. The final amplified detected signal are came out from pin NO.1 of U1B .

KTL Korea Testing Laboratory Page 1 of 14 TEST REPORT Ref. Report No. 03-341-016 This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Name and address of the applicant U-Tek Engineering 1F, #256-1, Simgok-dong, Seo-gu, Inchon, 404-190 Korea Standard / Test regulation FCC Part 15, Subpart C Test result Pass Incoming date : April 16, 2003 Test item(s) ; Security/Remote Control Transmitter (Onw Way Car Alarm System / Remote) Model/type ref. ; Falcon Manufacturer ; U-Tek Engineering Additional information ; -Required Authorization : Certification -FCC ID. : PATTX3UTEK Test date : May 23, 2003 Issue date : May 27, 2003 Jeong-Min Kim, Senior Engineer Hee-Soo Kim , Telecommunication Team Manager KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 03 - 341 – 016 Page 2 of 14 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Place of Measurement 7. Date of Measurement . GENERAL REQUIREMENTS OF THE EUT 4 1. Labeling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) 4. Compliant Conditions (Section 15.231) . RADIATED EMISSION MEASUREMENT (Section 15.231) 6 1. Test Procedure 2. Photograph of the test configuration 3. Sample Calculation 4. Measurement Data 5. Reference Data . OCCUPIED BANDWIDTH MEASUREMENT (Section 15.231) 10 . TEST EQUIPMENTS USED FOR MEASUREMENT 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 Ref. Report No. 03 - 341 – 016 Page 3 of 14 . GENERAL INFORMATION 1. Grantee’s Name and : U-Tek Engineering Mailing Address 1F, #256-1, Simgok-dong, Seo-gu, Inchon, 404-190, Korea 2. Manufacturer's Name and : U-Tek Engineering Mailing Address 1F, #256-1, Simgok-dong, Seo-gu, Inchon, 404-190, Korea 3. Equipment Descriptions 3.1 Operating Frequency : 311.0 MHz 3.2 Type of Emission : Pulse Code Signal 3.3 Power Supply : DC 6 V(Battery) 4. Rules and Regulations : FCC Part 15, Subpart C 5. Measuring Procedure : ANSI C63.4-2001 6. Place of Measurement : Absorber-lined Room (KTL) 7. Date of Measurement 7.1 Conducted Emission : Not Applicable 7.2 Radiated Emission : May 23, 2003 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 Ref. Report No. 03 - 341 – 016 Page 4 of 14 . GENERAL REQUIREMENTS OF THE EUT 1. Labeling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 6 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the installation of the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 Ref. Report No. 03 - 341 – 016 Page 5 of 14 4. Compliant Conditions (Section 15.231) 4.1 Was the EUT used for continuous transmissions, such as voice or video, and data transmission ? [ ] yes, [ x ] no 4.2 Was the EUT manually operated ? [ x ] yes, [ ] no If yes, did the EUT employ a switch that would automatically deactivate the transmitter within not more than 5 seconds of being released ? [ x ] yes, [ ] no 4.3 Was the EUT automatically activated ? [ ] yes, [ x ] no If yes, did the EUT cease transmission within 5 seconds after deactivation ? [ ] yes, [ ] no 4.4 Was the EUT used for periodic transmissions at regular predetermined intervals ? [ ] yes, [ x ] no Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 Ref. Report No. 03 - 341 – 016 Page 6 of 14 . RADIATED EMISSION MEASUREMENT (Section 15.231) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconical antenna : 30 to 300 MHz, Log-periodic antenna : 200 to 1000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 1 meter from the EUT. An attempt was made to maximize the emission level with the various configurations of the EUT. Emission levels from the EUT with various configurations were examined on a spectrum analyzer connected with a RF amplifier and graphed by a plotter. 1.2 Final Radiated Emission Test at an Absorber-Lined Room The final measurement of radiated field strength was carried out in a KTL absorber-lined Room that was listed up at FCC according to the "Radiated Emissions Testing" procedure specified by ANSI C63.4. Based on the test results in preliminary test, measurement w…

Text truncated - open the document above for the full version.

Ref. Report No. 03 - 341 – 016 Page 7 of 14 2. Photograph of the test configuration 3. Sample Calculation The measured field strength was determined by averaging one complete pulse train including blanking interval because the pulse repetition time of the EUT(=55.8ms) does not exceeds 0.1 seconds (15.35(c)). See graphs of page 12 . With the resolution bandwidth set at 100 kHz, the EUT produces a pulse spectrum on the spectrum analyzer because the bandwidth of the analyzer is greater than or equal to the PRF (= 625 Hz). Therefore, as mentioned in HP Application Note 150-2 (page 11), the pulse desensitization(α p ) equals zero and the display amplitude is essentially a peak level. . Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848
