PB4-MA3911Memorex Portable Bluetooth Speaker

memorex.c om MA3911MS U ser Guide Please read these instructions completely, before operating this product. Please recycle. Facilities may not exist in your area. Name Here I’ll Wake You Up Mini Alarm You can listen to your music from your Bluetooth enabled mobile device wirelessly t hrough this unit. When your phone rings, simply take the call with a touch of a button. End the call by touching the same button, and return to enjoying your music! Pair the mobile device as follows: 1. Turn on the speaker by pressing and holding the Power button 4 until the Blue indicator lights and the beeps sound. 2. Turn your mobile device on and place it within 3 feet of the speaker. 3. Press and hold the Power button 4 until the indicator blinks blue and orange, then release. The speaker is now in Pairing mode. 4. Enable the phone’s Bluetooth; refer to your mobile device for specific instructions, but it is usually located in the Settings menu or similar location. After enabling, this Memorex BlueToothdevice will appear as an option. Select it on your mobile device; the units will then pair with each other, two beeps will sound and the orange indicator will light. PAIRING A BLUETOOTH MOBILE DEVICE 1. Turn your mobile device on and place it within 3 feet of the speaker. 2. Turn on the speaker by pressing and holding the Power button 4 until the Blue indicator lights and the beeps sound. If the unit has recently been paired with the mobile device, the unit will beep and the indicator wil turn orange indicating it is paired. If you have not paired the mobile device or if the orange indicator does not light, pair them as described in the Pairing a Bluetooth Devicesection above. 3. Play your music on your mobile device and the sound will be heard through this unit. 4. The volume is controlled using the volume setting on your phone. You can also raise or lower the volume using the Volume + 2 or –1 button on the speaker. Experiment for the best overall sound. 5. To pause the song playing, press the Power button 4. To resume playback, press the Power button 4 again. 6. You can operate the mobile device using its own controls as per its owner’s manual. 7. To turn off the unit, press and hold the Power button 4 until the indicator turns off and a series of beeps sound. LISTENING TO MUSIC I nsert the small end of the AC adapter into the DC In jack 1 0 ( located on the rear of the unit). Connect the other end to a wall outlet having 120V AC, 60 Hz. AC CONNECTION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. C AUTION R ISK OF ELECTRIC SHOCK D O NOT OPEN DANGEROUS VOLTAGE:The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. ATTENTION:The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. ATTENTION:POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISES ET POUSSER JUSQU’AU FOND. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 o f the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential i nstallation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in a ccordance with the instructions, may cause harmful interference to radio communications. However, there is no g uarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. • The rating information is located at the bottom of the apparatus. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. SURGE PROTECTORS: It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Only use attachments/accessories specified by the manufacturer. To be completely disconnected from the power input, the main plug of the AC/DC adapter shall be disconnected from the electrical outlet. The main plug of the AC/DC adapter should not be obstructed OR should be easily accessed during intended use. Do not expose the product to dripping or splashing. Do not place liquid filled objects such as vases on the product. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Imation is under license. Other trademarks and trade names are those of their respective owners. IMPORTANT SAFETY INSTRUCTIONS 1. Read these Instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all instructions. 5. Do not use this …

Text truncated - open the document above for the full version.

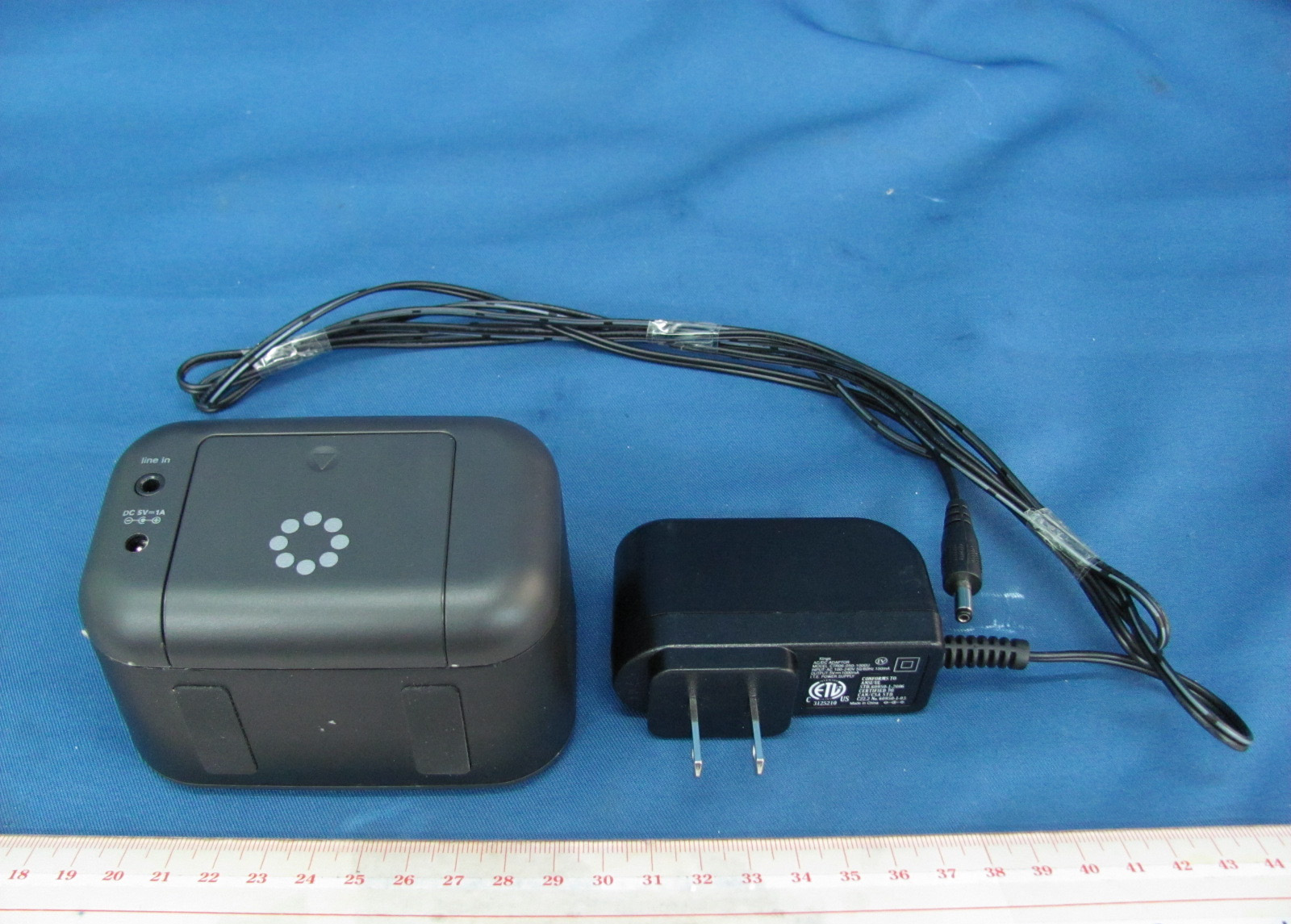

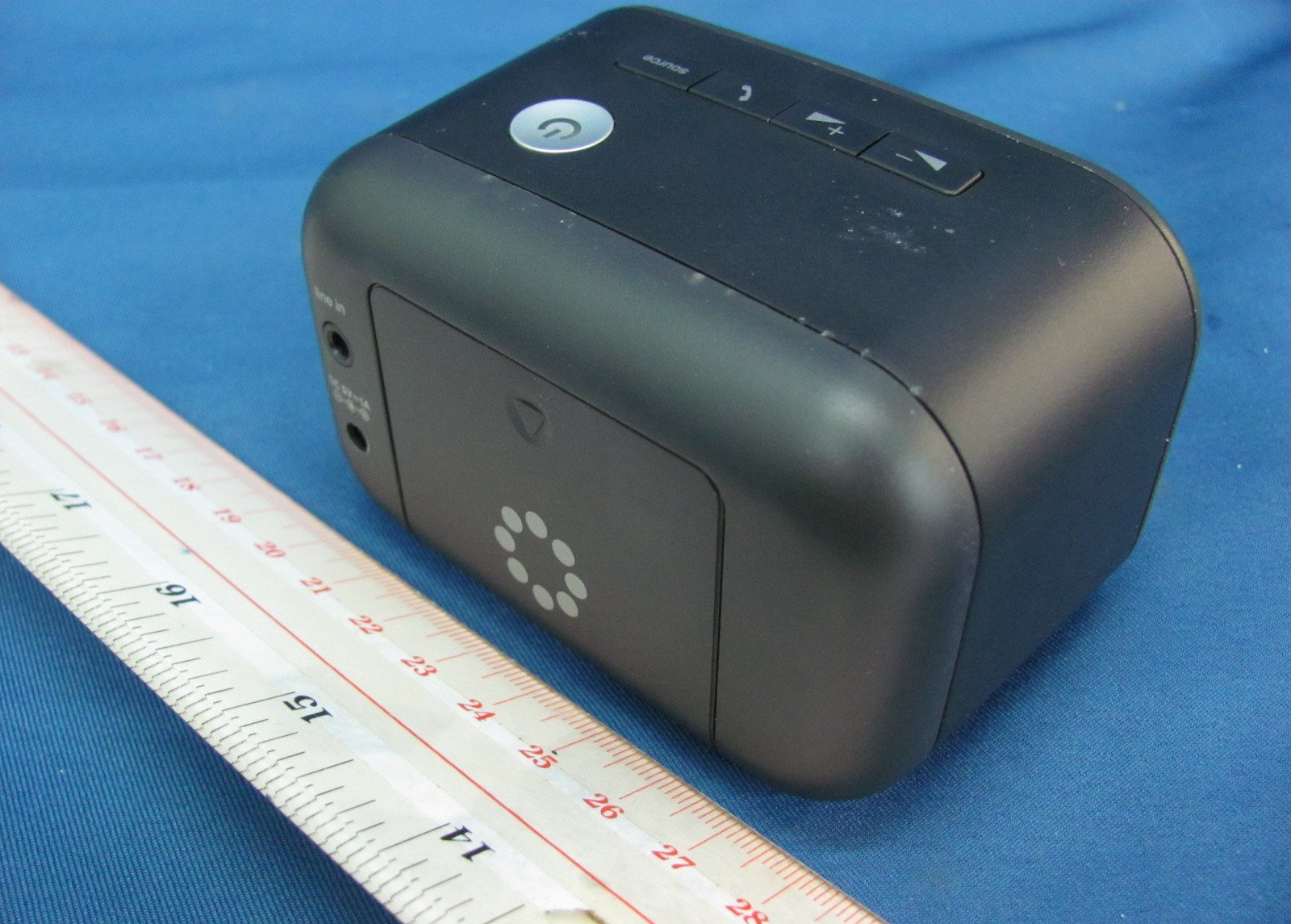

INTERTEK TESTING SERVICE Report No.: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 Equipment Photographs Model : MA3911MS (External) INTERTEK TESTING SERVICE Report No.: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 Equipment Photographs Model : MA3911MS (External)

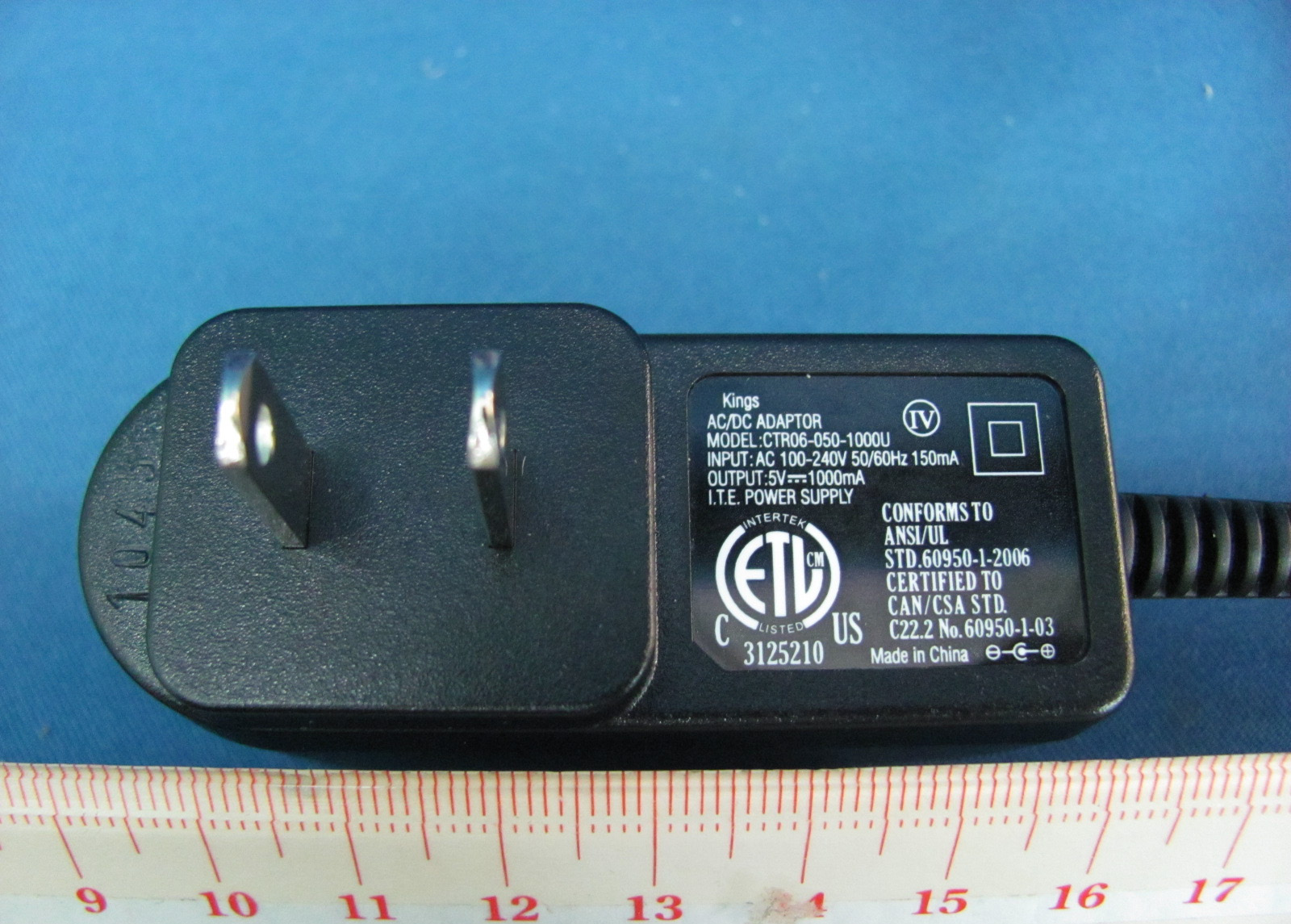

054901100001 Serial number location Size : 28 x13mm This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, Including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Model/Modèle.: MA3911MS POWER SUPPLY/ SOURCE D’ALIMENTATION : DC IN/ENTRÉE CC 5V 1A Distributed by / Distribué par: Imation Enterprises Corp. Designed in US / Conçue en US Made in China / Fabriqué en Chine FCC ID: PB4-MA3911 IC: 6900A-MA3911 please put the serial number barcode label inside the battery compartment 把 Barccode 貼紙放在電池蓋內 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, Including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Model/Modèle.: MA3911MS POWER SUPPLY/ SOURCE D’ALIMENTATION : DC IN/ENTRÉE CC 5V 1A Distributed by / Distribué par: Imation Enterprises Corp. Designed in US / Conçue en US Made in China / Fabriqué en Chine FCC ID: PB4-MA3911 IC: 6900A-MA3911

INTERTEK TESTING SERVICE Report No.: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 Equipment Photographs Model : MA3911MS (Internal) INTERTEK TESTING SERVICE Report No.: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 Equipment Photographs Model : MA3911MS (Internal) INTERTEK TESTING SERVICE Report No.: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 Equipment Photographs Model : MA3911MS (Internal) INTERTEK TESTING SERVICE Report No.: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 Equipment Photographs Model : MA3911MS (Internal) INTERTEK TESTING SERVICE Report No.: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 Equipment Photographs Model : MA3911MS (Internal) INTERTEK TESTING SERVICE Report No.: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 Equipment Photographs Model : MA3911MS (Internal) INTERTEK TESTING SERVICE Report No.: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 Equipment Photographs Model : MA3911MS (Internal) INTERTEK TESTING SERVICE Report No.: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 Equipment Photographs Model : MA3911MS (Internal) INTERTEK TESTING SERVICE Report No.: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 Equipment Photographs Model : MA3911MS (Internal) INTERTEK TESTING SERVICE Report No.: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 Equipment Photographs Model : MA3911MS (Internal)

INTERTEK TESTING SERVICES Report No.: HK10110792-1 Sample No.: 1/1 Code: FCC15C_d / Effective Date: 26 Jan 2010 Bandedge Plot - Pursuant to FCC Part 15 Section 15._249 __ Requirement (Pass) marker1(peak) = 87.5dBuV/m marker1(peak) - delta = 87.5dBuV/m - 34.93dB = 52.57dBuV/m lower than 54dBuV/m limit marker1(peak) = 85.5dBuV/m marker1(peak) - delta = 85.5dBuV/m - 43.58dB = 41.92dBuV/m lower than 54dBuV/m limit

Report no.: HK10110792 Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP HK10110792 (K0792C1) Date: 3.DEC.2010 19:36:08 Report no.: HK10110792 Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 195 kHz 54.56 L1 -9.25 2 CISPR Average195 kHz 39.74 N -14.07 1 Quasi Peak 262.5 kHz 49.76 N -11.58 2 CISPR Average262.5 kHz 36.76 N -14.59 1 Quasi Peak 393 kHz 46.04 L1 -11.95 2 CISPR Average393 kHz 34.19 N -13.80 2 CISPR Average519 kHz 29.35 N -16.64 1 Quasi Peak 528 kHz 43.51 L1 -12.48 2 CISPR Average573 kHz 24.84 N -21.15 1 Quasi Peak 649.5 kHz 41.62 L1 -14.37 1 Quasi Peak 1.0905 MHz 38.05 L1 -17.94 1 Quasi Peak 1.122 MHz 37.49 L1 -18.51 2 CISPR Average1.14 MHz 20.77 N -25.22 2 CISPR Average1.7115 MHz 17.82 N -28.18 1 Quasi Peak 1.8015 MHz 35.86 N -20.13 2 CISPR Average2.283 MHz 18.14 N -27.85 1 Quasi Peak 2.652 MHz 36.11 N -19.88 1 Quasi Peak 3.984 MHz 33.61 N -22.38 1 Quasi Peak 4.2405 MHz 33.39 N -22.60 1 Quasi Peak 6.7785 MHz 31.23 N -28.76 HK10110792 (K0792C1) Date: 3.DEC.2010 19:35:59

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK10110792-1 Imation Corp. Application For Certification (Original Grant) (FCC ID: PB4-MA3911) (IC: 6900A-MA3911) Transceiver Prepared and Checked by: Approved by: Signed On File Wong Kwok Yeung, Kenneth Engineer Chan Chi Hung, Terry Assistant Supervisor Date: January 18, 2011 INTERTEK TESTING SERVICES Report No.: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 i GENERAL INFORMATION Imation Corp. BRAND NAME: Memorex, MODEL: MA3911MS MA3911 FCC ID: PB4-MA3911 IC: 6900A-MA3911 Grantee: Imation Corp. Grantee Address: 1 Imation Way, Oakdale, MN 55128-3414, USA. Contact Person: Mr. Greg Weisjahn Tel: 651-704-6188 Fax: 651-704-5172 e-mail: [email protected] Manufacturer: Plastoform Industries Ltd. Manufacturer Address: 6A-12,15/FL Mita Center 552-556 Castle Peak Road Kwai Chung, N.T., Hong Kong Brand Name: Memorex Model: MA3911MS Additional Model: MA3911 Type of EUT: Transceiver Description of EUT: Memorex Portable Bluetooth Speaker Serial Number: N/A FCC ID / IC: PB4-MA3911 / 6900A-MA3911 Date of Sample Submitted: November 19, 2010 Date of Test: November 24, 2010 to December 04, 2010 Report No.: HK10110792-1 Report Date: January 18, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 ii SUMMARY OF TEST RESULT Imation Corp. BRAND NAME: Memorex, MODEL: MA3911MS, MA3911 FCC ID: PB4-MA3911 IC: 6900A-MA3911 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength 15.227 / RSS-310 3.8 N/A Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 Pass Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Receiver Radiated Emissions RSS-210 2.5 Pass Digital Device Conducted Emissions 15.107 / ICES-003 Pass Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 3 2.6 Support Equipment List and Description........................................................ 3 3.0 Emission Results ...................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model : MA3911MS INTERTEK TESTING SERVICE Report No: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Back View) Model : MA3911MS INTERTEK TESTING SERVICE Report No: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model : MA3911MS

INTERTEK TESTING SERVICE Report No: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : MA3911MS INTERTEK TESTING SERVICE Report No: HK10110792-1 FCC ID: PB4-MA3911 IC: 6900A-MA3911 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : MA3911MS
