PB4-TDKWR780Wireless Headphones

Wireless Headphones WR780 English Refer to the included Important Safety Instructions. Please read and save this Quick Start Guide, Important Safety Instructions and Warranty. For additional information, please go to TDKperformance.com.u To charge the internal battery, connect the smaller end of the supplied USB cable to the Micro USB jack and the other end to a powered USB jack on your computer or AC power supply (not included). When charging, the Charge indicator will light red and go out when fully charged.The NFC/ Bluetooth indicator will blink red twice and the headphone will beep per minute when charging is needed. Replacing the Rechargeable Battery: If the battery does not supply enough power, visit www.tdkperformance.com for instructions on battery replacement. The battery is not user-replaceable.Rechargeable Battery Notes: • Each time you charge and discharge the battery (charge cycles), battery capacity slightly diminishes. Rechargeable batteries have a limited number of charge cycles and need to be replaced eventually. • You may wish to replace your battery when, or before, the battery does not supply enough power to function your device. Also, proper disposal is essential from environmental and safety point of view. Putting any battery directly in the trash will harm the environment. • Do not incinerate.ª If you do not plan on using the battery for a month or more, turn off the main power (OFF/ON) switch and store it in a clean, dry, cool place away from heat and metal objects. Rechargeable batteries will self-discharge during storage; remember to recharge the batteries every three months and before use. • It is recommended to charge the batteries for more than eight hours before first use. RECHARGING THE BATTERY u 63953222 A The chart below defines the button operations and when the indicators will light: CONTROL BUTTONS / STATUS INDICATORS - See illustration w Charge Indicator ( c ): Indicates the charging status: Off - Fully charged Red - Charging Play/Pause/ Bluetooth /NFC/Call Button ( d ): The Play/Pause/ Bluetooth /NFC/Call button is a multi-function button that will perform a number of operations as follows:When the headphone is powered on, press and hold 4 seconds to enter the Pairing mode (see Pairing With NFC) or 6 seconds to enter Scanning mode (see Pairing With A Bluetooth Device). When connected via Bluetooth , press to pause; press again to resume playback. If a phone call is received, press to answer the call or press and hold for 2 seconds to decline the call. While on a call, press to end the call. NFC/ Bluetooth Indicator ( e ): Off: Standby mode.Solid Blue: Bluetooth device is connected. Blinks Red/Blue: Discoverable and ready to pair with a Bluetooth device. Blinks Blue: Discoverable and ready to pair with a Bluetooth device with NFC function. Blinks Red twice: Charging is needed. + - Skip Buttons ( f ): Press the Volume/Skip/Search  /+ or  /- button to skip forward or backward through songs. Press and hold the Volume/Skip/Search  /+ or  /- button to increase or decrease the volume. 1. With the unit on, press and hold the Play/Pause/ Bluetooth /NFC/Call button for approximately 6 seconds to select scanning mode until the NFC/ Bluetooth indicator blinks blue and red and a beep is heard; the headphones are now “discoverable”. You will have 3 minutes to pair the units. 2. On the Bluetooth device, enable Bluetooth and select “WR780” from the Device List. If the Bluetooth device asks for a passkey, use “0000”. Some Bluetooth devices will ask you to accept the connection. If the units are paired properly, the headphones will beep and the NFC/ Bluetooth indicator will light solid blue. Note: After you pair a device, it will be remembered for future use. PAIRING WITH A BLUETOOTH DEVICE - See illustration x Insert one end of an audio cable (included) into the LINE OUT jack on your external audio unit and the other end into the AUX IN jack on the bottom of the left earpiece. The Aux device will automatically be selected when the audio cable is connected and the Bluetooth device will be disconnected. Start playback of the external unit and the external audio unit’s output sound will be heard through the headphones. When connecting the AUX IN jack to the external audio device, the Play/Pause/Skip functions will not control the external device. When connected via the audio cable, slide the Volume control upwards to increase or downwards to decrease the volume. USING THE AUX CONNECTOR - See illustration U NFC offers a simple setup method for your headphones. Turn on the headphones and enter the pairing mode by pressing and holding the Play/Pause/ Bluetooth /NFC/Call button for 4 seconds until the NFC/ Bluetooth indicator slowly blinks blue or you can also pair in scanning mode (See Pairing with a Bluetooth device). Then simply hold the NFC-enabled device (NFC on the device must be “on”) within a few centimeters of the NFC symbol on the left ear piece to pair and establish a Bluetooth connection. If the units are paired properly, the headphones will beep and the NFC/ Bluetooth indicator will light solid blue. You will have 10 minutes to pair the units. It’s just that simple! PAIRING WITH NFC (Requires NFC Enabled Phone) - See illustration y If the headphones have not been paired, for 10 minutes, the headphones will automatically turn off. AUTO POWER OFF When receiving a phone call on your paired Bluetooth device, press the Play/Pause/ Bluetooth /NFC/Call button (or the Answer/End Call button on the audio cable) to answer and use the built-in microphone on the headphones to take the call. Press again to disconnect/end the call. ANSWERING A PHONE CALL SPECIFICATIONS Power Source (DC) ..... 3.6V, 36mA (@1kHz-max volume) Dimensions .......................... 7.68 x 7.68 x 3.54 inches...................................................... 195 x 195 x 90 mmWeight. ................................................ ..57 lbs (260 g) Power Output ...............................…

Text truncated - open the document above for the full version.

F-3088 WR780 Block Diagram 2402 - 2480MHz Speaker output R&LPhone Jack A udio Powe r A mplifer Match Crystal26.0MHz BC57F687A05 1  F-3088  Bluetooth Modem Baseband Basic Rate RF_N Bluetooth v2.1 Modem RF_P Radio Enhanced Rate Modem VDD_CORE VDD_RADIO Radio Control VDD_LO LO_REF XTAL_OUT Clock Generation Microcontroller Interrupt Controller Timers MCU Memory Management Unit System RAM DSP Interrupt Controller Timers Kalimba DSP I 2 C bus interface can only connect to a serial EEPROM PIO[8] SDA PIO[7] SCL PIO[6] VDD_UARTUART_RTS UART_CTS UART_RX UART_TXSPI_MOSI SPI_MISO SPI_CS# SPI_CLKSPKR_A_N XTAL_IN Power Control and Regulation VDD_CHG IN Battery Charger OUT BAT_P VDD_SMP_CORE SENSE Switch-mode LX Regulator VSS EN VREGENABLE_H VREGENABLE_L VREGIN_L IN EN Low-voltage Linear Regulator VDD_ANA OUT SENSE VREGIN_AUDIO IN EN Programmable I/O LED Driver AIO GPIO Data Memory Data Memory Program DM1 DM2 Memory PM Internal Memory Interface ROM SPKR_A_P SPKR_B_N SPKR_B_P MIC_BIAS MIC_A_N MIC_A_P MIC_B_N MIC_B_PAU_REF_DCPLVDD_PADS Low-voltage Audio Linear VDD_AUDIO Regulator OUT SENSE RST#TEST_EN BC57F687A05 Block Diagram BC57F687A05 Block Diagram

180180

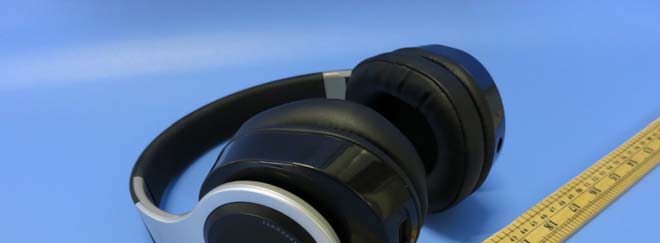

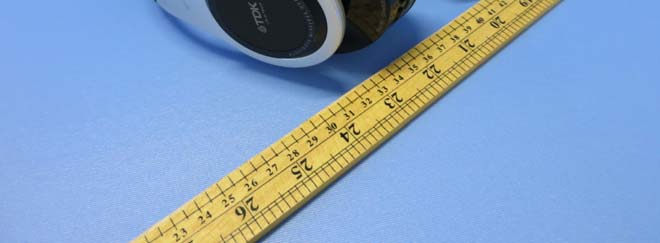

INTERTEK TESTING SERVICE Report No.: 14031417HKG-001 FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 Equipment Photographs Model: WR780 (External)

5mm BC R XXX - XXXXXX CCXXxxYYyyyZzW BC IC: 6900A-TDKWR780 FCC ID: PB4-TDKWR780 CAN ICES-3 (B)/NMB-3(B) R XXX - XXXXXX CCXXxxYYyyyZzW MSIP-CRM-WKY-WR780 5mm 7mm 5mm 18mm 30mm 30mm 18mm 4.67mm 15.8mm 3mm 16mm 5mm 15.5mm 9mm 15.5mm BC R XXX - XXXXXX CCXXxxYYyyyZzW BC 75x75mm钢板TDK H289 支臂 MSIP-CRM-WKY-WR780 NEW MATERIAL ONLY REG. NO.0 4 T - 0 0 5 1 0 9 1 1 CONTENT MATÉRIAUX NEUFS SEULEMENT N DE PERMIS 0 4 T - 0 0 5 1 0 9 1 1 CONTENU O NEW MATERIAL ONLY REG. NO.0 4 T - 0 0 5 1 0 9 1 1 CONTENT MATÉRIAUX NEUFS SEULEMENT N DE PERMIS 0 4 T - 0 0 5 1 0 9 1 1 CONTENU O MATÉRIAUX NEUFS SEULEMENT N DE PERMIS 0 4 T - 0 0 5 1 0 9 1 1 CONTENU O H289电线贴纸，白底黑字贴纸，要通过酒精及汽油测试 50mm 55mm 13mm R XXX - XXXXXX CCXXxxYYyyyZzW MSIP-CRM-WKY-WR780 MSIP-CRM-WKY-WR780 IC: 6900A-TDKWR780 FCC ID: PB4-TDKWR780 CAN ICES-3 (B)/NMB-3(B) IC: 6900A-TDKWR780 FCC ID: PB4-TDKWR780 CAN ICES-3 (B)/NMB-3(B) IC: 6900A-TDKWR780 FCC ID: PB4-TDKWR780 CAN ICES-3 (B)/NMB-3(B) Wireless Headphones Model: WR780 Voltage/ rating: DC 5V Current : 0.5A Make in China Complies with IDA standard DA104910 Wireless Headphones Model: WR780 Voltage/ rating: DC 5V Current : 0.5A Make in China Complies with IDA standard DA104910 Wireless Headphones Model: WR780 Voltage/ rating: DC 5V Current: 0.5A Make in China Complies with IDA standard DA104910

INTERTEK TESTING SERVICE Report No.: 14031417HKG-001 FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 Equipment Photographs Model: WR780 (Internal) INTERTEK TESTING SERVICE Report No.: 14031417HKG-001 FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 Equipment Photographs Model: WR780 (Internal) INTERTEK TESTING SERVICE Report No.: 14031417HKG-001 FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 Equipment Photographs Model: WR780 (Internal) INTERTEK TESTING SERVICE Report No.: 14031417HKG-001 FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 Equipment Photographs Model: WR780 (Internal) INTERTEK TESTING SERVICE Report No.: 14031417HKG-001 FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 Equipment Photographs Model: WR780 (Internal) INTERTEK TESTING SERVICE Report No.: 14031417HKG-001 FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 Equipment Photographs Model: WR780 (Internal) INTERTEK TESTING SERVICE Report No.: 14031417HKG-001 FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 Equipment Photographs Model: WR780 (Internal) INTERTEK TESTING SERVICE Report No.: 14031417HKG-001 FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 Equipment Photographs Model: WR780 (Internal) INTERTEK TESTING SERVICE Report No.: 14031417HKG-001 FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 Equipment Photographs Model: WR780 (Internal) INTERTEK TESTING SERVICE Report No.: 14031417HKG-001 FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 Equipment Photographs Model: WR780 (Internal)

Technical Description: The Equipment Under Test ( EUT) is a 2.4GHz Bluetooth headphone with AUX-in port and NFC f unction. The Bluetooth portion is o perating between 2402MHz and 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 1 x 3.6VDC rechargeable battery. It has a USB port charging the rechargeable battery. When the EUT is switched ON, the light will be flashing. The corresponding Bluetooth device would be searched and connected to the EUT before playing audio. After pairing, the light will stay lit. This NFC tag in EUT is a passive data device, which is powered by RF field of external reader. 2.4GHz Bluetooth Module: Modulation Type: GFSK Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels Antenna Type: Integral, Internal (PCB Trace) Antenna Gain: 0dBi Nominal rated field strength: 103.5BμV/m at 3m Maximum allowed field strength of production tolerance: +0dB / - 6dB 1. Bluetooth module (F-3088): a. BC57F687A05 (U1) act as 2.4GHz transceiver. b. The 26MHz crystal (TX) provides system clock for BC57F687A05 (U1) c. The output of filter (U3)has the matching network consisting of L1 and L4 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. d. M24C32-MFB5TG act as EEPROM 2. Microcontroller: a. UM-TM57PA10 act as a Microcontroller 3. NFC: a. NXP203 act as a NFC tag. Features _äìÉqìåÉë ∆ =olj=nck ■ Cost-effective single-chip solution for stereo headset and wireless speaker applications ■ A2DP1.2 and AVRCP1.0 profiles enabled with SBC encoder for streaming audio over Bluetooth and for remote control functionality ■ MP3 1 decoder for improved audio quality and reduced power consumption ■ Configurable A2DP 5-band EQ ■ High-quality audio 95dB SNR on DAC playback ■ 64MIPS Kalimba DSP co-processor ■ FastStream, CSR’s low-latency codec for video and gaming applications ■ HFP 1.5 (includes 3-way calling) and HSP 1.0 support ■ cVc support for echo and noise reduction ■ Low-power consumption: over 10 hours of audio playback from a 180mAh battery ■ Fully qualified Bluetooth v2.1 + EDR specification system with support for secure simple pairing ■ Best-in-class Bluetooth radio with 7dBm transmit power and -90dBm receive sensitivity ■ Integrated linear regulator with 1.5V output from 1.8V to 2.7V input ■ Integrated switch-mode regulator ■ Integrated 150mA lithium battery charger ■ 68-lead 8 x 8 x 0.9mm, 0.4mm pitch QFN package ■ Green (RoHS and no antimony or halogenated flame retardants) ■ BlueTunes ROM Stereo Headset Solution Development Kit (includes example design) available. Order code BTN-003-1A _äìÉqìåÉë=olj=píÉêÉç=eÉ~ÇëÉí=pçäìíáçå Single-chip Bluetooth ® v2.1 + EDR System Advance Information BC57F687A05 Issue 1 General Description Based on _äìÉ`çêÉ ∆ RJjìäíáãÉÇá~=olj=nck, the _äìÉqìåÉë=olj=nck integrates a Bluetooth radio, baseband, DSP, high-quality audio codec, SMPS, LDOs and a battery charger for minimal BOM, component count and PCB area. BlueTunes ROM QFN uses advanced DSP features for the latest stereo enhancements and to improve audio quality; including SBC and MP3 decoder, support for FastStream (low-latency codec) and 5- band EQ. 2.4 GHz Radio I/O XTAL RF IN RF OUT RAM MCU Kalimba DSP PIO UART Audio In/Out SPI ROM EEPROM I 2 C Applications ■ Stereo headset solution with support for echo and noise reduction ■ Wireless stereo speakers BlueTunes ROM QFN includes, as standard, the cVc single-microphone algorithm for echo and noise suppression. cVc 1-mic is for headset applications only, it provides full-duplex echo-cancellation and a 10dB stationary noise suppressor. The cVc dual-microphone algorithm provides >30dB of noise suppression in both dynamic and stationary noise conditions such as babble, road, music and competing voices. In addition the cVc dual- microphone solution integrates an acoustic echo- canceller, further enhancing the far-end user- experience. A software license enables this dual- microphone algorithm. BlueTunes ROM QFN includes secure simple pairing, which greatly simplifies the pairing process, making it even easier to use a Bluetooth headset. BlueTunes ROM QFN is available in a 8 x 8 x 0.9mm QFN package. 1 MP3 decode functionality requires an appropriate license from Thomson, see Section 17.1 CS-122312-DSP1 Advance Information This material is subject to CSR's non-disclosure agreement © Cambridge Silicon Radio Limited 2008 Page 1 of 77 _äìÉqìåÉë=olj=nck Data Sheet Document History RevisionDateChange Reason 123 OCT 08Original publication of this document If you have any comments about this document, email [email protected] giving the number, title and section with your feedback. Document History CS-122312-DSP1 Advance Information This material is subject to CSR's non-disclosure agreement © Cambridge Silicon Radio Limited 2008 Page 2 of 77 _äìÉqìåÉë=olj=nck Data Sheet Status Information The status of this Data Sheet is Advance Information. CSR Product Data Sheets progress according to the following format: Advance Information Information for designers concerning CSR product in development. All values specified are the target values of the design. Minimum and maximum values specified are only given as guidance to the final specification limits and must not be considered as the final values. All detailed specifications including pinouts and electrical specifications may be changed by CSR without notice. Pre-production Information Pinout and mechanical dimension specifications finalised. All values specified are the target values of the design. Minimum and maximum values specified are only given as guidance to the final specification limits and must not be considered as the final values. All electrical specifications may be changed by CSR without notice. Production Information Final Data Sheet including the guaranteed minimum and maximum limits for the electrical specifications. Production Data Sheets supersede all previous document versions. ESD Precautions BlueTunes ROM QFN is classifie…

Text truncated - open the document above for the full version.

Analysis Report Report No.: 14031417HKG-001 The Equipment Under Test (EUT) is a 2.4GHz Bluetooth headphone with AUX-in port and NFC function. The Bluetooth portion is operating between 2402MHz and 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 1 x 3.6VDC rechargeable battery. It has a USB port charging the rechargeable battery. When the EUT is switched ON, the light will be flashing. The corresponding Bluetooth device would be searched and connected to the EUT before playing audio. After pairing, the light will stay lit. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 103.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +0dB / - 6dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 103.5dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 6.716mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 6.716mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

ܙ⬉⬉䏃 BAT3.6V F-3088 WR780 C2 104P C3 100UF -+ MIC 3 VOL+ 4 VOL- 5 F/F 6 REW 7 POW 8 V1.8 9 GND 10 VCC 11 LED1 12 LED2 13 MIC 14 SPBN 15 SPBP 16 SPAN 17 SPAP 18 AGND 1 PIO1 2 PIO2 19 MOSI 20 CLK 21 CS 22 MISO 23 RST 24 VDD-CHG BT_MODULE BC57F68A05 K3 VOL- K1 VOL+ LED1 K2 POWER R6 2.2K R3 1K R1 1K 1342 P1 PHONE 12345 6789 1011 AUXIN SW1 0N 0FF USB 5V D1' IN5819 B-B+ Q3 3904 Q2 8550 KA L'ED1 R8 1K R7' 100K R6' 4K7 12345678 91011121314 U2 UM-TM57PA10 R5 33K C4 105 1 VSS 2 VOUT 3 VIN Q1 3.3V C5 105 R3' 3.6 ⃻ R4 47k R2 10K C2' 105 R1' 100k R9 1k 1 2 U3 NXP203 D1 IN4148 C7 104P D2 IN4148 D3 IN4148 D4 IN4148 C8 20P C9 20P C1' 100uF/6.3V C5' 105 R11 1k R10 0.1 ⃻ OUTV+ INV+ VDD+ GND GND GND GND GND GND GND GND V+ PTC  ;7$/B,1  ;7$/B287  /('B  /('B  3,2B  3,2B  3,2B  3,2B  3,2B  3,2B  3,2B  3,2B  3,2B  3,2B  3,2B  3,2B  3,2B  3,2B  63,B&/.  63,B0,62  63,B026,  63,B&6  8$57B7;  8$57B5;  8$57B&76  8$57B576  $,2B  $,2B  /2B5()  7(67B(1  567  966B&175B3$'  1&  1&  1&  1&  1&  1&  1&  0,&B%,$6  0,&B%B1  0,&B%B3  0,&B$B1  0,&B$B3  63.B$B1  63.B$B3  63.B%B3  63.B%B1  $8B5()B'&3/  9''B3$'6  9''B8$57  9''B3,2  9''B$8',2  95(*,1B/B$8',2  95(*(1$%/(B/  95(*(1$%/(B+  %$7B3  9''B&+*  9&&B%8&.B&25(  /;  95(*,1B/  9''B$1$  9''B&25(  9''B&25(  9''B5$',2  9''B5$',2  9''B/2  5)B3  5)B1 8 %/8(B78516B520 %&)$  %$/  %$/  '&  81%$/  1&  *1'  *1'  *1' U3 '%))B&65  (  (  (  966  6&/  6'$  :&  9&& 8 0&0)%7* / 22uH & 15P L6 NC L1 15NH L2 15nH & 15P & 15P C19 2u2 & 22n C21 4u7 & 2u2 & 2u2 C17 2u2 & 22n R4 2R2 C7 22n    TX TSX3225 26MHz C1 6P8 & 18P 5 2K2 5 2K2 R9 2K2 & 100n & 22n & 2u2 & 2u2 & 100n & 100n 5 1K R5 2K2 / 5 & 47n R6 2R2 / 0R 9 9 9 9 9 V1.8 9 9''B&+* %$7 32: 9 9 9B$8',2 9 9 /('/('6:6:6:6:3,23,2 9 63,B&/.63,B0,6263,B026,63,B&6 567 0,&B%,$6 63$163$363%363%1 9 A ntenna 2402-2480MHz F-3088 circuit diagram

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 14031417HKG-001 Imation Corp. Application For Certification (Original Grant) (FCC ID: PB4-TDKWR780) (IC: 6900A-TDKWR780) Transceiver Prepared and Checked by: Approved by: Signed On File Chan Kwan Ho, Alex Assistant Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: May 28, 2014 INTERTEK TESTING SERVICES Report No.: 14031417HKG-001 i FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 GENERAL INFORMATION Grantee: Imation Corp. Grantee Address: 1 Imation Way, Oakdale, Minnesota, 55128-3414, United States. Contact Person: Lawrence Lai Tel: (852) 2161-2192 Fax: (852) 2302-4770 e-mail: [email protected] Manufacturer: Imation Corp. Manufacturer Address: 1 Imation Way, Oakdale, Minnesota, 55128-3414, United States. Brand Name: TDK Life on Record Model: WR780 Type of EUT: Transceiver Description of EUT: Wireless Headphones Serial Number: N/A FCC ID / IC: PB4-TDKWR780 / 6900A-TDKWR780 Date of Sample Submitted: March 31, 2014 Date of Test: March 31, 2014 to April 28, 2014 Report No.: 14031417HKG-001 Report Date: May 28, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 14031417HKG-001 ii FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 Pass Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 Pass Radiated Emission Radiated Emission on the Bandedge 15.209 / RSS-210 A2.9(a), A2.9(b) Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 3, December 2010 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 14031417HKG-001 iii FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Measurement Uncertainty ............................................................................. 2 2.5 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 3.4 Conducted Emission Configuration Photograph ............................................ 4 3.5 Conducted Emission Data............................................................................. 4 4.0 Equipment Photographs .............................................................................. 10 5.0 Product Labelling......................................................................................... 10 6.0 Technical Specifications .............................................................................. 10 7.0 Instruction Manual ....................................................................................... 10 8.0 Miscellaneous Information.......................................................................... 11 8.1 Radiated Emis…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14031417HKG-001 FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: WR780 Radiated Emission WR780 14031417HKG-001 A  B  INTERTEK TESTING SERVICE Report No: 14031417HKG-001 FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: WR780 Radiated Emission WR780 14031417HKG-001 A  B 

INTERTEK TESTING SERVICE Report No: 14031417HKG-001 FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: WR780 INTERTEK TESTING SERVICE Report No: 14031417HKG-001 FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) Model: WR780 INTERTEK TESTING SERVICE Report No: 14031417HKG-001 FCC ID: PB4-TDKWR780 IC: 6900A-TDKWR780 iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model: WR780
