PB4-TDKWR680Wireless Headphones

Wireless Headphones WR680 English Refer to the included Important Safety Instructions. Please read and save this Quick Start Guide, Important Safety Instructions and Warranty. For additional information, please go to TDKperformance.com. u To charge the internal battery, connect the smaller end of the supplied USB cable to the Micro USB jack and the other end to a powered USB jack on your computer or AC power supply (not included). When charging, the Charge indicator will light red and go out when fully charged. The Bluetooth indicator will blink red twice and the headphone will beep once per minute when charging is needed. Replacing the Rechargeable Battery: If the battery does not supply enough power, visit support.tdkperformance.com for instructions on battery replacement. Rechargeable Battery Notes: • Each time you charge and discharge the battery (one charge cycle), battery capacity slightly diminishes. Rechargeable batteries have a limited number of charge cycles and need to be replaced eventually. • You may wish to replace your battery when, or before, the battery does not supply enough power to operate your device. Note that, proper disposal is essential from an environmental and safety point of view. Putting any battery directly in the trash will harm the environment. • Do not incinerate. • If you do not plan on using the headphones for a month or more, turn off the main power (OFF/ON) switch v and store them in a clean, dry, cool place away from heat and metal objects. Rechargeable batteries will self-discharge during storage; remember to recharge the batteries every three months and before use. • If battery has not been charged for more than 4-6 months, perform a couple of full charge/discharge cycles to improve battery capacity. • It is recommended to charge the batteries for more than eight hours before first use. RECHARGING THE BATTERY u 63953382 A The chart below defines the button operations and when the indicators will light: CONTROL BUTTONS / STATUS INDICATORS - See illustration w Charge Indicator ( a b c d e f g h ): Indicates the charging status: Off - Fully charged Red - Charging Play/Pause/Bluetooth/Call Button ( a b c d e f g h ): The Play/Pause/Bluetooth/Call button is a multi- function button that will perform a number of operations as follows: When the headphone is in Standby mode, press and hold 4 seconds to enter the Connection mode (see also Pairing With NFC) or 6 seconds to enter Pairing mode (see Pairing With A Bluetooth Device). When on, press and hold until there is a single red flash to enter Standby mode. When connected via Bluetooth, press to pause; press again to resume playback. If a phone call is received, press to answer the call or press and hold for 2 seconds to decline the call. While on a call, press to end the call. Bluetooth Indicator ( a b c d e f g h ): Off: Standby mode / Connected to AUX connector. Solid Blue: Bluetooth device is connected. Fast Blinks Red/Blue: Pairing mode, discoverable and ready to pair with a Bluetooth device. Slow Blinks Blue: Connection mode, ready to connect with any already paired Bluetooth devices or ready to pair with NFC function. Blinks Red Twice: Charging is needed. Blinks Red Once: Bluetooth power off and back to Standby mode. Skip Buttons ( a b c d e f g h ): Press the Volume/Skip/Search :/+ or 9/– button to skip forward or backward through songs. Press and hold the Volume/Skip/Search :/+ or 9/– button to increase or decrease the volume. These are inactive when using AUX connector. 1. When the unit is in Standby mode, press and hold the Play/Pause/Bluetooth/Call button for approximately 6 seconds to select Pairing mode until the Bluetooth indicator blinks blue and red fast and a beep is heard; the headphones are now “discoverable”. You will have 3 minutes to pair the units. 2. On the Bluetooth device, enable Bluetooth and select “WR680” from the Device List. If the Bluetooth device asks for a passkey, use “0000”. Some Bluetooth devices will ask you to accept the connection. If the units are paired properly, the headphones will beep and the Bluetooth indicator will light solid blue. Note: After you pair a device, it will be remembered for future use. PAIRING WITH A BLUETOOTH DEVICE - See illustration x Insert one end of an audio cable (included) into the LINE OUT jack on your external audio unit and the other end into the AUX IN jack on the bottom of the left earpiece. The Aux device will automatically be selected when the audio cable is connected and the Bluetooth device will be disconnected. Start playback of the external unit and the external audio unit’s output sound will be heard through the headphones. When connecting the AUX IN jack to the external audio device, the Play/Pause/Skip functions will not control the external device. When connected via the audio cable, slide the Volume control upwards to increase or downwards to decrease the volume. USING THE AUX CONNECTOR - See illustration U NFC offers a simple setup method for your headphones. Turn the Battery Switch to ON and enter the connection mode by pressing and holding the Play/Pause/Bluetooth/Call button for 4 seconds until the Bluetooth indicator slowly blinks blue or you can also pair in Pairing mode (See Pairing with a Bluetooth device). Then simply hold the NFC-enabled device (NFC on the device must be “on”) within a few centimeters of the NFC symbol on the left ear piece to pair and establish a Bluetooth connection. If the units are paired properly, the headphones will beep and the Bluetooth indicator will light solid blue. You will have 10 minutes to pair the units. It’s just that simple! PAIRING WITH NFC (Requires NFC Enabled Phone) - See illustration y If the headphones have not been connected for 10 minutes, the headphones will automatically turn off. AUTO POWER OFF When receiving a phone call on your paired Bluetooth device, press the Play/Pause/Bluetooth/Call button (or the Answer/End Call button on the audio cable) to answer and use t…

Text truncated - open the document above for the full version.

Nederlands Raadpleeg de meegeleverde belangrijke veiligheidsvoorschriften. Lees en bewaar deze snelle startgids, de belangrijke veiligheidsinstructies en de garantie. Ga voor meer informatie naar TDKperformance.com. Suomi Lue laitteen mukana toimitetut tärkeät turvallisuusohjeet. Lue ja säilytä tämä pikaopas, tärkeät turvallisuusohjeet sekä takuutiedot. Lisätietoja on osoitteessa TDKperformance.com. Português Leia a Instruções Importantes de Segurança incluídas. Leia e guarde este Guia Rápido, as Instruções Importantes de Segurança e a Garantia. Mais informações podem ser obtidas em TDKperformance.com. Polski Zapoznać się z dołączonymi ważnymi instrukcjami dotyczącymi bezpieczeństwa. Należy przeczytać i zachować niniejszą skróconą instrukcję obsługi, ważne informacje dotyczące bezpieczeństwa i warunki gwarancji. Dodatkowe informacje można znaleźć na stronie TDKperformance.com. Čeština Přečtěte si přiložené Důležité bezpečnostní pokyny. Přečtěte si prosím a uložte si Stručného průvodce spuštěním, Důležité bezpečnostní pokyny a Záruku. Další informace naleznete na TDKperformance.com. uvw b d e a c f f g h x WR680 ON Bluetooth Bluetooth ON 0-0-0-0 yUV u Om de interne batterij op te laden sluit u het kleinere uiteinde van de meegeleverde USB-kabel aan op de micro-USB- aansluiting en het andere uiteinde op een USB-aansluiting op uw computer of AC-voeding (niet meegeleverd). Tijdens het opladen zal de batterij-indicator rood oplichten en doven als de batterij volledig is opgeladen. De Bluetooth-indicator zal twee keer rood knipperen en de hoofdtelefoon zal eens per minuut piepen als deze moet worden opgeladen. De oplaadbare batterij vervangen: Als de batterij niet voldoende stroom levert, bezoek dan support.tdkperformance.com voor instructies over het vervangen van de batterij. Opmerkingen voor oplaadbare batterij: • Elke keer dat u de batterij oplaadt en ontlaadt (een laadcyclus) neemt de batterijcapaciteit iets af. Oplaadbare batterijen kunnen een beperkt aantal keer worden opgeladen en moeten uiteindelijk worden vervangen. • U wilt de batterij misschien vervangen als, of voordat, de batterij niet genoeg stroom meer levert om uw apparaat goed te kunnen aandrijven. Let erop dat het weggooien van de batterij op de juiste manier van essentieel belang is uit milieu- en veiligheidsoogpunt. Het weggooien van de batterij bij het huisvuil schaadt het milieu. • Niet verbranden. • Als u van plan bent om de hoofdtelefoon gedurende een maand of langer niet te gebruiken, schakelt u de hoofdschakelaar (UIT/AAN) v uit en bewaart u de hoofdtelefoon op een schone, droge, koele plek, uit de buurt van warmte en metalen voorwerpen. Oplaadbare batterijen zullen zichzelf ontladen tijdens de opslag, vergeet daarom niet om de batterijen om de drie maanden en vóór gebruik opnieuw op te laden. • Als de batterij gedurende meer dan 4-6 maanden niet is opgeladen, voert u een aantal volledige laad-/ontlaadcycli uit om de batterijcapaciteit te verbeteren. • Het wordt aanbevolen om de batterijen gedurende meer dan acht uur op te laden alvorens ze voor de eerste keer te gebruiken. u Kun haluat ladata akun, liitä laitteen mukana toimitetun USB-johdon pienempi pää mikro-USB-liitäntään ja toinen pää tietokoneesi virtaa antavaan USB-liitäntään tai vaihtovirtalähteeseen (ei kuulu toimitukseen). Latauksen aikana latauksen merkkivalo palaa punaisena. Kun akku on täynnä, valo sammuu. Kun akku täytyy ladata, Bluetooth-merkkivalo välähtää kahdesti punaisena ja kuulokkeista kuuluu äänimerkki kerran minuutissa. Ladattavan akun vaihtaminen: Jos akku ei enää anna riittävästi virtaa, katso ohjeet akun vaihtamiseen osoitteesta support.tdkperformance.com. Ladattavaa akkua koskevia huomautuksia: • Joka kerta, kun akku ladataan ja tyhjennetään (yksi latauskerta), akun kapasiteetti pienenee hieman. Ladattavien akkujen latauskertojen määrä on rajallinen, ja akku on lopulta vaihdettava. • Akku tulee vaihtaa, kun (tai ennen kuin) se ei enää anna riittävästi virtaa laitteesi käyttämiseen. On tärkeää, että vanha akku hävitetään turvallisuus ja ympäristö huomioon ottaen. Akun hävittäminen suoraan roskien mukana vahingoittaa ympäristöä. • Älä hävitä polttamalla. • Jos kuulokkeita ei aiota käyttää kuukauteen tai sitä pitempään aikaan, katkaise virta OFF/ON- kytkimestä v säilytä kuulokkeita etäällä metalliesineistä puhtaassa, kuivassa paikassa, jossa ne eivät altistu kuumuudelle. Ladattavat akut tyhjenevät itsestään varastoinnin aikana. Muista ladata akut aina kolmen kuukauden välein ja ennen käyttöä. • Jos akkua ei ole ladattu yli 4–6 kuukauteen, lataa se täyteen ja pura lataus täysin pari kertaa akun kapasiteetin parantamiseksi. • On suositeltavaa ladata akkua yli 8 tuntia ennen ensimmäistä käyttökertaa. u Para carregar a bateria interna, conecte a extremidade menor do cabo USB fornecido à microentrada USB, e a outra extremidade a uma entrada USB com alimentação do seu computador ou de um adaptador de alimentação AC (não incluído). Quando a bateria estiver carregando, uma luz vermelha acenderá no indicador de Carga e desligará quando ela estiver totalmente carregada. Quando for necessário recarregar a bateria, uma luz vermelha piscará duas vezes no indicador de Bluetooth,e o fone de ouvido emitirá um bipe por minuto. Substituição da bateria recarregável: Se a bateria não estiver mais fornecendo energia suficiente, veja as instruções sobre substituição de bateria em support.tdkperformance.com. Observações sobre a bateria recarregável: • Cada vez que você carrega e descarrega a bateria (um ciclo de carga), a capacidade da bateria diminui um pouco. Baterias recarregáveis possuem um número limitado de ciclos de carga e eventualmente precisam ser substituídas. • Você poderá querer substituir a sua bateria quando ela deixar de fornecer energia suficiente para o funcionamento do seu dispositivo (ou antes que isso ocorra). O descarte adequado também é essencial do ponto de vista ambiental e de segurança. Descartar uma bateria diretamente no lixo prejudicará …

Text truncated - open the document above for the full version.

EU Compliance Statement – Imation Corp.. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the EU Directive. A copy of the EU Declaration of Conformity is available online at https://support.tdkperformance.com/ Déclaration de conformité UE – Par la présente, Imation Corp. déclare que cet appareil est conforme aux exigences essentielles et aux autres dispositions pertinentes de la Directive UE. Un exemplaire de cette Déclaration de Conformité UE est disponible en ligne à l’adresse https://support.tdkperformance.com/ Dichiarazione di conformità UE - Con la presente Imation Corp. dichiara che questo dispositivo è conforme ai requisiti essenziali e ad altre disposizioni pertinenti della Direttiva UE. Una copia della Dichiarazione di conformità UE è disponibile online su https://support.tdkperformance.com/ Declaración de conformidad de la EU: Por el presente, Imation Corp. declara que este dispositivo cumple con los requisitos esenciales y otras disposiciones relevantes de la Directiva de la UE. Una copia de la Declaración de Conformidad de la UE se encuentra disponible en línea en https://support.tdkperformance.com/ EU-verklaring van overeenstemming – Imation Corp. verklaart bij dezen dat dit apparaat in overeenstemming is met de essentiële vereisten en andere relevante bepalingen van de EU-richtlijn. Een kopie van de EU-conformiteitsverklaring is online beschikbaar via https://support.tdkperformance.com/ EU-Entsprechenserklärung – Imation Corp. erklärt hiermit, dass dieses Gerät den grundlegenden Anforderungen und anderen relevanten Bestimmungen der EU-Richtlinie entspricht. Eine Kopie der EU-Konformitätserklärung ist online zugänglich unter https://support.tdkperformance.com/ Oświadczenie o zgodności z przepisami unijnymi – Imation Corp. niniejszym oświadcza, że opisane urządzenie spełnia wymogi zasadnicze i inne stosowne postanowienia dyrektywy UE. Kopia Deklaracji zgodności UE dostępna jest pod adresem https://support.tdkperformance.com/ Декларация о соответствии требованиям Директив ЕС – Настоящим документом компания Imation Corp. официально заявляет о том, что это устройство соответствует обязательным требованиям и другим соответствующим положениям Директивы ЕС. С копией Декларации о соответствии требованиям Директив ЕС можно ознакомиться в режиме онлайн по адресу https://support.tdkperformance.com/ Declaração de conformidade CE – A Imation Corp.. declara que este dispositivo está em conformidade com os requisitos essenciais e outras disposições relevantes da Diretiva da CE. Pode obter uma cópia da Declaração de conformidade da UE online em https://support.tdkperformance.com/ Prohlášení o shodě pro EU – Imation Corp. tímto prohlašuje, že toto zařízení je v souladu se základními požadavky a dalšími příslušnými předpisy nařízení EU. Kopie prohlášení o shodě pro EU je dostupná online na adrese https://support.tdkperformance.com/ EU-vaatimustenmukaisuus – Imation Corp. ilmoittaa täten, että tämä laite on EU-direktiivin olennaisten vaatimusten ja muiden asianmukaisten määräysten mukainen. Kopio EU-vaatimustenmukaisuusvakuutus on saatavilla osoitteessa https://support.tdkperformance.com/ The N Mark is a trademark or registered trademark of NFC Forum, INC. in the United States and in other counties. All other trademarks and logos are property of their respective owners. Das N-Zeichen ist ein Warenzeichen oder eingetragenes Warenzeichen von NFC Forum, Inc. in den Vereinigten Staaten und in anderen Ländern. Alle anderen Warenzeichen sind Eigentum ihrer jeweiligen Inhaber. N-Mark est une marque commerciale ou une marque déposée de NFC Forum, Inc. aux États-Unis et dans d’autres pays. Toutes les autres marques déposées sont la propriété de leurs propriétaires respectifs. Il marchio N è un marchio di fabbrica o marchio di fabbrica registrato di NFC Forum, Inc. negli Stati Uniti e in altri Paesi. Tutti gli altri marchi di fabbrica sono proprietà dei rispettivi proprietari. N Mark es una marca comercial o una marca comercial registrada de NFC Forum, Inc. en los Estados Unidos y en otros países. Todas las demás marcas comerciales y logotipos son propiedad de sus respectivos titulares. Znak N jest znakiem towarowym lub zastrzeżonym znakiem towarowym NFC Forum, Inc. w Stanach Zjednoczonych i innych krajach. Wszystkie inne znaki towarowe i logo stanowią własność odpowiednich firm. Známka N Mark je obchodní známkou nebo zapsanou obchodní známkou společnosti NFC Forum, Inc. ve Spojených státech a v dalších zemích. Vechny ostatní obchodní známky jsou majetkem píslunch vlastník. «N Mark» – это товарный знак или зарегистрированная торговая марка NFC Forum, Inc. в США и других странах. Все остальные торговые марки принадлежат соответствующим владельцам. N 標記是美國或其他國家 NFC Forum 公司之商 標或註冊商標。所有其他商標和標誌是其各擁有 者之財產。 Technical Assistance / Assistance technique / Technische Hilfe / Technische assistentie / Assistenza tecnica / Asistencia técnica / Assistência técnica / Техническая помощь / Pomoc techniczna / Technická pomoc / / 고객지원센터 / 技術支援： US .................................................................................................................................................800-285-2783 DE/AT/CH ................................................................................................................................+49 2131 226 311 IT ............................................................................................................................................+39 022 1043 818 ES/PT ........................................................................................................................................+34 900 993 166 UK/IE ...................................................................................................................................+44 (0) 1344 402201 NL/Other EU .........................................................................................................................+31 (0)…

Text truncated - open the document above for the full version.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CHANGES OR MODIFICATIONS TO THIS EQUIPMENT MAY CAUSE HARMFUL INTERFERENCE UNLESS THE MODIFICATIONS ARE EXPRESSLY APPROVED IN THE INSTRUCTION MANUAL. THE USER COULD LOSE THE AUTHORITY TO OPERATE THIS EQUIPMENT IF AN UNAUTHORIZED CHANGE OR MODIFICATION IS MADE. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada License-exempt RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. CAN ICES-3(B)/NMB-3(B). Cet appareil est conforme à la section 15 des règlements de la FCC. Le fonctionnement est soumis aux deux conditions suivantes : (1) ce dispositif n’est pas censé causer d’interférences nuisibles, et (2) ce dispositif doit recevoir toute interférence, y compris celles pouvant causer un fonctionnement non désiré. TOUT CHANGEMENT OU MODIFICATION DE CET APPAREIL PEUT ENTRAÎNER DES INTERFÉRENCES NUISIBLES À MOINS QUE LES MODIFICATIONS NE SOIENT EXPRESSÉMENT APPROUVÉES DANS LE GUIDE D’UTILISATION. L’UTILISATEUR RISQUE LE RETRAIT DE L’AUTORISATION D’UTILISER CET ÉQUIPEMENT SI UNE MODIFICATION OU UN CHANGEMENT NON AUTORISÉ EST EFFECTUÉ. REMARQUE : Cet appareil a été testé et approuvé comme étant conforme aux limites préconisées pour un appareil numérique de la classe B conformément à la section 15 des réglementations de la FCC. Ces limites sont conçues pour fournir une bonne protection contre les interférences nuisibles dans une installation domestique. Cet appareil génère, utilise et peut émettre de l’énergie de radiofréquence et, s’il n’est pas installé et utilisé conformément aux instructions, peut perturber les communications radio. Cependant, il n’existe aucune garantie quant à l’absence d’interférences dans une installation particulière. Si cet appareil cause des interférences nuisibles au niveau de la réception radio ou de la télévision, (ce qui peut être vérifié en l’allumant et en l’éteignant), l’utilisateur doit essayer de remédier au problème en prenant les mesures suivantes : • Réorientez ou déplacez l’antenne réceptrice. • Augmentez la distance qui sépare l’appareil du récepteur. • Connectez l’appareil à une prise sur un circuit différent de celui utilisé par le récepteur. • Consultez le revendeur ou un technicien radio/téléviseur expérimenté. Cet appareil est conforme avec Industry Canada, exempt de licence RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférences, et (2) cet appareil doit accepter toute interférence, y compris celles pouvant causer un mauvais fonctionnement de l’appareil. CAN ICES-3 (B)/NMB-3(B) US and CANADA 1. Battery shall not be exposed to excessive heat such as sunshine, fire or the like. 2. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. 1. Baterie nesmí být vystavena příliš velkému teplu, nesmí být například na slunci, v blízkosti ohně a podobně. 2. UPOZORNĚNÍ: V případě nesprávného nahrazení baterie existuje nebezpečí výbuchu. Při výměně baterie použijte tentýž nebo obdobný typ baterie. 1. De batterij mag niet worden blootgesteld aan overmatige warmte zoals zonlicht, vuur of andere warmtebronnen. 2. LET OP: Er bestaat explosiegevaar als de batterij onjuist wordt vervangen. Vervang de batterij alleen door hetzelfde of een soortgelijk type. 1. La batterie ne doit pas être exposée à une chaleur excessive comme le soleil, le feu, etc. 2. ATTENTION : Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Remplacez-la uniquement avec le même type ou équivalent. 1. Schützen Sie den Akku vor übermäßiger Hitze wie direkter Sonneneinstrahlung, Feuer oder Ähnlichem. 2. ACHTUNG: Wenn der Akku beim Austausch nicht ordnungsgemäß eingelegt wird, besteht Explosionsgefahr. Tauschen Sie den Akku nur durch denselben oder einen gleichwertigen Akkutyp aus. 1. La batteria non deve essere esposta a calore eccessivo, quale luce del sole, fuoco o simili. 2. ATTENZIONE: se la batteria viene sostituita in modo errato vi è pericolo di esplosione. Sostituirla solamente con lo stesso tipo o con un tipo equivalente. 1. Akumulator nie może być narażony na działanie wysokich temperatur, np. wskutek nasłonecznienia, bliskości ognia itp. 2. UWAGA: w razie zastosowania niewłaściwego rodzaju akumulatora istnieje niebezpieczeństwo wybuchu. Wymieniać wyłącznie na akumulator tego samego lub równoważnego typu. 1. A bateria não deve ser exposta a calor excessivo, como luz solar, fogo ou afins. 2. CUIDADO: há risco de explosão caso a bateria seja substituída i…

Text truncated - open the document above for the full version.

Block Diagram (U101) U1 (U3) Charging Circuit (U2, Q1, Q2, Q3, LED2) USB port Switch 3. 6 VDC NFCantenna13.56MHz Keys and LED K1,K2,K3,LED1 X1 26MHz Crystal Earphones (FLT1) Matching Network (L3, L4, C14) Bluetooth2402MHz to 2480MHz 24C32 (U4) 1
F-3088  Bluetooth Modem Baseband Basic Rate RF_N Bluetooth v2.1 Modem RF_P Radio Enhanced Rate Modem VDD_CORE VDD_RADIO Radio Control VDD_LO LO_REF XTAL_OUT Clock Generation Microcontroller Interrupt Controller Timers MCU Memory Management Unit System RAM DSP Interrupt Controller Timers Kalimba DSP I 2 C bus interface can only connect to a serial EEPROM PIO[8] SDA PIO[7] SCL PIO[6] VDD_UARTUART_RTS UART_CTS UART_RX UART_TXSPI_MOSI SPI_MISO SPI_CS# SPI_CLKSPKR_A_N XTAL_IN Power Control and Regulation VDD_CHG IN Battery Charger OUT BAT_P VDD_SMP_CORE SENSE Switch-mode LX Regulator VSS EN VREGENABLE_H VREGENABLE_L VREGIN_L IN EN Low-voltage Linear Regulator VDD_ANA OUT SENSE VREGIN_AUDIO IN EN Programmable I/O LED Driver AIO GPIO Data Memory Data Memory Program DM1 DM2 Memory PM Internal Memory Interface ROM SPKR_A_P SPKR_B_N SPKR_B_P MIC_BIAS MIC_A_N MIC_A_P MIC_B_N MIC_B_PAU_REF_DCPLVDD_PADS Low-voltage Audio Linear VDD_AUDIO Regulator OUT SENSE RST#TEST_EN BC57F687A05 Block Diagram

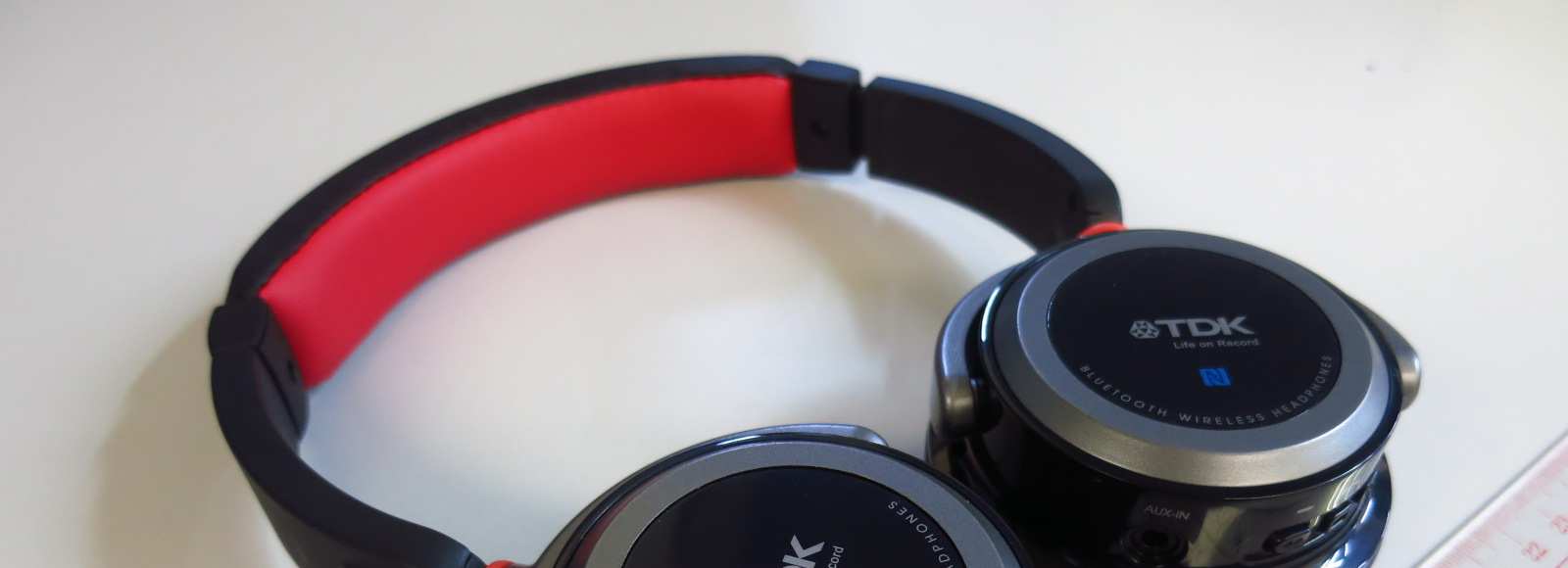

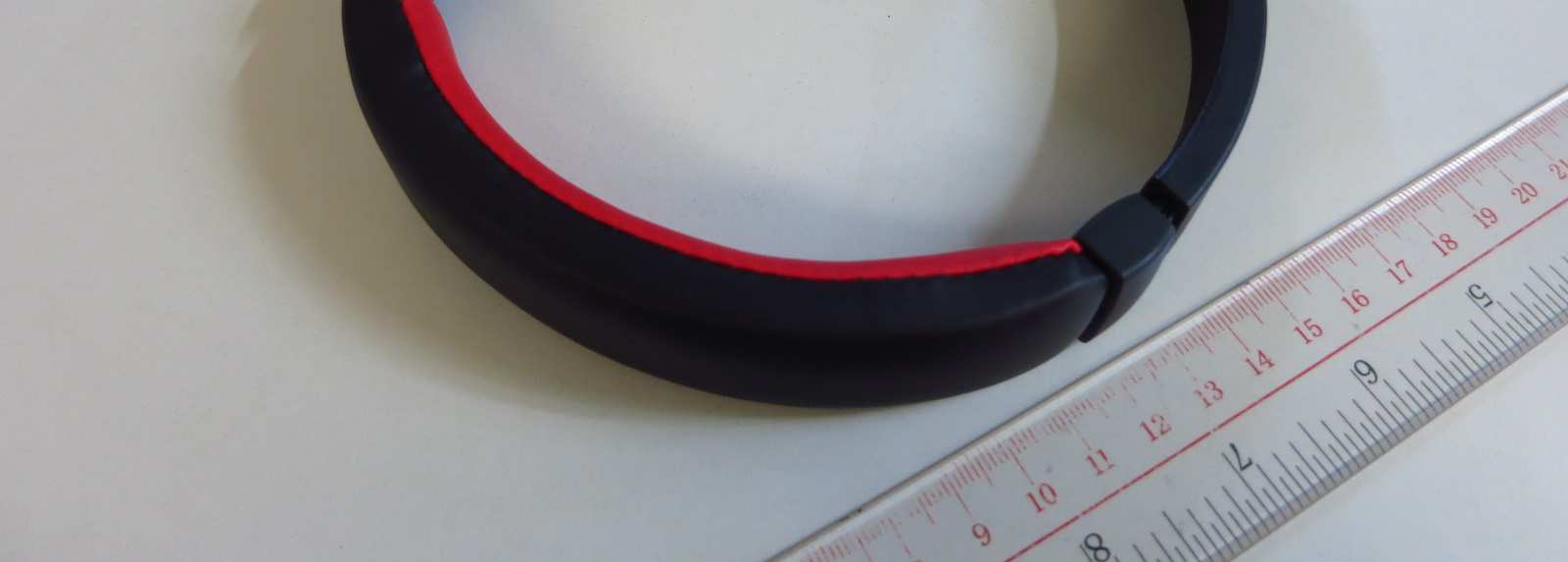

INTERTEK TESTING SERVICE Report No.: 14100916HKG-001 FCC ID: PB4-TDKWR680 IC: 6900A-TDKWR680 Equipment Photographs Model : WR680 (External)

5mm BC xxxxxxxxxxxxxx 5mm 7mm 5mm 14.39mm 4.67mm 15.8mm 5mm 16mm 5mm 15.5mm 9mm 15.5mm 75x75mm钢板 TDK BT289B-3 支臂 2014-6-23 最新 IC: 6900A-TDKWR680 FCC ID: PB4-TDKWR680 CAN ICES-3 (B)/NMB-3(B) XXXX-XXX-XXX-WR680 L Pantone 8401 C R 5mm 2.72mm xxx-xxxxxx 18mm 30mm 30mm 18mm BC Wireless Headphones Model: WR680 Voltage/ rating: DC 5V Current : 1A Made in China Complies with IDA standard xxxxxxxx IC: 6900A-TDKWR680 FCC ID: PB4-TDKWR680 CAN ICES-3 (B)/NMB-3(B) xxxxxxxxxxxxxx XXXX-XXX-XXX-WR680 xxx-xxxxxx Pantone 8401 C IC: 6900A-TDKWR680 FCC ID: PB4-TDKWR680 CAN ICES-3 (B)/NMB-3(B) xxxxxxxxxxxxxx XXXX-XXX-XXX-WR680 xxx-xxxxxx BC Wireless Headphones Model: WR680 Voltage/ rating: DC 5V Current : 1A Made in China Complies with IDA standard xxxxxxxx

INTERTEK TESTING SERVICE Report No.: 14100916HKG-001 FCC ID: PB4-TDKWR680 IC: 6900A-TDKWR680 Equipment Photographs Model: WR680 (Internal) INTERTEK TESTING SERVICE Report No.: 14100916HKG-001 FCC ID: PB4-TDKWR680 IC: 6900A-TDKWR680 Equipment Photographs Model: WR680 (Internal) INTERTEK TESTING SERVICE Report No.: 14100916HKG-001 FCC ID: PB4-TDKWR680 IC: 6900A-TDKWR680 Equipment Photographs Model: WR680 (Internal) INTERTEK TESTING SERVICE Report No.: 14100916HKG-001 FCC ID: PB4-TDKWR680 IC: 6900A-TDKWR680 Equipment Photographs Model: WR680 (Internal) INTERTEK TESTING SERVICE Report No.: 14100916HKG-001 FCC ID: PB4-TDKWR680 IC: 6900A-TDKWR680 Equipment Photographs Model: WR680 (Internal) INTERTEK TESTING SERVICE Report No.: 14100916HKG-001 FCC ID: PB4-TDKWR680 IC: 6900A-TDKWR680 Equipment Photographs Model: WR680 (Internal) INTERTEK TESTING SERVICE Report No.: 14100916HKG-001 FCC ID: PB4-TDKWR680 IC: 6900A-TDKWR680 Equipment Photographs Model: WR680 (Internal)

Technical Description The Equipment Under Test (EUT) is a Wireless Headphones. It can accept analog input source (3.5mm phone jack aux-in) and wireless Bluetooth device. The Bluetooth module in the EUT is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The audio signal is fed to earphones. The EUT is powered by 3.6VDC internal rechargeable battery. The internal battery can be charged via USB port (5VDC). The USB port is for charging only without PC connectivity. The NFC tag is a passive device (for Bluetooth pairing) as declared by the applicant. Bluetooth Module: Modulation Type: GFSK Antenna Type: Integral, Internal Frequency Range: 2402MHz - 2480MHz, 1MHz channel spacing, 79 channels Norminal Radiatred Field Strength : 98.8dBμV/m at 3m Production Tolerance : +/- 3dB Antenna gain : 0dBi The functions of main ICs are mentioned below: 1. Bluetooth Module U1 (F-3088): 1) U101 (BC57F687A05) acts as the 2.4GHz radio core of the Bluetooth module. 2) U4 (24C32) is 32kbit EEPROM for parameter setup for the Bluetooth module. 3) X1 provides system clock (oscillation frequency 26MHz) for U101. 4) FLT1 (DBF81F107-CSR) is balun and filter for 2.4GHz ISM band. 5) L3, L4, C14 act as antenna matching network. 2. Main Unit: 1) U3 (NXP203) is the 13.56MHz passive NFC tag for pairing Bluetooth device. 2) U2 (UM-TM57PA10) acts as MCU of charging circuit for the internal 3.6 V battery. Channel Frequency Table of Bluetooth Module Xin Zhong Xin Technology Co., Ltd. --------------------------------------------------------------------------------------------------------------------------------------------- Company：SHENZHENSHIXINZHONGXIN TECHNOLOGY CO., LTD. Tel ：0755-29179480/1/2，FAX: 0755-84736169 Address：F5, Block C, Zhuangbian Industrial Park, Hangcheng Rd,Xixiang Town, Bao’an District, Shenzhen City, Guangdong Province, China Website：www.c-chip.com.cn Bluetooth Module F-3088 User Manual 1．Specification: F-3088, independently developed by our company, is an intelligent wireless audio data transmission product. It is a wireless transmission scheme with low cost and high efficiency. Used the CSR BLUECORE5 chip, the module has high quality sound and compatibility, and the overall performance is more optimization. F-3088 Bluetooth Module uses the drive-free mode, users only need to put it access application products, electricity, connect the button, then can quickly wirelessly transmit the music and enjoy the fun of it. 2．Application: It is mainly used for short distance transmission, convenient to connect with notebook, Mobil phone, PDA and other Bluetooth devices. Then realize the wireless transmission for music. ※ Bluetooth Stereo headset ※ Hands-free Mobil phone ※ Bluetooth wireless transmission audio 3．Performance parameters: Type F-3088 Bluetooth standard Bluetooth V2.1+EDR Modulation Mode GFSK, 1Mbps, 0.5BT Ga…

Text truncated - open the document above for the full version.
