PB4-TDKA08Wireless Speaker

EN QUICK START GUIDE FR GUIDE DE DÉMARRAGE RAPIDE IT GUIDA RAPIDA ALL’AVVIAMENTO DE KURZANLEITUNG TROUBLESHOOTING Speaker won’t charge or turn on. • Slide the (battery) switch  to ON. • Make sure your battery is fully charged. Speaker won’t pair. • Move your speaker and Bluetooth device closer together. The maximum range is 33 ft. (10 m). • Press and hold the power button  for 3 seconds to make sure your speaker is in pairing mode. • Make sure your speaker battery is fully charged. • Make sure to select TREK Mini on your Bluetooth device. • Make sure your Bluetooth device is fully charged. Audio won’t play. • Turn up your Bluetooth/audio device’s volume to at least 50%. • If using the AUX jack , disconnect your audio cable, then reconnect it. SPECIFICATIONS • Dimensions (DxH): 3.09 x 2.76 in (78.5 x 70 mm) • Weight: 166g (0.37 lb) • Micro USB port: 5V @ 1A charge only • Speaker output power: 3W, 4 ohm RECHARGEABLE BATTERY NOTES • Each time you charge and discharge the battery (one charge cycle), the battery capacity slightly diminishes. Rechargeable batteries have a limited number of charge cycles and need to be replaced eventually. You may wish to replace your battery when, or before, the battery does not supply enough power to operate your device. • Proper battery disposal is essential from an environmental and safety point of view. Putting any battery directly in the trash will harm the environment. Do not incinerate. • If you do not plan on using the battery for a month or more, slide the battery switch  to OFF and store your speaker in a clean, dry, cool place away from heat and metal objects. Rechargeable batteries will self-discharge during storage; remember to recharge the batteries every three months and before use. If the battery has not been charged for more than 4-6 months, perform a couple of full charge/discharge cycles to improve battery capacity. • It is recommended to charge the batteries for more than eight hours before rst use. RECHARGEABLE BATTERY REPLACEMENT If the battery does not supply enough power, visit http://support.tdkperformance.com for battery replacement instructions. FOR MORE INFORMATION http://support.tdkperformance.com/TREK-A08 EU Compliance Statement – Imation Corp. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the EU Directive. A copy of the EU Declaration of Conformity is available online at https://sup- port.tdkperformance.com TREK is a trademark of Imation Corp. The TDK Life on Record Logo is a trademark of TDK Corporation and is used under license. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Imation Corp. is under license. The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and other countries. All other trademarks and logos are property of their respective owners. MINI WIRELESS SPEAKER | ENCEINTE SANS FIL ALTOPARLANTE WIRELESS | WIRELESS-LAUTSPRECHER ALTAVOZ INALÁMBRICO | BEZPRZEWODOWY GŁOSNIK ALTIFALANTE SEM FIOS | BEZDRÁTOVÝ REPRODUKTOR A08 EN 1 Bluetooth LED (blue) 2 Power button 3 Charge LED (red) 4 CHARGE port 5 AUX jack 6 Battery switch 7 Cover FR 1 DEL Bluetooth (bleue) 2 Bouton marche/arrêt 3 DEL de charge (rouge) 4 Port de CHARGE 5 Prise AUX 6 Interrupteur de batterie 7 Couvercle IT 1 LED Bluetooth (blu) 2 Pulsante di alimentazione 3 LED di carica (rosso) 4 Connettore di carica (CHARGE) 5 Jack ausiliario (AUX) 6 Interruttore batteria 7 Coperchio DE 1 Bluetooth-LED (blau) 2 Netztaste 3 Lade-LED (rot) 4 Ladebuchse (CHARGE) 5 AUX-Anschluss 6 Batterieschalter 7 Deckel TURNING ON SPEAKER Slide the (battery) switch to ON, then press the power button . Note: You may need to charge your speaker before using it for the rst time. BLUETOOTH ® PAIRING 1 Turn on your speaker. To enter pairing mode, hold down power button  for 3 seconds until blue LED  blinks quickly and tone sounds. Note: If your speaker exits pairing mode (blue LED  blinks slowly), press and hold the power button  for 3 seconds. The blue LED  blinks quickly and tone sounds. 2 On your Bluetooth device, turn on Bluetooth, then search for available devices. 3 Select TREK Mini on your Bluetooth device. The blue LED  lights solid and a tone sounds when your speaker connects. CONNECTING WITH AN AUDIO CABLE Connect a 3.5mm audio cable (not included) from your speaker’s AUX jack  to your audio device. Note: To continue playing Bluetooth audio while connected with an audio cable, press  (play) on your Bluetooth device. CONTROLLING AUDIO Use your Bluetooth/audio device to control volume and playback. When nished, slide the (battery) switch  to OFF. Note: When connected to a phone, audio pauses during a call, then resumes playback when the call ends. CHARGING SPEAKER Slide the (battery) switch  to ON, connect the USB cable to your speaker’s CHARGE port  and a USB power source. The charge LED  lights red while charging, then turns o when fully charged. OFF/ON RGE A UXOFF Bluetooth MY DEVICES Bluetooth ON TREK Mini Bluetooth MY DEVICES Bluetooth ON A08 Bluetooth MY DEVICES Bluetooth ON TREK Mini CHARGE A UXOFF/ON 2 2 1 1 1 1 5 5 6 6 6 4 3 2 6 2 LAUTSPRECHER EINSCHALTEN Den (Batterie)-Schalter auf ON (EIN) stellen und dann die Netztaste drücken. Hinweis: Vor dem erstmaligen Gebrauch muss der Lautsprecher evtl. geladen werden. BLUETOOTH-KOPPLUNG 1 Lautsprecher einschalten. Zum Aufrufen des Kopplungsmodus die Netztaste 3 Sekunden lang gedrückt halten, bis die blaue LED in rascher Folge blinkt und ein akustisches Signal ertönt. Hinweis: Wenn sich der Lautsprecher nicht mehr im Kopplungsmodus bendet (blaue LED blinkt langsam), die Netztaste drücken und 3 Sekunden lang gedrückt halten. Die blaue LED blinkt in rascher Folge und es ertönt ein akustisches Signal. 2 Auf dem Bluetooth-Gerät die Bluetooth-Funktion einschalten und nach verfügbaren Geräten suchen. 3 Auf dem Bluetooth-Gerät TREK Mini berühren…

Text truncated - open the document above for the full version.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. ATTENTION: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. ATTENTION: Users of this product are cautioned not to make modifications or changes that are not approved by Imation Corp. Doing so may void the compliance of this product and may result in the loss of the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. • The rating information is located at the bottom of the apparatus. 1. Read these Instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all Instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. The AC mains plug is used as the power disconnect device and it should remain readily accessible and operable during intended use. In order to completely disconnect the apparatus from power, the mains plug should be completely removed from the AC outlet socket. 16. CAUTION: To reduce the risk of fire or explosion, do not expose batteries to excessive heat such as sunshine, fire or other heat sources. This Class B digital apparatus complies with Canadian ICES-003. SURGE PROTECTORS: It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT AND FULLY INSERT. This Class B digital apparatus complies with European Union CE – EMC Directive (2004/108/EC) and European Union CE – Low Voltage Directive (2006/95/EC). This Bluetooth module is in compliance with the essential requirements and other relevant provisions of R&TTE Directive (1999/5/EC). This product is marked with the CE logo and uses radio frequency bands that are harmonized throughout the European Community. IMPORTANT SAFETY INSTRUCTIONS MISE EN GARDE : POUR RÉDUIRE LES RISQUES DE CHOC ÉLECTRIQUE, NE PAS RETIRER LE COUVERCLE (OU L’ARRIÈRE). AUCUNE PIÈCE À L’INTÉRIEUR NE PEUT ÊTRE RÉPARÉE PAR L’UTILISATEUR. CONFIEZ TOUTE RÉPARATION À UN TECHNICIEN QUALIFIÉ. TENSION DANGEREUSE : L’éclair avec le symbole de la pointe de flèche dans un triangle équilatéral est destiné à alerter l’utilisateur de la présence de tension dangereuse non isolée dans le boîtier du produit. Elle peut être suffisamment importante pour constituer un risque de décharge électrique pour les personnes à proximité. ATTENTION : Le point d’exclamation dans un triangle équilatéral est destiné à alerter l’utilisateur de la nécessité de respecter les consignes d’utilisation et de maintenance (réparation) fournies dans la docu…

Text truncated - open the document above for the full version.

Date (04/17/2015) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: PB4-TDKA08 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, we Imation Corp. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation Imation Corp. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: Internal Photos External Photos User Manual Test Set-up Photographs Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Senior Compliance Engineer: Lawrence Lai Telephone Number: 852-2161-2192 E-mail: [email protected]

Date (4/17/2015) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Imation Corp. 1 Imation Way, Oakdale, MN 55128, United States TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhihe ng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District 518052, Shenzhen, CHINA Felix Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C 862 because of conviction for possession or distribution of controlled substance. This authorization is application to product: Type of equipment: Wireless Speaker Model name: A08 FCC ID: PB4-TDKA08 This authorization expires one year from the current date. Yours sincerely, Senior Compliance Engineer: Lawrence Lai Telephone Number: 852-2161-2192 E-mail: [email protected]

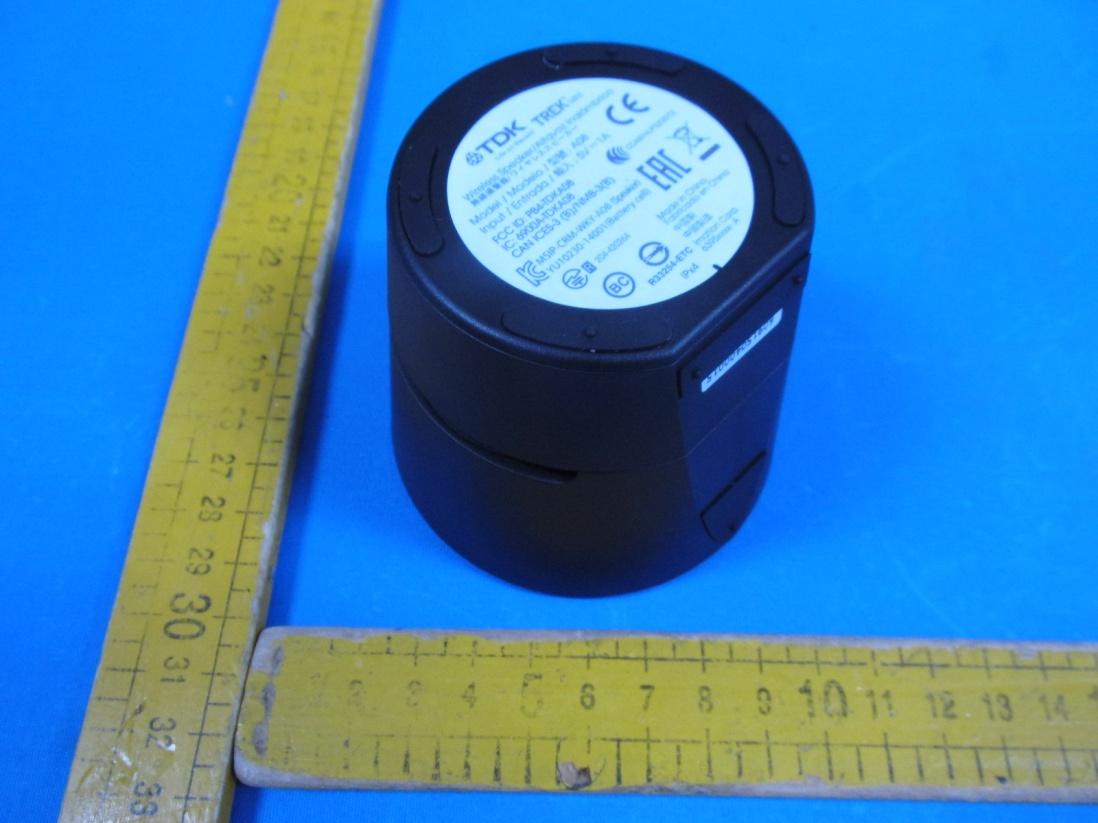

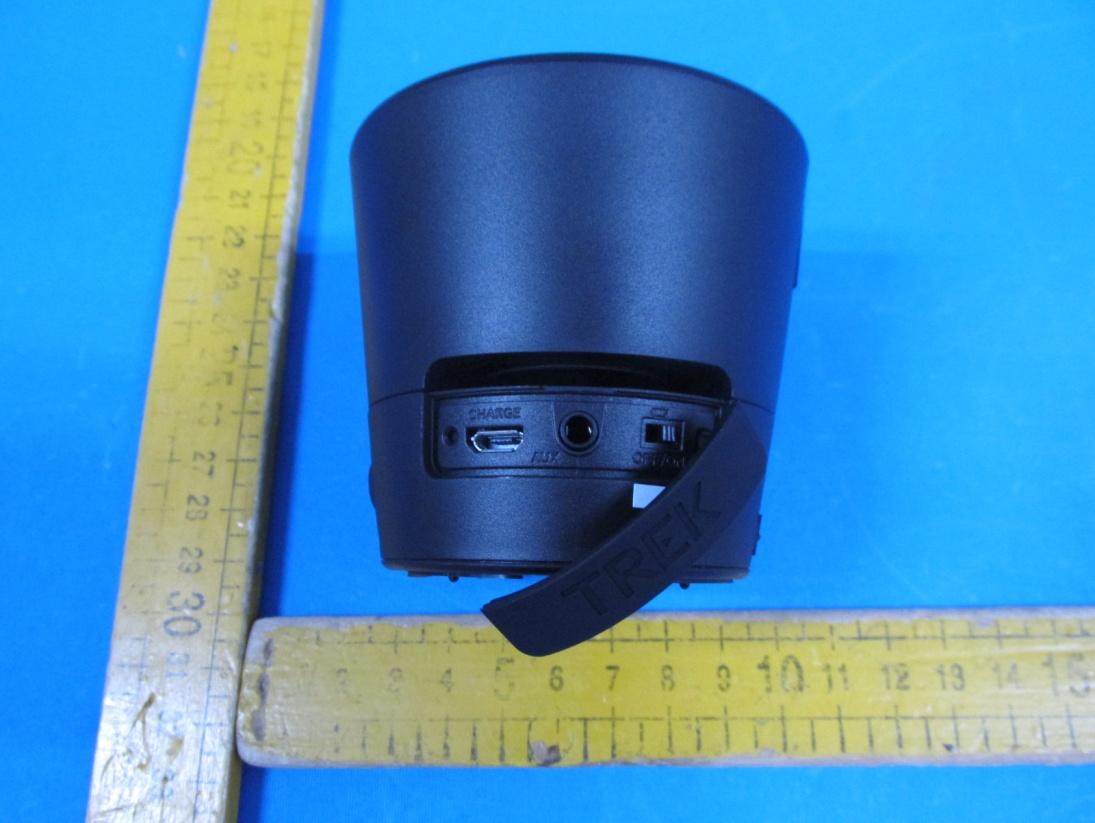

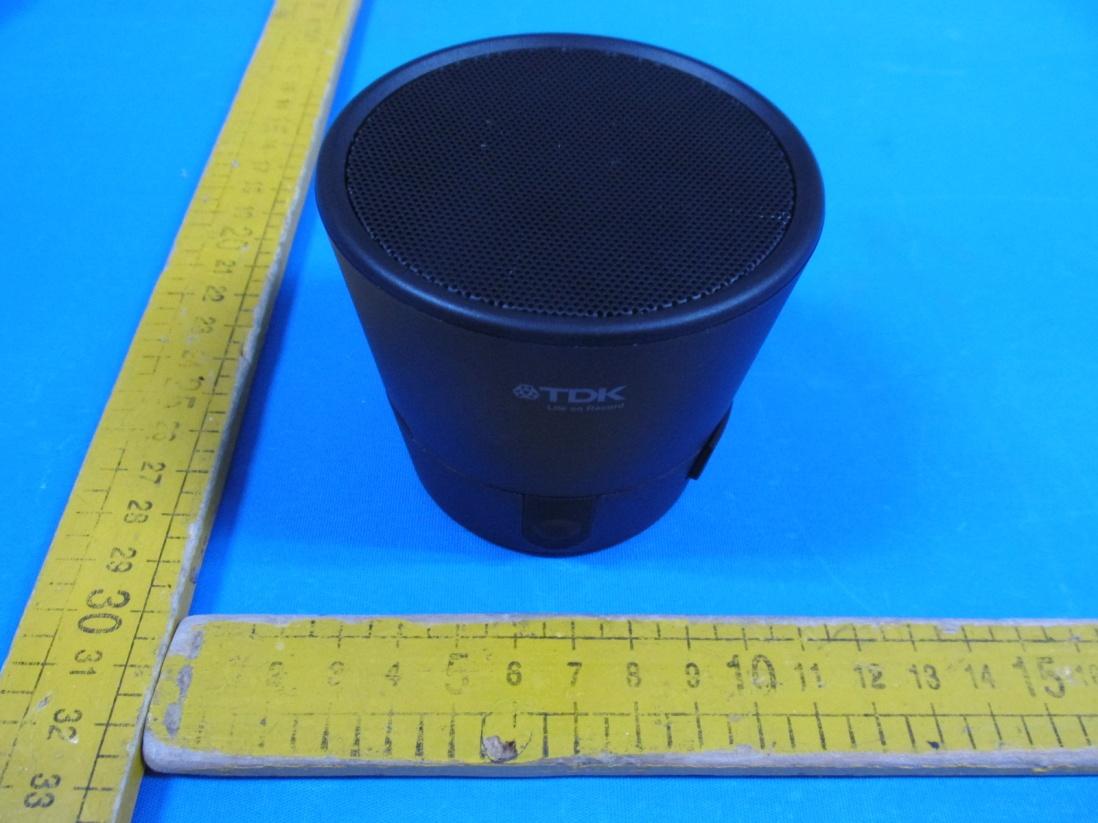

External Photo

MINI Model / Modelo / : A08 Input / Entrada / : 5V 1A FCC ID: PB4-TDKA08 IC: 6900A-TDKA08 CAN ICES-3 (B)/NMB-3(B) Wireless Speaker/Altavoz Inalámbrico 無線揚聲器/ R33254-ETC 204-xxxxxx CCAB14LPxxxxxx Made in China Fabricado en China 63953496A | White Imation Corp. IPx4 ERAC000204 TDK Reg Label - A08 - Black 63953496 Linnea Wagner / Oakdale / [email protected] A CHINA 4/15/2015 Matte Finish Cut Line Bleed

Label Location of A08 Label location

Internal Photo of A08 BT Antenna

Jiangsu TÜV Product Service Ltd. – Shenzhen Branch 6 floor, H Hall, Culture Creative Park, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 RF exposure Estimation 1. Introduction The EUT is Bluetooth Speaker, which contain Bluetooth function inside. 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to§15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 Mobile Portable RF Exposure v05r01, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. 3. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 Conducted Power + tune up tolerance =6.71dBm= 4.69mW Distance = 10 mm f = 2.441 GHz [4.69/10] * SQRT (2.441) =0.732 0.732 ≤ 3.0 Therefore, excluded from SAR testing. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Reviewed by: Prepared By: Phoebe Hu/EMC Project Manager Felix Li/EMC Project Engineer Date: 2015-04-30 Date: 2015-04-30

Report Number: 68.950.15.064.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 1 of 43 FCC - TEST REPORT Report Number : 68.950.15.064.01 Date of Issue: May 5, 2015 Model : A08 Product Type : Wireless Speaker Applicant : Imation Corp. Address : 1 Imation Way, Oakdale, MN 55128, USA Production Facility : Dongguan Tai Sing Audio Technology Limited Address : Tai Sing Industrial Road, Bai Zhou Bian Village, Dong Cheng, Dongguan City, Guangdong Province P.R China 523113 Test Result :  Positive  Negative Total pages including Appendices : 43 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.950.15.064.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Building 12&13, Zhiheng Wisdomland Business Park, Nantou Checkpoint Road 2, Nanshan District, Shenzhen City, 518052, P. R. China Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 Page 2 of 43 1 Table of Contents 1 Table of Contents ................................................................................................................................................................... 2 2 Details about the Test Laboratory .......................................................................................................................................... 3 3 Description of the Equipment Under Test ............................................................................................................................. 4 4 Summary of Test Standards ................................................................................................................................................... 5 5 Summary of Test Results ....................................................................................................................................................... 6 6 General Remarks .................................................................................................................................................................... 7 7 Test Setups ............................................................................................................................................................................. 8 8 Systems test configuration ..................................................................................................................................................... 9 9 Technical Requirement ........................................................................................................................................................ 10 9.1 Conducted Emission.................................................................................................................................................... 10 9.2 Conducted peak output power ..................................................................................................................................... 13 9.3 20 dB bandwidth and 99% Occupied Bandwidth........................................................................................................ 15 9.4 Carrier Frequency Separation...................................................................................................................................... 22 9.5 Number of hopping frequencies .................................................................................................................................. 25 9.6 Dwell Time ................................................................................................................................................................. 27 9.7 Spurious RF conducted emissions ............................................................................................................................... 30 9.8 Band edge testing ........................................................................................................................................................ 34 9.9 Spurious radiated emissions for transmitter ................................................................................................................ 39 10 Test Equipment List ............................................................................................................................................................. 42 11 System Measurement Uncertainty ....................................................................................................................................... 43 Report Number: 68.950.15.064.01 EMC_SZ_FR_21.00 FCC Release 2014-03-20 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Bui…

Text truncated - open the document above for the full version.

Test setup photo of A08 1. Conducted emission 2. Radiated emission(Below 1G) Radiated emission(above 1G)
